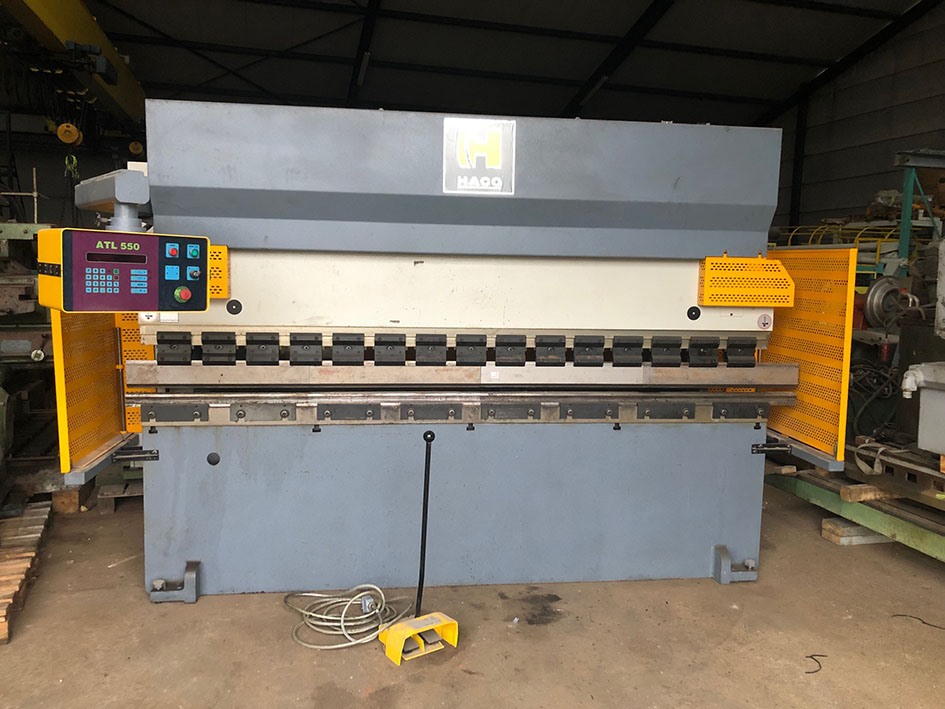

Hydraulische Abkantpressen Haco PPM 135 ton x 3100 mm CNC

Der Produkt ist zu Ihren Favoriten hinzugefügt

Technische Informationen

Kapazität x Max arbeitslänge135 ton x 3100 mm
Hinten anschlag:Manu(1)-Elektr-(2)CNC(3)CNC
Durchgang zwischen Ständer2550 mm
Max Stossel120 mm
Abstand zwichen Tisch -- Stössel325 mm
Ausladung250 mm
Tischbreite220 mm
SchlieBschnelligkeit70 mm/sec
Arbeitsschnelligkeit7 mm/sec
Zurücklaufschnelligkeit60 mm/sec
Elektromotor (kraft)10 HP
Länge L -- R3270 mm
Tieffe F -- H1550 mm
Höhe2240 mm
Gewicht8 ton

Zusätzliche Informationen

3 axes: Y1 / Y2 / X
Typ/Modell: PPM 135 ton x 3100 mm CNC
Stocknummer: O.01 10739
Hauptkategorie: [O] Abkantpressen, Walzmaschinen, Richtmaschinen, Lasermaschinen und Brennschneidmaschinen, Stanzmaschinen & Profilierungsanlagen
Unterkategorie: [O.01] Hydraulische Abkantpressen
Markenname: Haco

Stocknummer: O.01 10739
