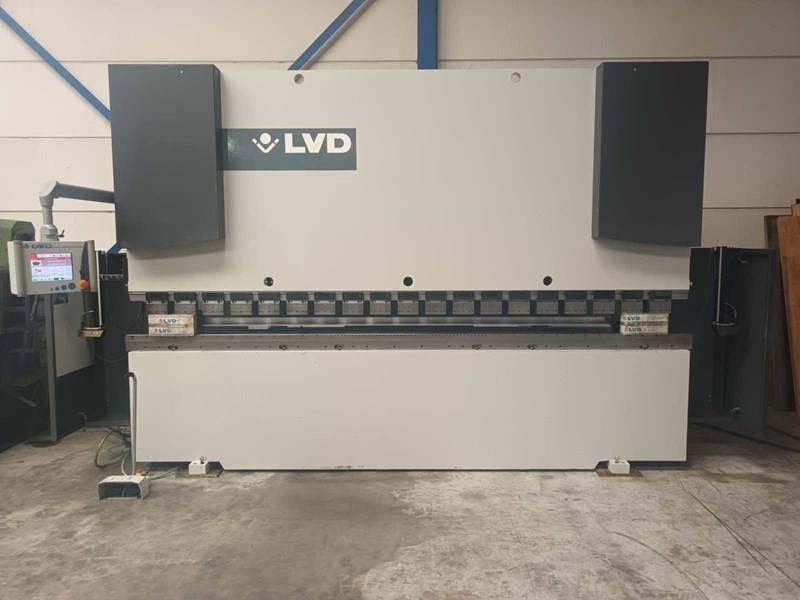

LVD PPS-TS 200 ton x 4100 mm CNC

Der Produkt ist zu Ihren Favoriten hinzugefügt

» Fragen Sie ein individuelles Angebot

Technische Informationen

Kapazität x Max arbeitslänge200 ton x 4100 mm
Hinten anschlag:Manu(1)-Elektr-(2)CNC(3)CNC
SteuerungCadman Express
Durchgang zwischen Ständer3150 mm
Max Stossel200 mm
Abstand zwichen Tisch -- Stössel425 mm
Ausladung300 mm
SchlieBschnelligkeit80 mm/sec
Arbeitsschnelligkeit9 mm/sec
Zurücklaufschnelligkeit90 mm/sec
Elektromotor (kraft)23 kW
Länge L -- R5100 mm
Tieffe F -- H1900 mm
Höhe2850 mm
Gewicht12 ton

Zusätzliche Informationen

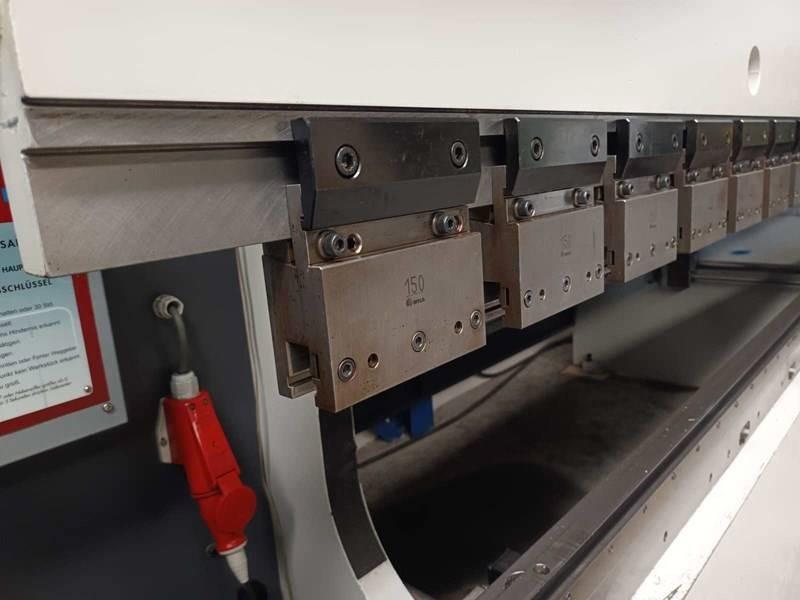

Y1 / Y2 / X
Lasersafe security

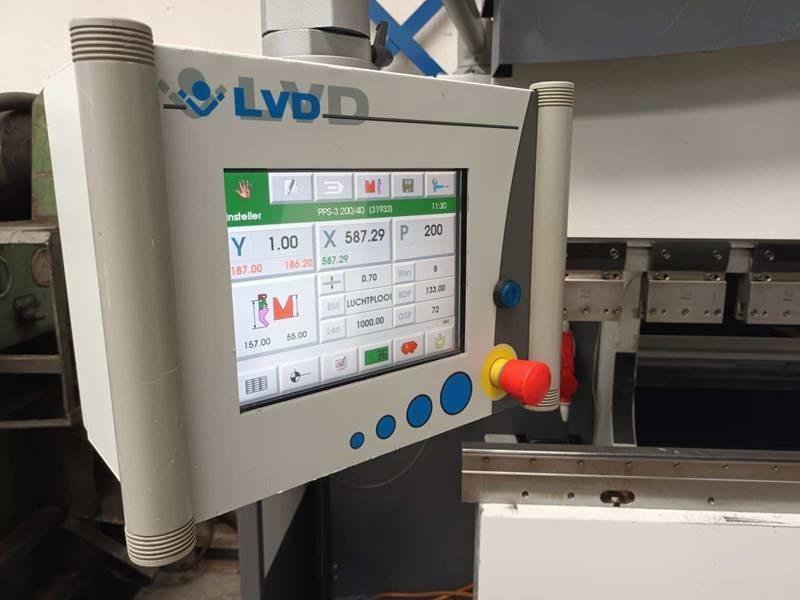

Cadman Express touchscreen control
Amada upper tooling as standard
Willa upper adaptorclamps included as option

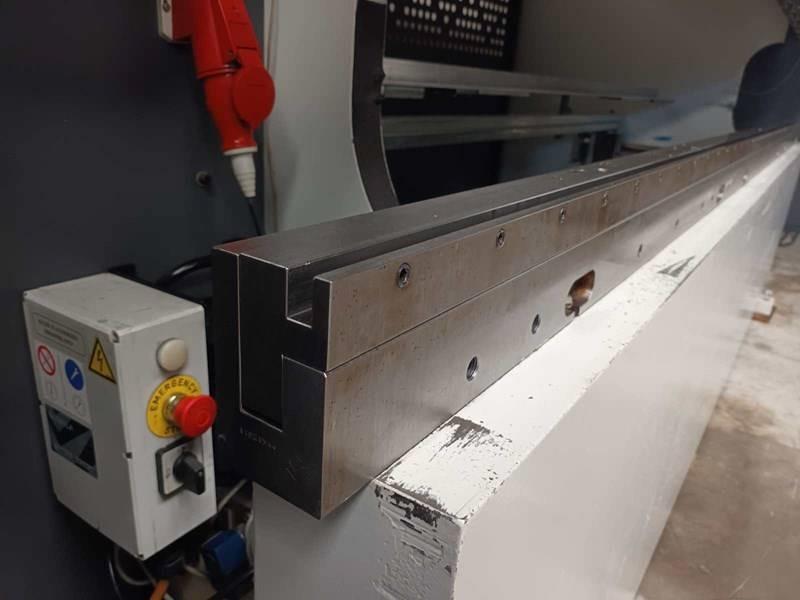

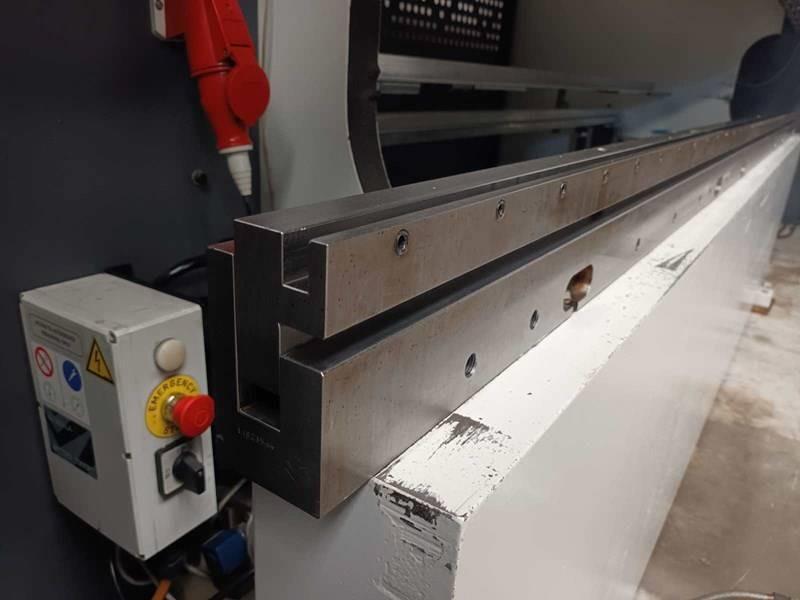

Lower flattening die
Typ/Modell: PPS-TS 200 ton x 4100 mm CNC
Stocknummer: O.01 12920
Hauptkategorie: [O] Abkantpressen, Walzmaschinen, Richtmaschinen, Lasermaschinen und Brennschneidmaschinen, Stanzmaschinen & Profilierungsanlagen
Unterkategorie: [O.01] Hydraulische Abkantpressen
Markenname: LVD
