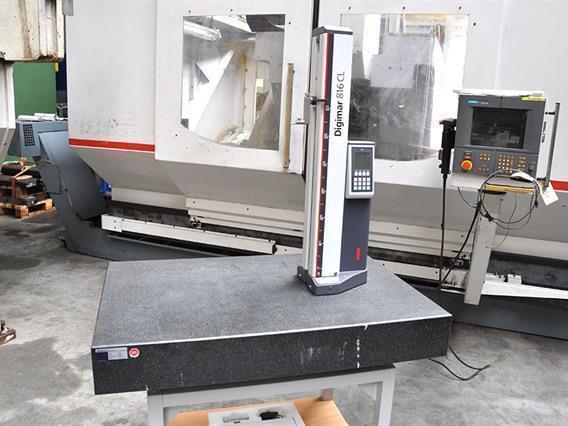

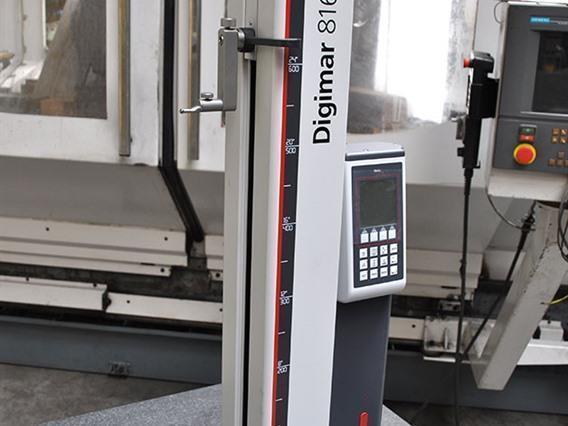

Mahr Digimar 816 CL

Zusätzliche Informationen

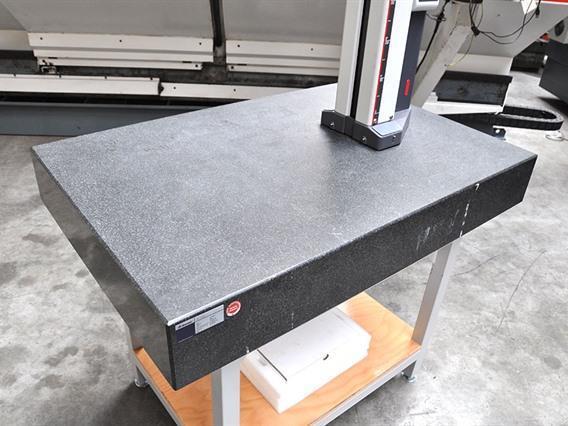

  • Height measuring instrument + marble table

    Measuring range mm: 0 > 600 mm
    Resolution: 0.001 mm / 0.01 mm
    Error limit: (2.8+L/300) L in mm
    Repeatability bores: 3 µm
    Repeatability plane: 2 µm
    Perpendicularity error in µm: 20 µm
    Measuring force (N): 1.0 +/- 0.2 N
    Product weight: 30 kg
    Standard Data interface: Opto RS-232C / USB / wireless

    > Excellent accuracy and reliabilty due to the optical incremental measurement system with the double reader head
    > Dynamic probing system enabling high repeatability
    > Air bearings system for light and smooth movement
    > Precise measuring head on stainlees steel guideways
    > Motorized measuring carriage simplifies measurement runs
    > Temperature compensation with an integrated temperature sensor
    > Probe constant remains after the instrument is switched off
    > Integrated rechargeable battery with a long operating time span for power source independent measurement

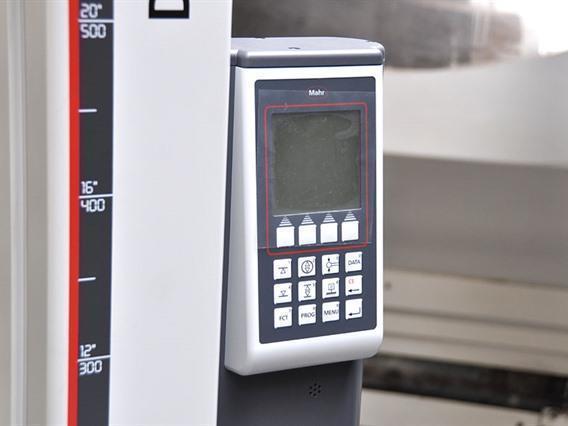

    Operating and display unit
    > Easy to read backlit graphic LCD
    > Clear function keys
    > Language-neutral operator guidance with self-explanatory symbols
    > Possible to set additional zero points
    > Memory can store up to 99 measured values



  • Typ/Modell: Digimar 816 CL
  • Stocknummer: W.01 12497
  • Hauptkategorie: [W] Messmaschinen & Testmaschinen
  • Unterkategorie: [W.01] Senkrechte Digitalisier- & koordinaten messgerate
  • Markenname: Mahr

Stocknummer: W.01 12497
