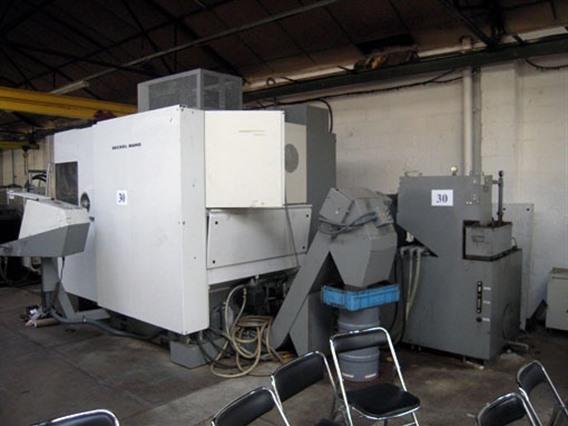

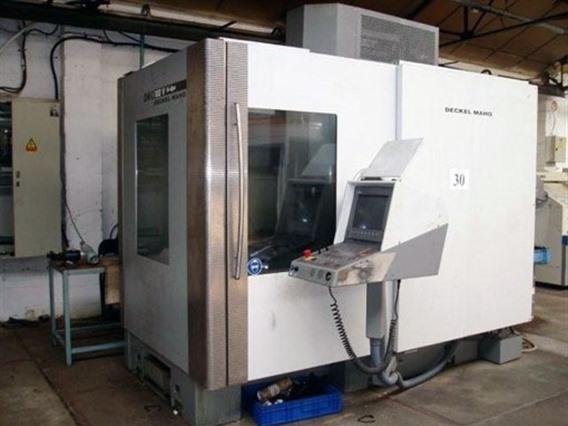

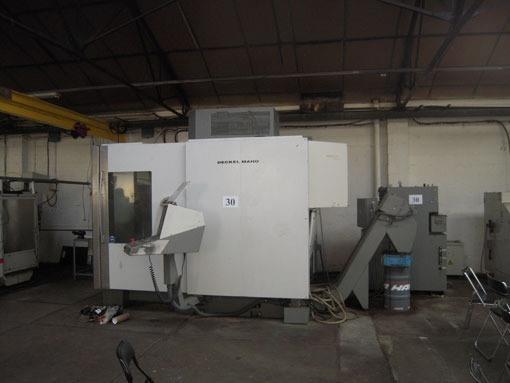

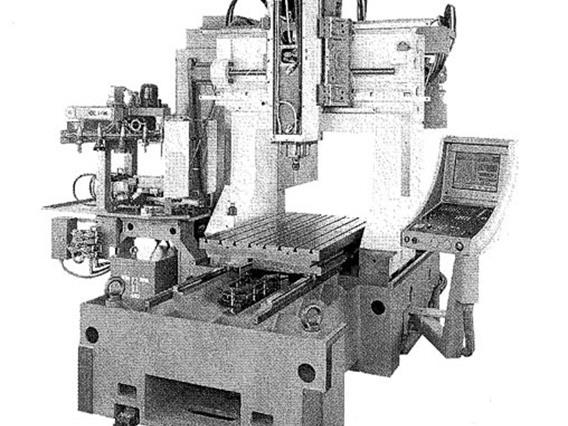

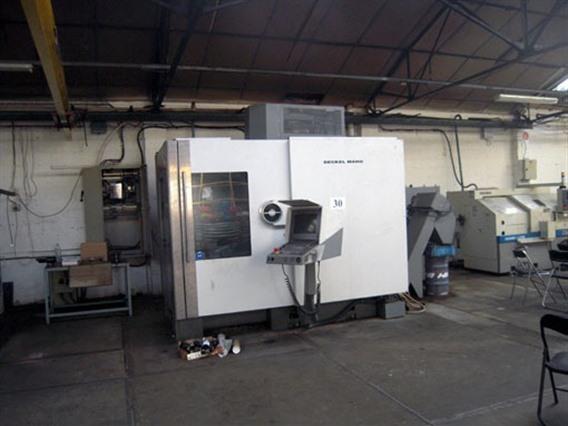

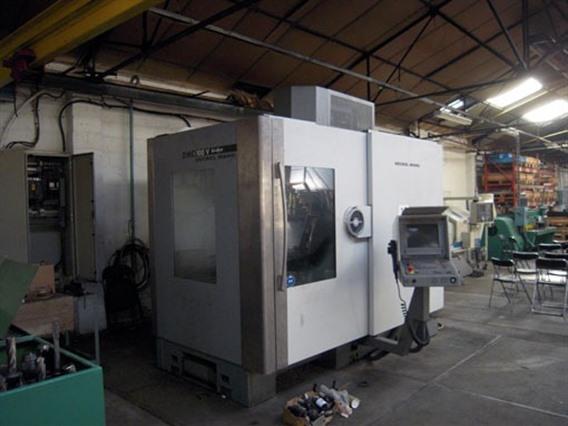

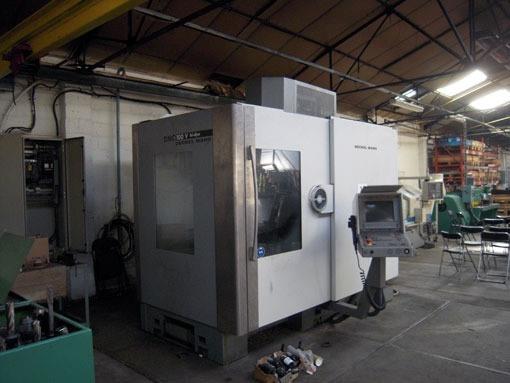

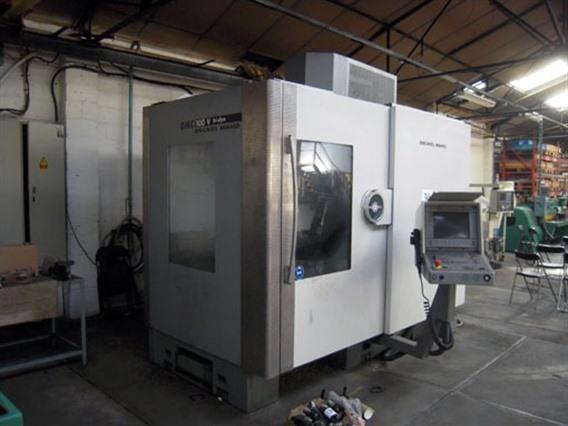

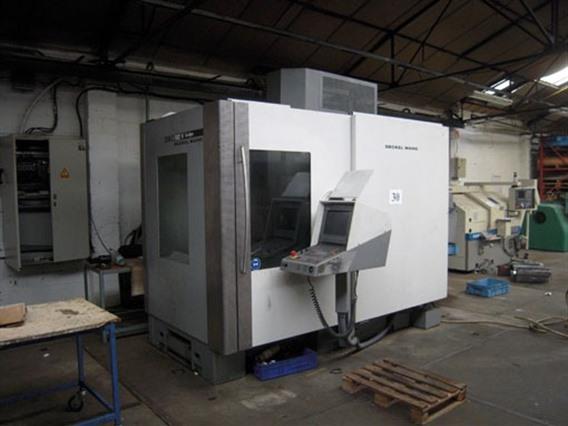

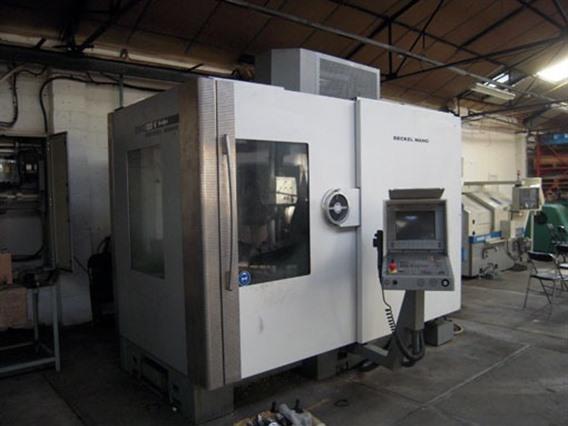

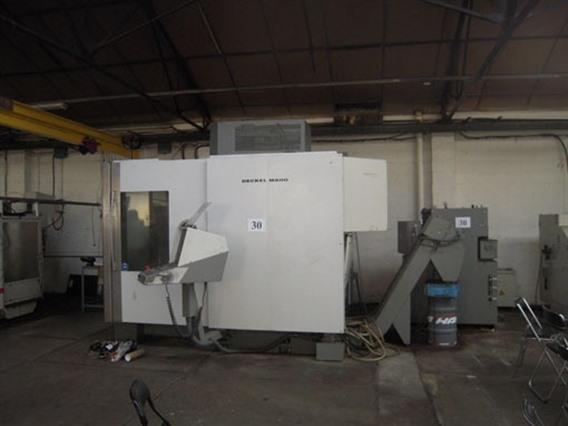

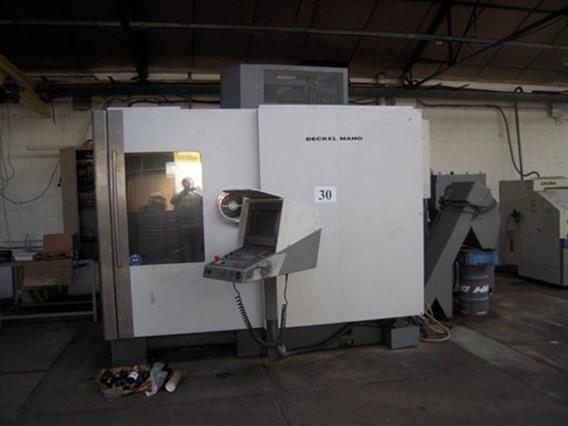

Universal-frasmaschinen & CNC Deckel-Maho DMG DMC 100 V Hi-Dyn
Technische Informationen
- Max vorschub im längsrichtung X-achse1000 mm
- Max vorschub in querrichtung Y-achse800 mm
- Max vorschub im höhe Z-achse500 mm
- Max höhe werkstück700 mm
- Leistung auf spindel15 kW

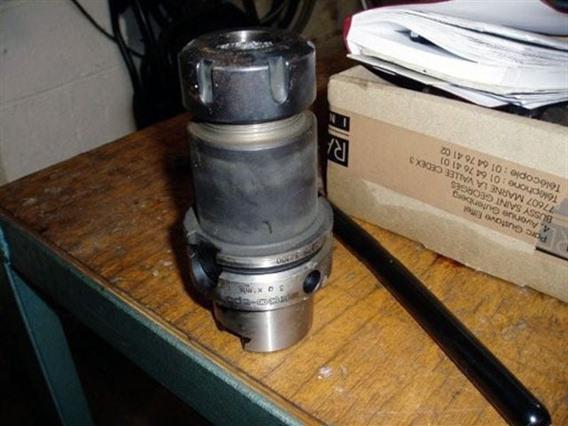

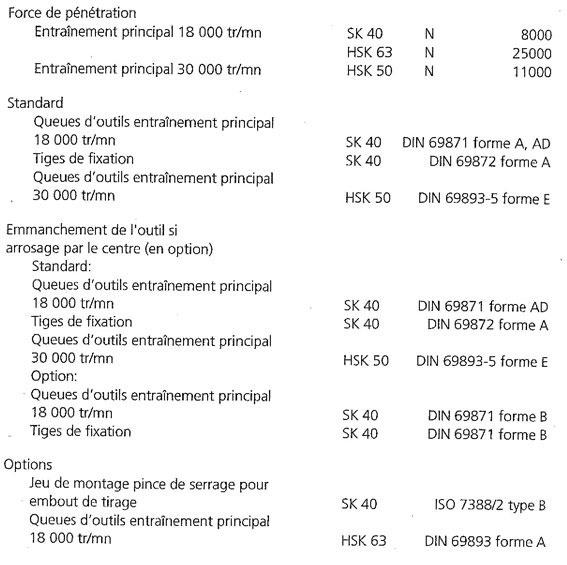

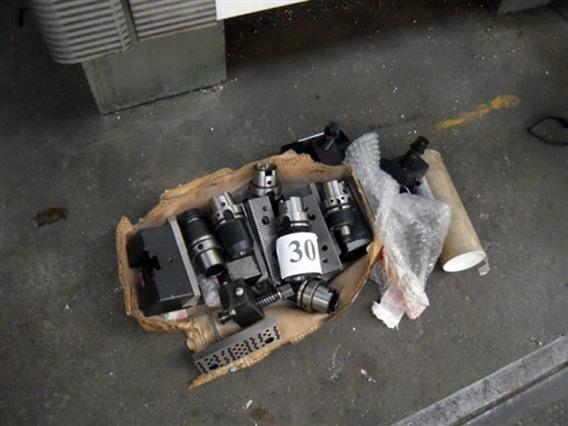

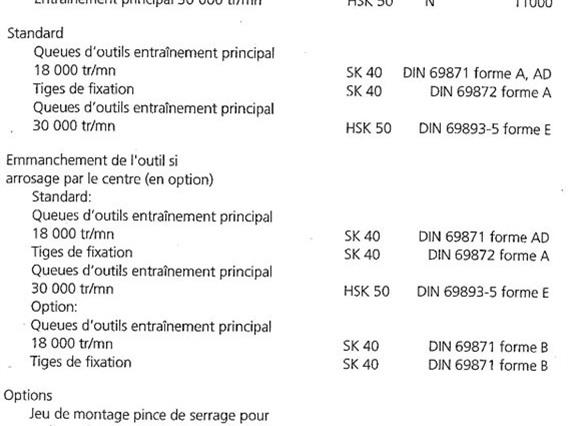

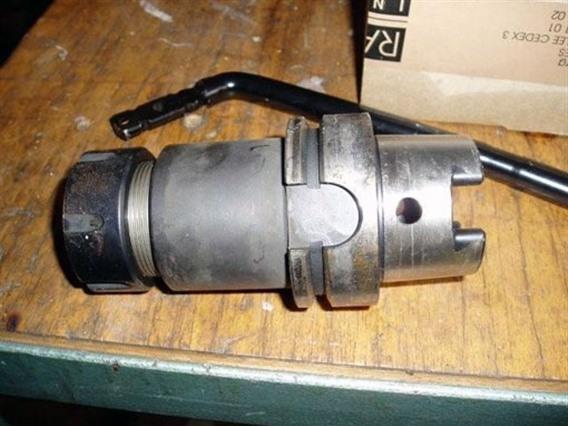

- Fräsekopf aufnahmeHSK-A 63
- Geschwindigkeitenmax 18000 rpm

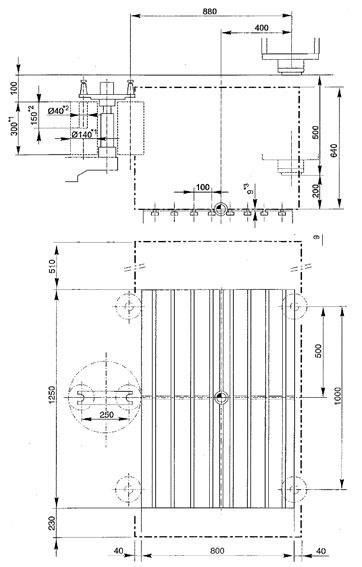

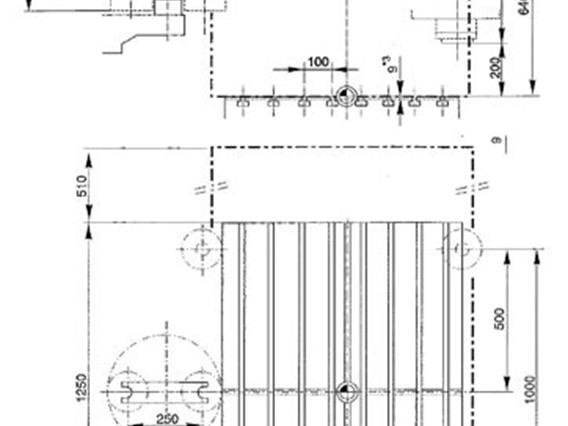

- Tisch abmessungen1250 x 800 mm

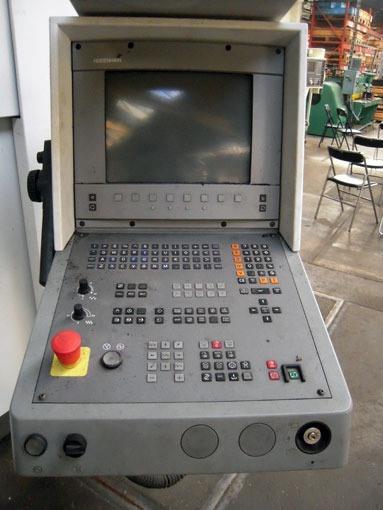

- SteueringHeidenhain TNC 426

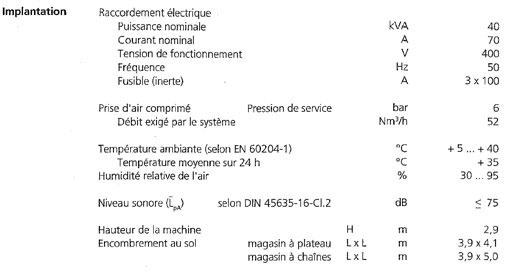

- Spannung3 x 380 V

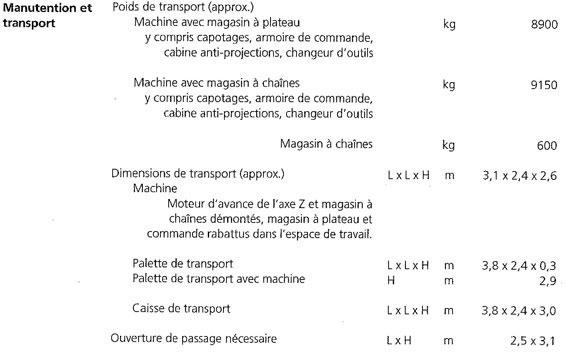

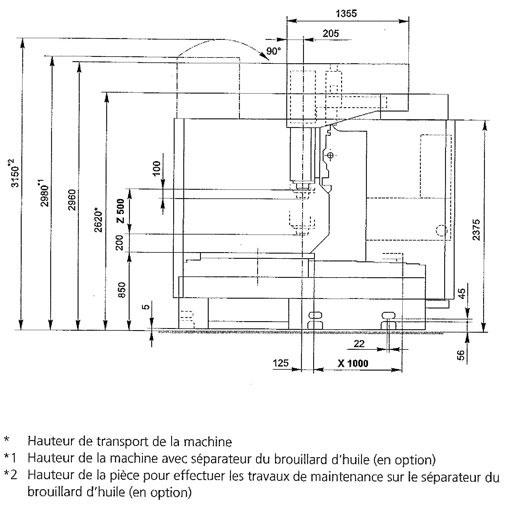

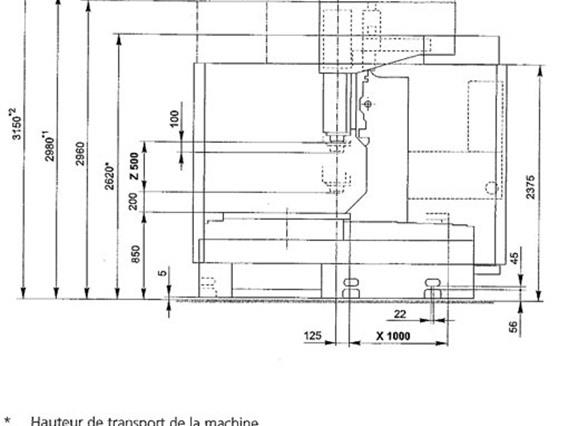

- Länge L -- R3100 mm
- Tieffe V -- H2400 mm
- Höhe2600 mm

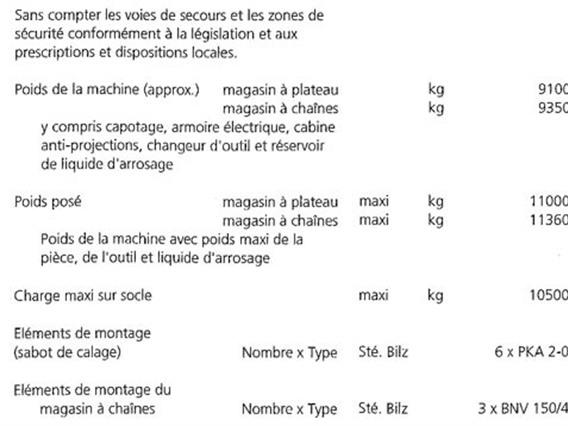

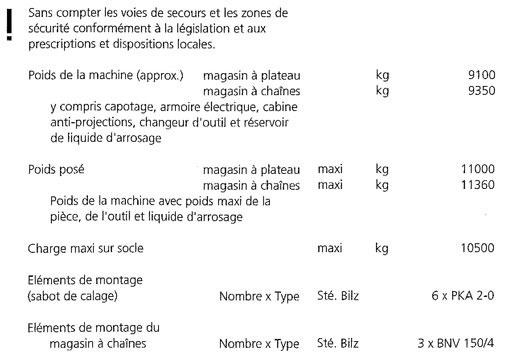

- Gewicht9100 kg
- Külh-systeemyes
- Gerätschafsthalteryes

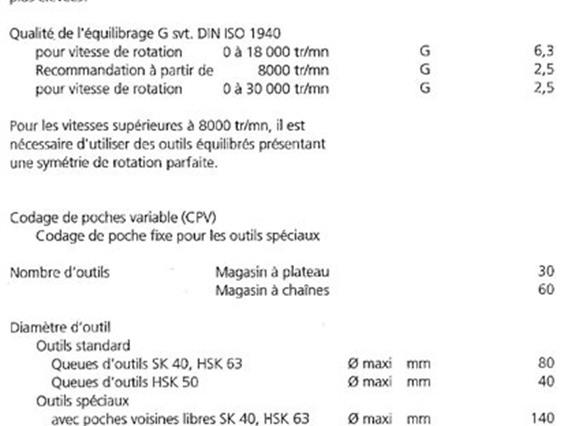

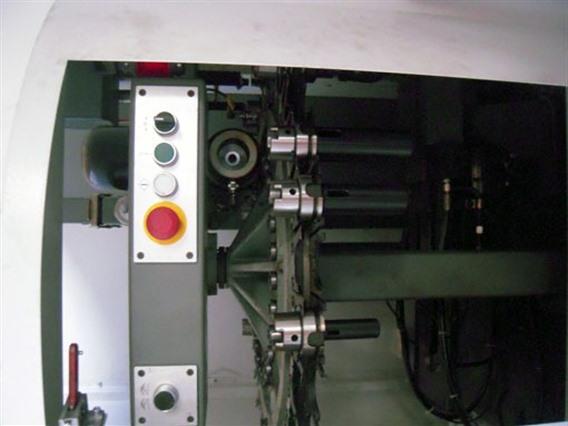

- Anzahl geräte30
Zusätzliche Informationen

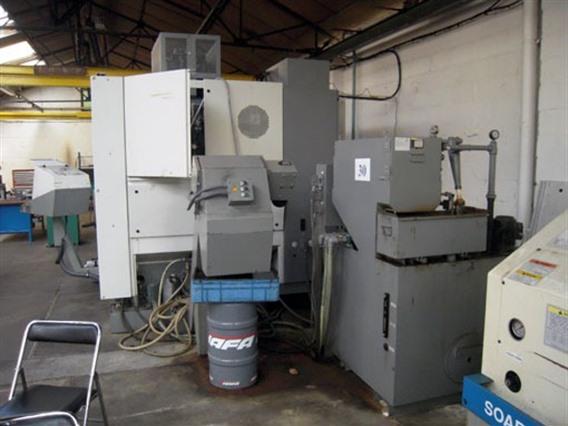

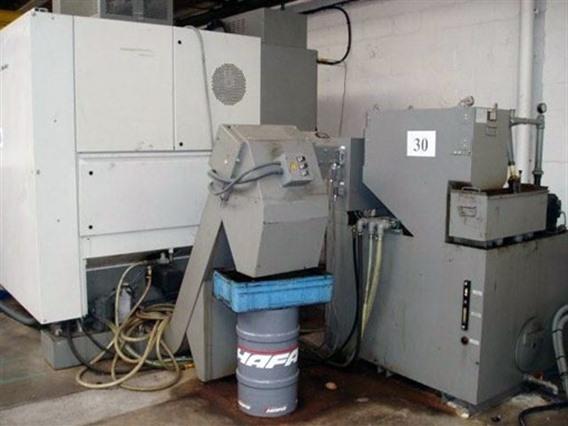

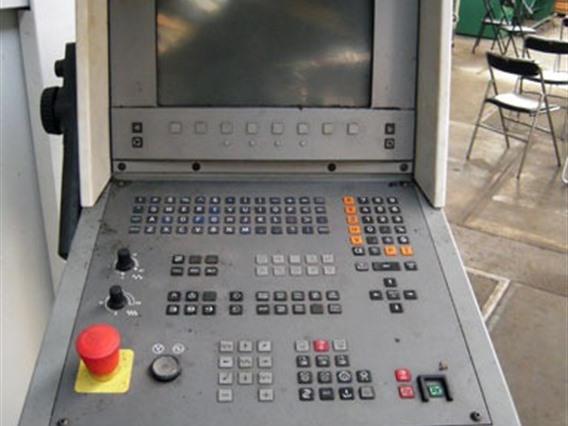

- Splash guard with Top Top Splash guard cabin closed Direct path measuring system External air blast cooling External air blast cooling through 2 pipes, selectable by M-function or softkey (coolant or air selectable) Internal coolant supply through the centre of spindle form A-D, (23 l/min at 40 bar / 6.1 gal/min at 580 psi), total tank capacity 940 l / 248.3 gal Spray gun with bed flushing Rotoclear inspection window Oil mist separator Machine working space extraction Manual control panel Chip conveyor Ethernet Interface TNC 3 x 380 V - 90A

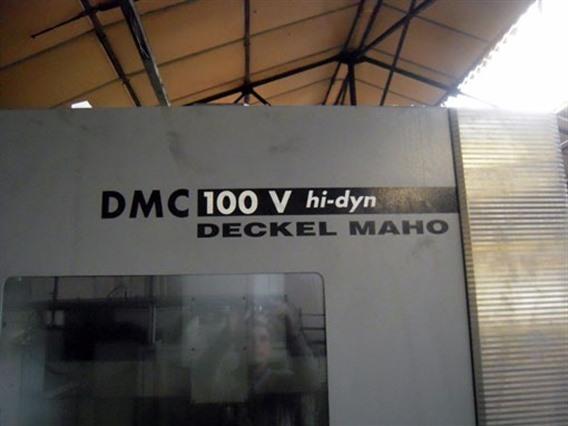

- Typ/Modell: DMC 100 V Hi-Dyn
- Stocknummer: B.01 4772 *08
- Hauptkategorie: [B] Frasmaschinen
- Unterkategorie: [B.01] Universal-frasmaschinen & CNC
- Markenname: Deckel-Maho DMG
