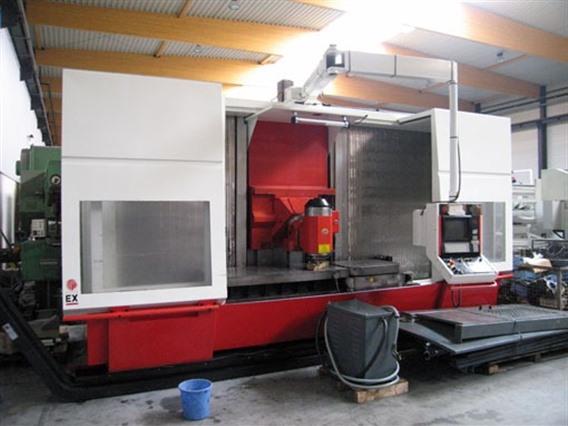

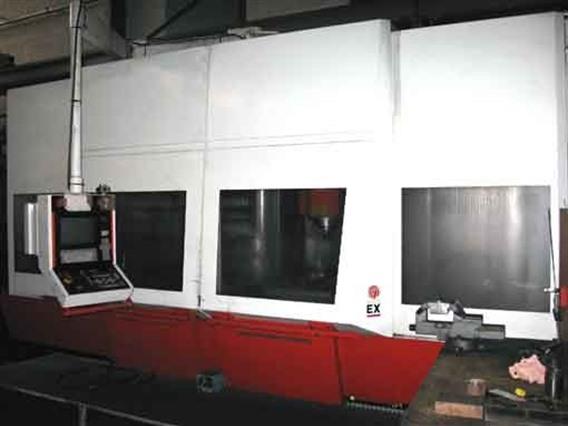

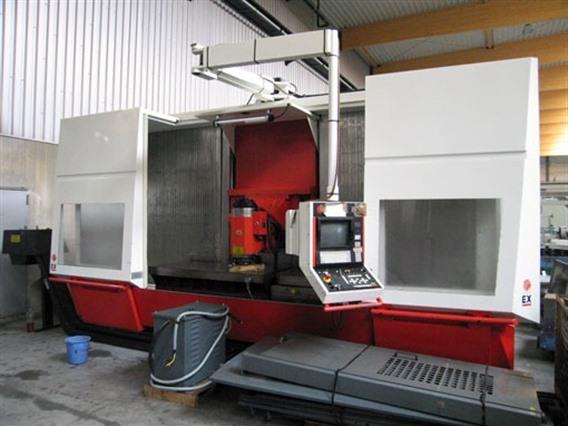

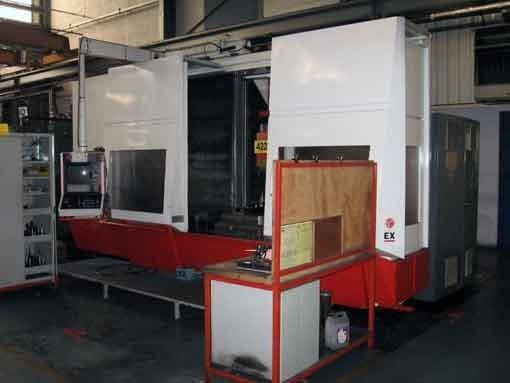

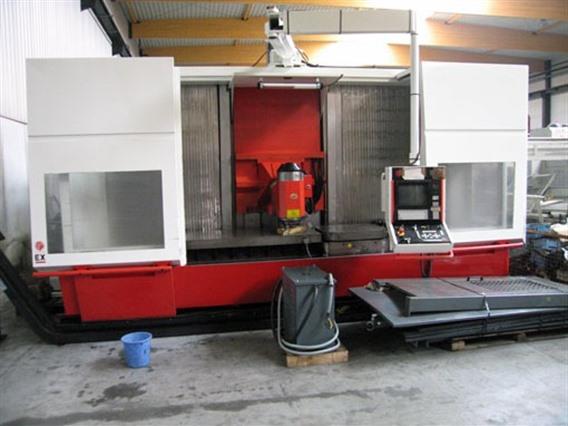

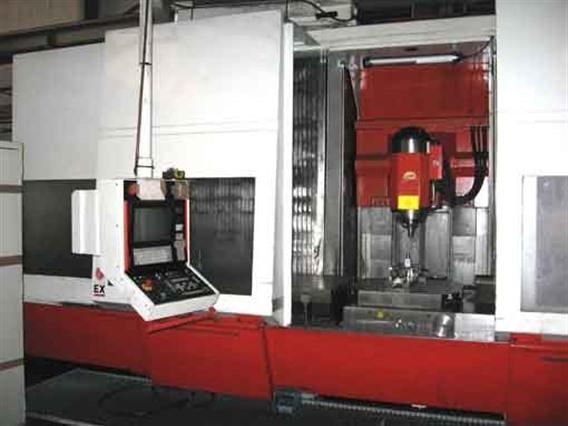

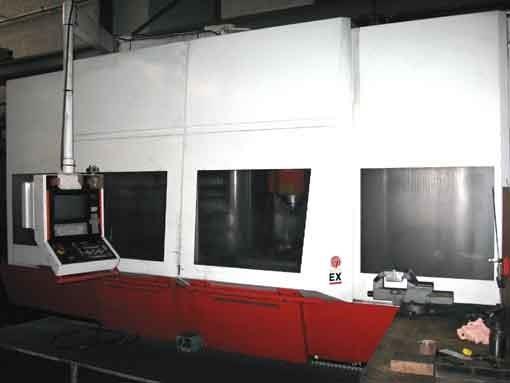

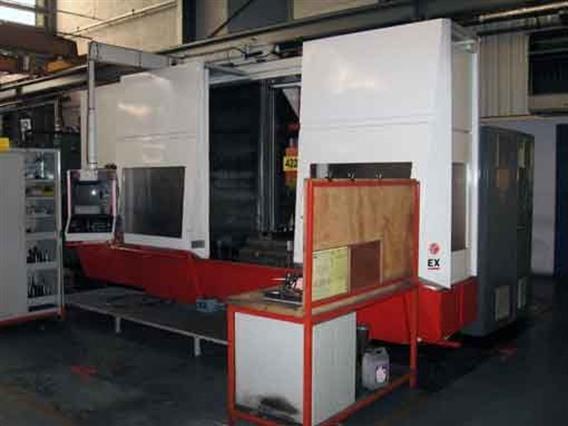

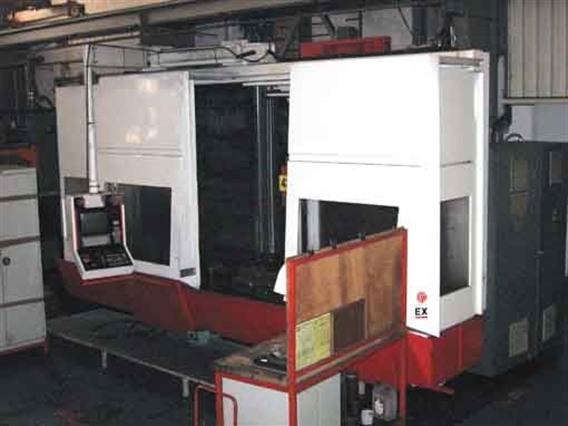

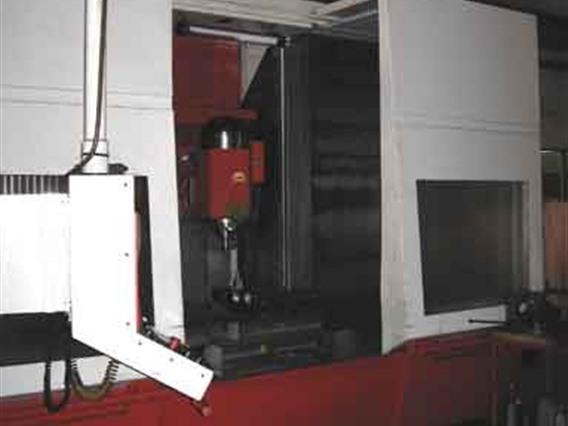

Centros de mecanizado verticales Huron High Precision EXN 30 (6 axis CNC)
Información téchnico
- Carrera mesa longitudinal (eje-X)2400 mm
- Recorrido transversal de cabeza (eje-Y)700 mm
- Altura de recorrido cabeza (eje-Z)800 mm
- Dimensiones de mesa1600 x 750 mm + 700x800 rot. table
- Peso maximo sobre mesa5000 kg
- Admision en husillo (ISO) ISO 40

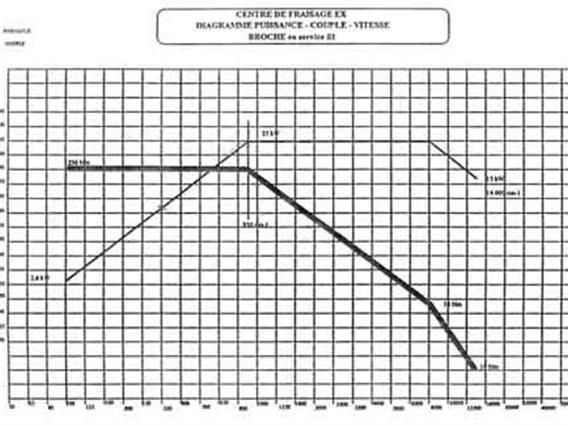

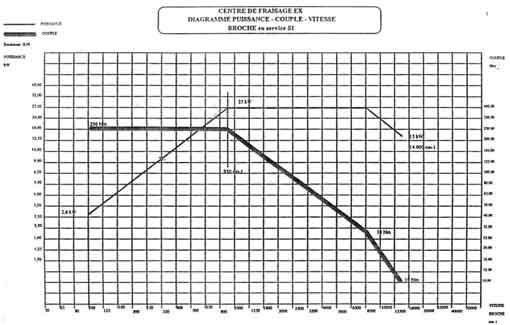

- Potencia en husillo 25 kW

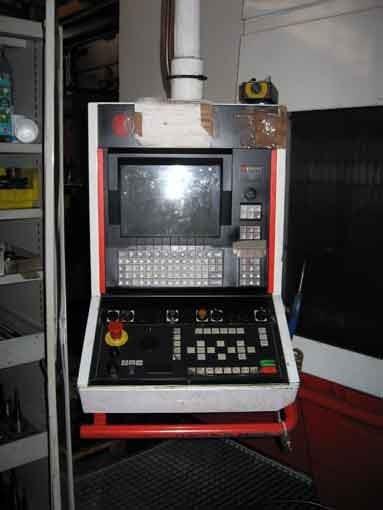

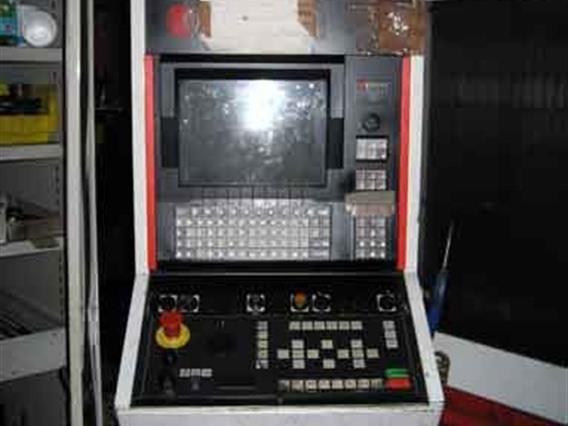

- Control (tipo)Num 1060 PCNC
- Numero de ejes6 axes
- Cambiador de herramientasYes
- Numero de portaherramientas 32 places
- Rango de rotaciones (de X a Y rpm) 100-> 14000rpm

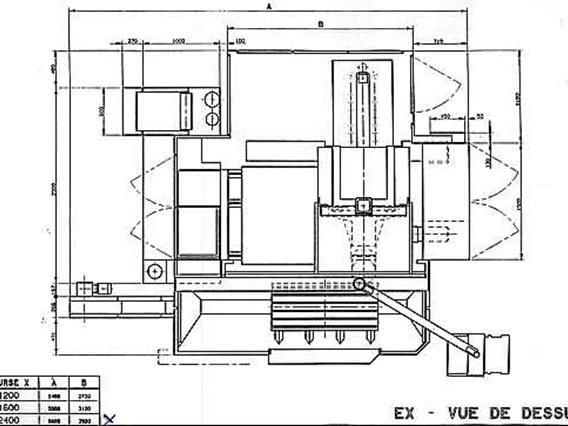

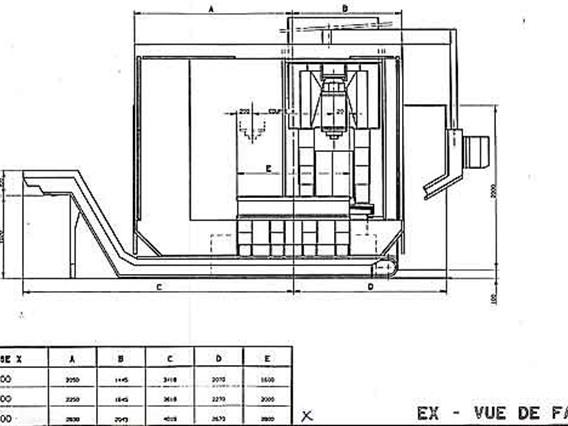

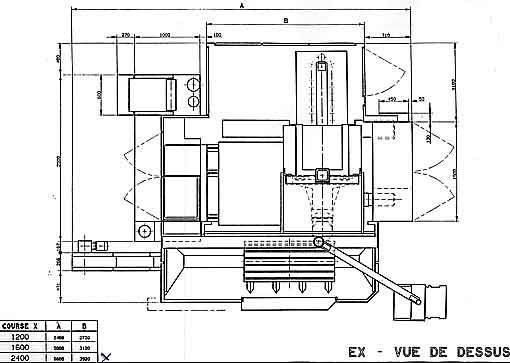

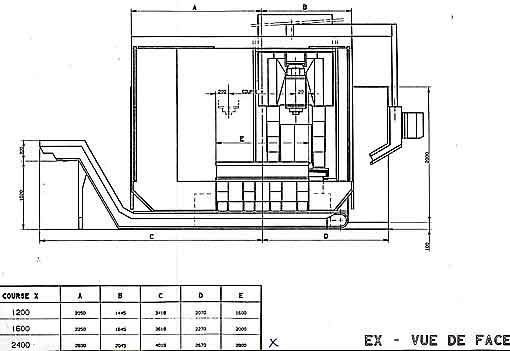

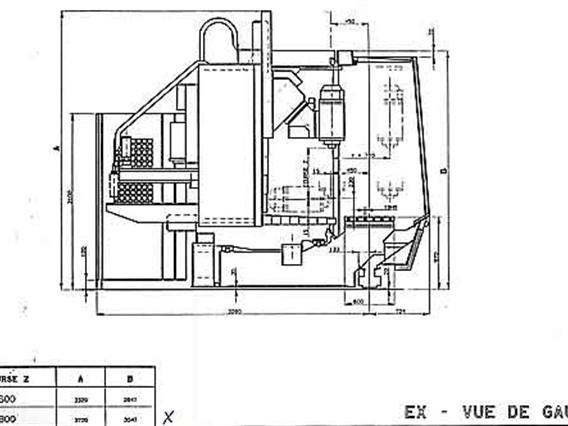

- Longitud L – R 7260 mm
- Profundidad frente – atras 3900 mm

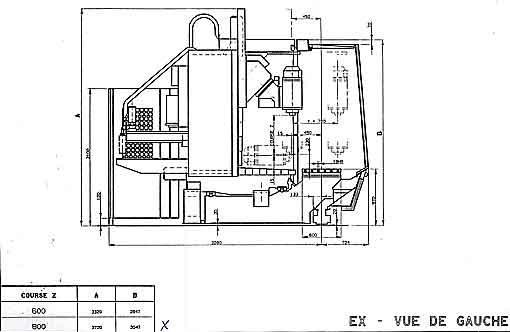

- Altura3520 mm
- Peso21000 kg
- Sistema de enfriamentoYes
- Luz para trabajo Yes
Información adicional

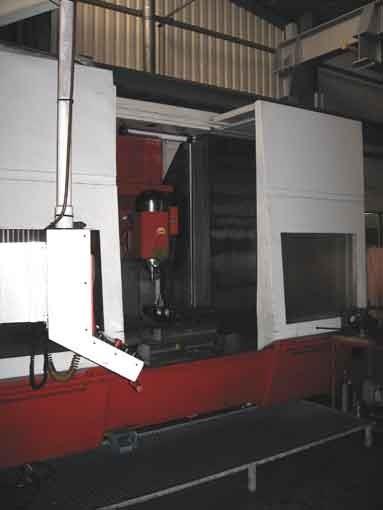

- Bed milling machine Moving Pendling Column
Milling machine is contineously 6 axes simultaneous!
Heidenhain measuring

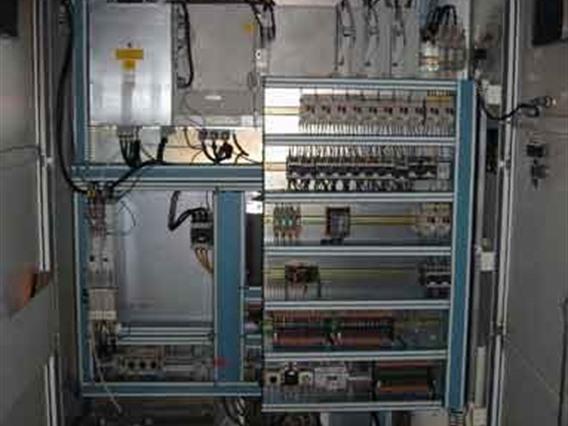

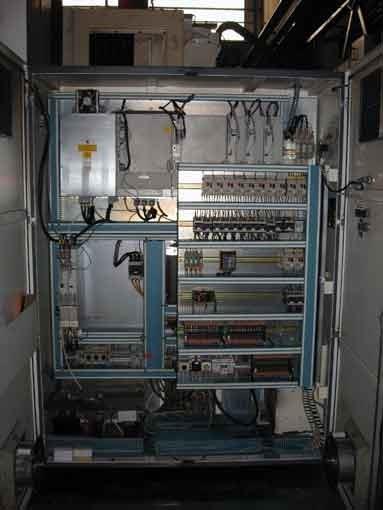

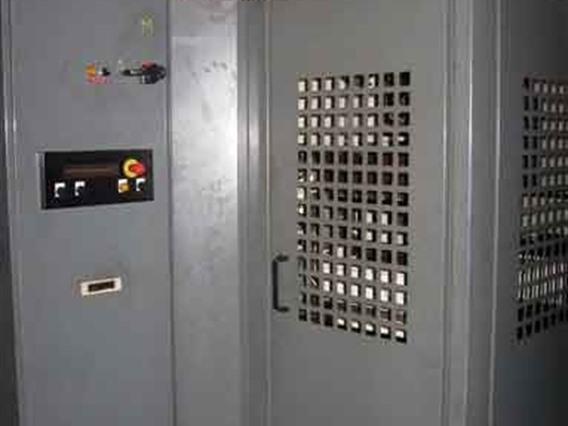

Siemens motors and drives

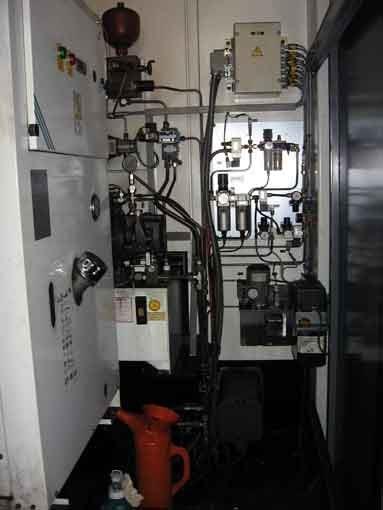

MP 15bar Tool-cooling

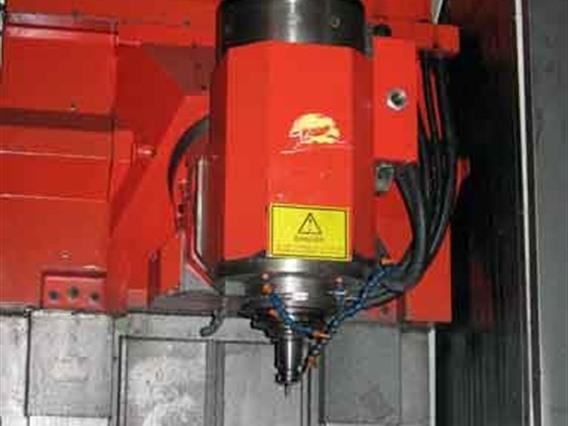

With a rapid and powerfull spindle, the machine has a swarf removal higher than 800 cm³/minute in a steel at 700MPa

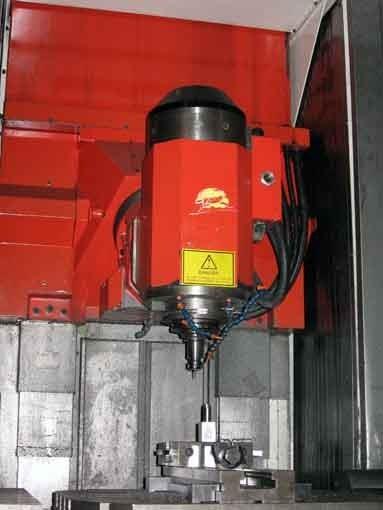

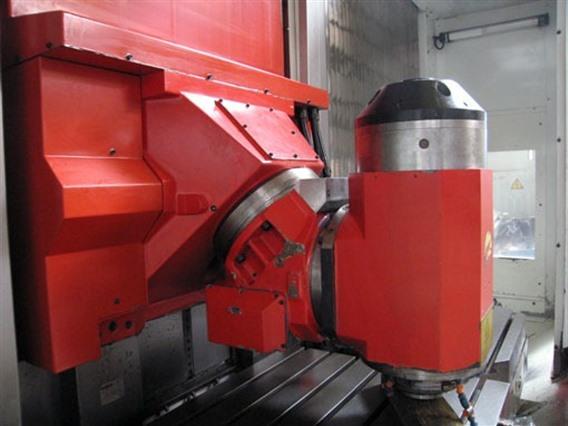

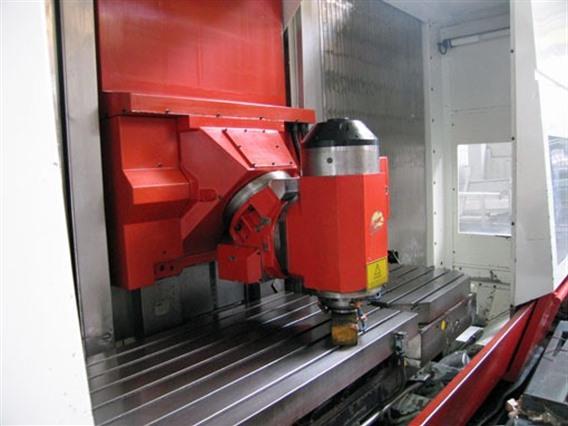

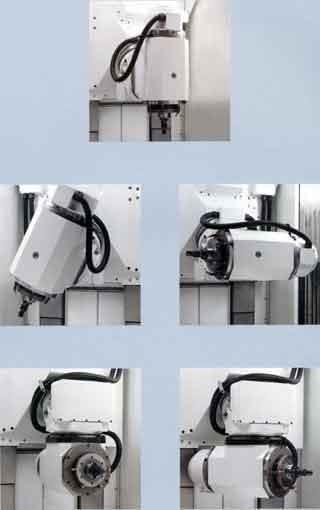

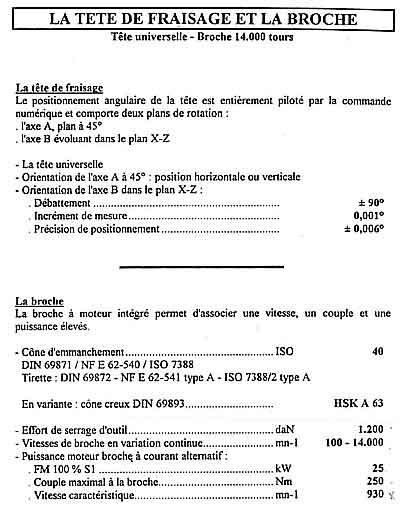

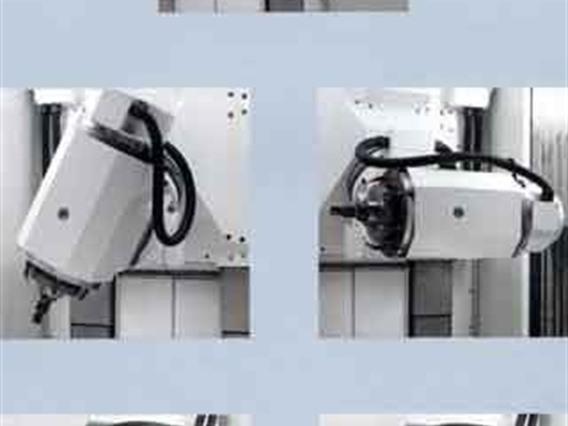

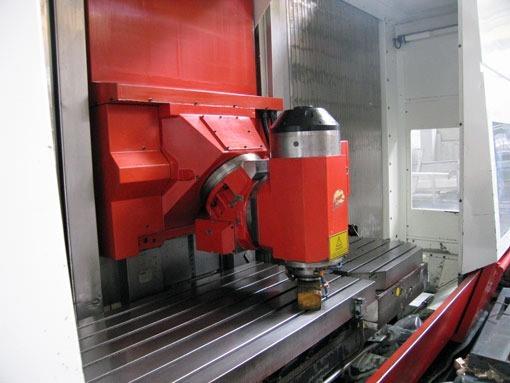

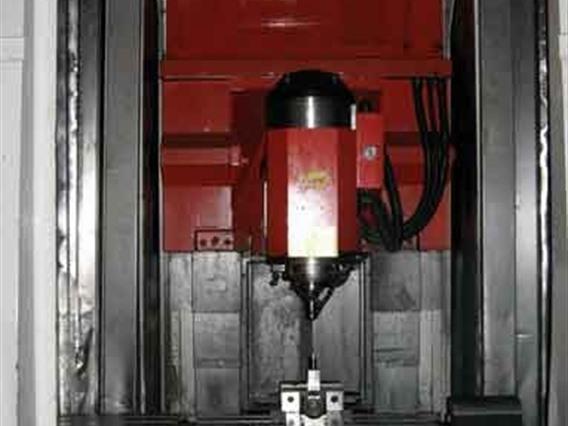

The controlled head is simultaneously interpoled with the other axes to ensure 6 axis machining when the head is associated with a rotary table (700x800 mm)
The machine is equipped with an automatic tool changer with 32 housings which ensure a large autonomy.

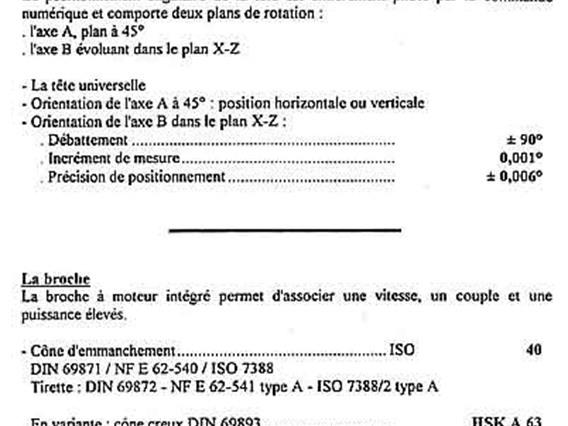

A & B axes contineously controlled
C-axis movement (Rotation table): 360° continu
Rapid traverse: 30 m/min

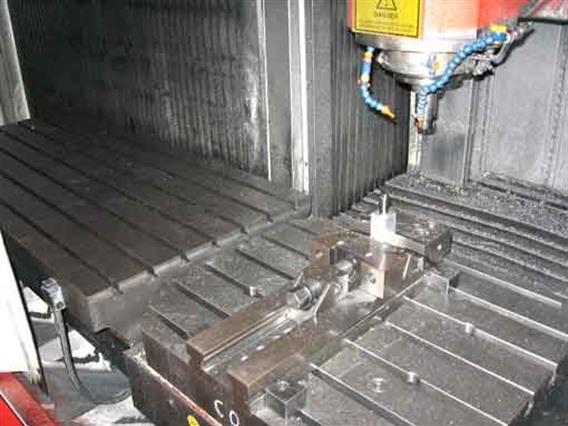

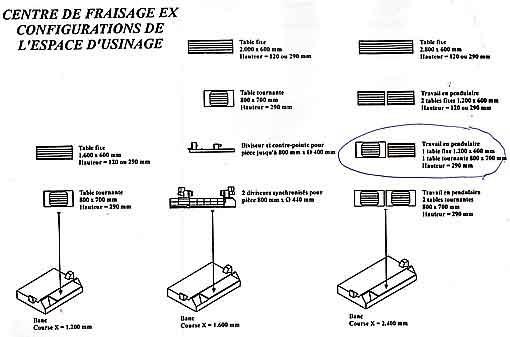

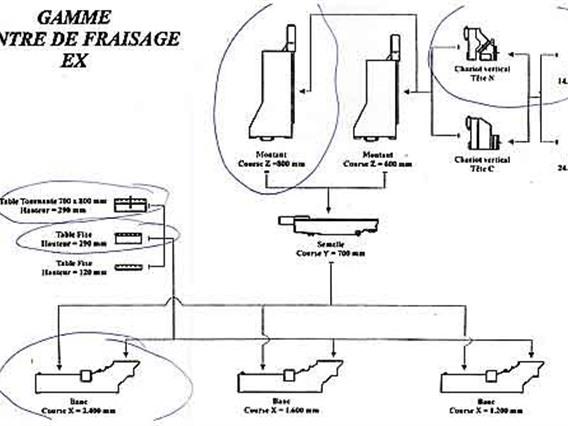

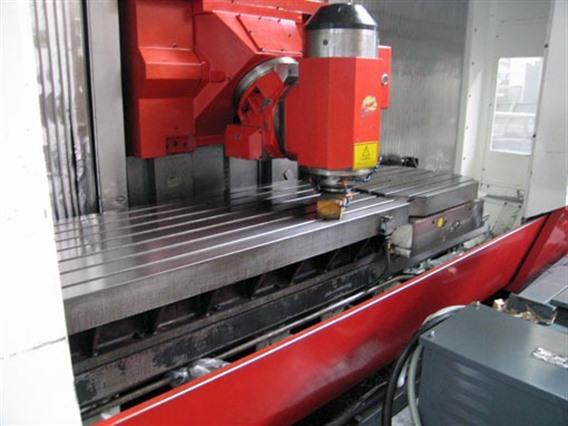

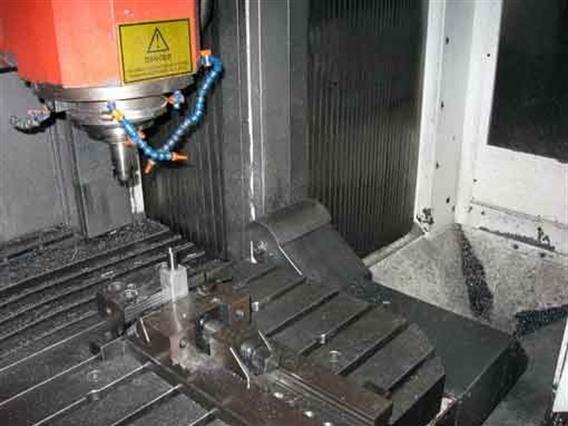

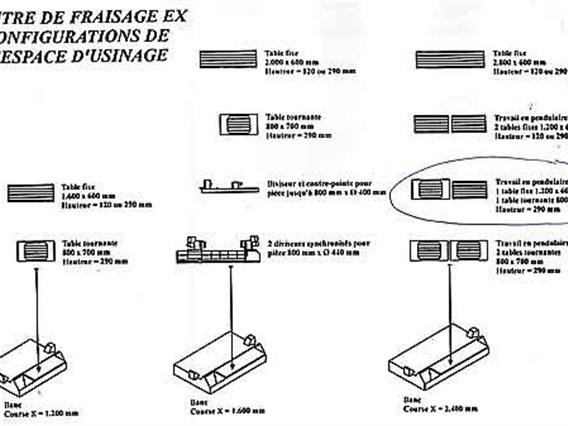

Table dim: 1600 x 750 mm + 700 x 800 mm (divided in 2 fixed & 1 rotation (360°)table)
- Tipo/Modelo: EXN 30 (6 axis CNC)
- Numéro stock: D.01 4137 *08
- Categoría principal: [D] Centros de mecanizado
- Subcategoría: [D.01] Centros de mecanizado verticales
- Marca: Huron High Precision
