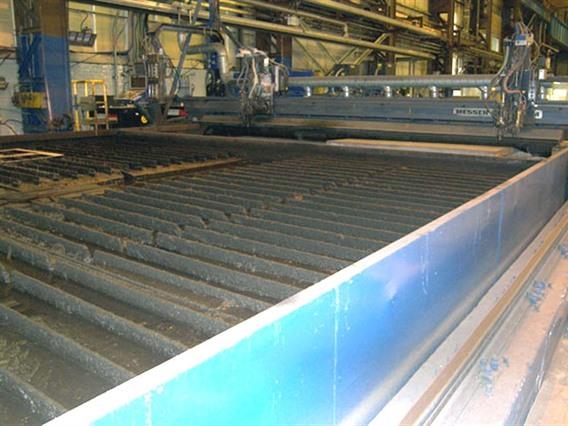

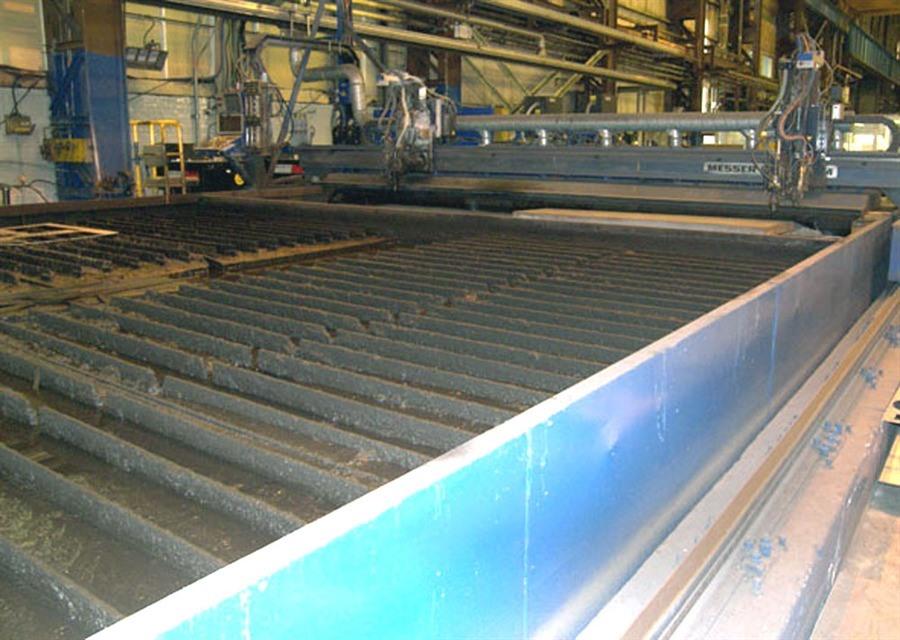

Messer Griesheim (Oxy+plasma) - 35600 x 7500 mm CNC

Messer Griesheim (Oxy+plasma) 35600 x 7500 mm CNC

Producto agregado a sus favoritos

Información téchnico

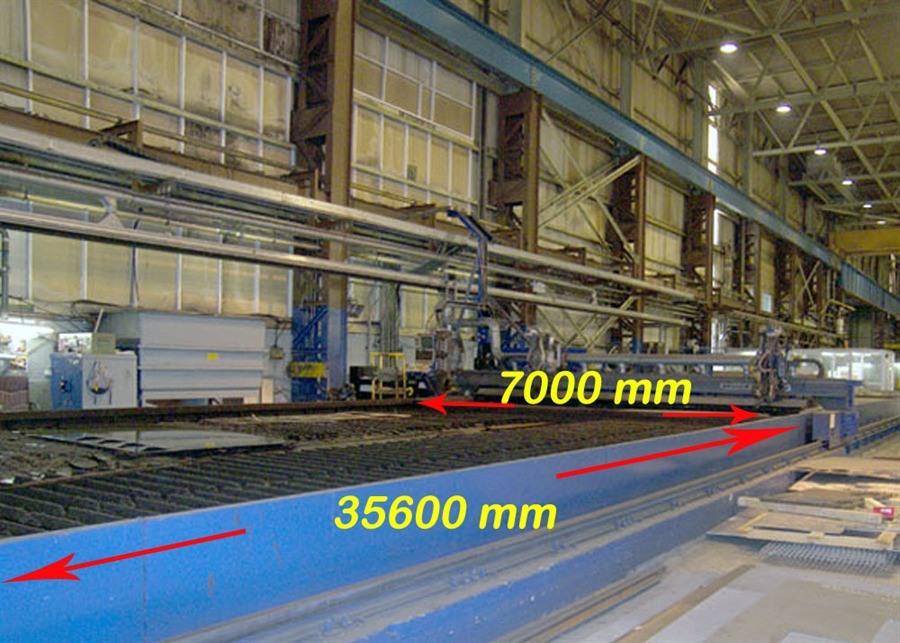

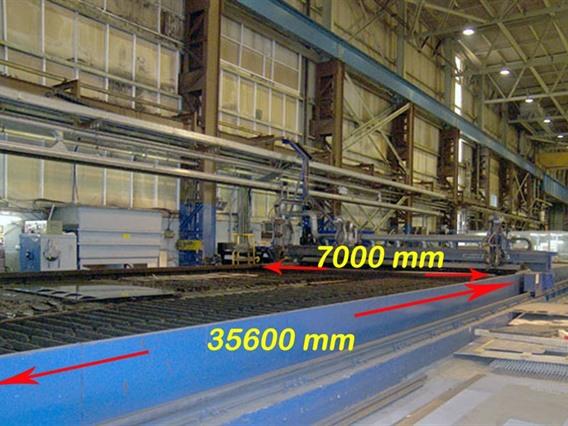

Longitudinal travel X-axis35600 mm
Cross travel Y-axis7000 mm
Cutting capacity300 mm
Plasmasource2 x Hypertherm HT 4001
Gas cutter2 x plasma + 2 x Gas
Produced as (2 column (1) -- .....)Portal

Información adicional

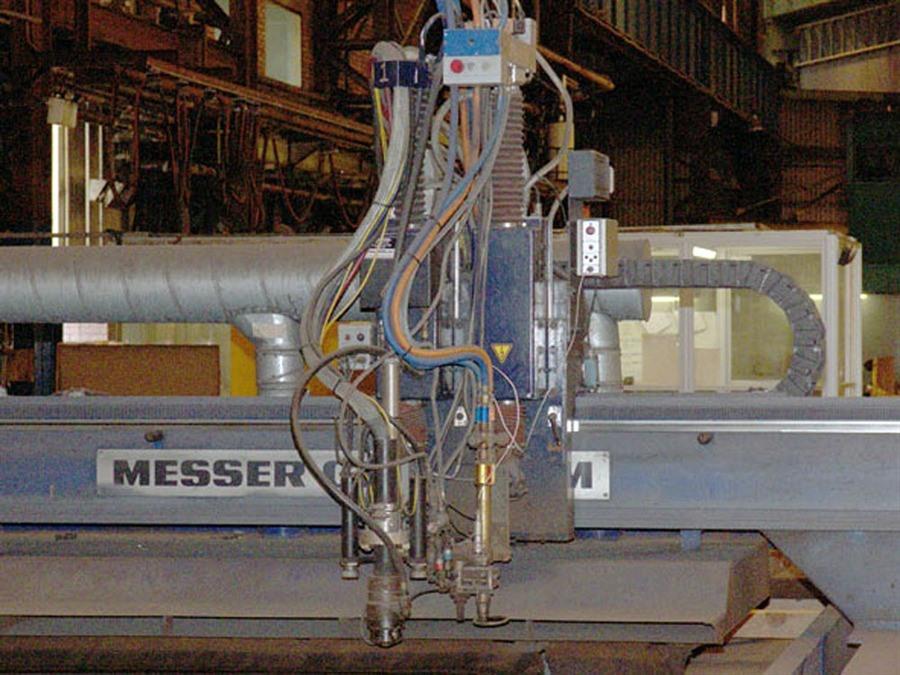

1 CNC motorised burner carriage, equipped with

+ 1 Plasmatorch max cap 80 mm (source Hypertherm 4001)

+ 1 Oxyfuel torch max cap 300 mm

+ 1 preheating head

1 non-motorised burner carriage, can be coupled with 1st carriage, equipped with:

+ 1 Plasmatorch max cap 80 mm (source Hypertherm 4001)

+ 1 Oxyfuel torch max cap 300 mm

+ 1 preheating head

Equipped with 14 water tables (coupled) for one big table of 35 m x 7 m

Omnimat C 7500 P

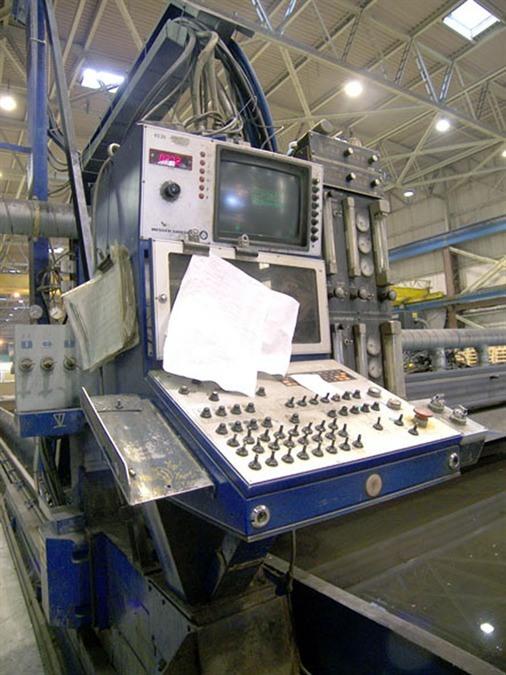

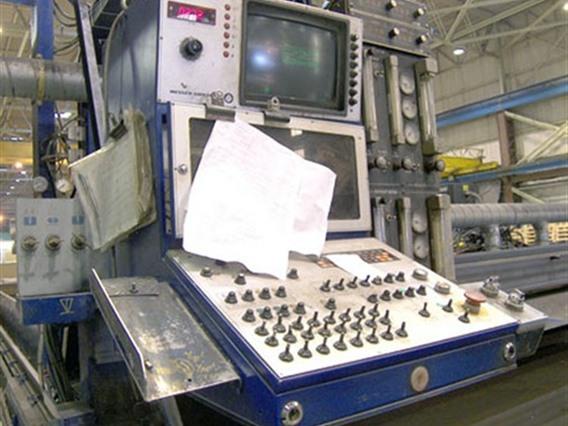

KS 20 CNC control
Tipo/Modelo: 35600 x 7500 mm CNC
Numéro stock: O.16 6305
Categoría principal: [O] Curvadoras, enderezadoras, punzonadoras, máquinas de oxicorte y láser y líneas de conformado
Subcategoría: [O.16] Cortadoras de gas (gas + plasma)
Marca: Messer Griesheim (Oxy+plasma)

Numéro stock: O.16 6305

Vendido
Vendido
Vendido
Vendido

Messer Griesheim (Oxy+plasma) 35600 x 7500 mm CNC
