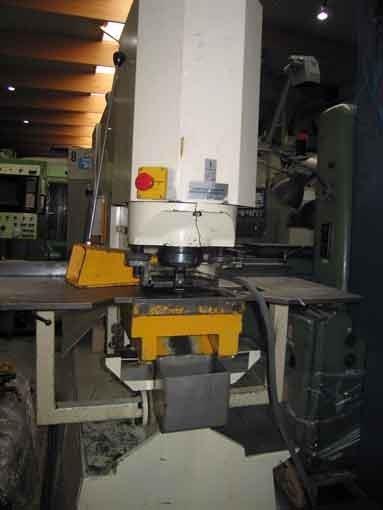

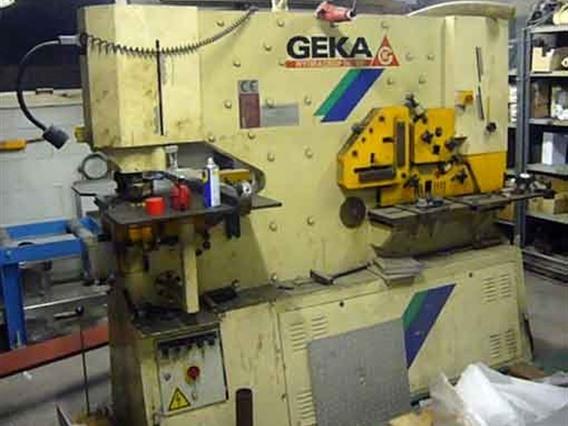

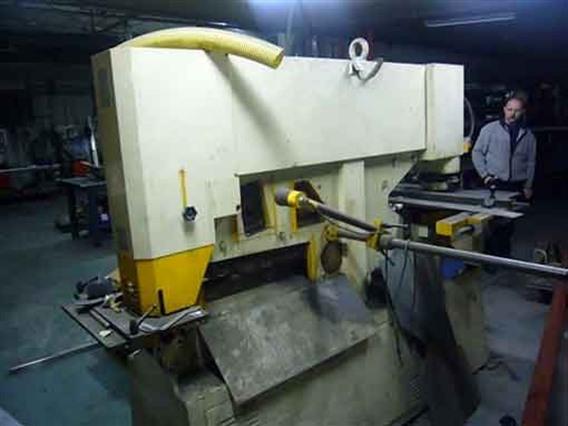

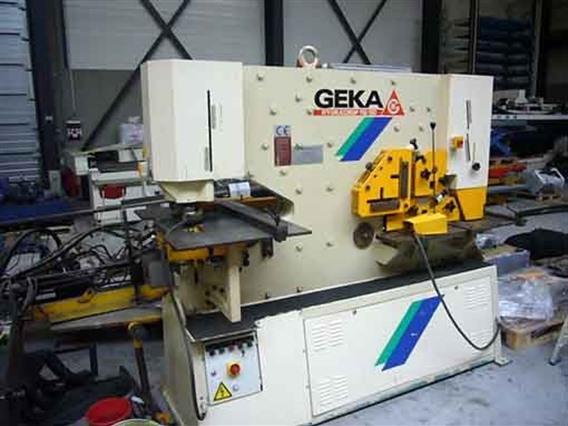

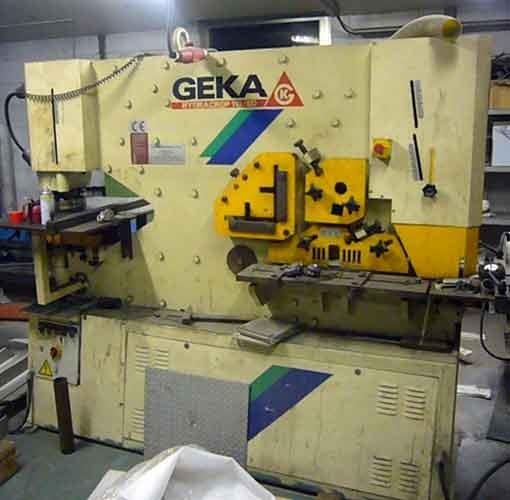

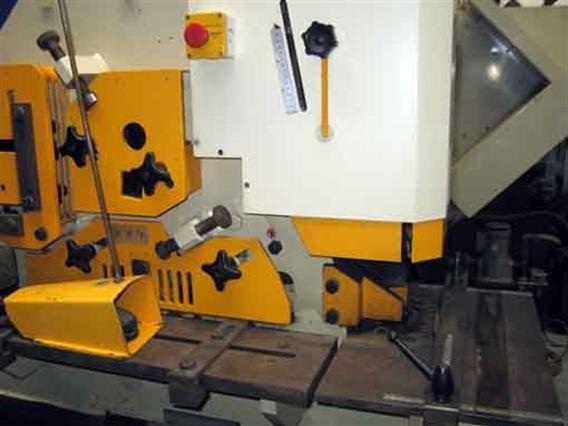

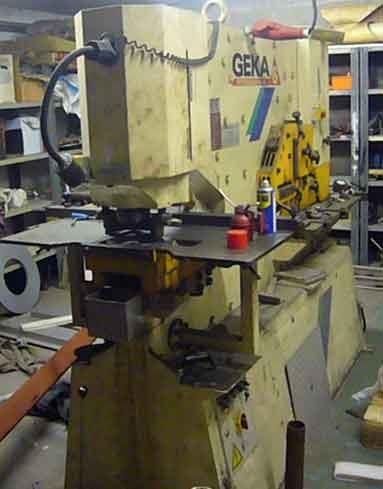

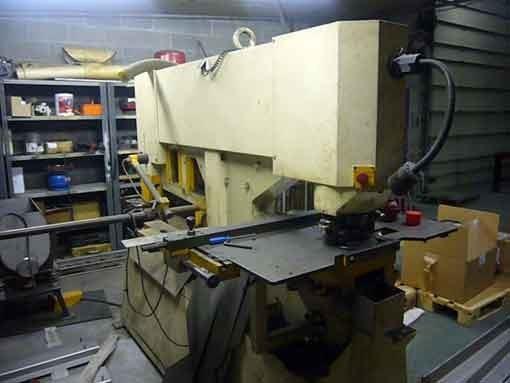

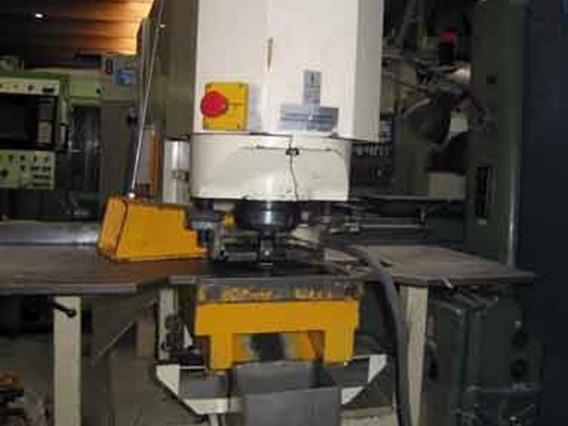

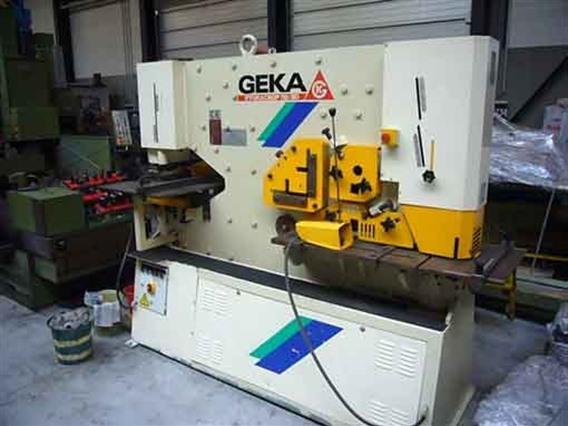

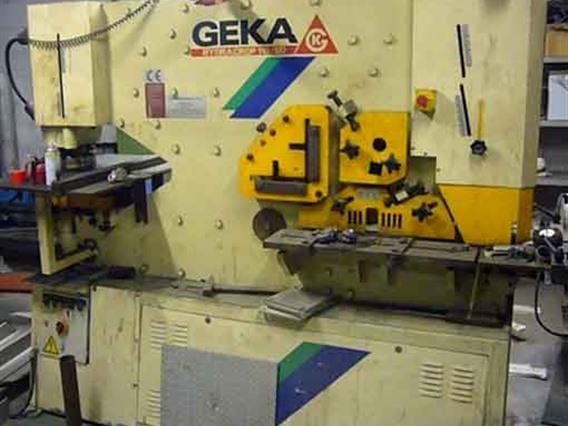

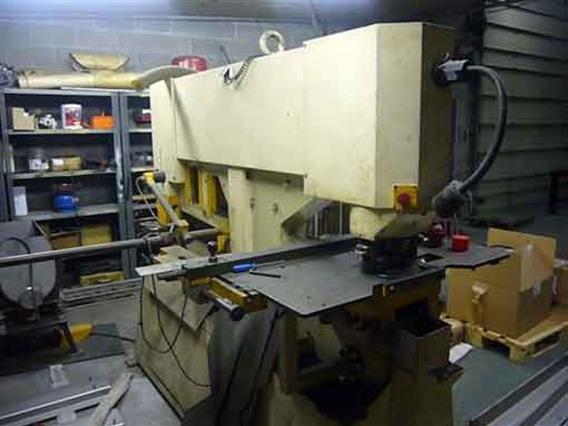

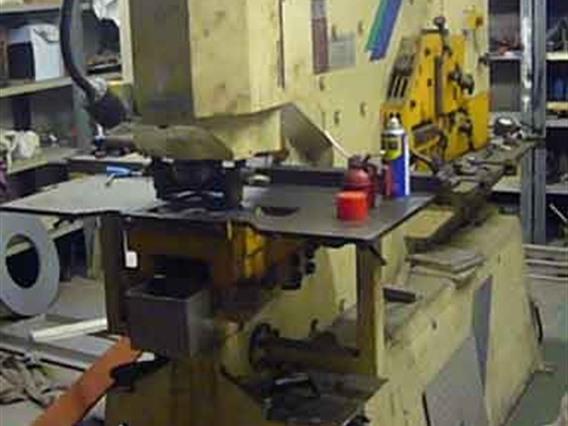

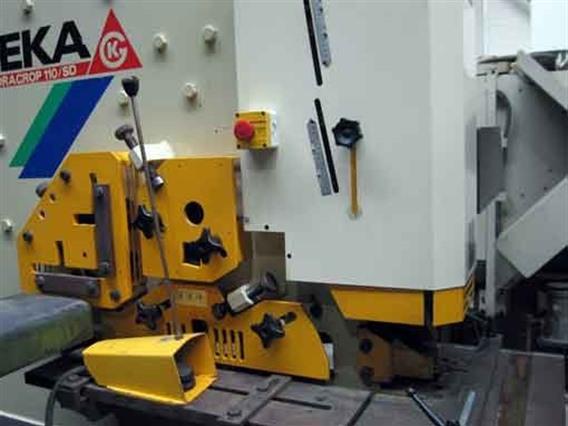

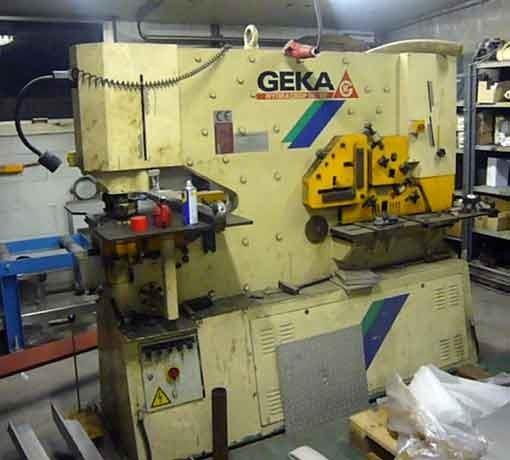

Herramienta universal para hierro Geka hydracrop 110SD

Información téchnico

Punchingcapacity110 T
Dia x sheetthickness40x20mm
Strokes/min28/min on 20mm
Depth of throat610mm
Worklevelmax 1165 mm
Angle 45° in flange L-profile150 x 150mm
90°-cut150 x 150 x 13
45°-cut70 x 70 x 7
Cut to length round/square50 mm
Max material -thickness by notching13 mm
Max wide by notching52 mm
Depth V-profile / rectangle90 mm
Electric motor (power)9 Kw
Length L -- R2690 mm
Depth Fw --Bw1400 mm
Height2280 mm
Weight3795 kg

Información adicional

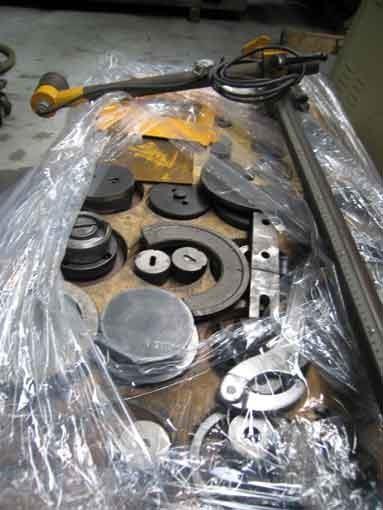

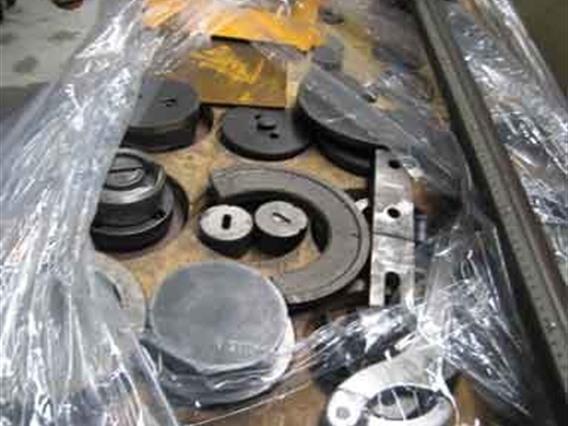

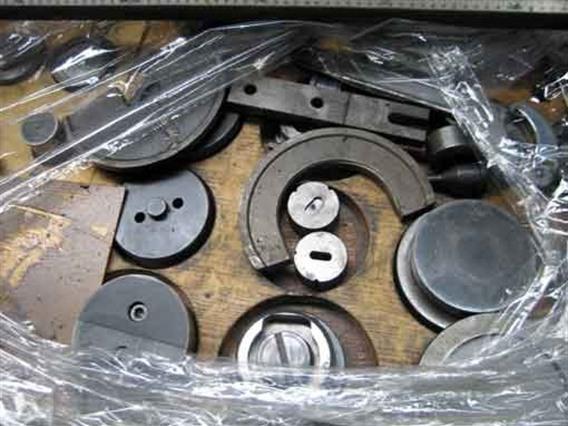

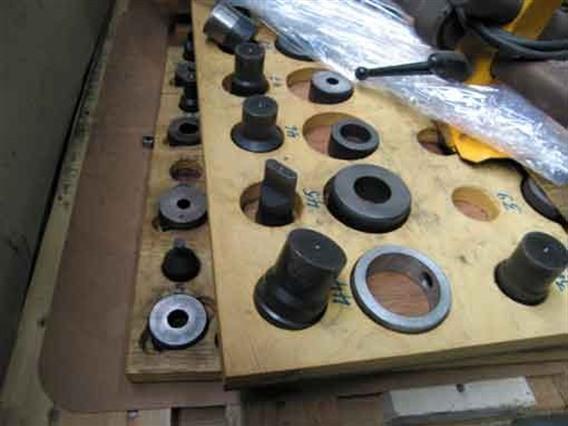

+ Options: Electrical Backgauge Much Tools
Tipo/Modelo: hydracrop 110SD
Numéro stock: P.13 3770 *07
Categoría principal: [P] Cizallas, punzonadoras universales, líneas de corte transversal y longitudinal, conformadoras de chapa y líneas de corte
Subcategoría: [P.13] Herramienta universal para hierro
Marca: Geka

Numéro stock: P.13 3770 *07
