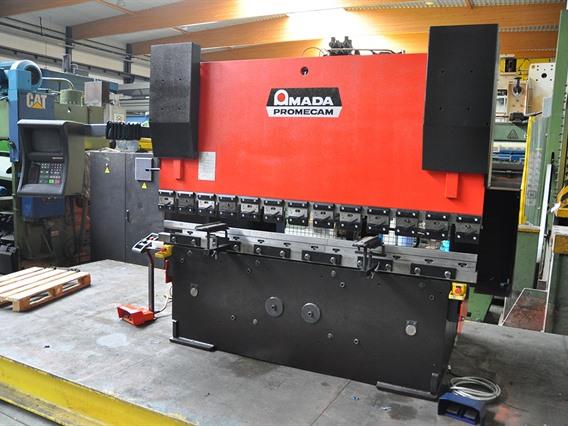

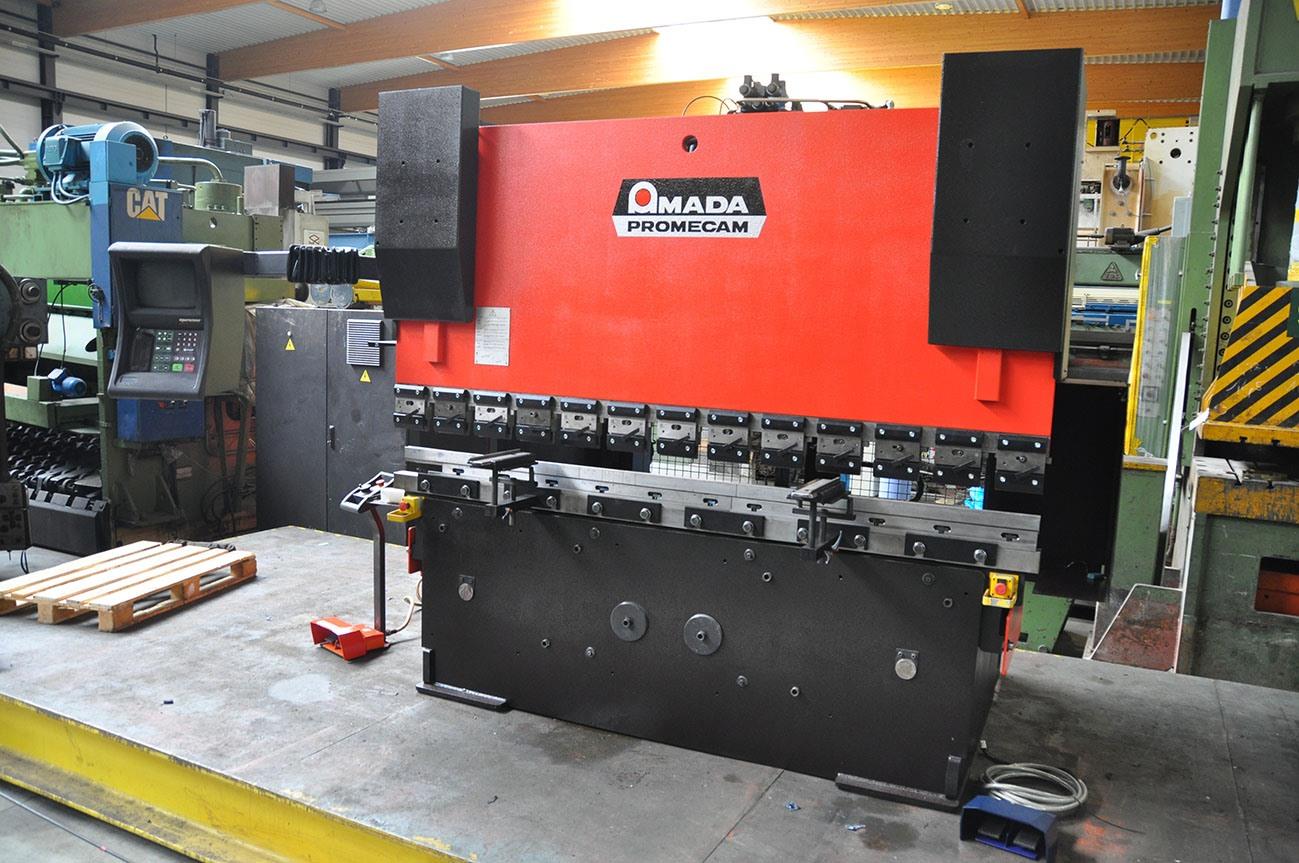

Amada Promecam HFBO 80 ton x 2500 mm CNC

Producto agregado a sus favoritos

» Solicitar un presupuesto personalizado

Información téchnico

Capacity x Max length80 ton x 2550 mm

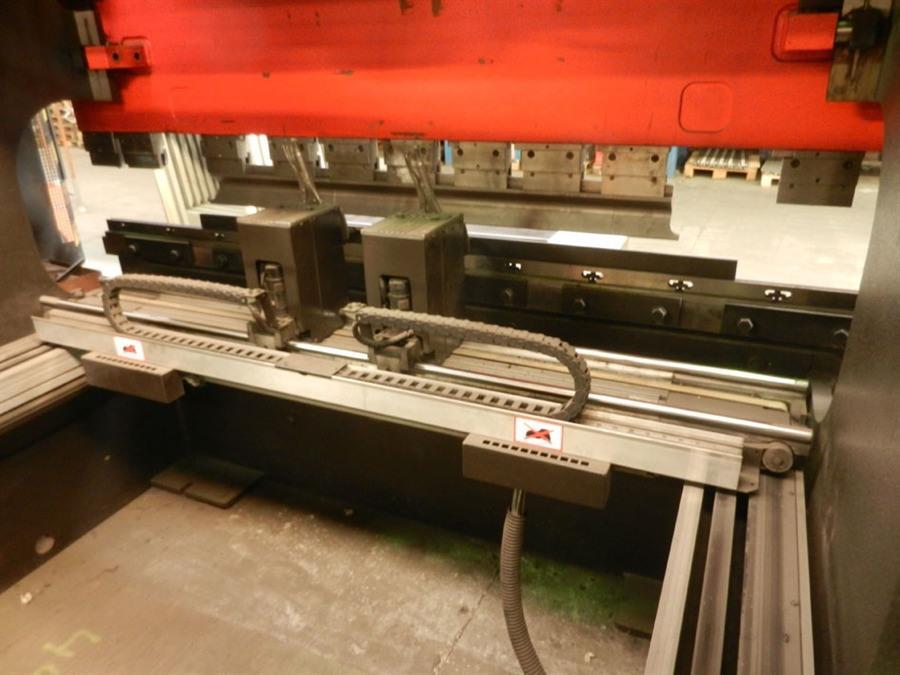

Backgauge CNC

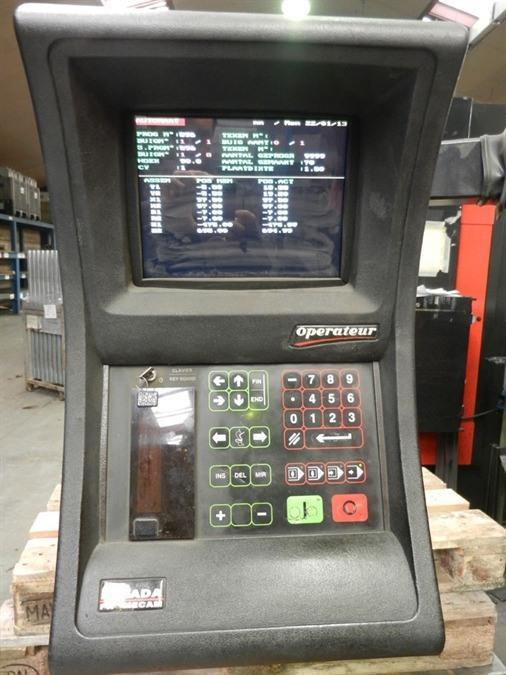

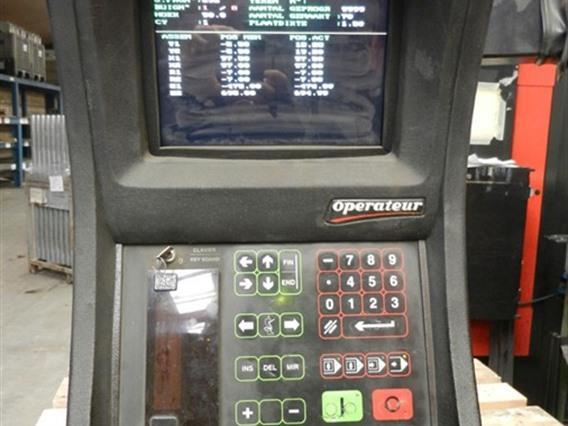

ControlOperator Graphic
Passage between uprights2120 mm
Max stroke200 mm
Max distance between table -- ram470 mm
Depth of throat400 mm
Table width 60 mm
Locking speed100 mm/sec
Working speed1>10 mm/sec
Returning speed1>92 mm/sec
Electric motor (power)9 kW
Length 3100 mm
Depth 2185 mm
Height2485 mm
Weight5450 kg

Información adicional

X / Y1 / Y2 / R1 / R2 / Z1 / Z2
and active bombation
Tipo/Modelo: Promecam HFBO 80 ton x 2500 mm CNC
Numéro stock: O.01 8209
Categoría principal: [O] Curvadoras, enderezadoras, punzonadoras, máquinas de oxicorte y láser y líneas de conformado
Subcategoría: [O.01] Prensas plegadoras hidráulicas
Marca: Amada

» Solicitar un presupuesto personalizado

Numéro stock: O.01 8209

Ver video de la maquinaria

Amada Promecam HFBO 80 ton x 2500 mm CNC

Descargar todas las imágenes en ZIP
