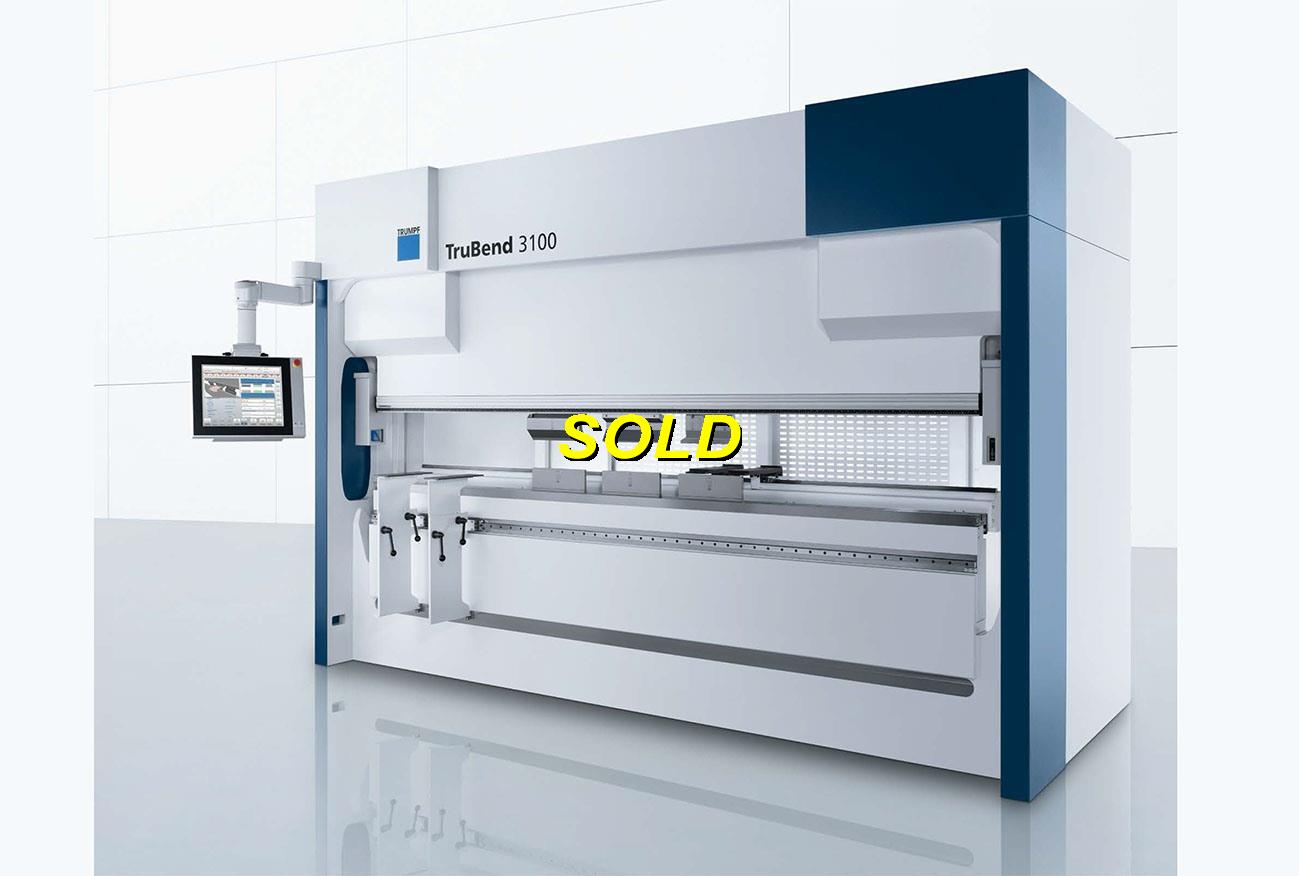

Prensas plegadoras hidráulicas Trumpf TruBend 100 ton x 3060 mm CNC

Información téchnico

Capacity x Max length100 ton x 3060 mm
Backgauge CNC
ControlT3500T multi-touch control
Passage between uprights3384 mm
Max stroke350 mm
Max distance between table -- ram470 mm
Locking speed200 mm/sec
Working speed15 mm/sec
Returning speed200 mm/sec
Power needed20 kVa
Length 3607 mm
Depth 1644 mm
Height2670 mm
Weight8,3 ton

Información adicional

7 axes: Y1 / Y2 / X / R / Z1 / Z2 / V
Enlarged stroke 350 mm (standard only 200 mm)
Enlarged opening
BendGuard
Automatic crowning facility
High axis speeds
Quick clamp hydraulic Willa tooling
Tipo/Modelo: TruBend 100 ton x 3060 mm CNC
Numéro stock: O.01 13935
Categoría principal: [O] Curvadoras, enderezadoras, punzonadoras, máquinas de oxicorte y láser y líneas de conformado
Subcategoría: [O.01] Prensas plegadoras hidráulicas
Marca: Trumpf

Numéro stock: O.01 13935

Vendido
