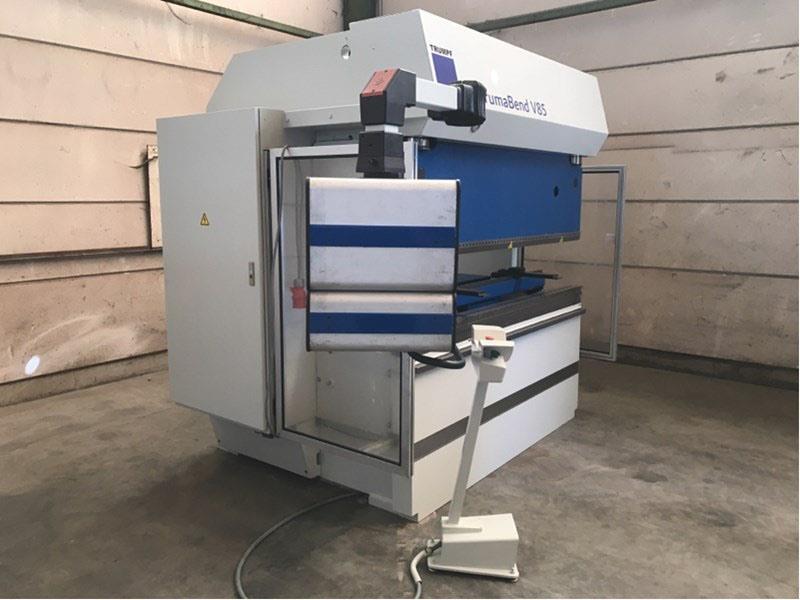

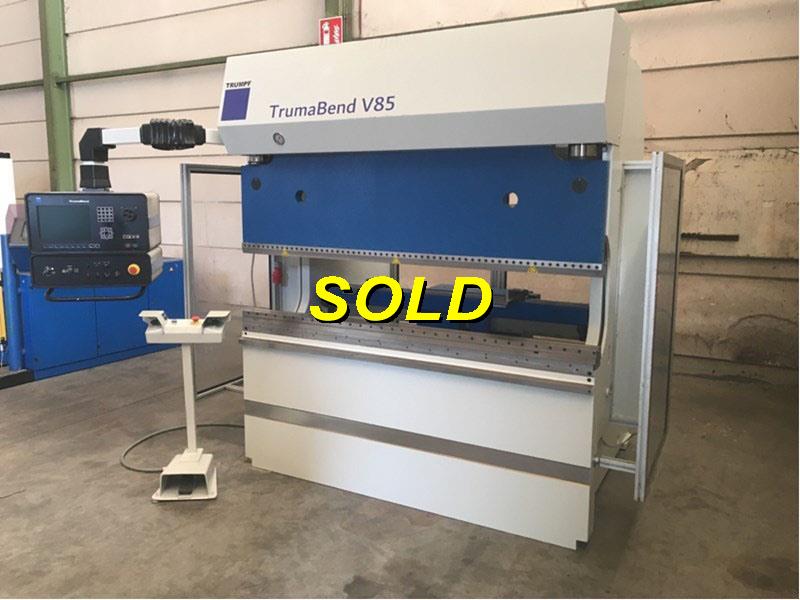

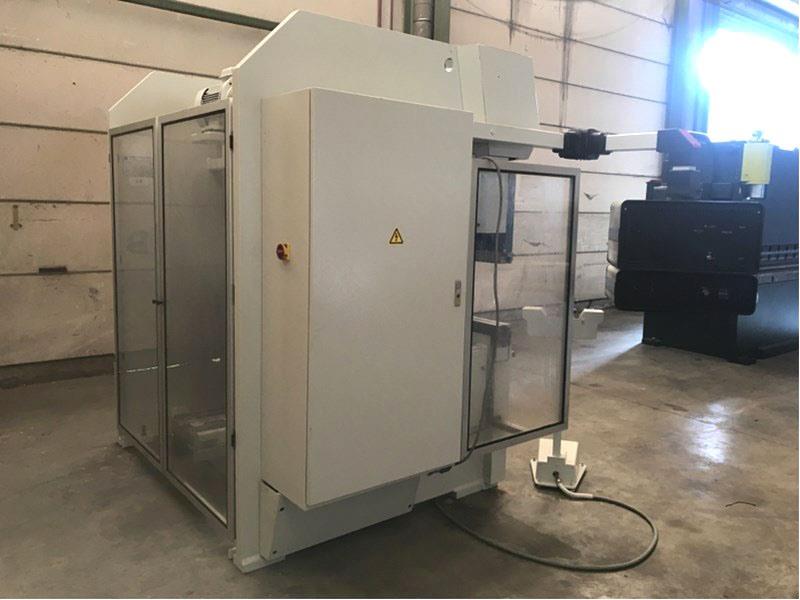

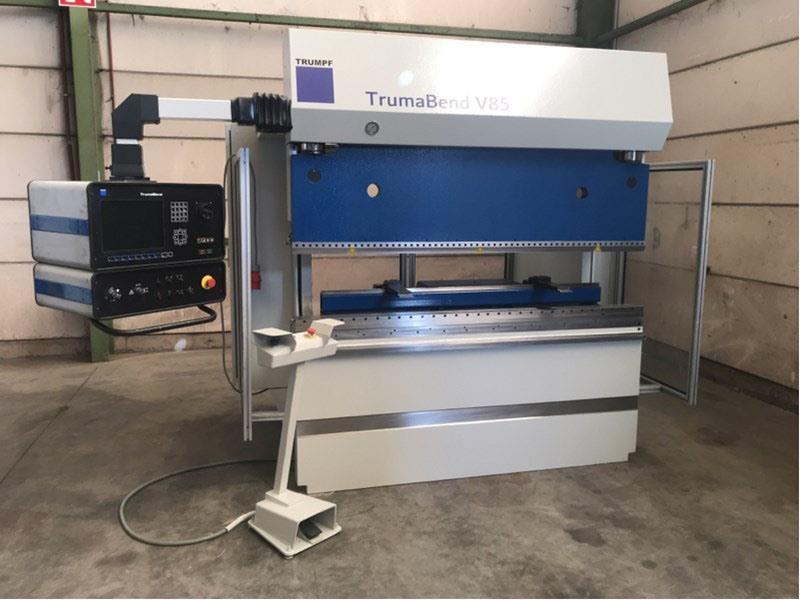

Trumpf Trumabend V85 85 ton x 2050 mm CNC
Información téchnico
- Capacity x Max length85 ton x 2050 mm

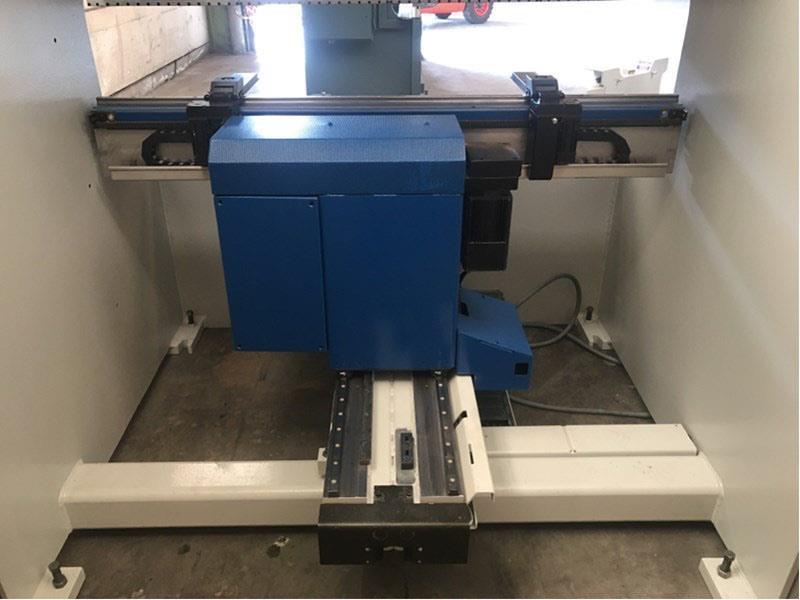

- Backgauge CNC

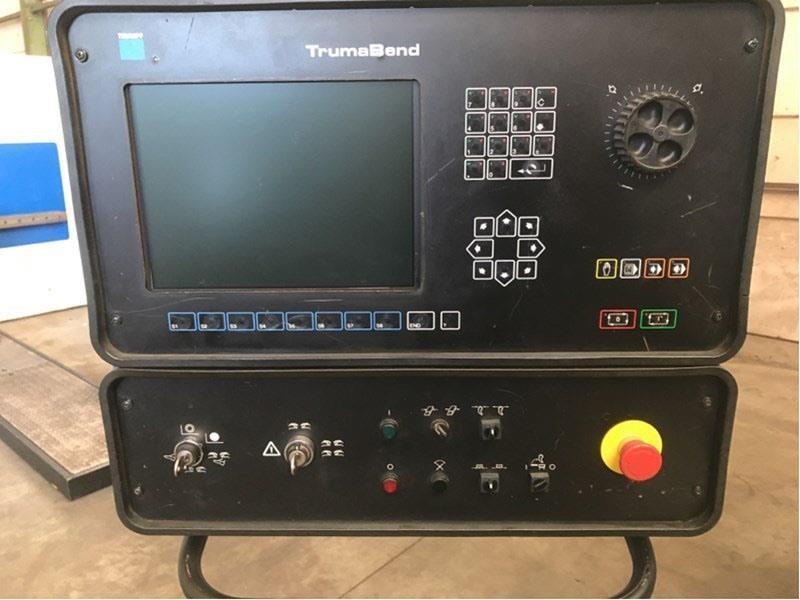

- ControlDelem
- Passage between uprights1750 mm
- Max stroke215 mm
- Max distance between table -- ram385 mm
- Depth of throat410 mm

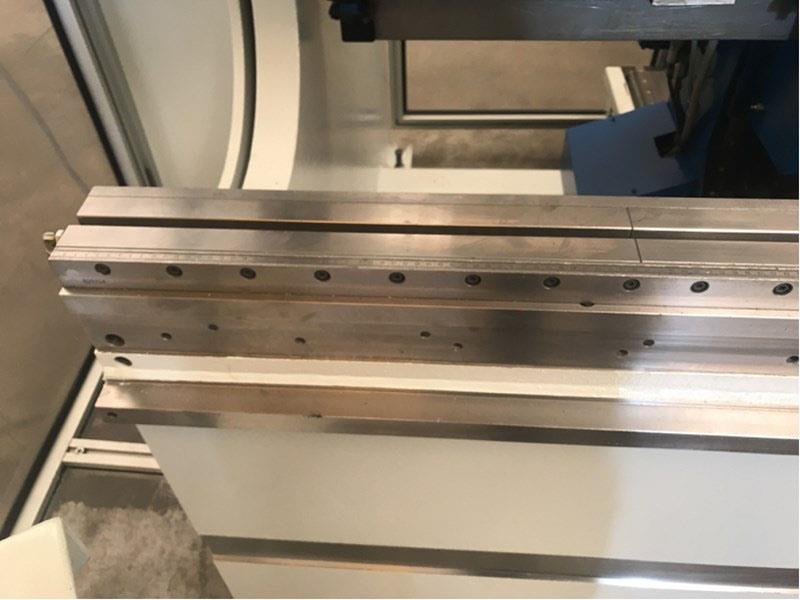

- Table width 120 mm
- Locking speed200 mm/sec
- Working speed1-10 mm/sec
- Returning speed135 mm/sec

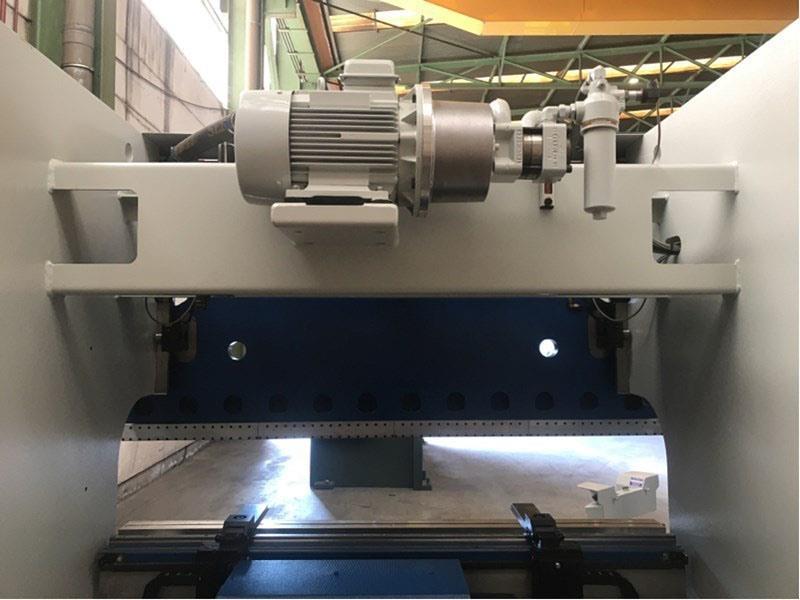

- Electric motor (power)7,5 kW
- Length 2680 mm
- Depth 1950 mm
- Height2375 mm
- Weight8 ton
