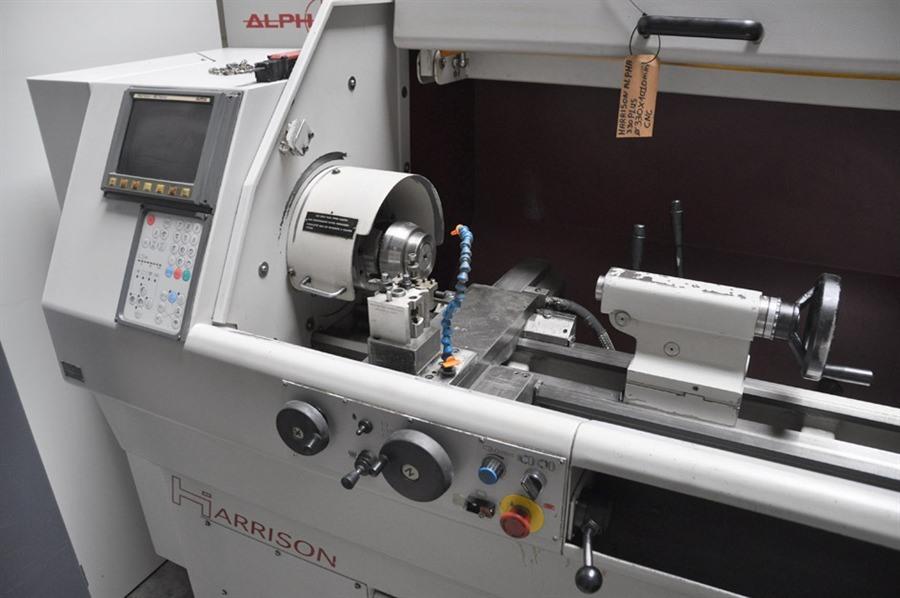

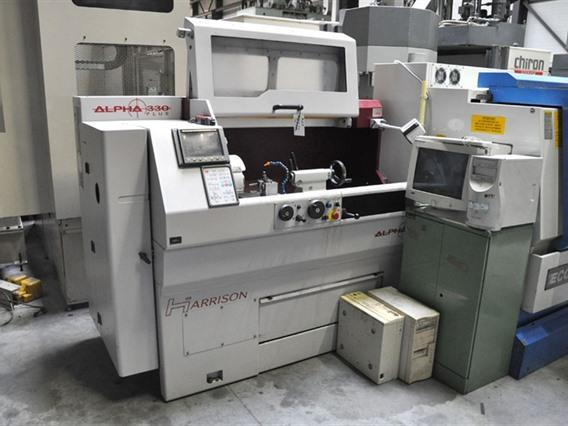

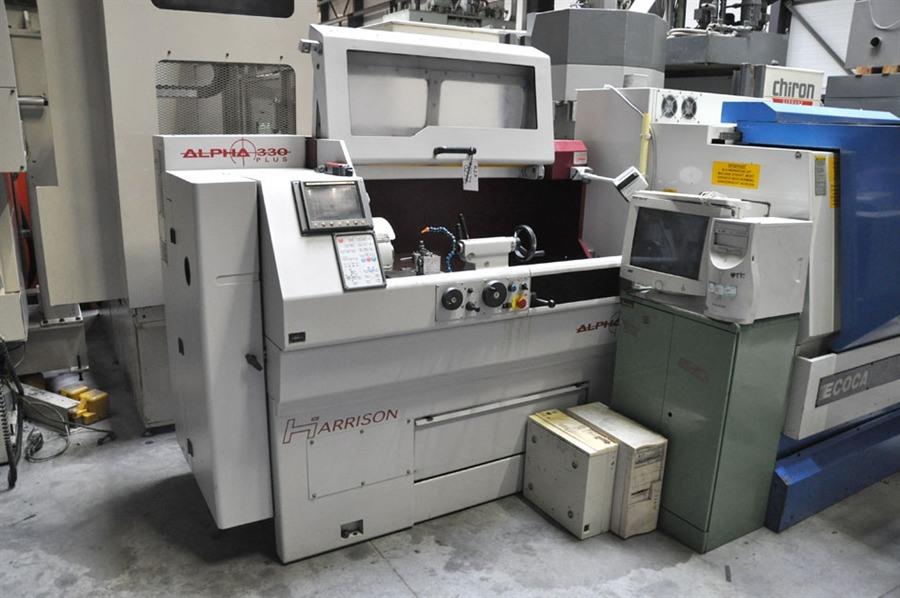

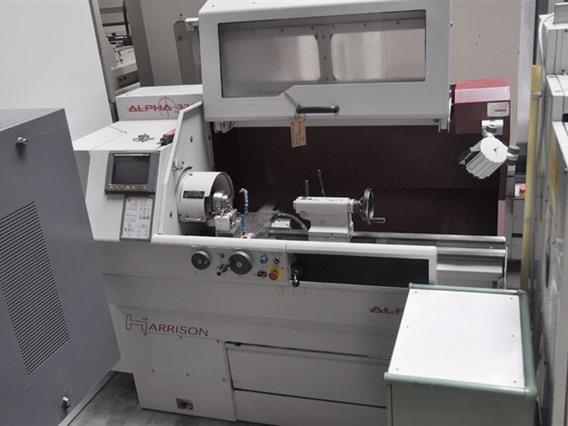

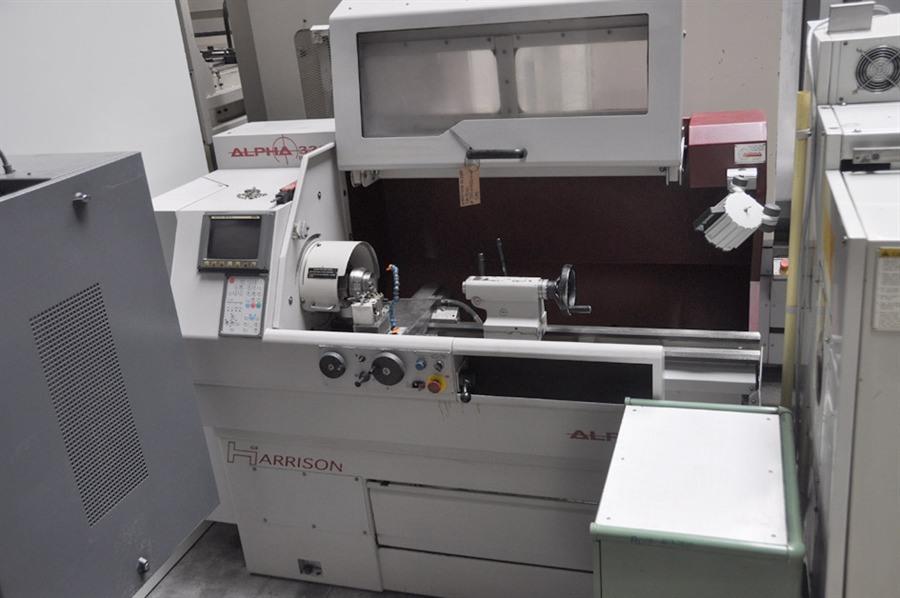

Tornos CNC Harrison Alpha 330 plus Ø 330 x 1010 mm CNC

Información téchnico

Volteo sobre bancada330 mm
Volteo sobre carro transversal210 mm
Distancia entre centros1010 mm
Máximo eje longitudinal (eje-Z)1010 mm
Máximo eje transversal (eje-X)196 mm
Cono de husillo D1-4
Diámetro agujero husillo40 mm
Potencia eje 10 hp / 7,5kW
Rango velocidades 18 - 3500 rpm

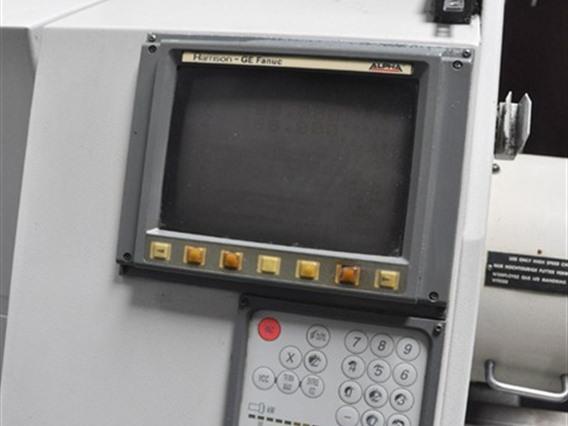

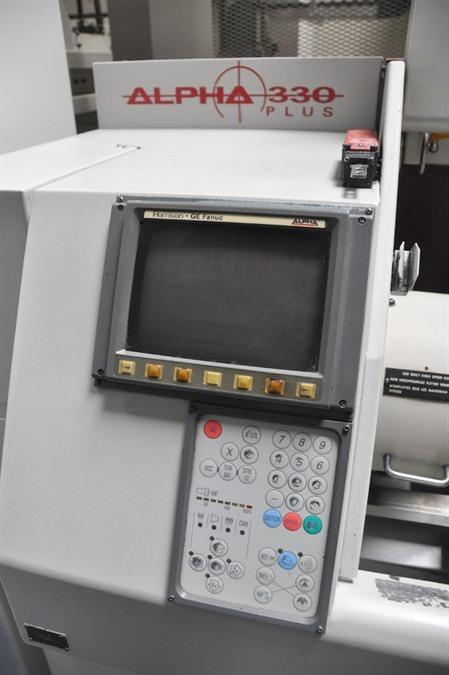

ControlFanuc
Current needed380V
Longitud I -- D2030 mm
Anchor frente – atras1220 mm
Altura1520 mm
Peso1,1 ton

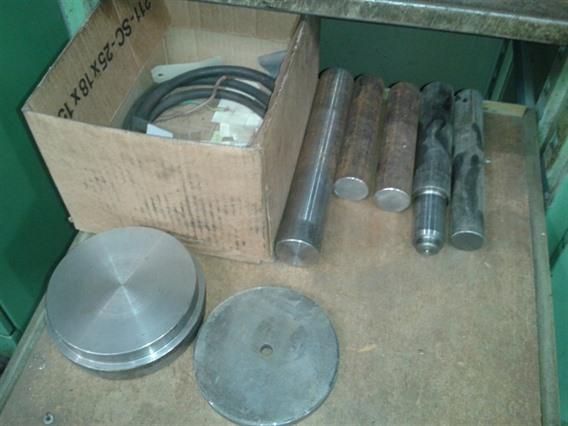

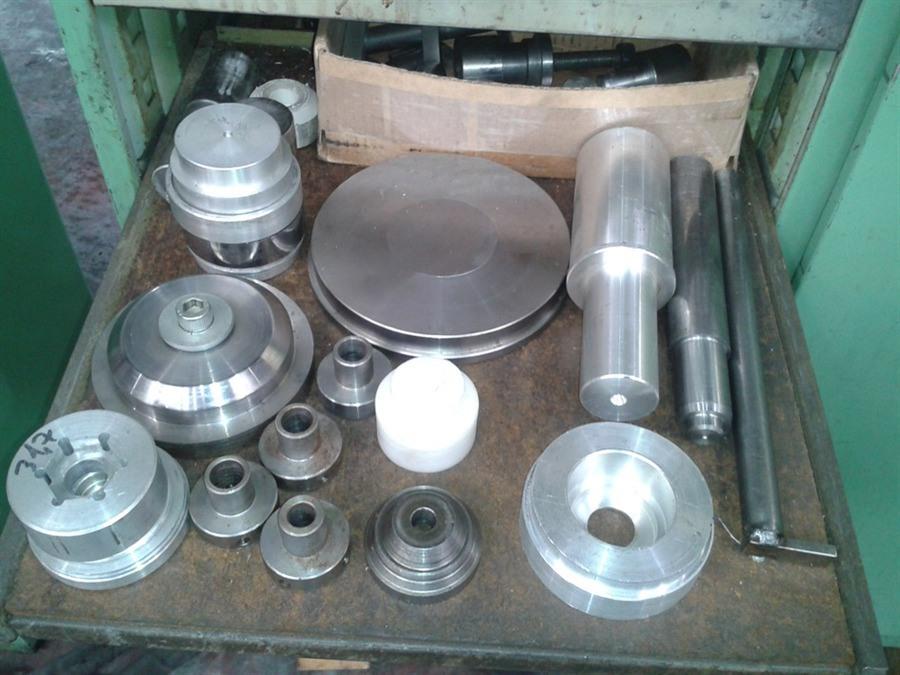

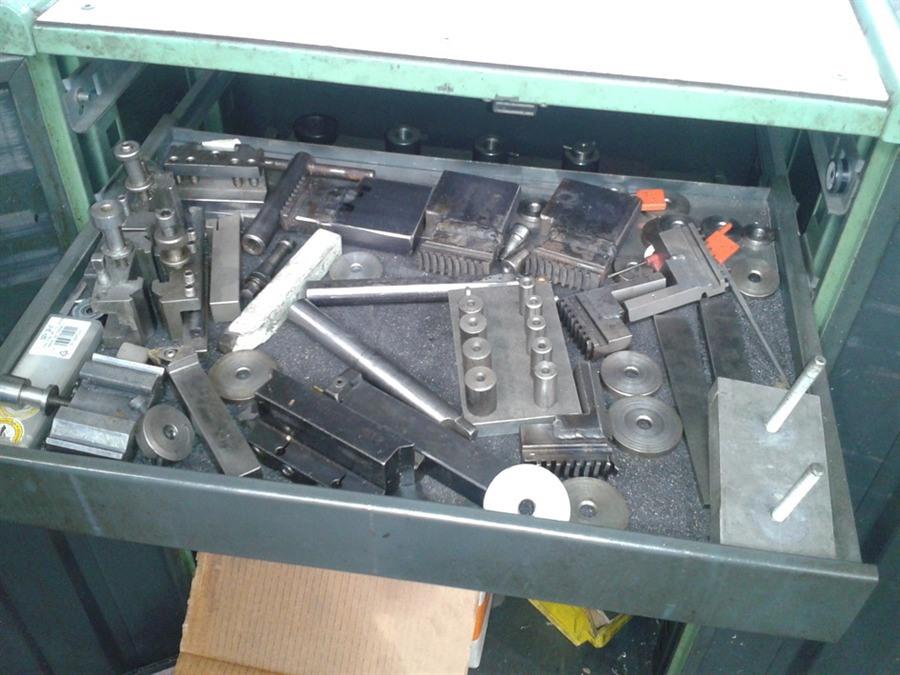

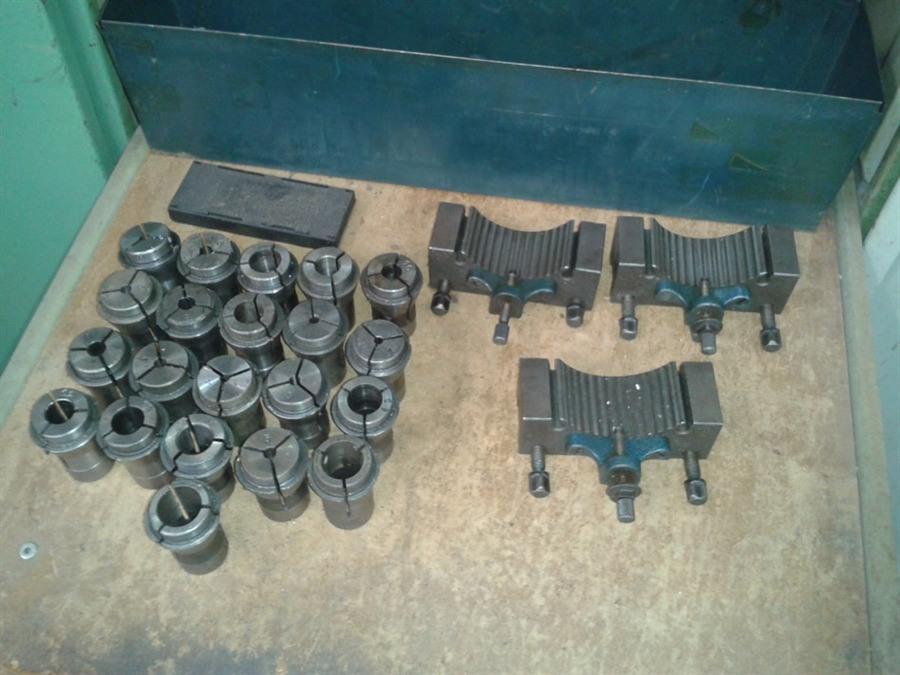

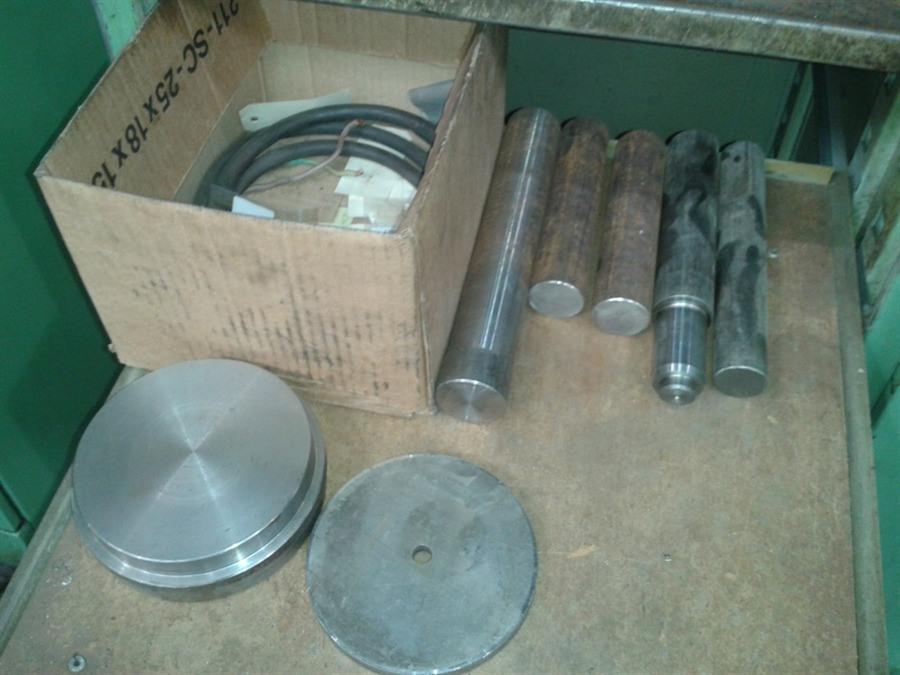

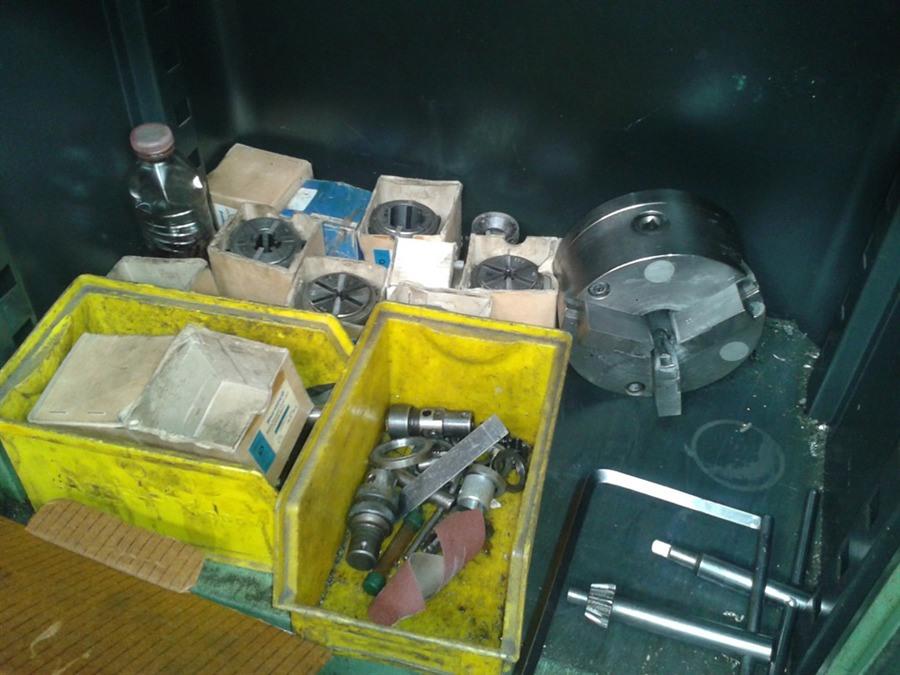

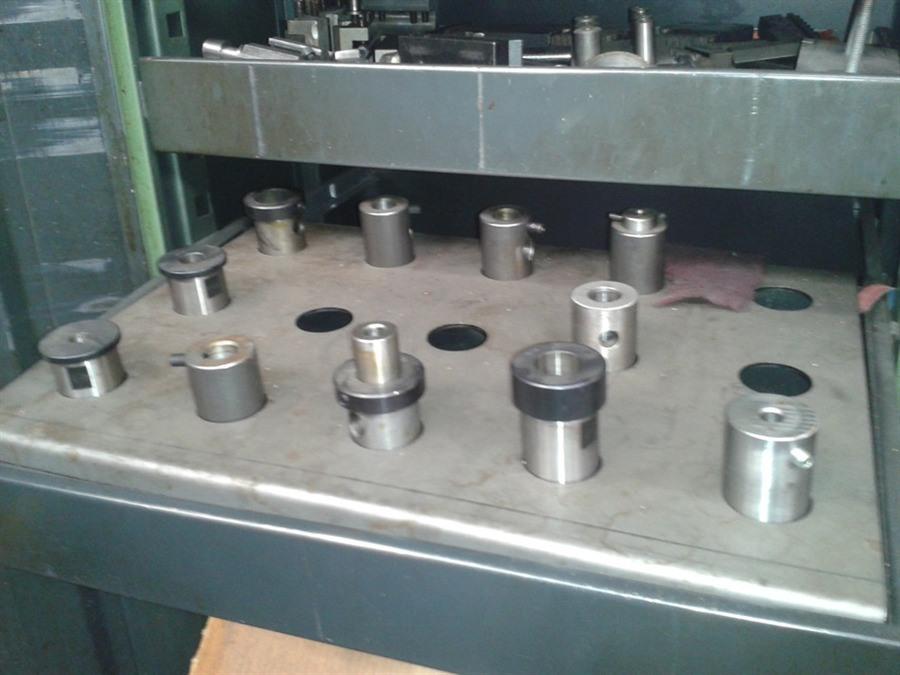

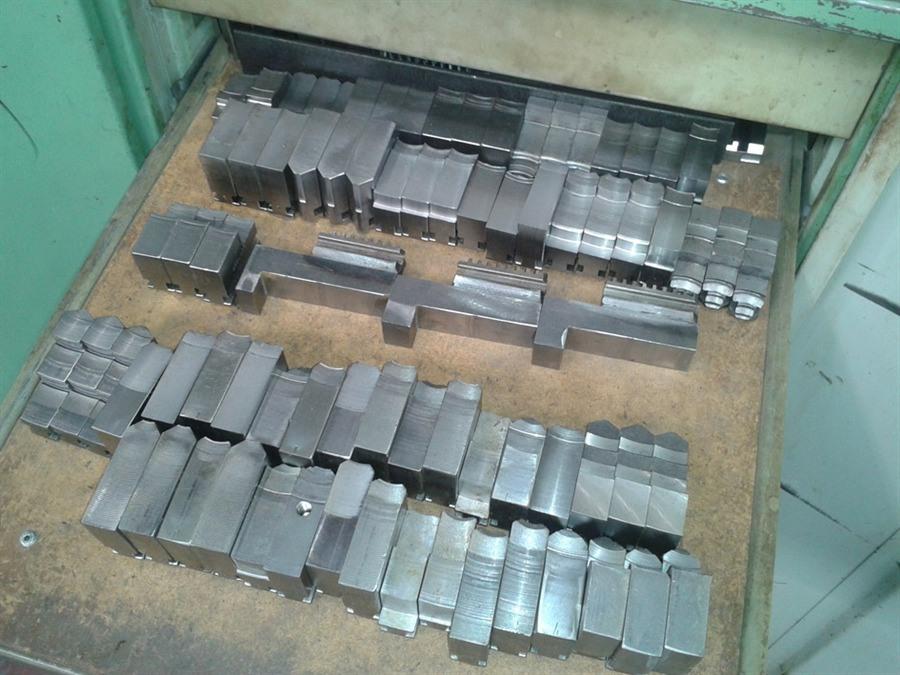

ACCESORIESyes
Anillo deslizanteyes

Información adicional

2 axis high precision CNC lathe for producing one-offs and small batches of turned parts.

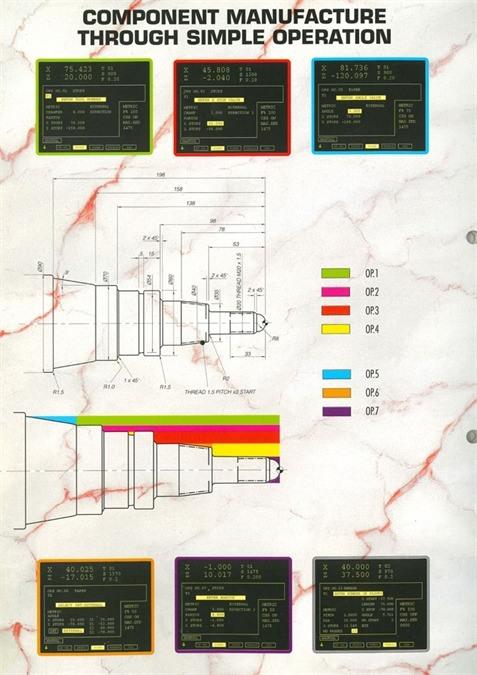

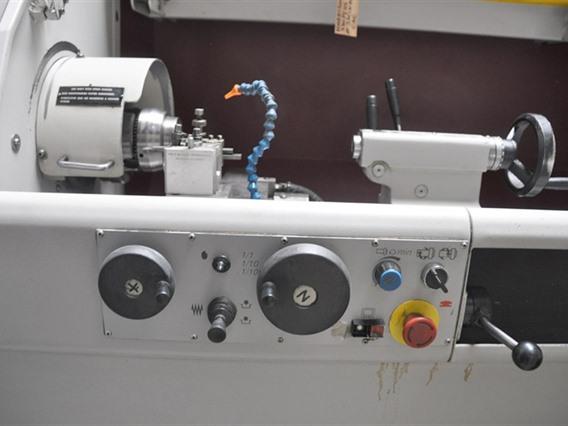

4 modes:

- manual

- semi-automatic

- auto cycle

- full fanuc G-code programming

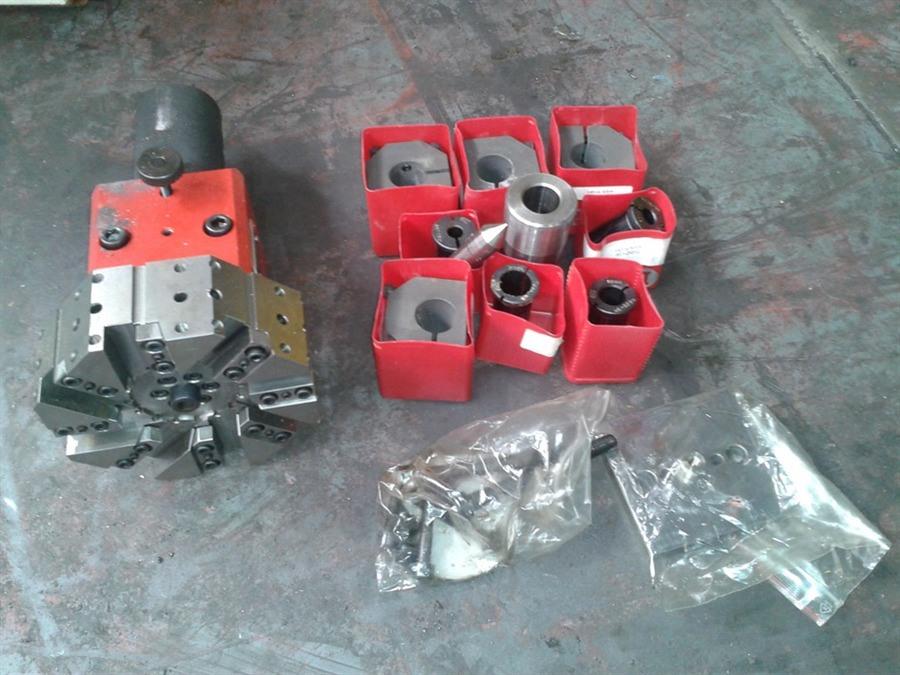

Sauter tool turret, 8 tools
Tipo/Modelo: Ø 330 x 1010 mm CNC
Numéro stock: A.07 8277
Categoría principal: [A] Tornos
Subcategoría: [A.07] Tornos CNC
Marca: Harrison Alpha 330 plus

Numéro stock: A.07 8277
