Presse piegatrici idrauliche LVD PPEB 160/30 CNC
Informazione tecniche
- Capacity160 T x 3050 mm
- Backgaugecnc

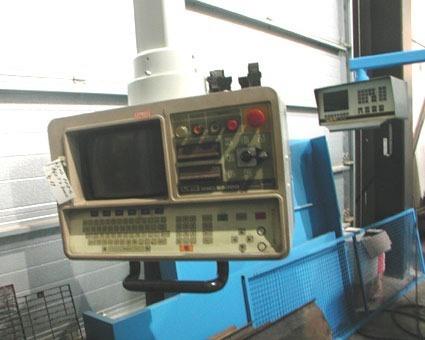

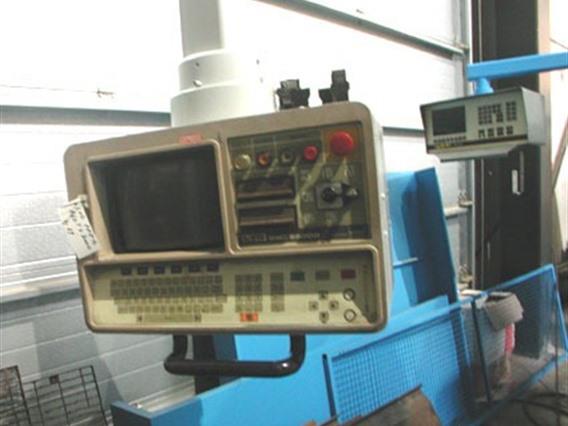

- ControlMNC 85000
- Passage between uprights2550 mm
- Max stroke175 mm
- Max distance between table -- ram425 mm
- Depth of throat250 mm
- Table width200 mm
- Locking speed100 mm/sec
- Working speed7 mm/sec
- Returning speed50 mm/sec
- Electric motor (power)15 pk
- Power needed380 V
- Length3200 mm
- Depth1200 mm
- Height2700 mm
- Weight12500 kg
- Bedknife1
- Multi V-shaped clamp1
