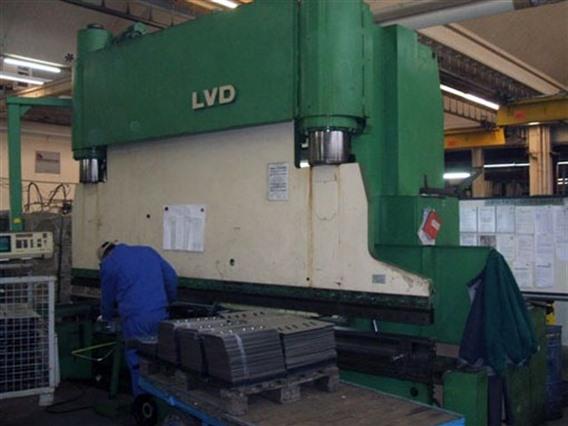

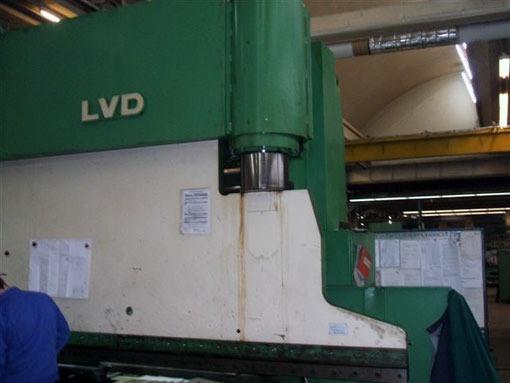

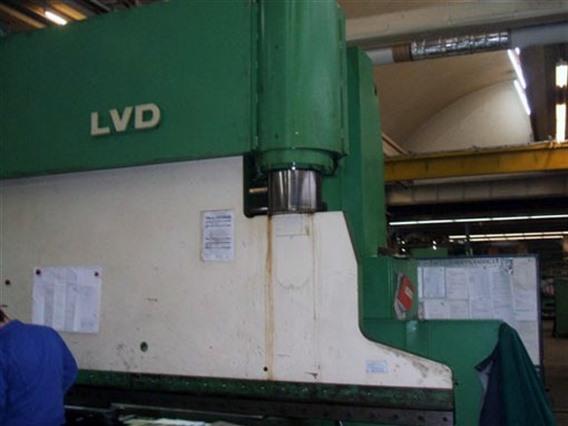

Presse piegatrici idrauliche LVD PPN 400/40 CNC
Informazione tecniche
- Capacity400 Ton x 4000(+500) mm
- Backgauge(3) CNC

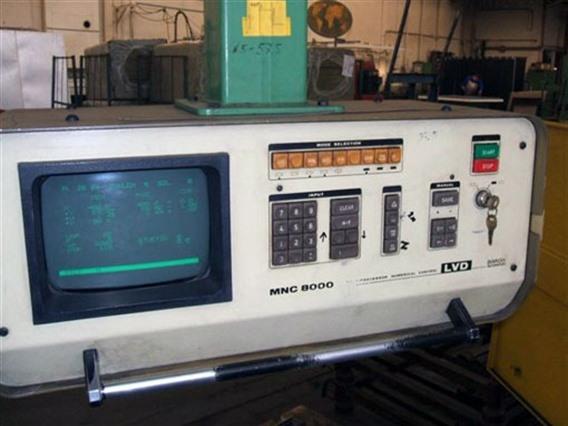

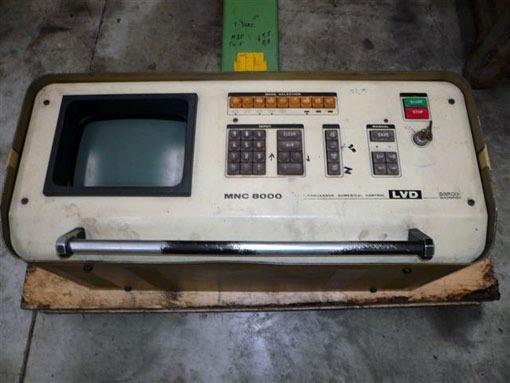

- ControlMNC 8000
- Passage between uprights3150 mm
- Max stroke300 mm
- Max distance between table -- ram550 mm
- Depth of throat300 mm
- Table width250 mm
- Locking speed80 mm/s
- Working speed7.6 mm/s
- Returning speed66 mm/s
- Electric motor (power)30 kW
- Length4875 mm
- Depth1600 mm
- Height4110 mm + 1260 mm
- Weight26000 kg

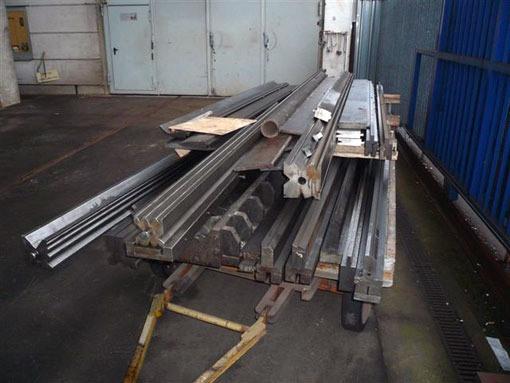

- Bedknife*

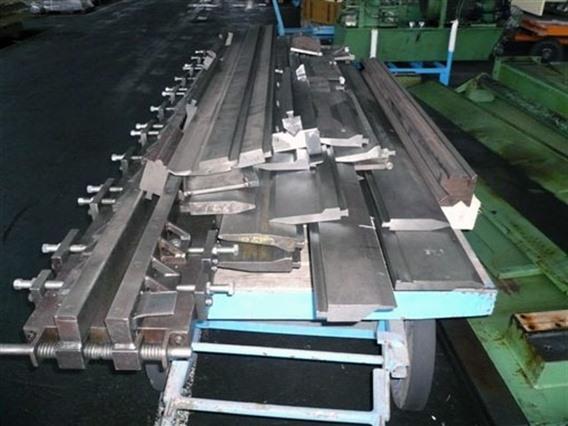

- Multi V-shaped clamp*
