Stam Siempelkamp sandwich panel line CNC
Informazioni supplementari

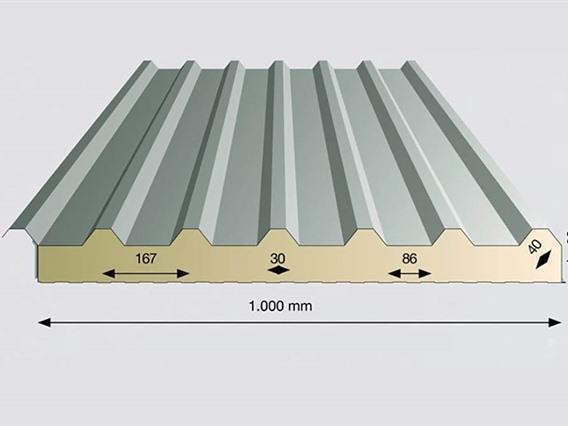

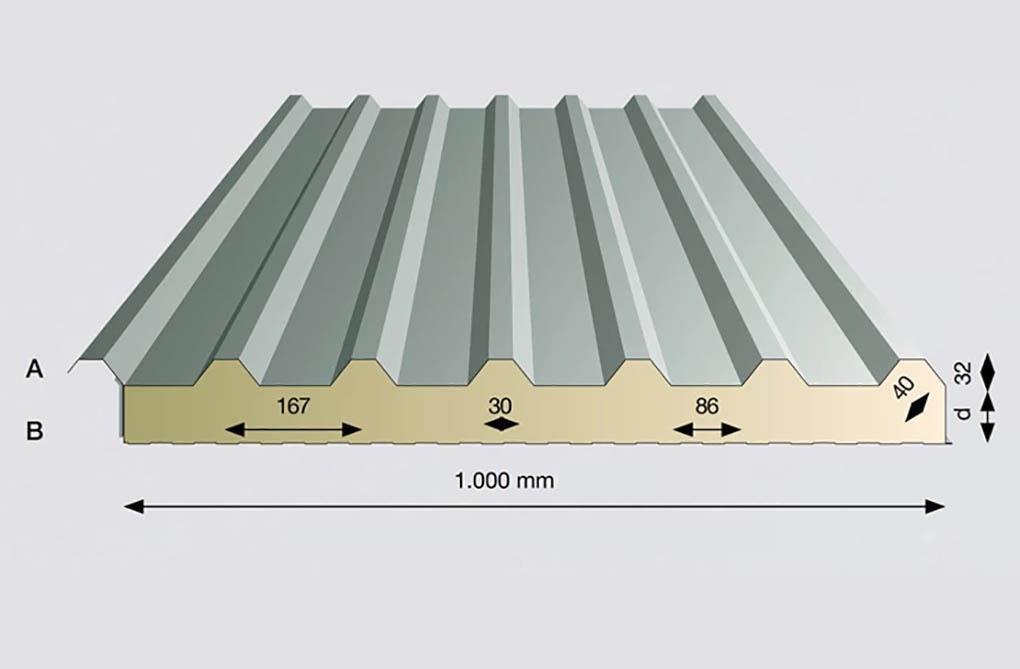

- Decoiling and rollforming line for manufacturing roof sandwich panels
Max width of finished panel: 1000 mm

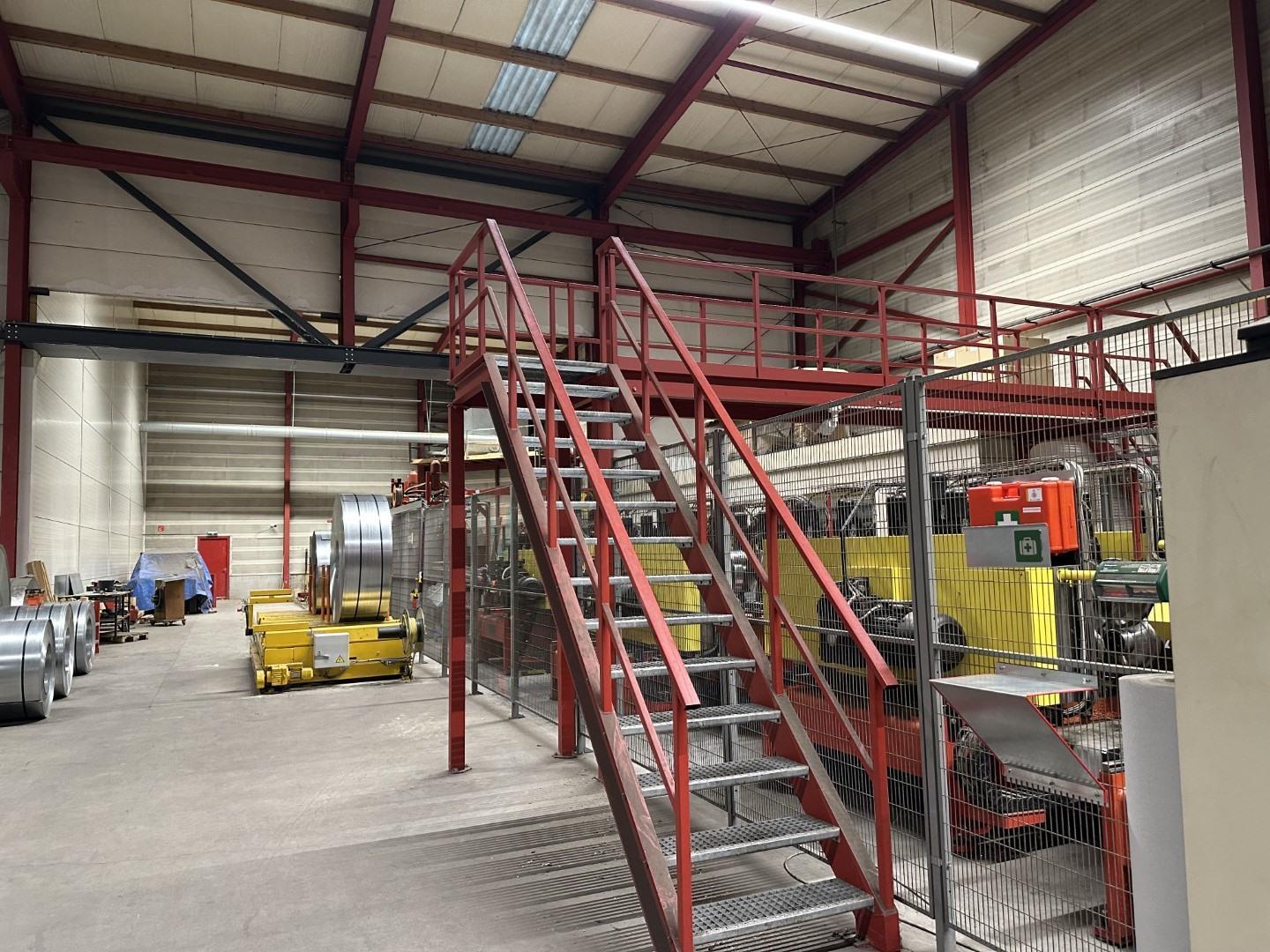

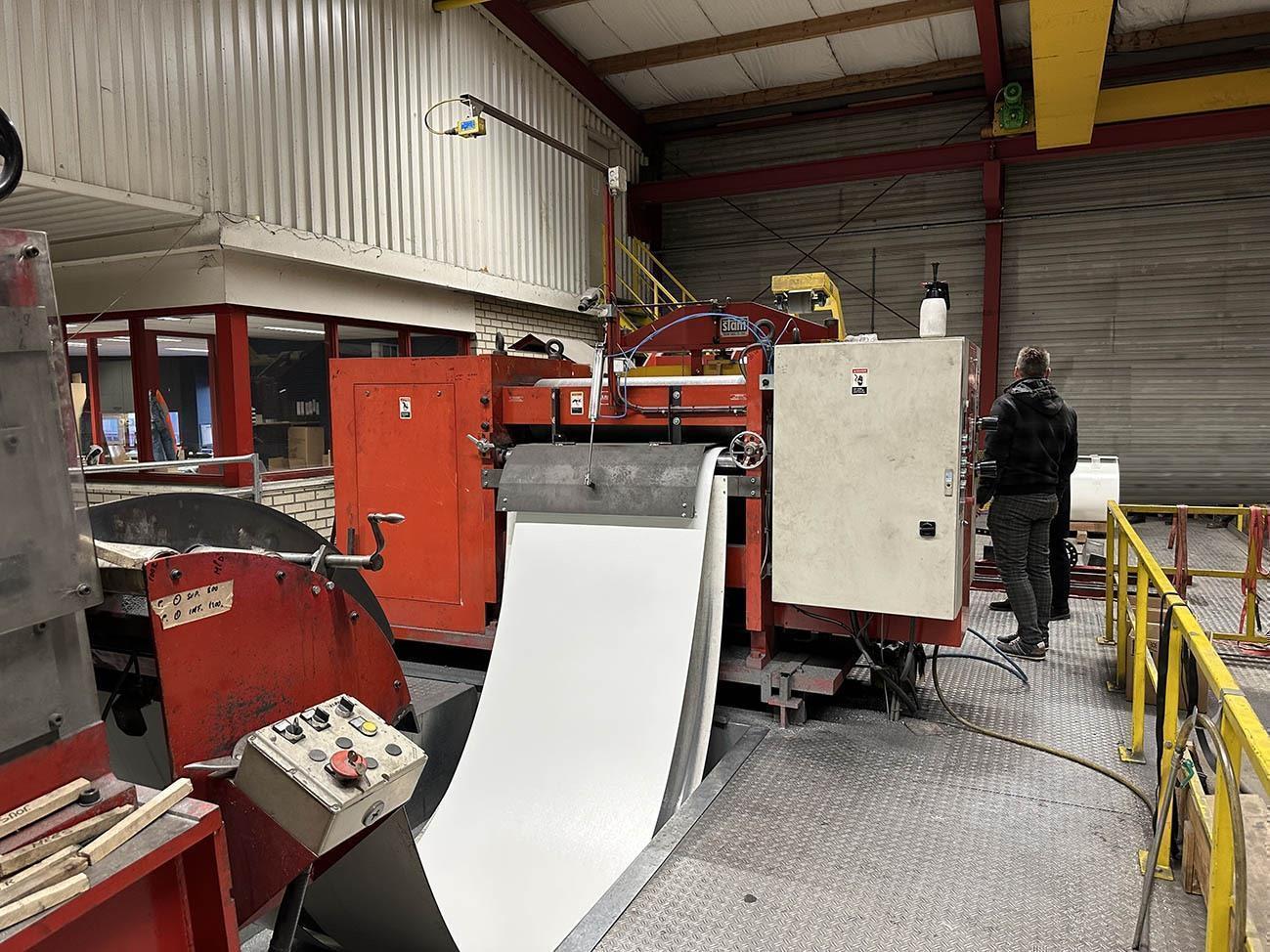

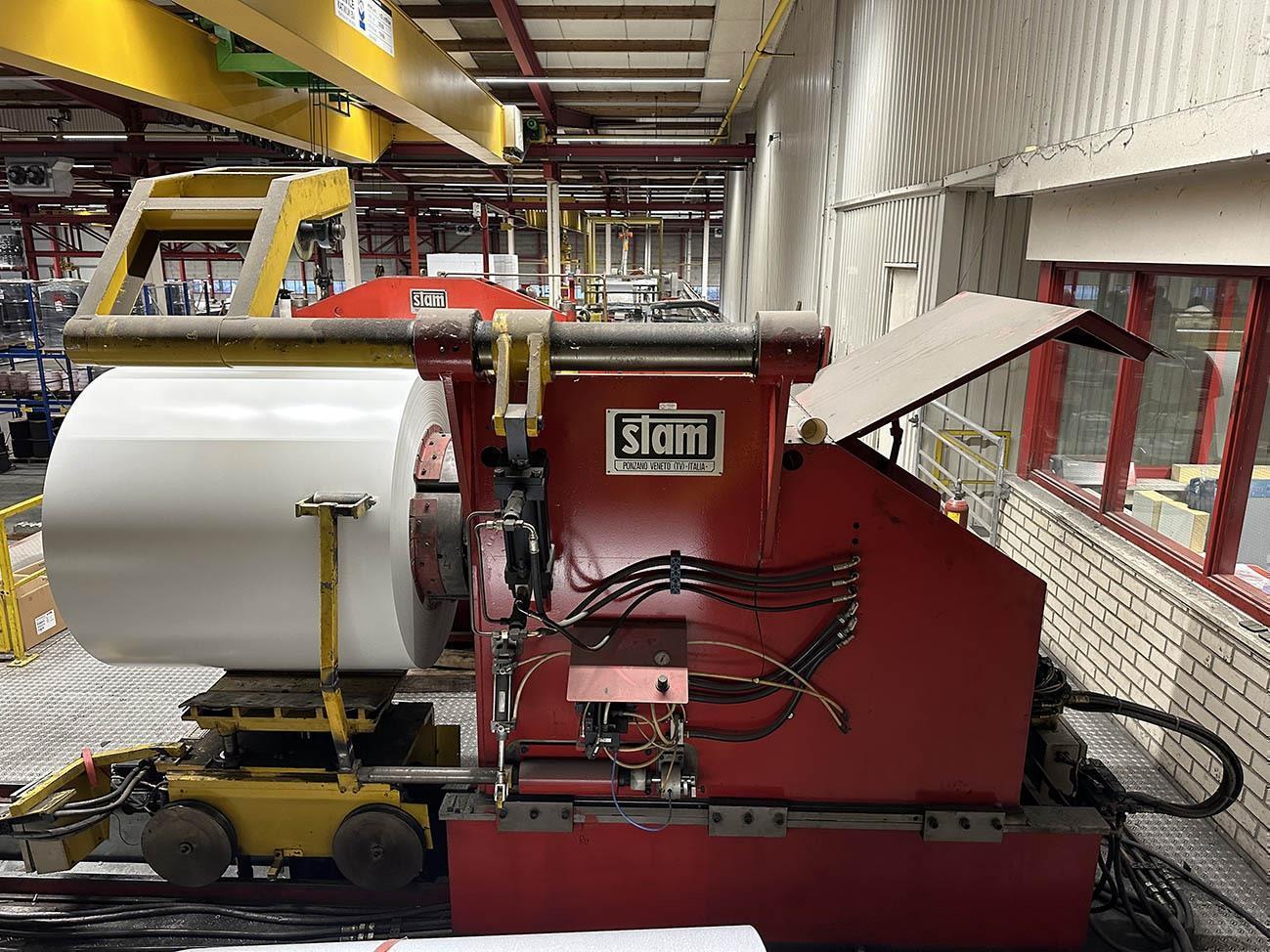

1 - two Stam decoilers of 12 ton

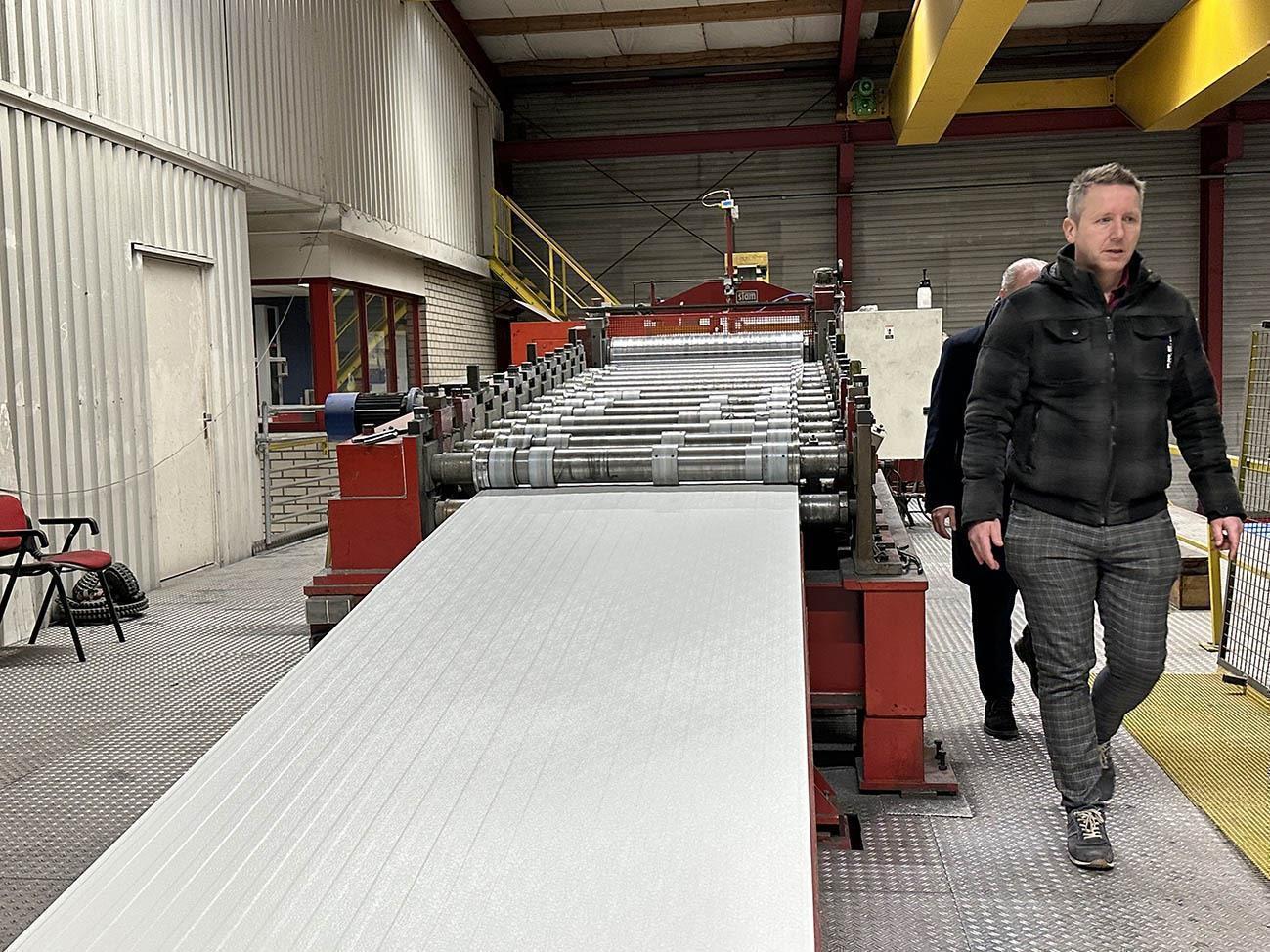

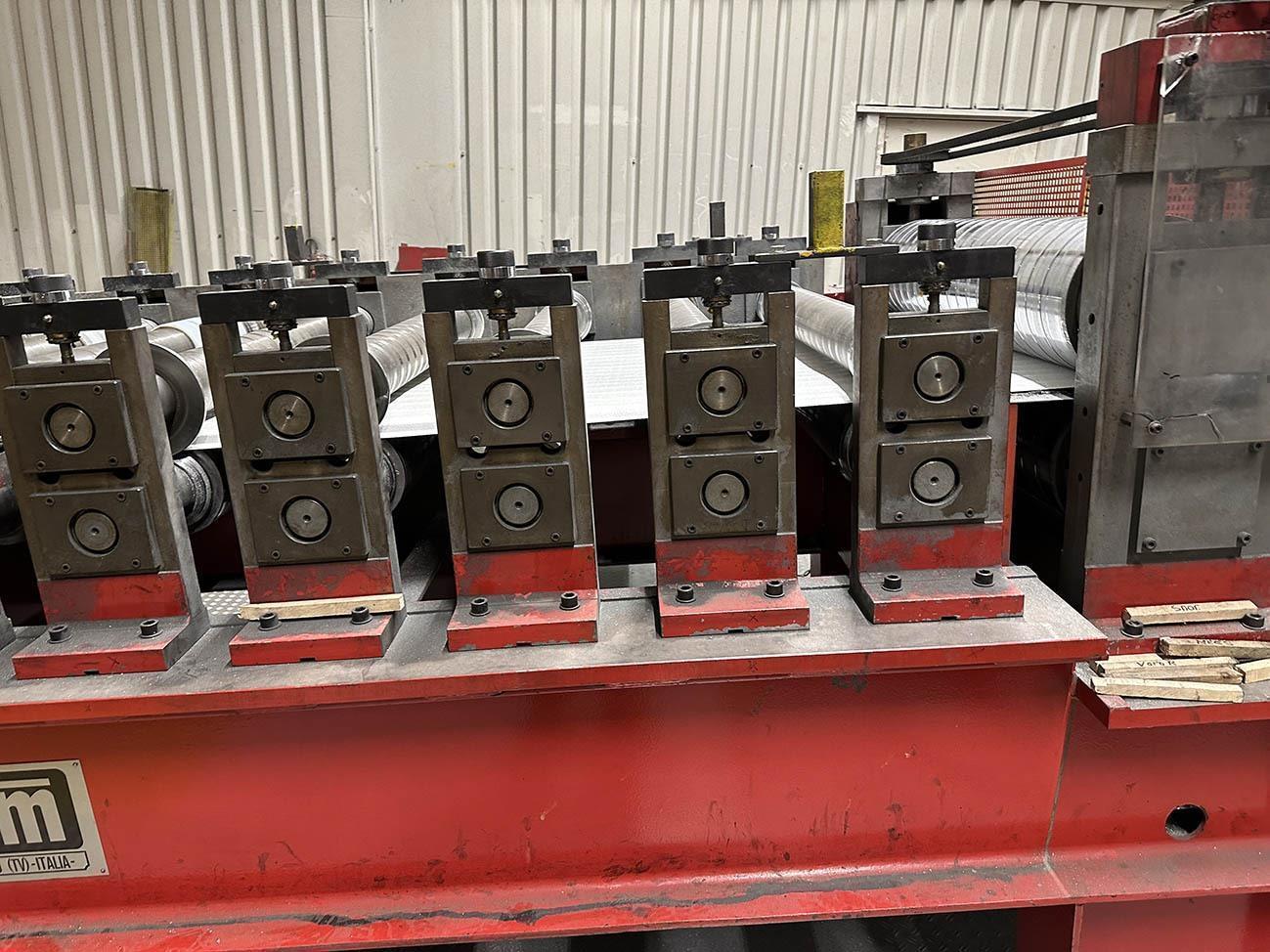

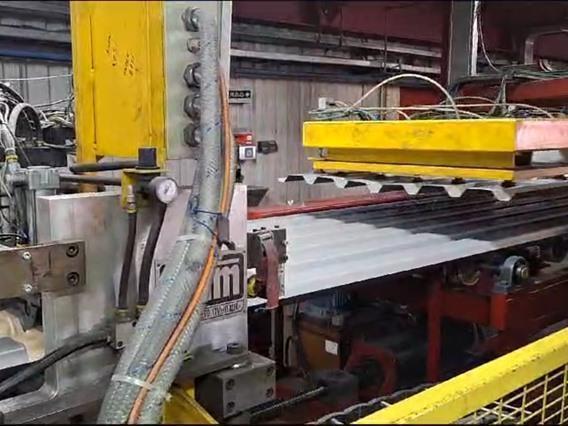

2 - in-line profiling machine

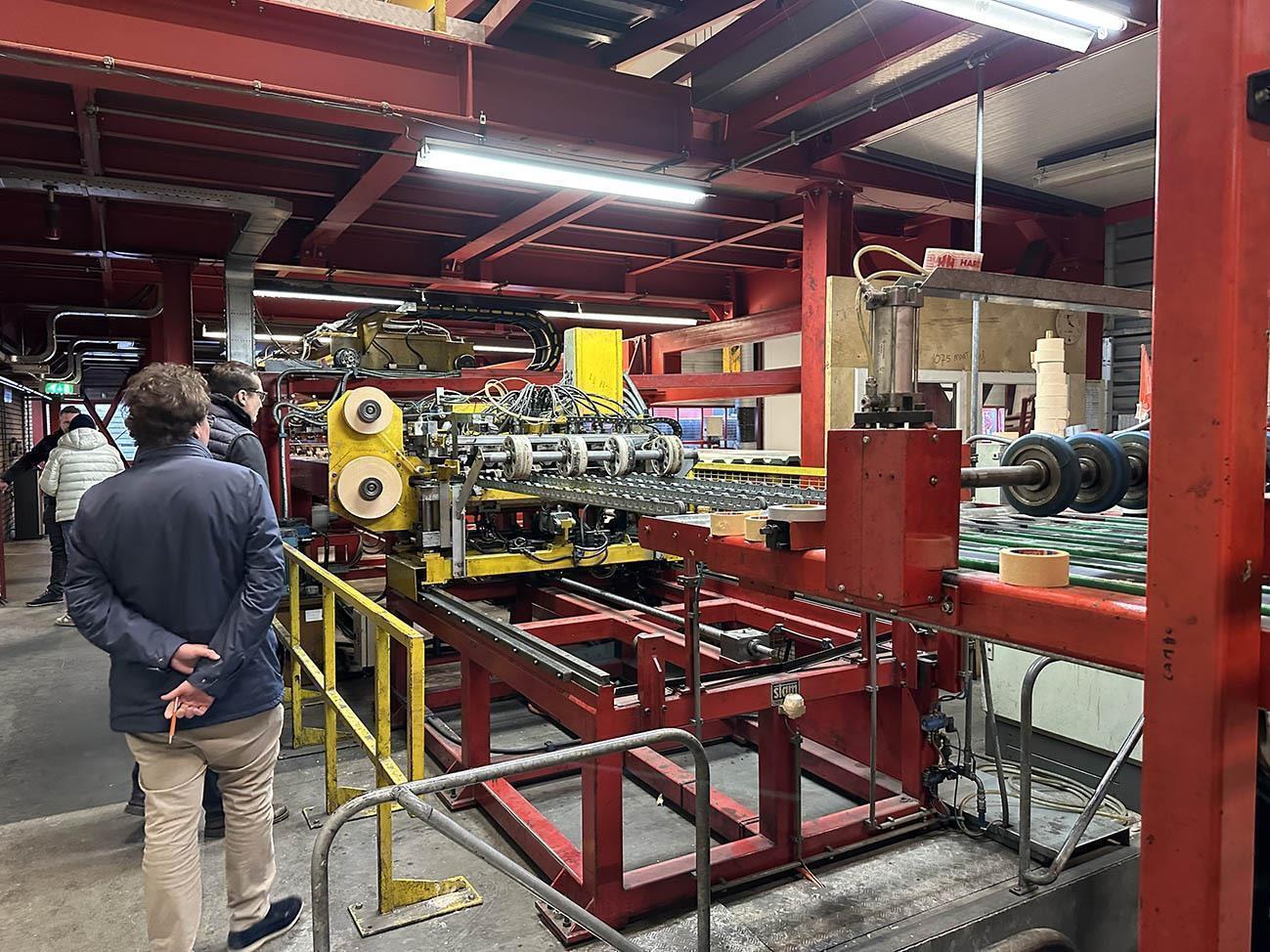

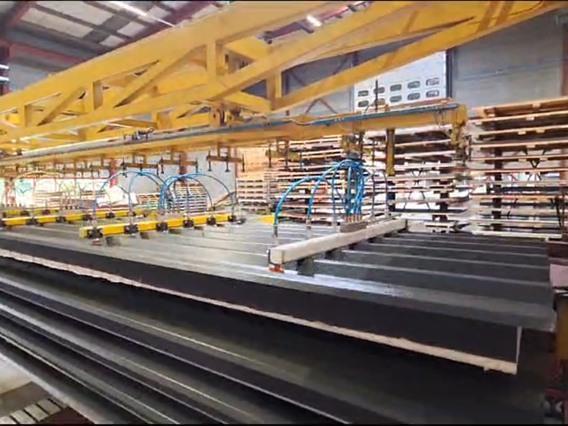

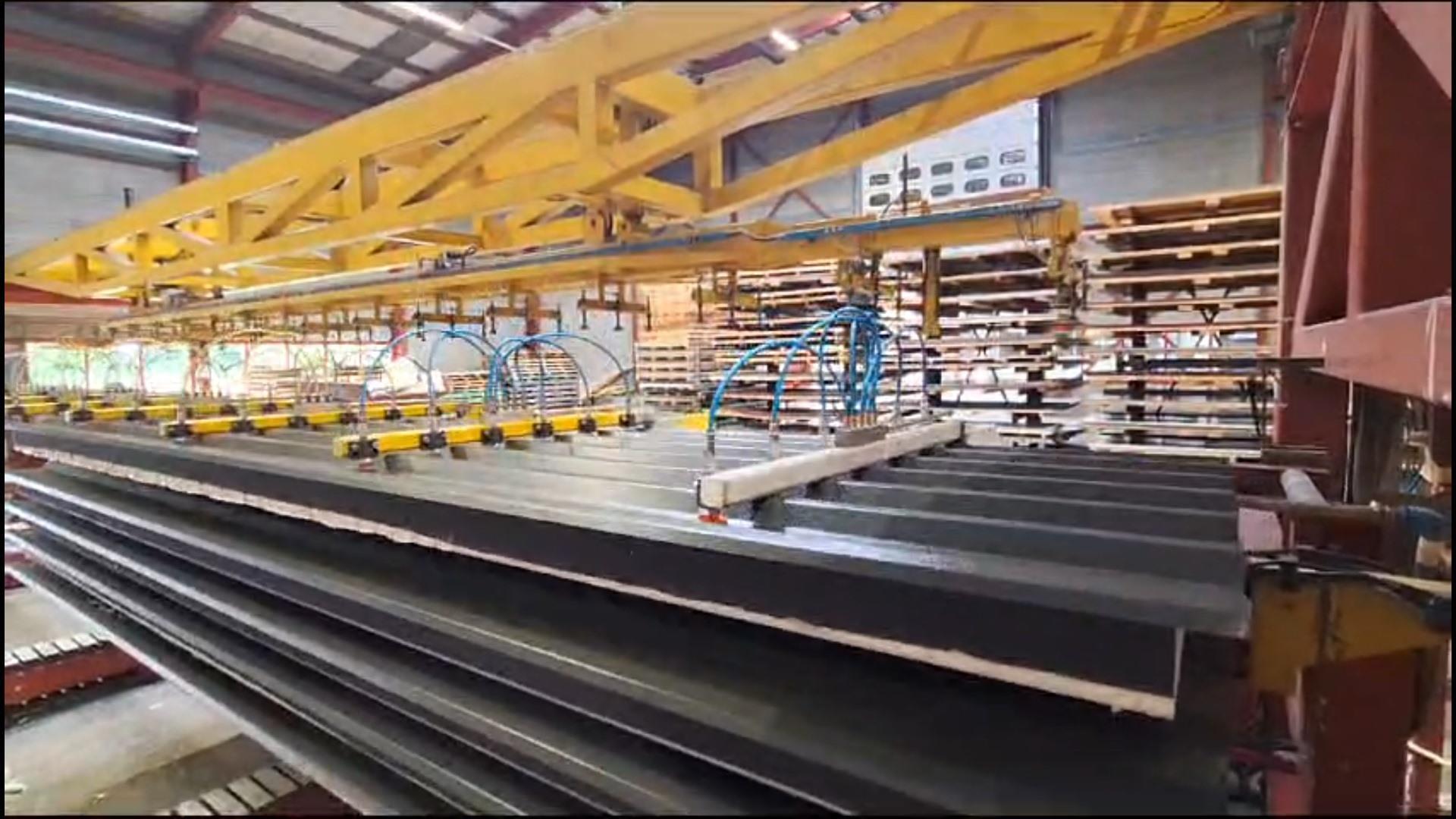

3 - pick and place for the insertion of sheets in the Stam production line, max panel length 18 meter

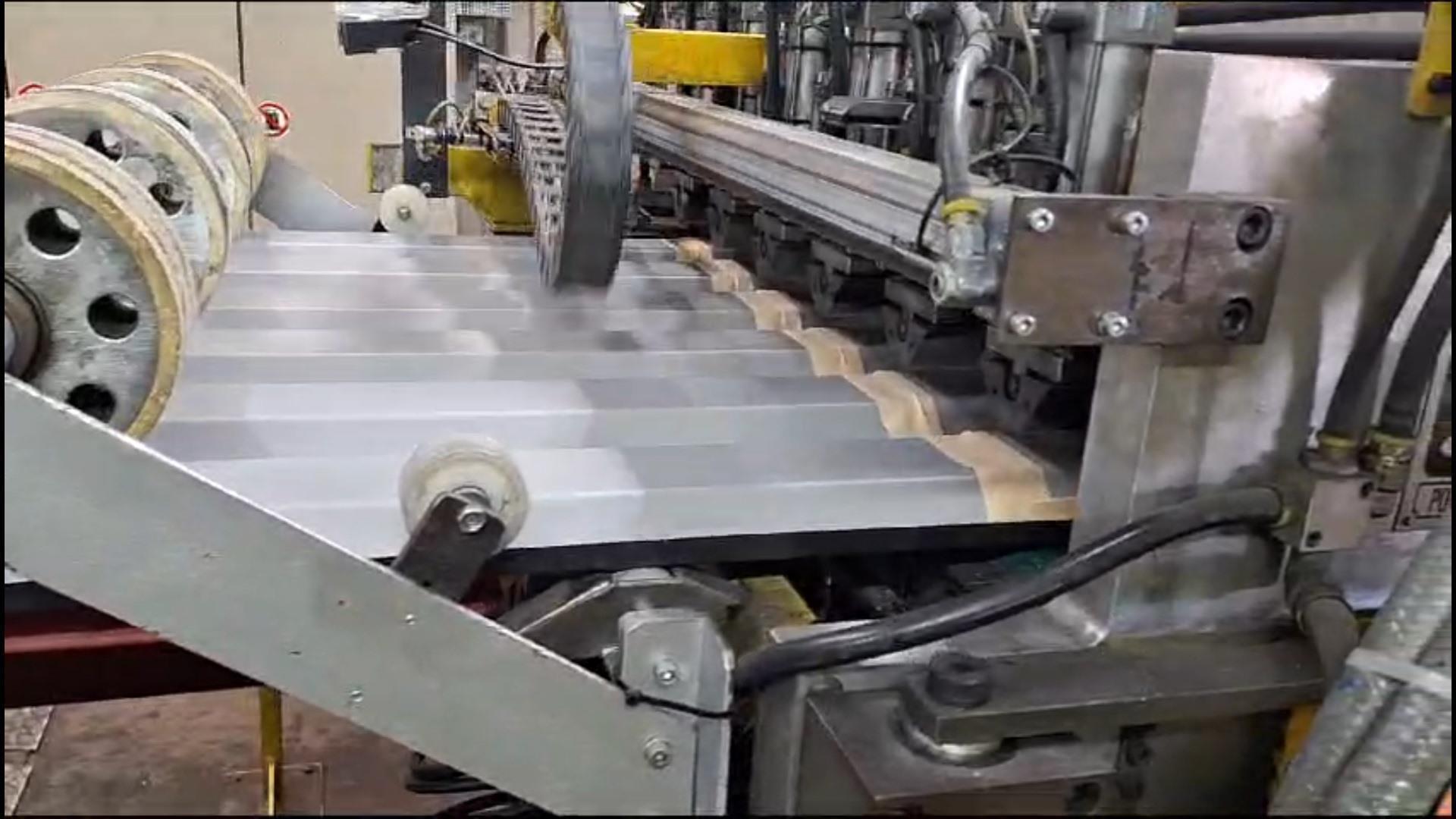

4 - automatic machine for the overlapping of sheets
5- sheet preheating

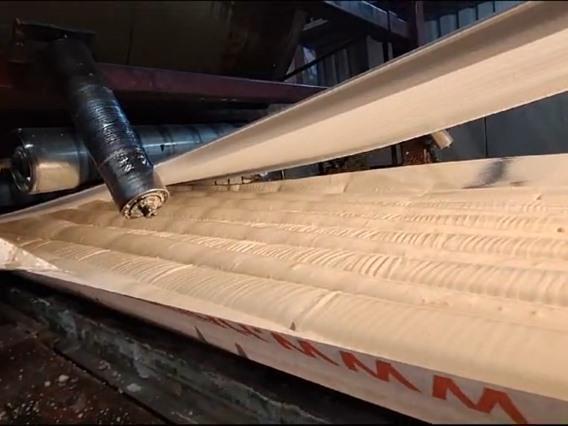

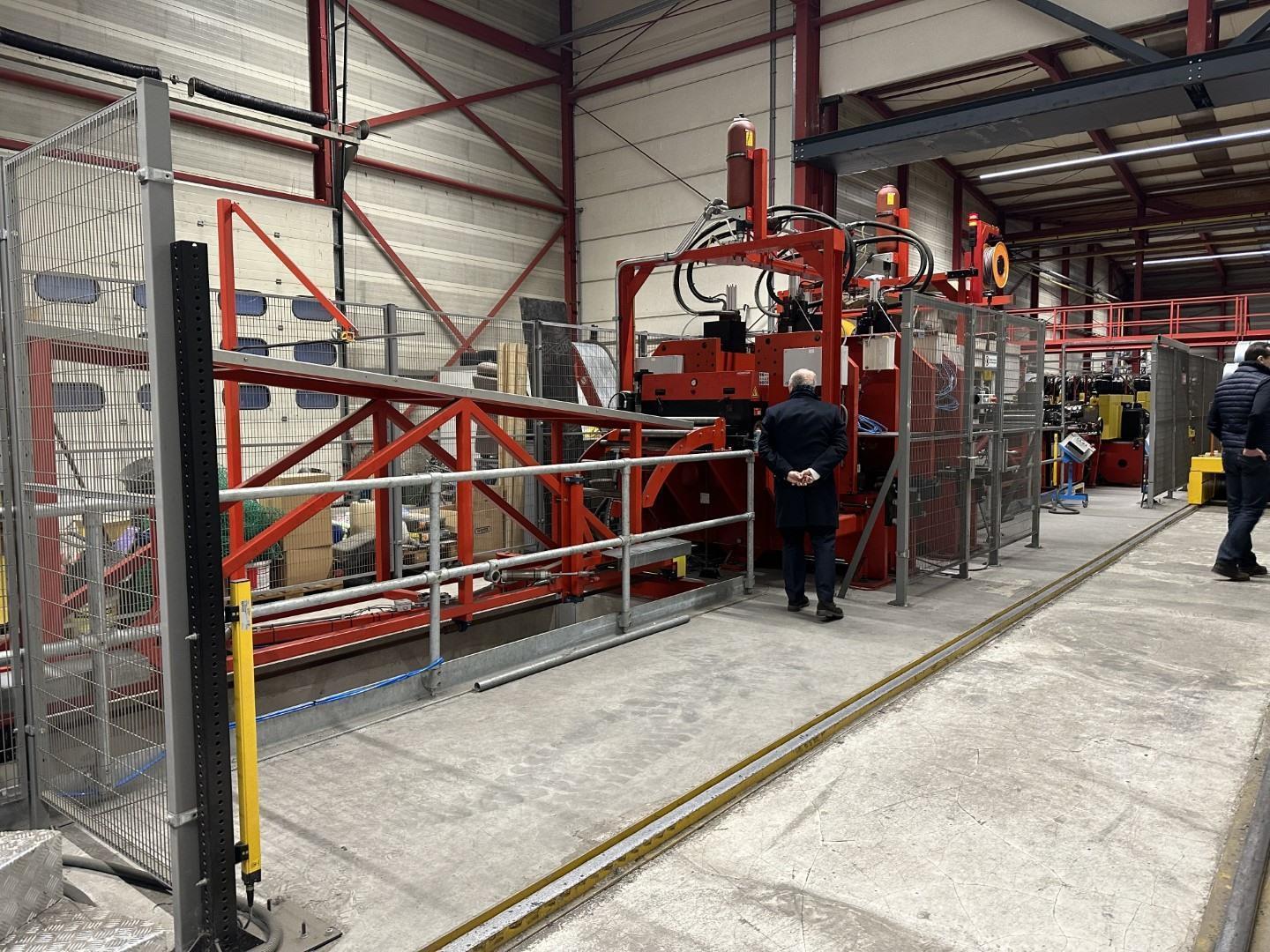

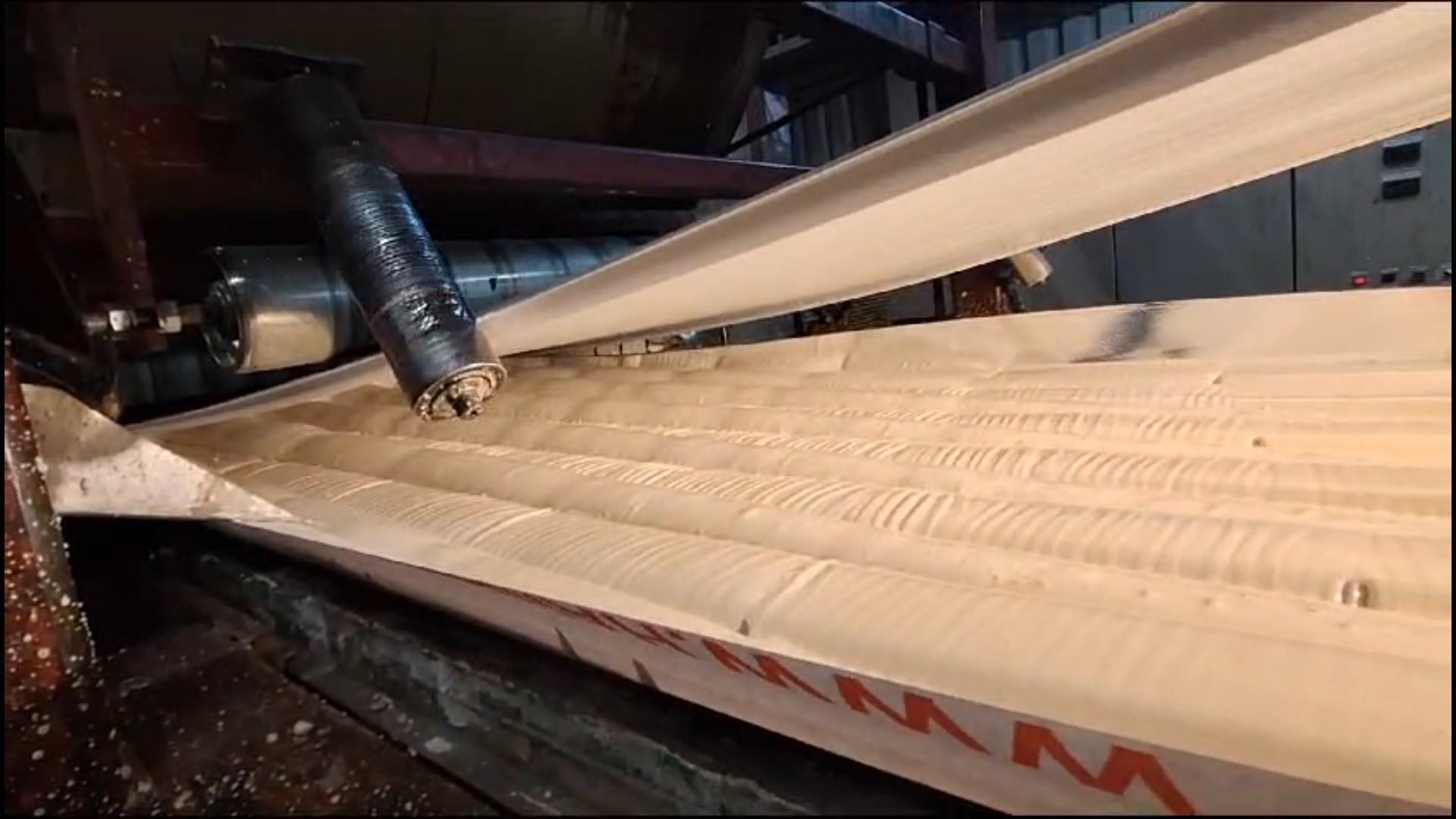

6 - Elastogram foaming gantry
7 - Elastogram dosing bench

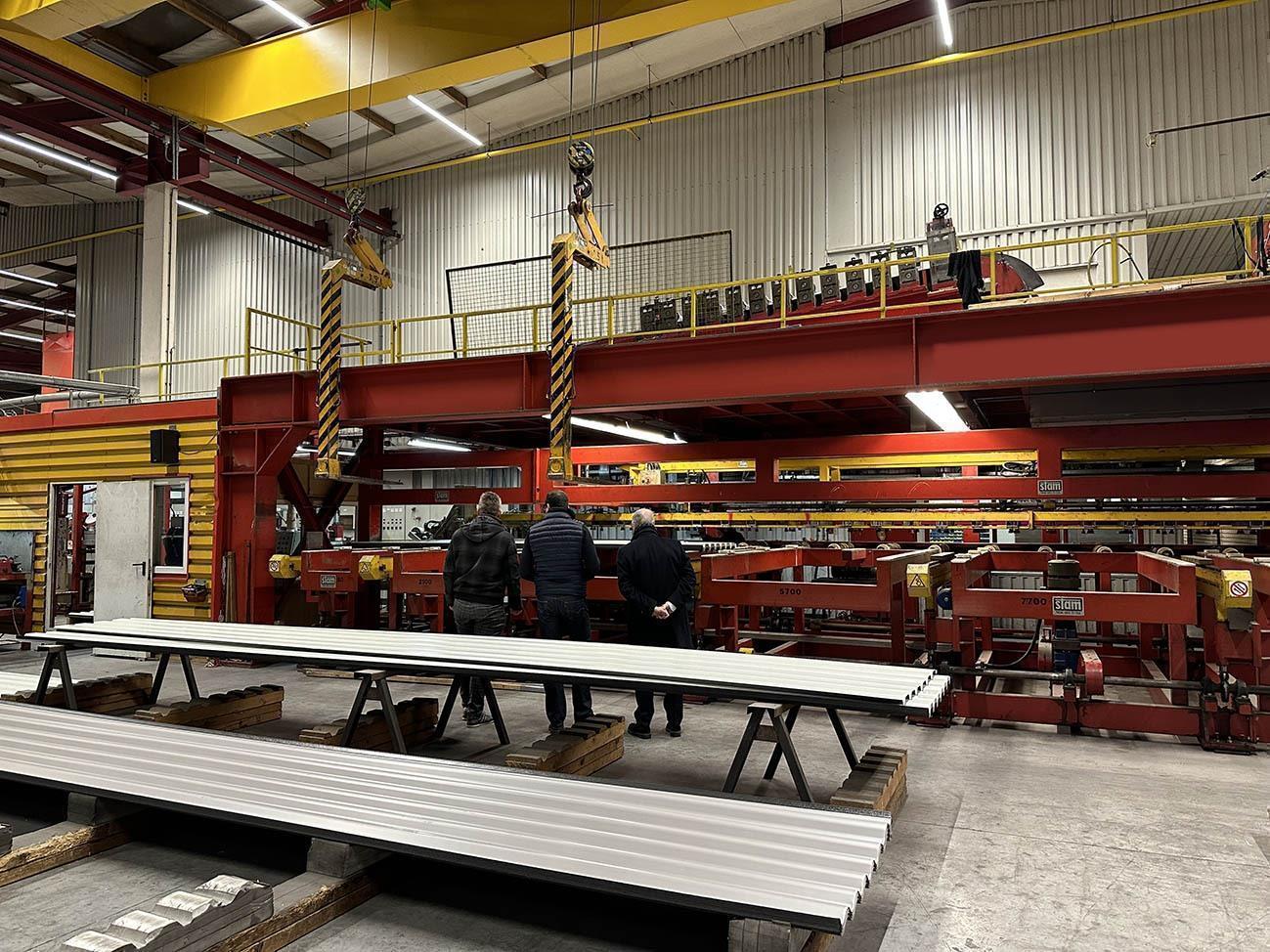

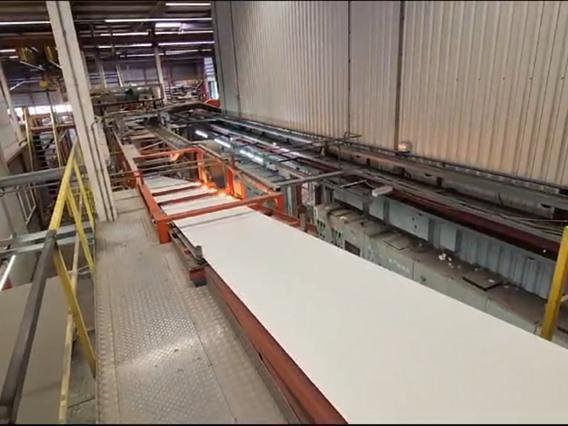

8 - Siempelkamp 25 meter curing shaper
9 - circular saw CM Machinery Ireland for cutting sandwich panels to length

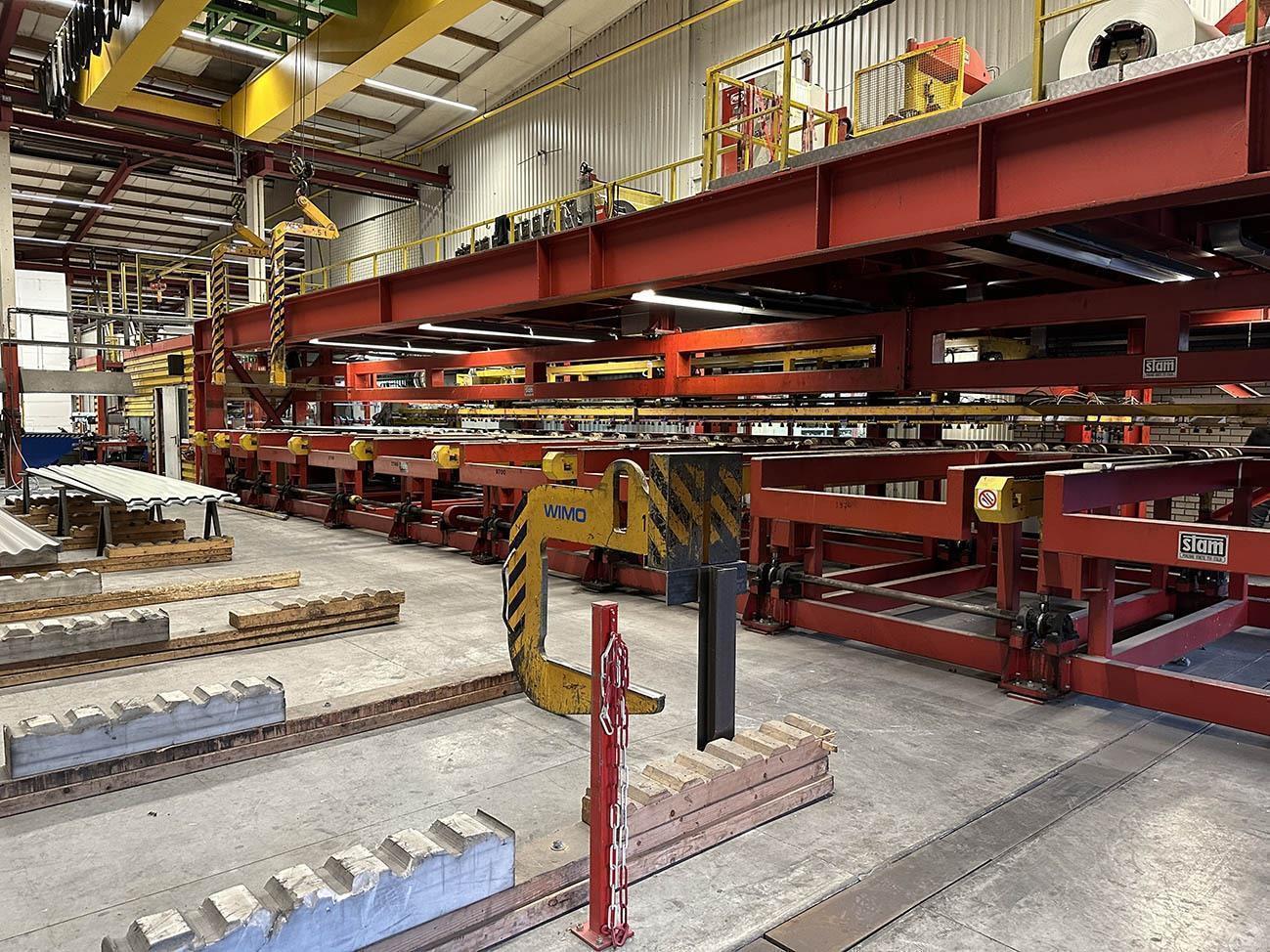

10 - stacking unit for max panellength 16 meter
11 - horizontal packing unit
Total length of the line from decoiler to stacking is 90 meters. The packing unit is located next to the stacking unit, panels are moved from the stacking unit with side conveyors.
- Tipo/Modello: sandwich panel line CNC
- Numero di magazzino: O.27 13083
- Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
- Sottocategoria: [O.27] Svolgitore + / o linee di profilatura
- Il marchio: Stam Siempelkamp
