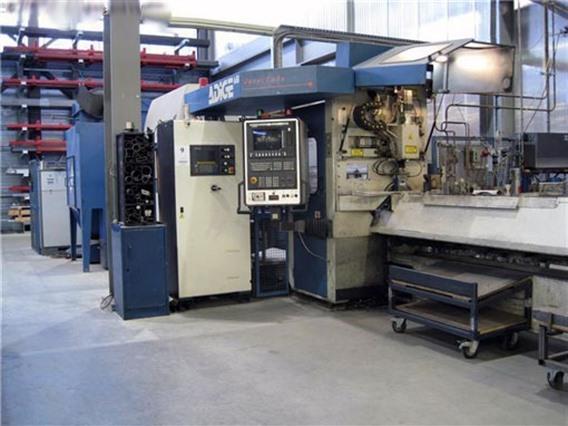

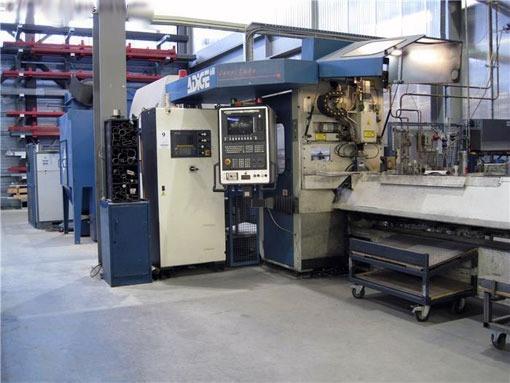

Tagliatrici laser Adige Lasertube LT 651 CNC
Informazione tecniche

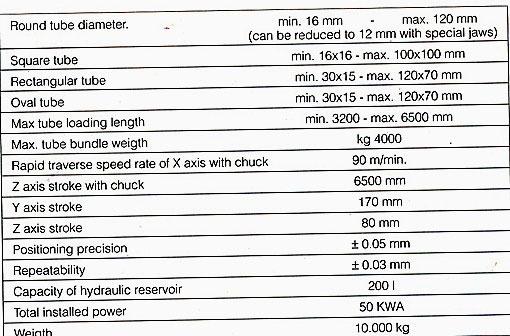

- Workpiece dimensionsMax Ø 120 mm x 6500 mm
- Type of LaserRofin Sinar
- Power2000 W

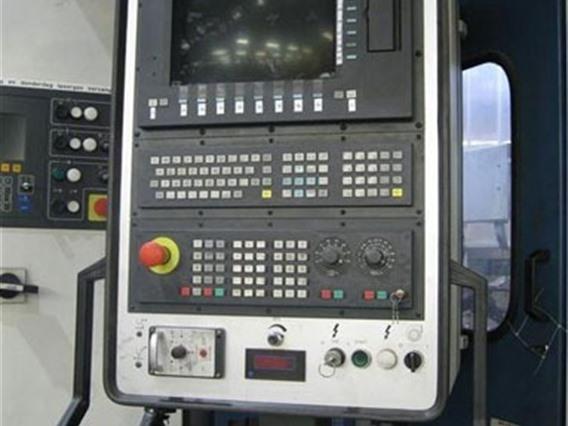

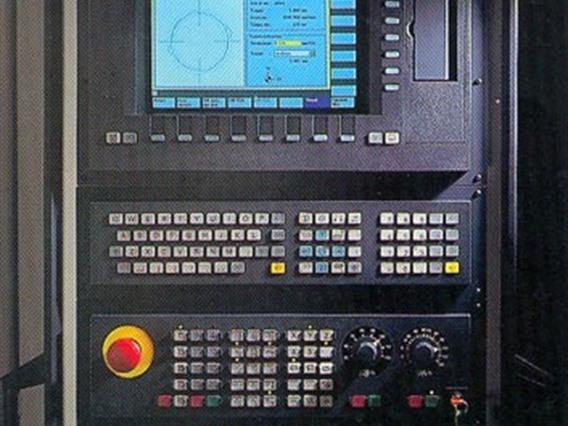

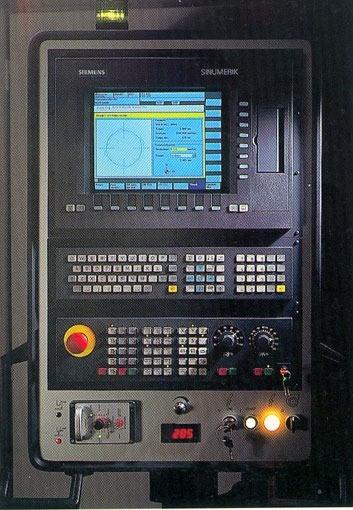

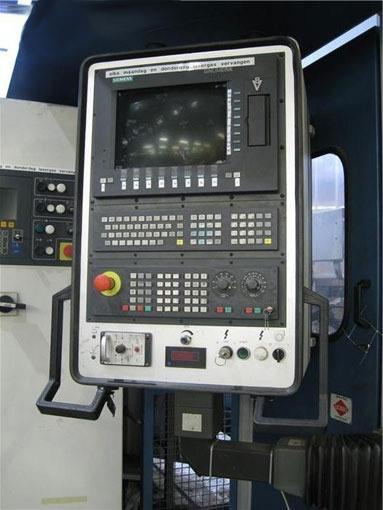

- ControlSiemens Sinumerik
- Longitudinal travel X-axis6500 mm
- Cross travel Y-axis170 mm
- Hight travel Z-axis80 mm
- Travel speed90 m/min
- Motor Power50 kW

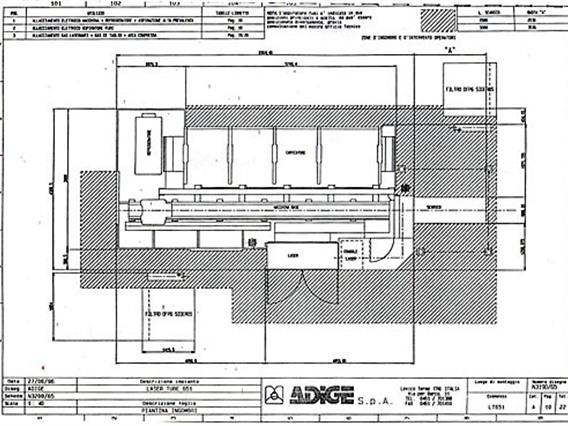

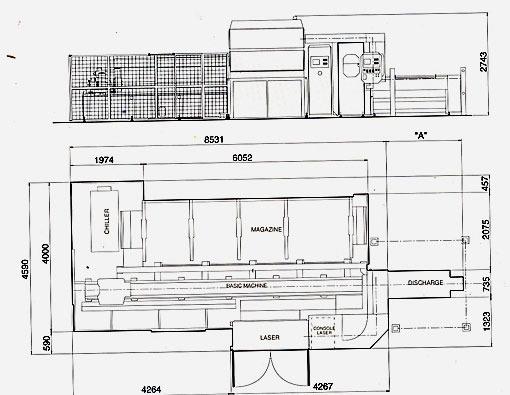

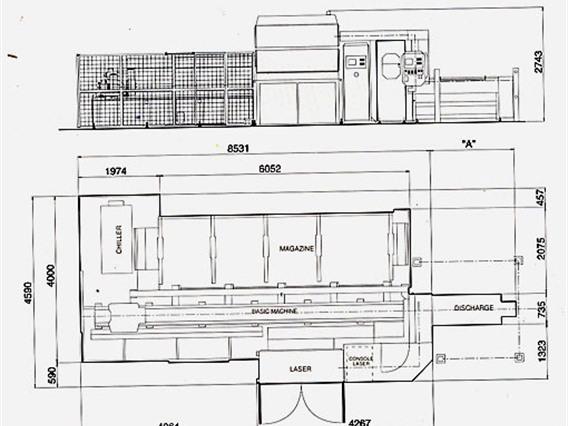

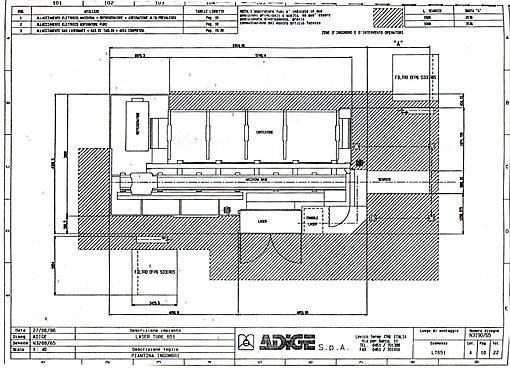

- Length8531 mm
- Depth4590 mm
- Hight2743 mm
- Weight10000 kg

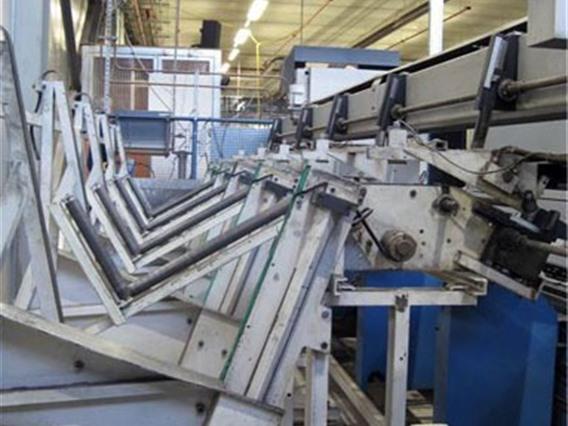

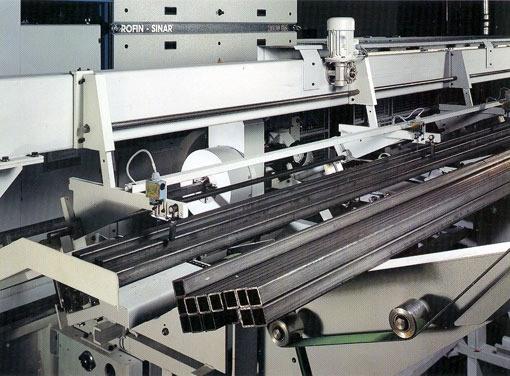

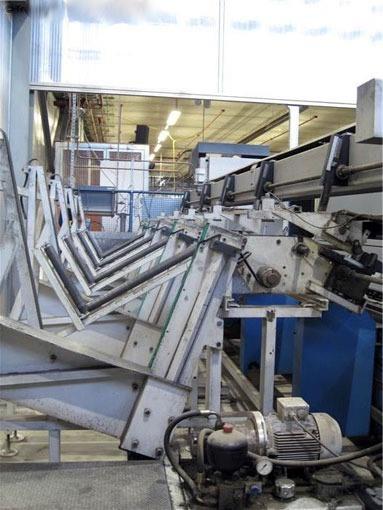

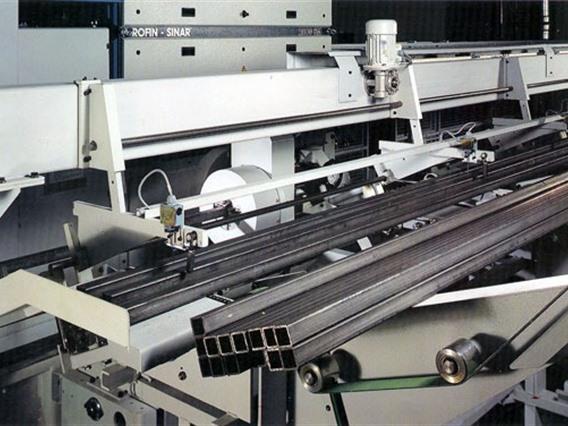

- Loading SystemYes
Informazioni supplementari

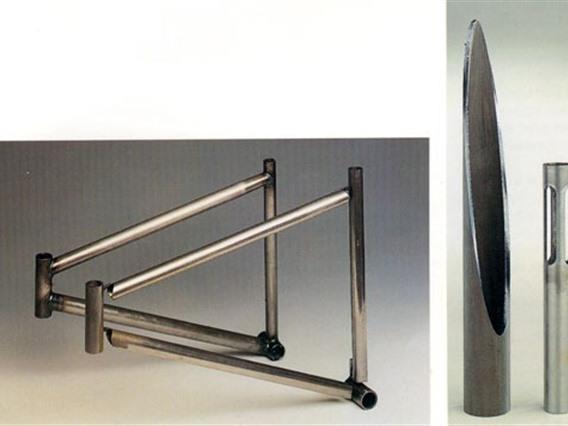

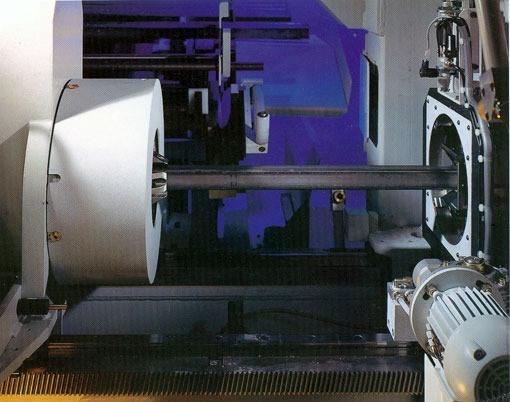

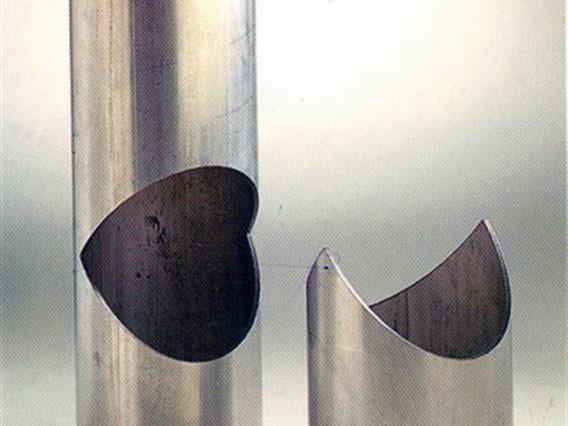

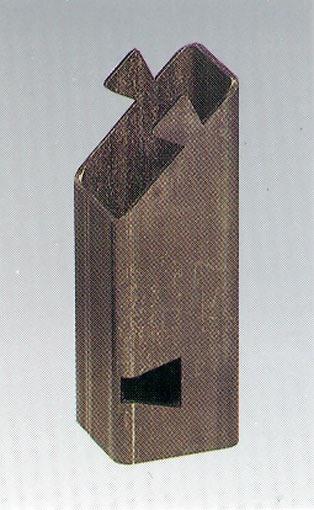

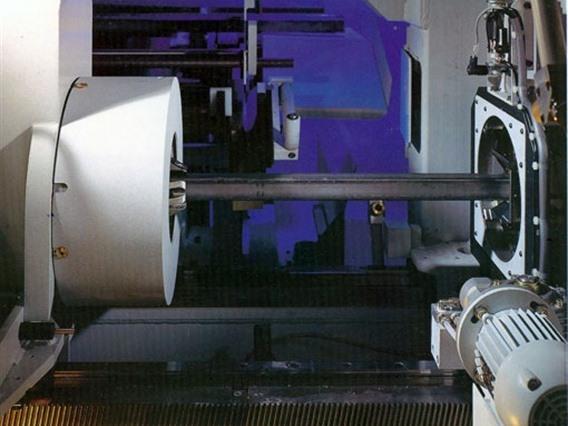

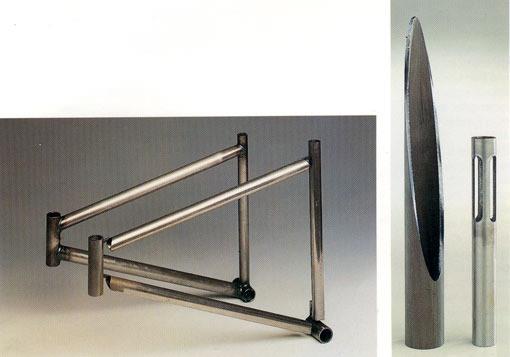

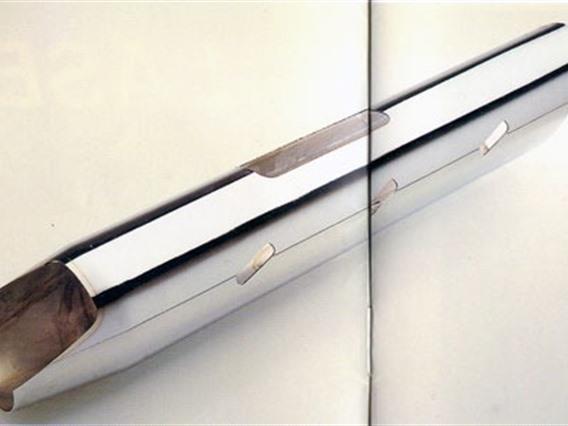

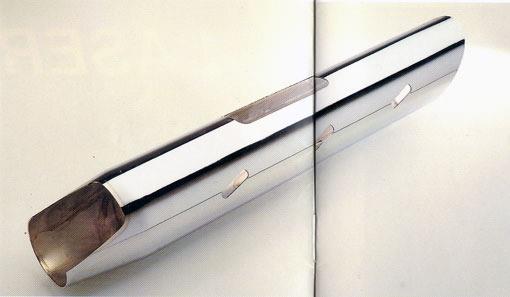

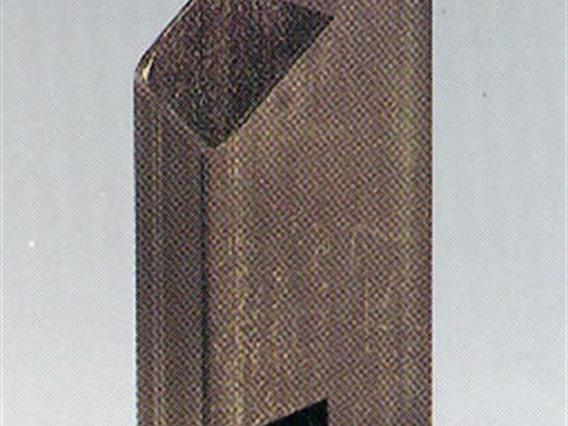

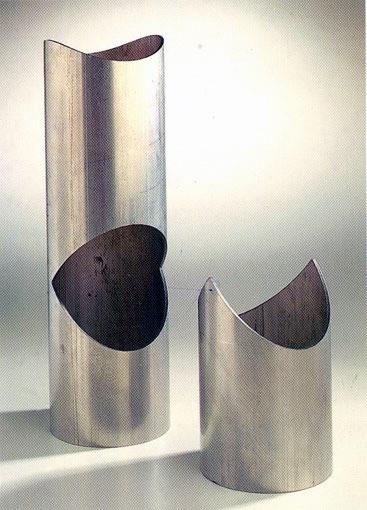

- The Lasertube 651 laser cutting system is ideally suited to laser working of ROUND, SQUARE RECTANGULAR and OVAL tubes in a range of materials including mild steel, alloy steel, stainless steel, titanium, aluminium and copper. A great advantage of the lasertube 651 is its processing flexibility thus permitting to carry out operations both on ends and along the tube as well. It is possible to perform an the same stock lenght of tube, in addition to the conventional cutto lenght, any combination of holes, slots or contoured cuts and other operations automatically. cap: Round Min 16 mm - Max 120 mm Square min 16 x 16 mm - max 100 x 100 mm Rect Min 30 x 15 mm - max 120 x 70 mm Oval min 30 x 15 mm - max 120 x 70 mm
- Tipo/Modello: Lasertube LT 651 CNC
- Numero di magazzino: O.12 5048
- Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
- Sottocategoria: [O.12] Tagliatrici laser
- Il marchio: Adige
