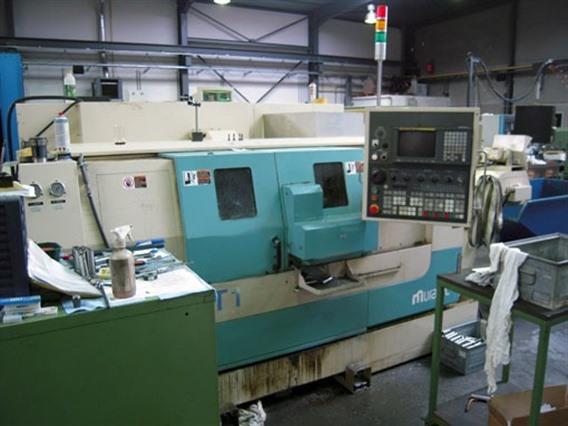

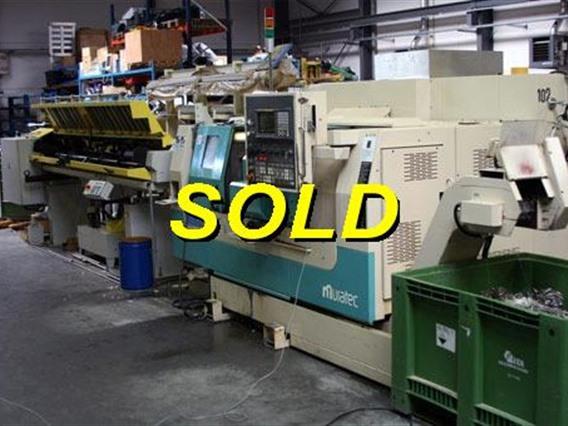

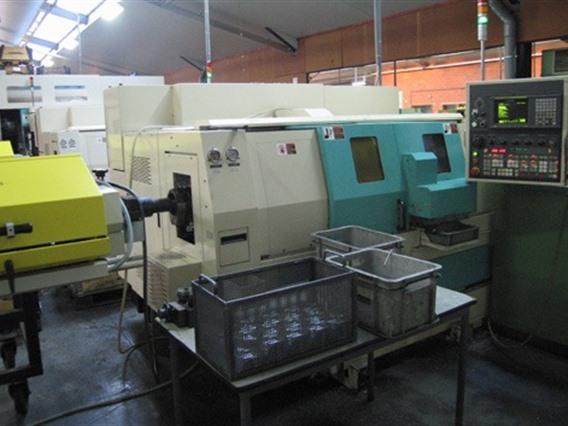

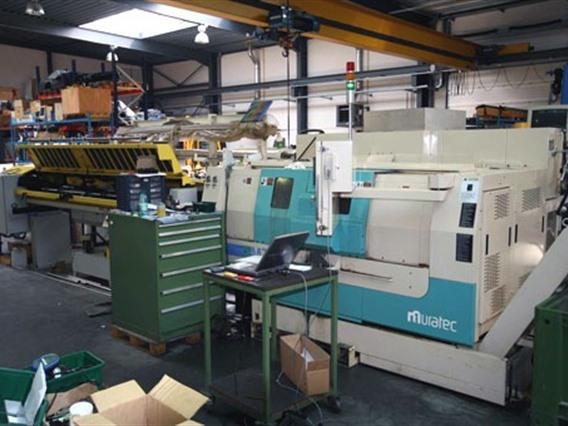

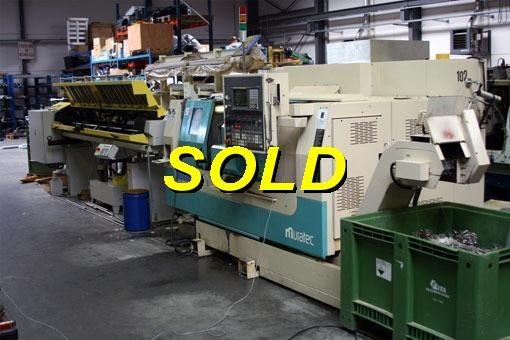

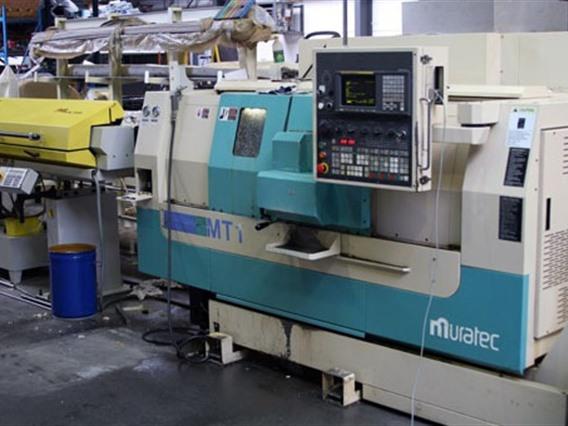

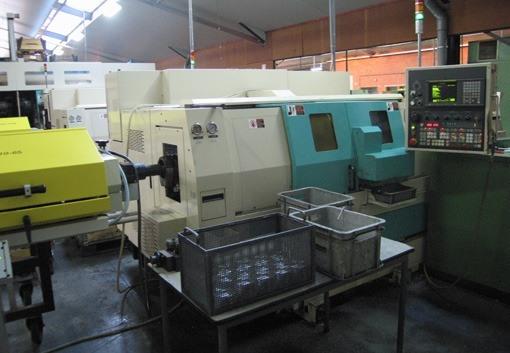

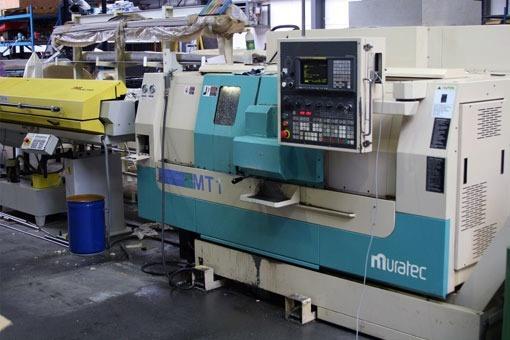

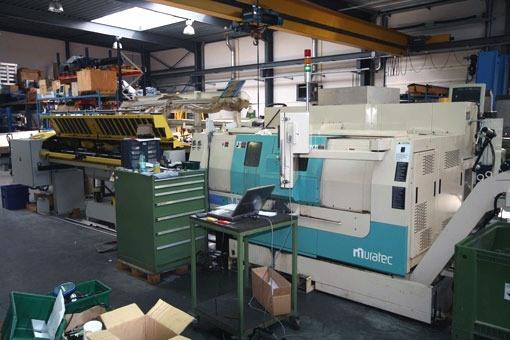

Torni CNC Muratec MT12 CNC twin spindle Ø 240 x 950 mm

Informazione tecniche

Swing over bed250 mm
Swing over cross-slide160 mm
Distance centre tot centre950 mm
Max longitudinal travel Z-axis200+650 mm
Max cross travel X-axis200 mm
Spindle coneA2-5
Dia of spindle boreØ 51 mm
Power on the spindle7.5 kW
Number of speeds4500 rpm

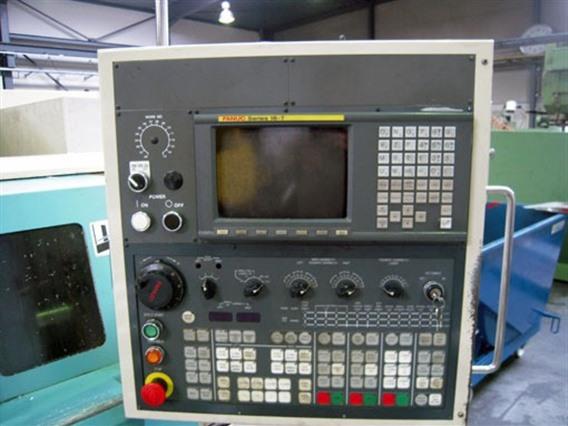

CommandFanuc 16P

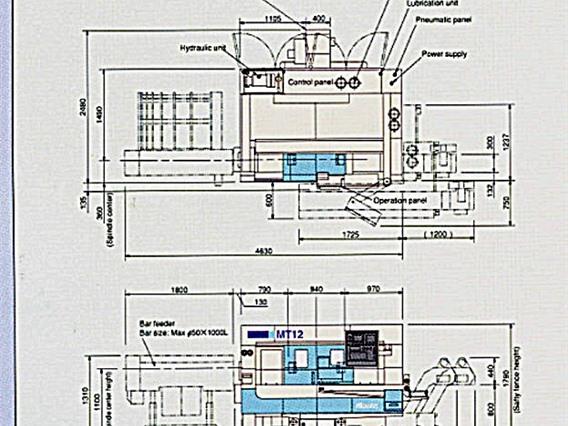

Length2700 mm
Width1850 mm
Weight5500 kg
Chuck*
Hydraulic*
Sliding ring*
Toolchanger2
Number of tools2 x 15 driven

Informazioni supplementari

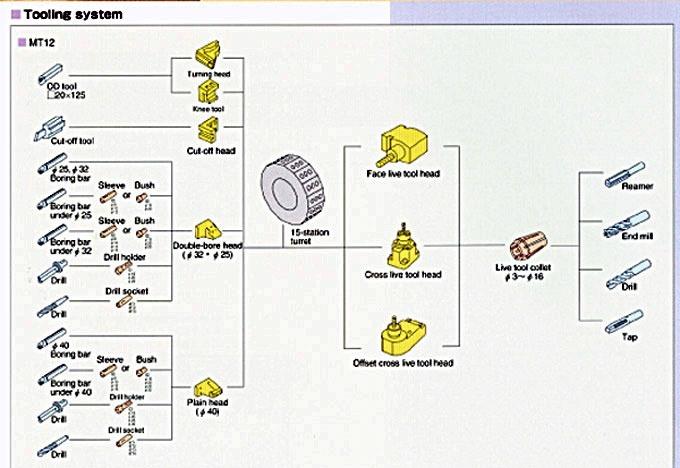

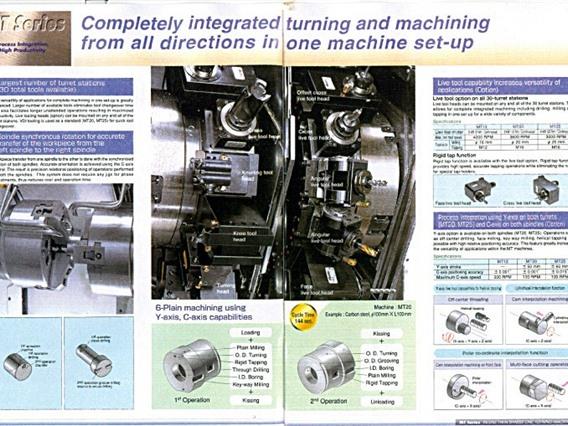

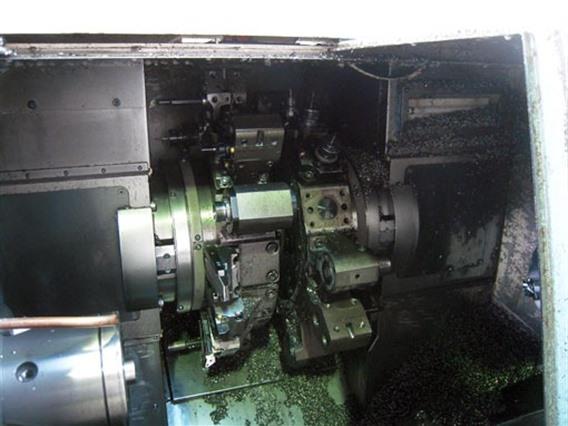

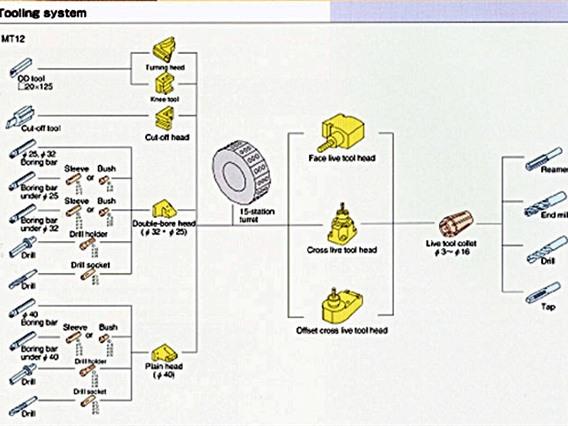

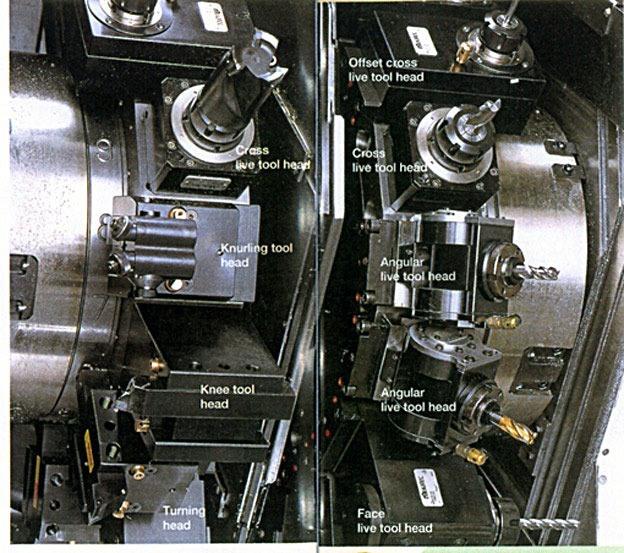

- 15-station turret on both sides

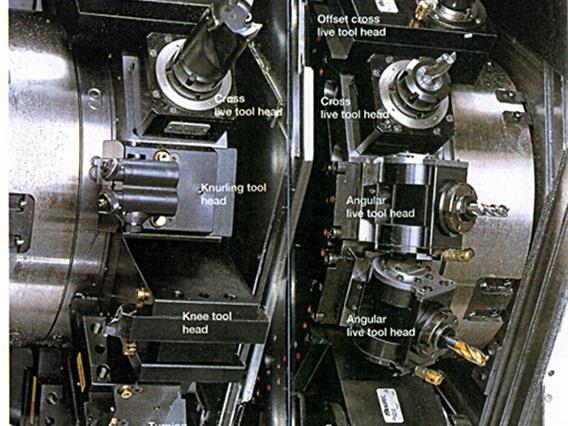

- Live tool position available on all 30 turret stations

- C-axis control on both spindles

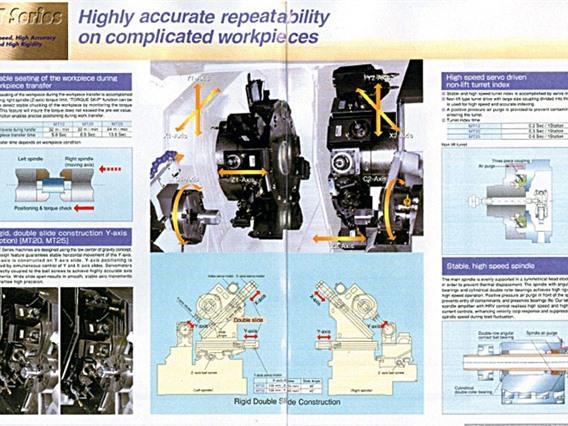

- High precision spindle synchronization work transfer

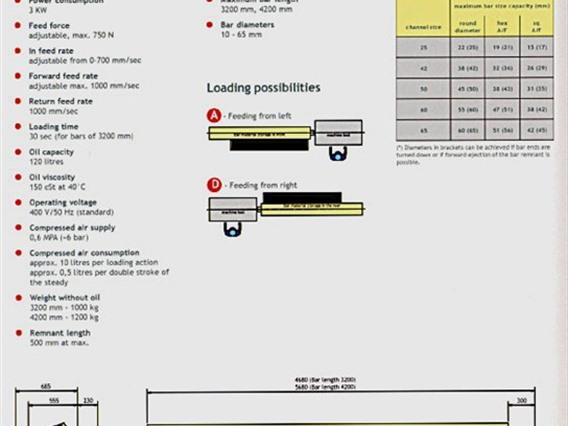

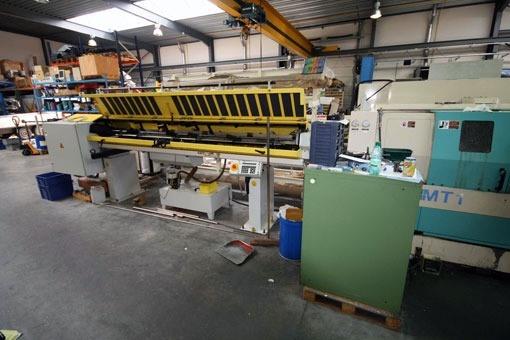

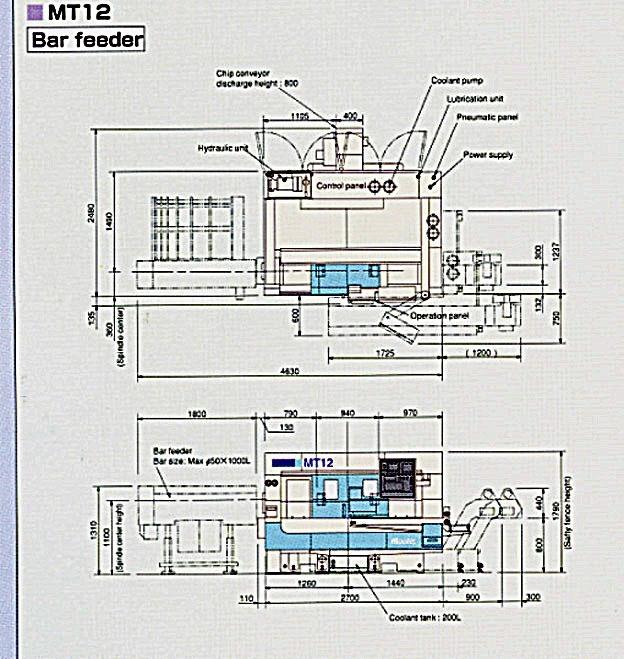

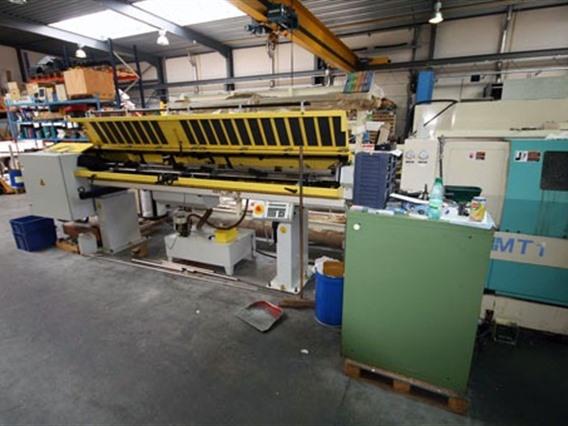

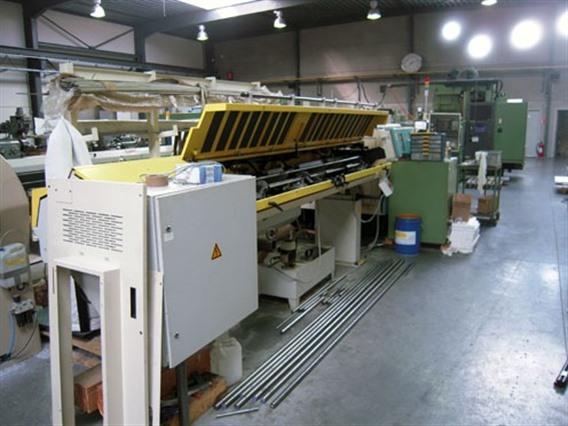

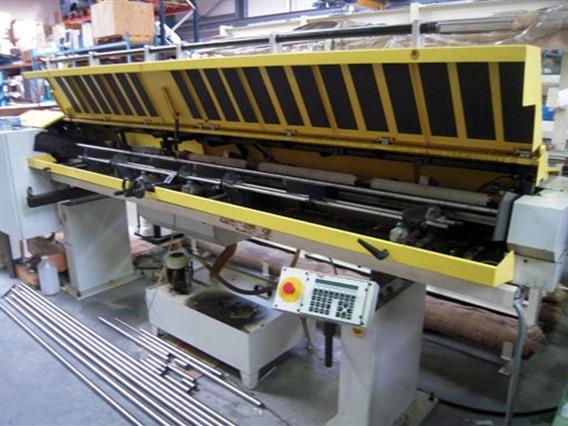

- FMB Turbo 8 - 80 XT / 3200 / A - Compact design – Floor area 5.0 m2

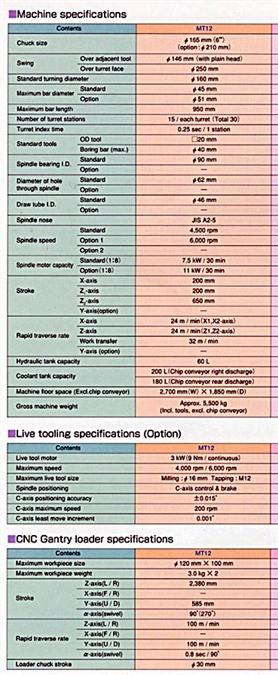

Brief Specificationv:

- Chuck size: Standard: Dia. 165 mm

- Option: Dia. 210 mm

- Maximum turning diameter 240 mm

- Maximum bar diameter: Standard: 51 mm

- Number of turret stations: 15 x 2 Spindle speed 4500 rpm

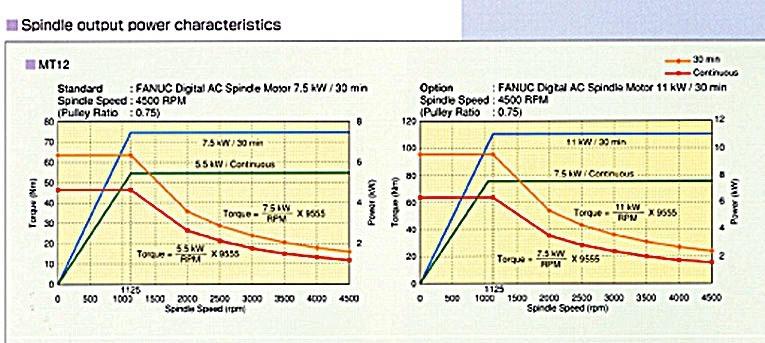

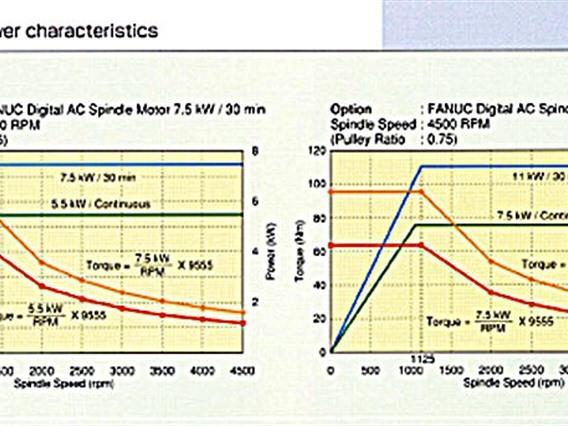

- Spindle AC motor: Standard: 7.5 kW/30 min

- Option: 11 kW/30 min Live Tool Specifications (Option) Live tool spindle motor 2.8 kW Live tool speed 4000 rpm

- Maximum live tool diameter: Milling - Dia. 16 mm Tapping - M12 including much tools
Tipo/Modello: MT12 CNC twin spindle Ø 240 x 950 mm
Numero di magazzino: A.07 4905
Categoria: [A] Torni
Sottocategoria: [A.07] Torni CNC
Il marchio: Muratec

Numero di magazzino: A.07 4905
