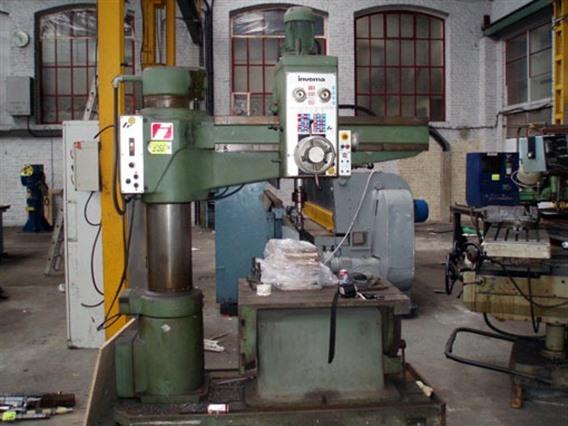

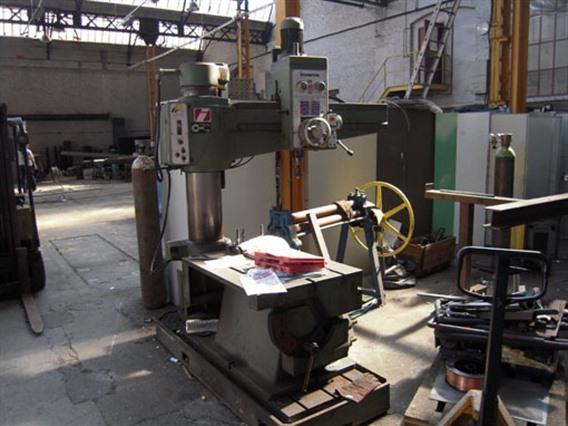

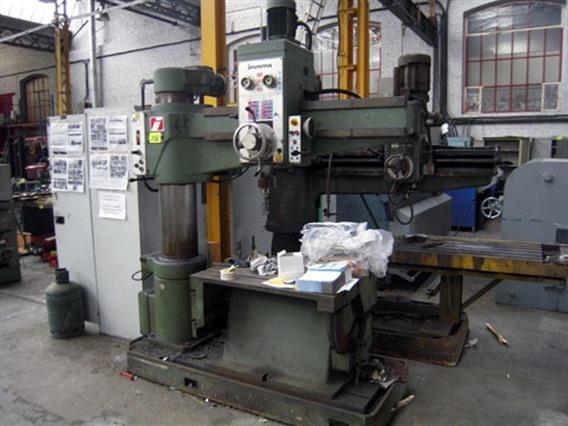

Trapani radiali Invema FR40/1300

Informazione tecniche

Admission in drilling-spindle (morse)MK 4
Max drilling capacityØ 40 mm
Base dimensions (1) Table dim (2) 1445 x 810 mm
Longitudinal travel drilling-head (X-axis)1015 mm
Height-travel arm (Y-axis)600 mm
DEPTH OF THROAT280 mm
Min dist. round column--drillingsp (X-axis)593 mm
Max dist.round column -- drillingspindle1473 mm
Dia spindle68 mm
Speeds52 -> 2000 rpm
Power on the spindle4 pk
Tension needed220 V
Height2495 mm
Weight2815 kg

Informazioni supplementari

Dimensions: 820 x 2010 mm x 2495mm high
Tipo/Modello: FR40/1300
Numero di magazzino: C.02 4971
Categoria: [C] Trapanatrici
Sottocategoria: [C.02] Trapani radiali
Il marchio: Invema

Numero di magazzino: C.02 4971

Venduto
Venduto
Venduto

Scaricare tutte le foto in ZIP
