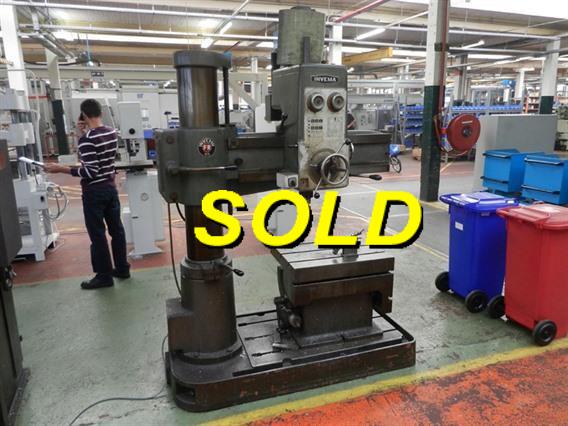

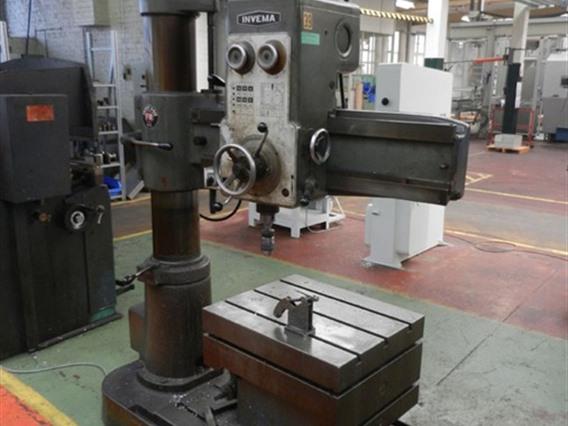

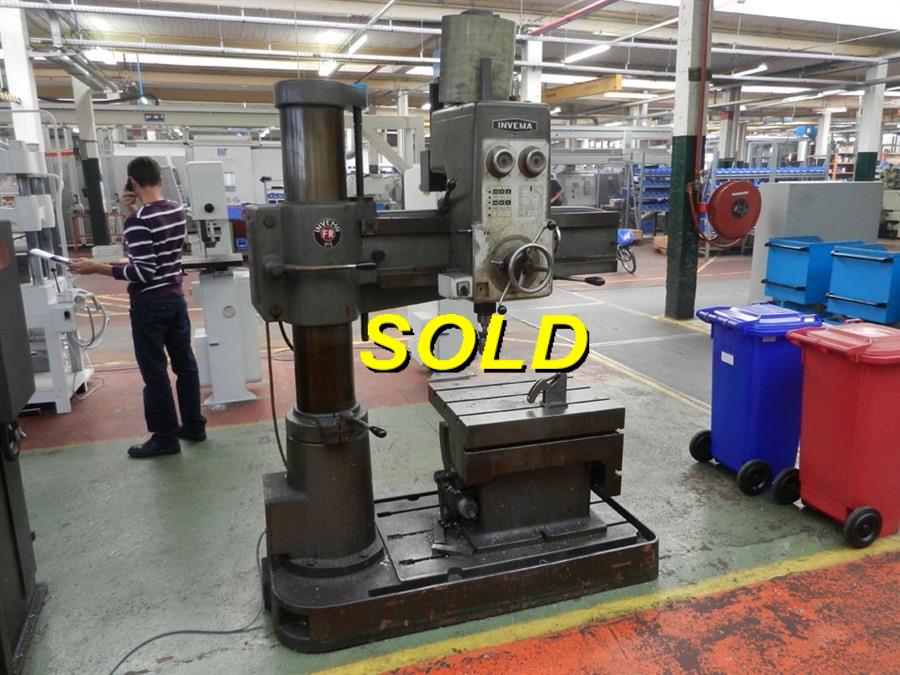

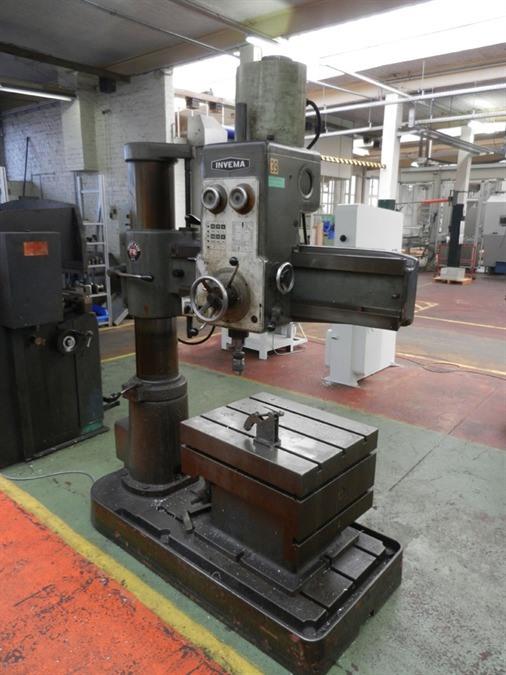

Trapani radiali Invema FR40 MK4

Informazione tecniche

Admission in drilling-spindle (morse)MK4
Max drilling capacity50 mm
Longitudinal travel drilling-head (X-axis)1000 mm
Height-travel arm (Y-axis)600 mm
DEPTH OF THROAT190/1000 mm
Min dist. round column--drillingsp (X-axis)280 mm
Max dist.round column -- drillingspindle1125 mm
Dia spindle68 mm
Max drilling-depth280 mm

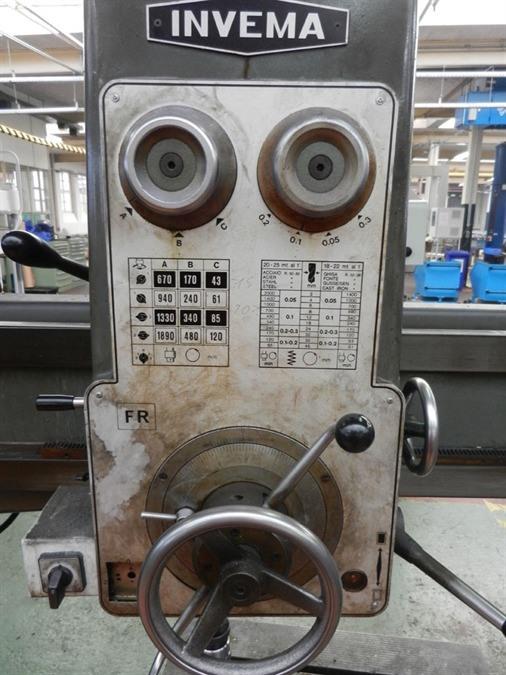

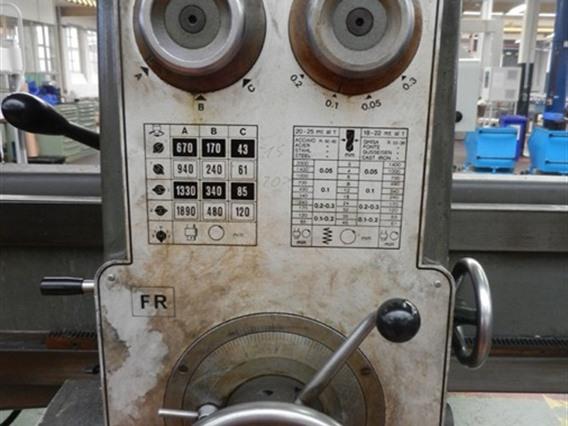

Speeds43-1890 rpm
Power on the spindle4 hp
Tension needed3,5 kW
Height2365 mm
Weight2325 kg

Informazioni supplementari

dimensions: 1715 x 770 x 2365 mm
min/max distance between base and drillingspindle: 358 / 1238 mm
Tipo/Modello: MK4
Numero di magazzino: C.02 7535
Categoria: [C] Trapanatrici
Sottocategoria: [C.02] Trapani radiali
Il marchio: Invema FR40

Numero di magazzino: C.02 7535

Venduto
Venduto
Venduto
