Bedfreesmachines / Beweegbare kolom conventioneel & CNC Hedelius CB50 - X:2100 - Y:520 - Z:520 mm
Technische gegevens
- Langsverplaatsing X - as2100
- Dwarsverplaatsing Y - as520
- Hoogteverplaatsing Z - as520
- Afmetingen opspanvlak-tafel2800 x 520 mm
- Max werkstukhoogte640 mm
- Vermogen op hoofdspil15kW
- Freeskop-opname spil (ISO)ISO 40
- Max aantal snelheden50-15000 rpm
- SturingHeidenhain TNC 430
- Nodig aansluitvermogen (KVA)25 kVA
- Lengte5500 mm
- Breedte3200 mm
- Hoogte3500 mm
- Gewicht11 ton
- TOEBEHOREN30 tools
Extra info
- Fixed table with movable column
Including separation to divide table into 2 sections

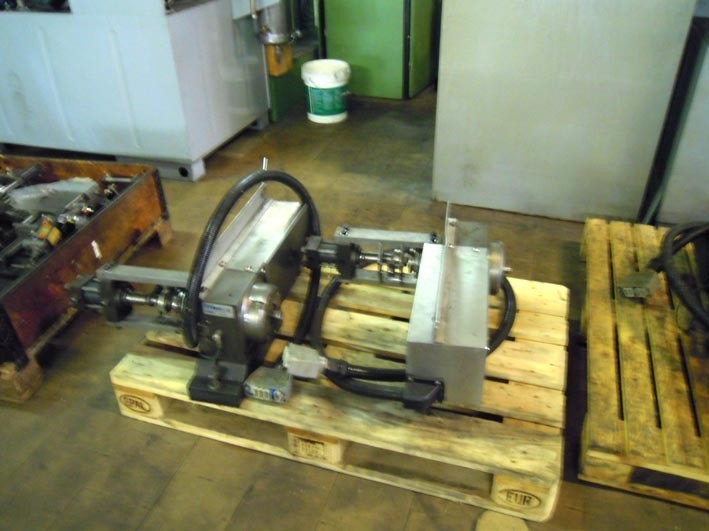

2x Hoffman CNC 4th axis turning on table
1x with chuck
large filtration system
max workpiece weight: 2000 kg
max workpiece height: 640 mm
scrap conveyor KB 300
refrigeration installation VWK 21/1-S
filterinstallation PS 120
new price in 2001: 365 000 euro
(fahrständer bearbeitunszentrum)
- Type/Model: CB50 - X:2100 - Y:520 - Z:520 mm
- Stocknummer: B.04 6642
- Kies een Categorie: [B] Freesmachines
- Subcategorie: [B.04] Bedfreesmachines / Beweegbare kolom conventioneel & CNC
- Merk: Hedelius
