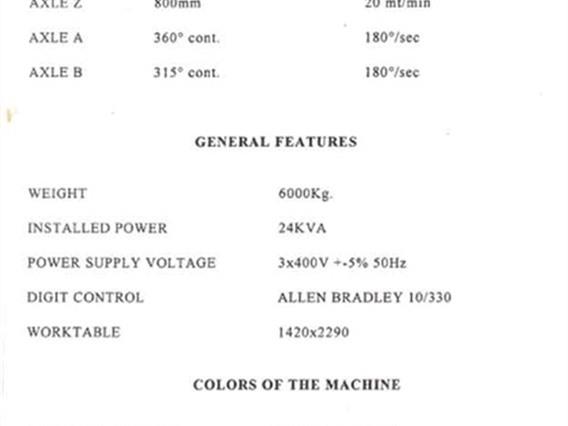

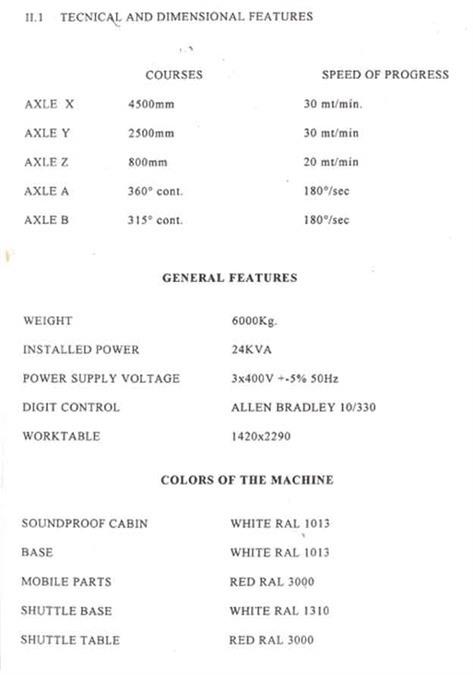

Технические характеристики:

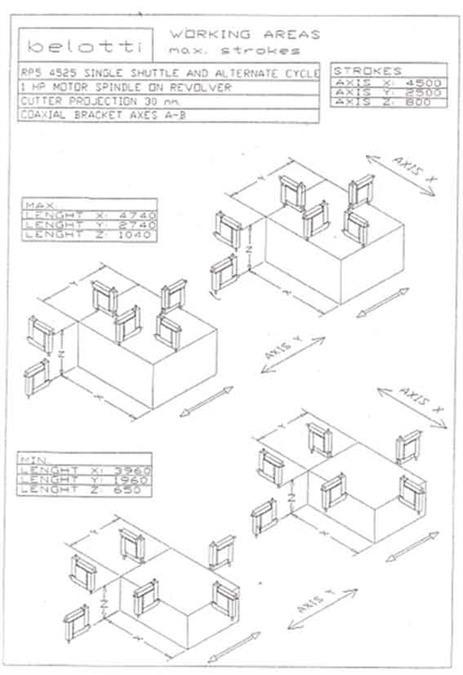

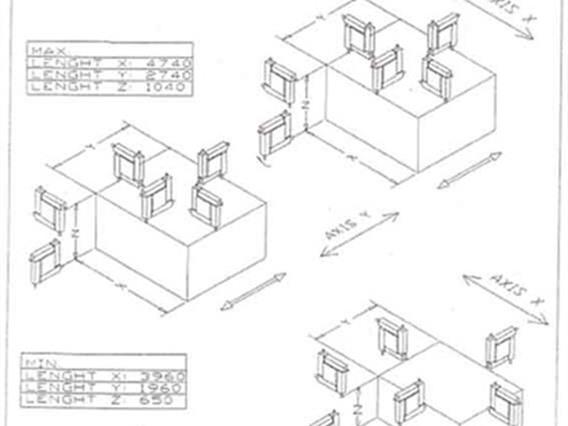

- Ось-X4500 mm
- Ось-Y2500 mm
- Ось-Z800 mm
- Размеры стола1420 x 2290 mm
- Универсальная (2 x 360°)+
- Частота вращения шпинделяto 24000 rpm

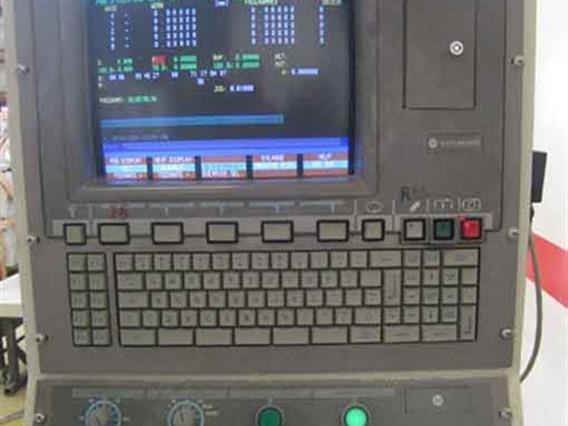

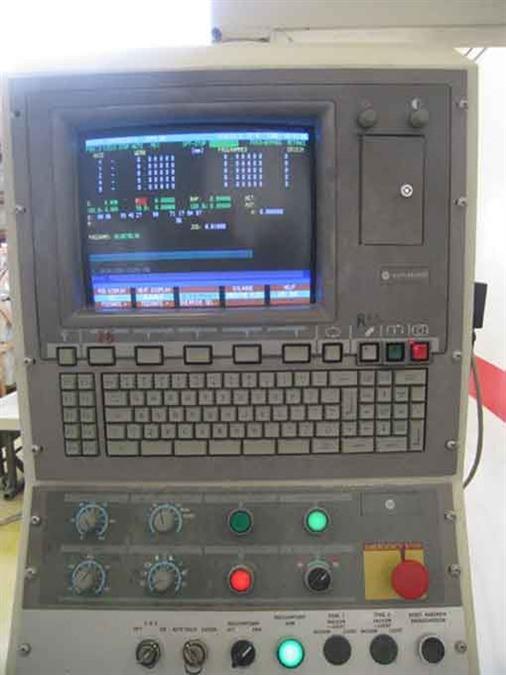

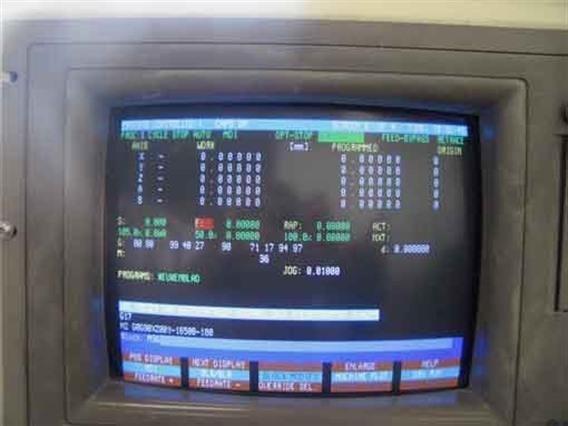

- Цифровой экранALLEN BRADLEY 10/330
- Требуемая мощность24kVa/ 230 V
- Длина12000 mm
- Ширина6500 mm
- Высота4200 mm
- Вес8000 kg
- Кол-во инструмента4 tools
Дополнительная информация

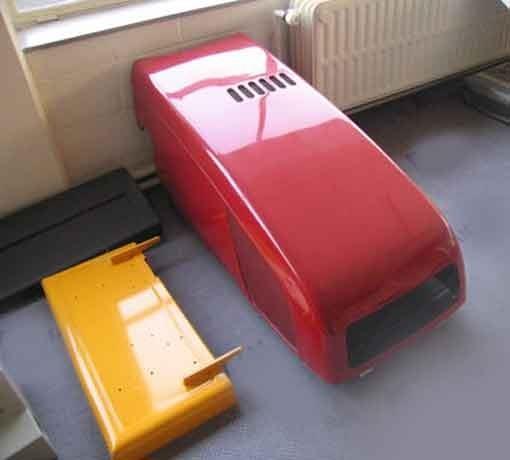

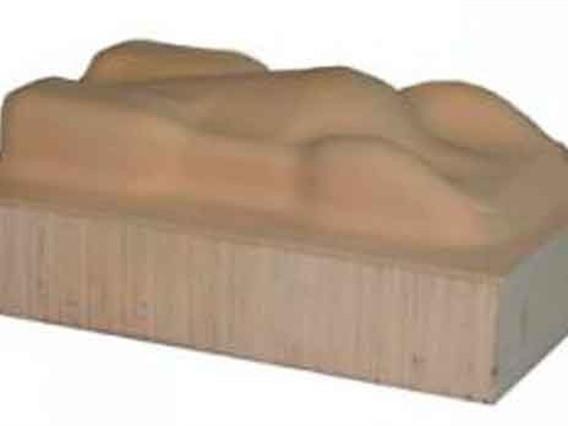

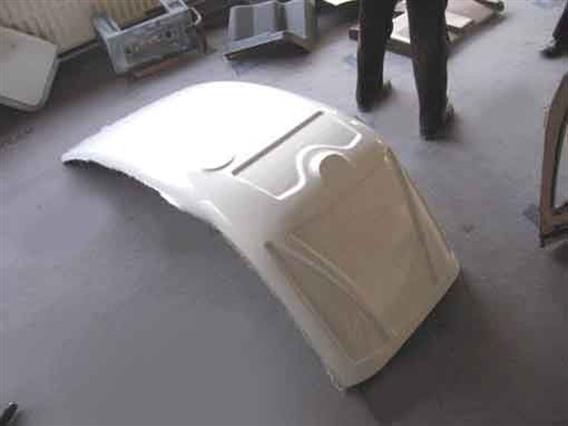

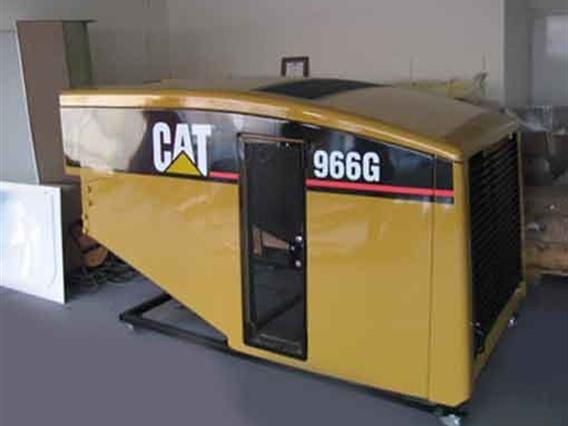

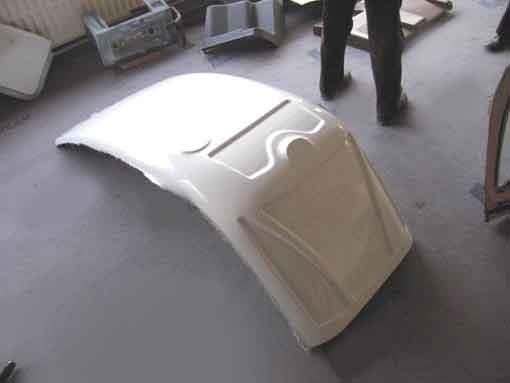

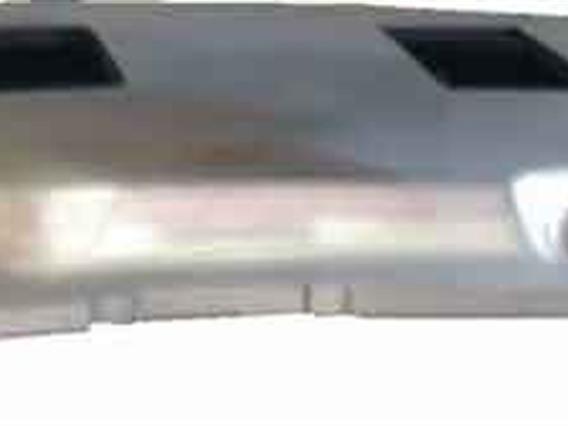

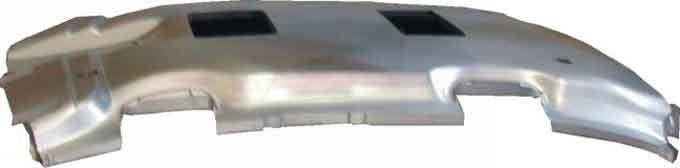

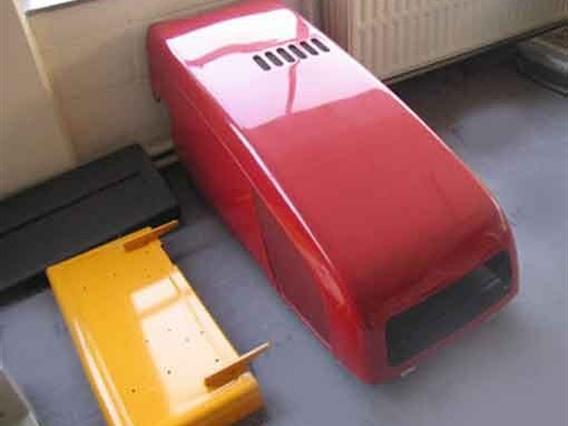

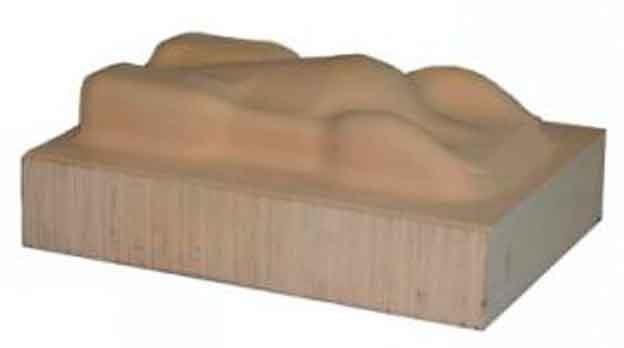

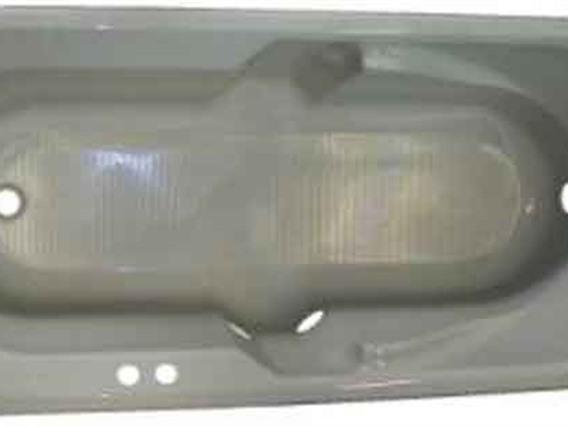

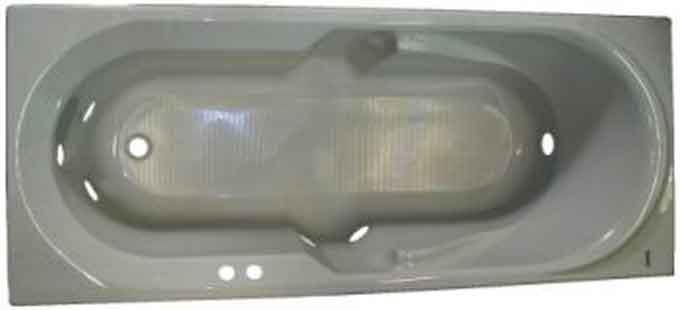

- Special for plastic - alu moldings !

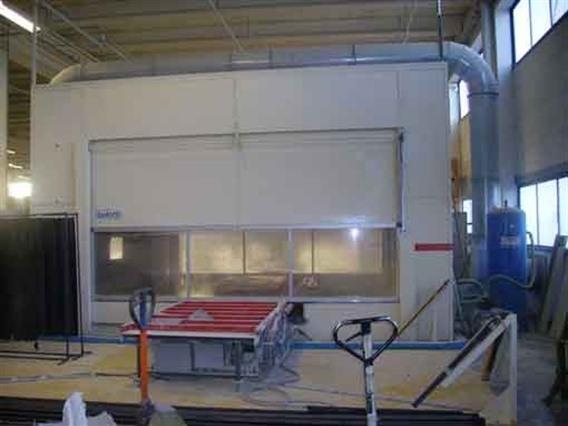

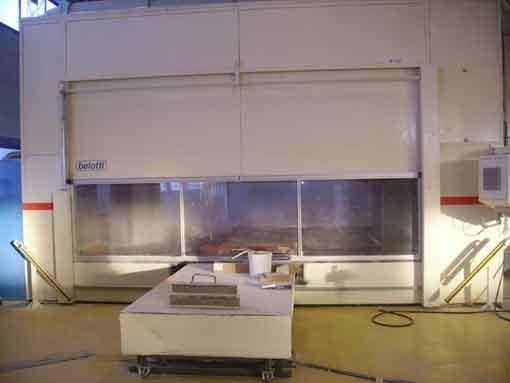

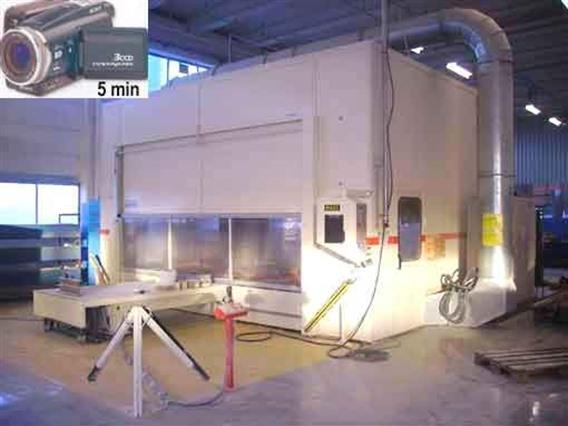

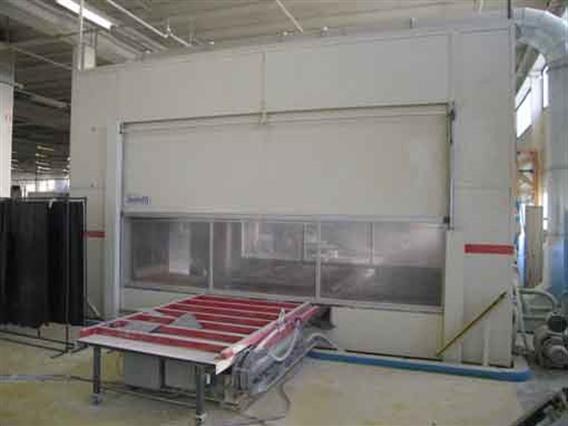

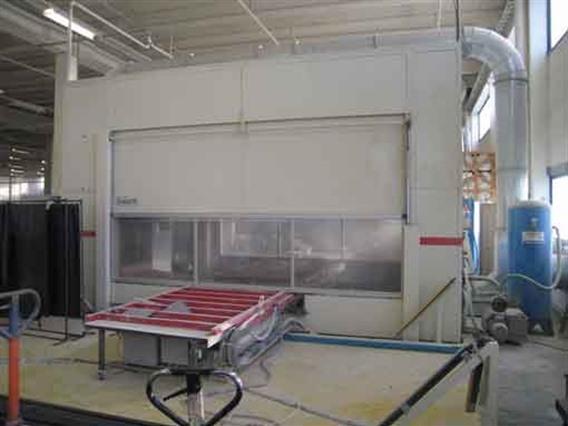

CNC operated cutting equipment, consist in:

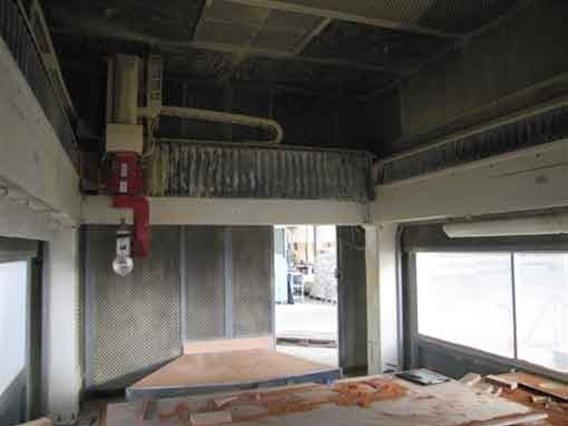

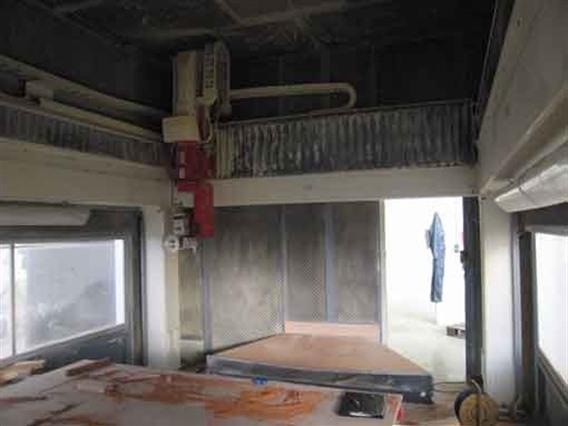

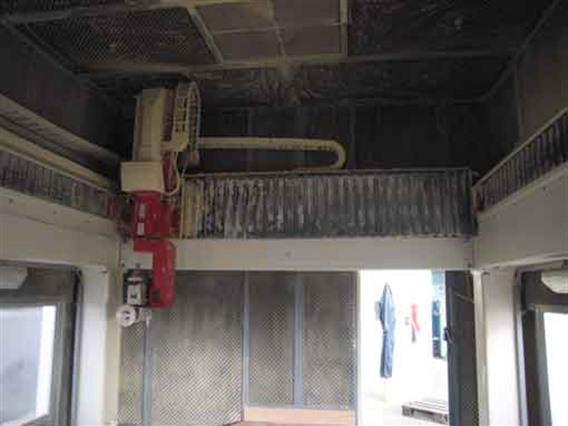

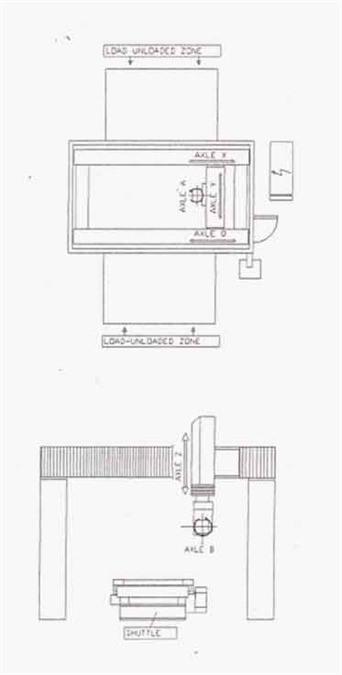

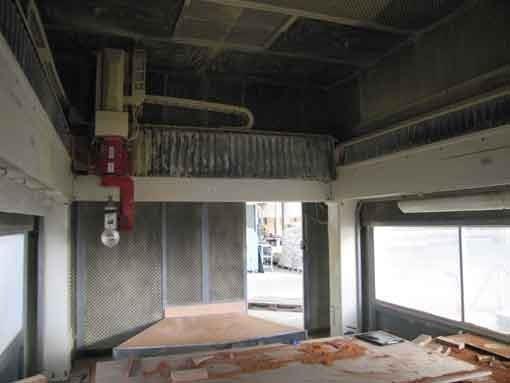

1. Robot framework: on the top part of the portal runs the mobile bridge ( movement X) on board of which and perpendicular between them are the carriagages Y and Z.

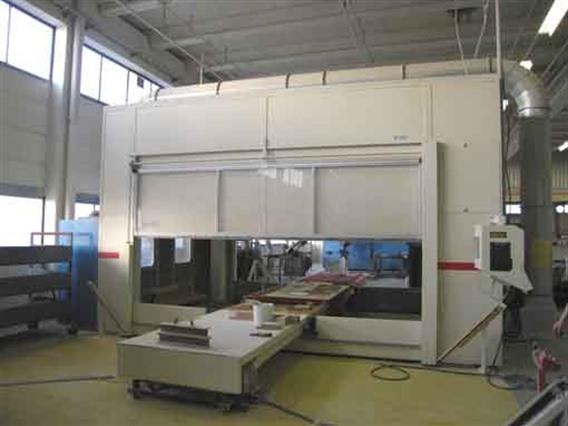

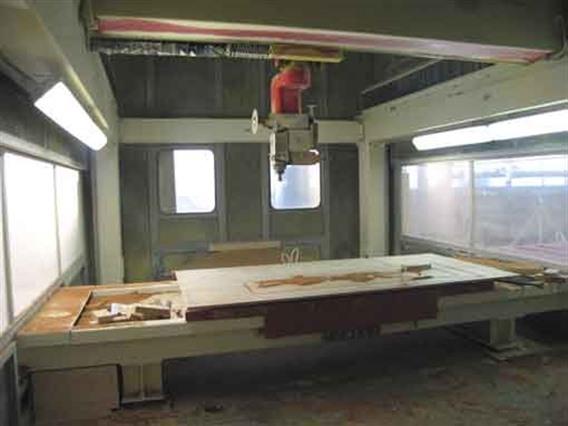

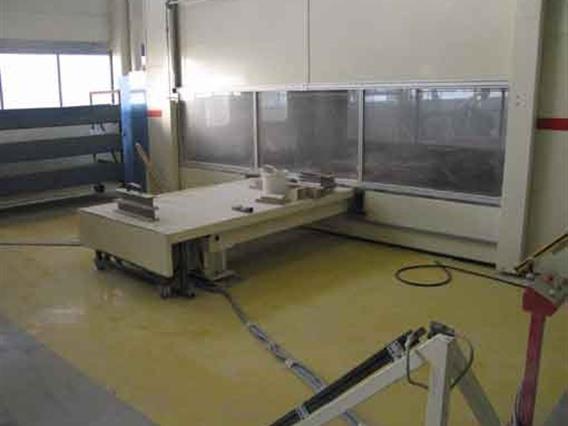

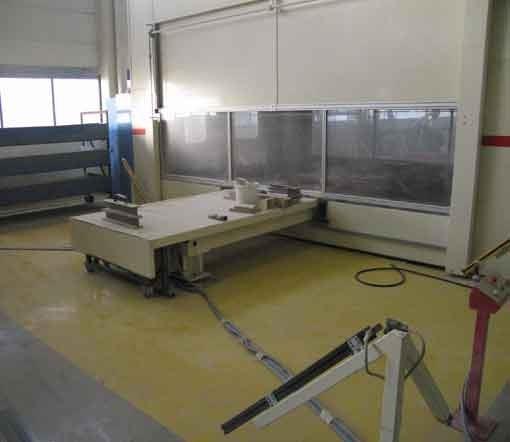

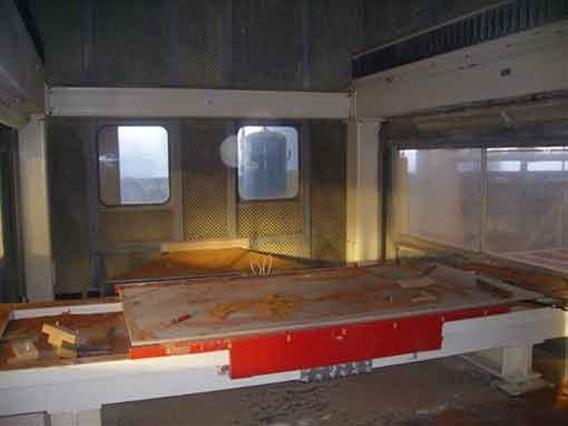

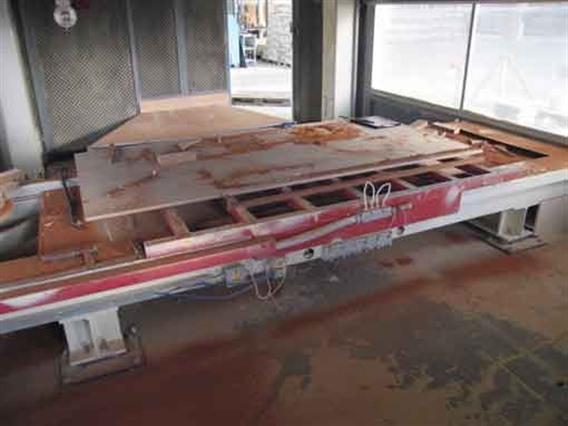

2.Work table: single shuttle consisting in two tables moving simultaneously on a single slideway.

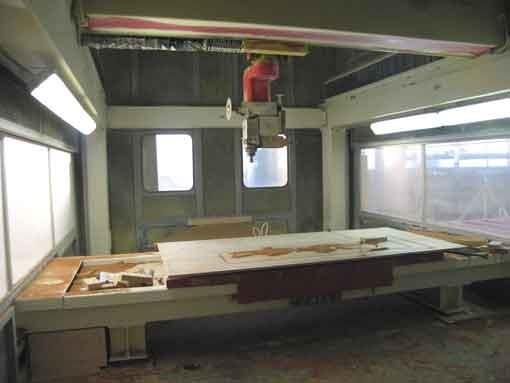

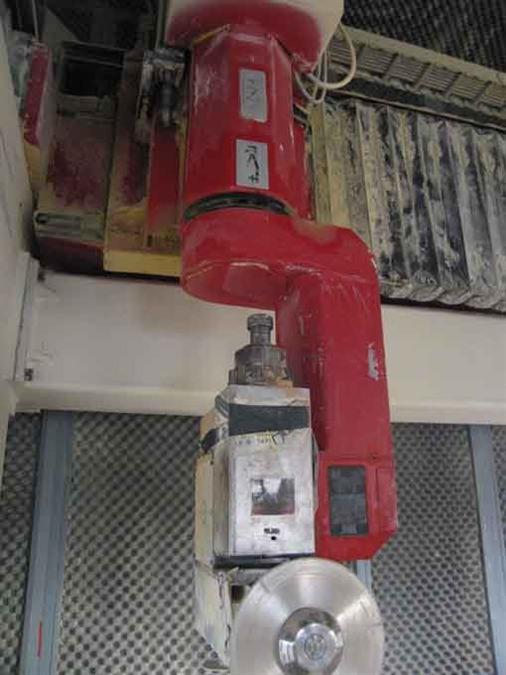

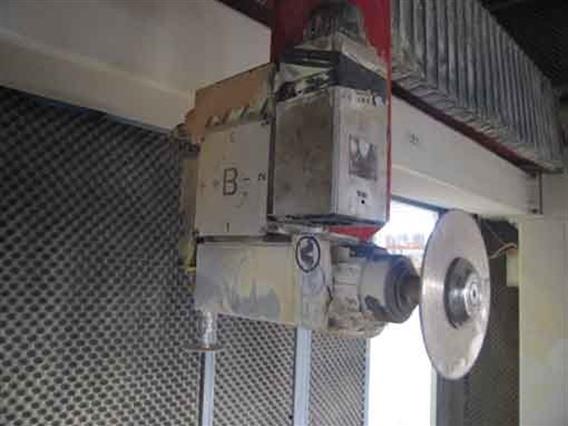

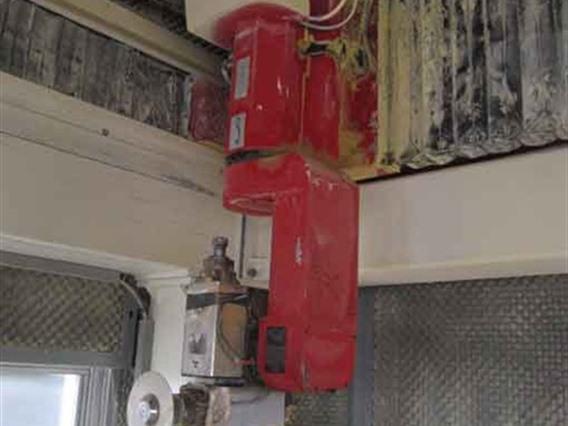

3.Processing unit:

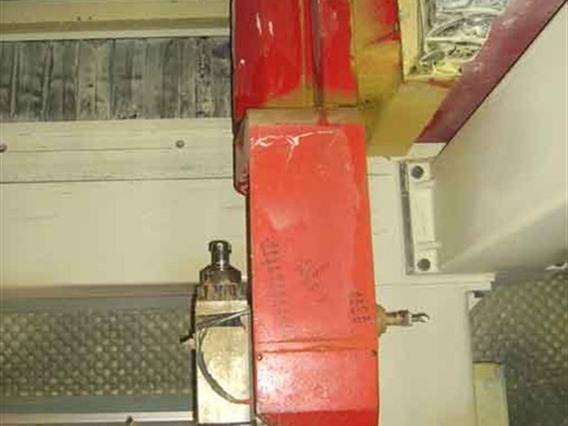

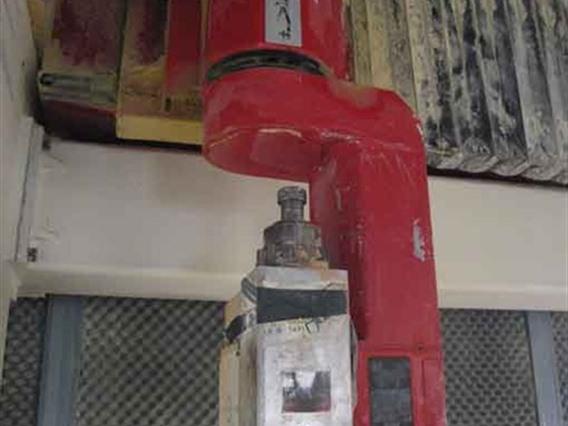

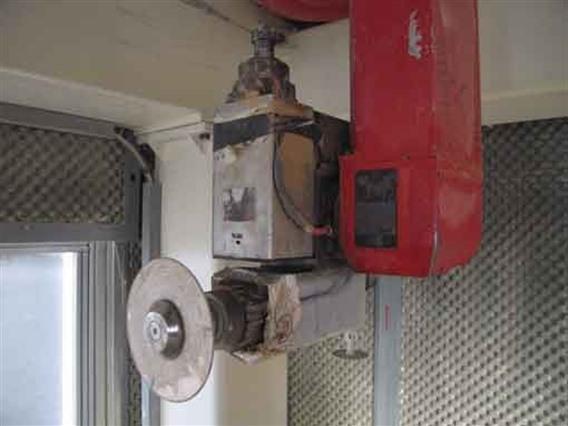

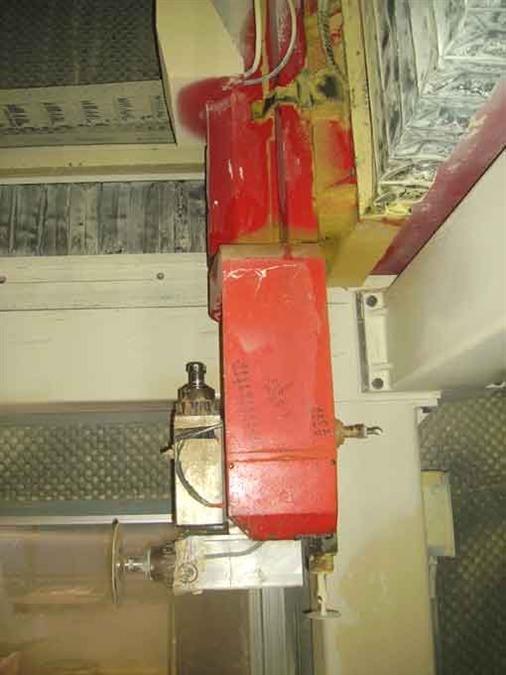

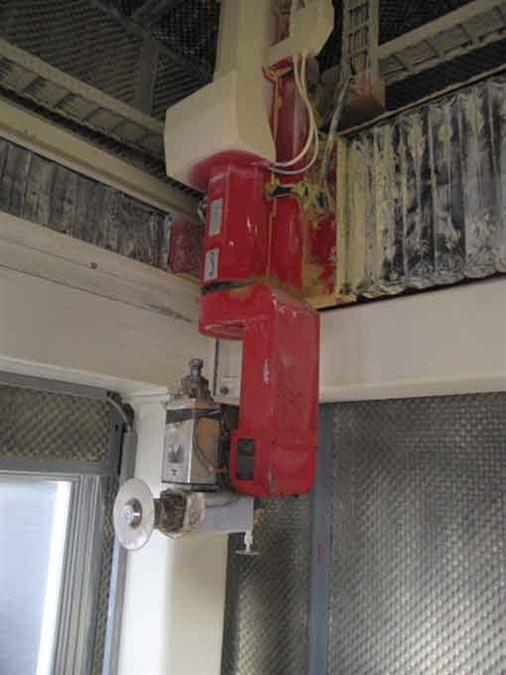

- revolver holding 4 electro-spindles, with power ( 1x 4 hp + 1 x 3 hp + 1 x 2.2 hp + 1 x 1 hp). Each electro-spindles is independent with speed regulated by programme from 1000 to 24000 rpm, 5 axis simultaneously .

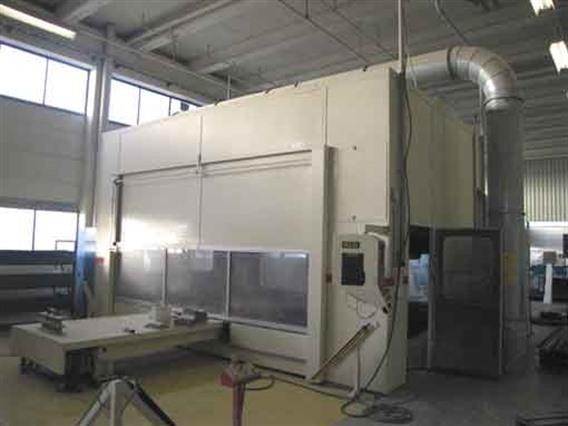

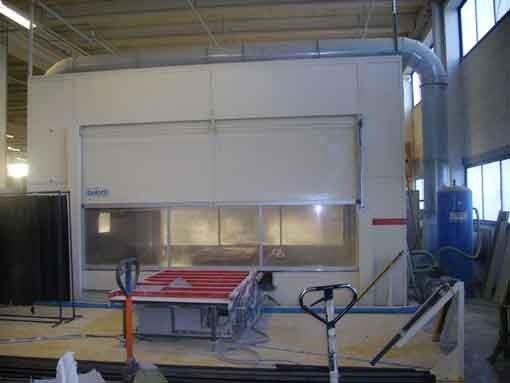

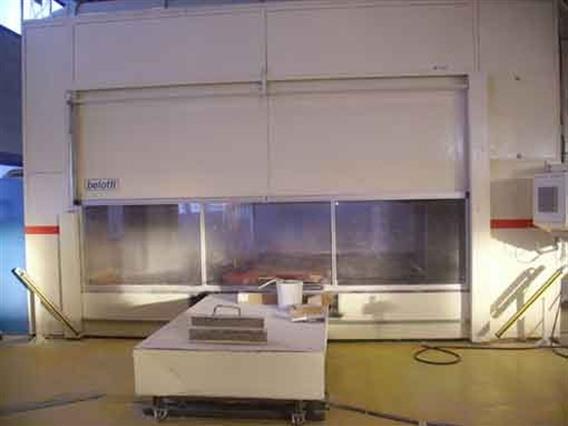

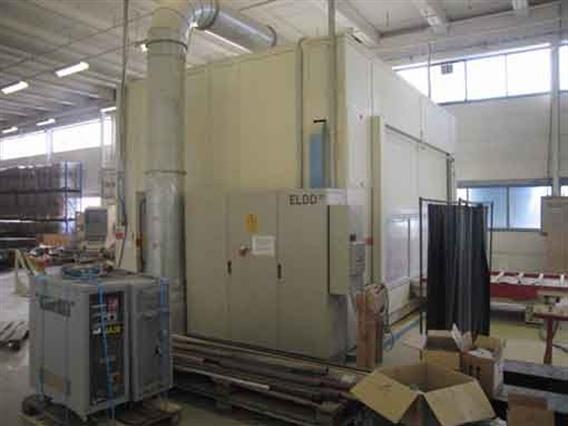

4.CABIN.
5.Electrical Cabinet: with IP 54 protection degree.

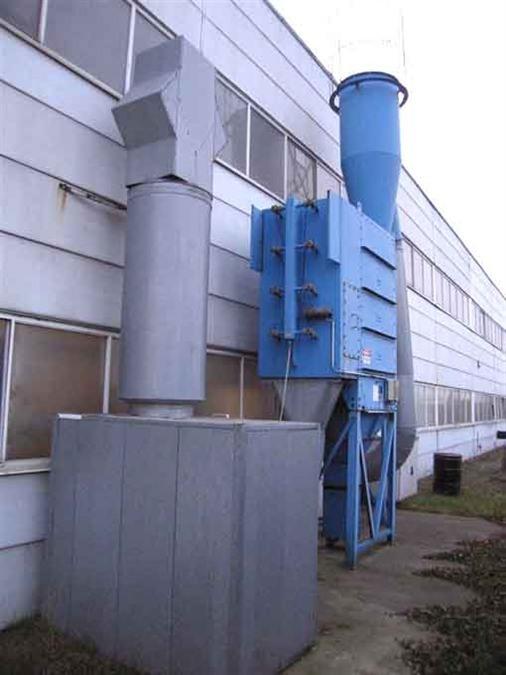

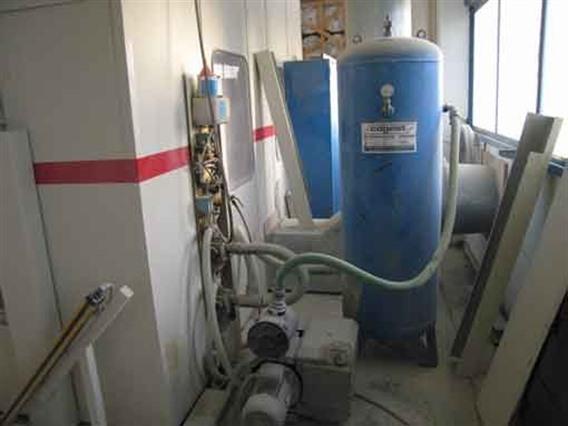

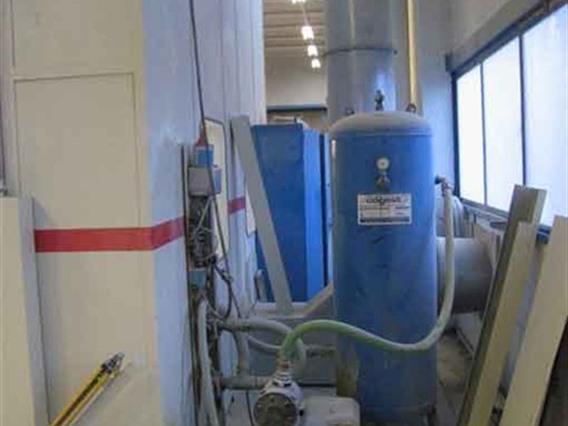

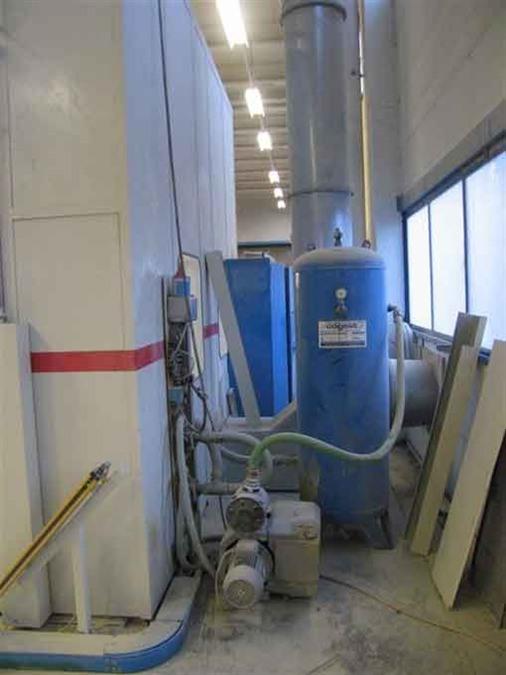

6.Vacuum plant: consist in a 160 m³/h high depression vacuum pump, filter, vacuometer and vacuum solenoid valves.
More information see below.

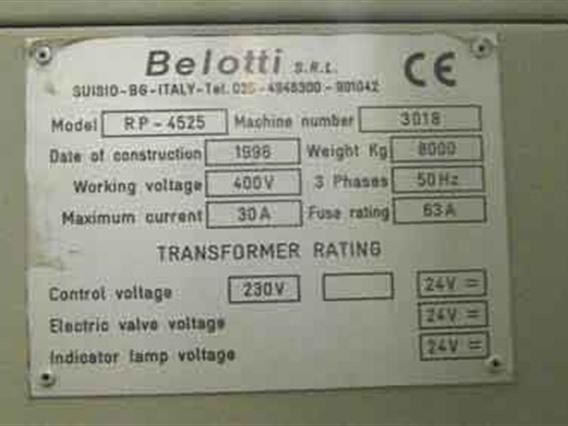

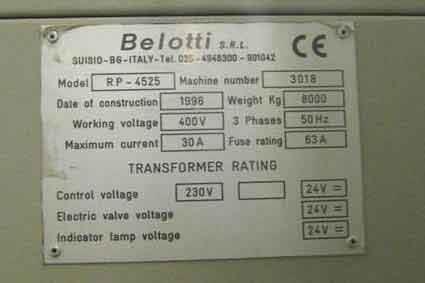

- Тип модели: RP 4525+CSL
- Номер каталога: B.06 3179 *07
- Главная категория : [B] Фрезерные станки
- Подкатегория: [B.06] Портальные фрезерные станки
- Производитель: Belotti
