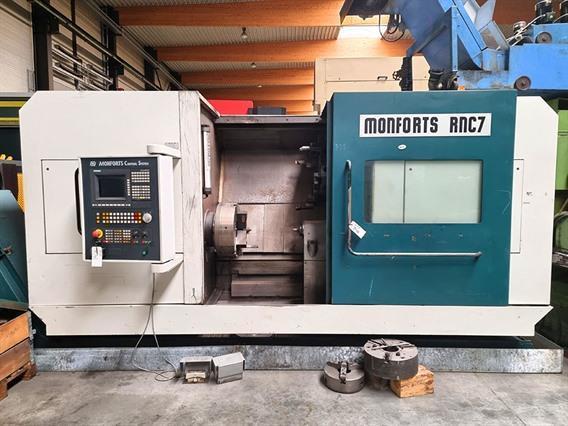

Monforts RNC 7 Ø 720 x 1500 mm CNC
Technical information
- Swing over bed720 mm
- Distance centre tot centre1500 mm
- Max longitudinal travel Z-axis1500 mm
- Max cross travel X-axis320 mm
- Spindle coneA2-11
- Dia of spindle bore110 mm

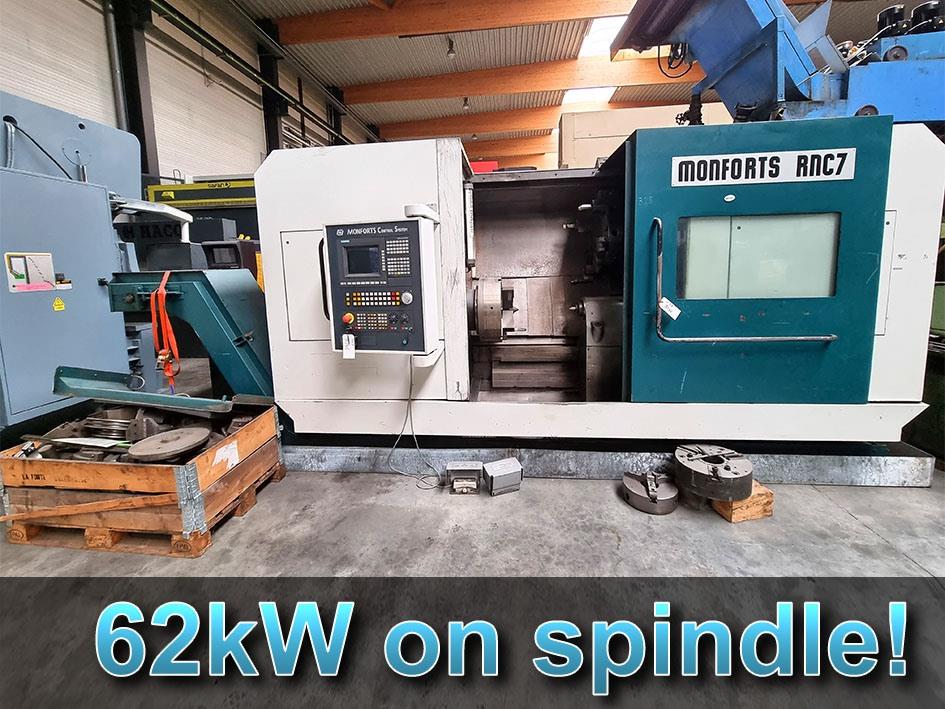

- Power on the spindle62 kW
- Number of speeds4000 rpm

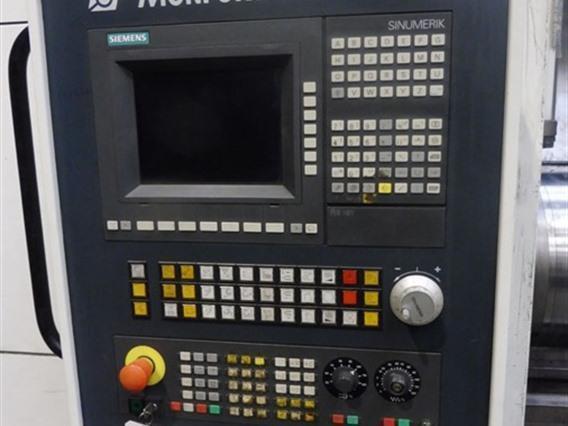

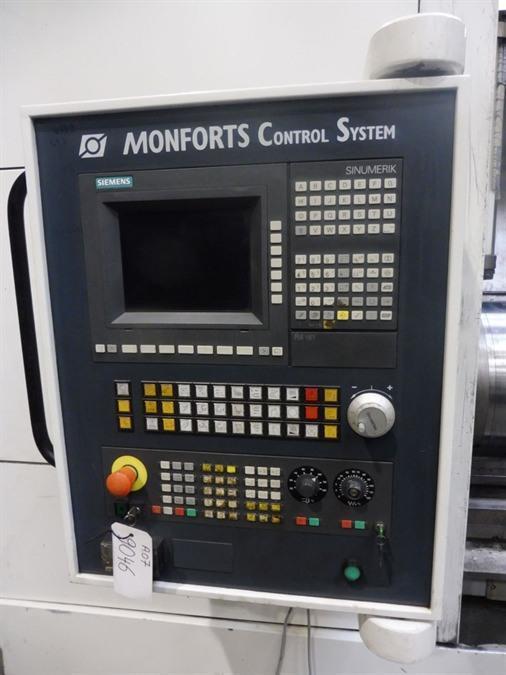

- CommandSiemens Sinumerik 840T
- Length5600 mm with scrap conveyor
- Width2850 mm
- Height2300 mm
- Weight+-8500 kg

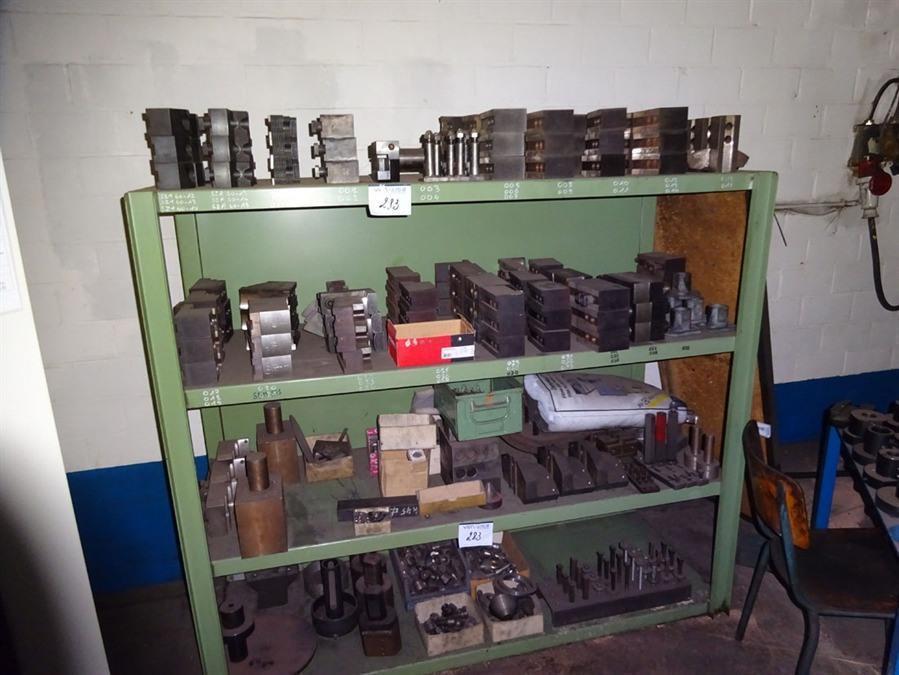

- ACCESORIESyes

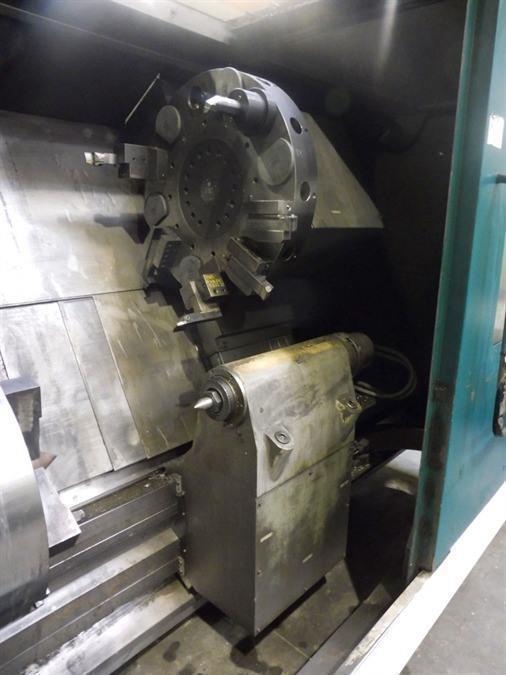

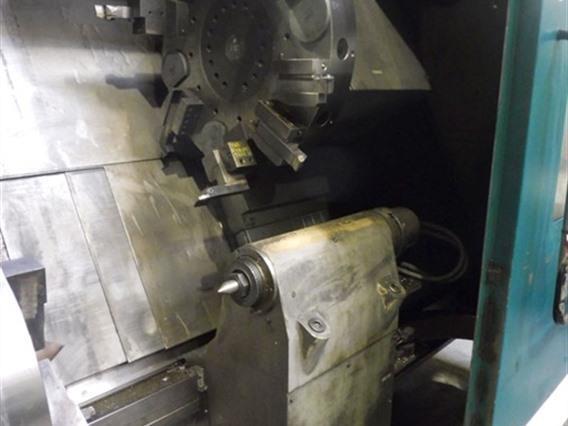

- Toolchangeryes
- Number of tools12x
Additional info

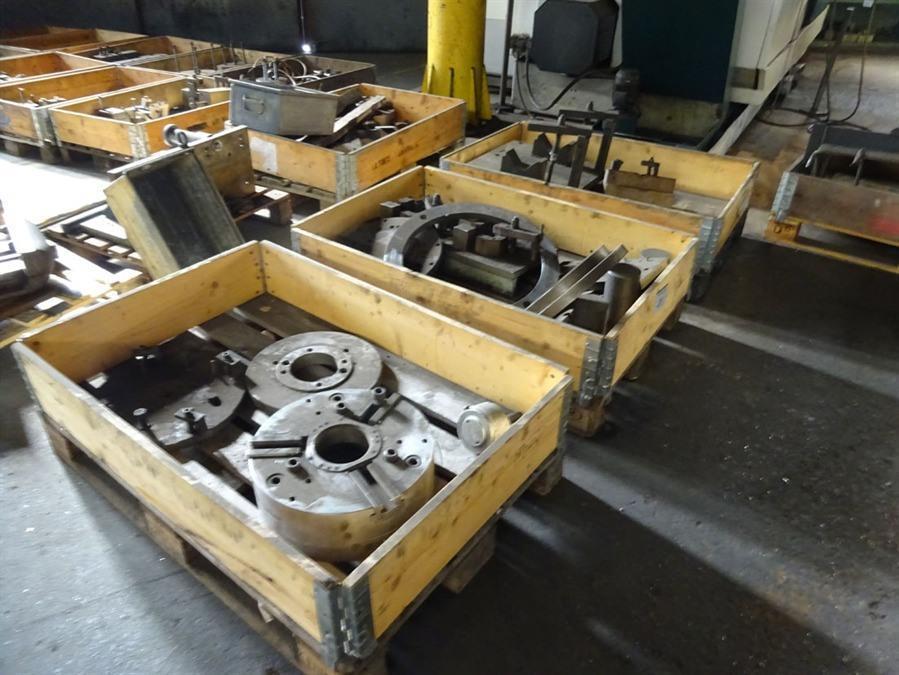

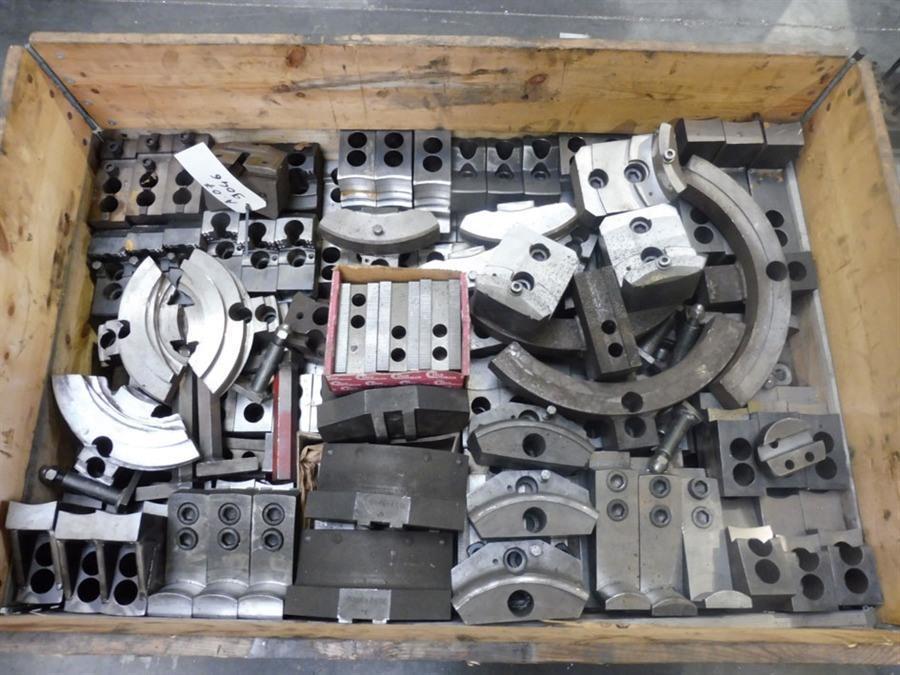

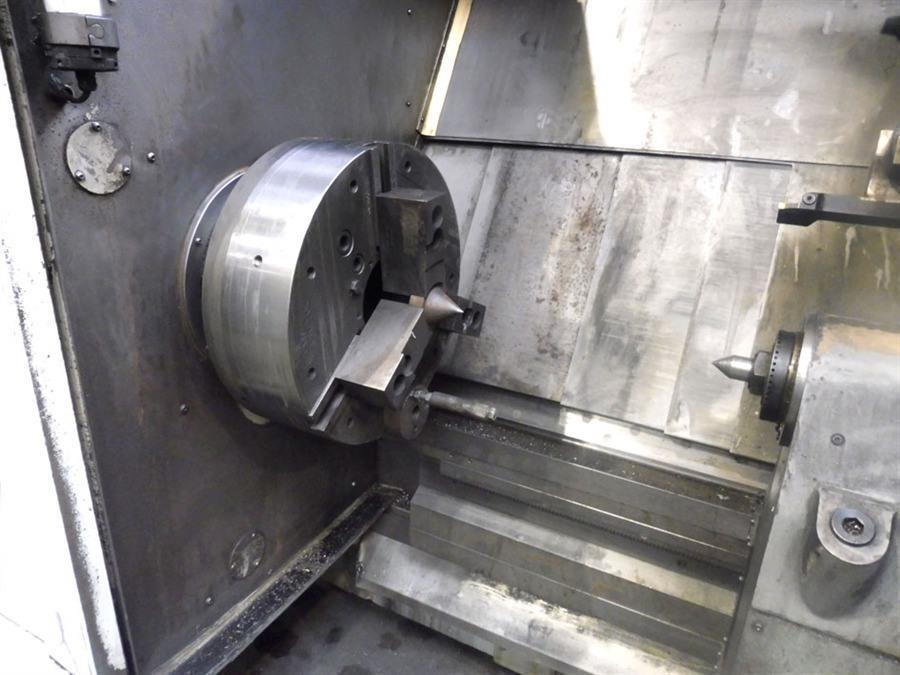

- Equipped with Shunk chuck dia 500 mm

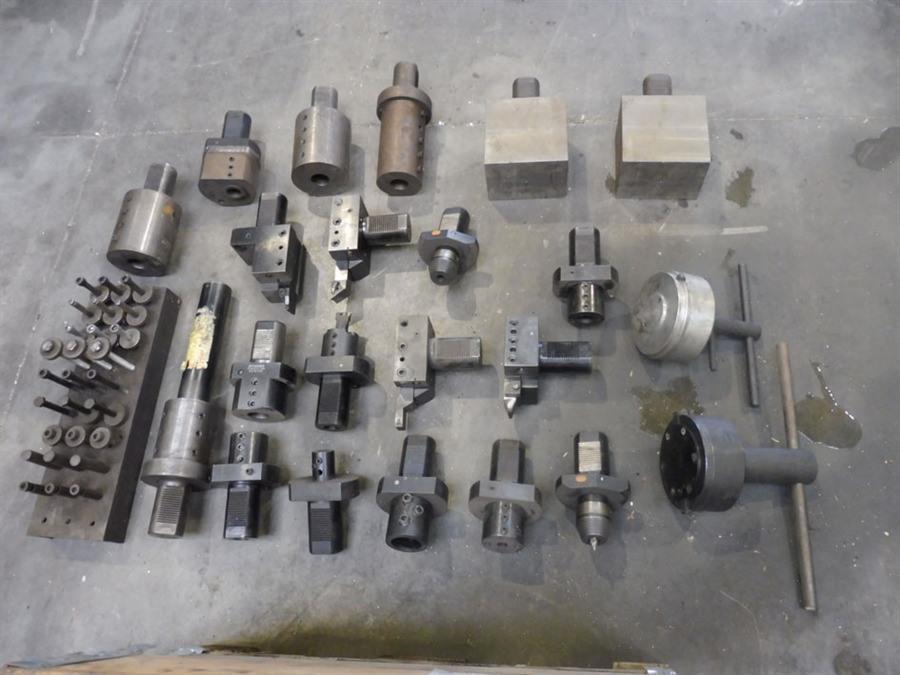

VDI tools
For finsih hard turning!
CNC high performance lathes, the strengths of which are particularly evident in hard turning. A key feature of all monfort lathes is the hydrostatic round guide, which is free from wear and has optimized vibration damping. Furthermore it delivers the best surface results for turning, milling, drilling and thread cutting in the long term.
- Type/Model: RNC 7 Ø 720 x 1500 mm CNC
- Stocknumber: A.07 9046
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Monforts
