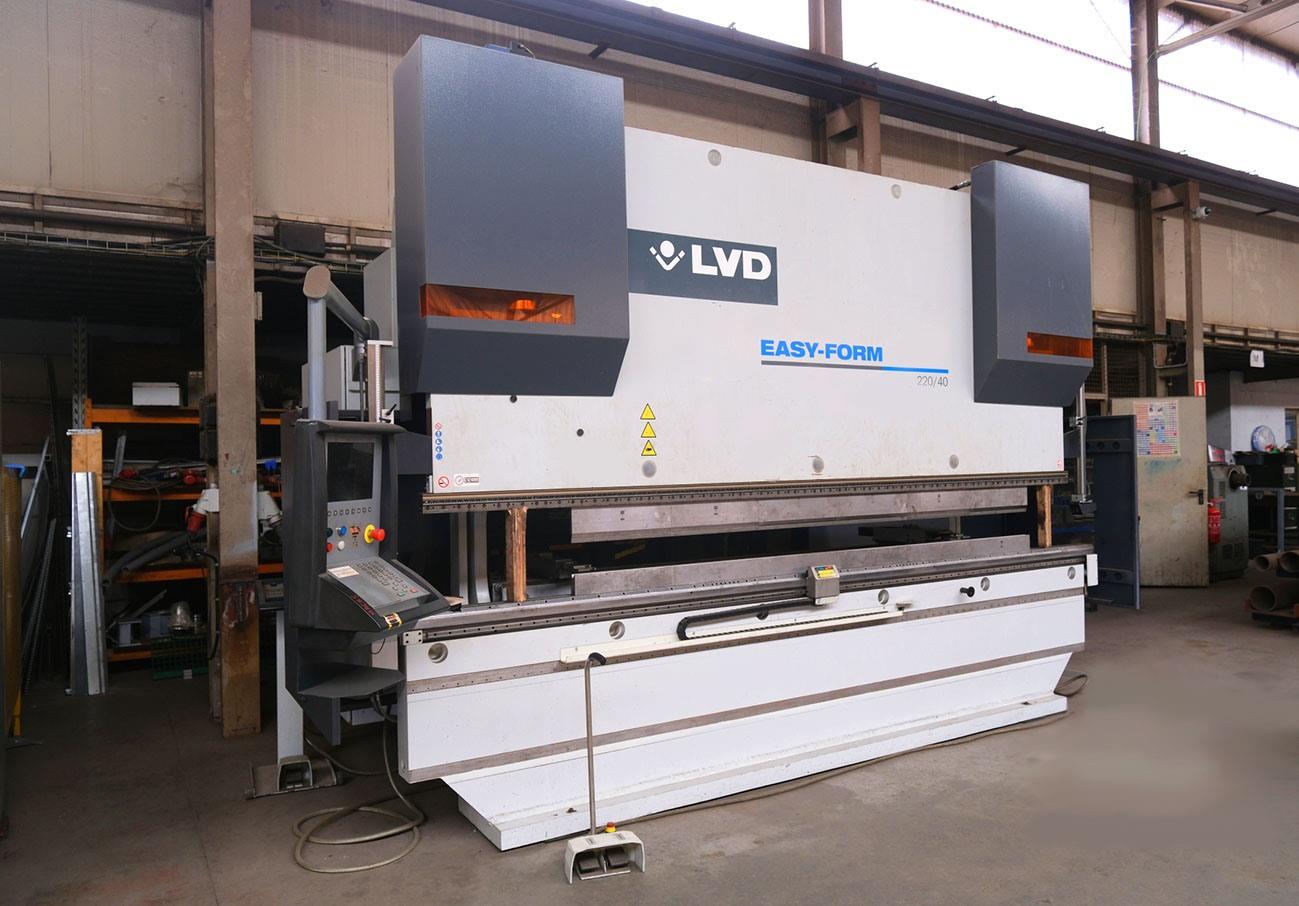

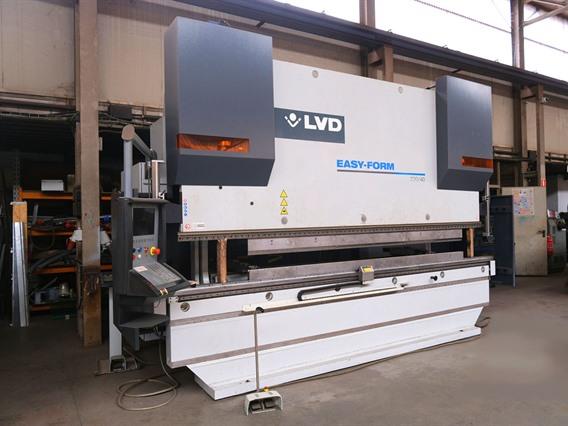

Prensas plegadoras hidráulicas LVD PPEB-EFL Turbo 220 ton x 4100 mm CNC

Name: LVD PPEB-EFL Turbo 220 ton x 4100 mm CNC
Brand: LVD PPEB-EFL Turbo
SKU: O.01 16296

Producto agregado a sus favoritos

» Solicitar un presupuesto personalizado

Información téchnico

Capacity x Max length220 ton x 4100 mm
Backgauge CNC
Control2D Touch
Passage between uprights3150 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat400 mm
Table width 120 mm
Locking speed120 mm/sec
Working speed21 mm/sec
Returning speed200 mm/sec
Electric motor (power)42 kW
Length 6320 mm
Depth 2850 mm
Height3600 mm
Weight20 ton
Capacidad220 ton
Longitud de doblado4100 mm

Información adicional

8 ejes: Y1 / Y2 / X / X' / R / Z1 / Z2 / V
con sistema de medición láser Easy Form
con bombardeo CNC
con protección Laser Safe
con sujeción hidráulica superior e inferior Willa
Versión Turbo
Tipo/Modelo: 220 ton x 4100 mm CNC
Numéro stock: O.01 16296
Categoría principal: [O] Curvadoras, enderezadoras, punzonadoras, máquinas de oxicorte y láser y líneas de conformado
Subcategoría: [O.01] Prensas plegadoras hidráulicas
Marca: LVD PPEB-EFL Turbo
