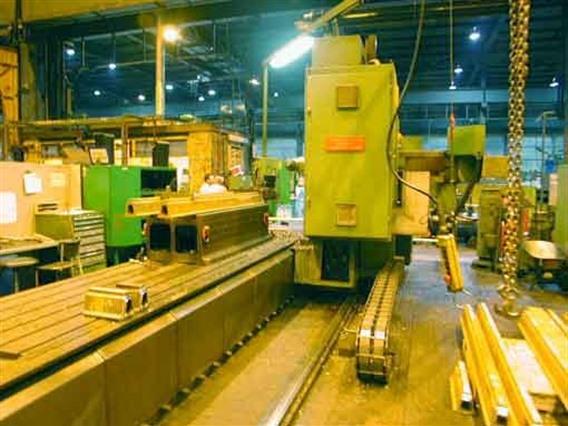

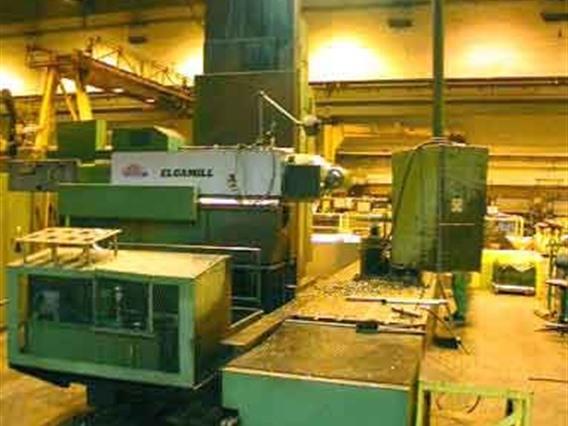

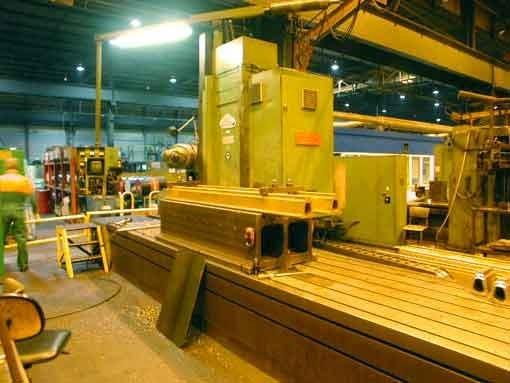

Bed milling machine with moving column & CNC Butler cnc HE 40/6

Technical information

Longitudinal travel X-axe4200 mm
Crosstravel Y -axe1050 mm
Travel Z-axe (Height)1670 mm
Dimensions clamping space - table6000 x 1030mm
Max Height of workpiece765 mm
Admission in millingheadspindle (ISO)50 / DIN 2079

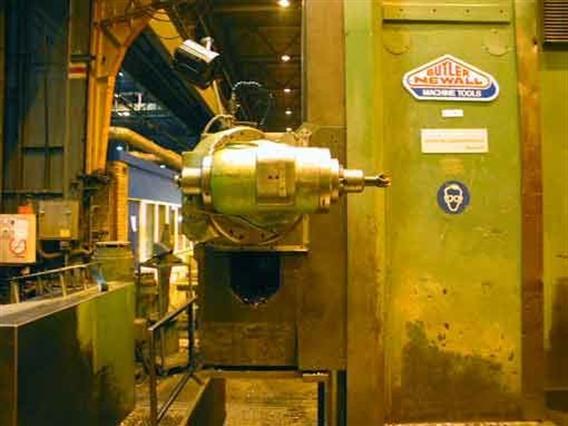

Universal (2x 360°)index. HURON
Max speedrange16 -- 1600 rpm

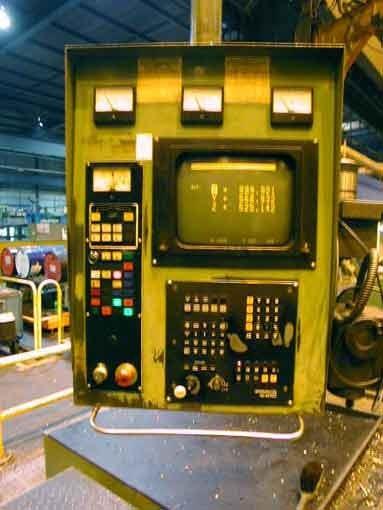

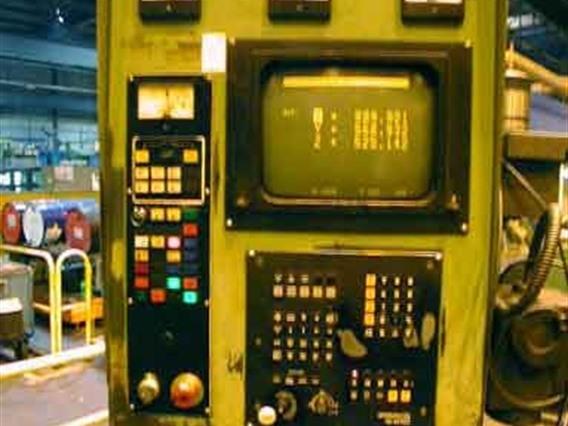

ControlHeidh. TNC 155
Digital screen*
Power needed30 kw
Weight22 T
Coolant pumphigh pressure

Additional info

Voedingen traploos : 5 - 2500 mm /min -- IJlgang 7500 mm/min -- Automatische 5-standen indexkop met 3 graden verdeling op achtervlak.
Type/Model: HE 40/6
Stocknumber: B.04 1672 *04
Main category: [B] Milling machines
Sub category: [B.04] Bed milling machine with moving column & CNC
Brand: Butler cnc

Stocknumber: B.04 1672 *04
