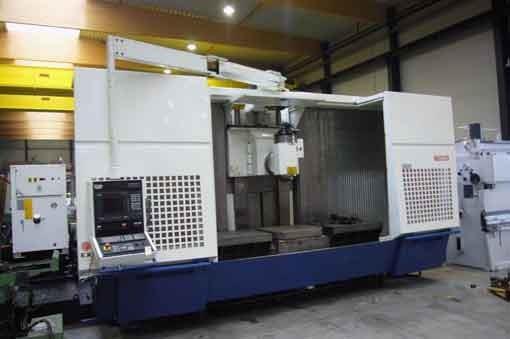

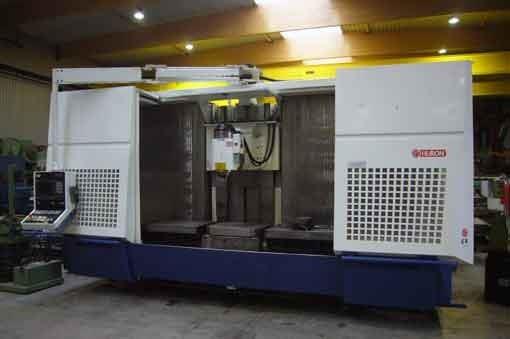

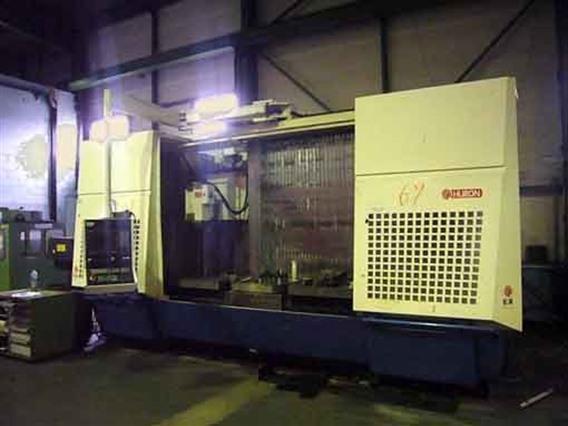

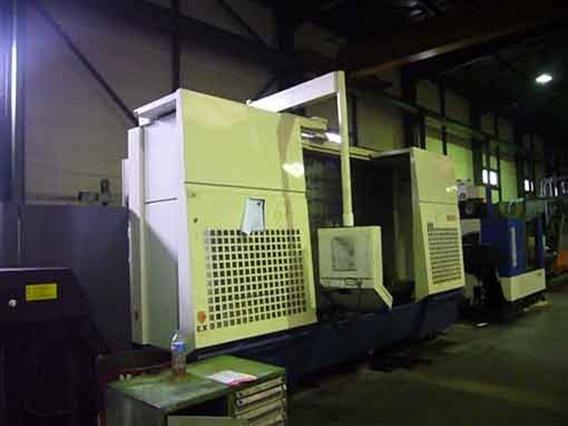

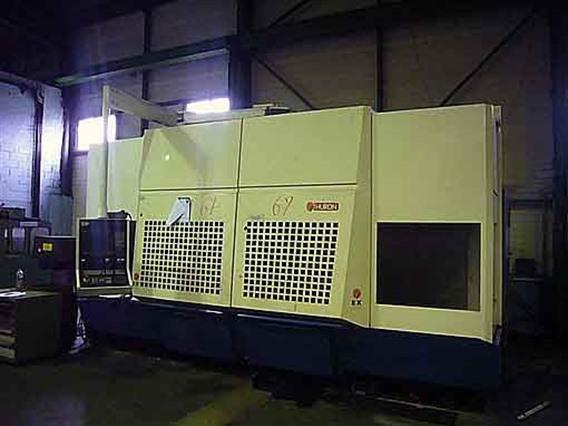

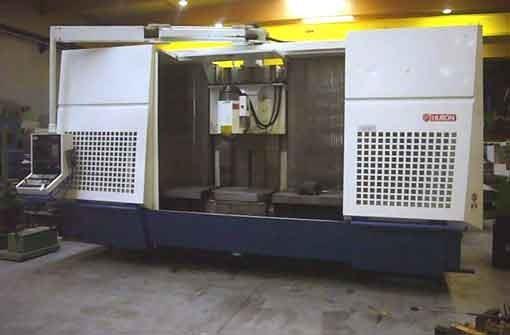

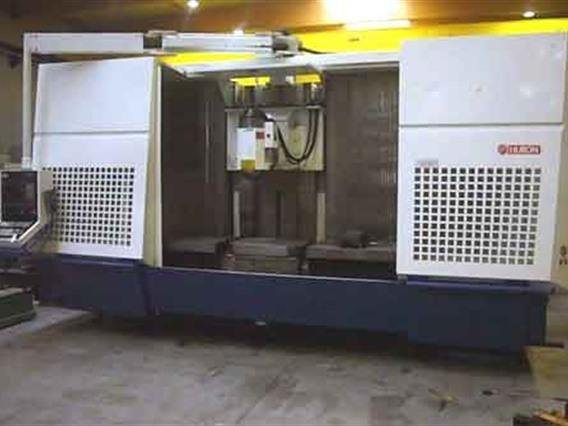

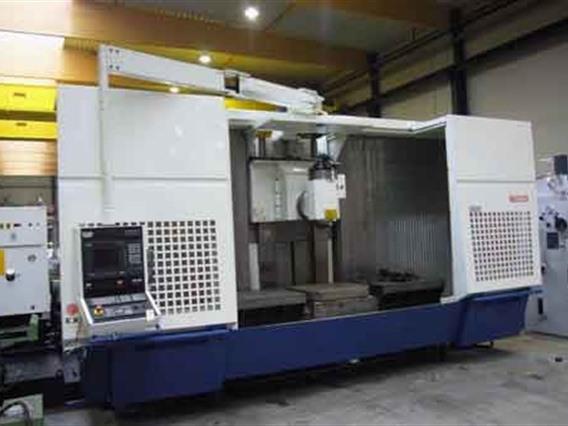

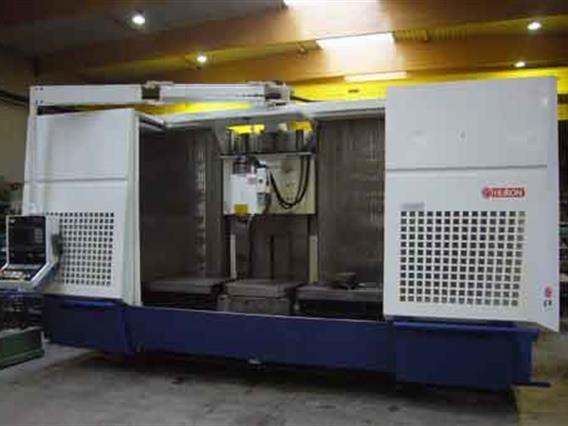

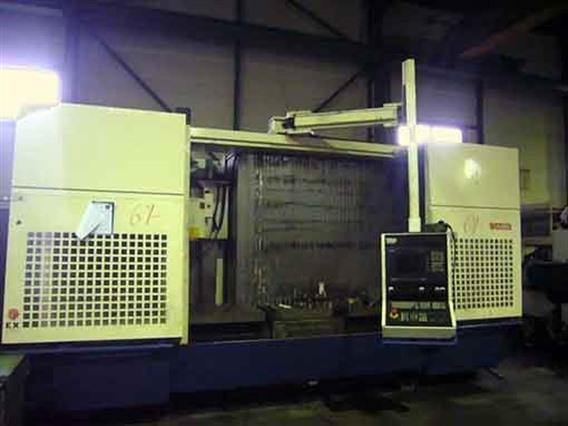

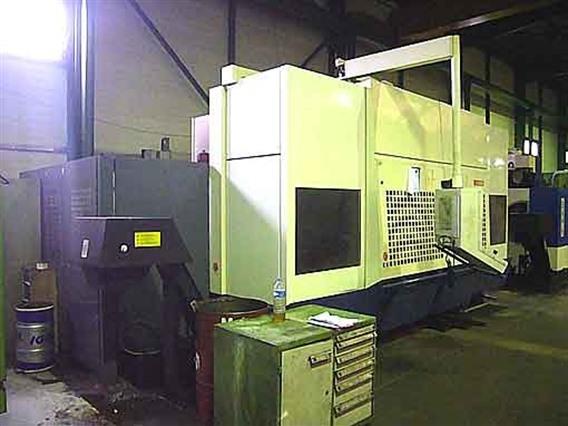

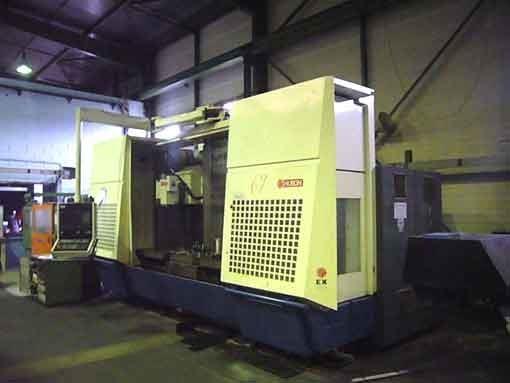

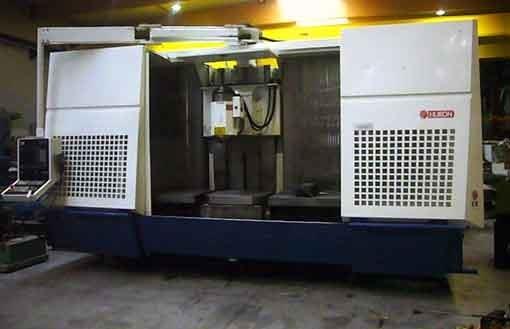

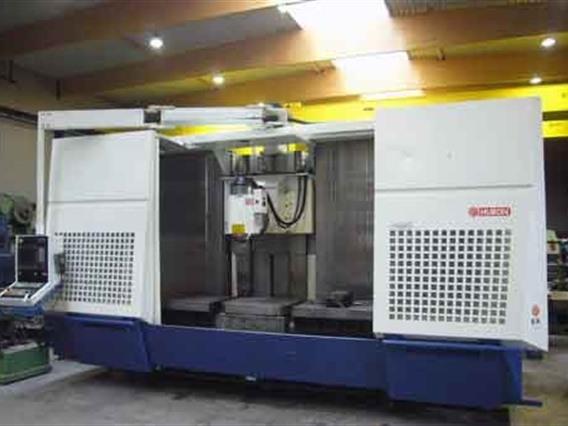

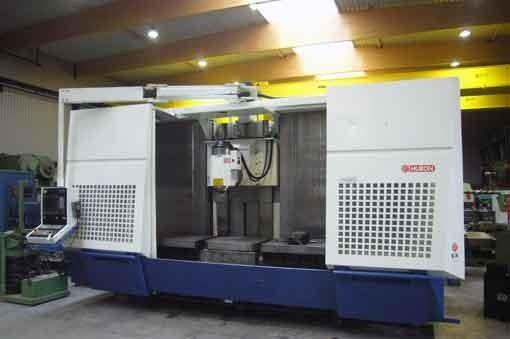

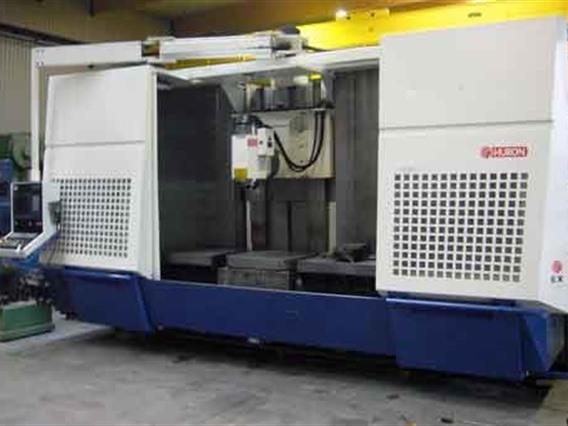

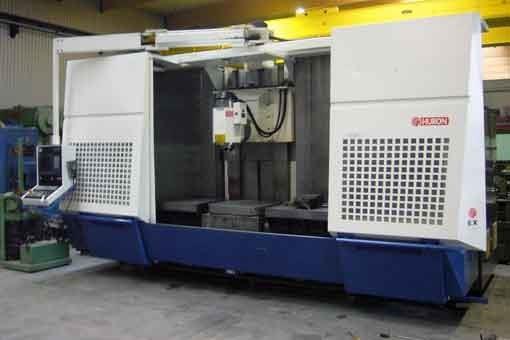

Bed milling machine with moving column & CNC Huron High Precision EXC 30 (5 axes simultaneous)

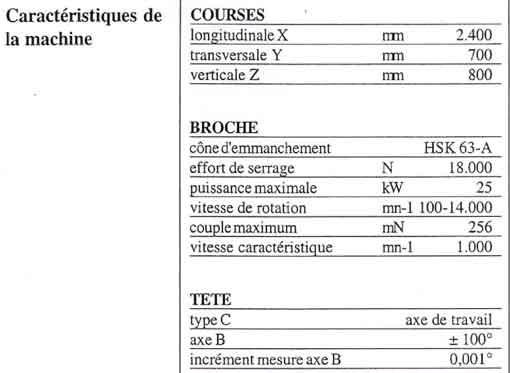

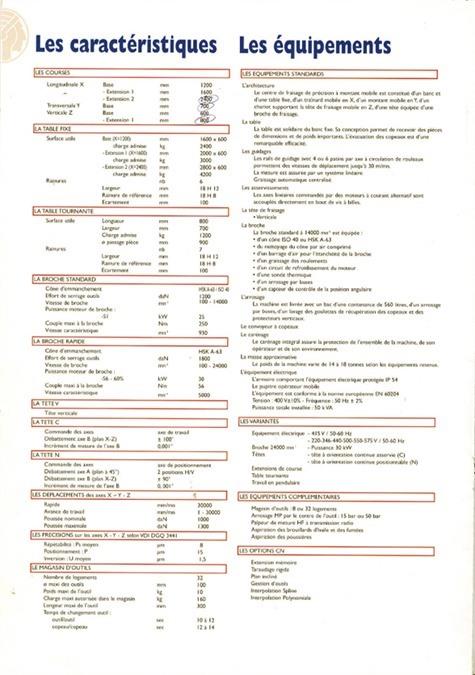

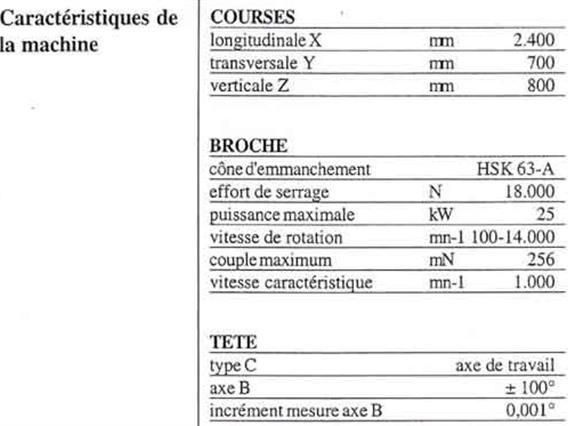

Technical information
- Longitudinal travel X-axe2400 mm
- Crosstravel Y -axe700 mm
- Travel Z-axe (Height)800 mm

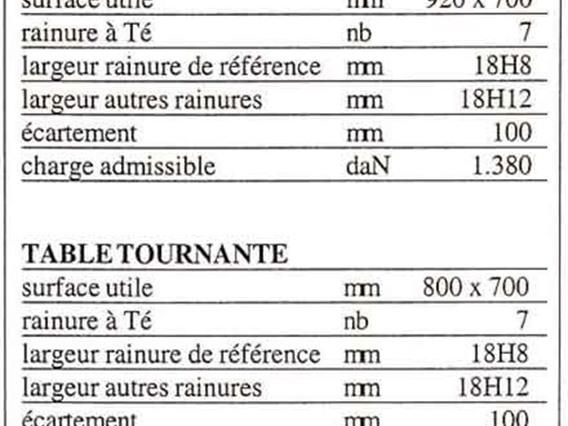

- Dimensions clamping space - table2800 x 700 mm

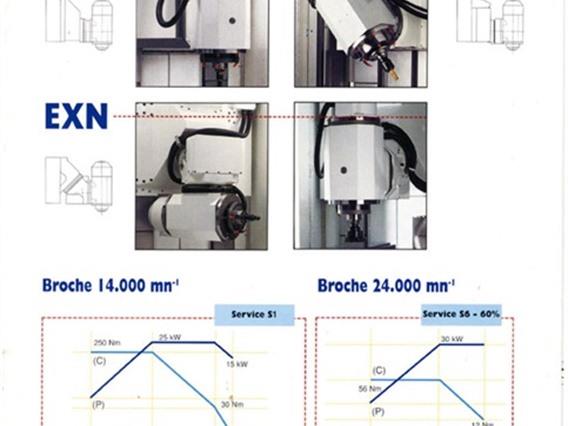

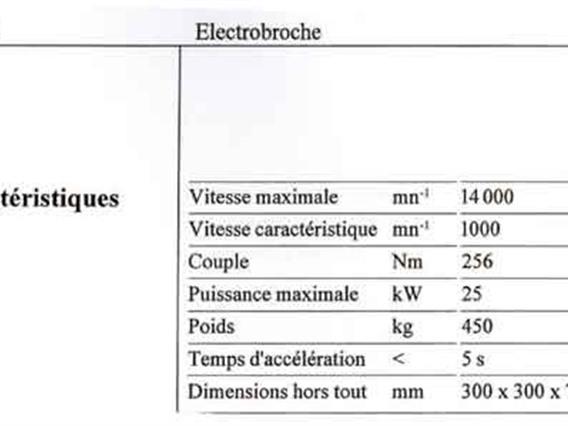

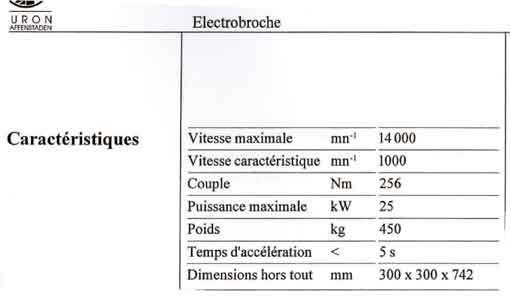

- Power on spindle25 kW (High frequency)

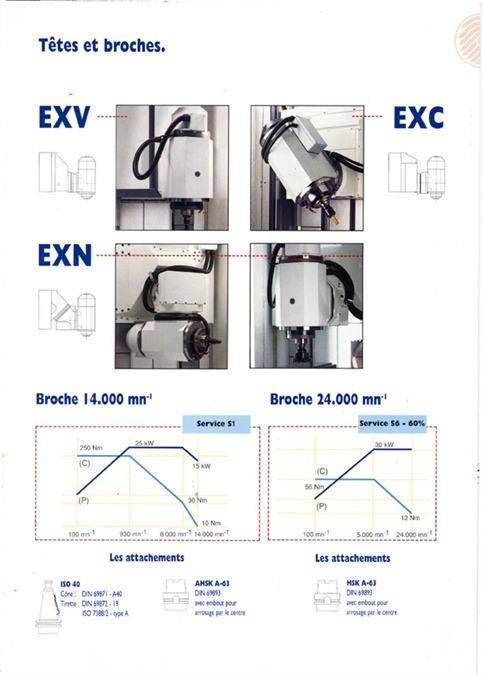

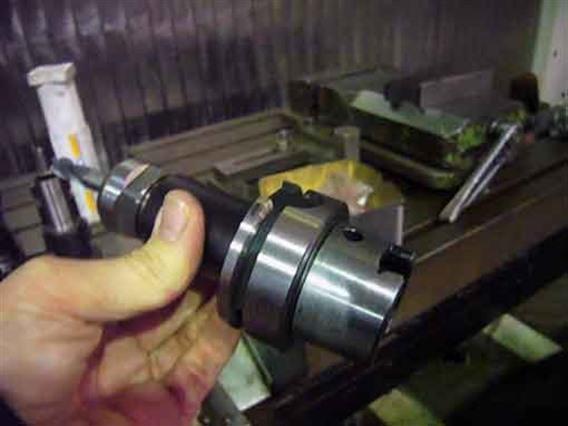

- Admission in millingheadspindle (ISO)HSK63 - 250 Nm
- Max speedrange100->14000rpm

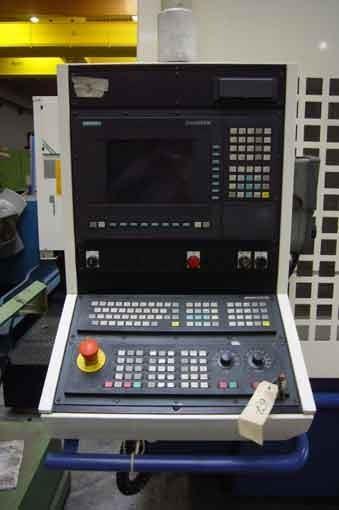

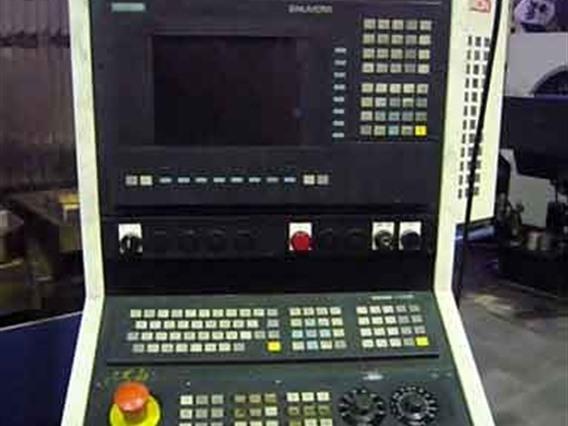

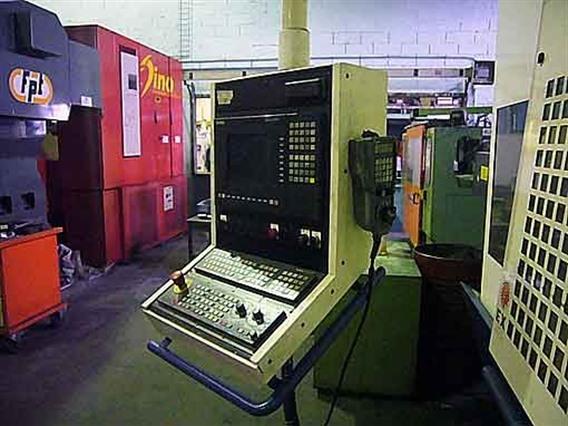

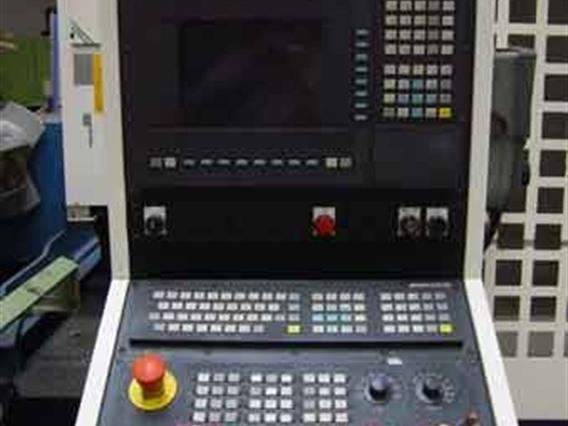

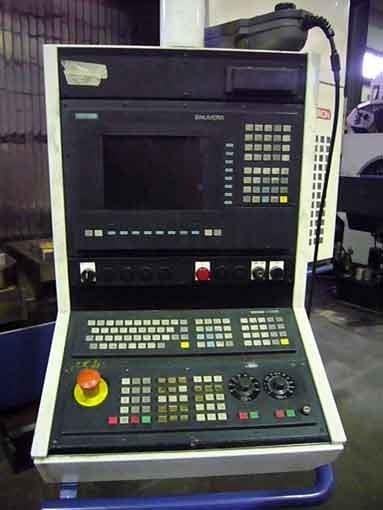

- ControlSiemens sinumerik 840D

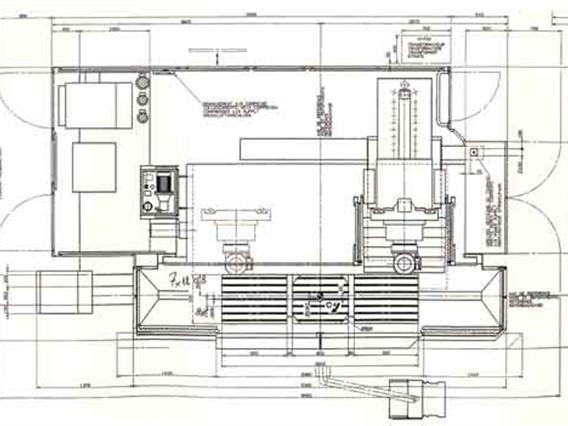

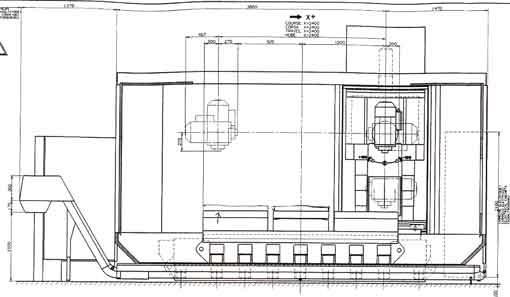

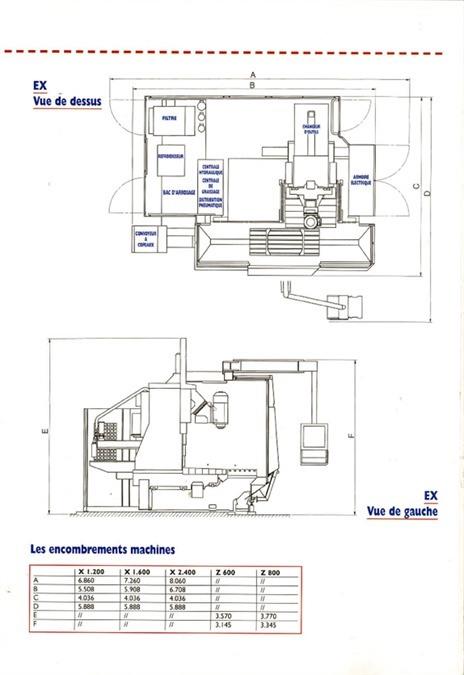

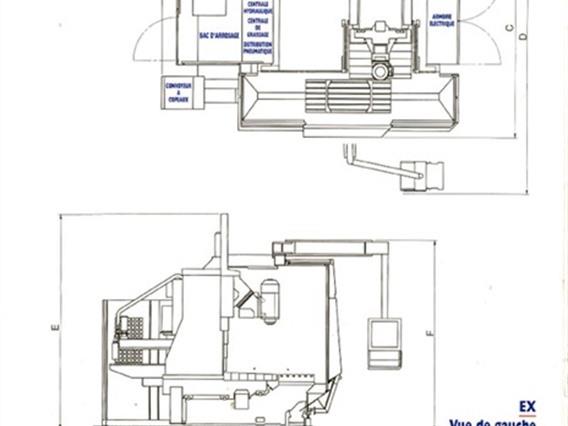

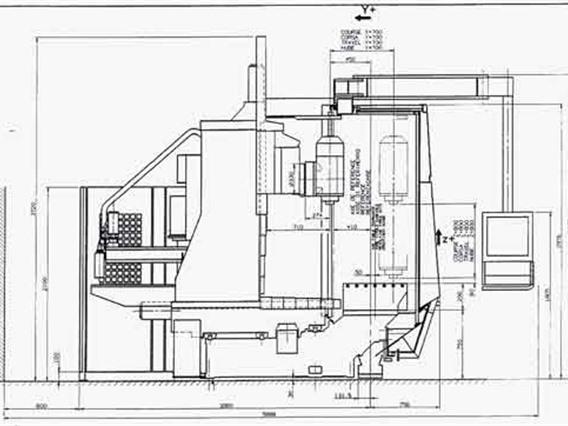

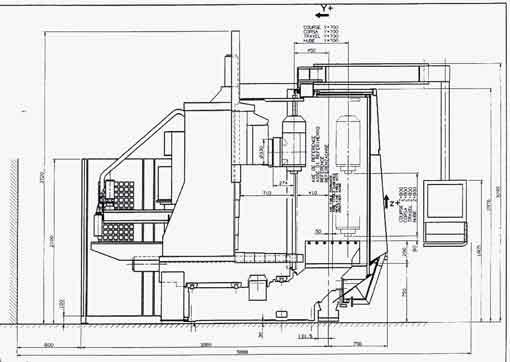

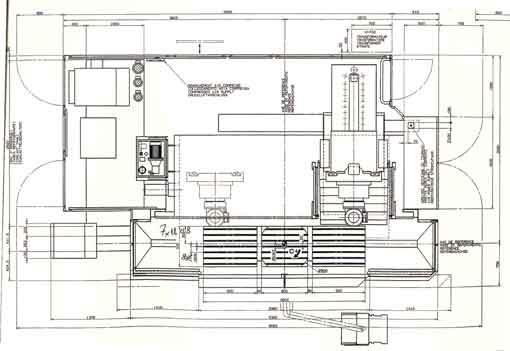

- Length 5350 mm
- Depth 3600 mm
- Height3700 mm
- Weight21000 kg
Additional info

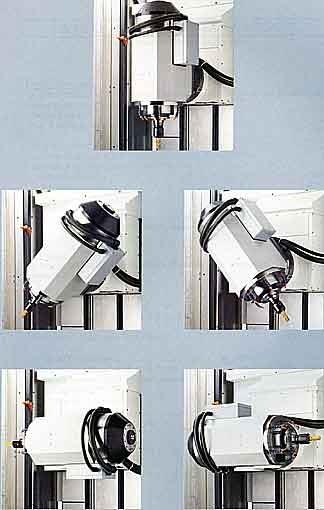

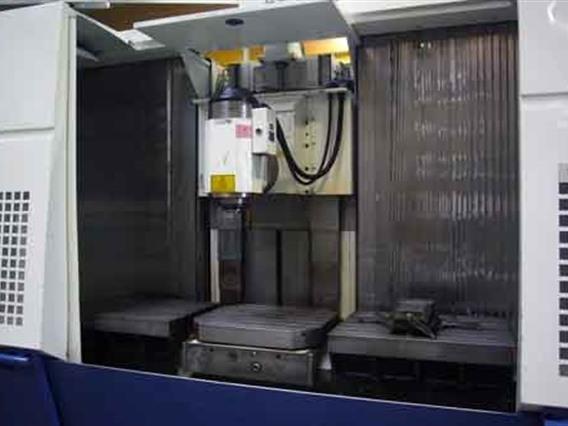

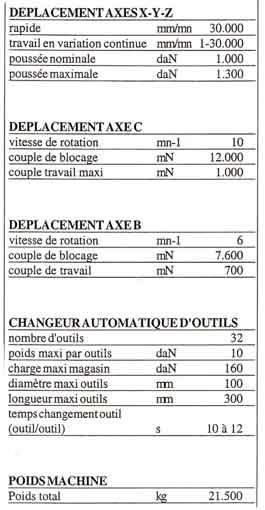

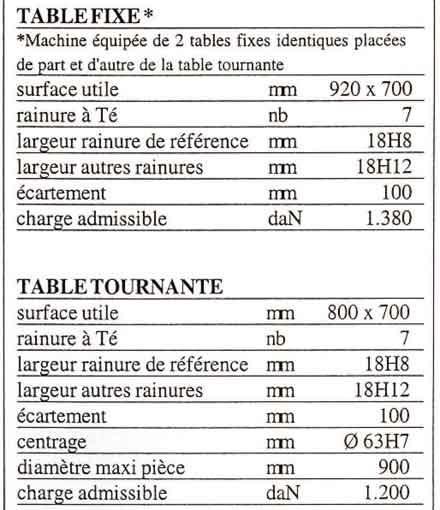

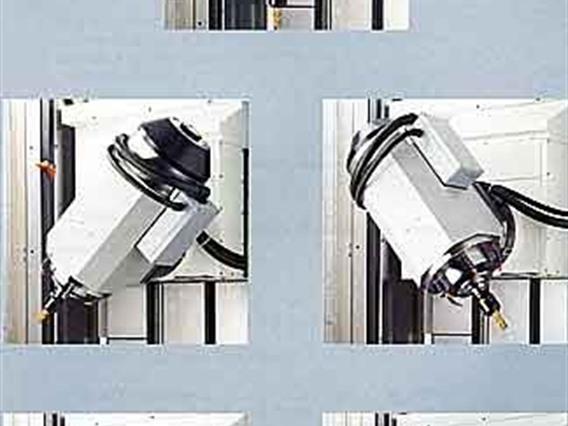

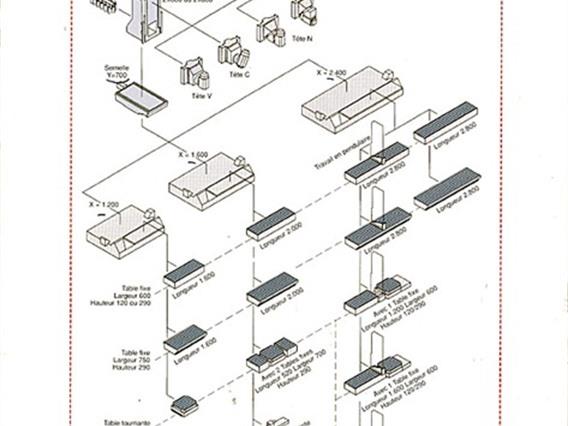

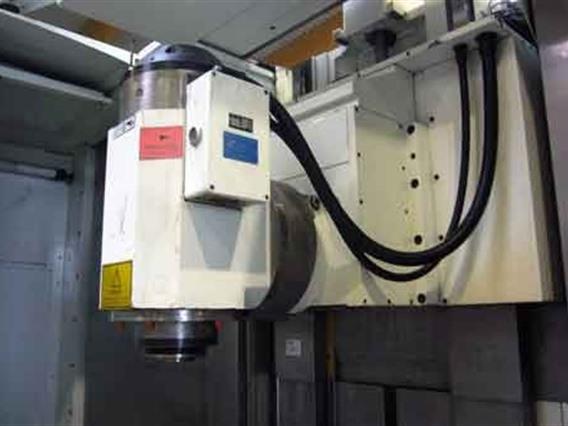

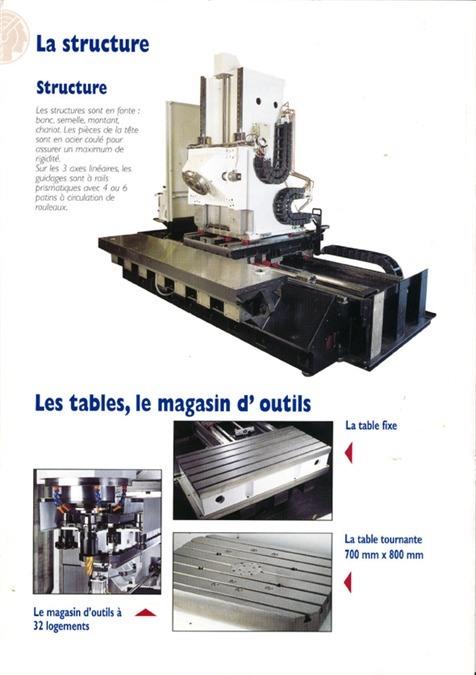

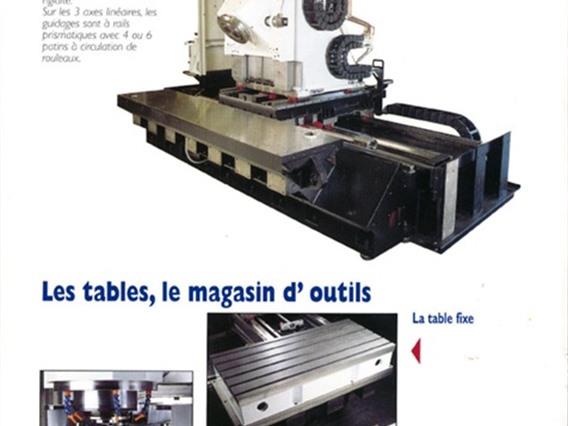

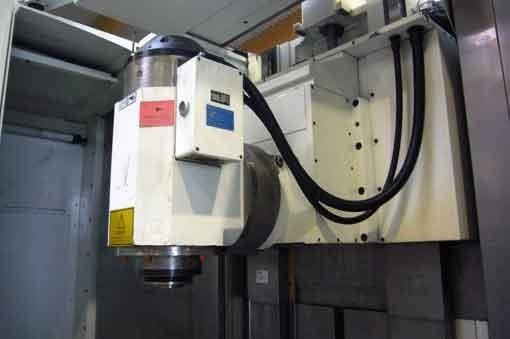

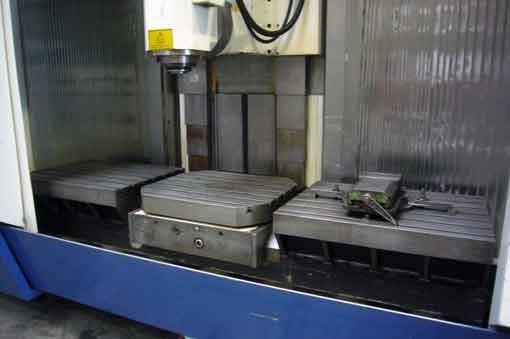

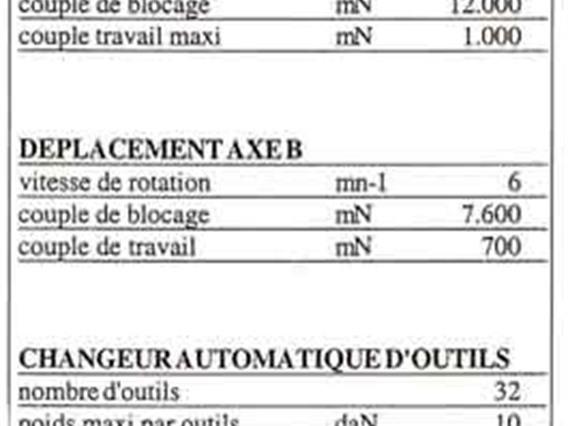

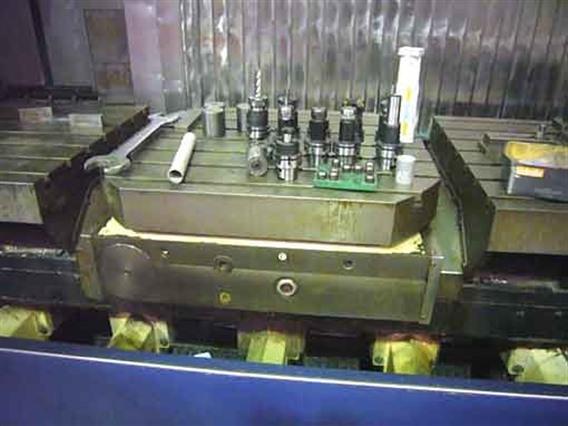

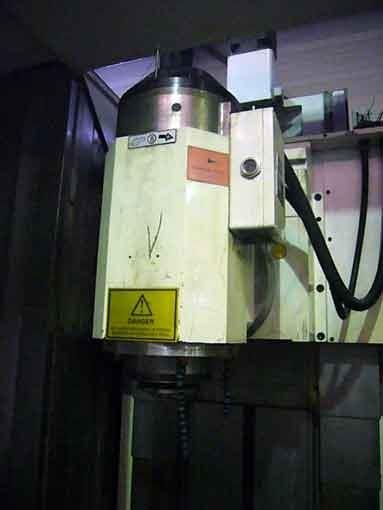

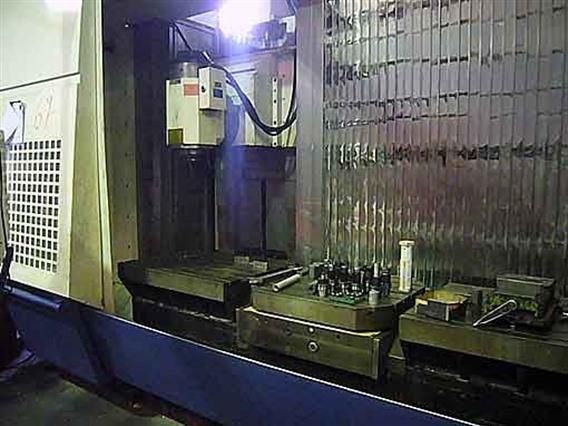

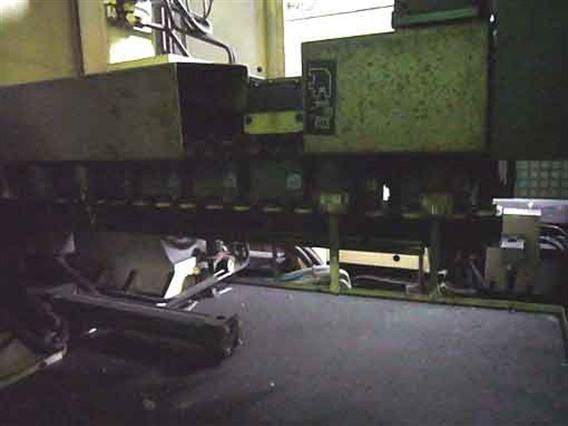

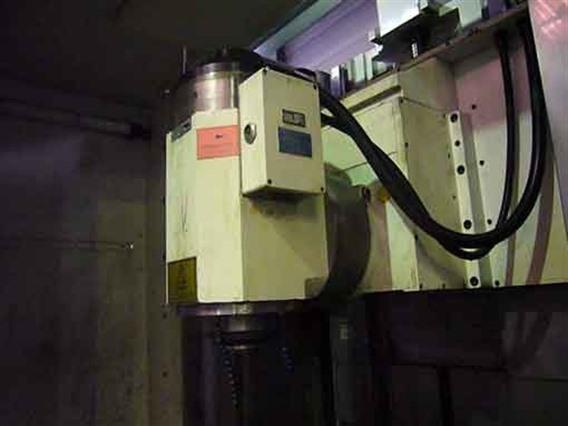

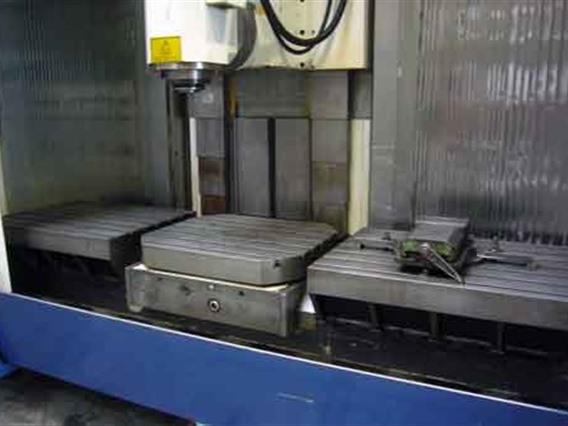

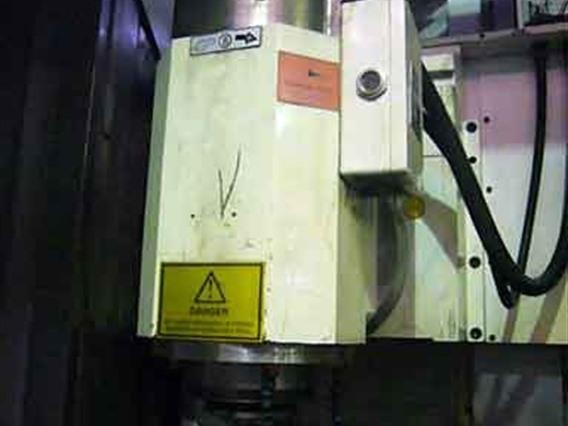

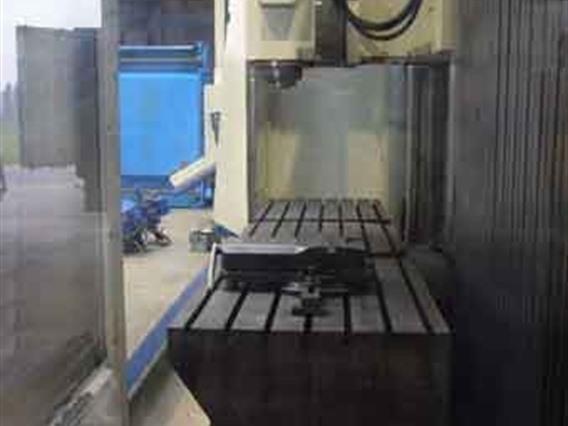

- With a rapid and powerfull spindle, the machine has a swarf removal higher than 800 cm³/minutein a steel at 700MPa. The controlled head is simultaneously interpoled with the other axes to ensure 5 axis machining when the head is associated with a rotary table. The machine is equipped with an automatic tool changer with 32 housings which ensure a large autonomy. B-axis movement (milling head): +/- 100° continu C-axis movement (Rotation table): 360° continu Rapid traverse: 30 m/min Table dim: 2800 x 600 mm (divided in 2 fixed & 1 rotation (360°)table) Max weight on table: 5000 kg Tool storage: 32 Tools
- Type/Model: EXC 30 (5 axes simultaneous)
- Stocknumber: B.04 3787
- Main category: [B] Milling machines
- Sub category: [B.04] Bed milling machine with moving column & CNC
- Brand: Huron High Precision
