CNC lathes Daewoo Puma 12 CNC
Technical information
- Swing over bed580 mm
- Swing over cross-slide350 mm
- Distance centre tot centre770 mm
- Max longitudinal travel Z-axis800 mm
- Max cross travel X-axis200 mm
- Spindle coneASA A2#8
- Dia of spindle bore90 mm
- Power on the spindle18,5/22 kW
- Number of speeds20-2500 rpm

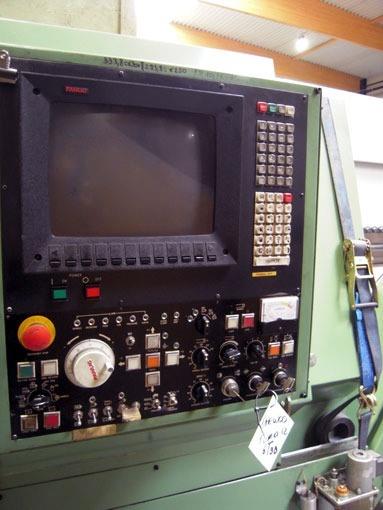

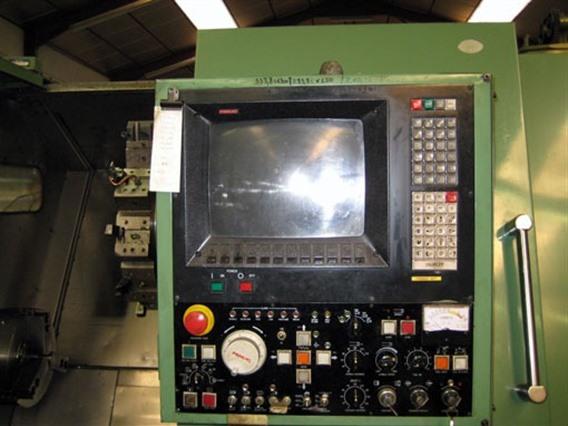

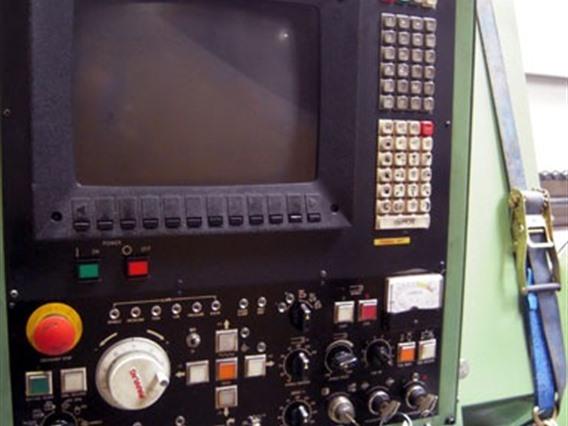

- CommandFanuc swap 10T
- Current needed3 x 220 V
- Length3175 mm
- Width2080 mm
- Height2000 mm
- Weight5750 kg
- ACCESORIES*
- Sliding ring110 x 100 mm

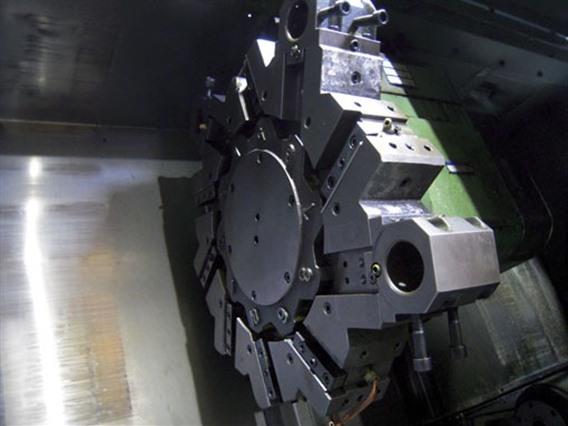

- Toolchanger10 gereedschap.
Additional info
- CNC Lathe Scrapconveyor Ø spantrekspil 78 mm
- Type/Model: Puma 12 CNC
- Stocknumber: A.07 5006 *08
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Daewoo
