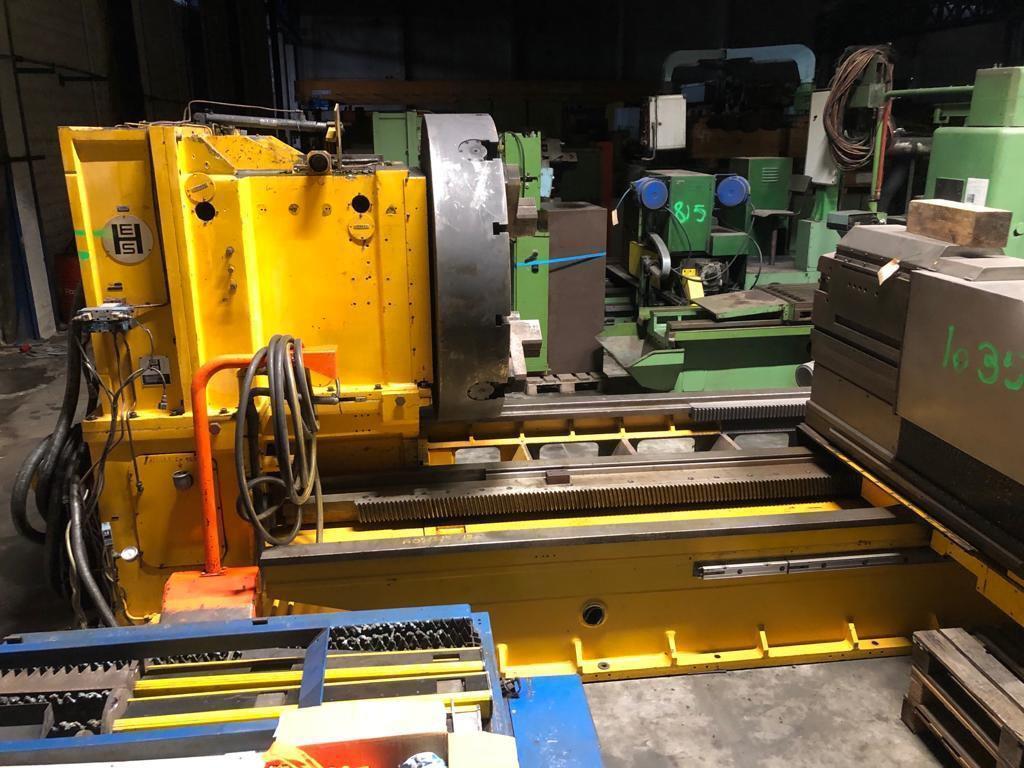

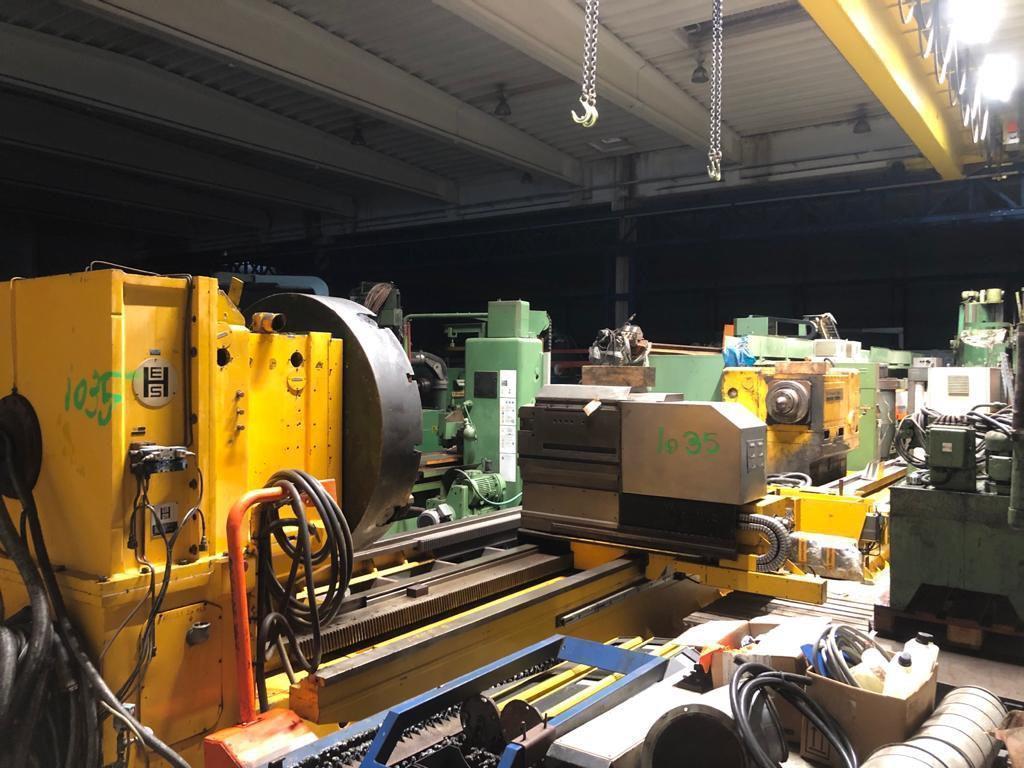

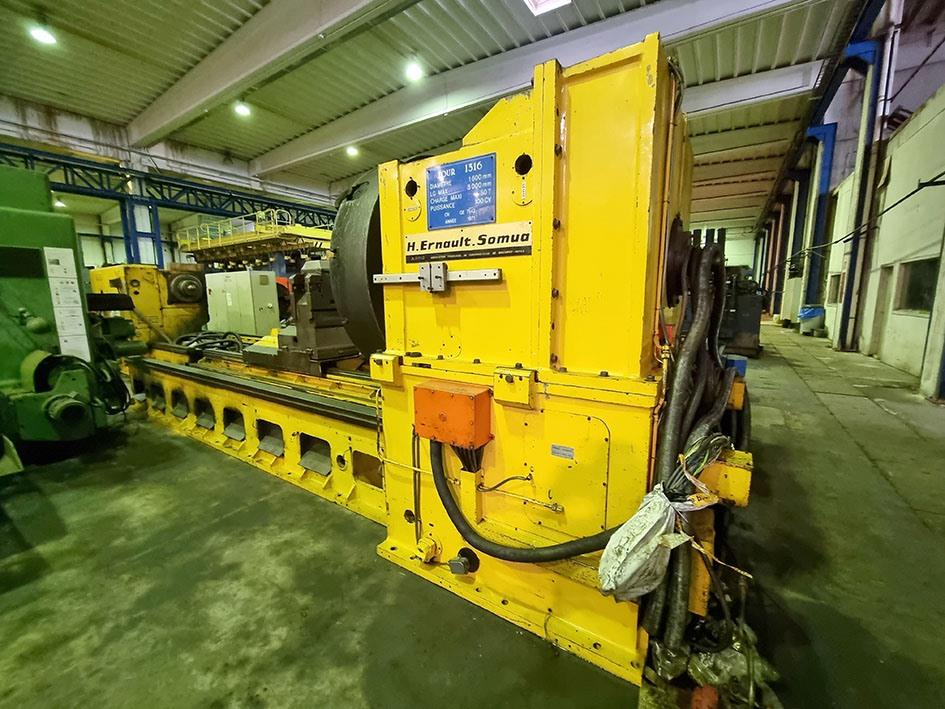

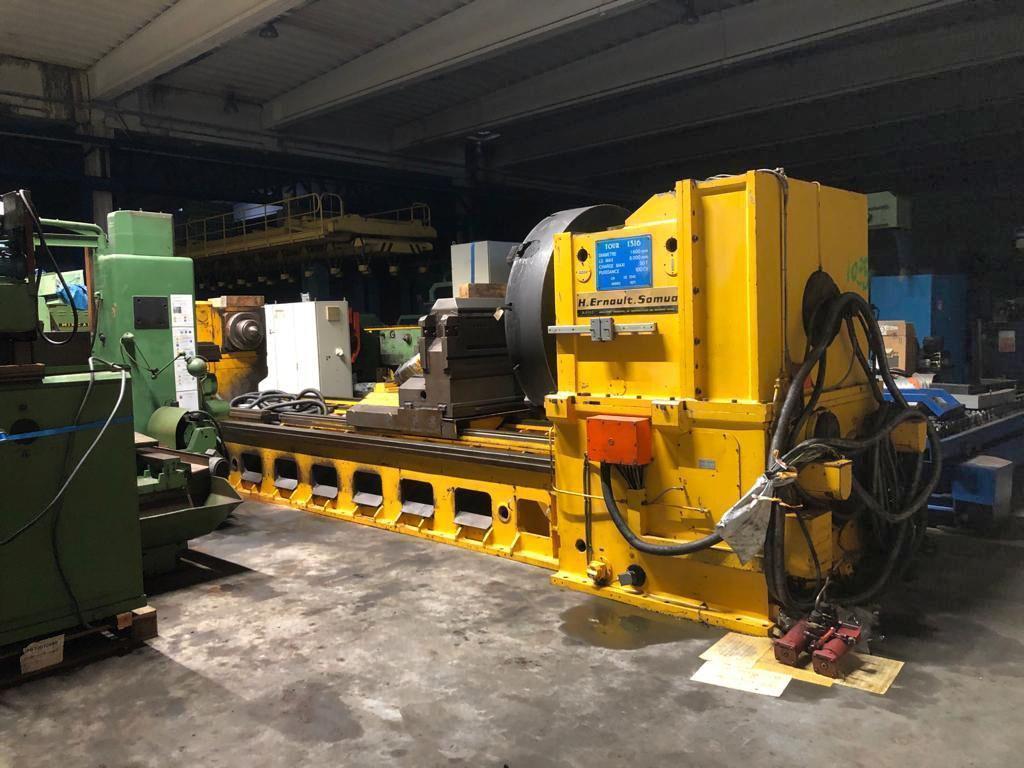

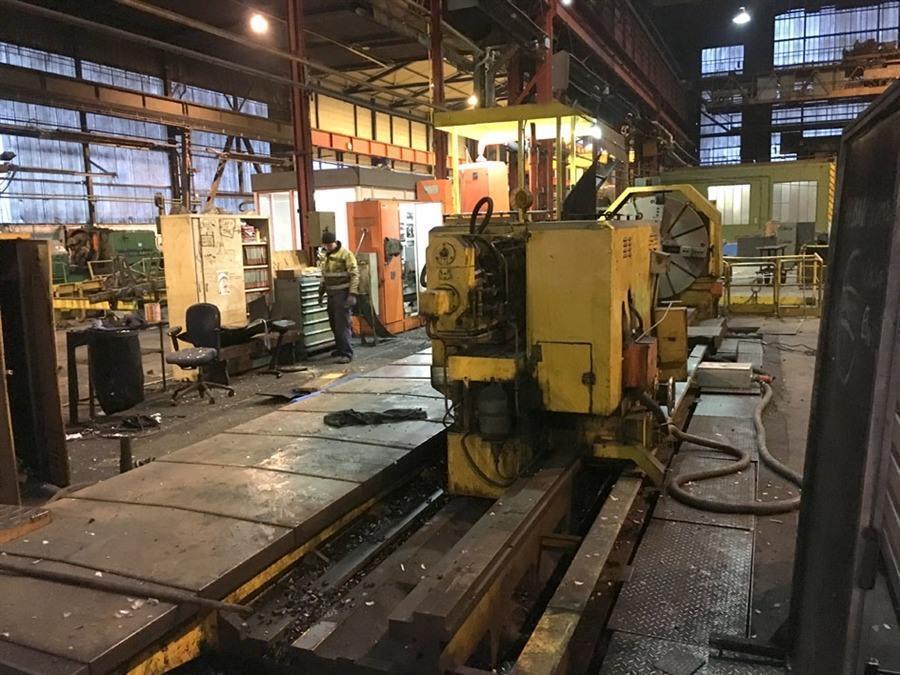

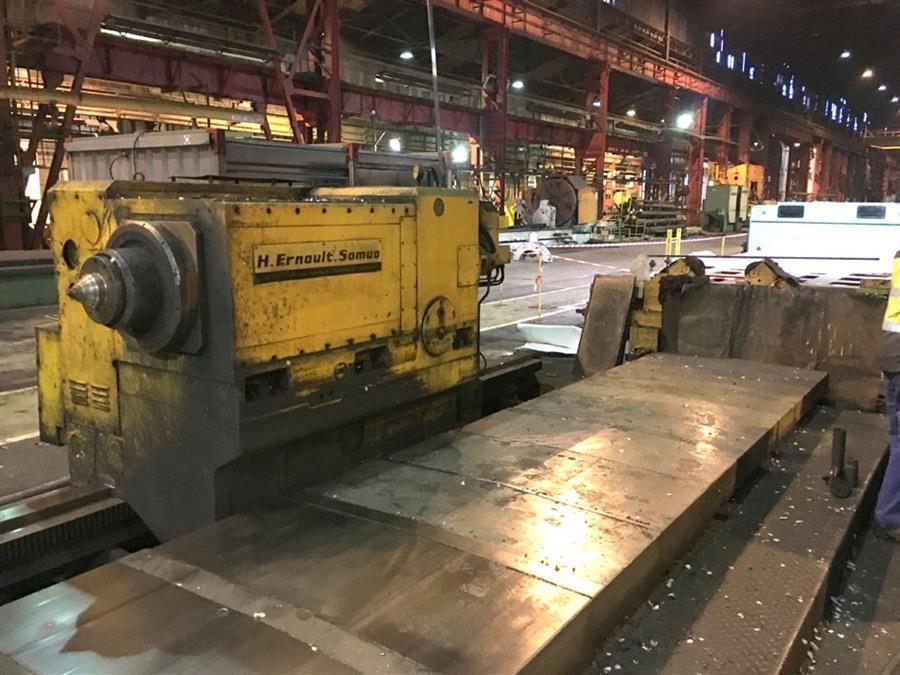

Ernault & somua Ø 2000 x 8000 mm CNC

Technical information

  • Swing over bed2000 mm
  • Swing over cross-slide1600 mm
  • Distance centre tot centre8000 mm
  • Power on the spindle75 kW
  • Number of speeds2 > 240 rpm

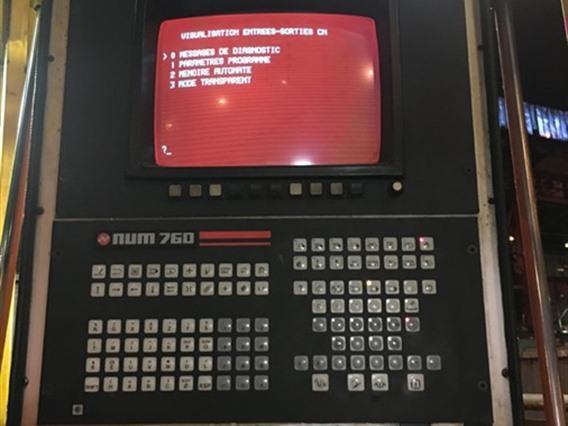

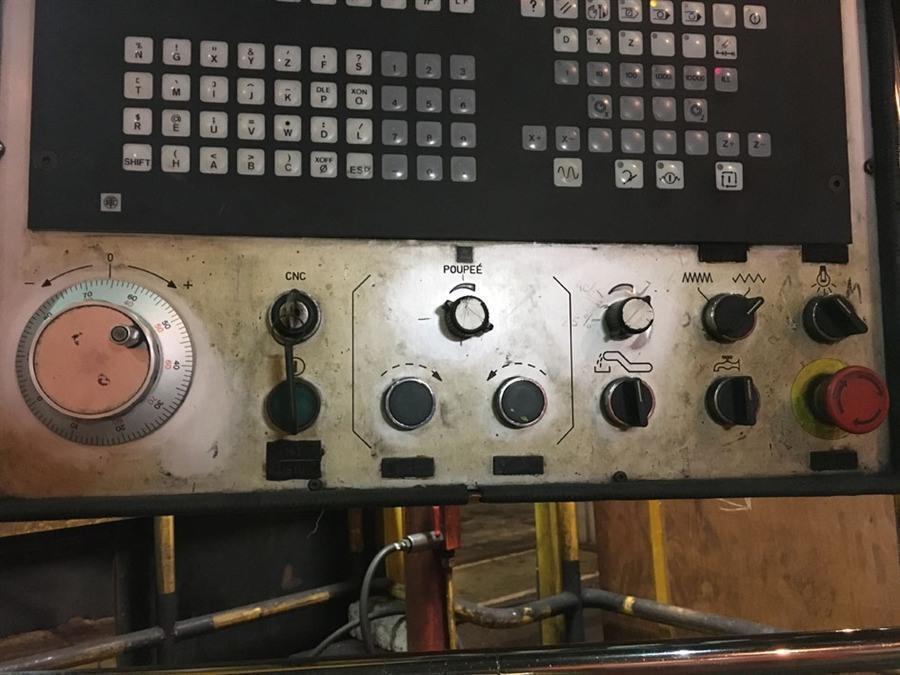

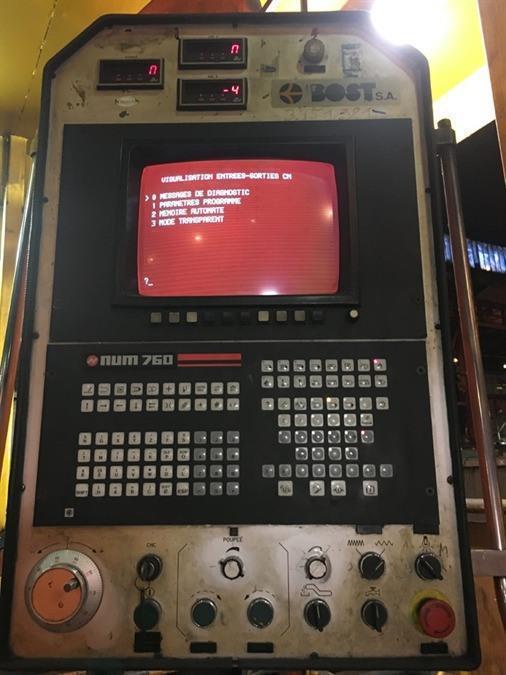

  • CommandNum
  • Weight75 ton

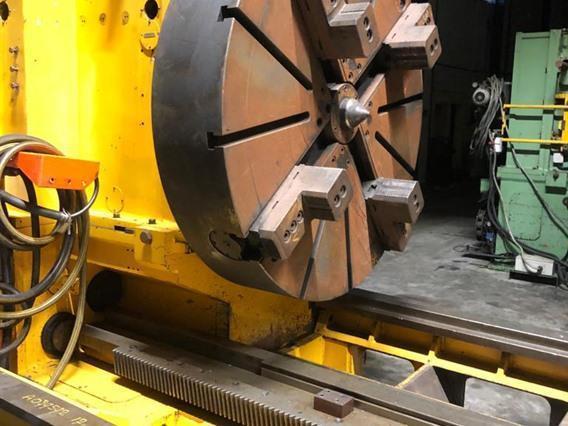

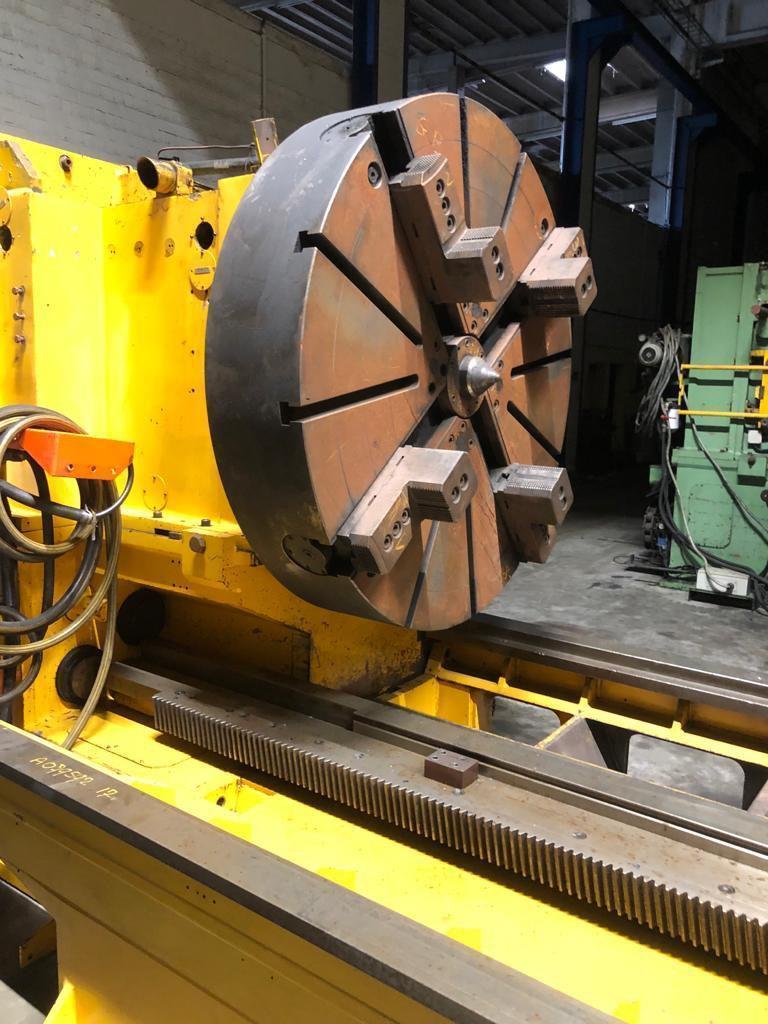

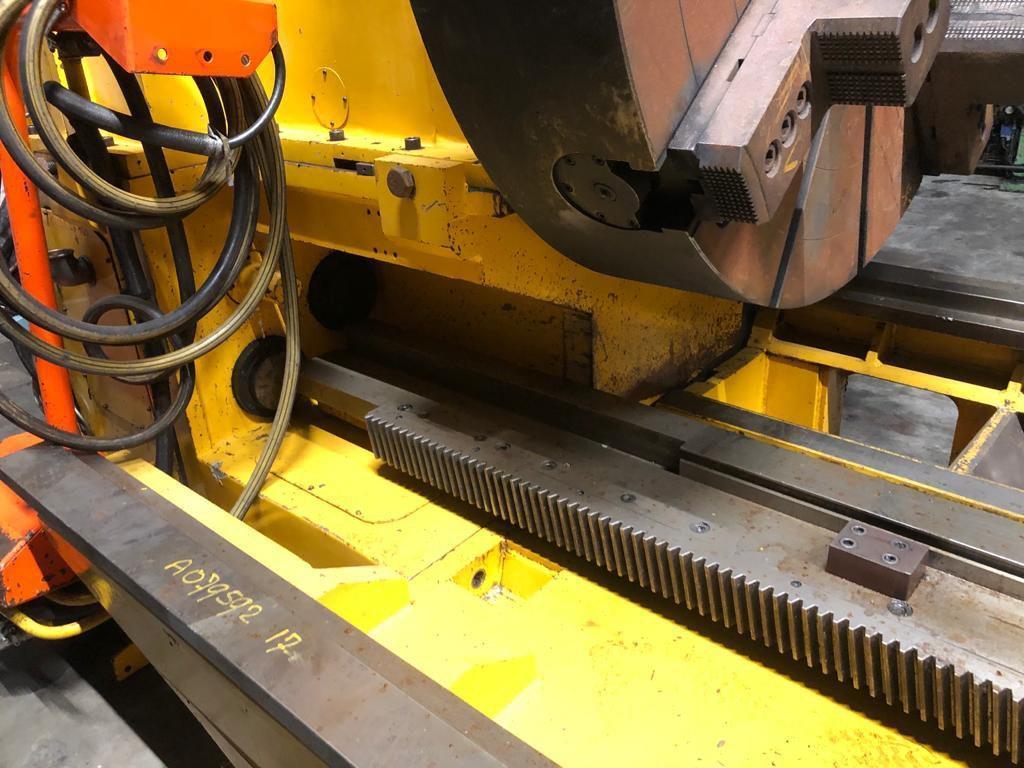

  • Chuck1600 mm

Additional info

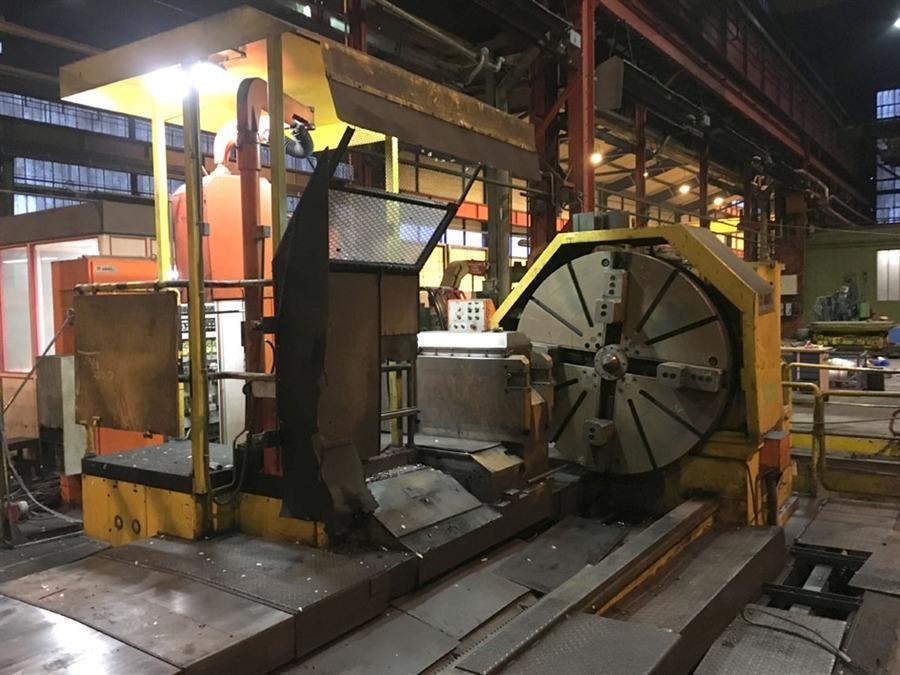

  • Heavy duty lathe with 4 hardened linear guides
    Max workpiece weight: 50 ton
    Hydraulic counterpoint = automatic compensation

    Crosslide equipped with two CNC controlled toolholders
    Siemens drives and motors
    Heidenhain rulers and encoders

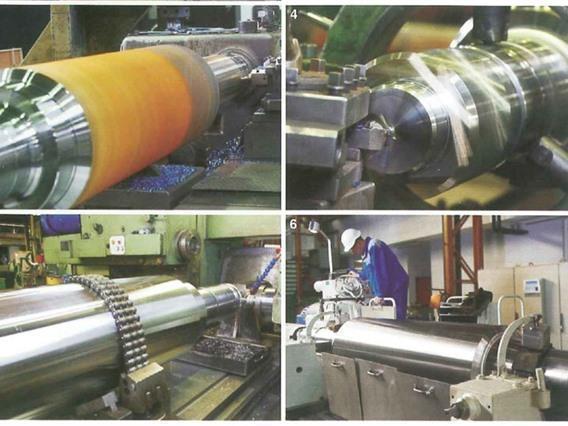

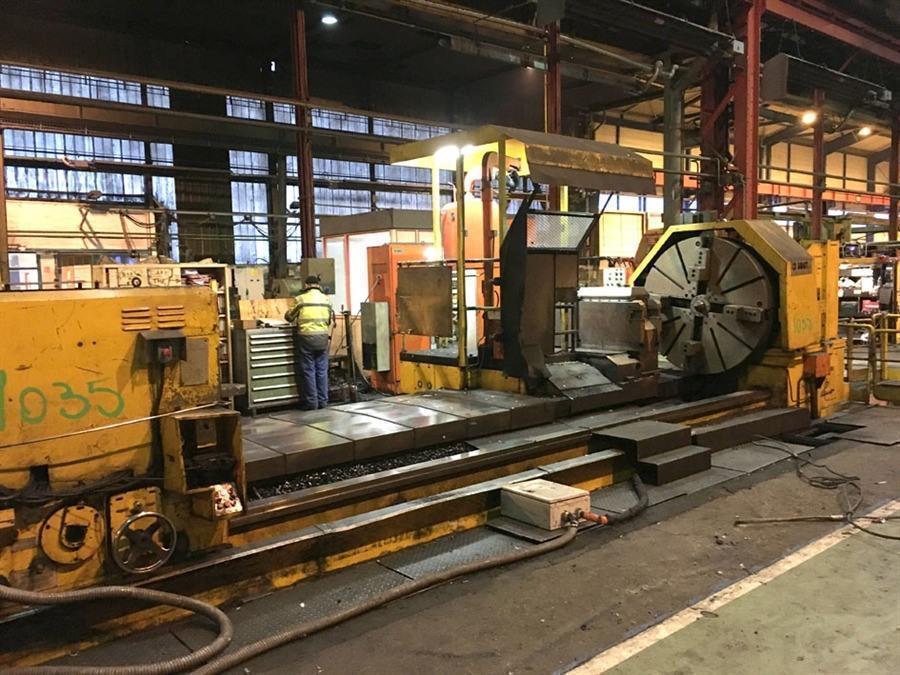

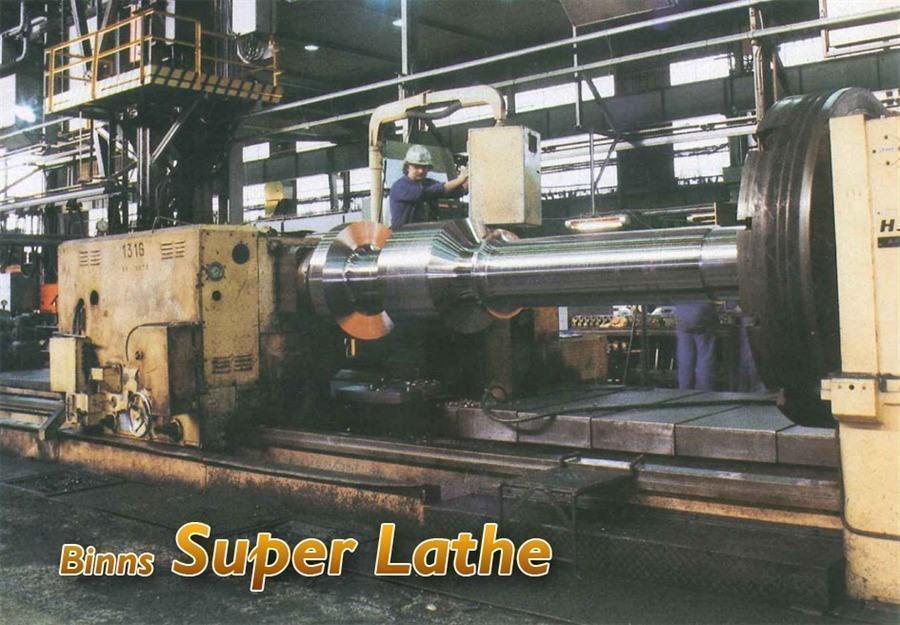

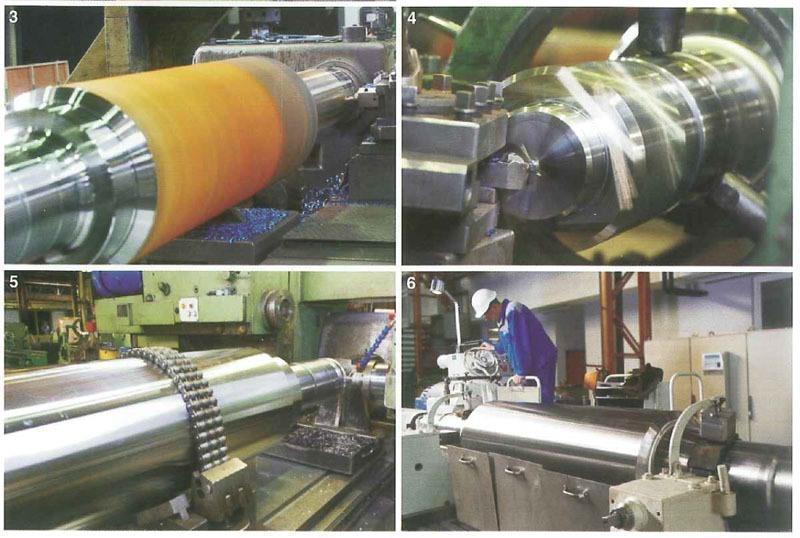

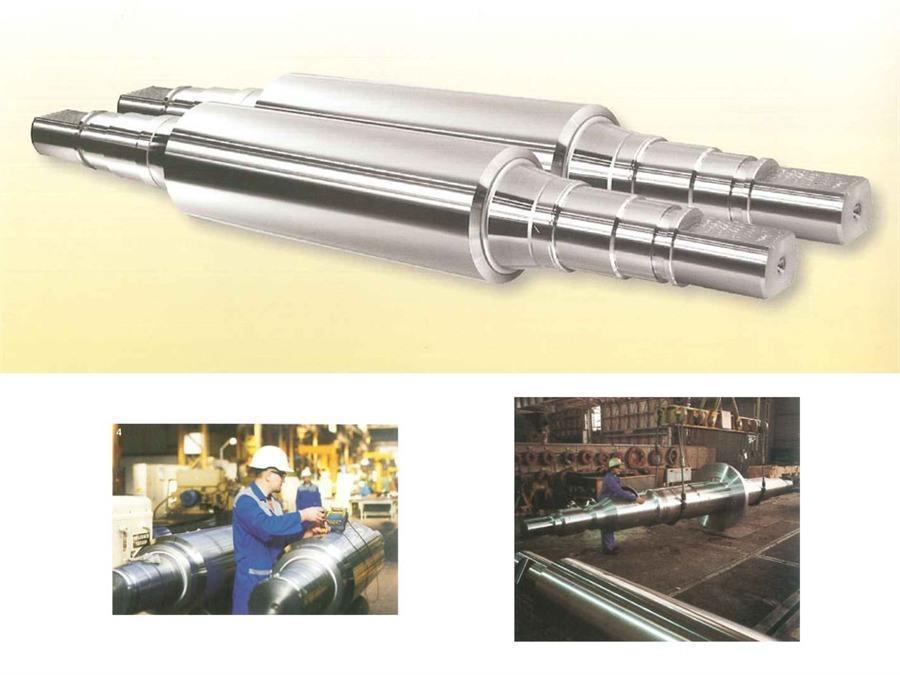

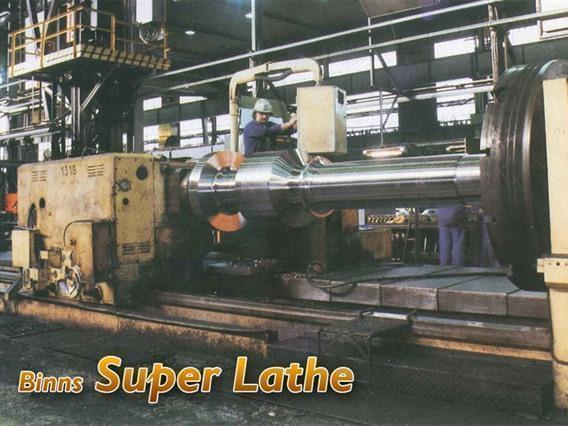

    Super Lathe principle/license of Binns Machinery (USA). The ultimate in performance for heavy lathes intended for steel mills, roll foundries, forge shops for making products like turbine rotors, large shafts and bar production.

    Most noticeable differences in regards to a normal lathe:
    > much wider bed = very high rigidity = no more vibration

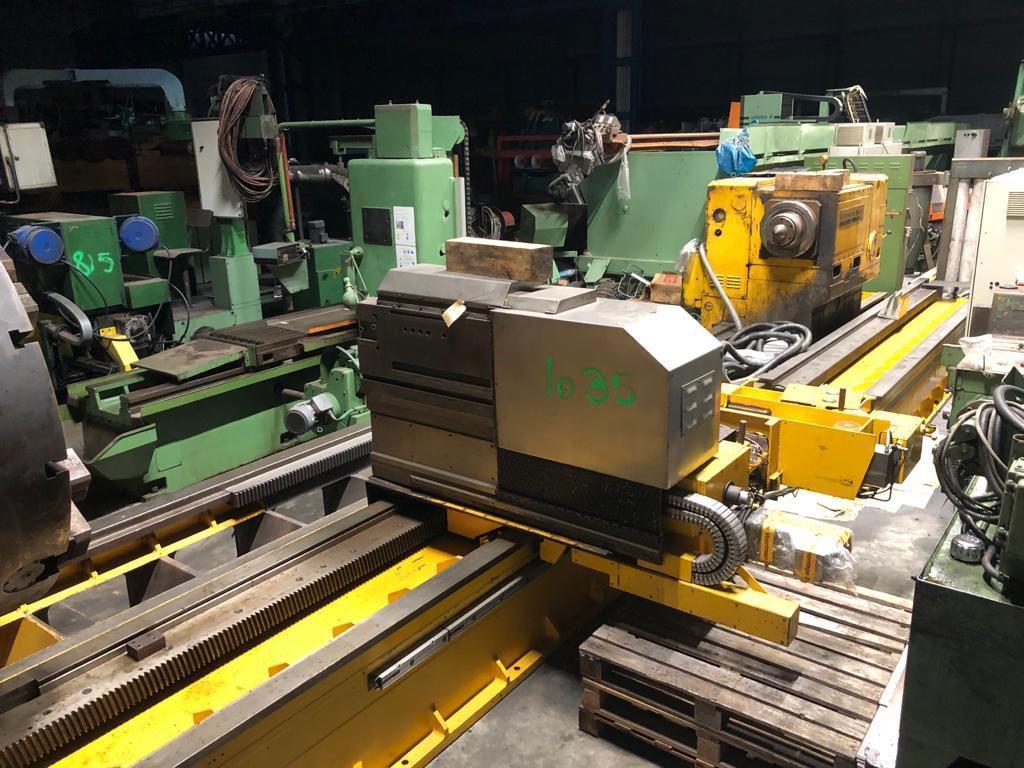

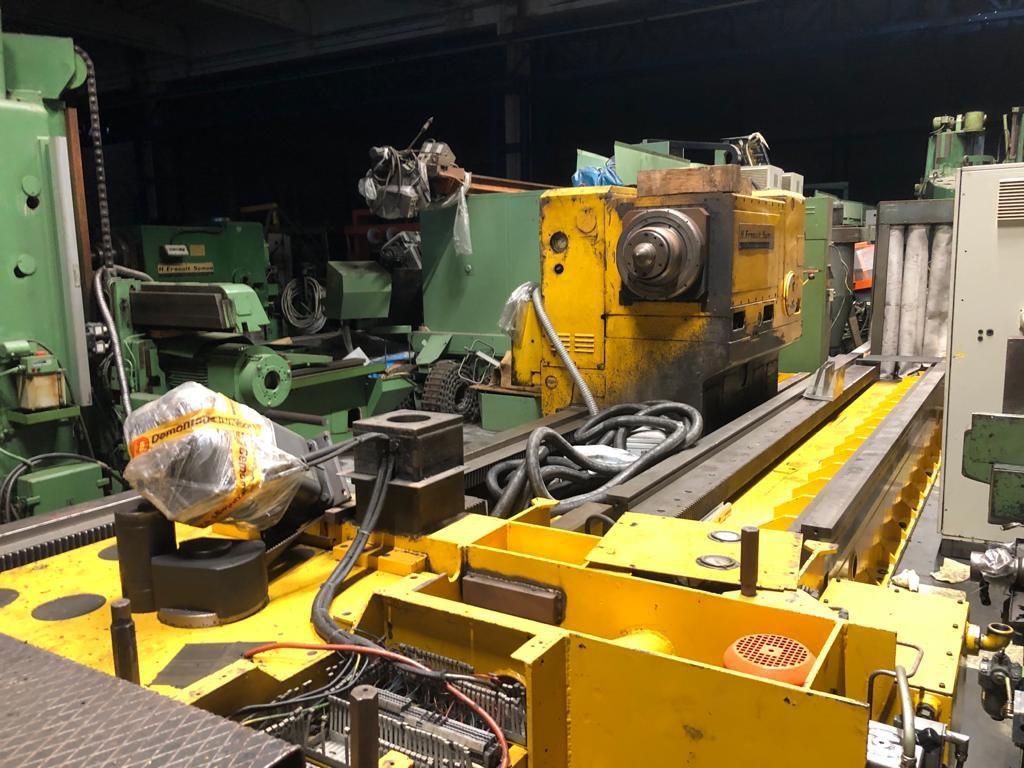

    > heavy and bulcky carriage also for rigidity purposes
    > heavy workpieces can be placed between the centers
    > the total weight of the roll lathe is very high

  • Type/Model: Ø 2000 x 8000 mm CNC
  • Stocknumber: A.07 9592
  • Main category: [A] Lathes
  • Sub category: [A.07] CNC lathes
  • Brand: Ernault & somua

Stocknumber: A.07 9592
