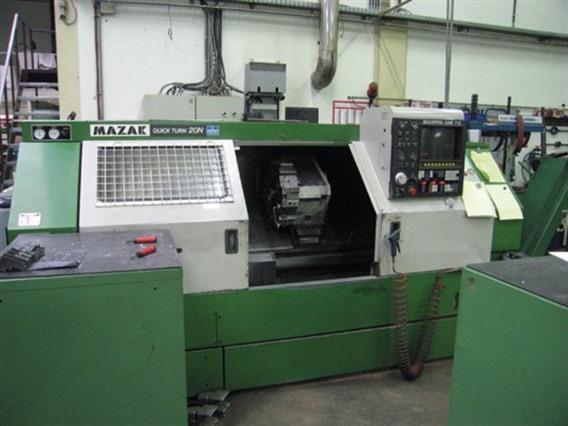

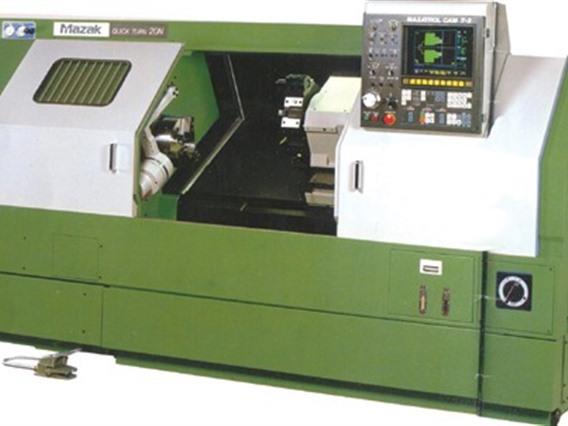

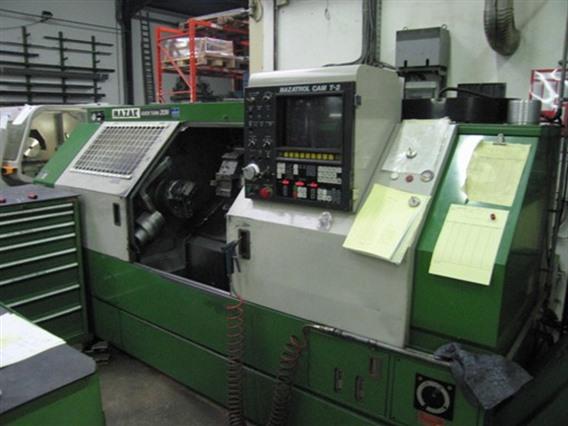

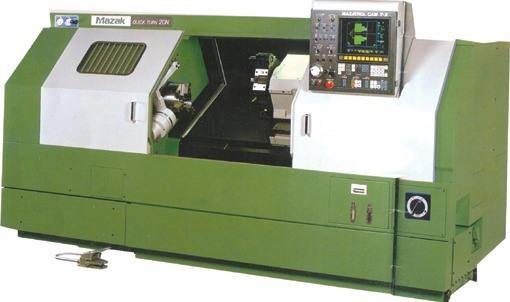

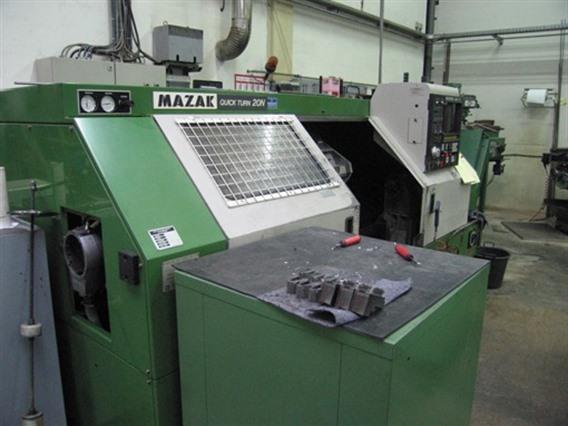

CNC lathes Mazak QT 20 N

Technical information

Swing over beddia 510 mm
Distance centre tot centre1037 mm
Max longitudinal travel Z-axis1045 mm mm
Max cross travel X-axis180 mm
Spindle coneA2 - 8 inch

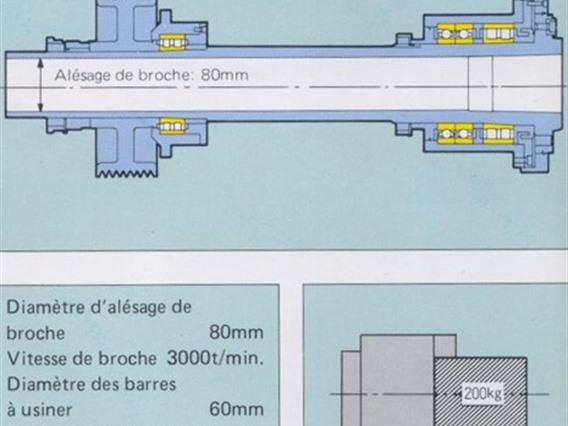

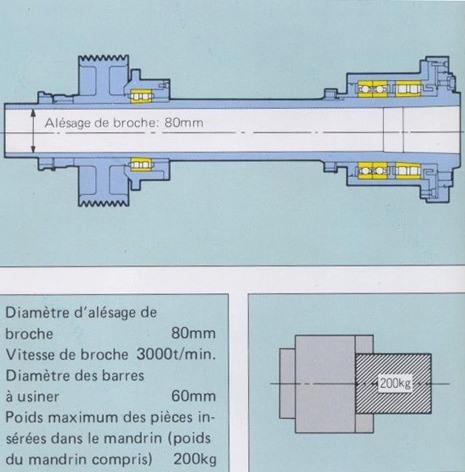

Dia of spindle bore80 mm
Power on the spindle15 kW
Number of speeds12-3000/9-2200

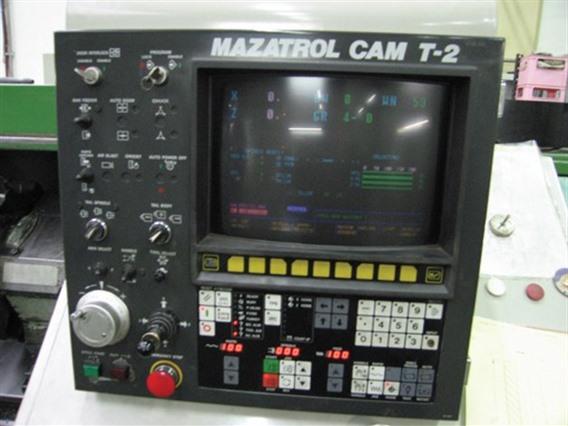

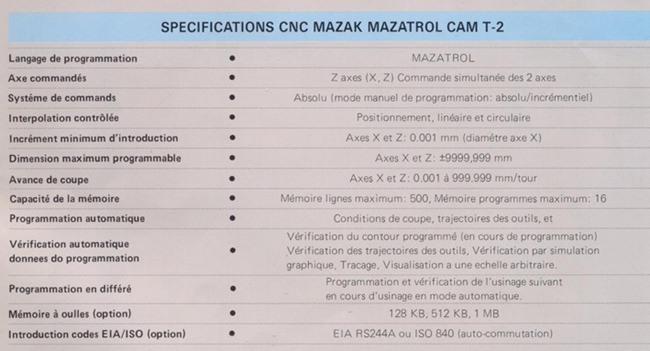

CommandMazatr.CAM T 2
Total power needed34,7 kVA
Weight4900 kg
ACCESORIES*

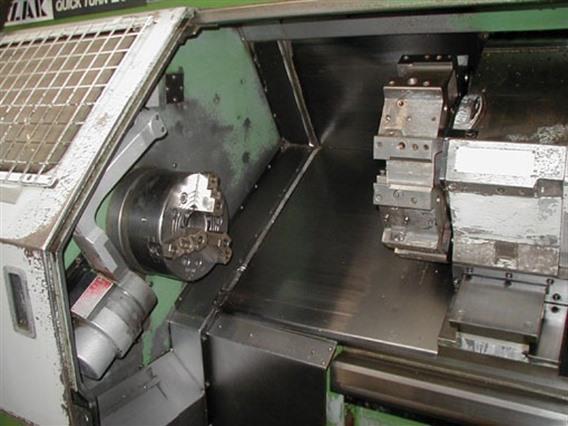

Chuck3cl - dia 250mm

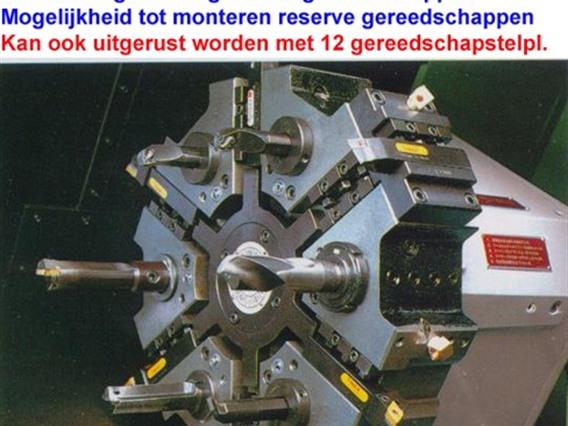

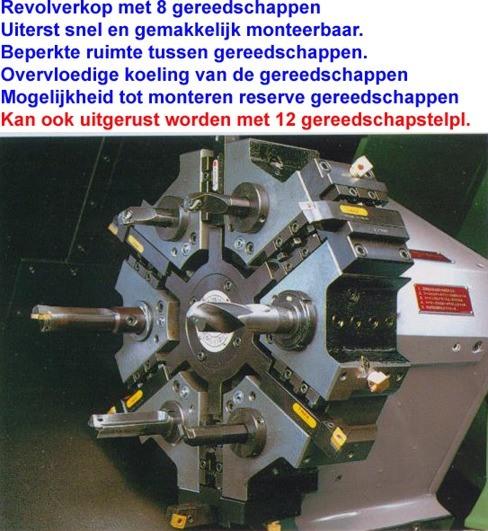

Toolchanger8 tools

Additional info

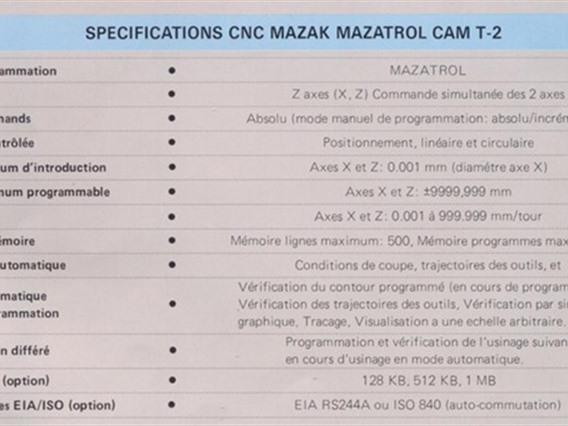

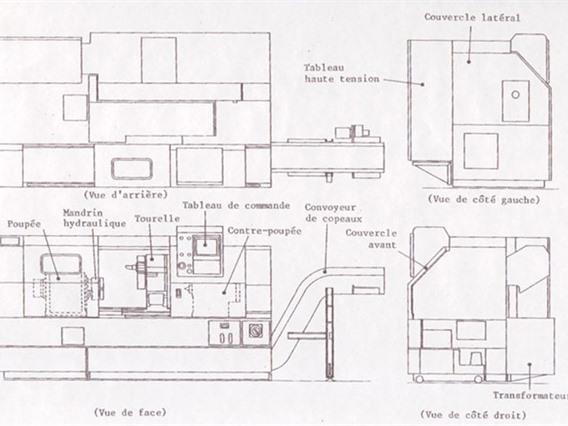

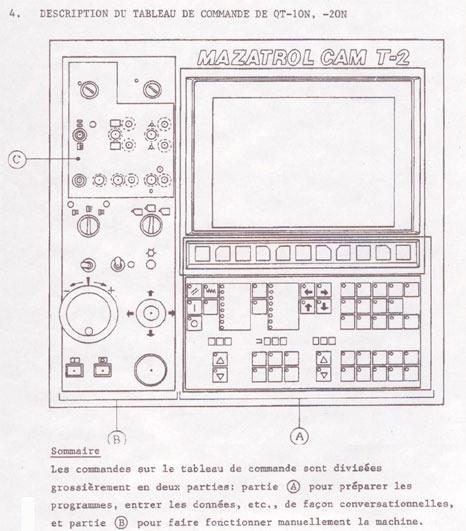

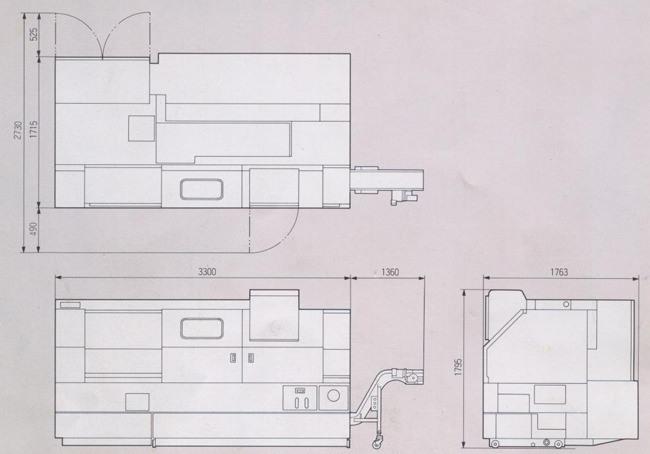

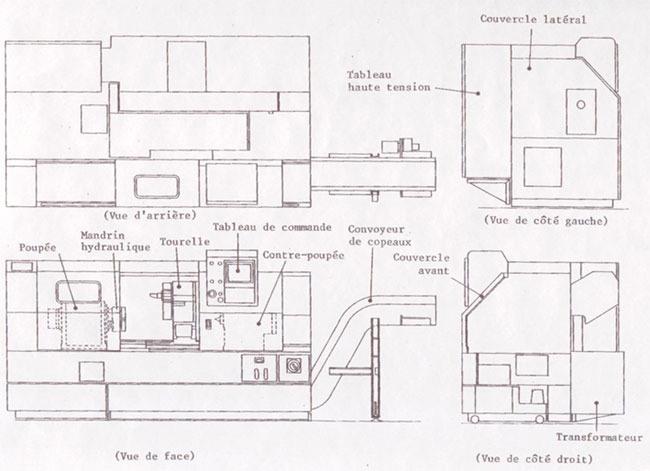

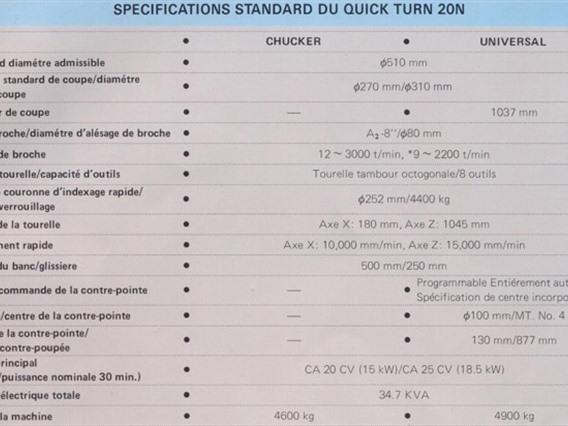

Technical data see below (click to enlarge) -- Chipconveyor
Type/Model: QT 20 N
Stocknumber: A.07 2571 *05
Main category: [A] Lathes
Sub category: [A.07] CNC lathes
Brand: Mazak

Stocknumber: A.07 2571 *05
