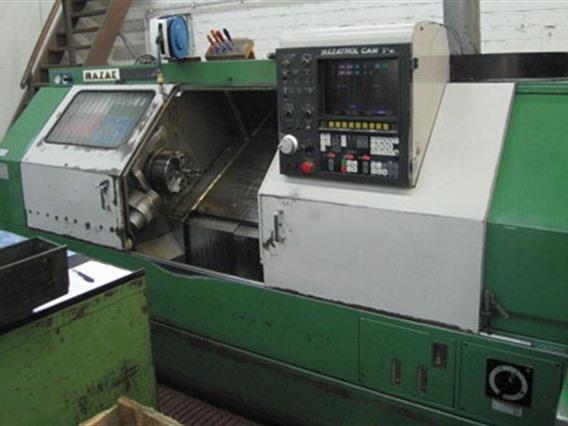

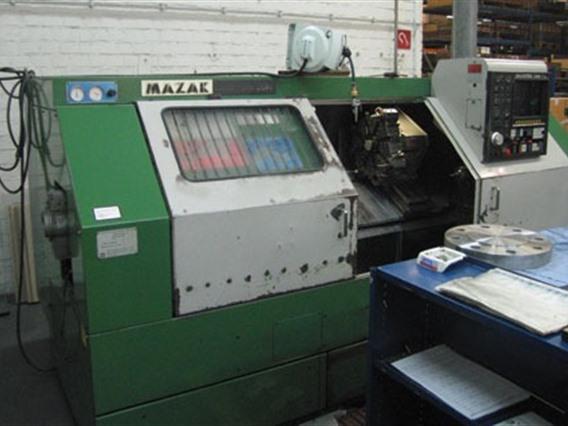

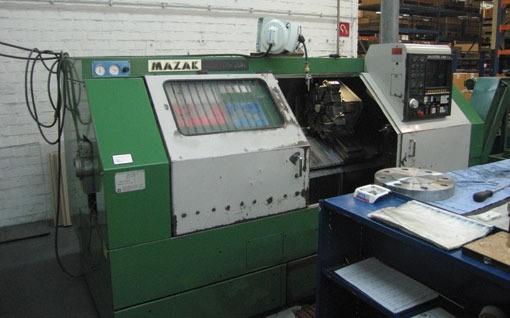

CNC lathes Mazak QT 20 N

Technical information

Swing over bedØ 510 mm
Distance centre tot centre1037 mm
Max longitudinal travel Z-axis1045 mm
Max cross travel X-axis180 mm
Spindle coneA2 -8 inch

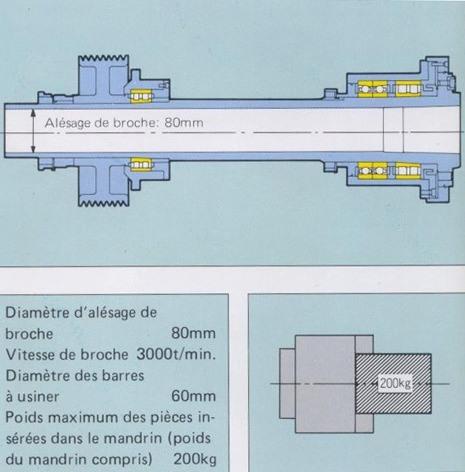

Dia of spindle bore80 mm
Power on the spindle15 kW
Number of speeds12 - 3000rpm

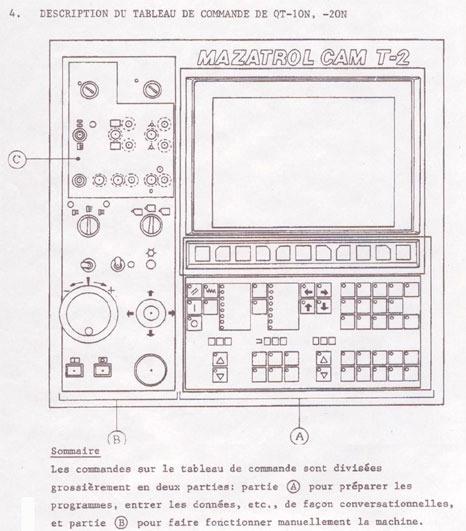

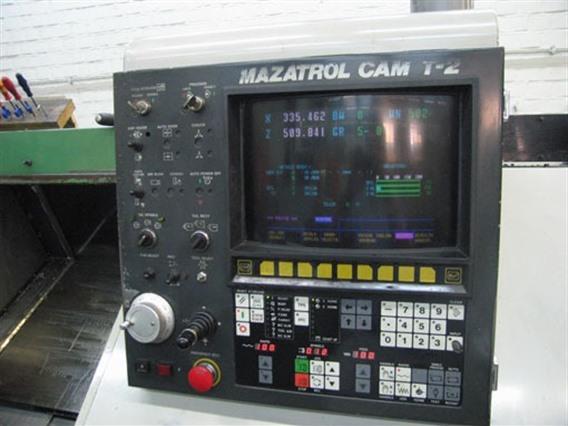

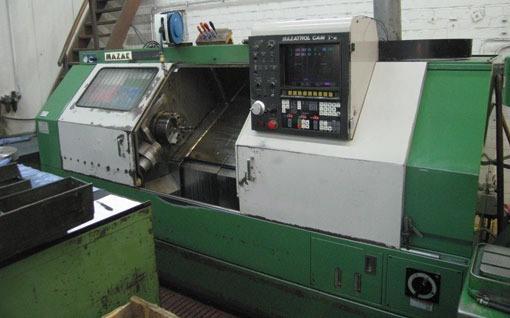

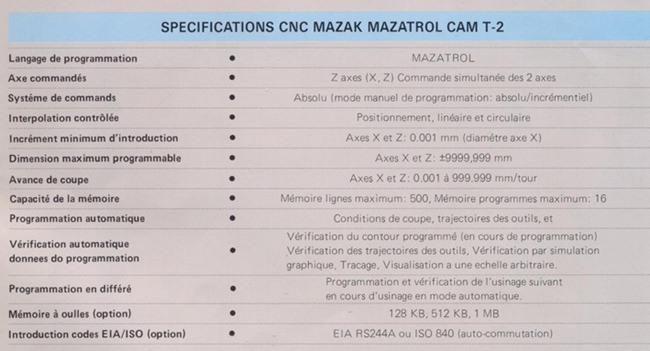

CommandMazatrol Cam T2
Total power needed34.7 kW

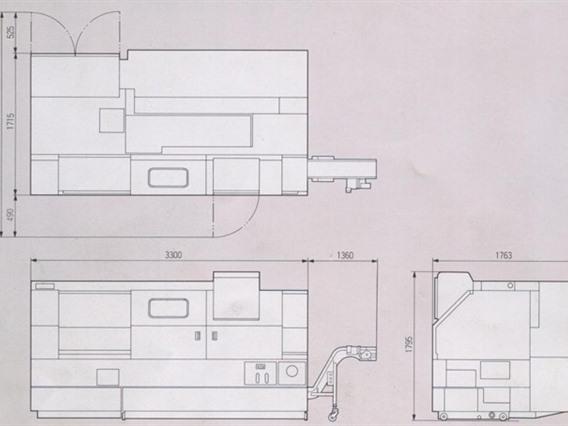

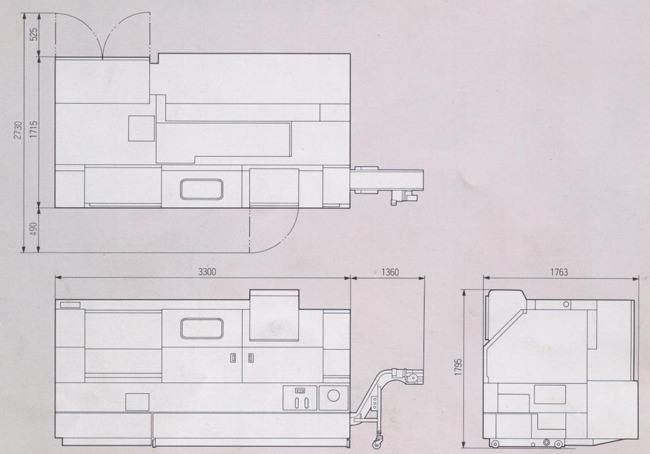

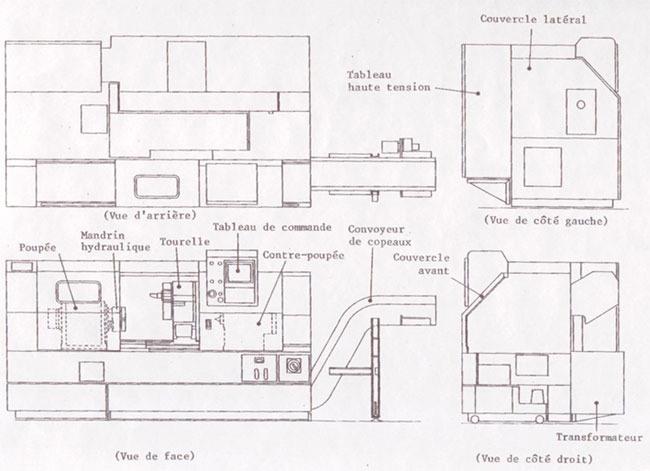

Length3300mm
Width1763mm
Height1795mm
Weight4900 kg

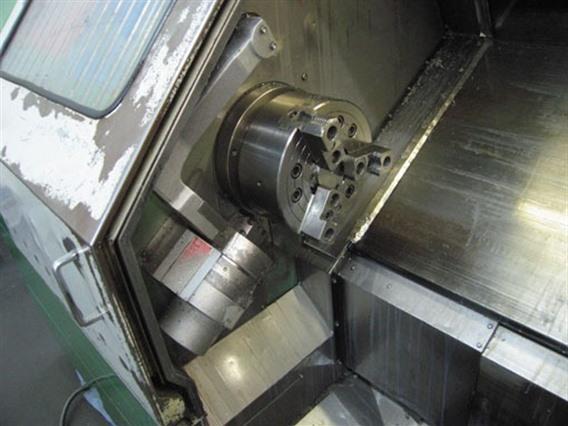

Chuck3 cl - dia 250 mm

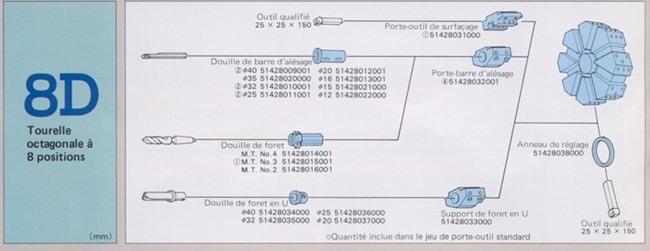

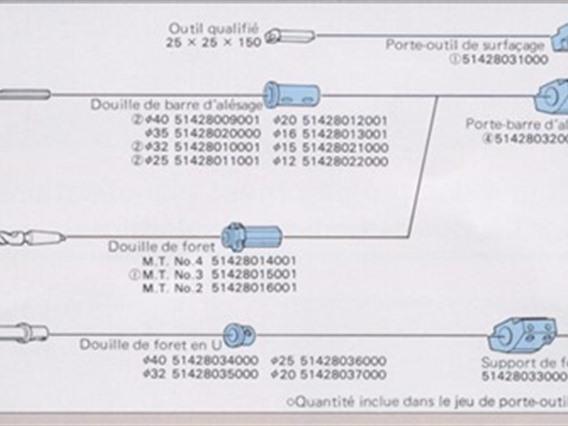

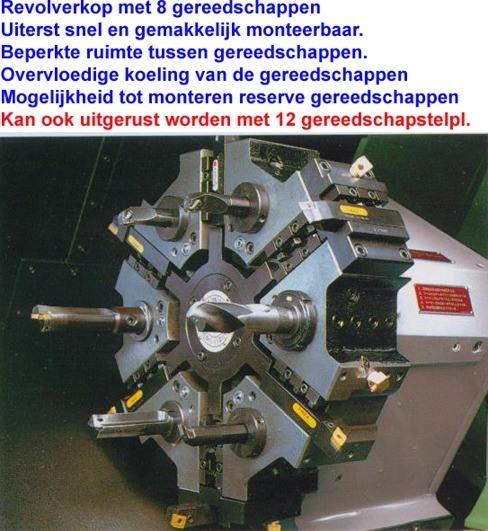

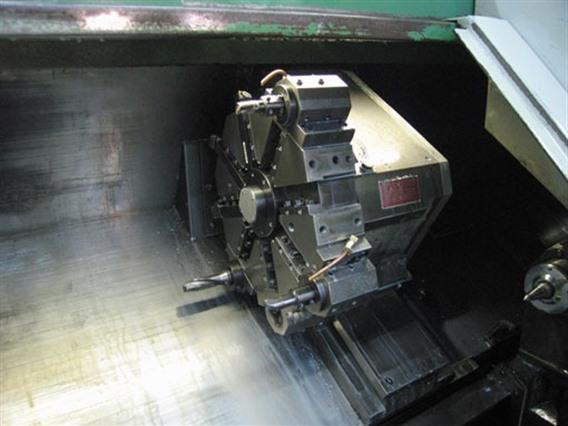

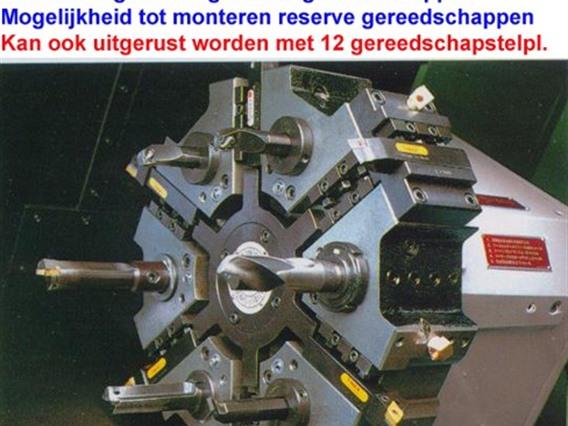

Toolchanger8 tools

Additional info

Technical data see below - chipconveyor
Type/Model: QT 20 N
Stocknumber: A.07 2818 *08
Main category: [A] Lathes
Sub category: [A.07] CNC lathes
Brand: Mazak

Stocknumber: A.07 2818 *08
