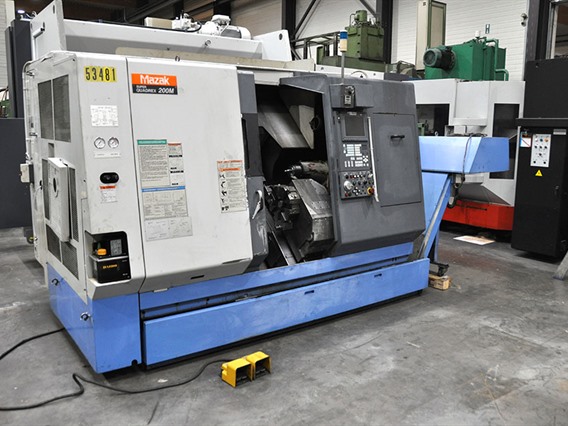

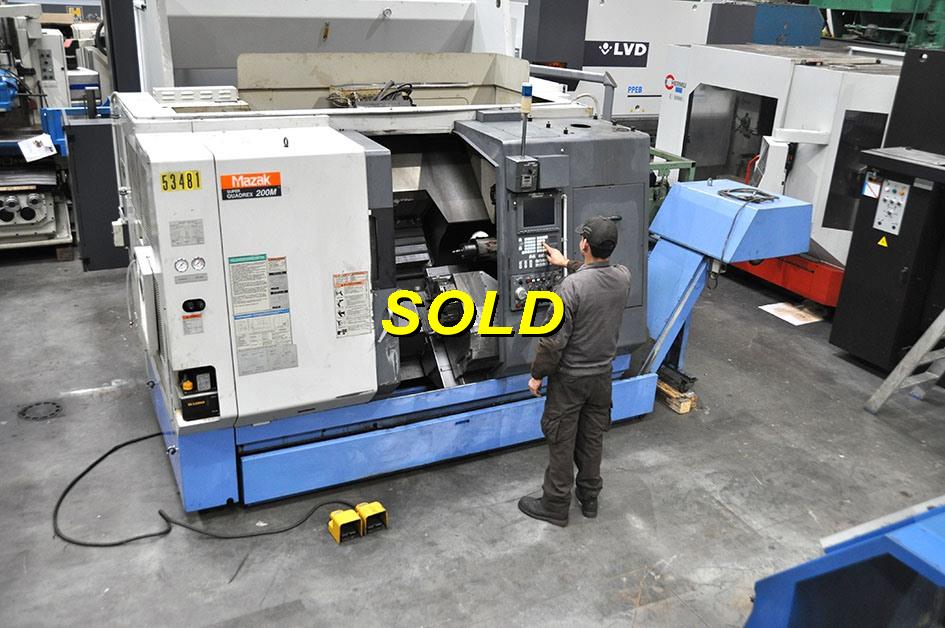

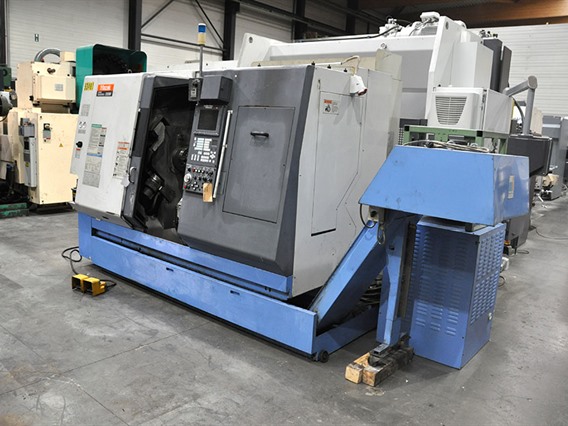

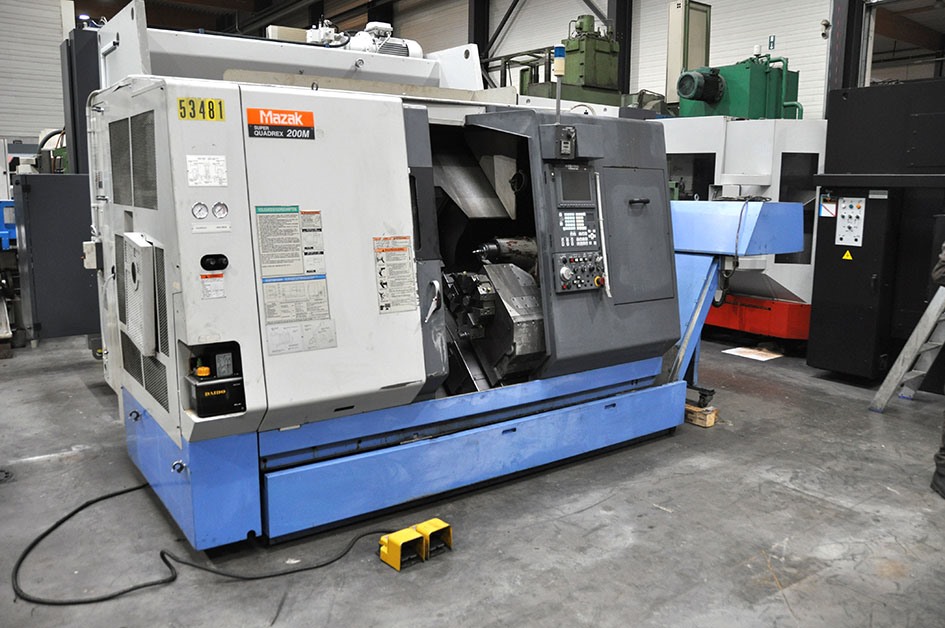

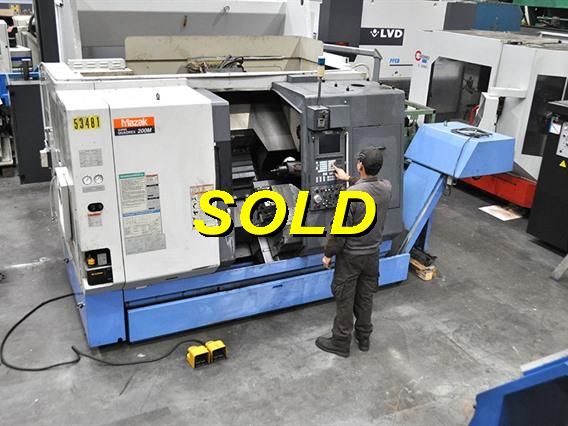

Mazak SQR-200M, Ø 300 x 610 mm CNC

Technical information

  • Swing over bed260 & 310 mm
  • Swing over cross-slide350 mm
  • Distance centre tot centre610 mm
  • Spindle coneA2-6
  • Dia of spindle bore51 mm
  • Power on the spindle22 kW
  • Number of speeds5000 rpm

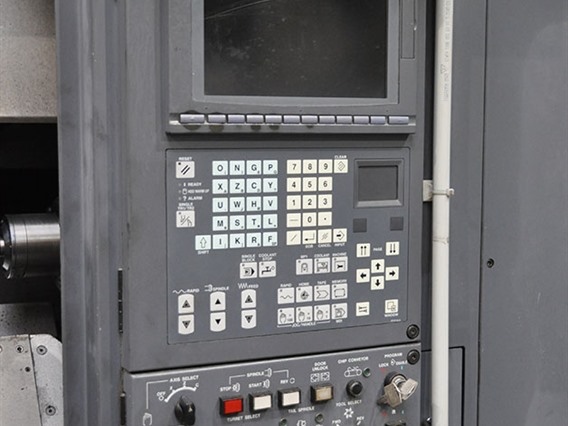

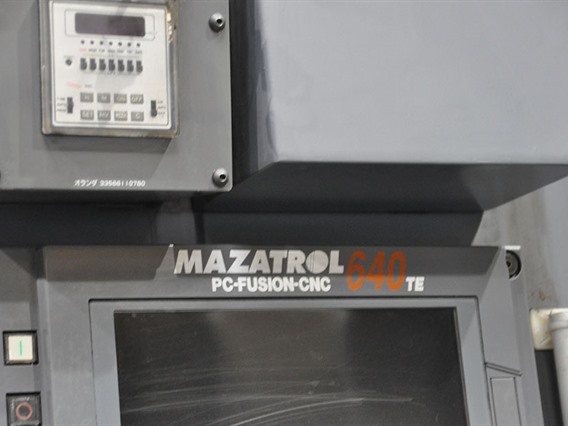

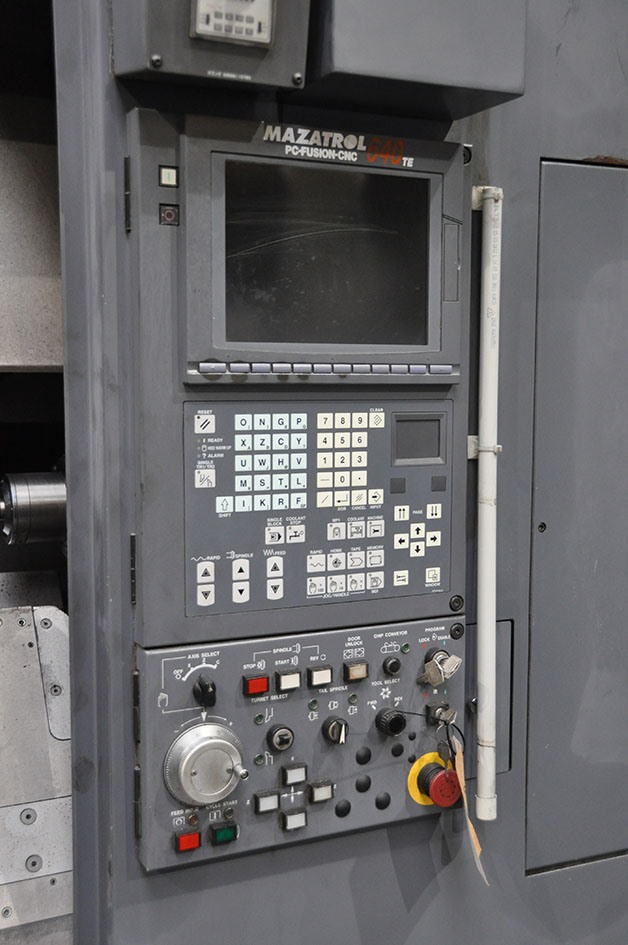

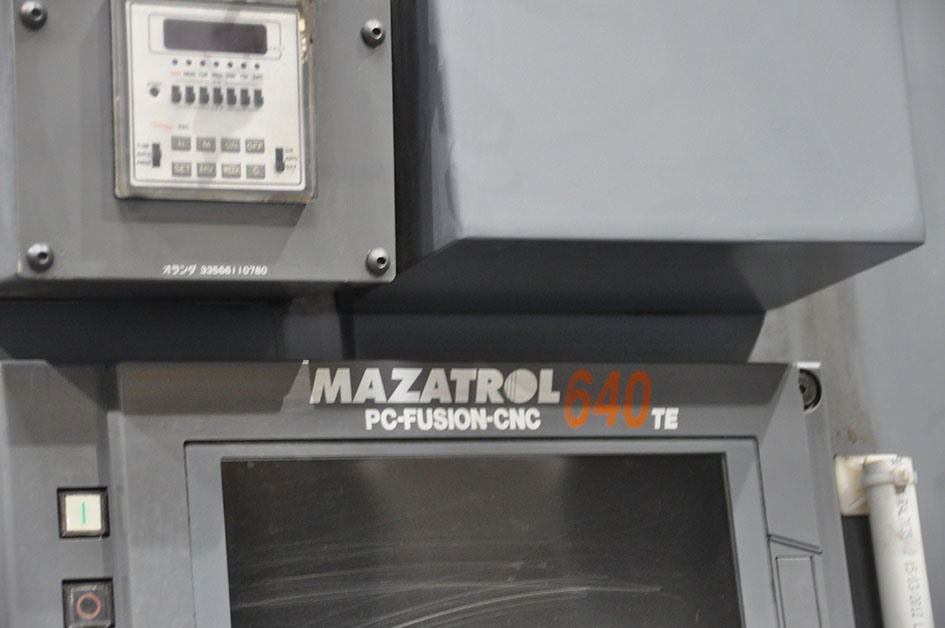

  • CommandMazatrol Fusion 640 TE
  • Length3280 mm
  • Width2000 mm
  • Weight6,3 ton
  • Toolchangeryes
  • Number of tools12 + 8 tools
  • - rotatingyes, 4500 rpm

Additional info

  • Super Quadrex 200M
    C-axis

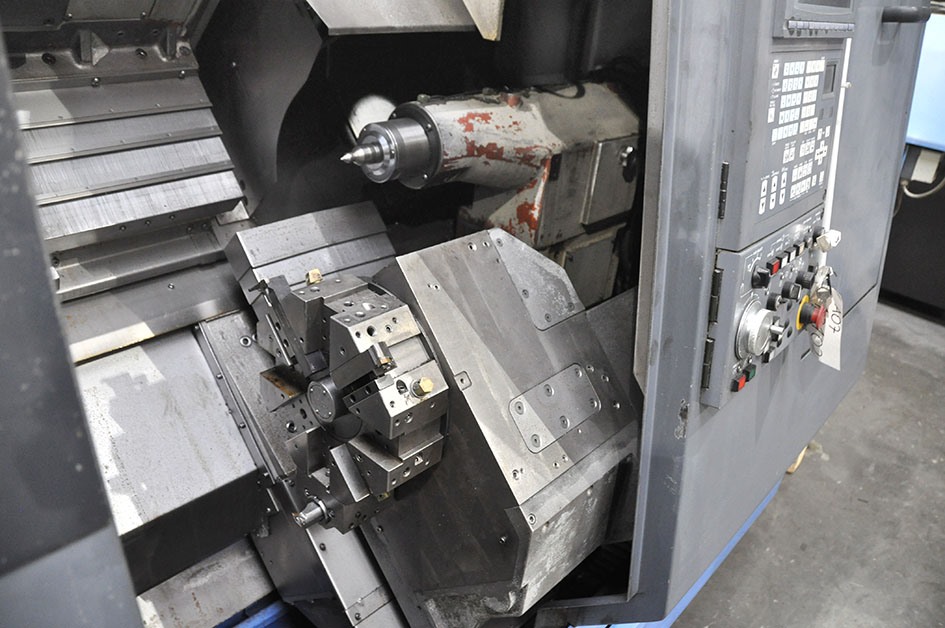

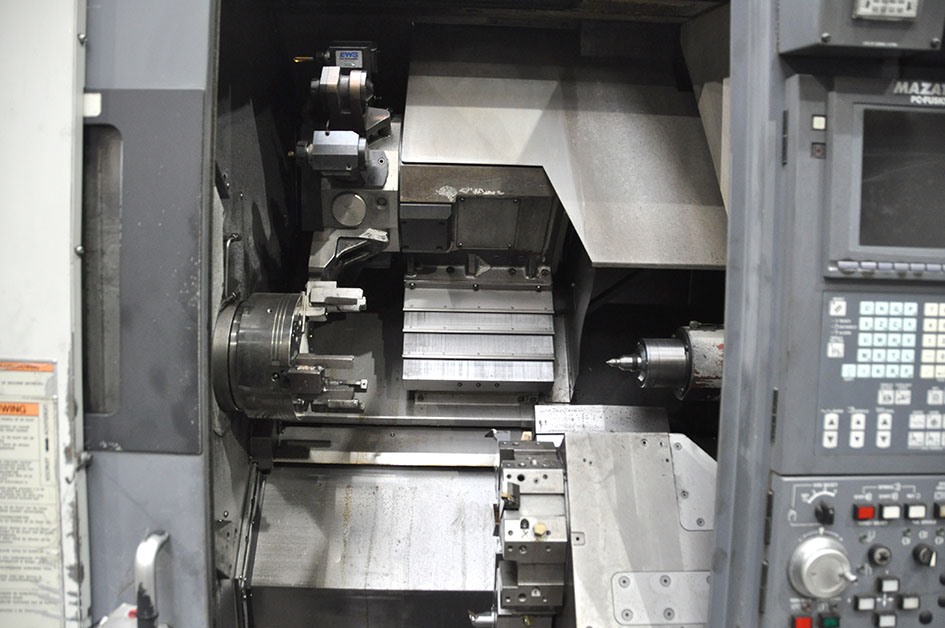

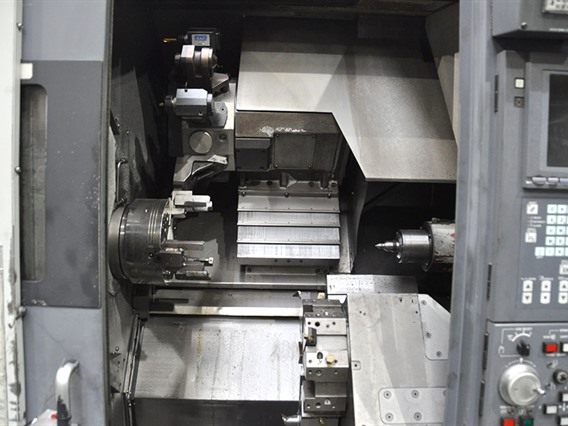

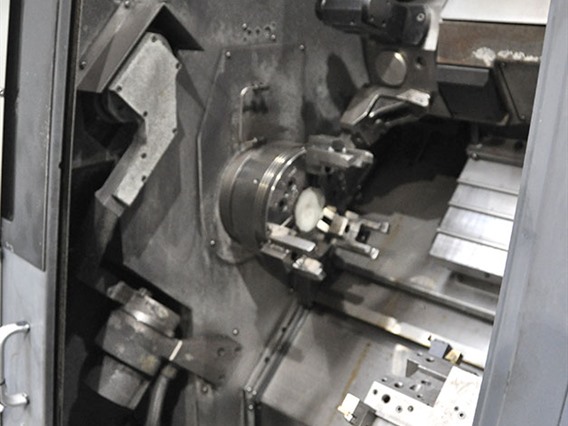

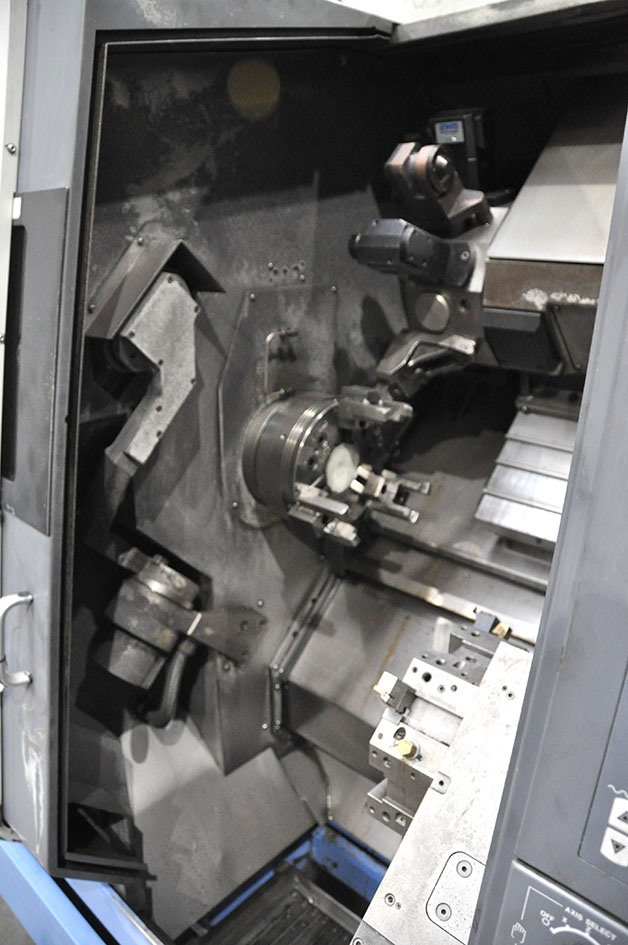

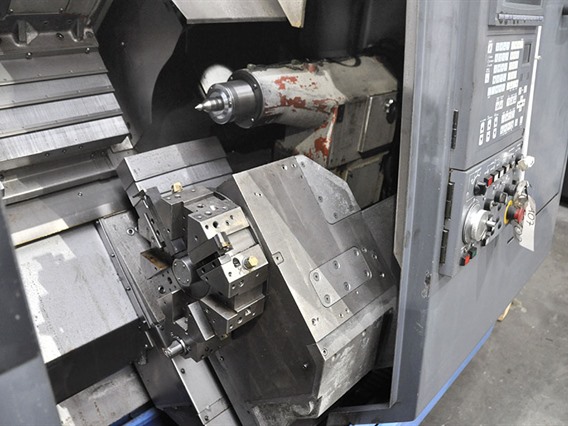

    Double turret:
    1 - upper turret:
    > X-travel: 190 mm
    > Z-travel: 645 mm
    > 12 tools (driven tools)
    2 - lower turret:
    > X-travel: 140 mm
    > Z-travel: 630 mm
    > 8 tools

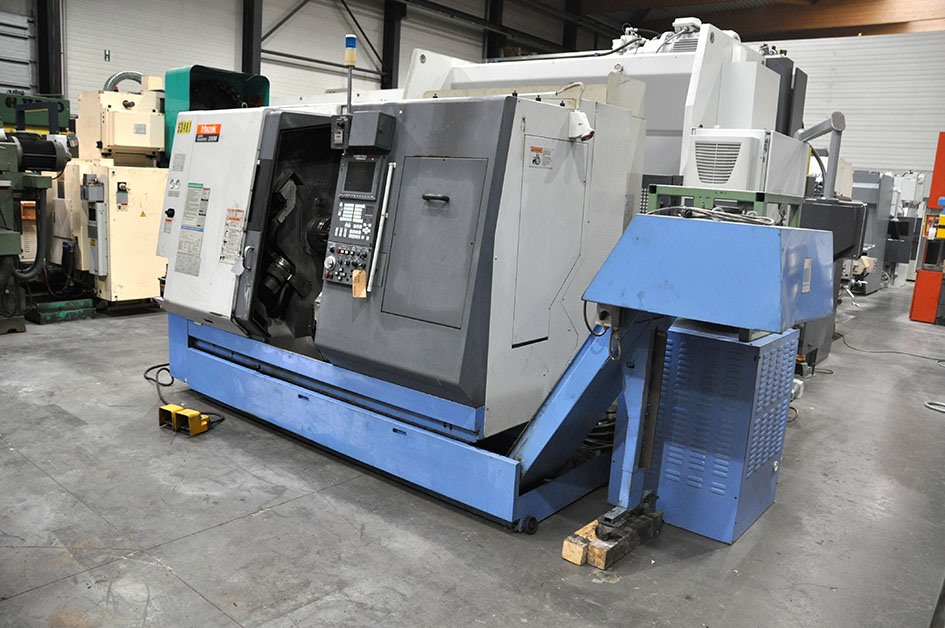

    Chipconveyor
    Airfilter on top of machine

    Optional: tools and accessories
    -------------------------------------------
    2 револьвера
    Ось-С
    Стружковыводитель
    Воздушный фильтр установлен на верхней части станка

    Инструмент предлагается отдельно


  • Type/Model: Ø 300 x 610 mm CNC
  • Stocknumber: A.07 10102
  • Main category: [A] Lathes
  • Sub category: [A.07] CNC lathes
  • Brand: Mazak SQR-200M
