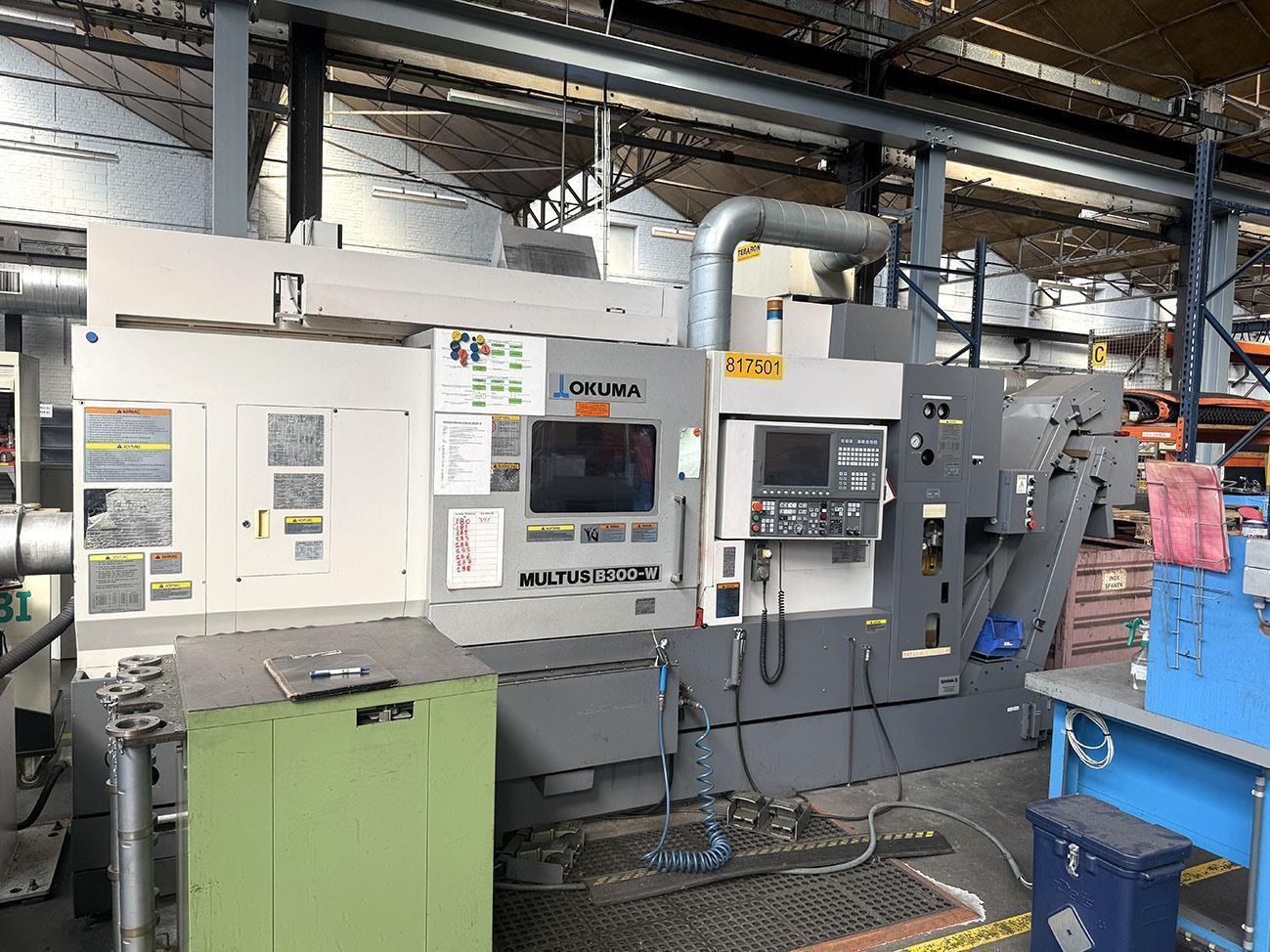

CNC lathes Okuma Multus B300 Ø 450 x 900 mm CNC
Technical information
- Swing over bed450 mm
- Distance centre tot centre900 mm
- Max longitudinal travel Z-axis945 mm
- Max cross travel X-axis580 mm
- Dia of spindle bore70 mm
- Power on the spindle22 kW
- Number of speeds38 > 3800 rpm

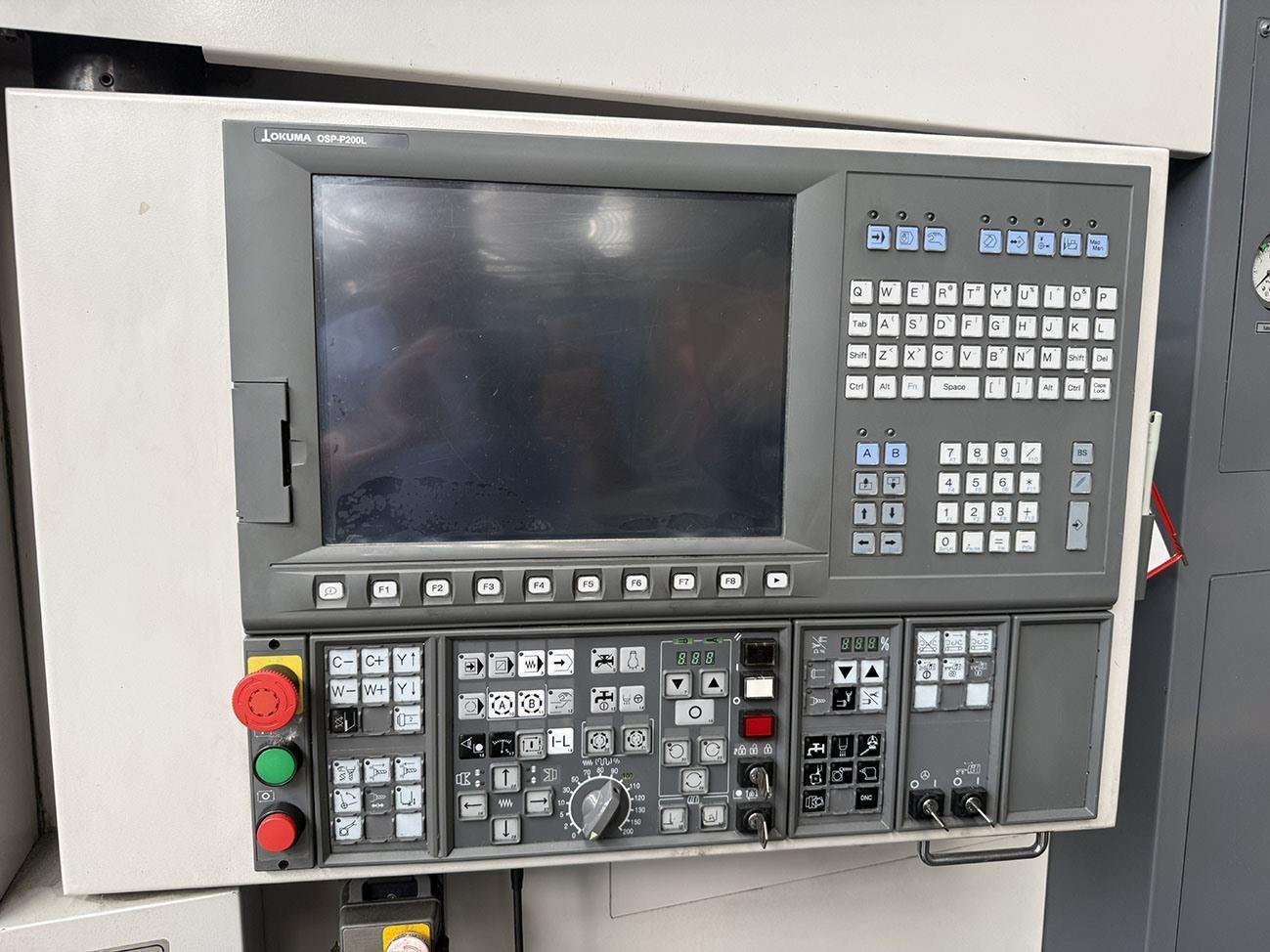

- CommandOkuma OSP P200L
- Length4400 mm
- Width2032 mm
- Height2590 mm
- Weight10 ton
- Toolchangeryes
- Number of tools60 positions (HSK-63A - 10 000 rpm)
Additional info
CNC turning & milling center
Type: Multus B300 - 1SW
The Multus B300W is renowned for its ability to integrate various machining processes, including turning, milling, drilling, and tapping, into a single streamlined operation.

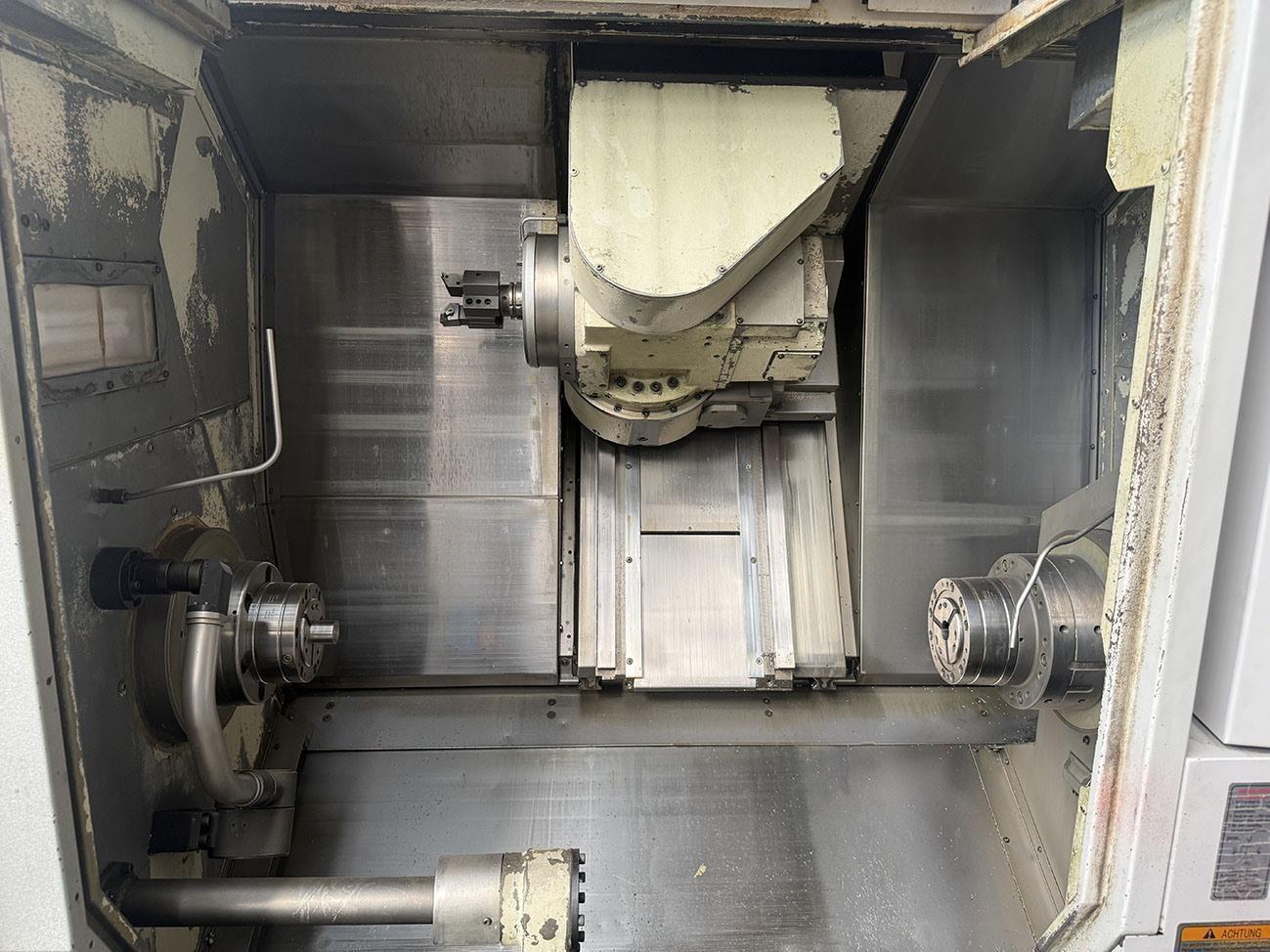

2 spindles
X-axis: 580 mm
Y-axis: 160 mm
Z-axis: 945 mm
B-axis: 225°
C-axis no. 1: 360° (0.001°)
C-axis no. 2: 360° (0.001°)
W-axis: 1000 mm
Toolchanger with 60 positions:
- HSK63A
- max 10,000 rpm
- 16/11 kW

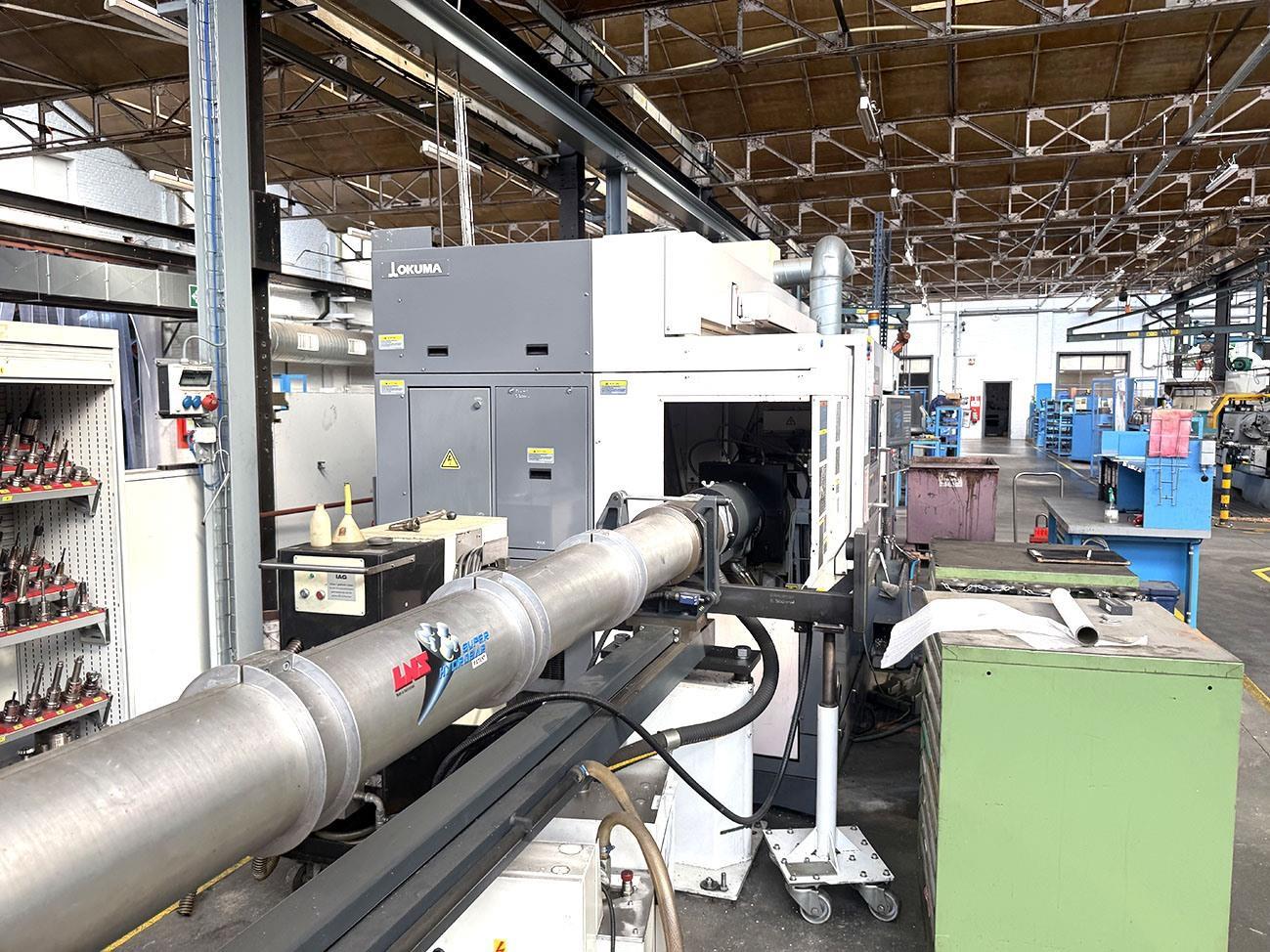

Bar feeder LNS 6.68 HS bis D 70 mm - bar length 3 meters

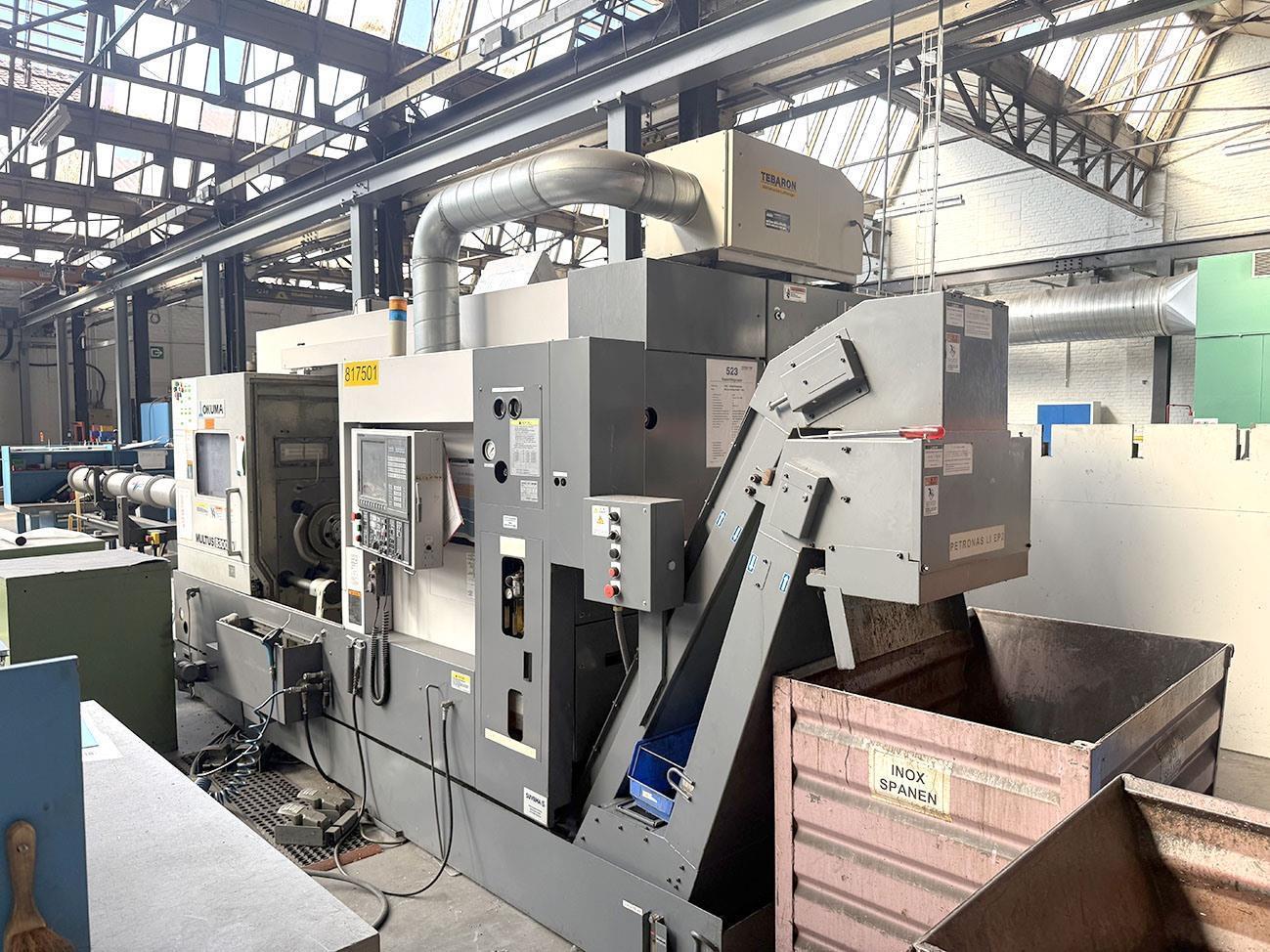

Chip conveyor

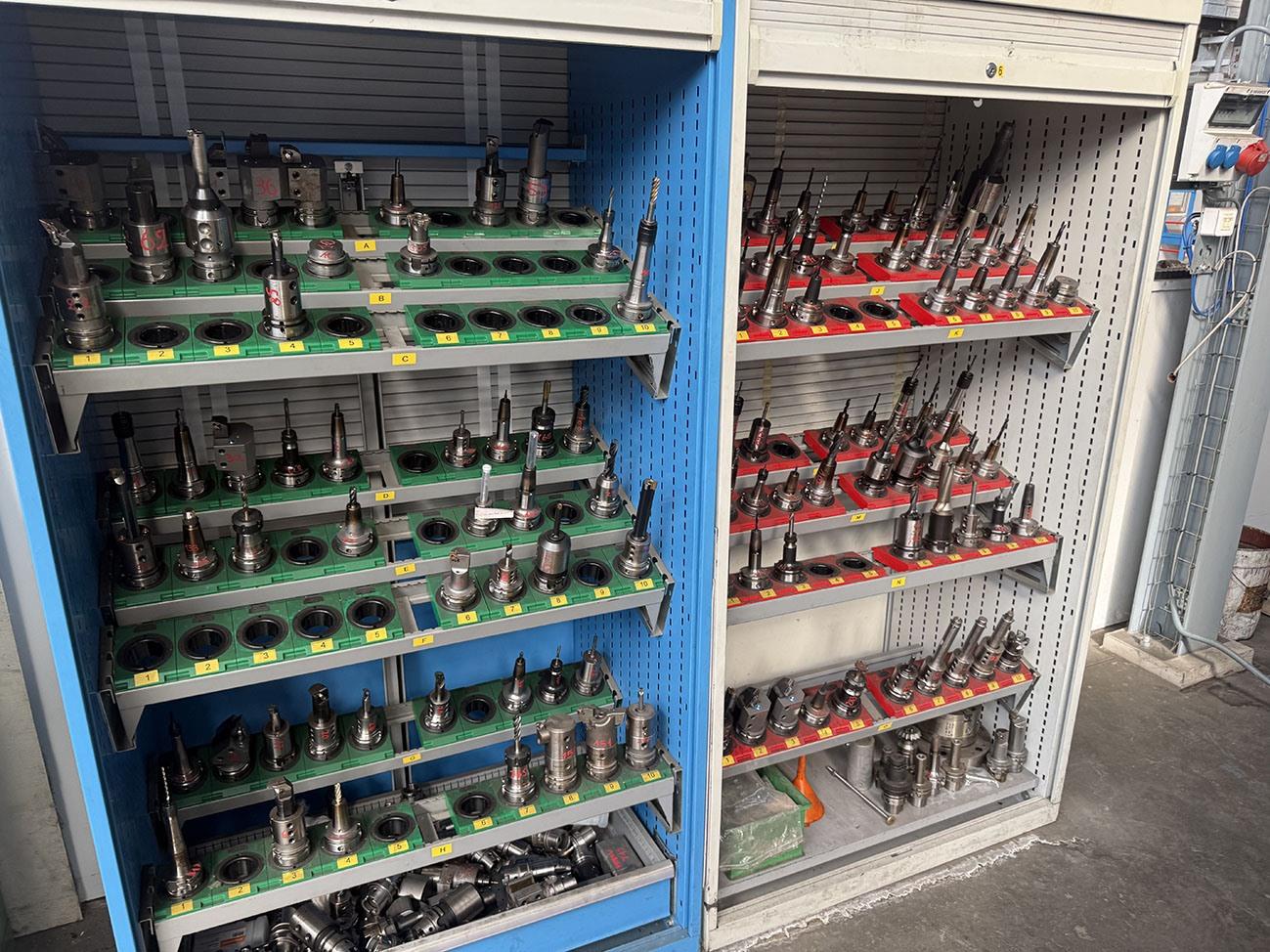

Large selection of tools included
- Type/Model: Multus B300 Ø 450 x 900 mm CNC
- Stocknumber: A.07 16529
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Okuma
Stocknumber: A.07 16529
Watch video of working machinery
