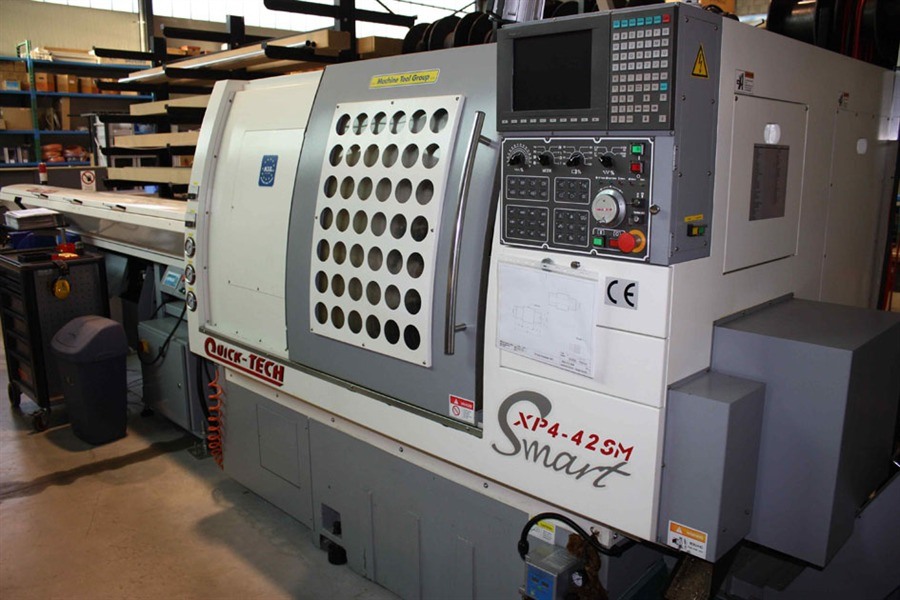

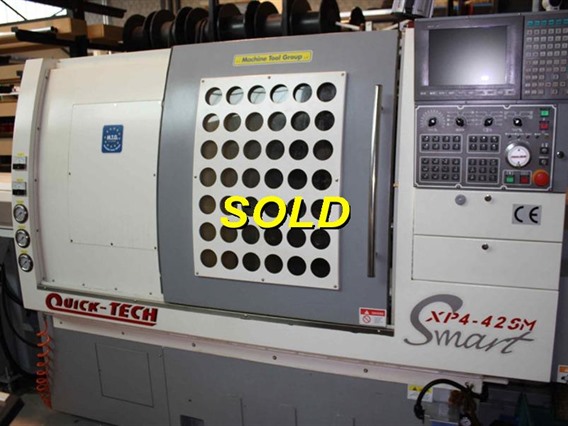

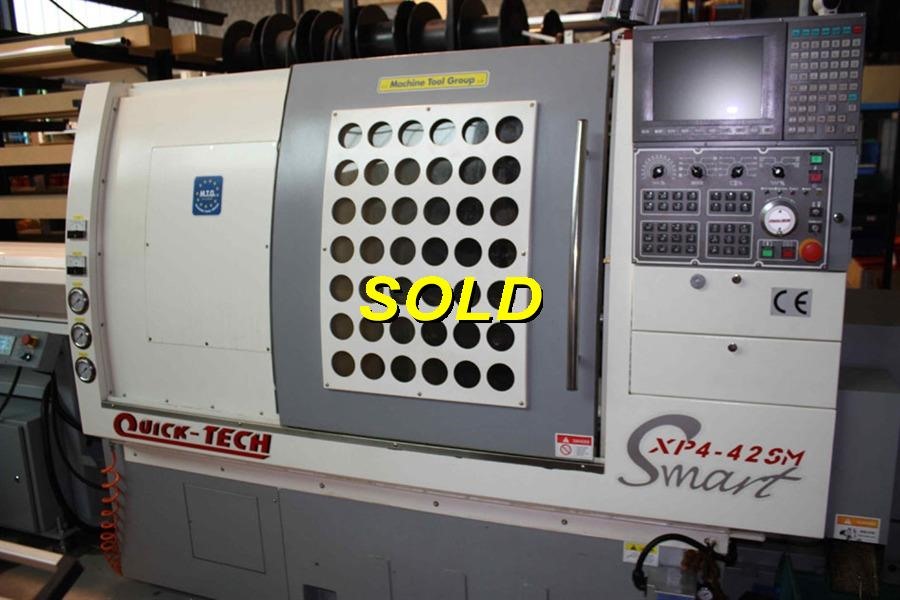

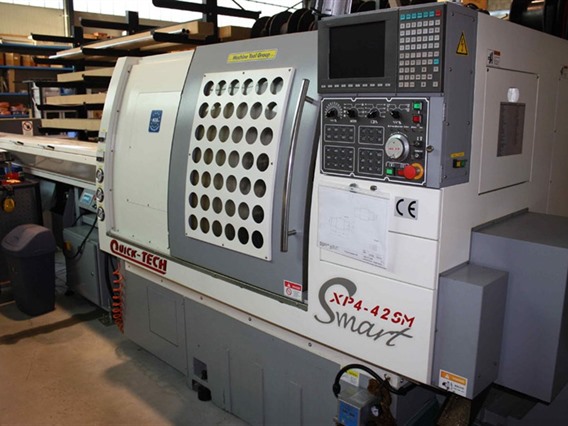

CNC lathes Quick-Tech XP42-4SM + barfeeder

Technical information

Swing over bed100 mm
Distance centre tot centre470 mm
Max longitudinal travel Z-axis330 mm
Max cross travel X-axis250 mm
Spindle coneA2-5
Dia of spindle bore42 mm
Power on the spindle7,5 kW
Number of speeds4000 rpm
CommandMitsubishi (= Fanuc)
Length3100 mm
Width1870 mm
Height2200 mm
Weight3200 kg
Toolchangeryes
Number of tools27 tools (9 driven)

Additional info

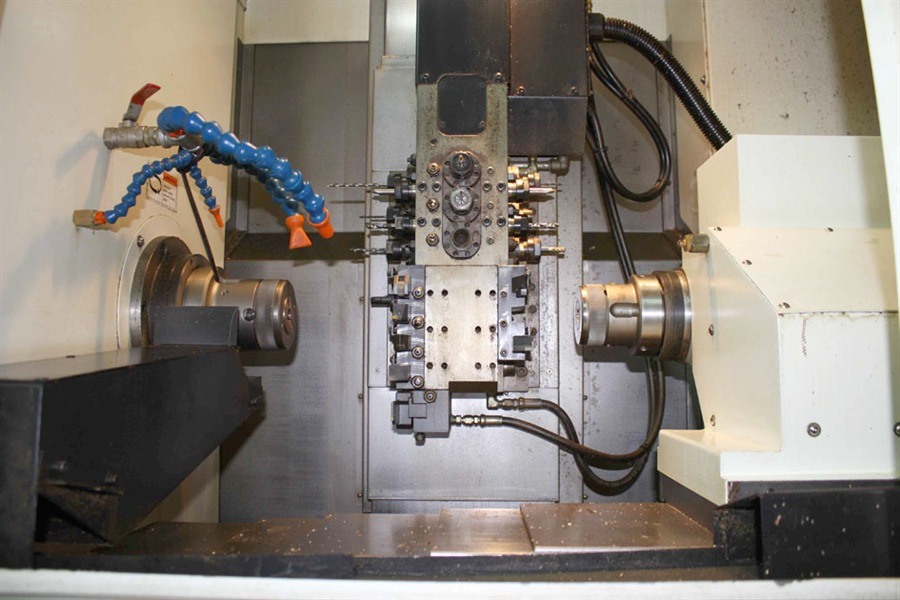

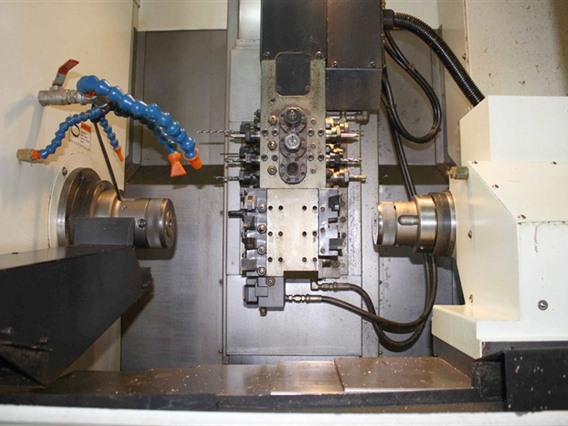

with subspindle
- turning dia: 30 mm

- turning length: 155 mm

- bore: 26 mm

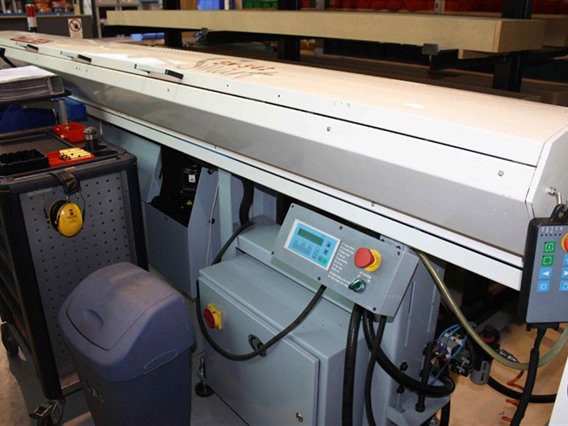

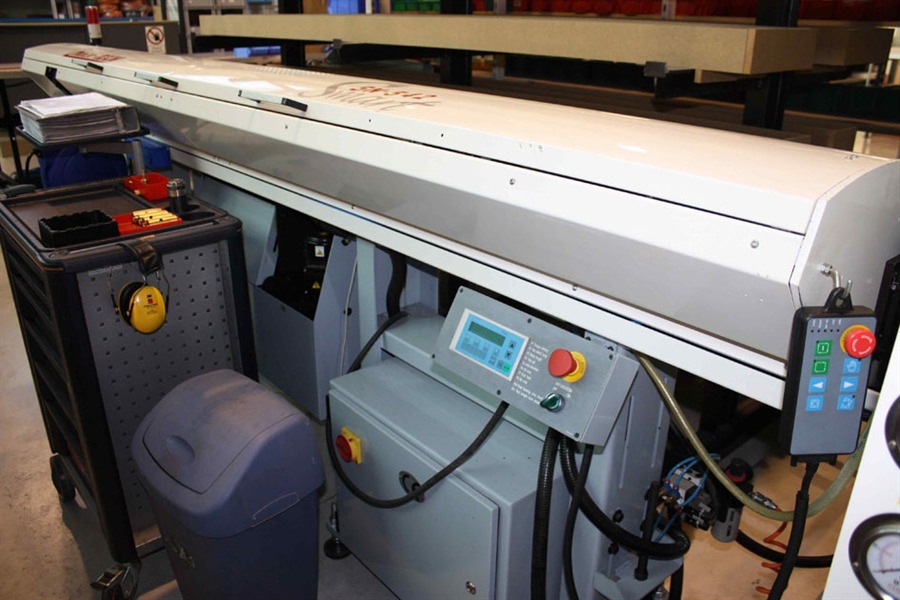

LNS Barfeeder

- max dia barfeeder: 42 mm

- barfeeder length: 3000 mm
Type/Model: + barfeeder
Stocknumber: A.07 7427
Main category: [A] Lathes
Sub category: [A.07] CNC lathes
Brand: Quick-Tech XP42-4SM

Stocknumber: A.07 7427

Sold
Sold
Sold
Sold

Download all pictures in ZIP
