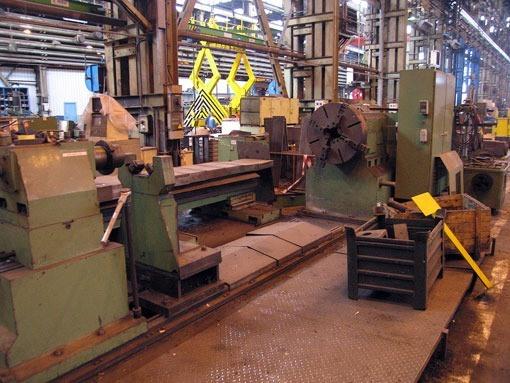

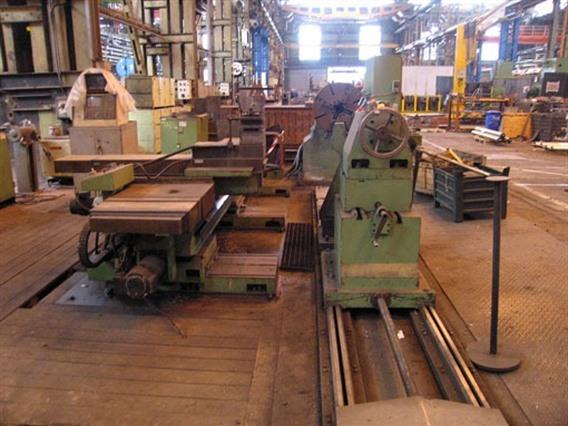

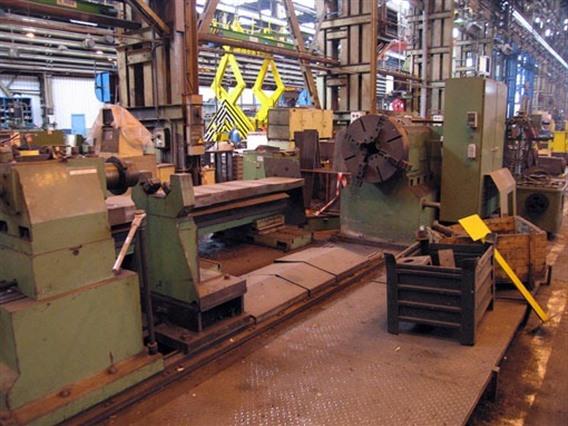

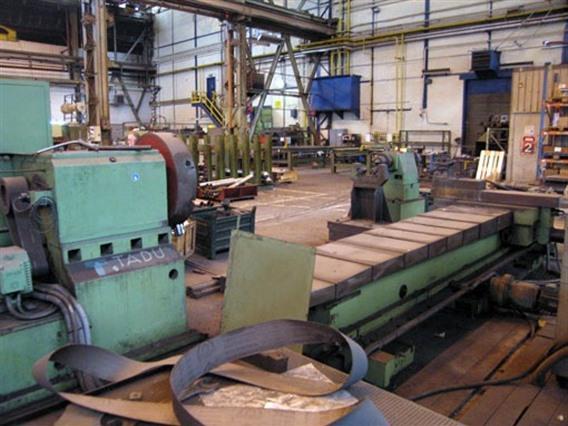

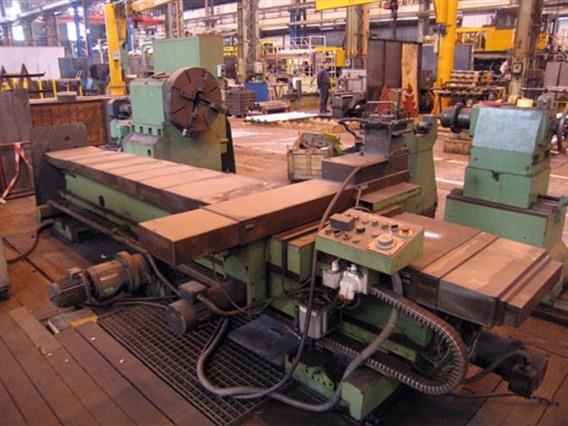

CNC lathes Tadu - Heavy Duty FS-BL/CNC-4000

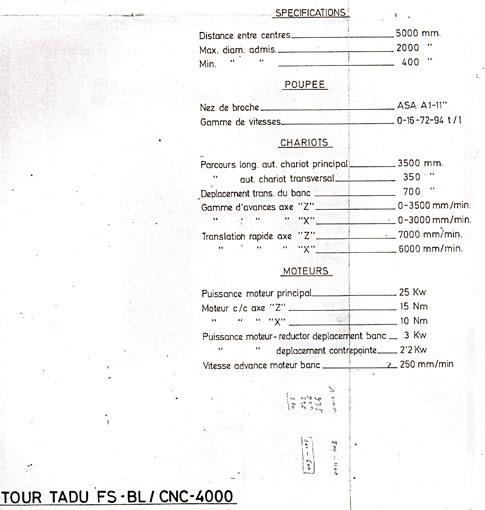

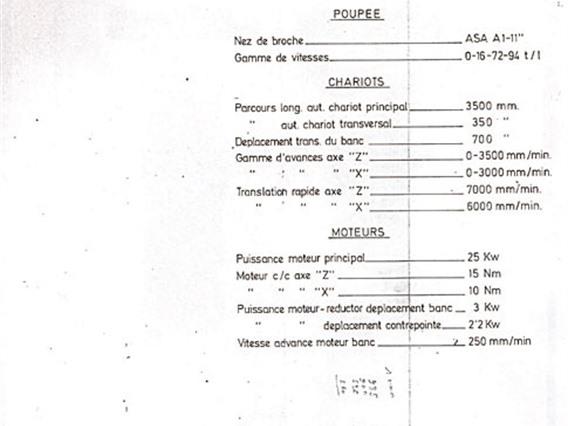

Technical information

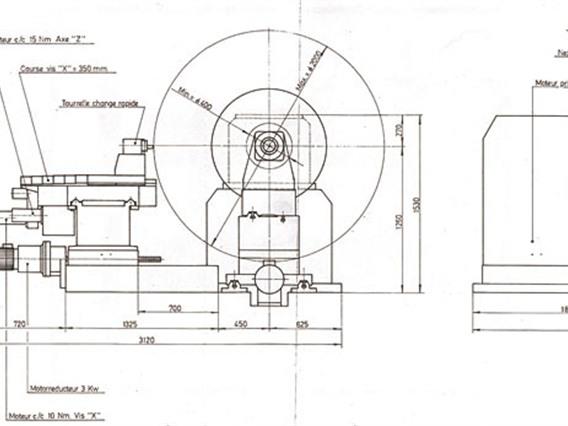

- Swing over bed2400 mm
- Swing over cross-slide2000 mm

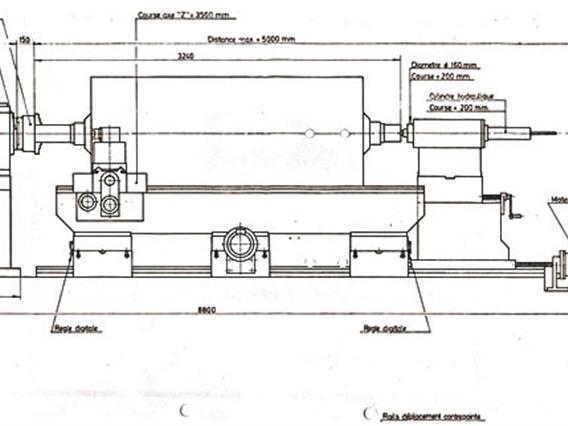

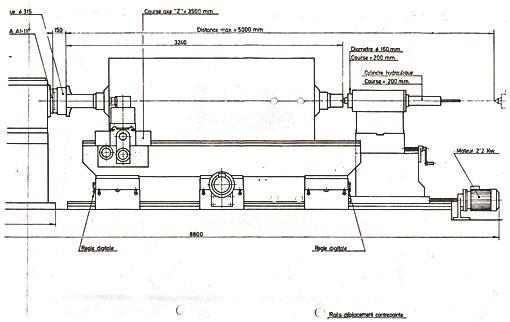

- Distance centre tot centre5000 mm (expandable)
- Max longitudinal travel Z-axis3500 mm
- Max cross travel X-axis350 mm
- Spindle coneASA A1-11
- Power on the spindle25 kW
- Number of speeds0 - 3500 mm/min

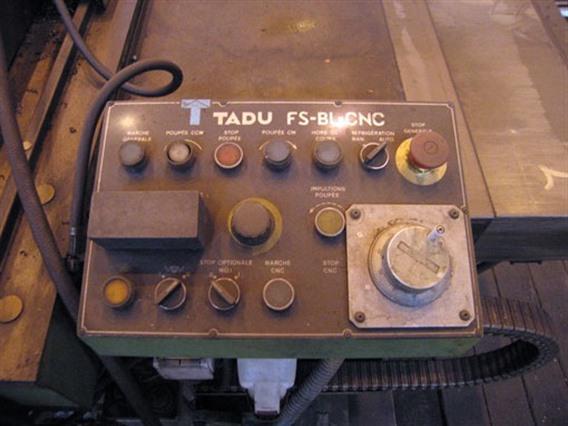

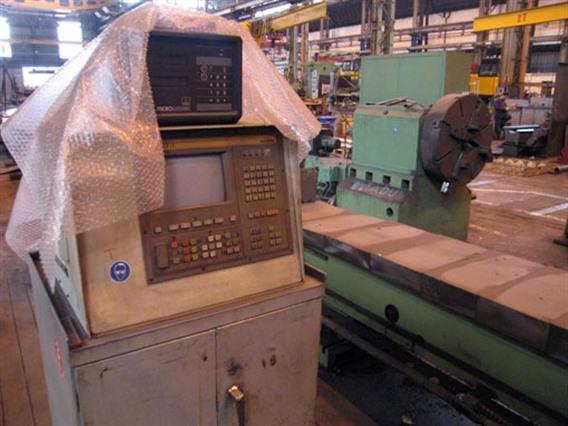

- CommandCNC Siemens Sinumerik 810T
- Length8800 mm

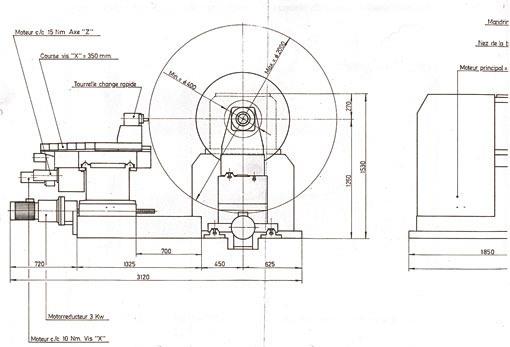

- Width3120 mm
- HydraulicYes
Additional info
- CNC lathe for rolling rolls
Centre distance is expandable
Weight between centers: 25 T
1 fixed brills
- Type/Model: FS-BL/CNC-4000
- Stocknumber: A.07 3654 *07
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Tadu - Heavy Duty
