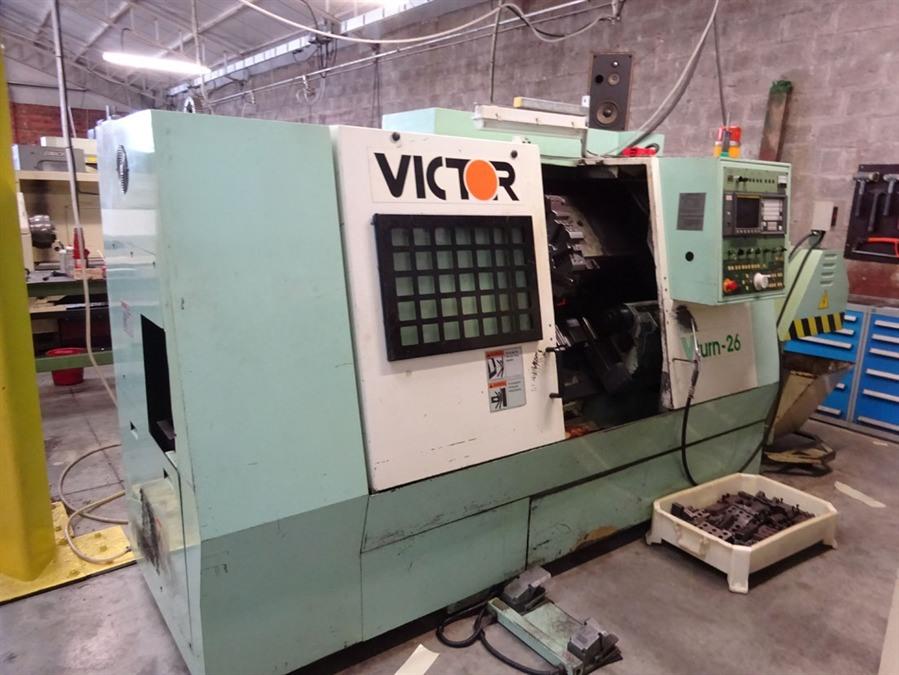

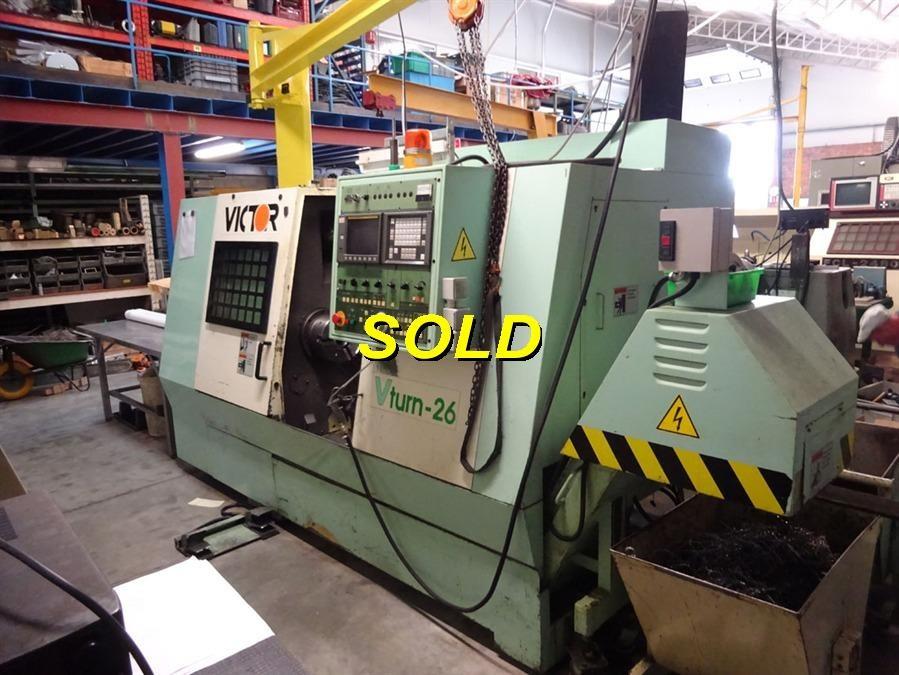

CNC lathes Victor Vturn-26 Ø 520 x 1130 mm CNC
Technical information
- Swing over bed520 mm
- Swing over cross-slide350 mm
- Distance centre tot centre1130 mm
- Max longitudinal travel Z-axis1090 mm
- Max cross travel X-axis240 mm
- Spindle coneA2-8
- Dia of spindle bore87 mm
- Power on the spindle15/20 HP
- Number of speeds3500 rpm

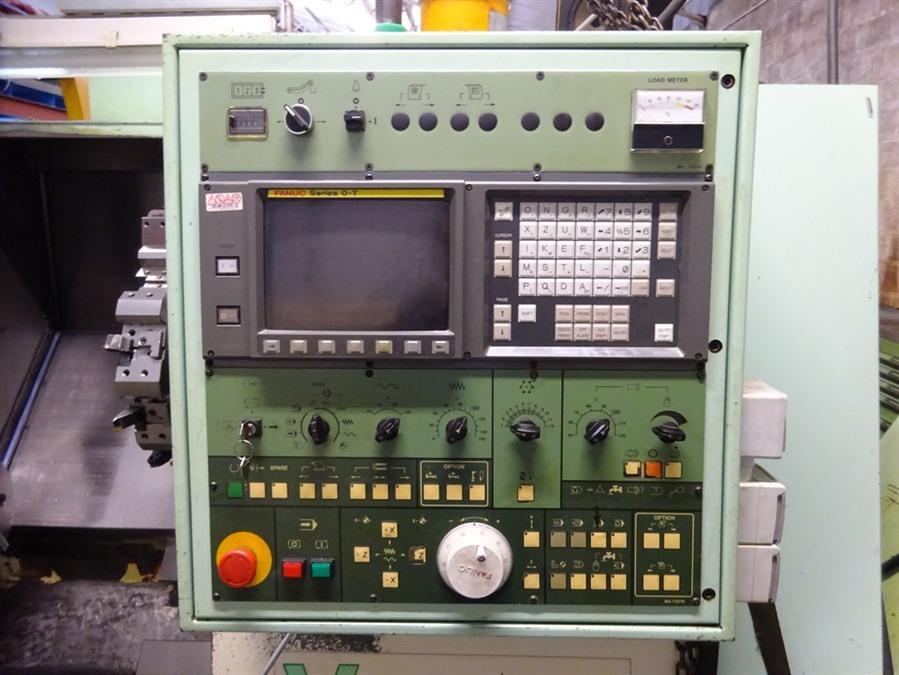

- CommandFanuc OT
- Length4350 mm
- Width1745 mm
- Height1940 mm
- Weight6 ton
- Chuck250 mm
- Toolchangeryes
- Number of tools10x
Additional info
