CBM sandwich panel line / Manni & Cannon

Additional info

  • Rollforming line for making panels:
    - for thermal insulation of industrial buildings

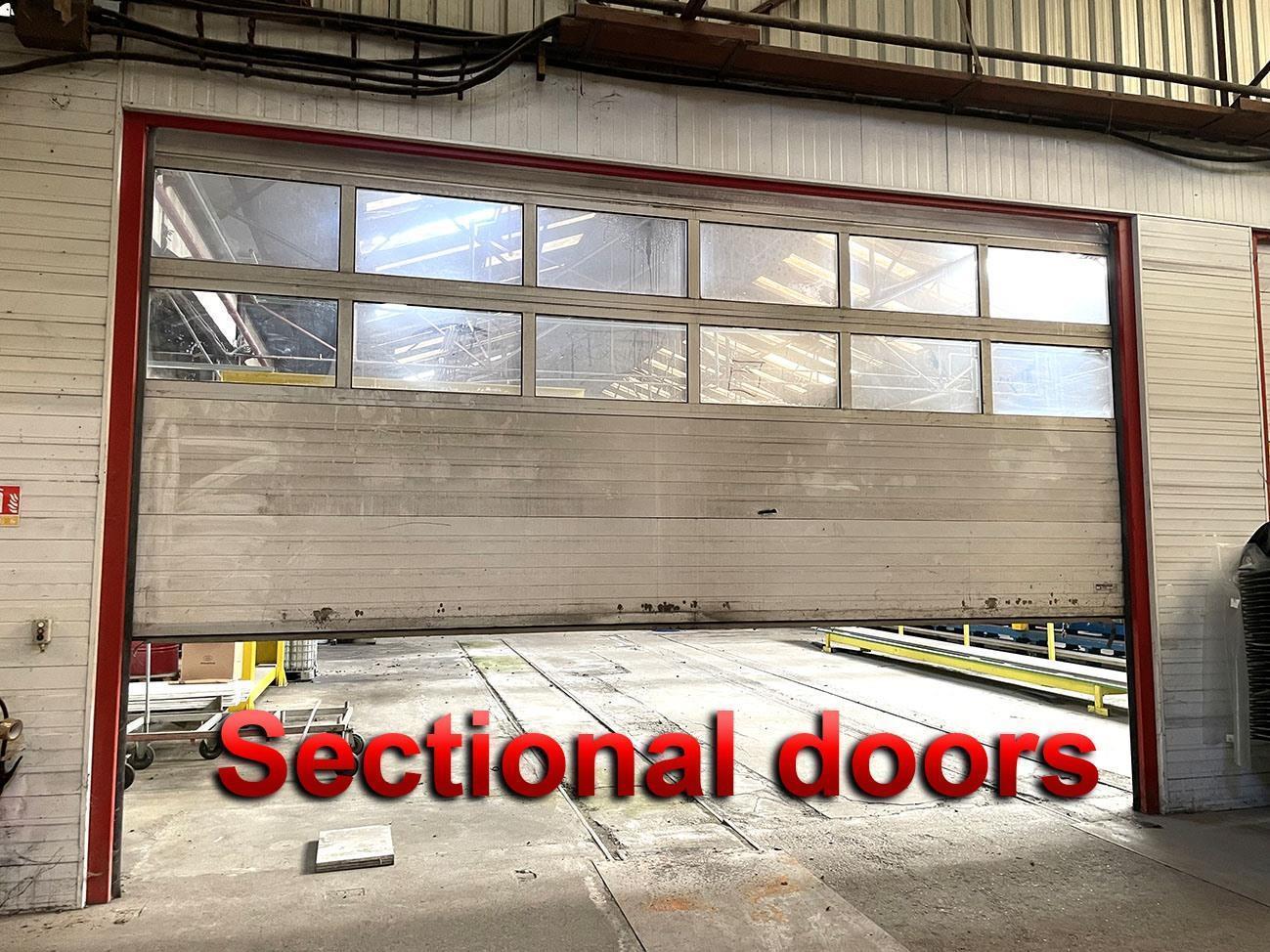

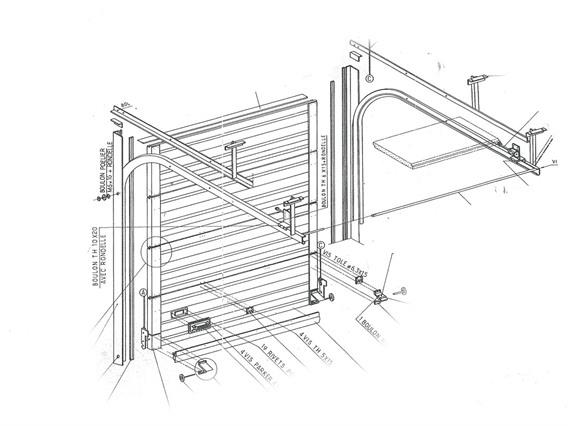

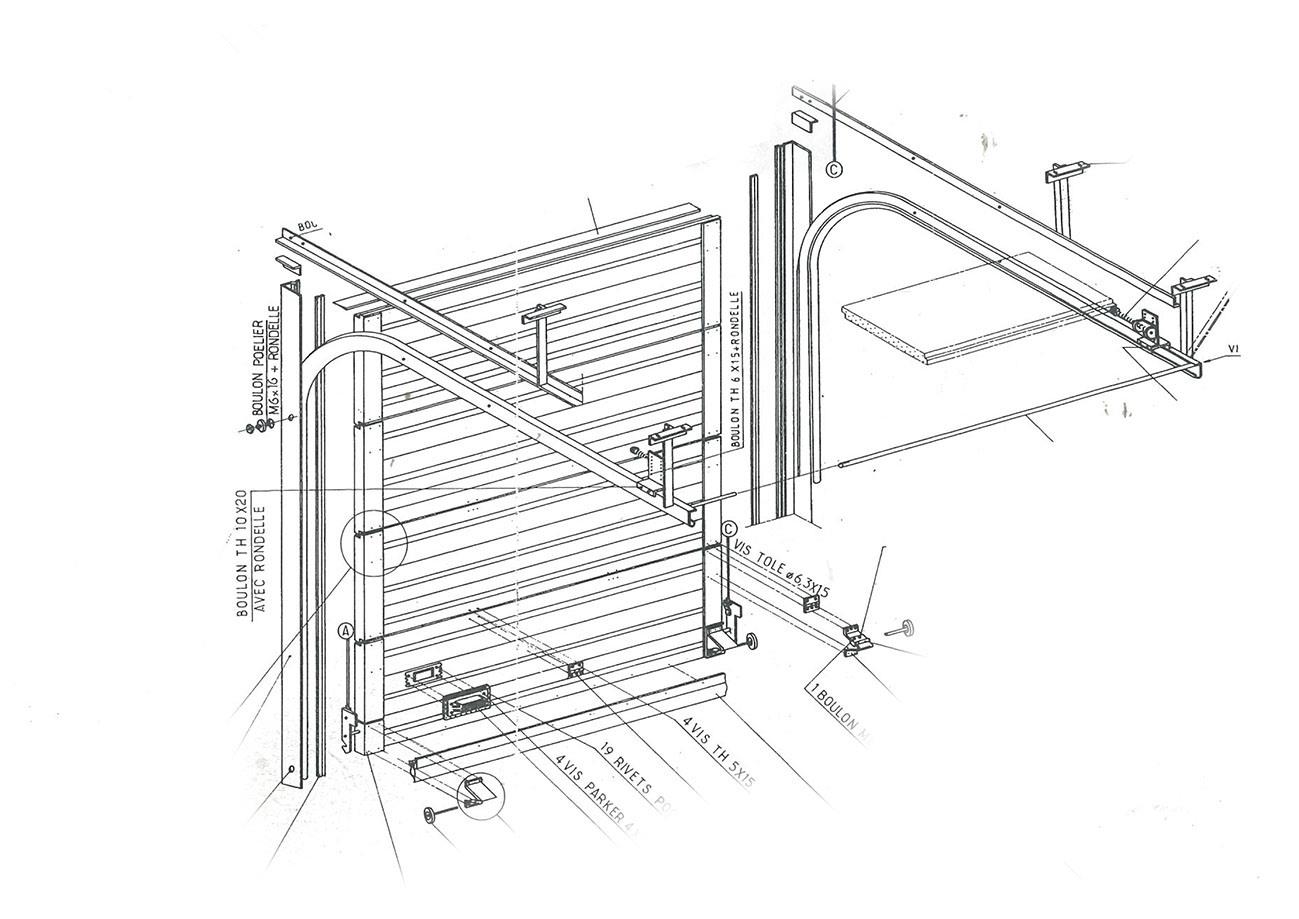

    - for sectional doors (current configuration)
    - for residential roof insulation

    Equipment consists out of:

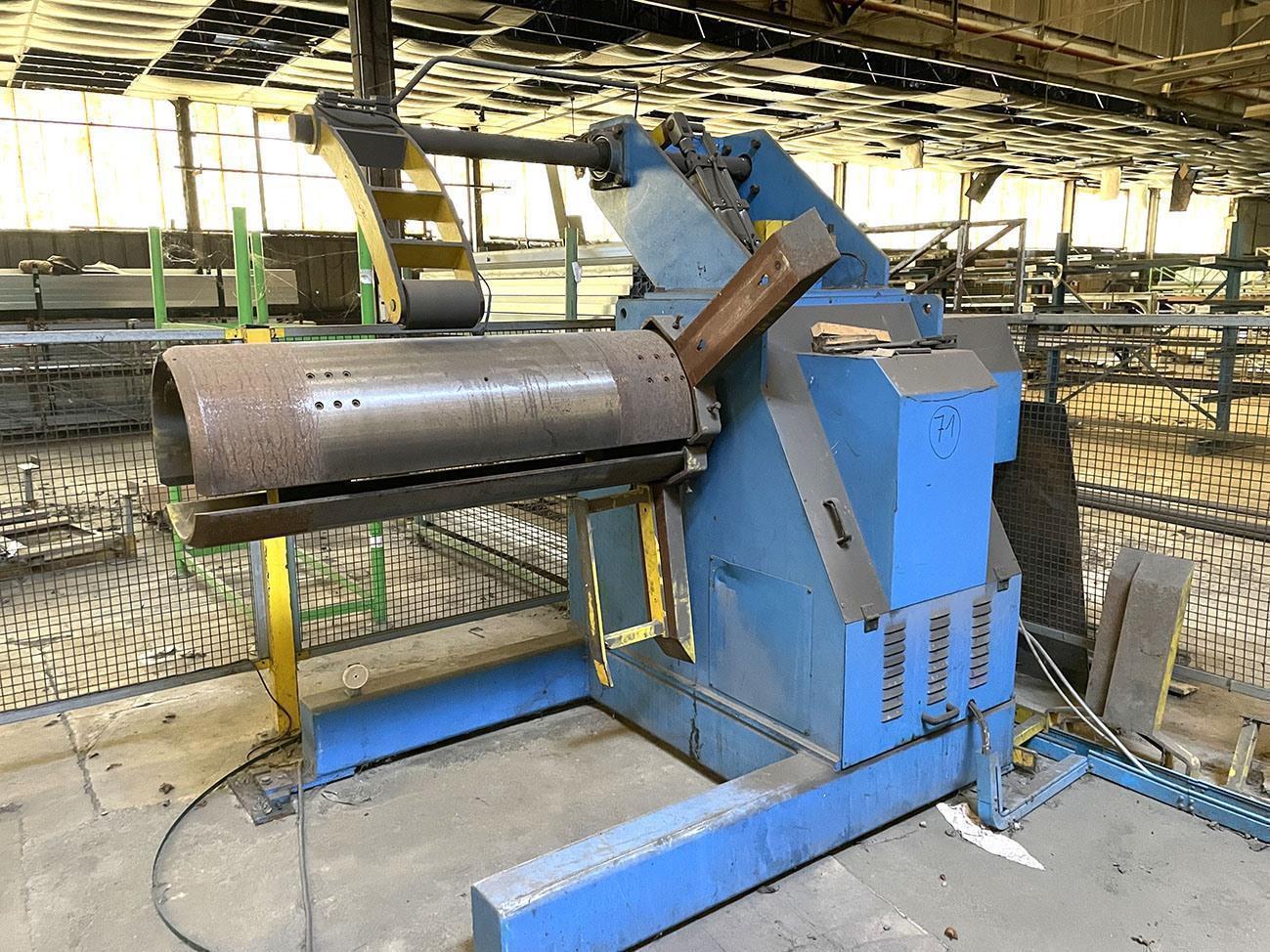

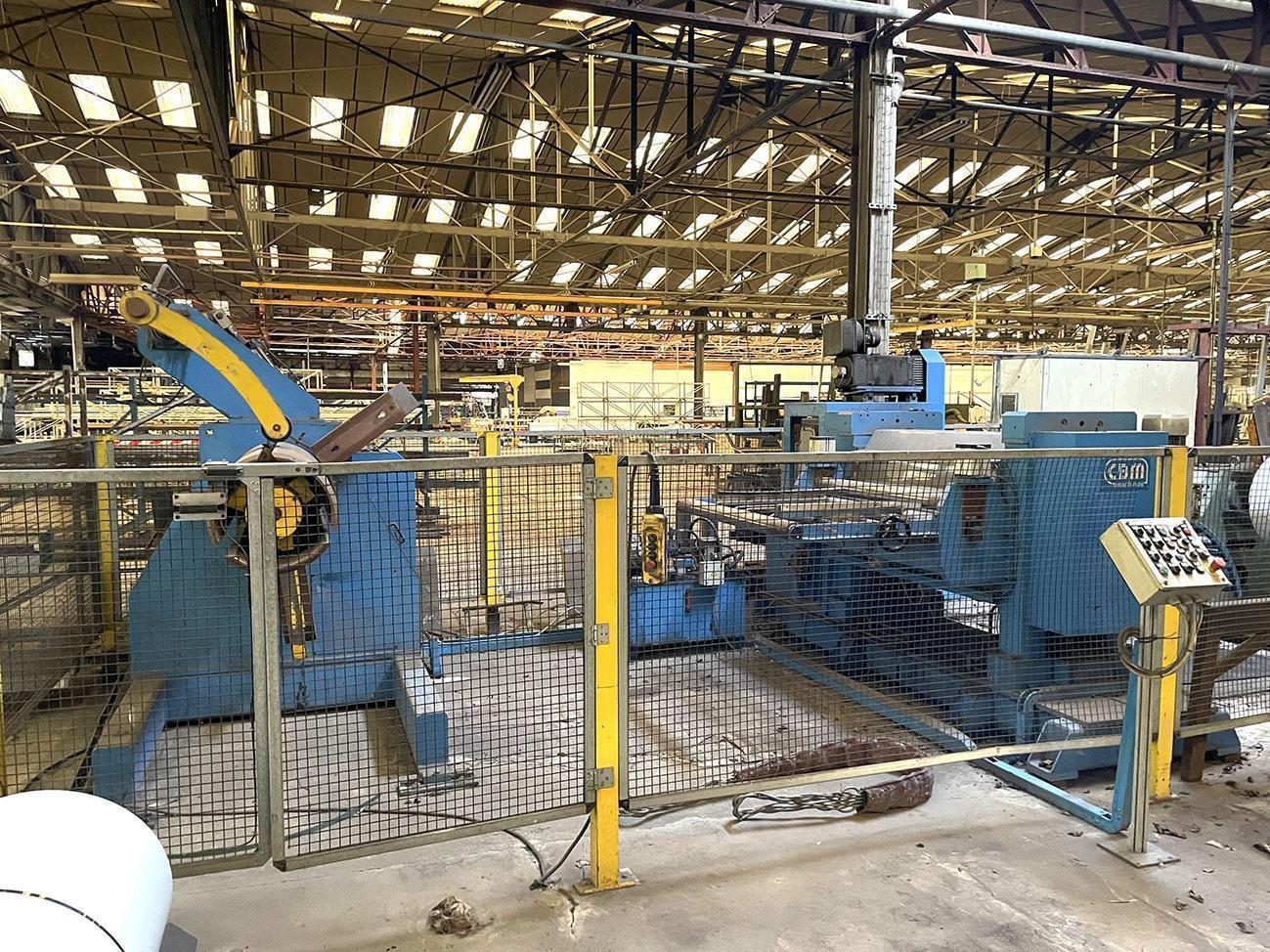

    1 - Decoiler 10 ton 1350 mm

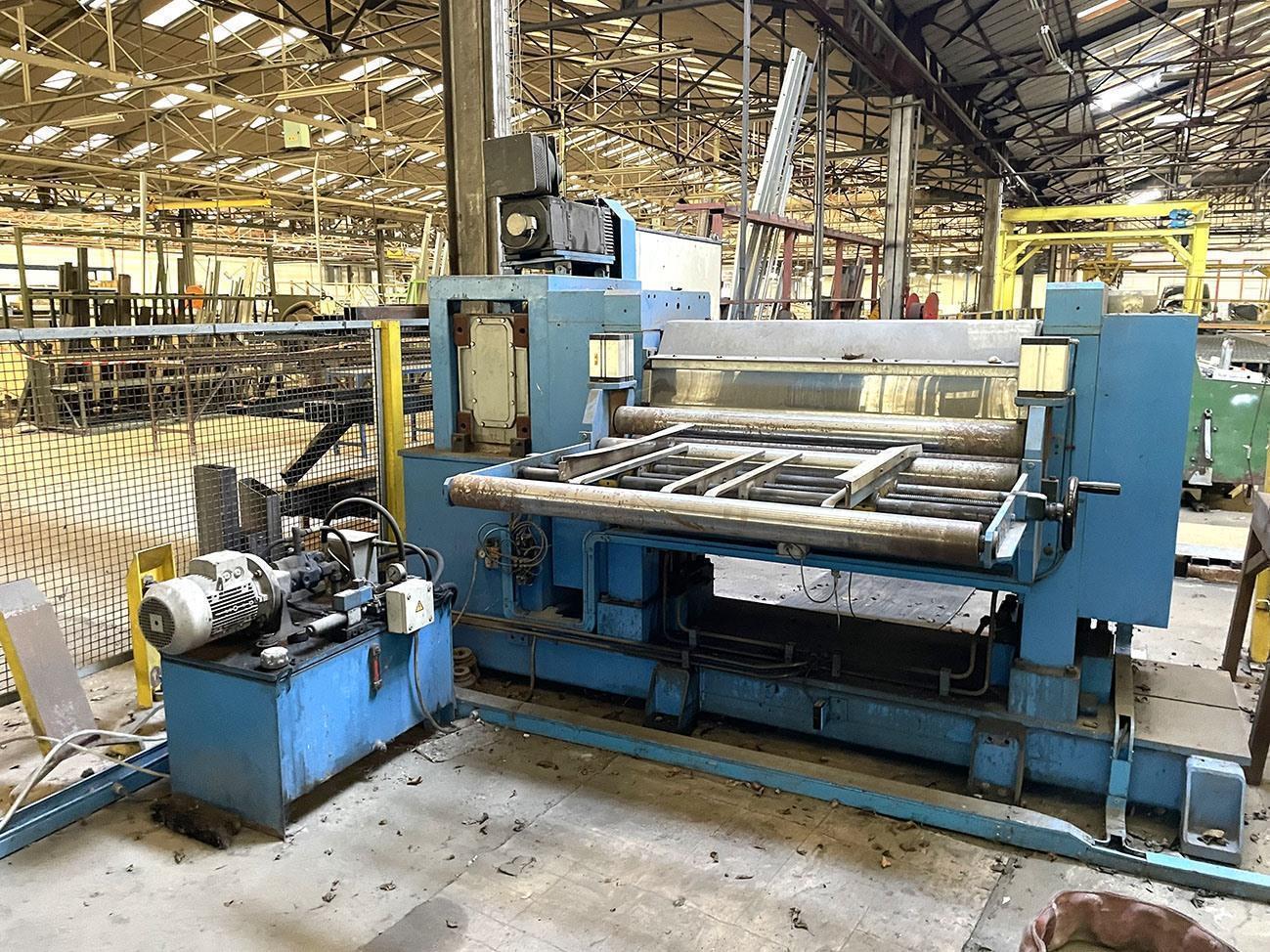

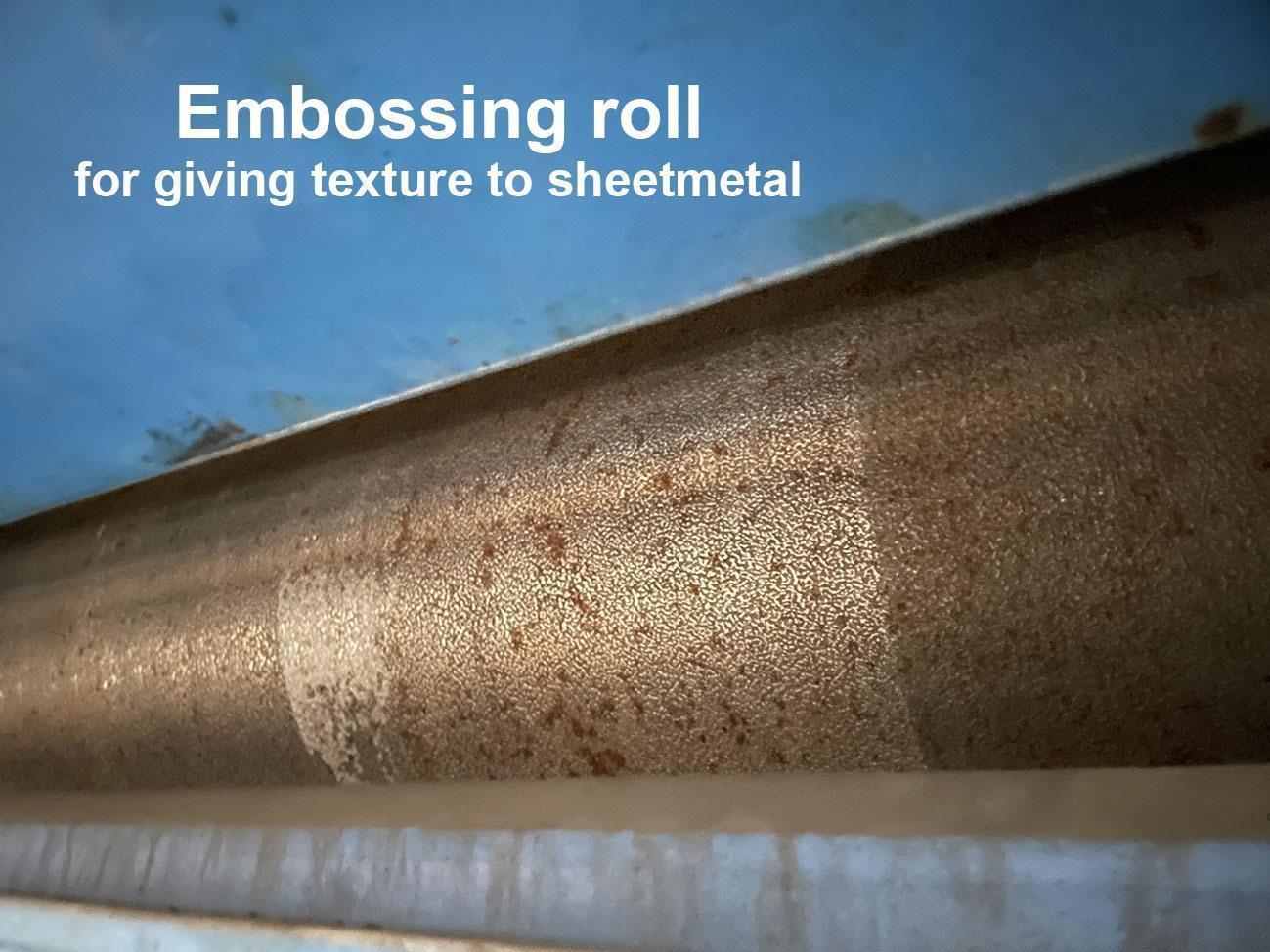

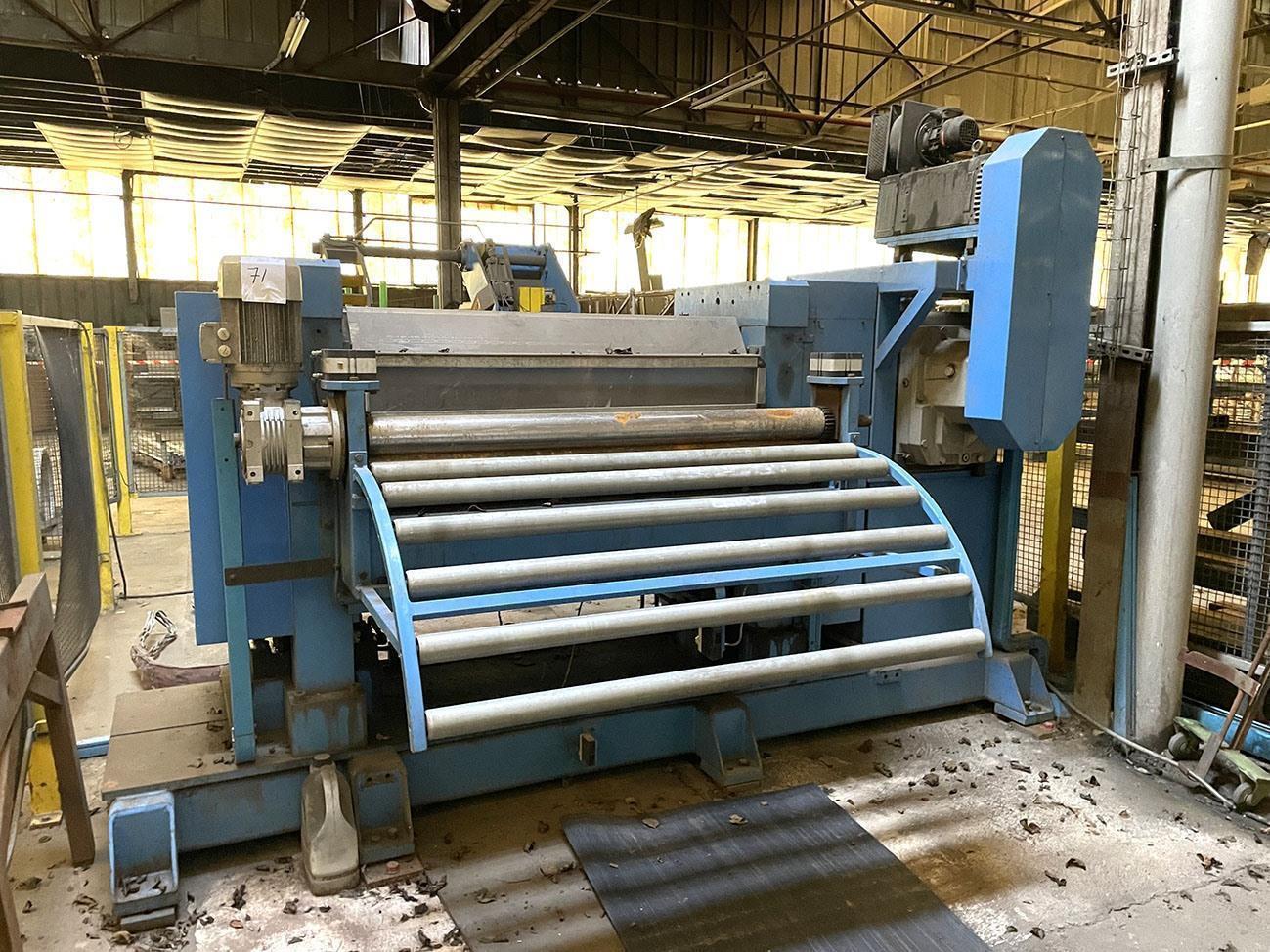

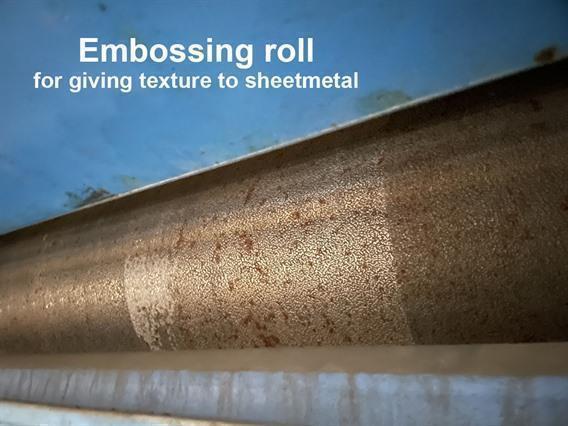

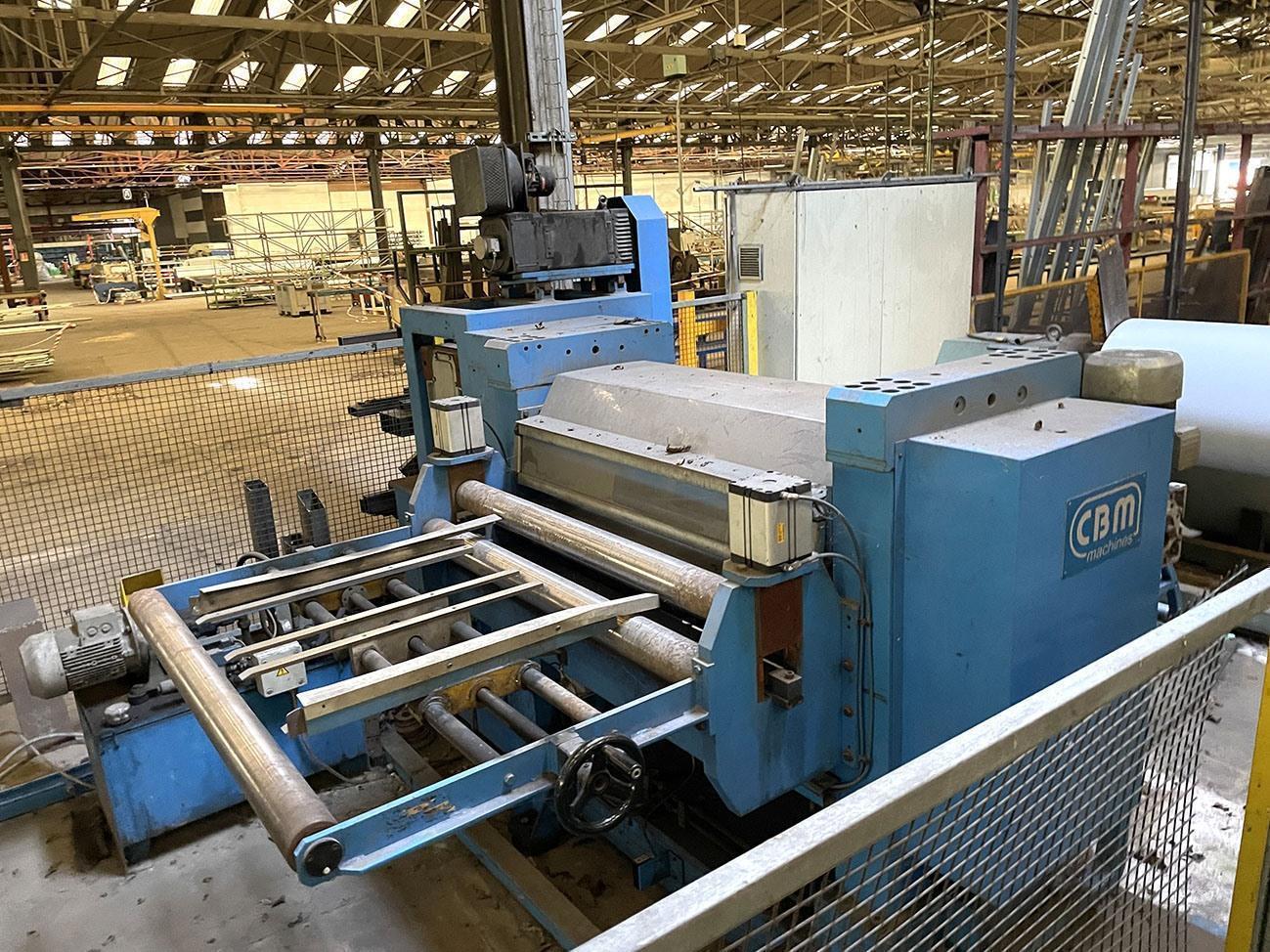

    2 - Straightener 1350 mm + embossing roll

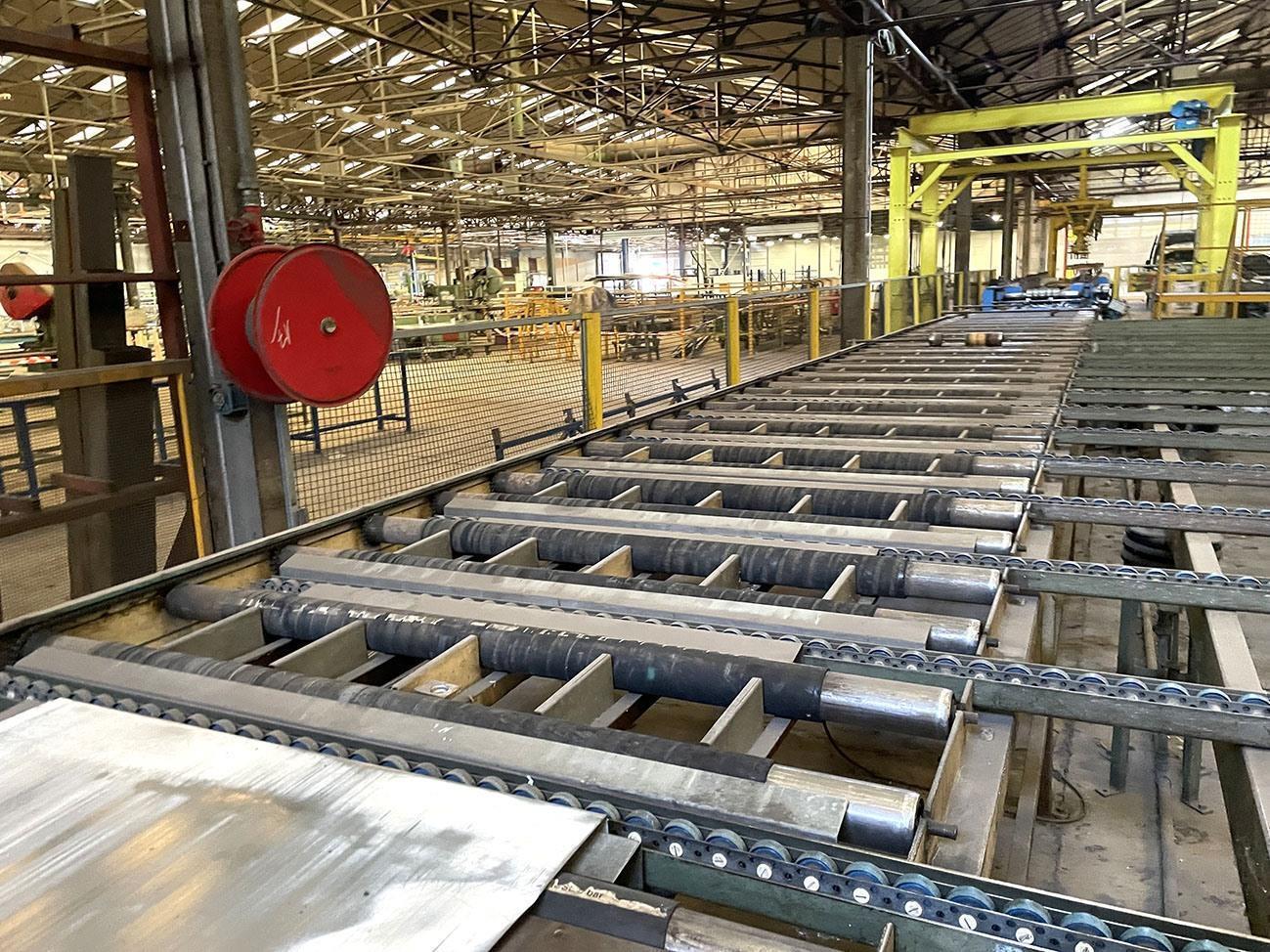

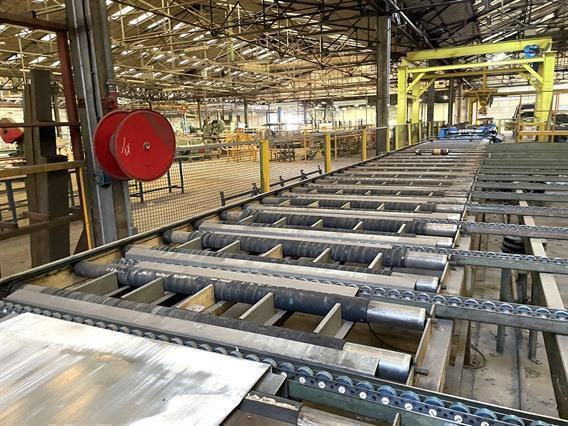

    3 - Rollerconveyor 15 meters

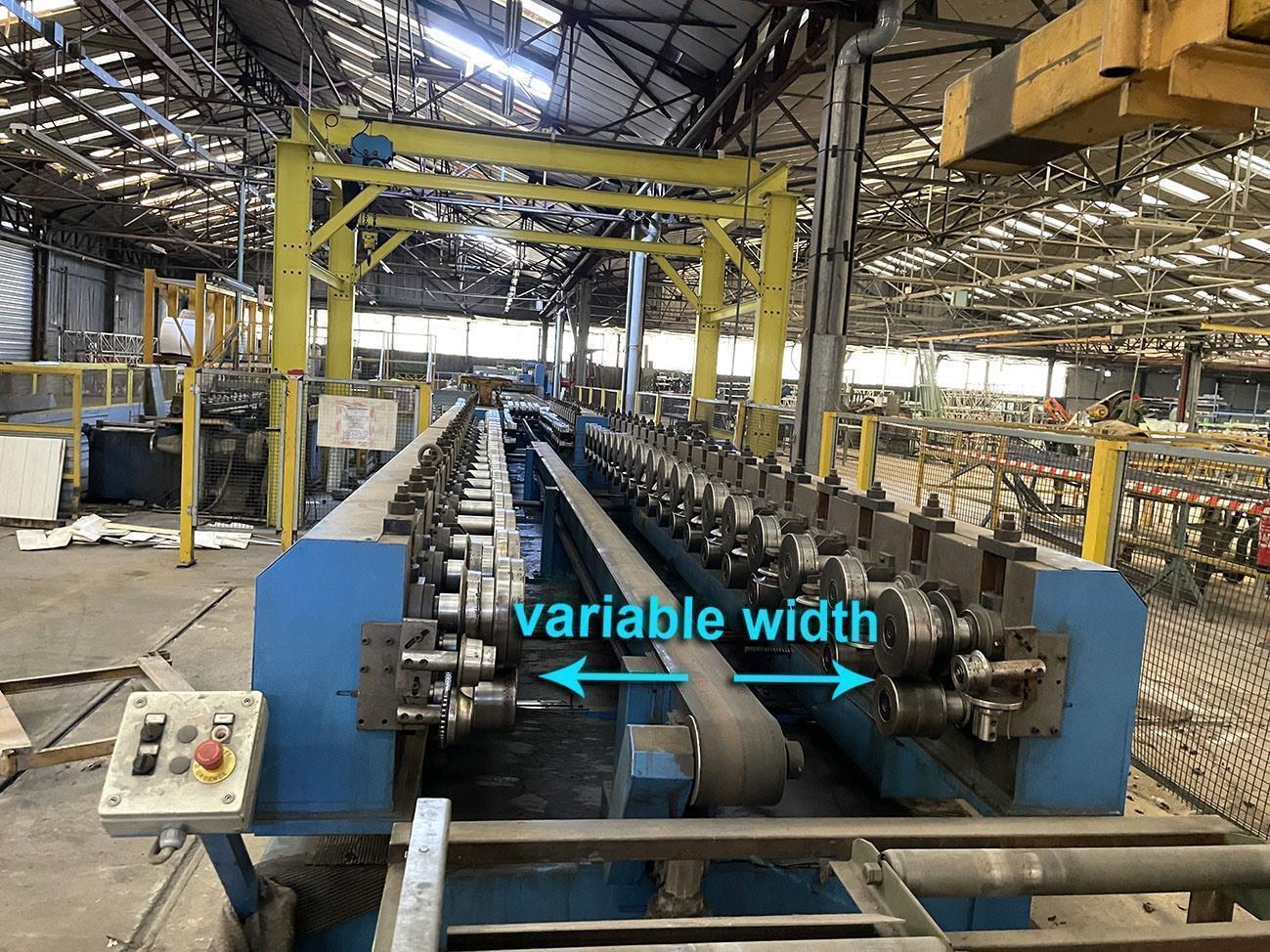

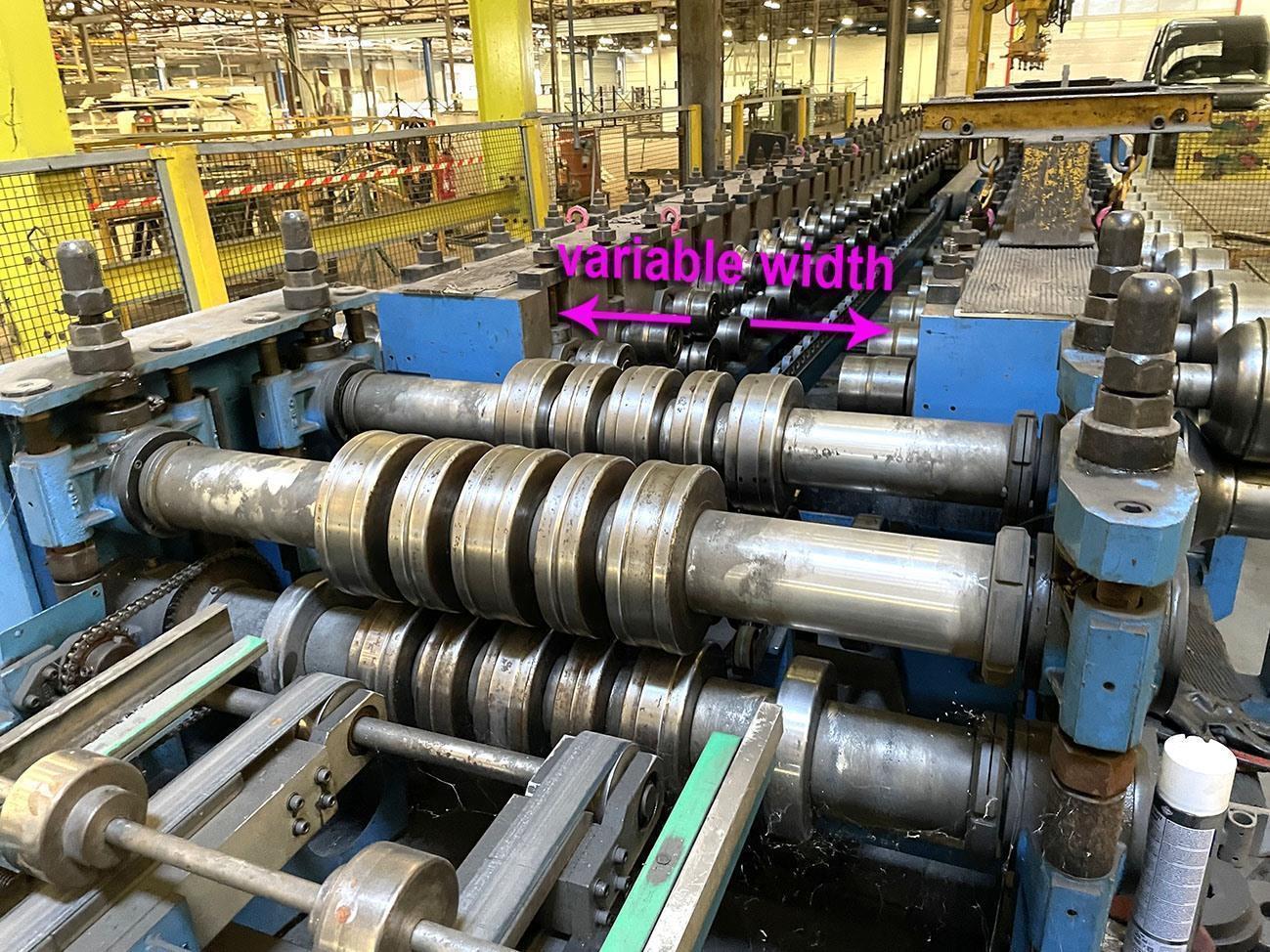

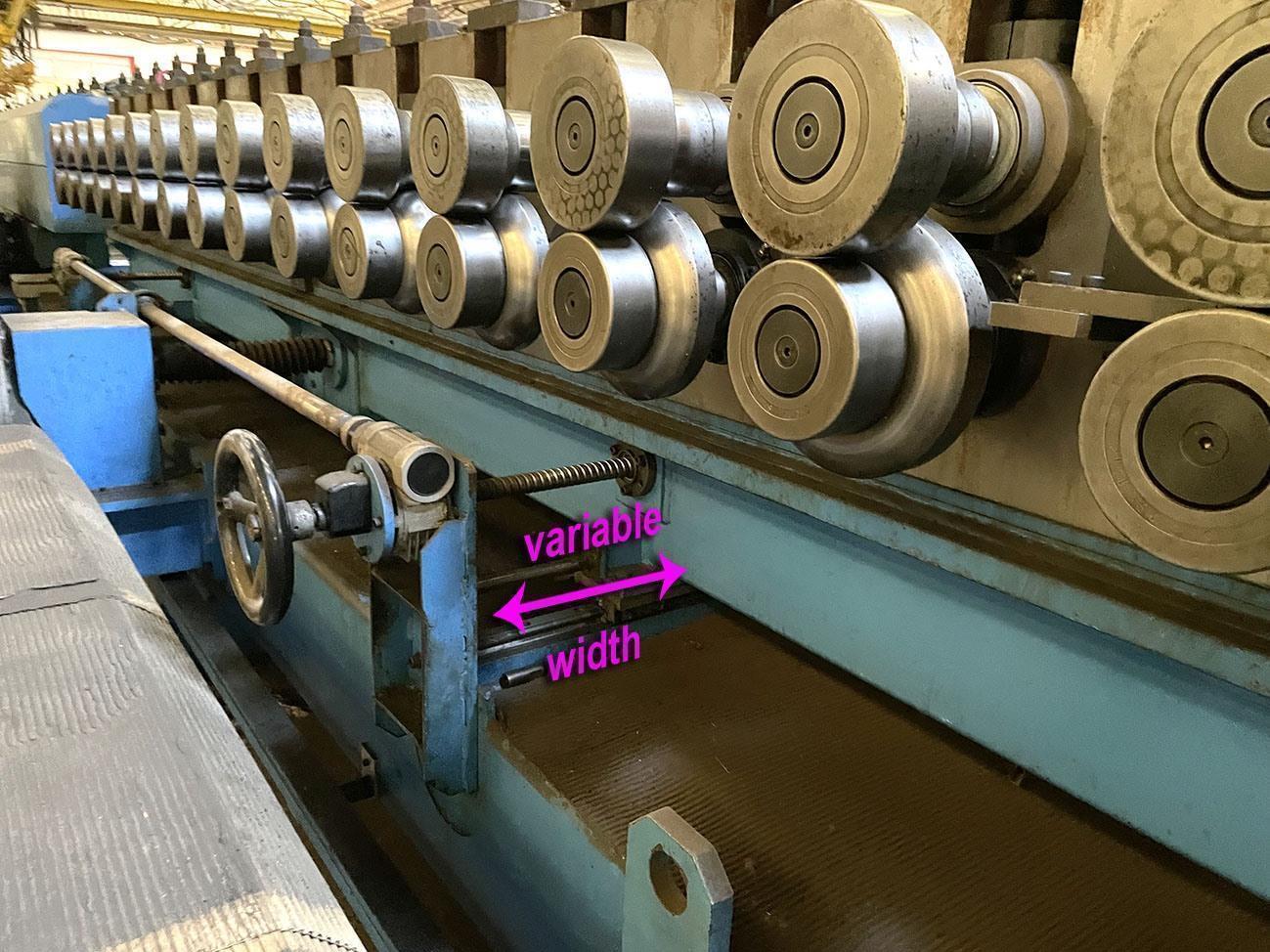

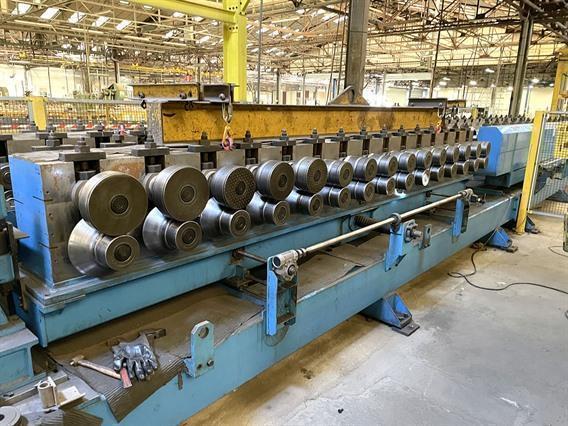

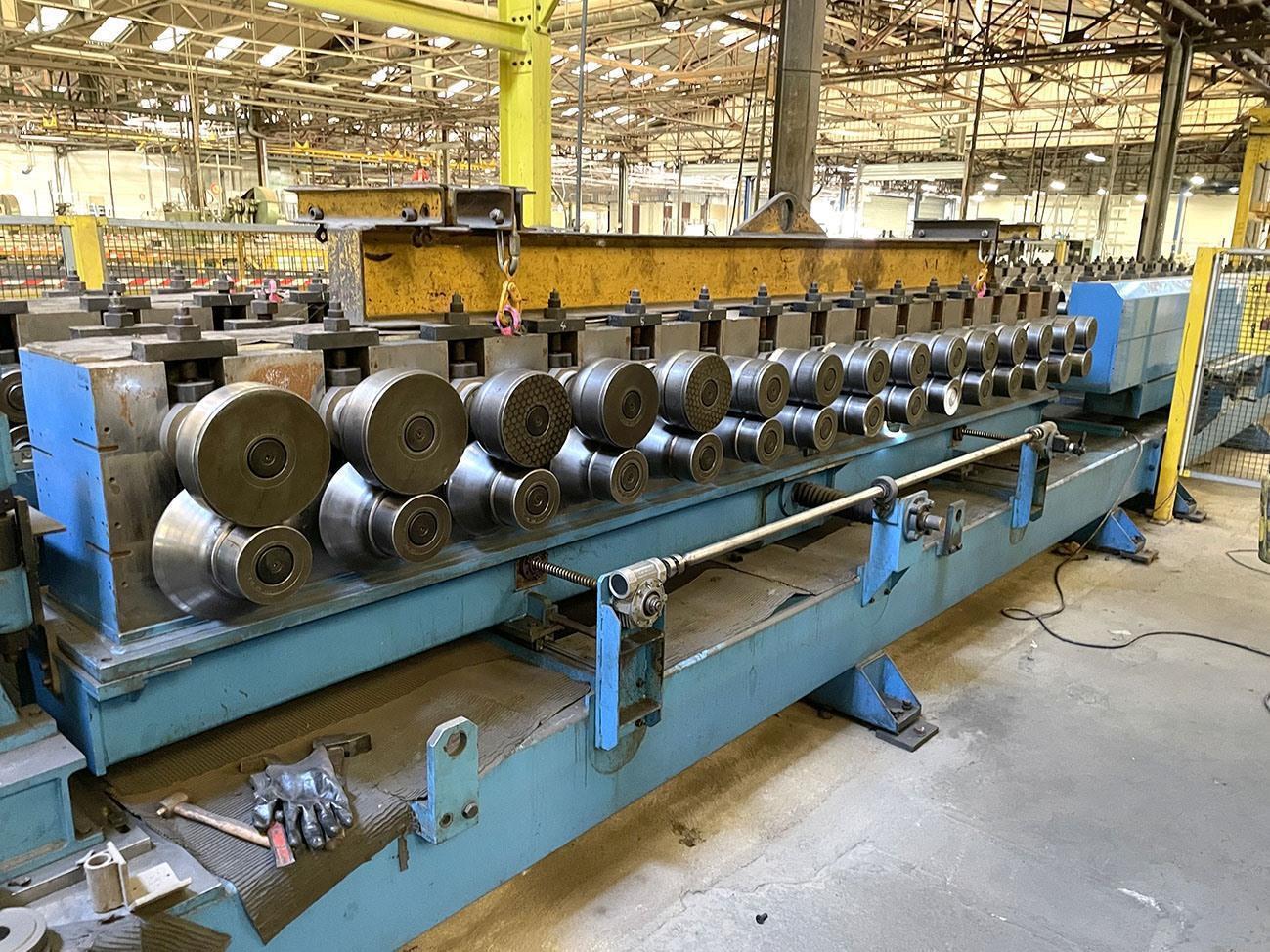

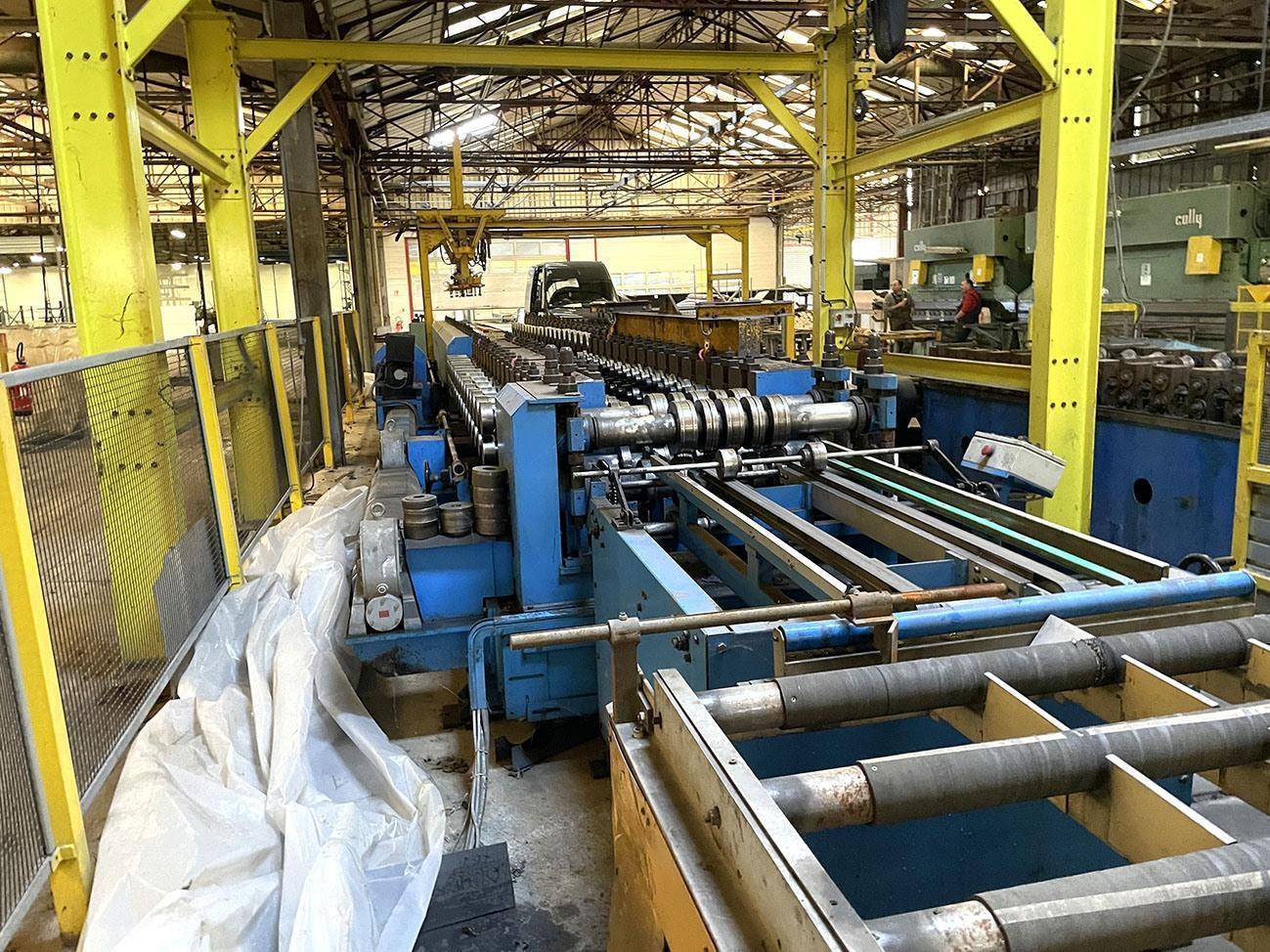

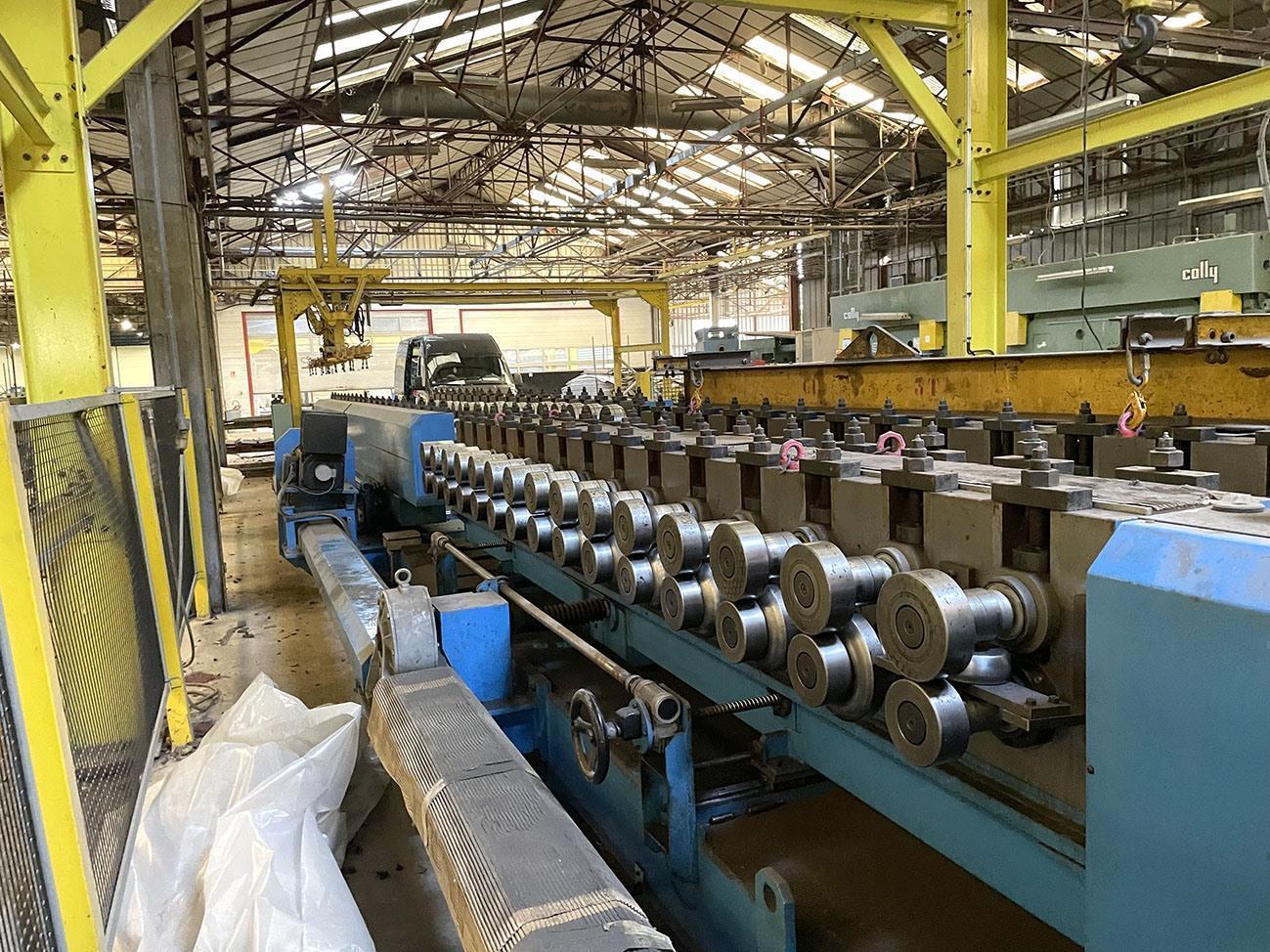

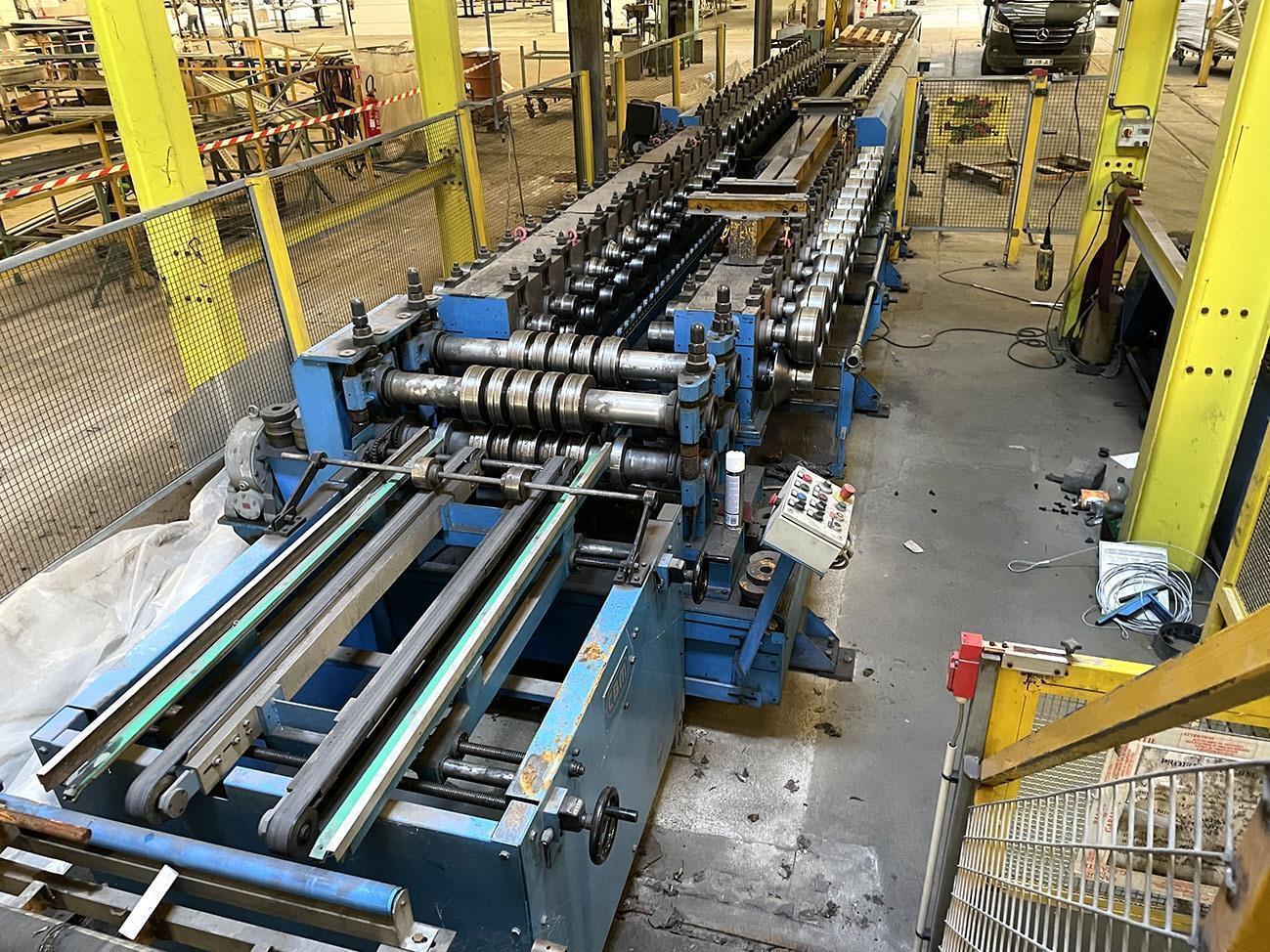

    4 - CBM rollforming line with variable width:
           > min/max width: 300 > 1300 mm
           > min/max thickness: 0,5 > 1 mm
           > first section: 15 rollstands
           > second section: 20 rollstands

    Current configuration (for sectional doors) consists out of 4 different tooling rollsets (which don't require dismantling)

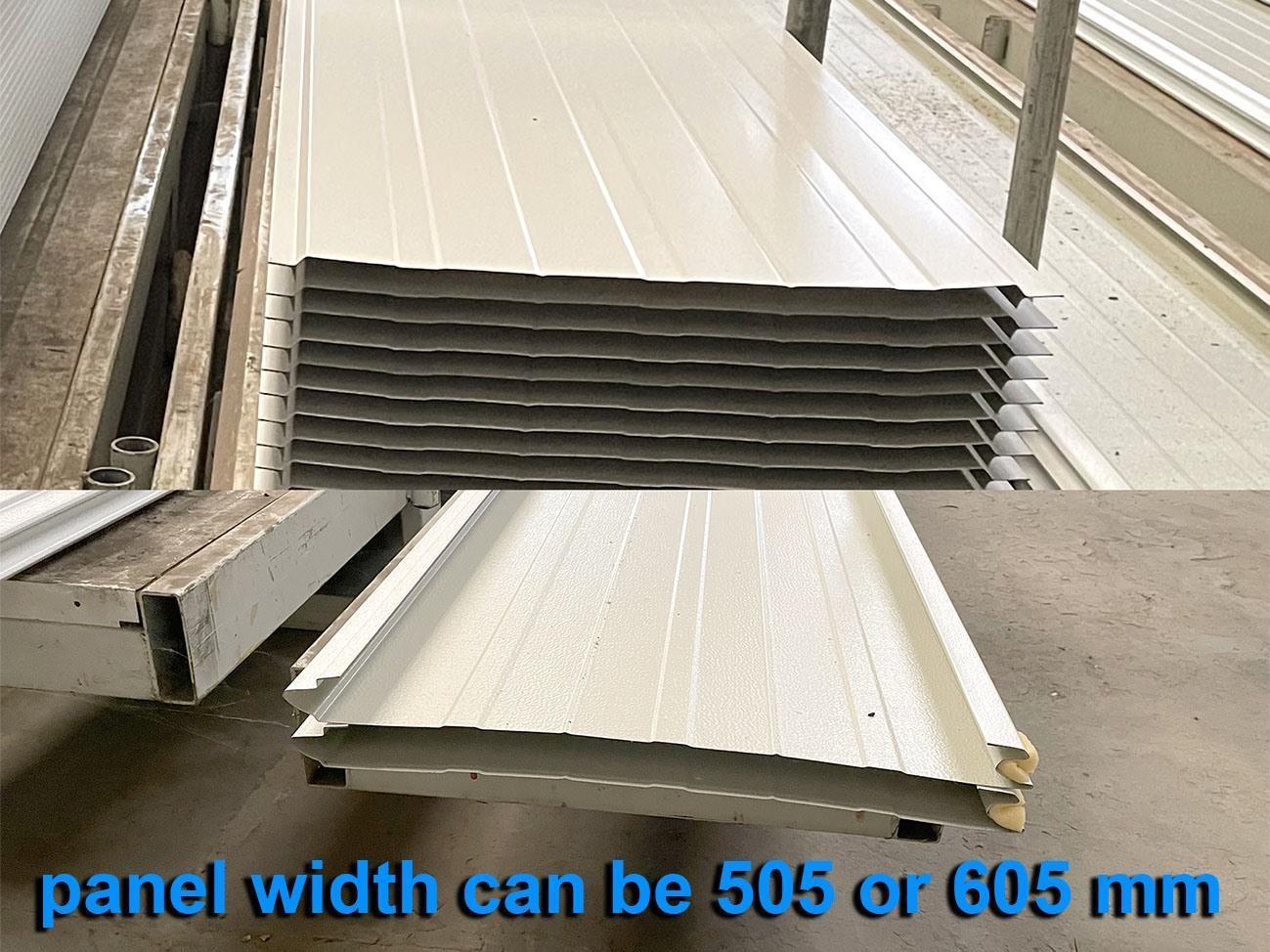

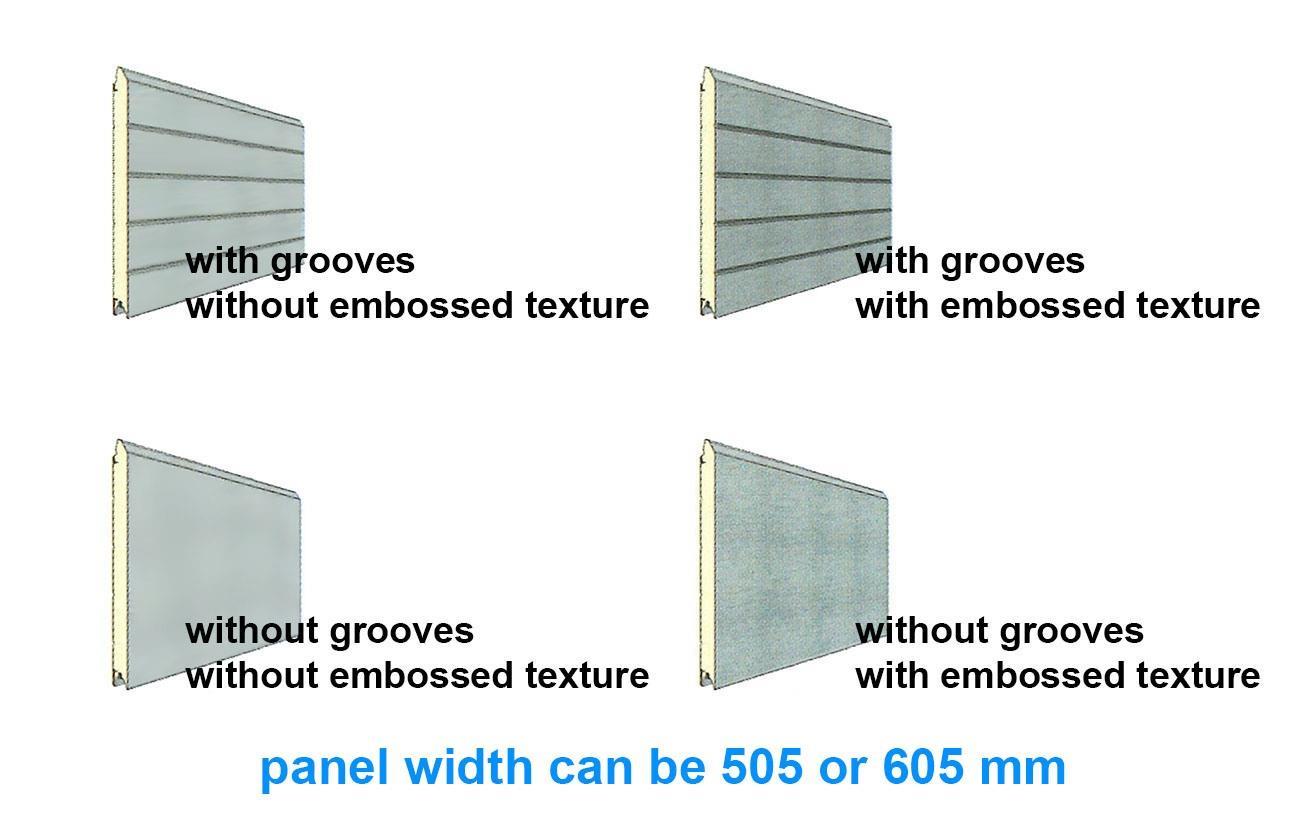

    4 different panels can be made (for two thicknesses; 50 & 42 mm):
    - 1 > panel with grooves, with embossed texture
    - 2 > panel without grooves,with embossed texture
    - 3 > panel with grooves, without embossed texture
    - 4 > panel without grooves, without embossed texture

    CBM rollforming line for making sandwhich panels for sectional doors >> click here
    Manni / Cannon PU press >> click here
    Rollforming line for making different profiles for installation sectional doors >> click here
    Bonnamy tubebender >> click here



  • Type/Model: sandwich panel line / Manni & Cannon
  • Stocknumber: O.27 14280
  • Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines,  Laser cutting machines & Flamecutting machines and Roll forminglines
  • Sub category: [O.27] Decoiling + / or Roll forminglines
  • Brand: CBM

Stocknumber: O.27 14280

Watch video of working machinery
