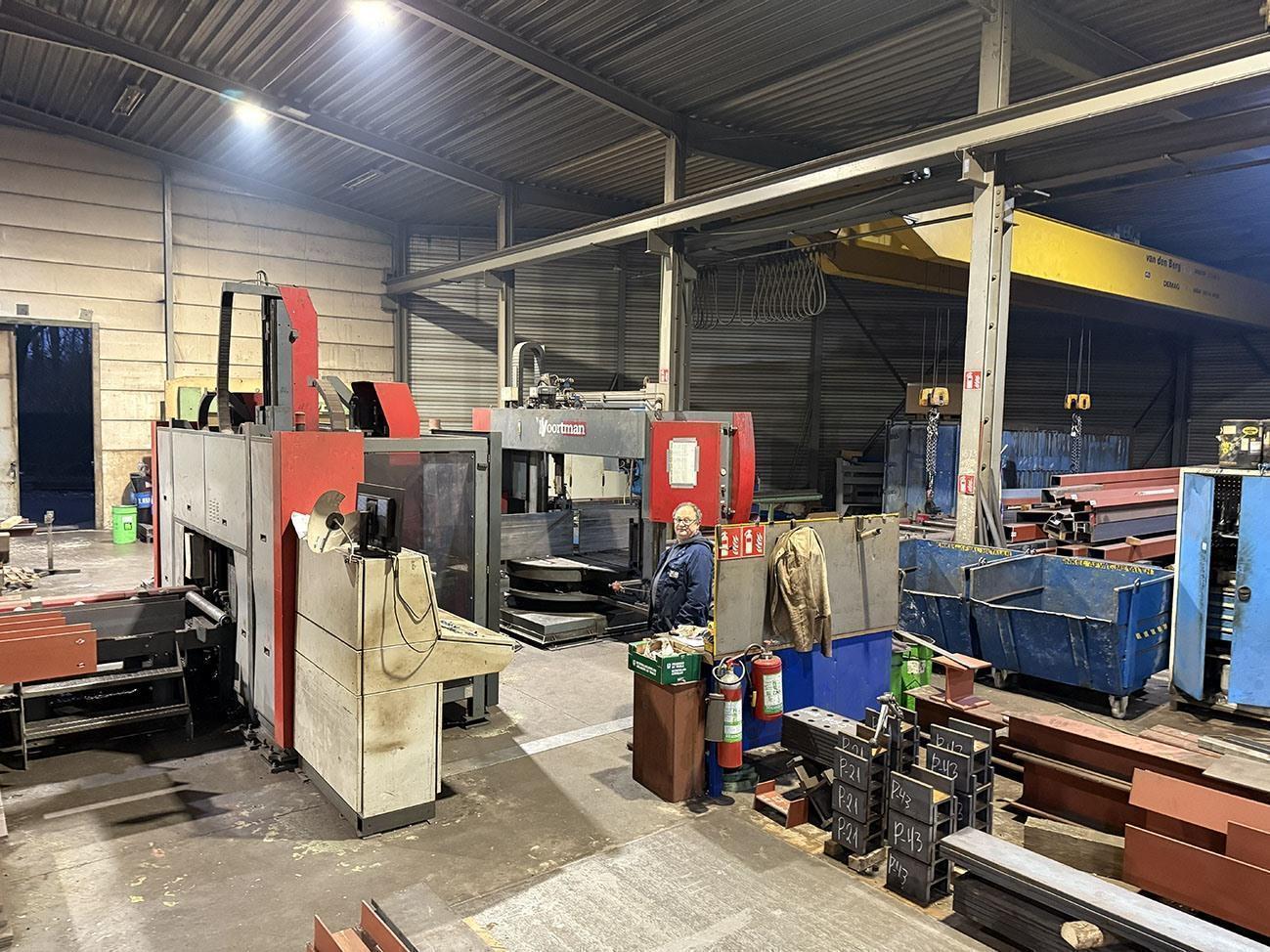

Drilling- & sawingline Voortman 1250 x 500 mm drill saw line

Additional info

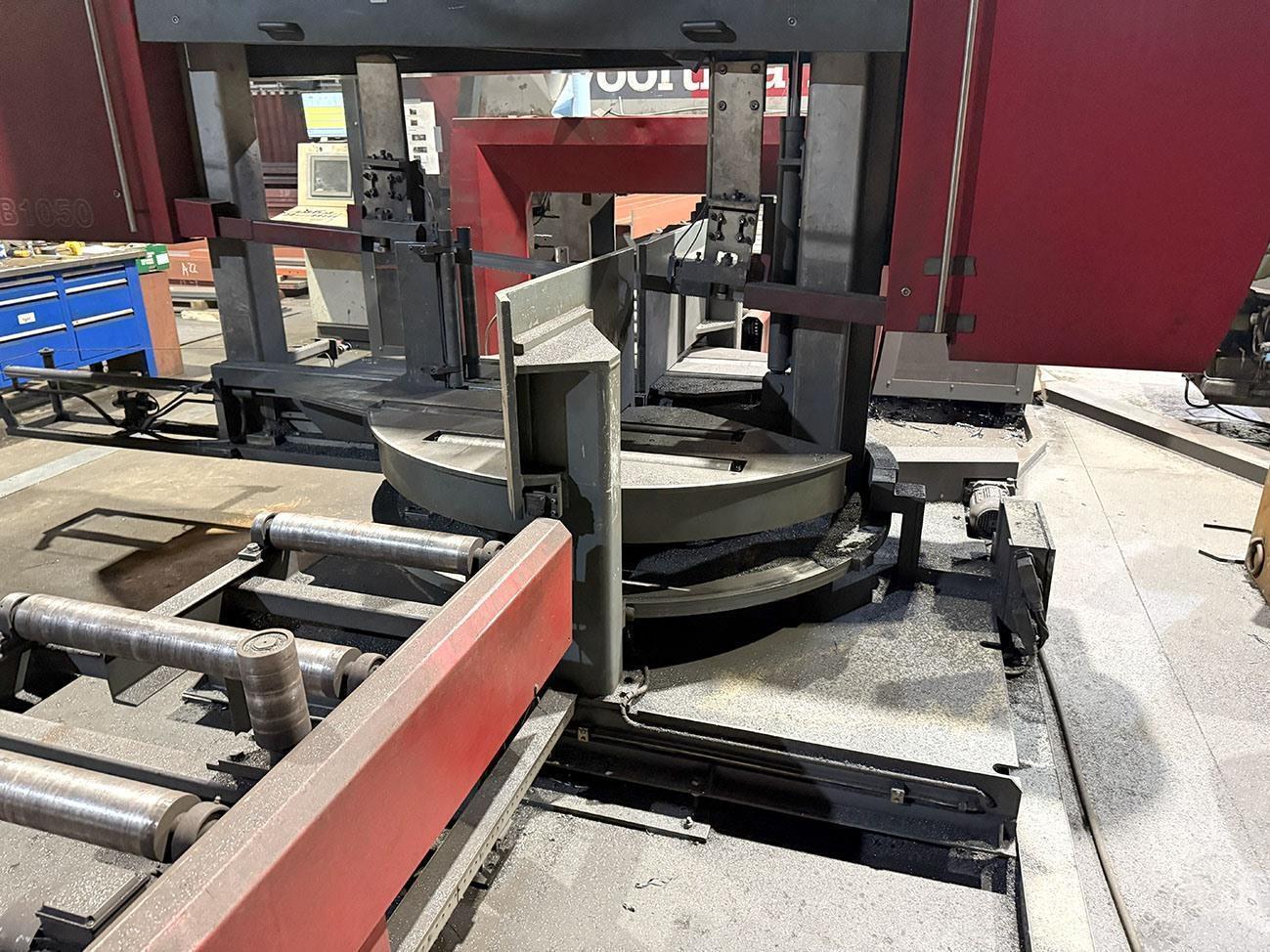

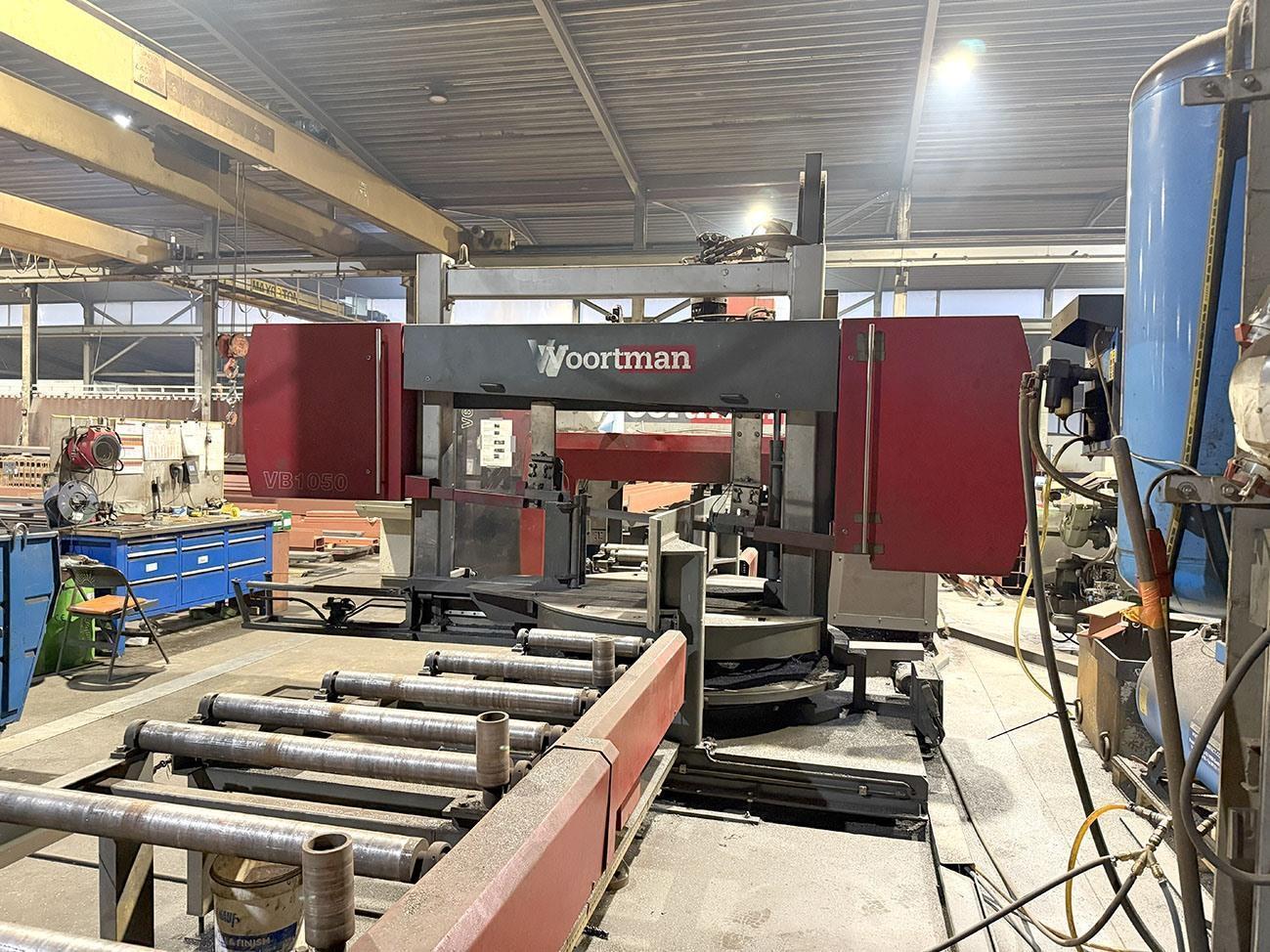

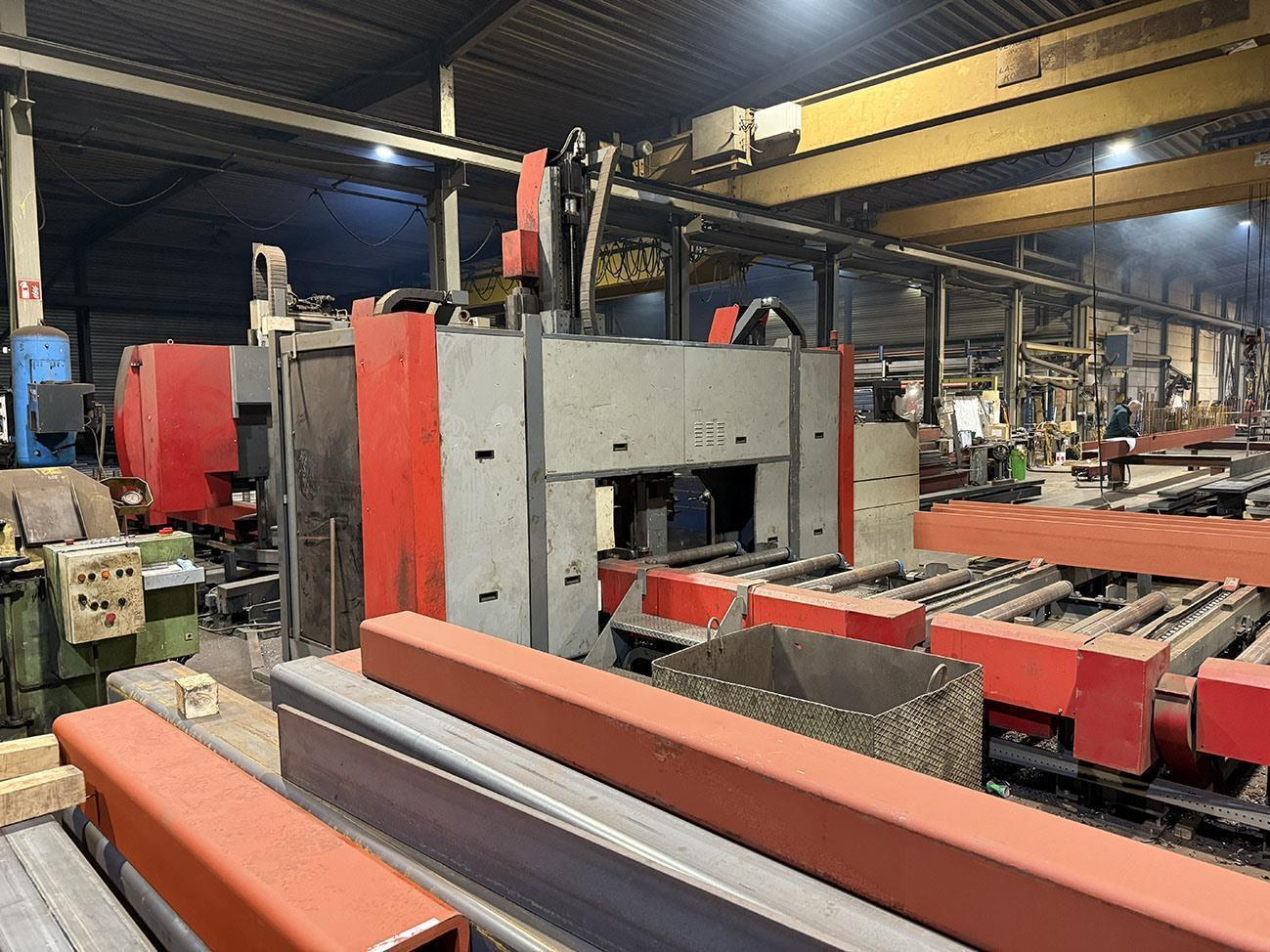

  • Voortman VB1250 bandsaw
    > cap: 1250 x 500 mm
    > miter cut +/- 60°: 1000 x 500 mm
    > miter cut +/- 45°: 850 x 500 mm
    > miter cut -30°: 500 x 500 mm
    > sawing speed: 40 > 120 m/min
    > power: 7.5 kW
    > bandsaw dimensions: 11 000 x 54 x 1.6 mm

    Voortman V630 triple drilling unit
    > 2 horizontal drilling units
    > 1 vertical drilling unit
    > each unit has an automatic tool changer with 5 positions
    > spindle: SK40 (cooling through spindle)
    > drill diameter: 8/40 mm
    > drilling speed: 0 > 2000 rpm
    > thread tapping: M8/M24
    > profile height measuring included
    > center point marking included

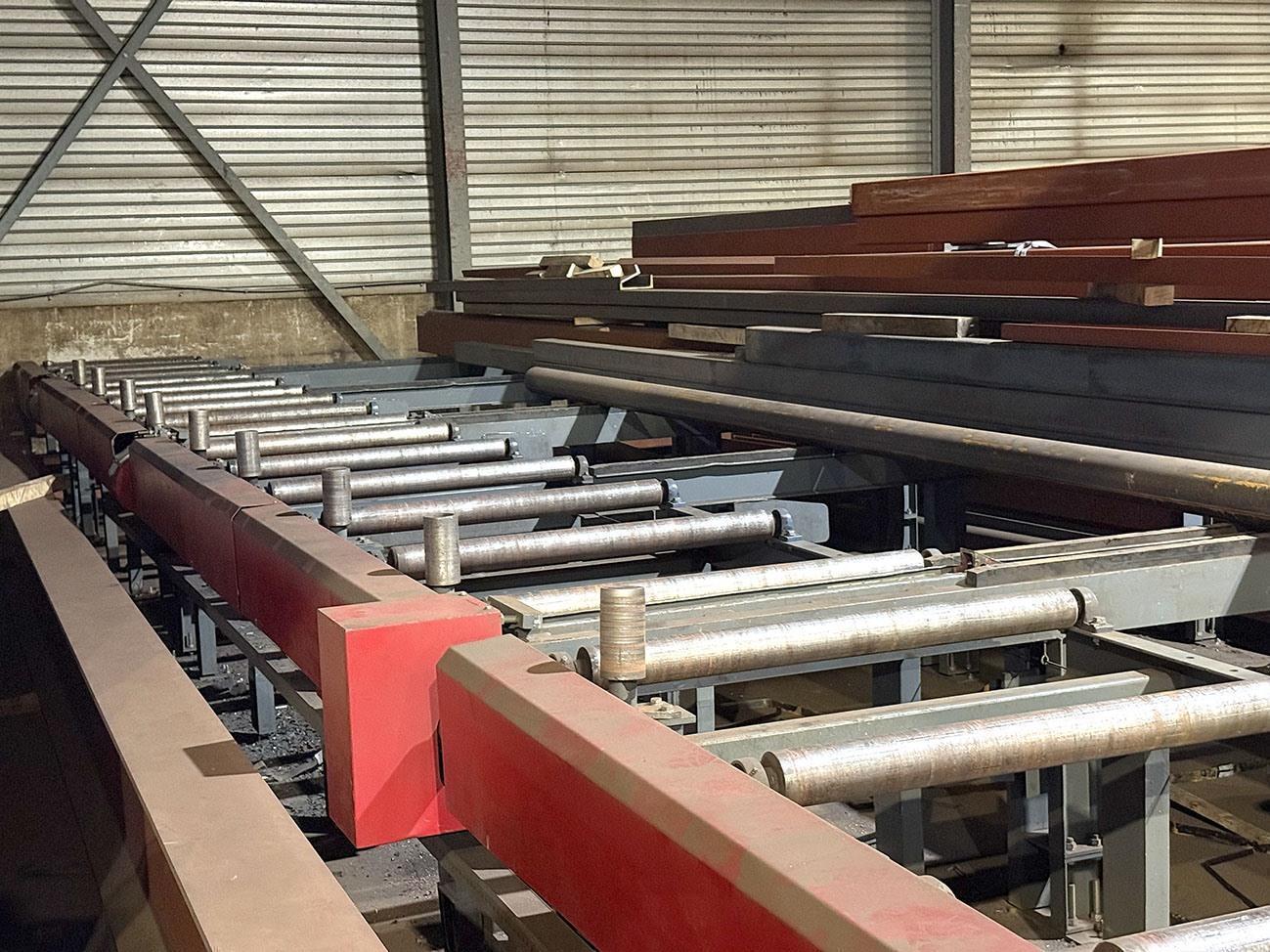

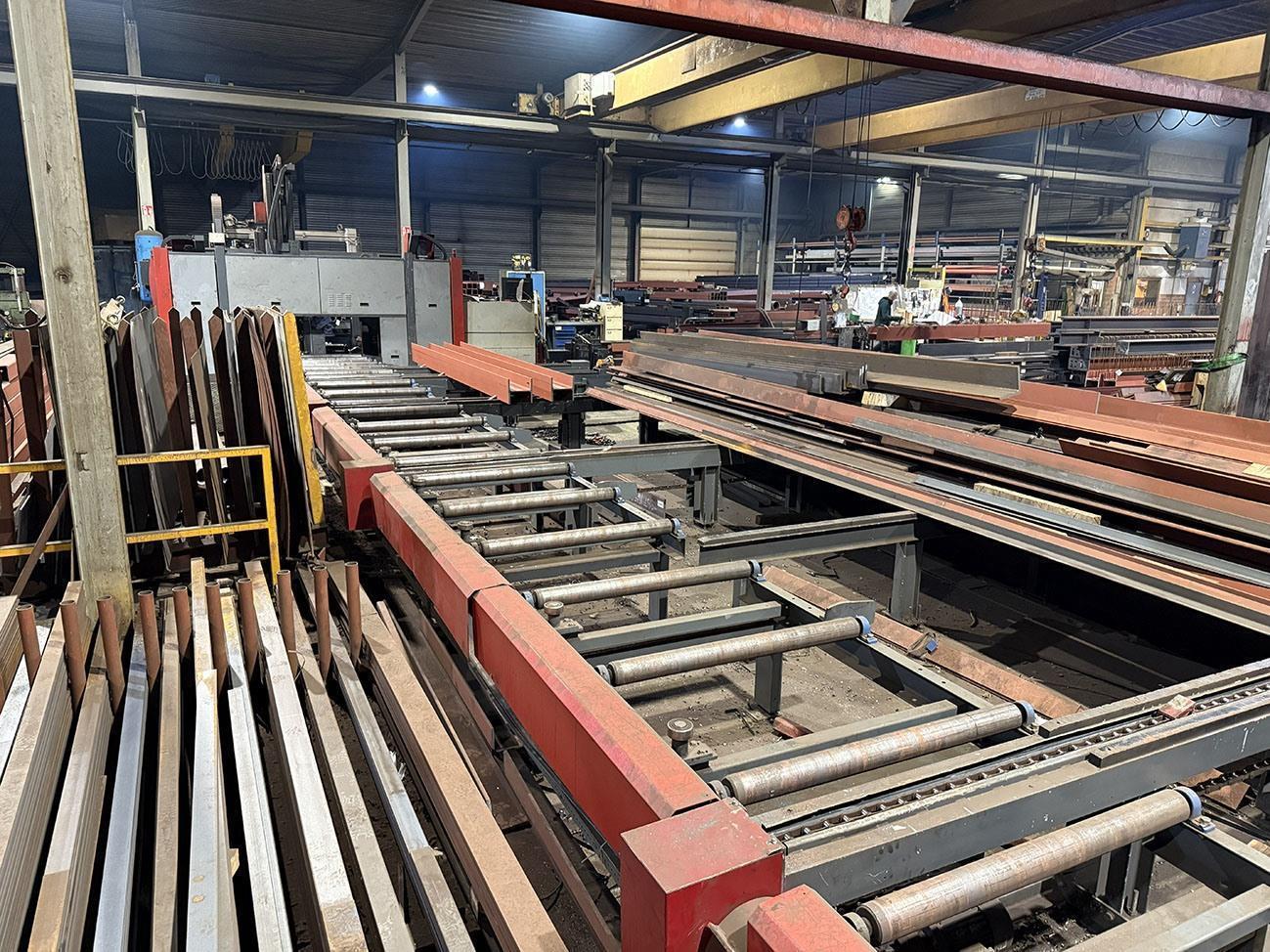

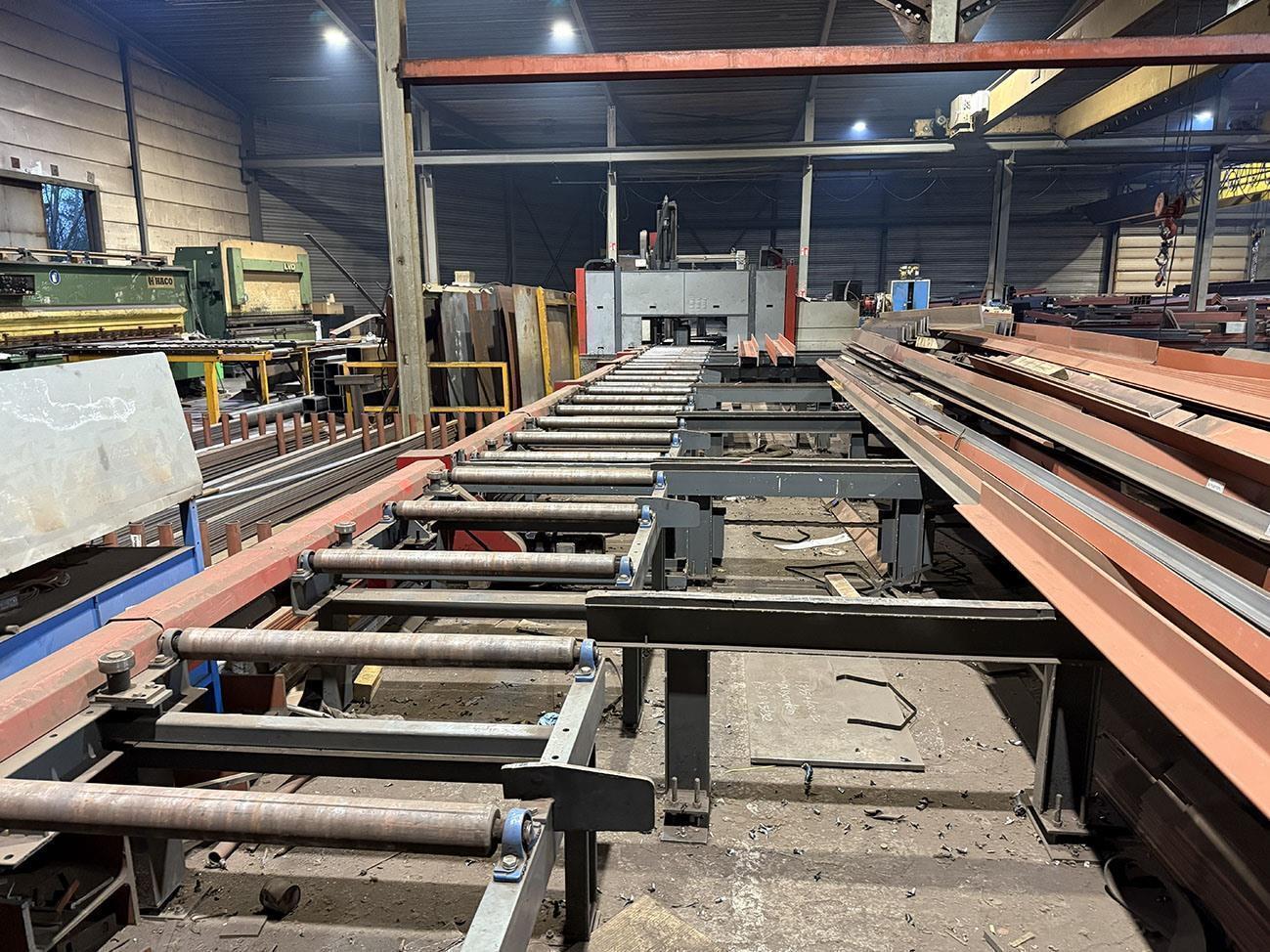

    18 meters infeed roller conveyors

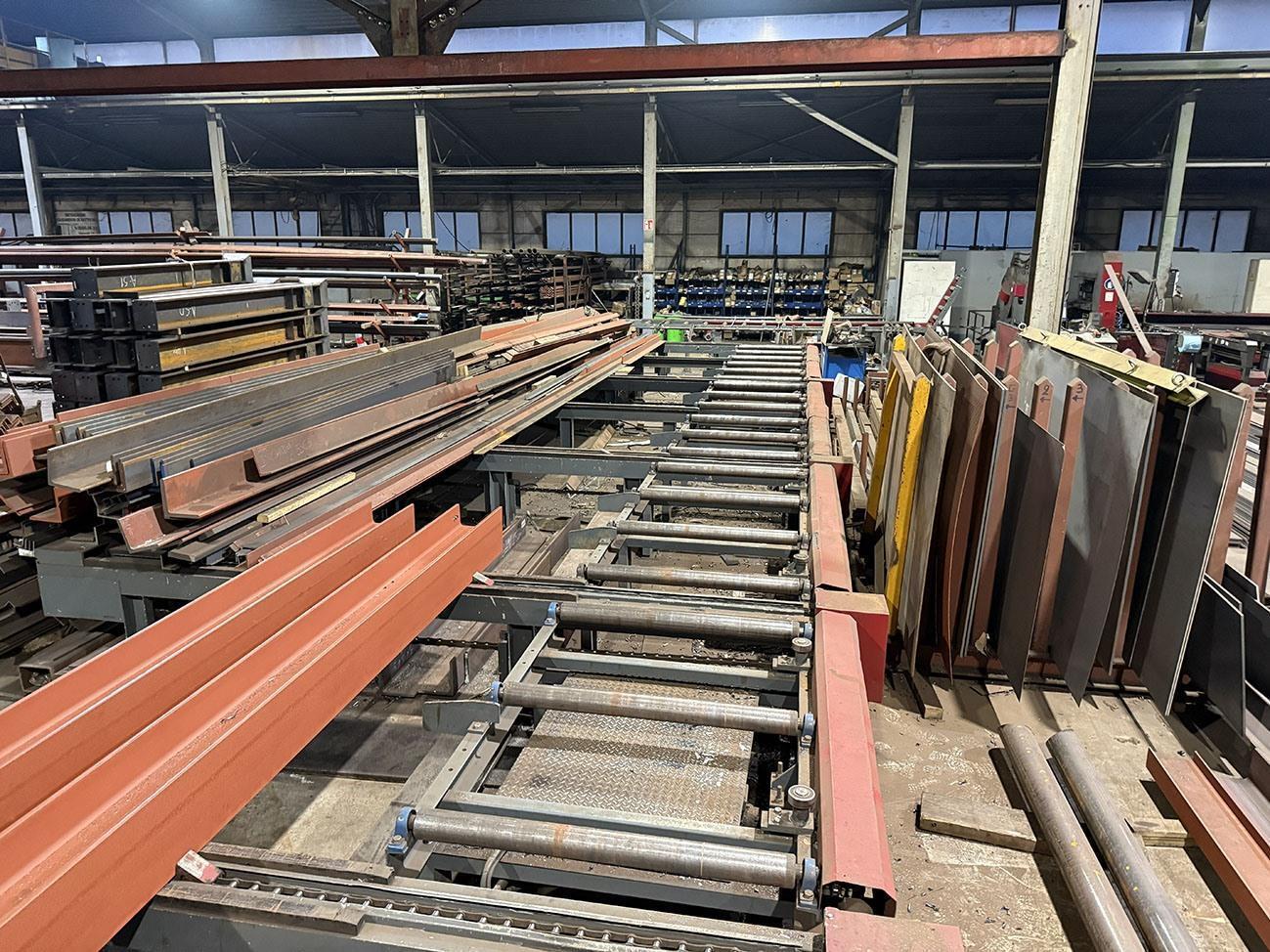

    6 crossfeed conveyors of 4 meters length
    max width: 1050 mm
    cap: 400 kg/m
    max positioning weight: 9 tons

    Roller feed measuring system = unlimited measuring length

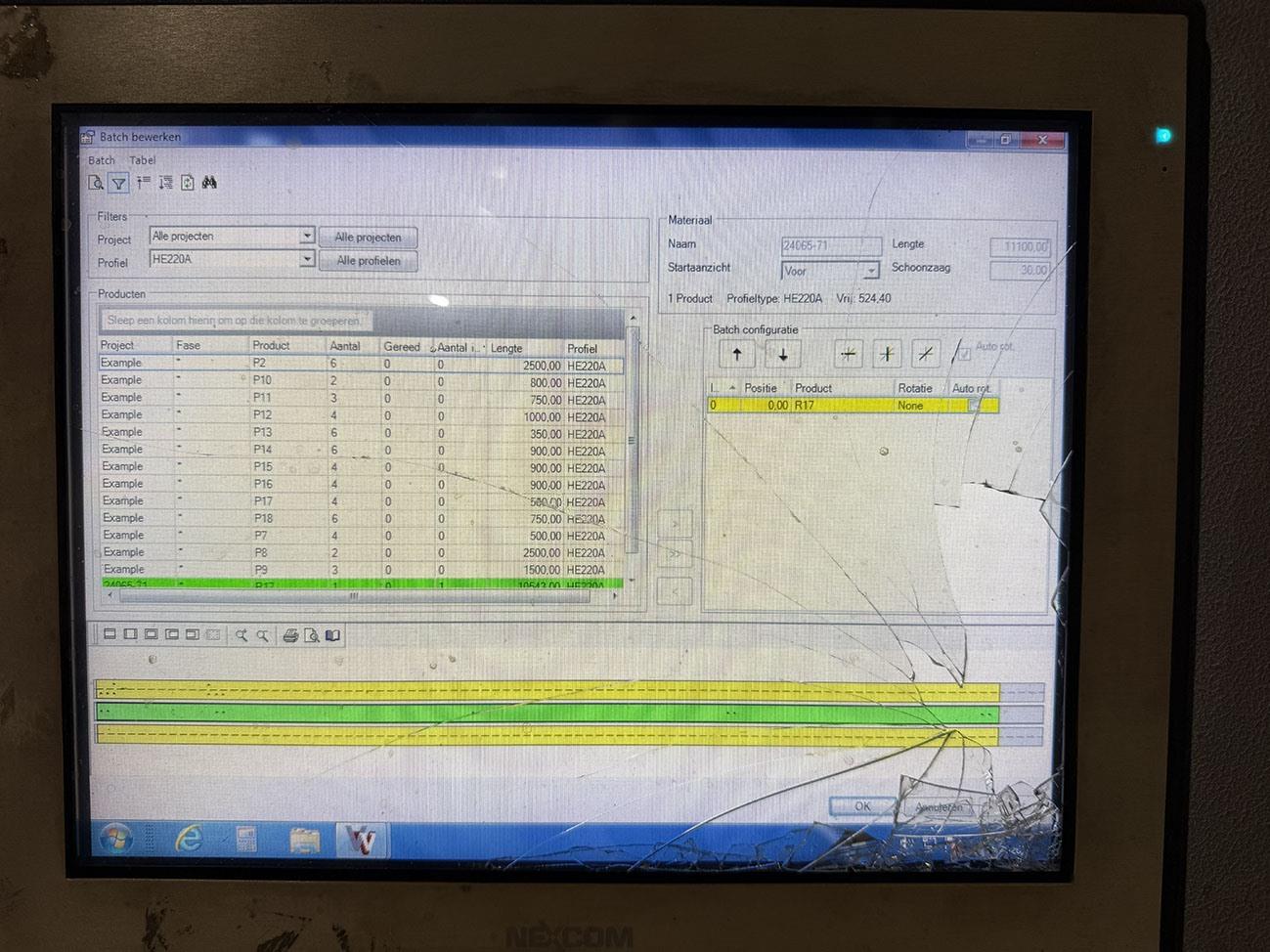

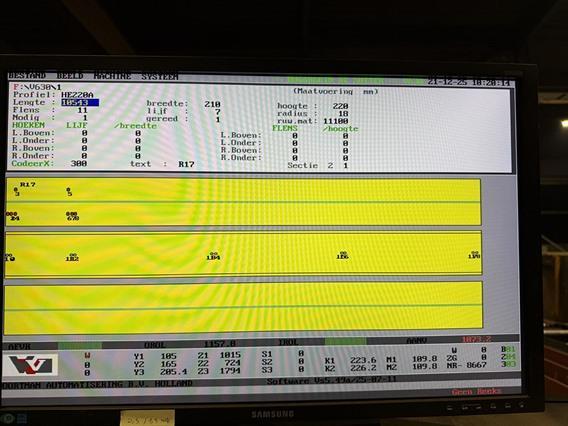

    Vacon 110 CNC control

    Hydraulic aggregate
    > 4kW - 160 bar



  • Type/Model: 1250 x 500 mm drill saw line
  • Stocknumber: P.14y 15807
  • Main category: [P] Shears, Universal Punching machines, Cutting-to-length machines & Slitting lines, Lockformers & Metal band sawing machines
  • Sub category: [P.14y] Drilling- & sawingline
  • Brand: Voortman

Stocknumber: P.14y 15807
