Heidenreich & Harbeck 60 HS4 - bevel gear grinding

Gear hobbers Heidenreich & Harbeck 60 HS4 bevel gear grinding

Technical information

Dimensions3750 x 2300 mm
Weight6 ton

Additional info

biggest diameter: 600 mm
biggest modul: 10 mm

smallest diameter: 25 mm

smallest modul: 2 mm

ramstroke: 0 > 100 mm

13 speeds

tabledia: 550 mm

spindlebore: 90 mm

power: 5,9 kW

biggest cone length with teethwidth of 90 mm: 300 mm

biggest cone length with teethwidth of 20 mm: 265 mm

smallest cone length: 28 mm

pitchangle range: 5° - 90°
Type/Model: bevel gear grinding
Stocknumber: K.01 7941
Main category: [K] Gear Cutting machinery
Sub category: [K.01] Gear hobbers
Brand: Heidenreich & Harbeck 60 HS4

Stocknumber: K.01 7941

Sold
Sold
Sold
Sold
Sold
Sold
Sold
Sold
Sold

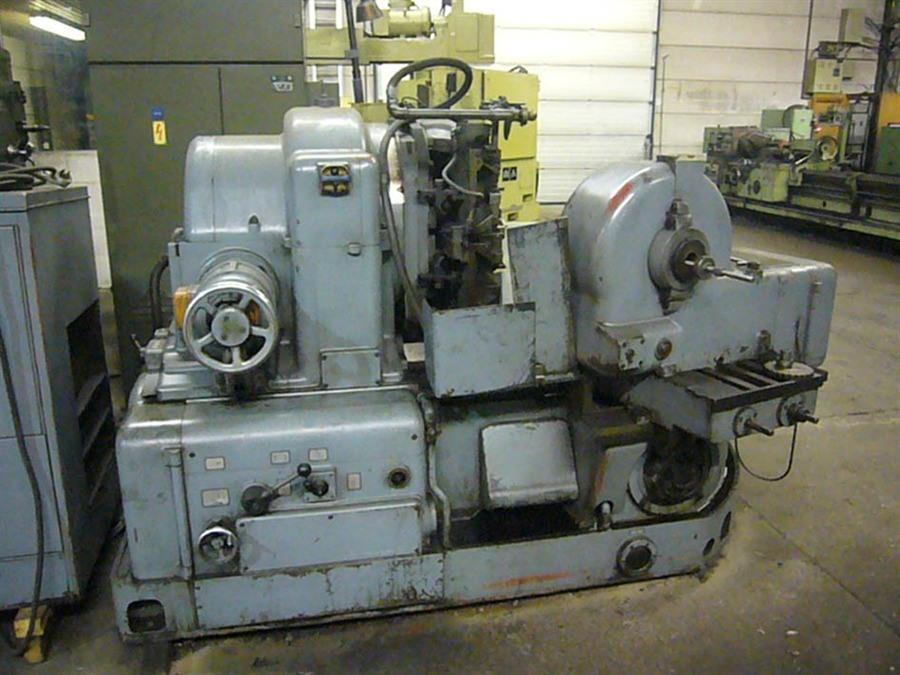

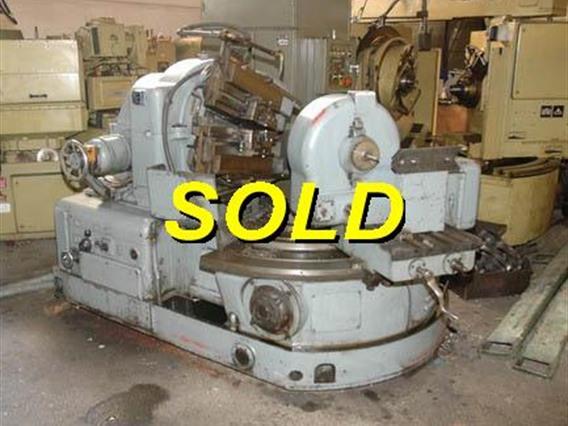

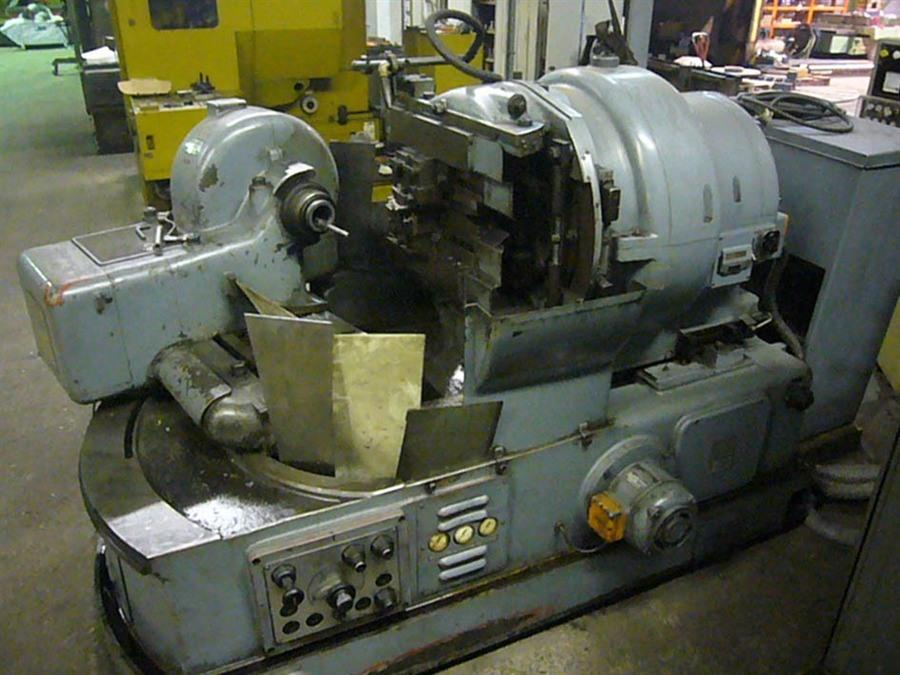

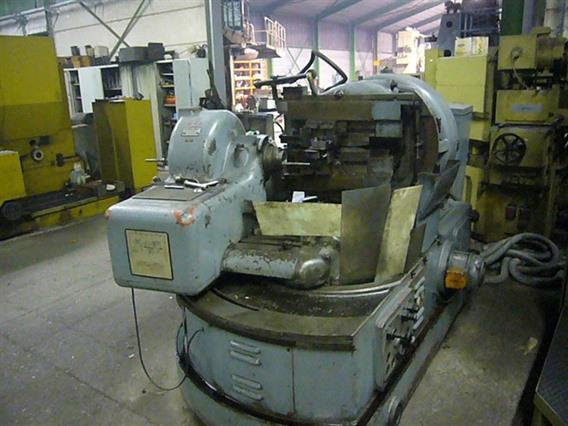

Heidenreich & Harbeck 60 HS4 bevel gear grinding
