Gear hobbers Tos FO6 - modul 6

Technical information

Max. Modul6
Max. Dia600 mm
Dimensions3050 x 1600 x 2260 mm
Weight4 ton

Additional info

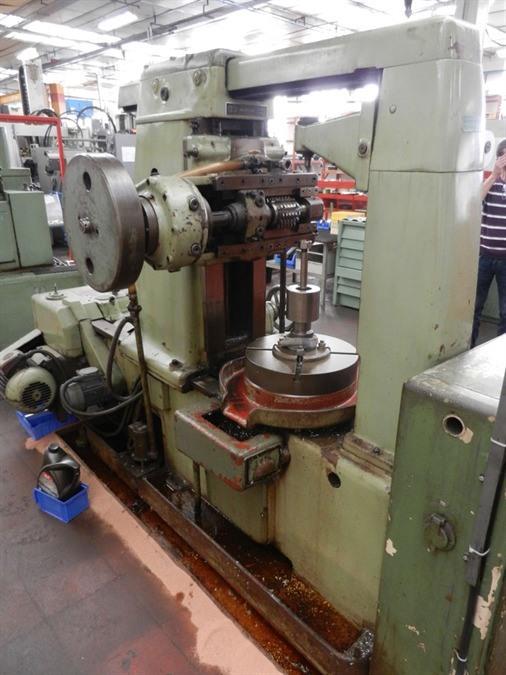

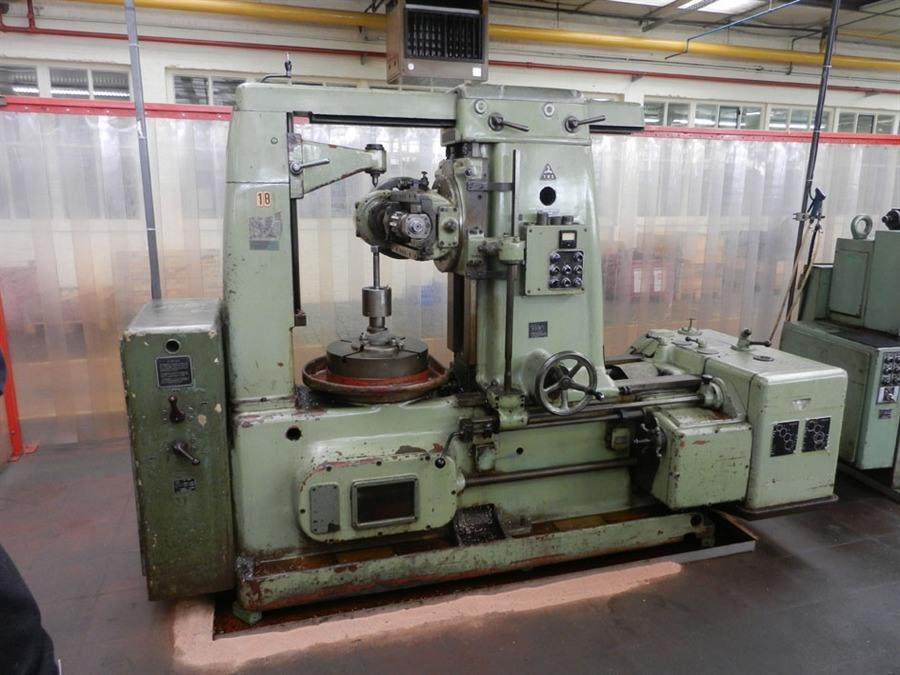

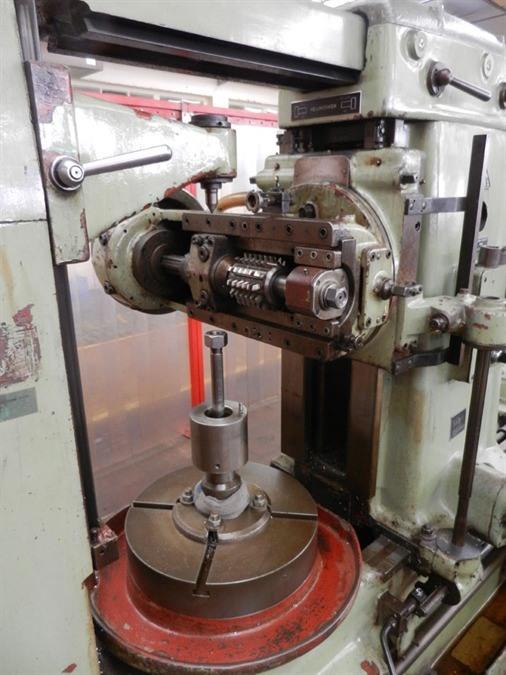

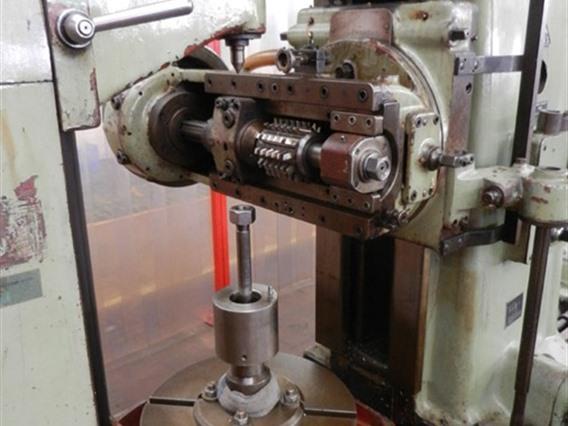

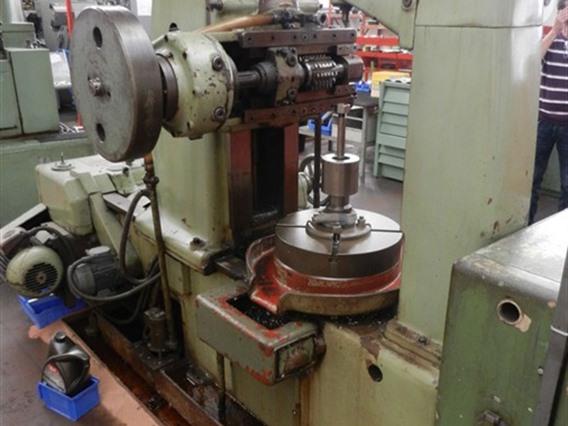

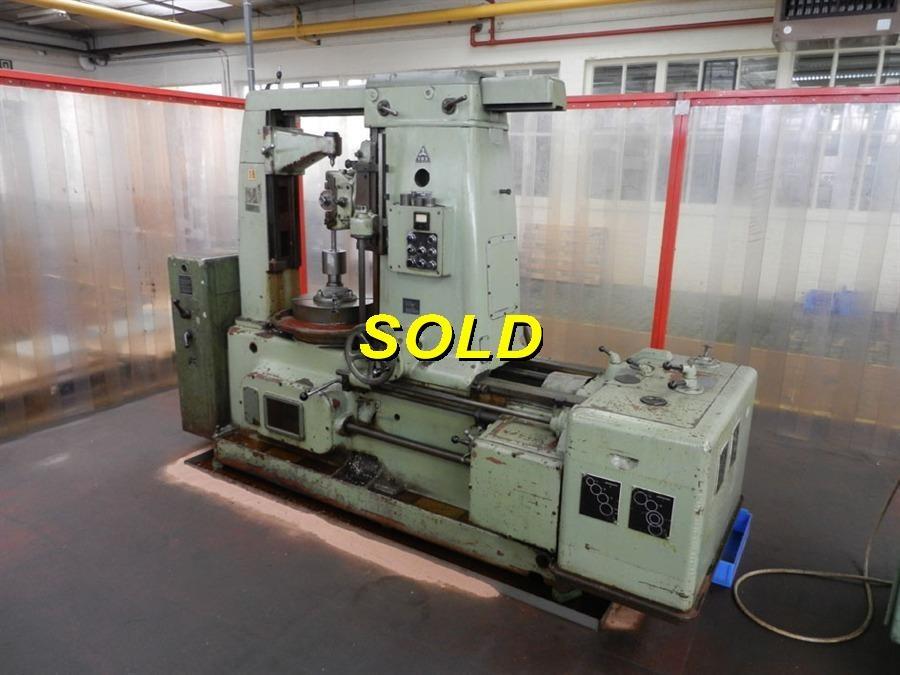

Gear hobbing machine for straight & spiral gears

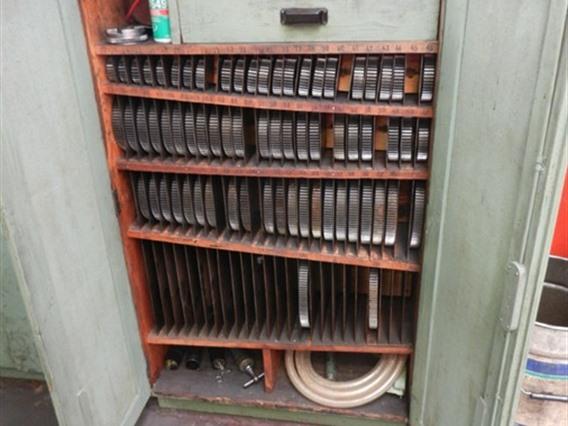

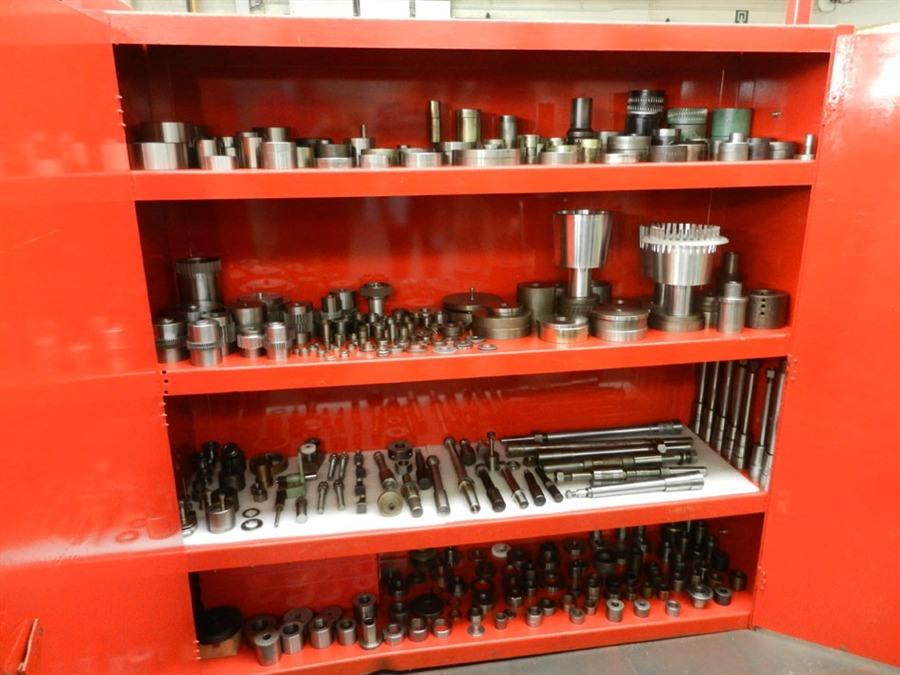

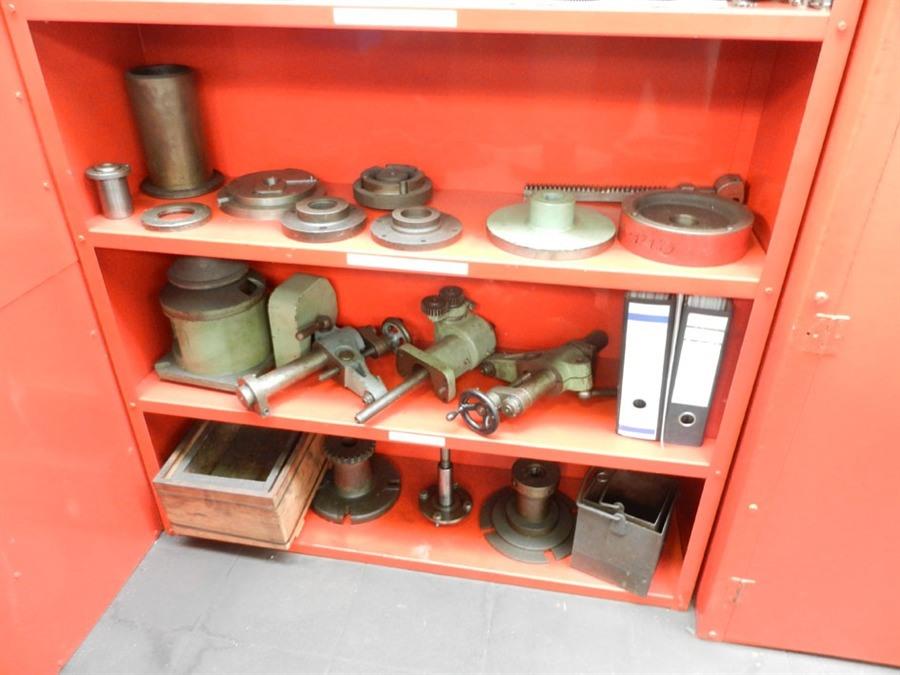

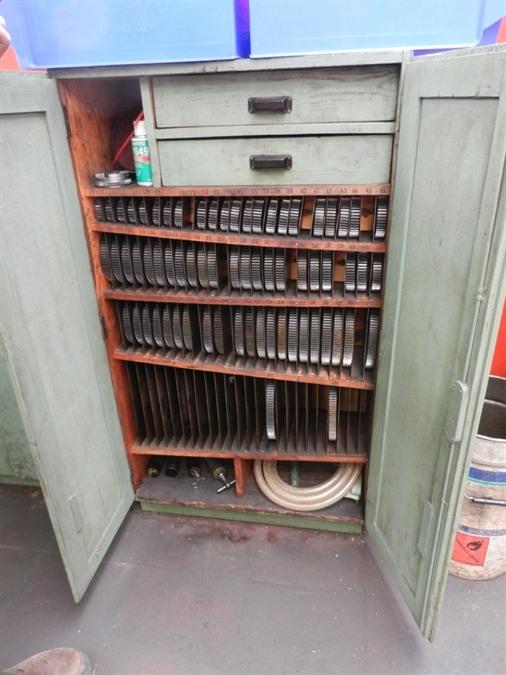

including lots of tools

- min/max distance between table and spindle: 40/430 mm

- vertical displacement of carriage: 350 mm

- max millingwidth on 600 mm wheel: 280 mm

- max millingwidth on 75 mm wheel: 200 mm

- maw workpiece weight: 500 kg

- max dia of cutter: 120 mm

- max width of cutter: 130 mm

- dia of table: 420 mm

- table bore: 75 mm

- bore depth of table: 550 mm

- power: 3/4 kW
Type/Model: FO6 - modul 6
Stocknumber: K.01 7538
Main category: [K] Gear Cutting machinery
Sub category: [K.01] Gear hobbers
Brand: Tos

Stocknumber: K.01 7538
