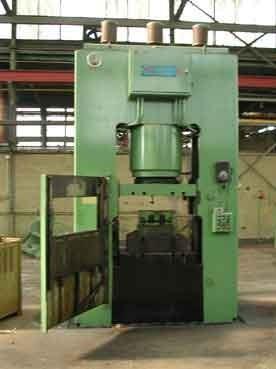

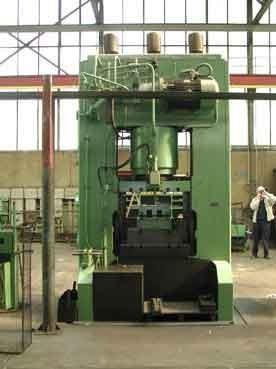

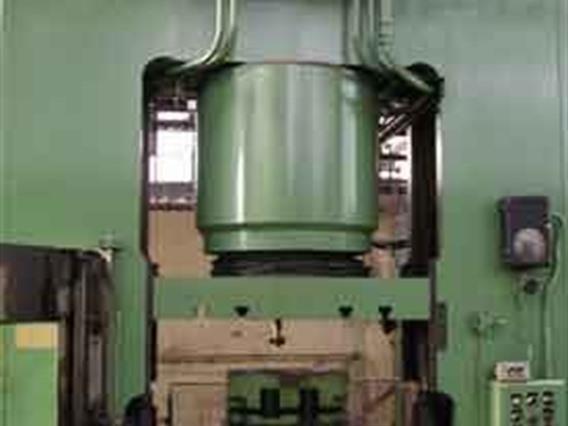

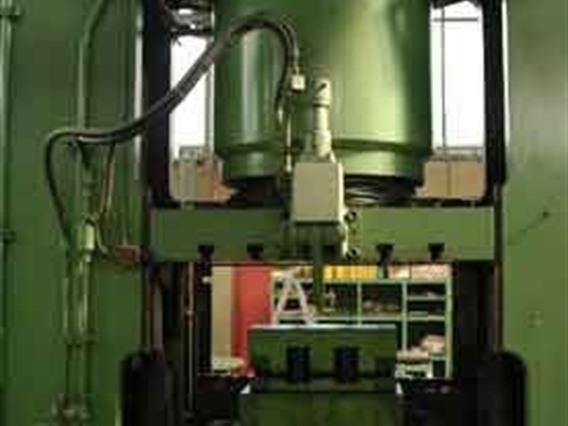

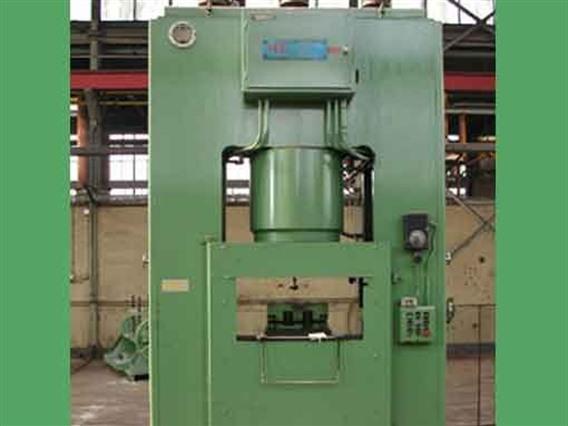

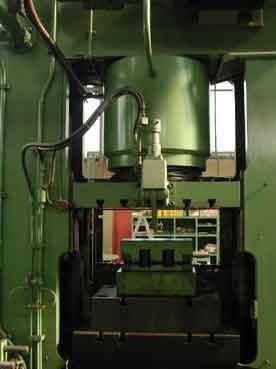

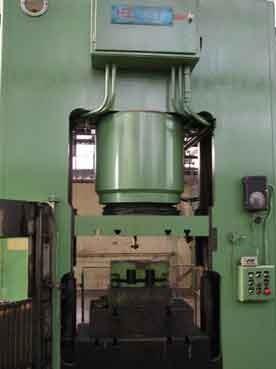

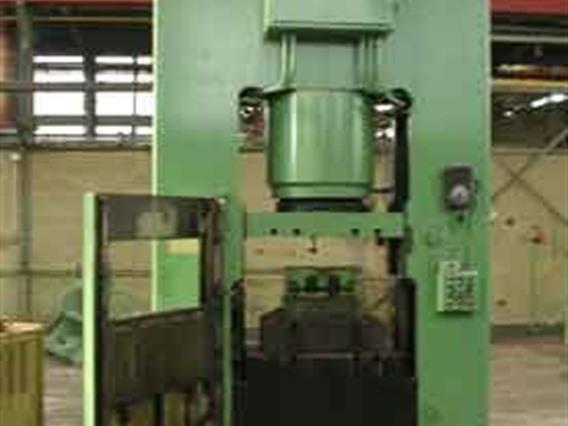

H-frame presses HEC

Technical information

Capacity750 T
Workingspeed5,4 sec
Passage between uprights914 mm
Max distance between table - ram800 mm
Dimensions of the table1016x608 mm
Dia table hole63,5 mm
Tableheight fixed - sliding(2)
dimensions stampdia 507 mm
Adjustable ram / counter-pression102 mm/15 T
Electric motor (power)45 kw (60HP)
Length1750 mm
Depth1850 mm
Height3700 mm
Weight10 200 kg

Additional info

sr 2325 -- Pers voor het slaan van munten, koud slaan, vlakken of persen van stukken in staal of vervormbare geut) la frappe des monnaies (montage à froid, plannage ou calibrage d'estempages en acier ou pièces en fonte malléable.) Coining (cold setting, planoshing or calibrating of steel drop forgings or malleable iron catings) Prägen (kaltverformen, schlichten oder kalibrieren von gesenkschmiedstücken aus stahl oder gusst¨cken aus temperguss)
Type/Model:
Stocknumber: M.04 0652 *04
Main category: [M] Hydraulic presses
Sub category: [M.04] H-frame presses
Brand: HEC

Stocknumber: M.04 0652 *04
