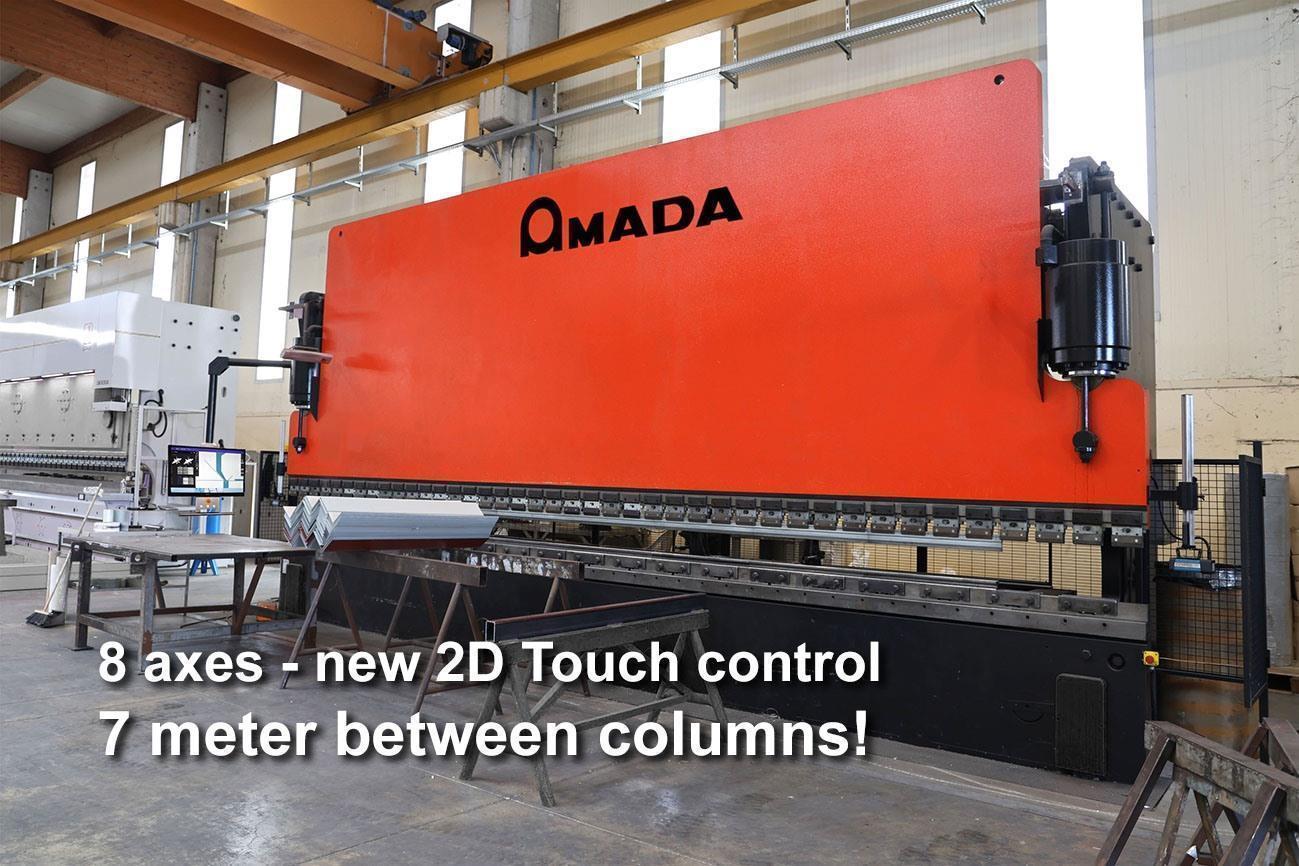

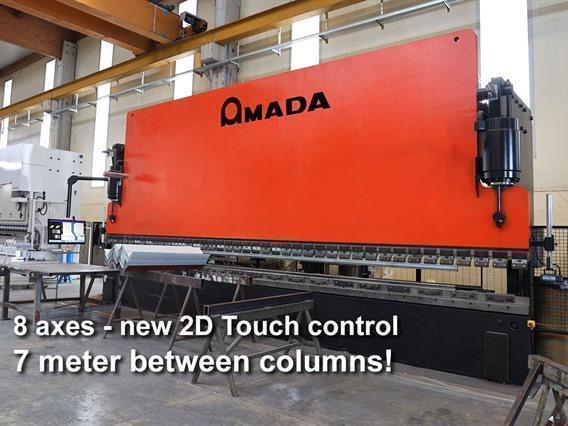

Hydraulic pressbrakes Amada HFBO 630 ton x 8100 mm CNC

Name: Amada HFBO 630 ton x 8100 mm CNC
Brand: Amada HFBO
SKU: O.01 15918

Product added to your favorites

» Request a personalised quote

Technical information

Capacity630 ton x 8100 mm
Backgaugeheavy duty CNC
Control2D Touch
Passage between uprights7210 mm
Max stroke350 mm
Max distance between table -- ram650 mm
Depth of throat400 mm
Table width350 mm
Locking speed70 mm/sec
Working speed8 mm/sec
Returning speed50 mm/sec
Electric motor (power)47 kW
Power needed380V
Length8300 mm
Depth2600 mm
Height4400 mm
Weight90 ton

Additional info

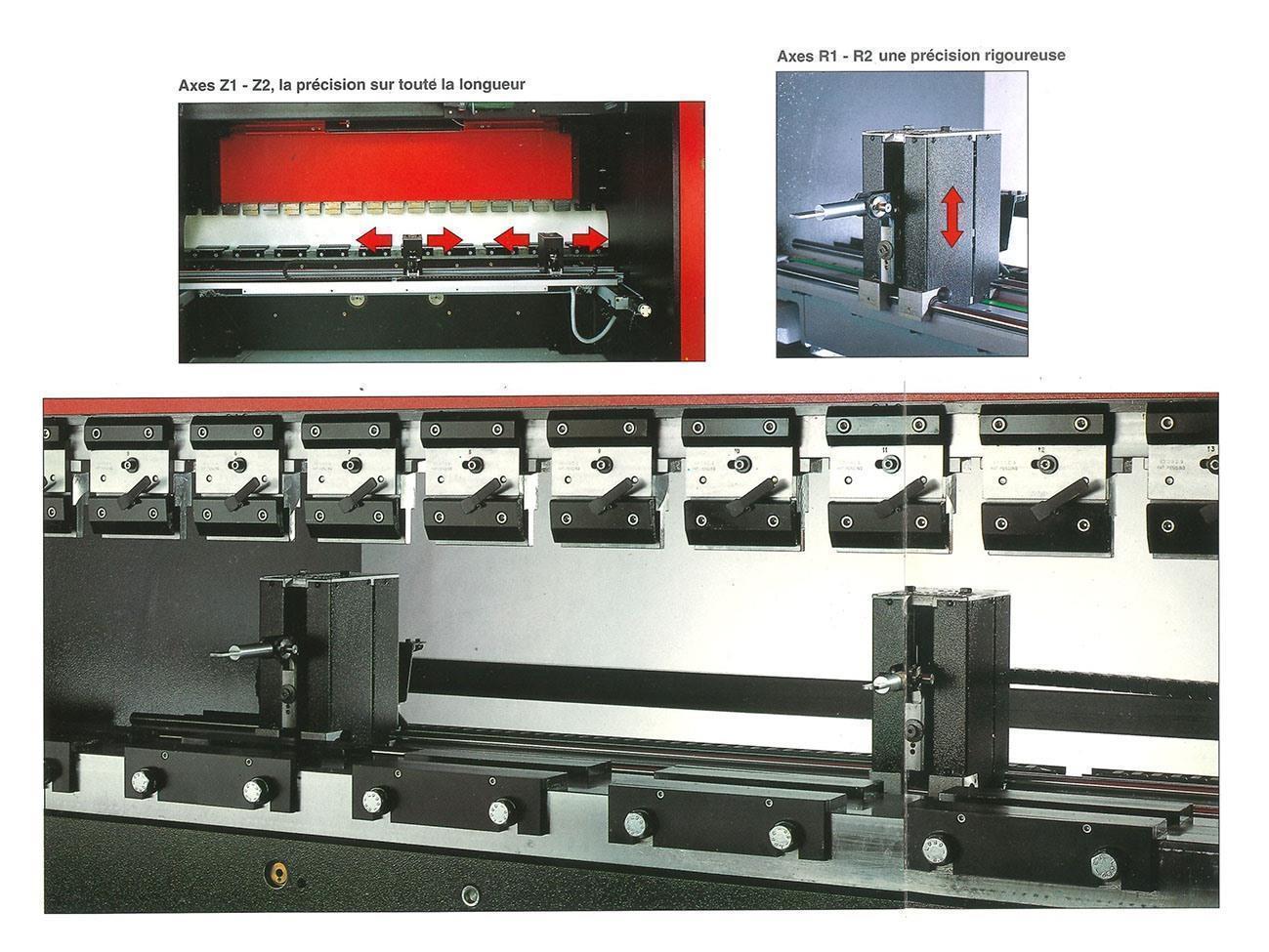

- 8 axes: Y1 / Y2 / X / R1 / R2 / Z1 / Z2 / V

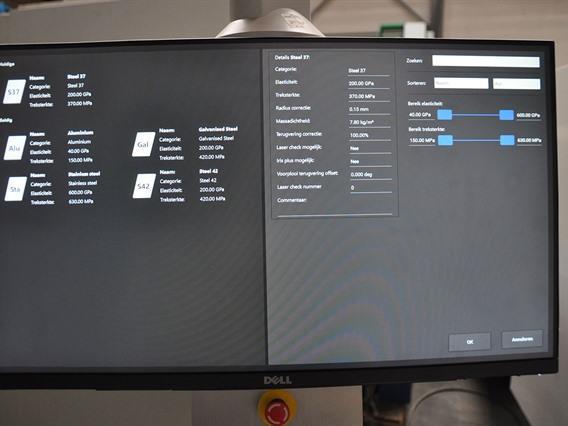

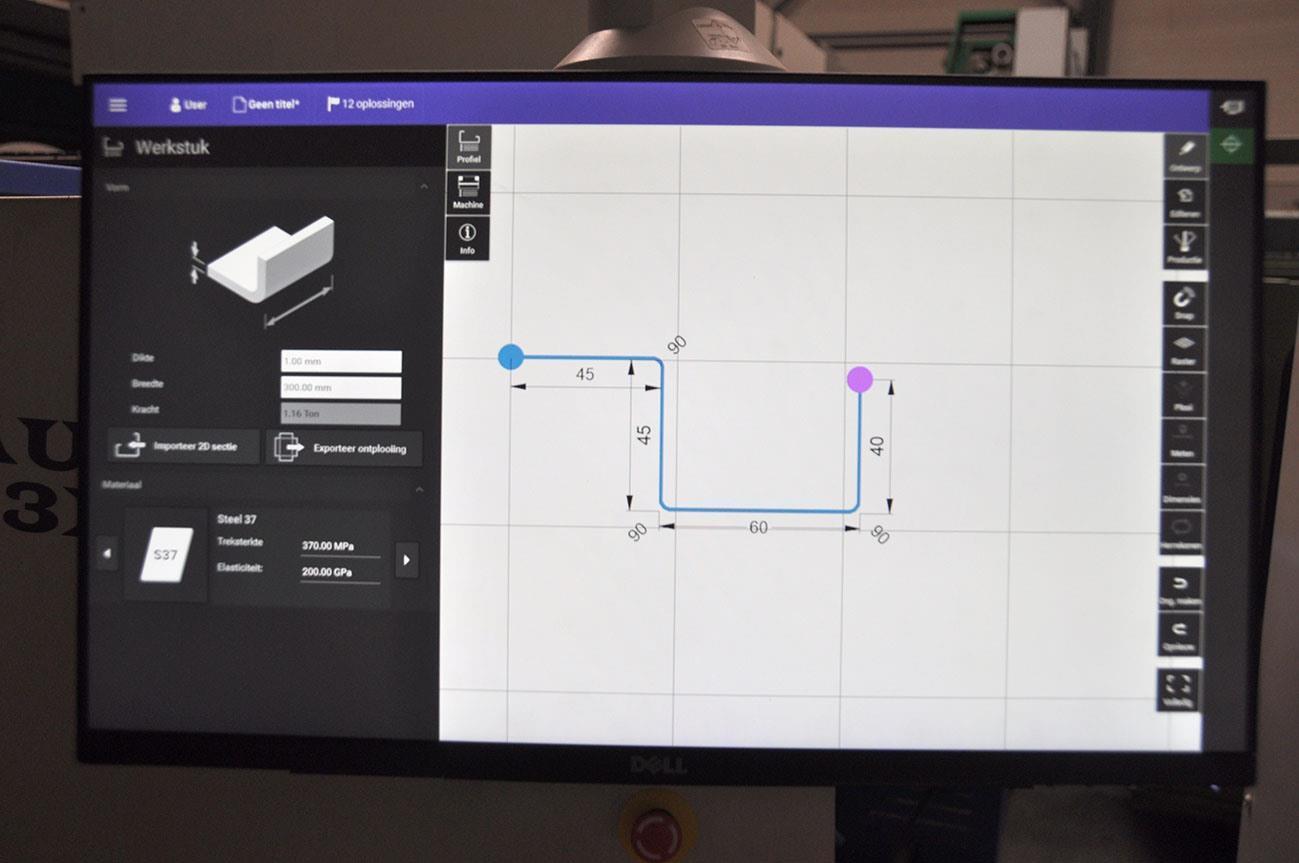

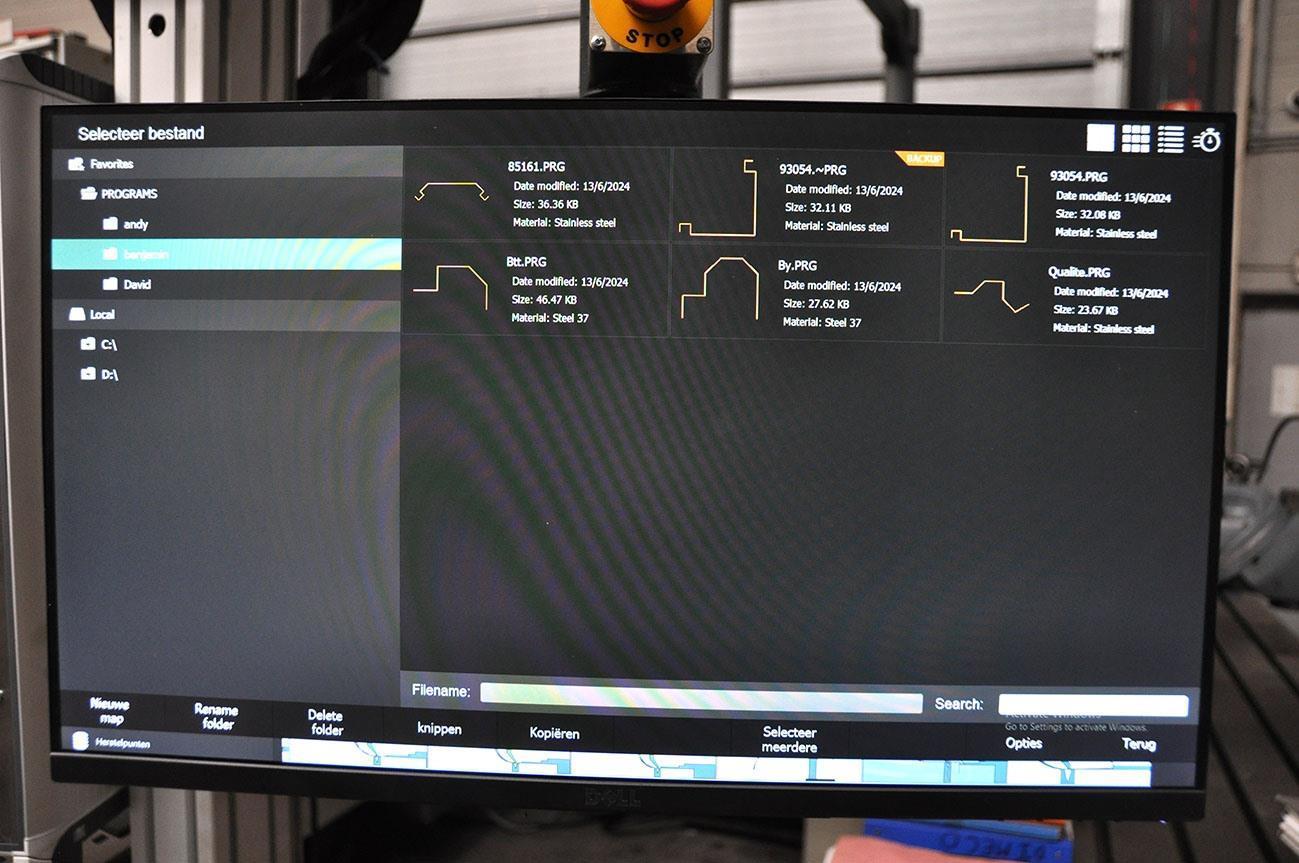

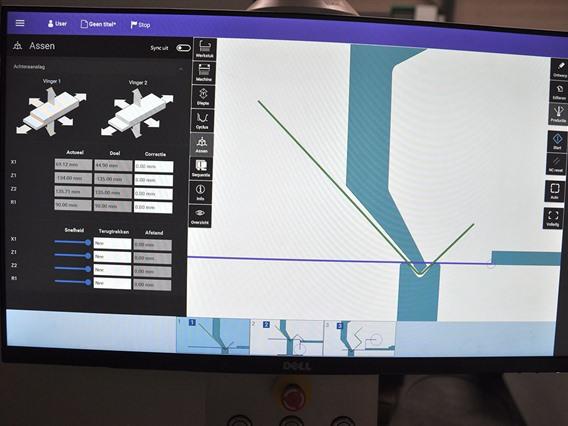

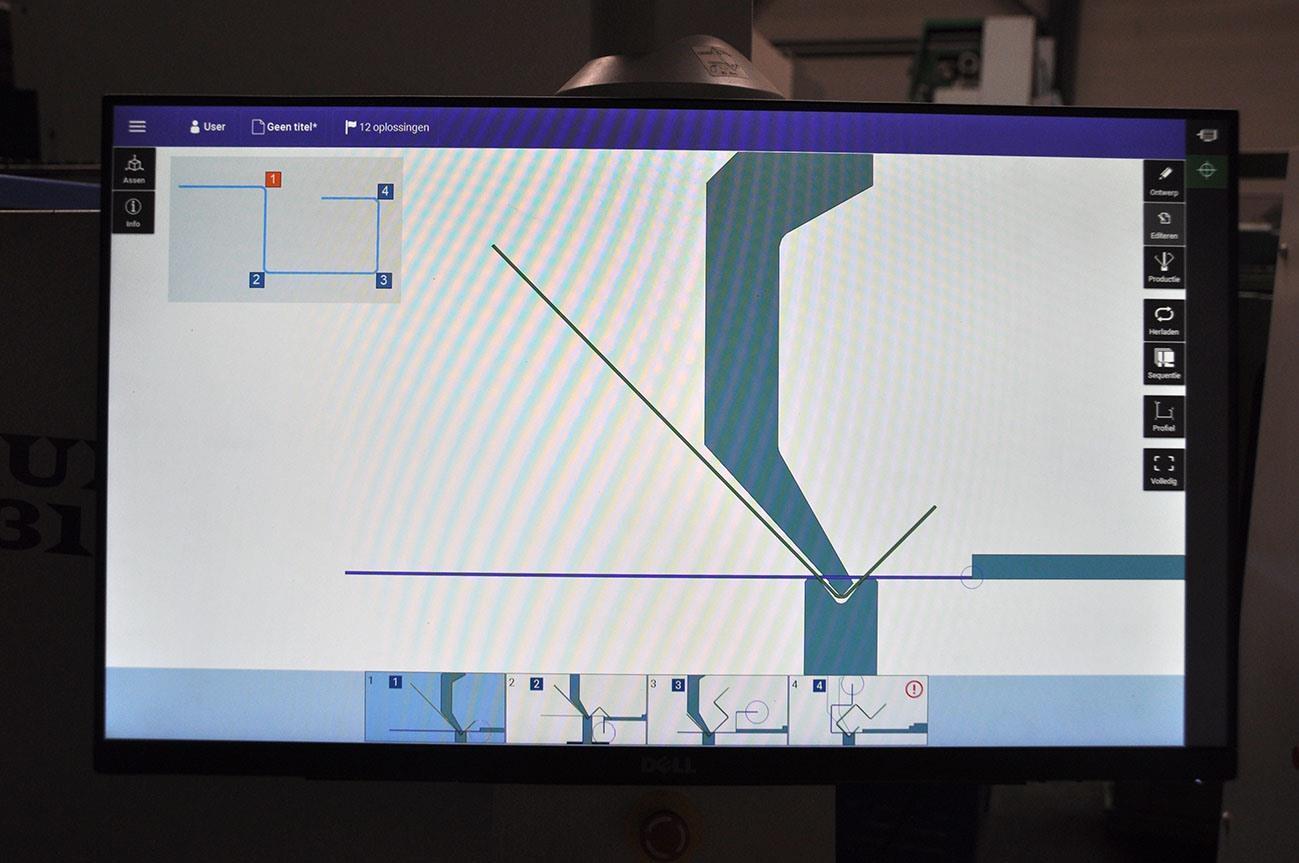

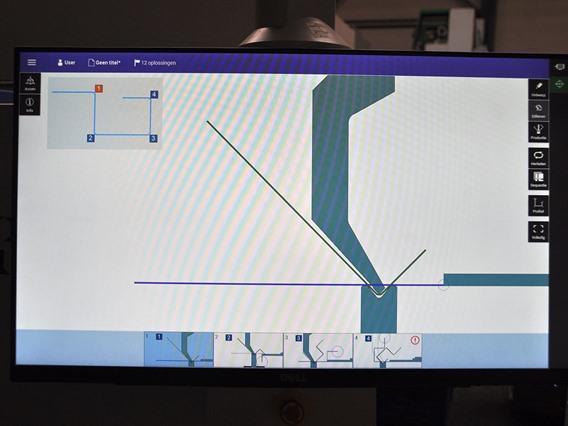

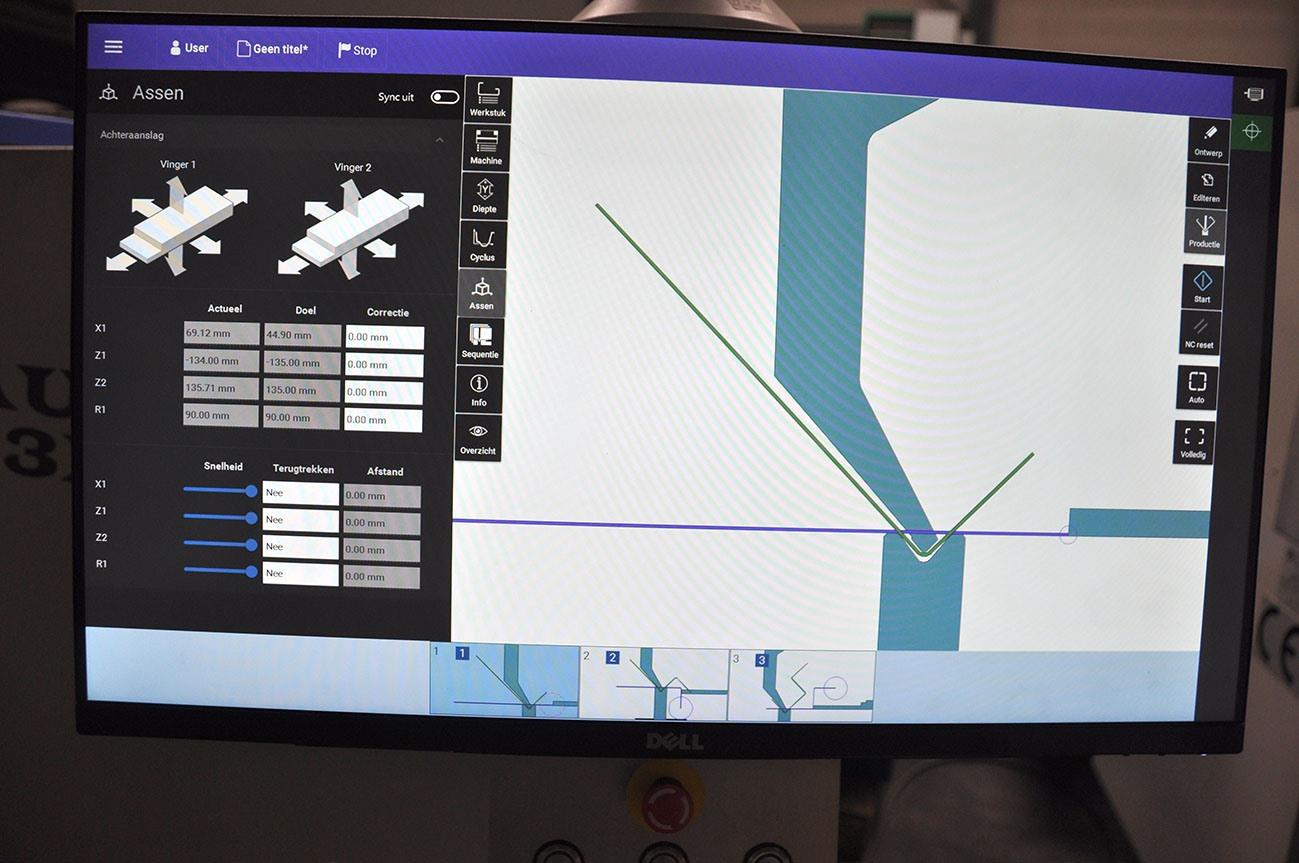

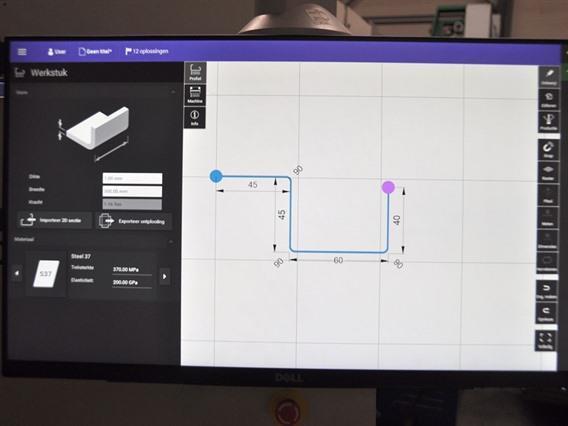

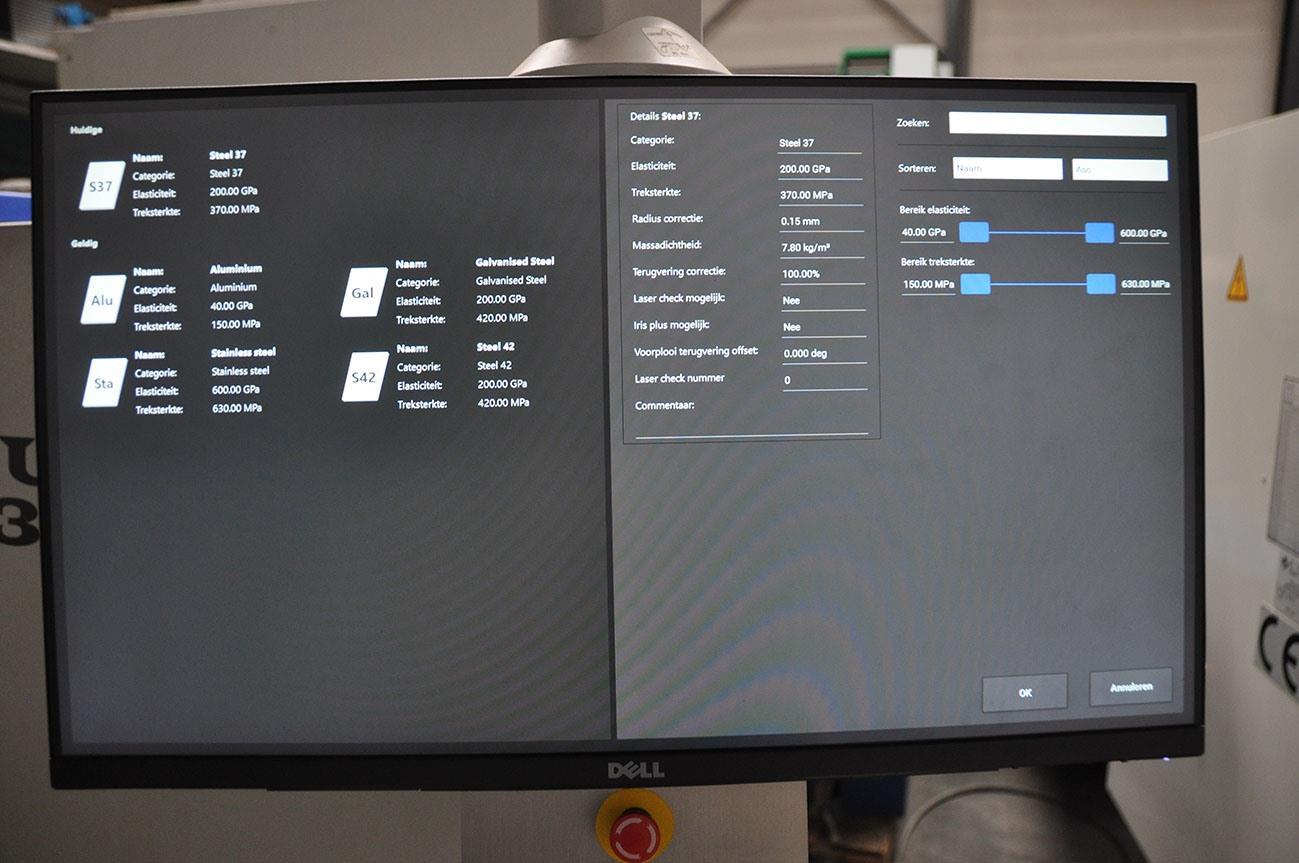

- new 2D Touch graphic controls
- heavy backstop

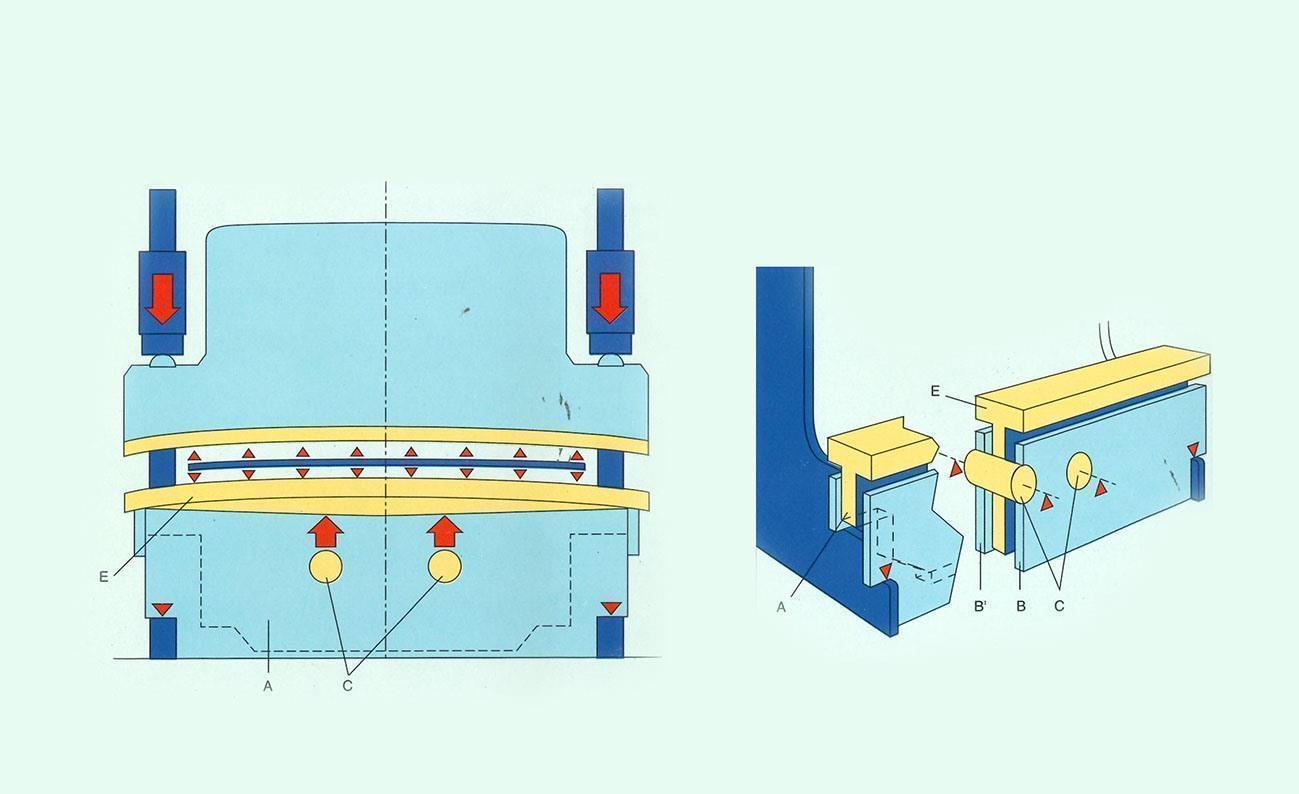

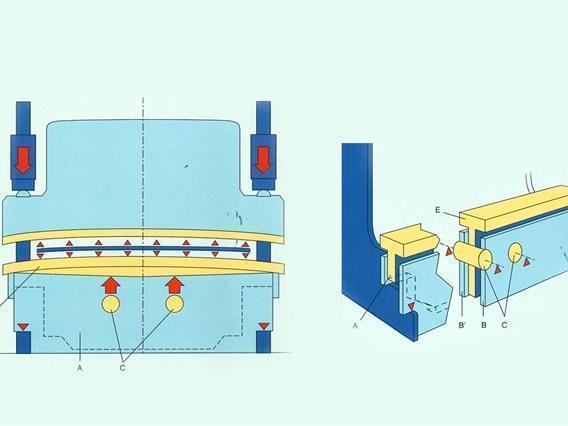

- Amada bombing system (V)
- new laser security system
Machine can be dismantled into parts, can be transported in containers
Type/Model: 630 ton x 8100 mm CNC
Stocknumber: O.01 15918
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.01] Hydraulic pressbrakes
Brand: Amada HFBO
