Industries/Complete plants & factories for sale Jensen Sandwich panel line for sectional gates
Additional info

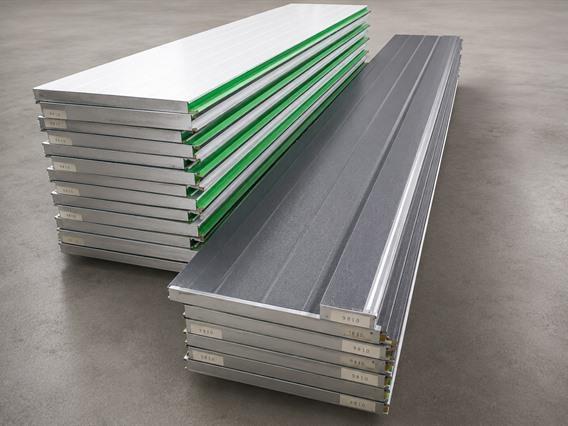

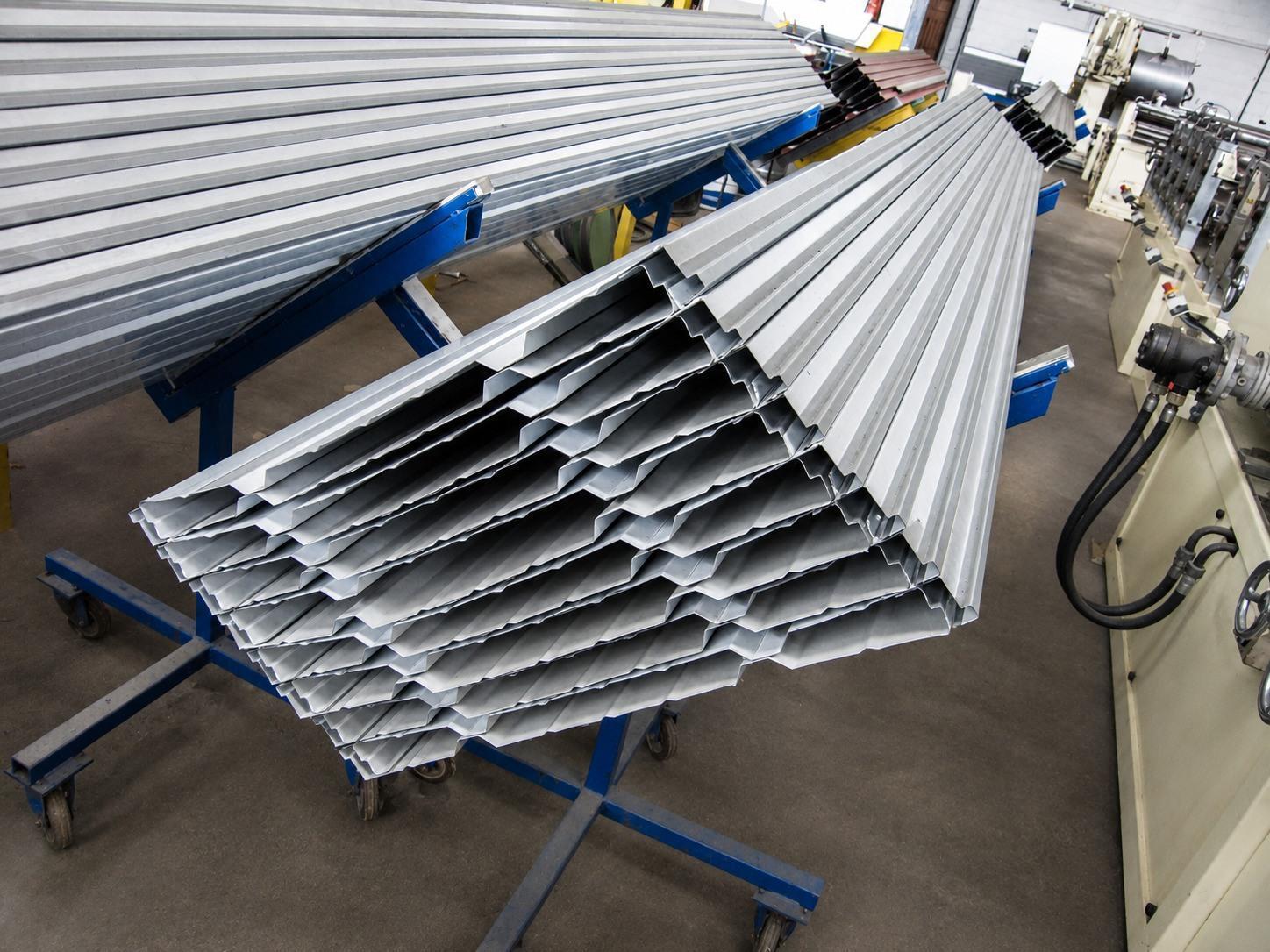

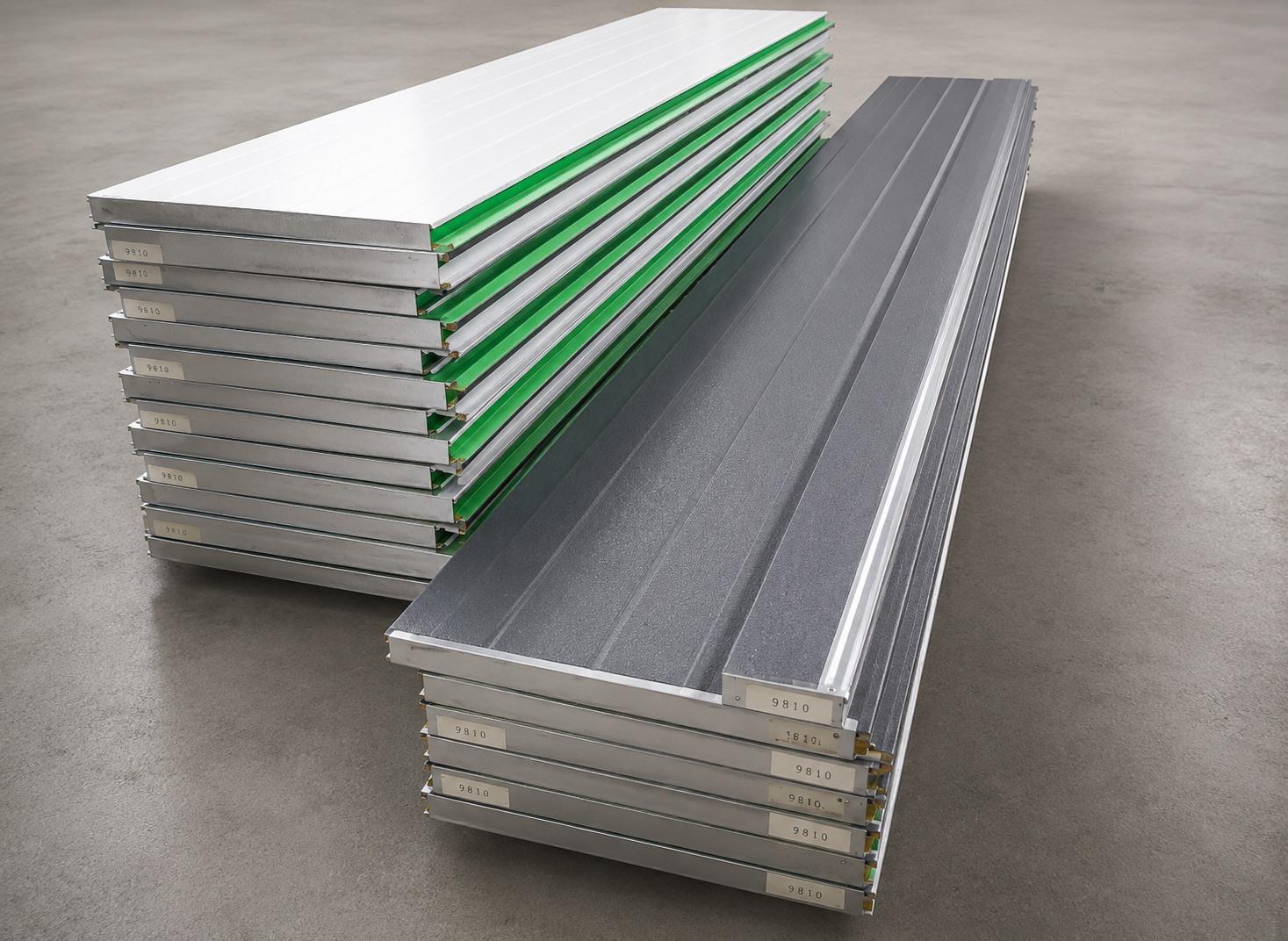

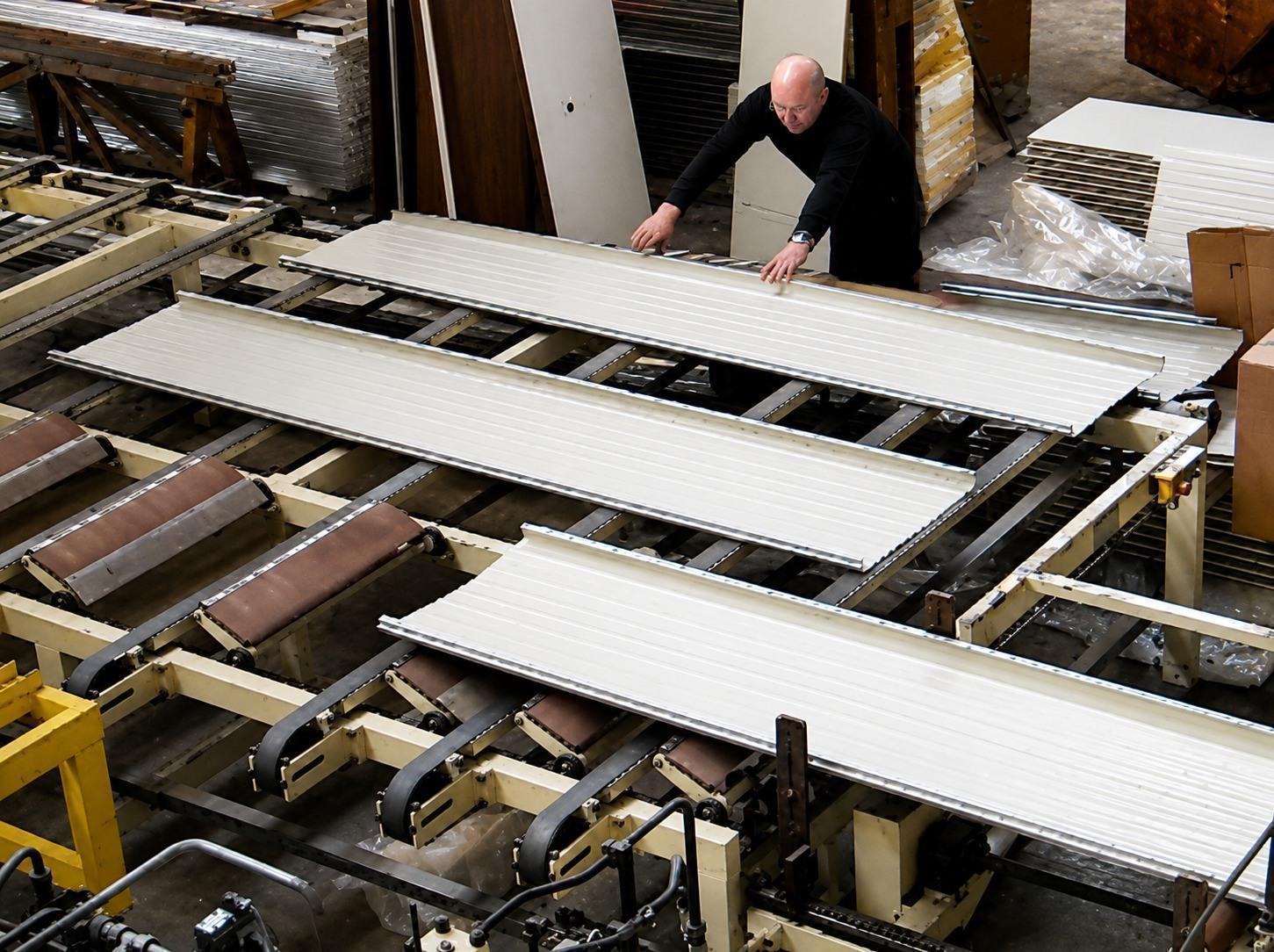

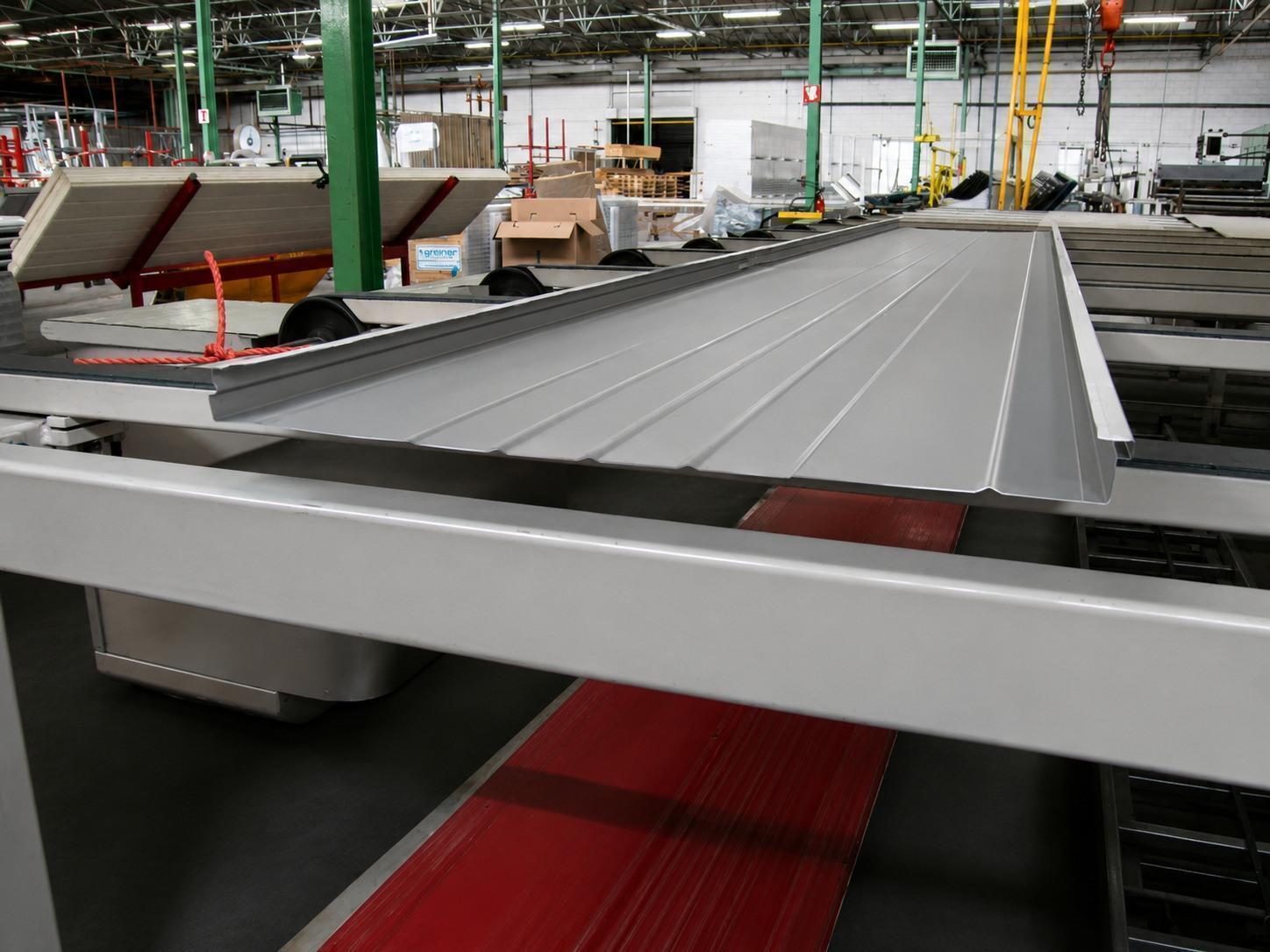

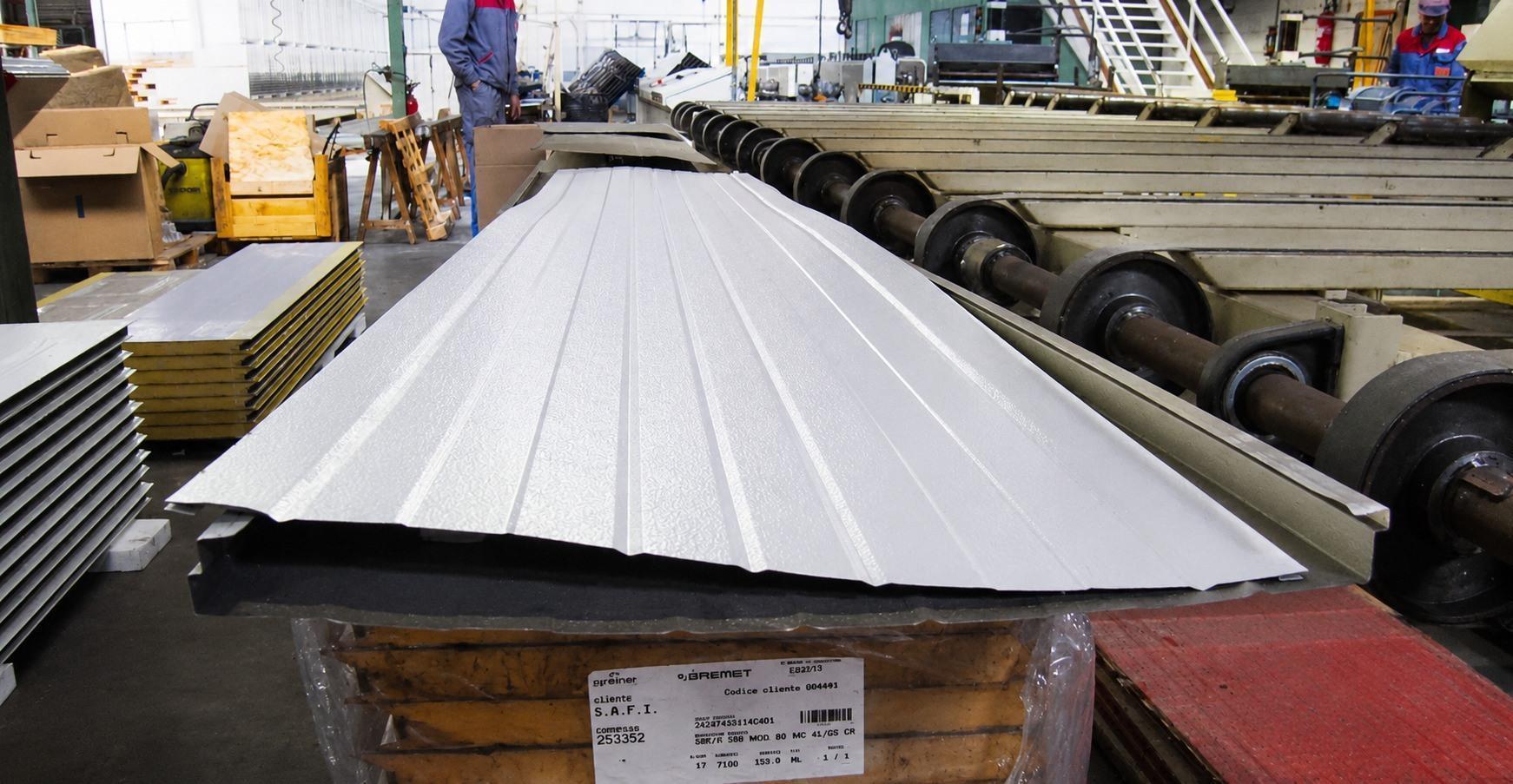

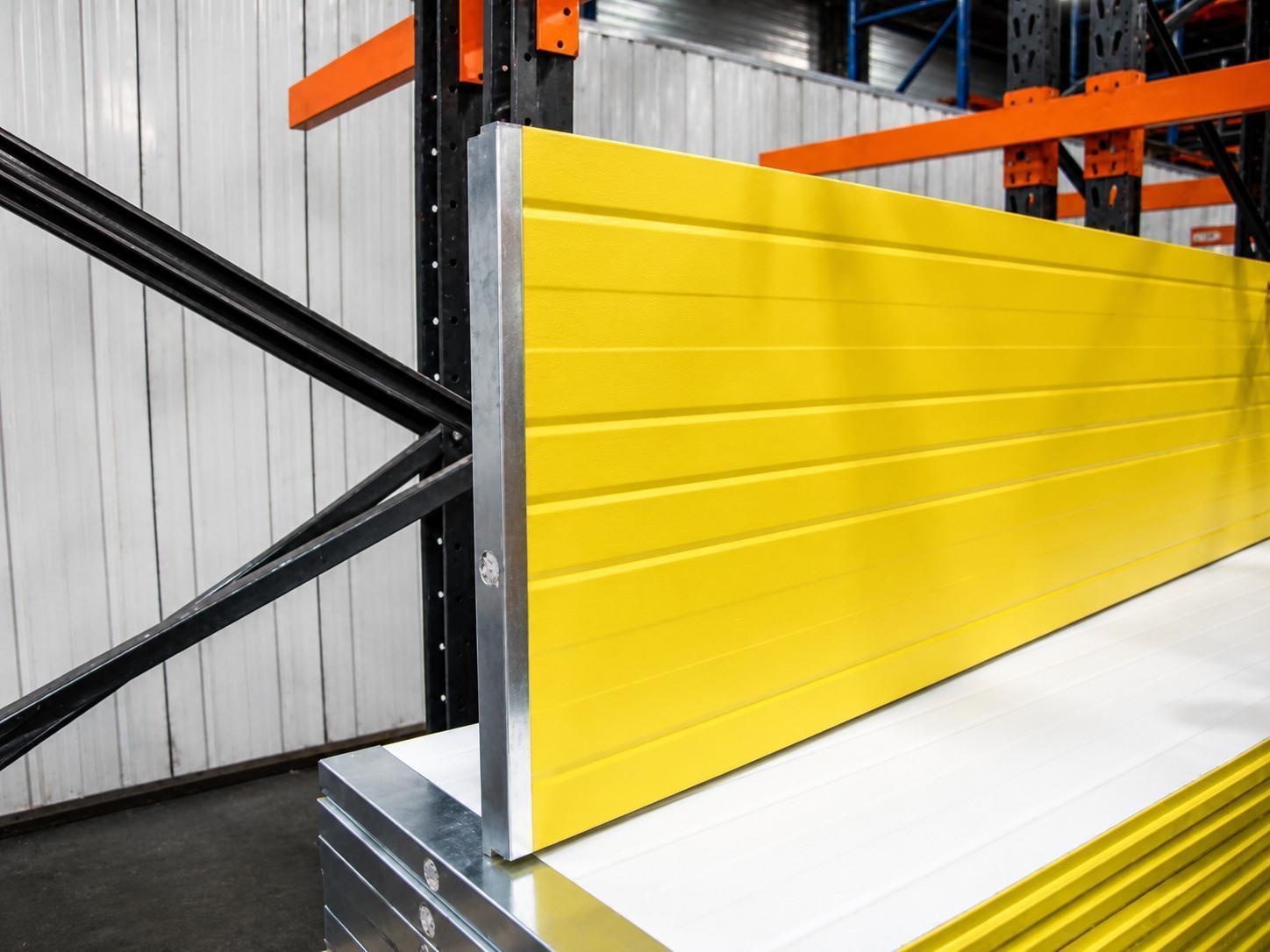

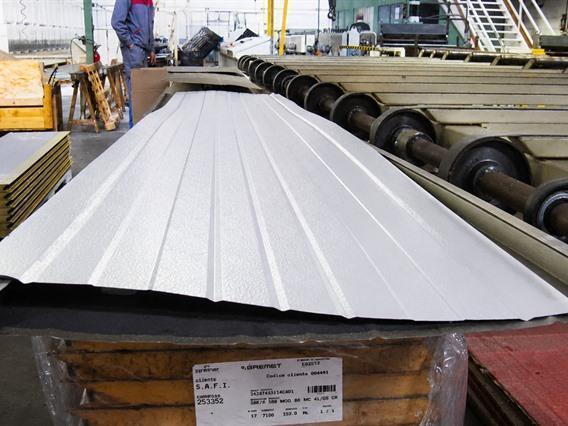

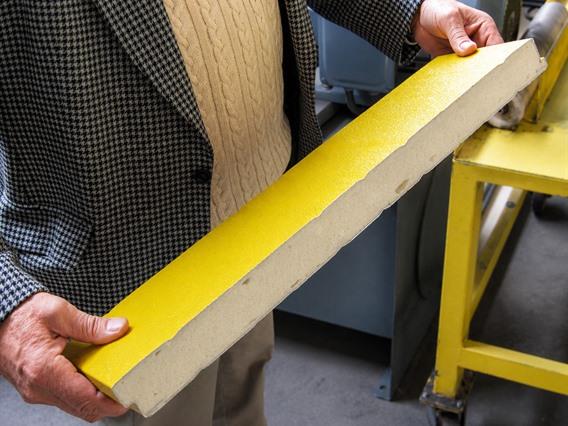

Production line for manufacturing sandwich panels for industrial sectional doors.
The line consists of the following equipment:

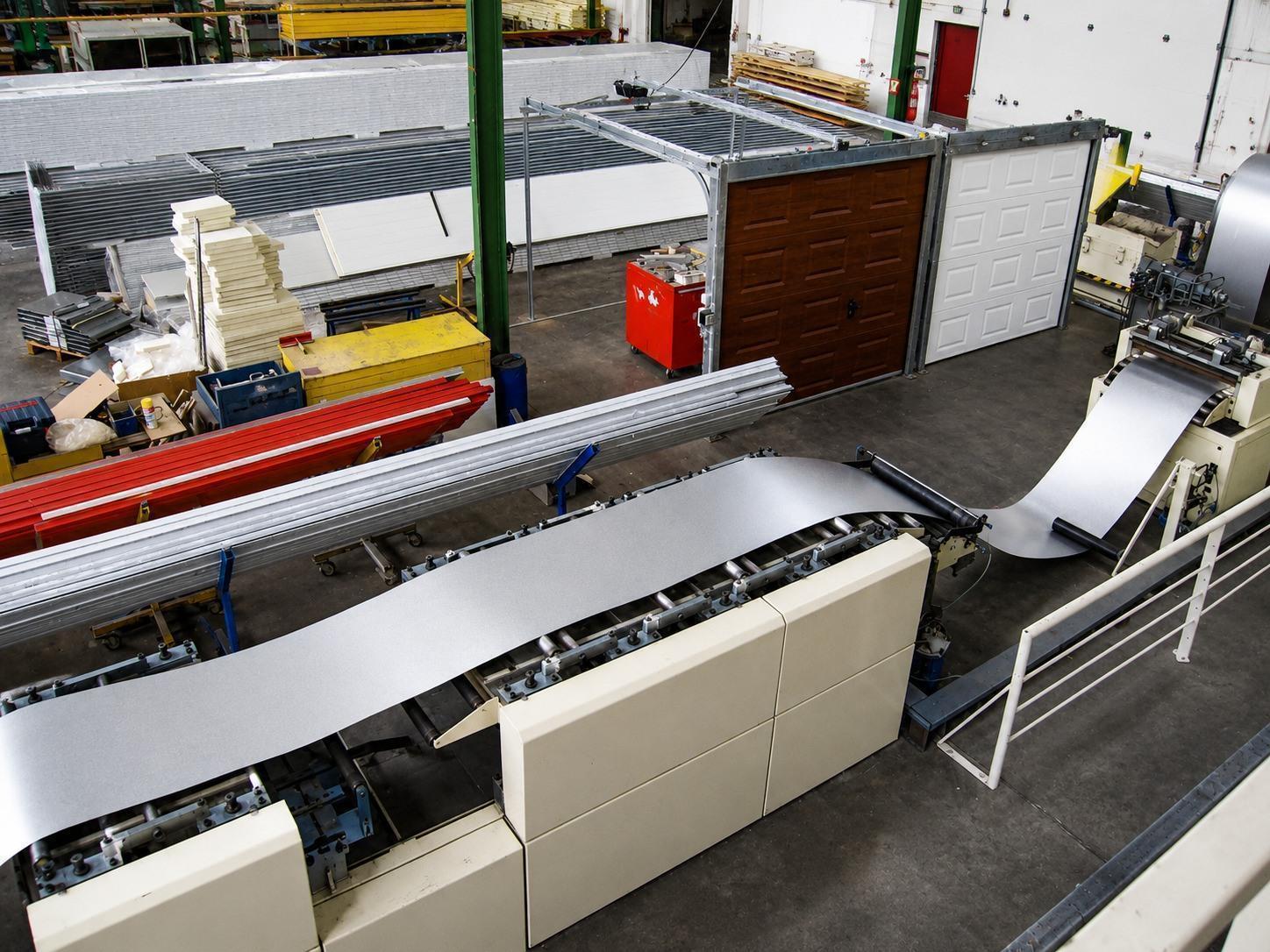

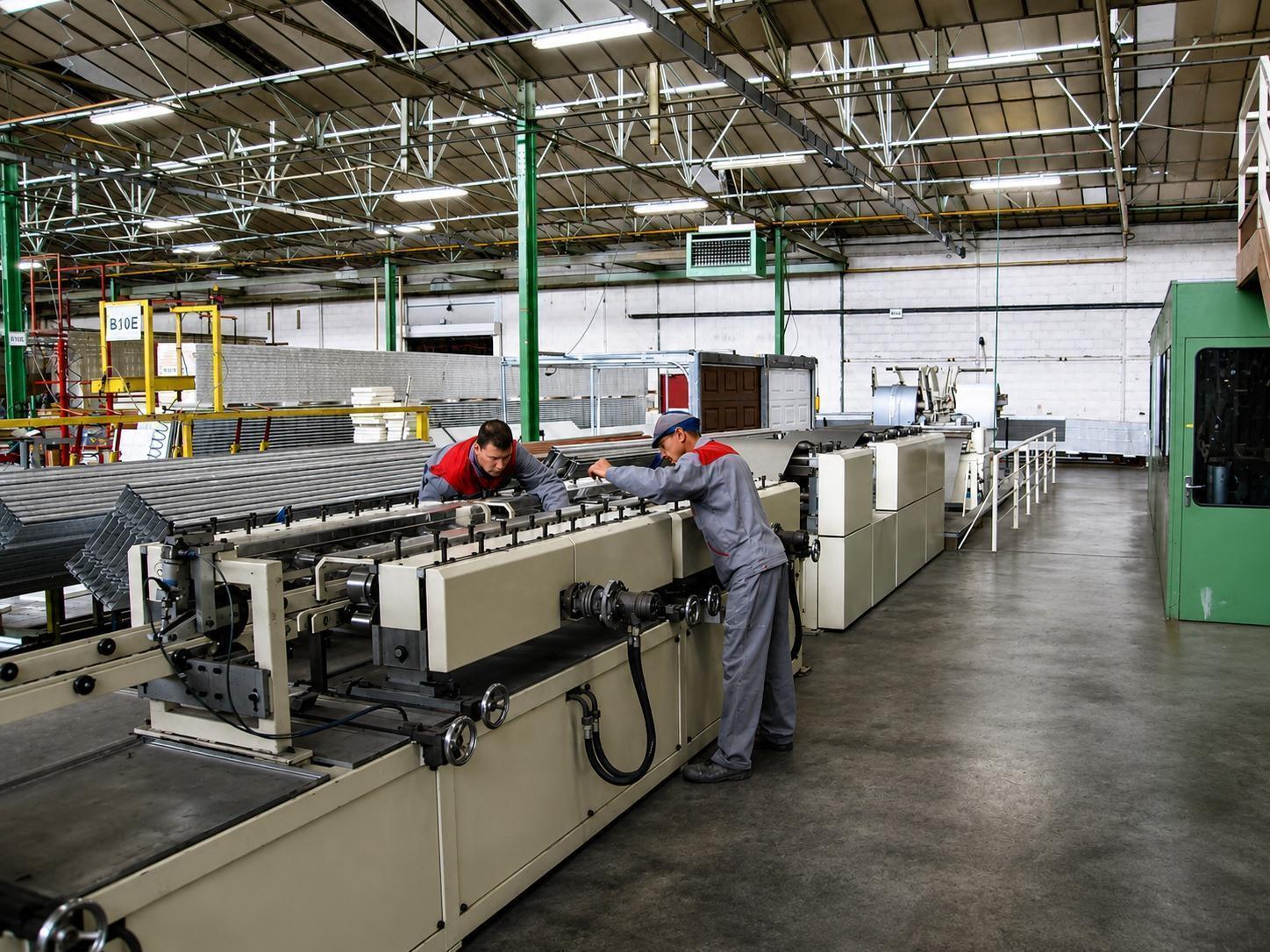

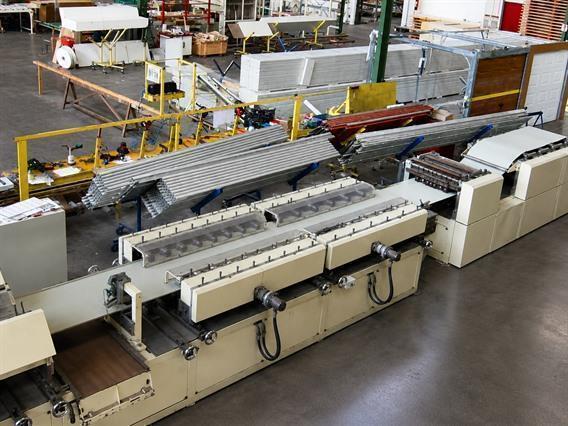

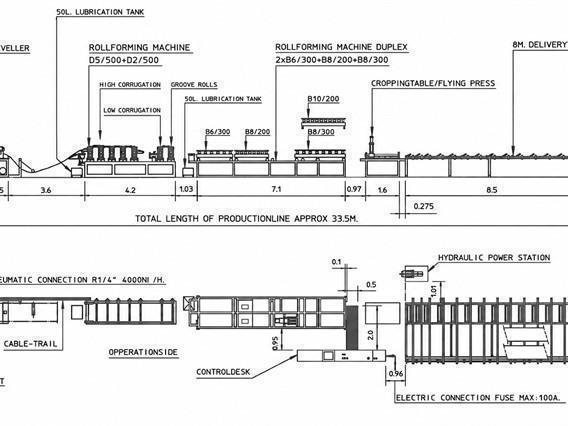

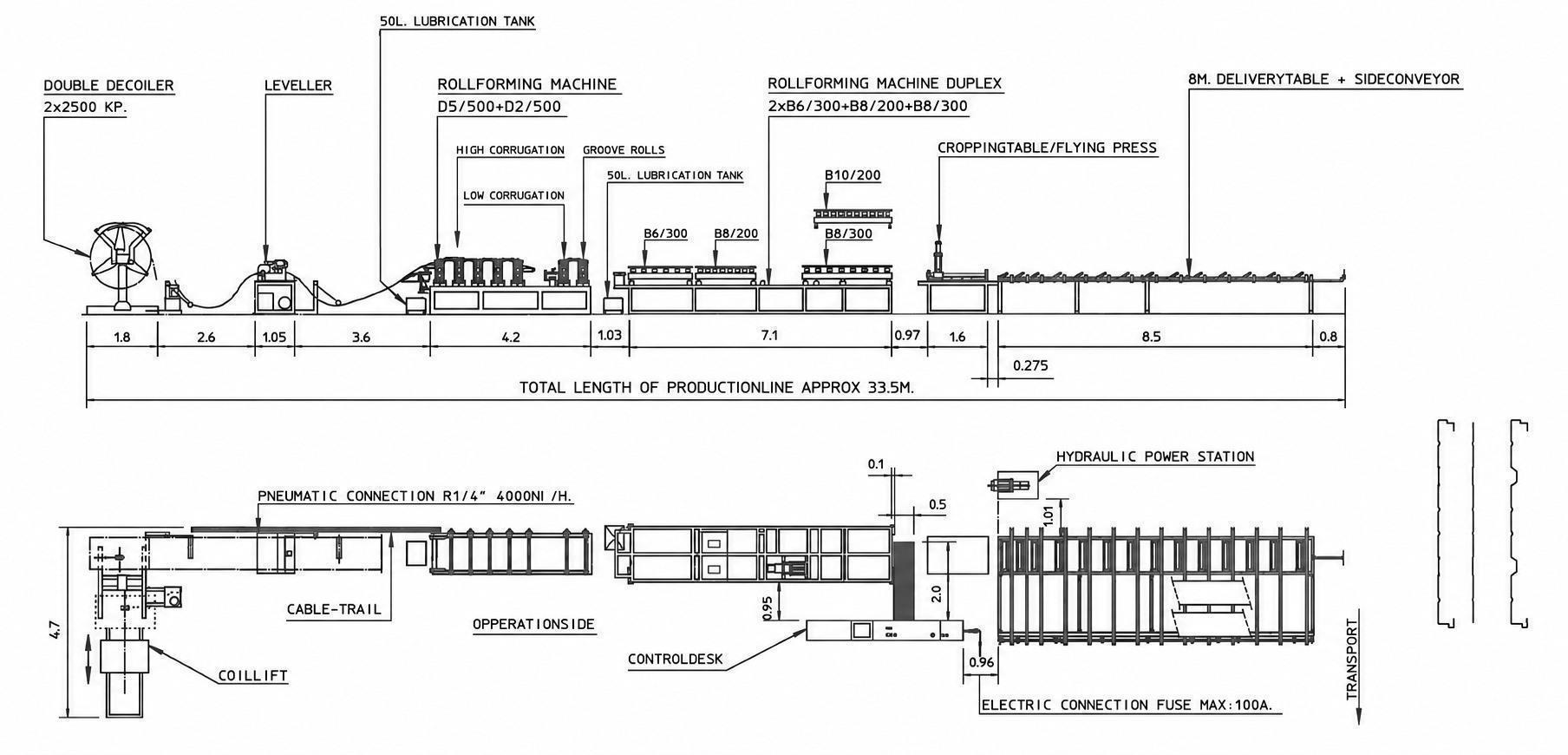

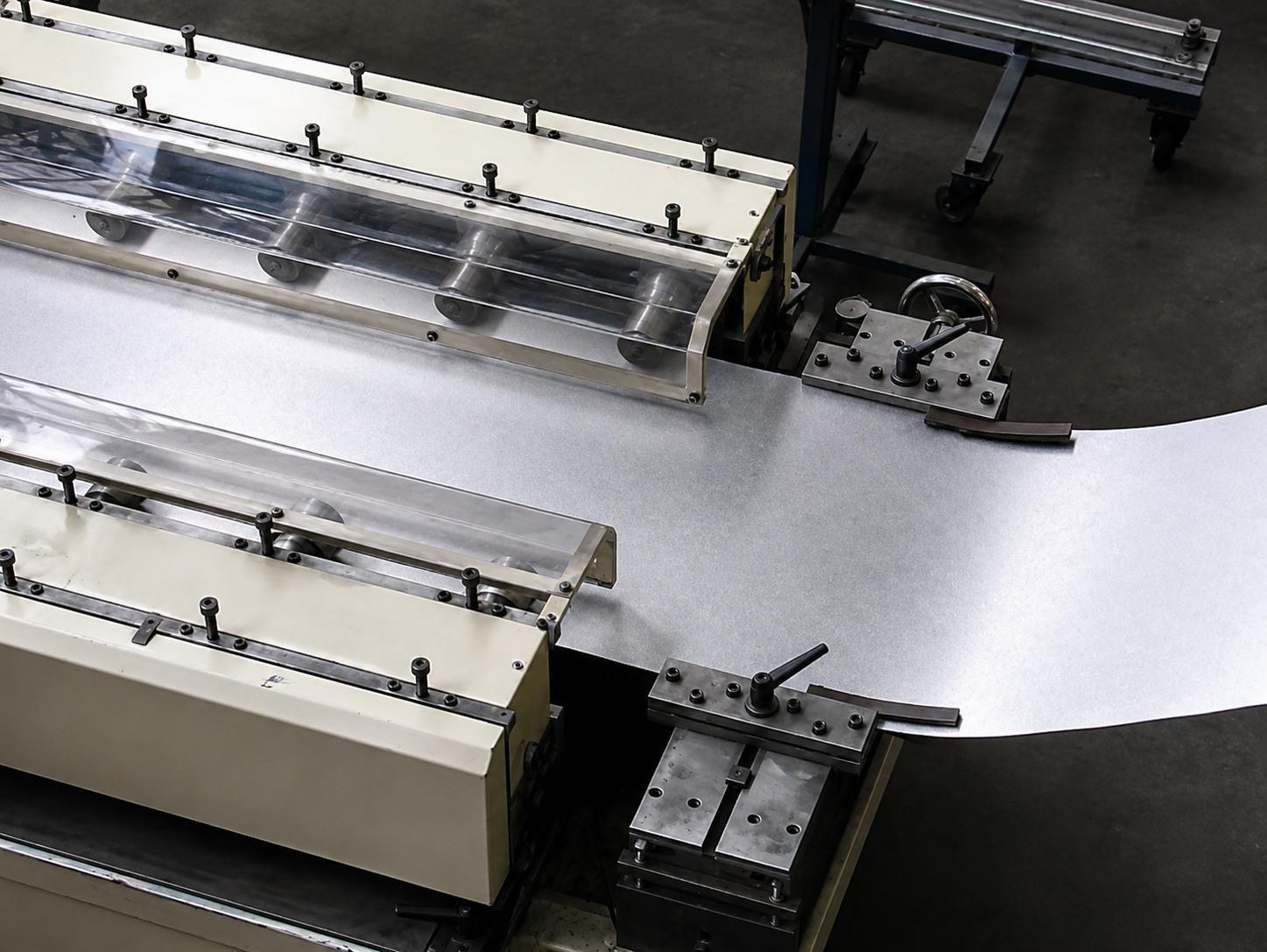

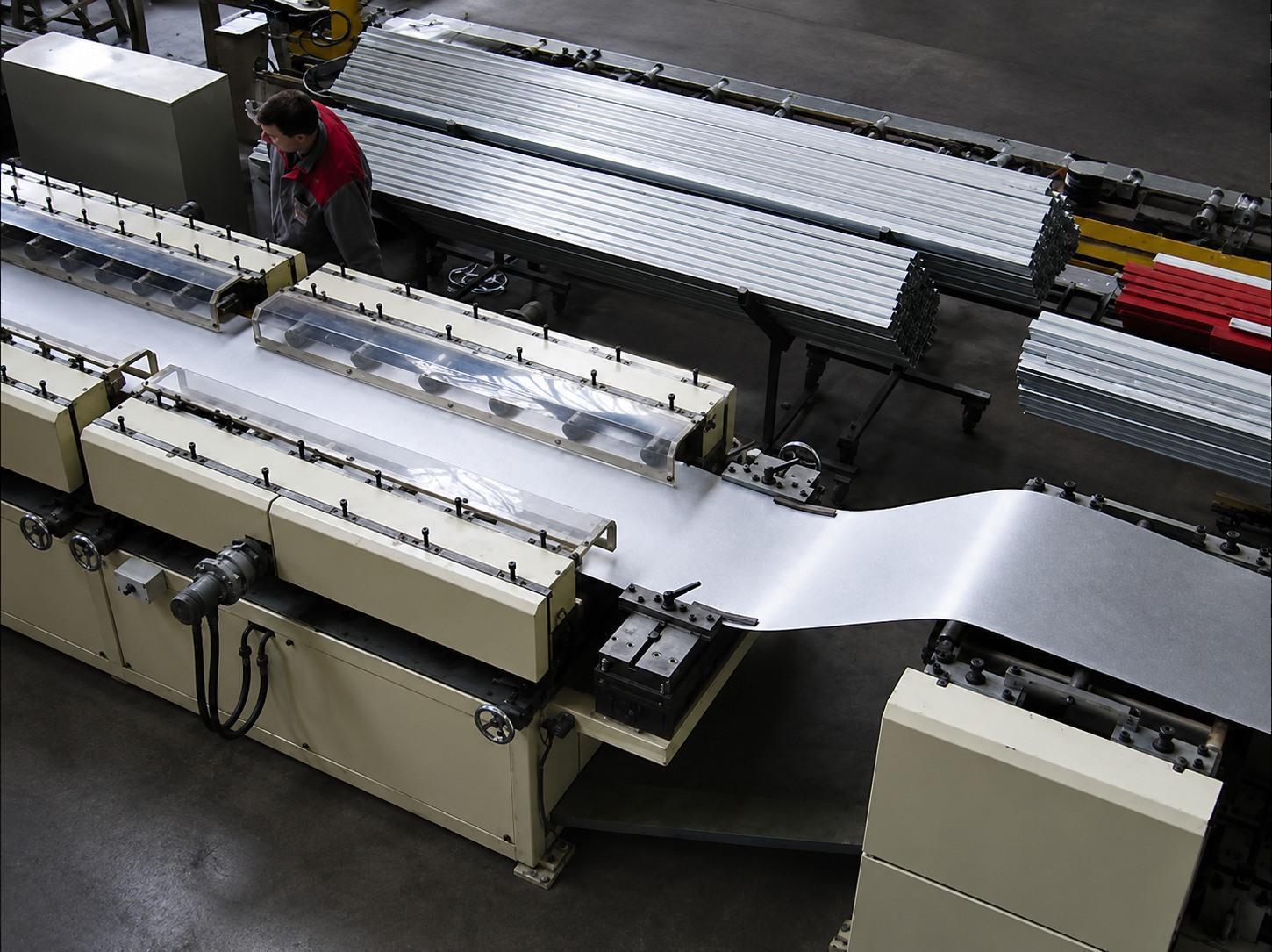

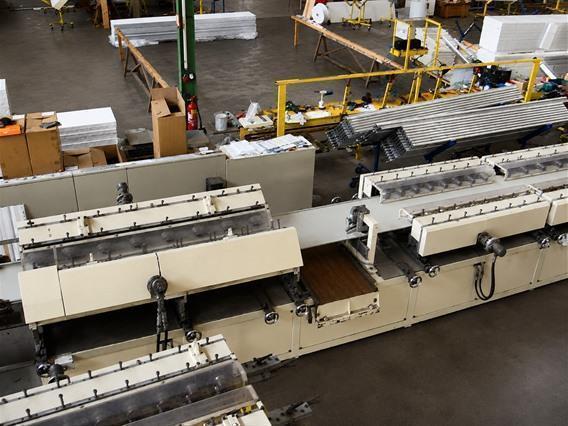

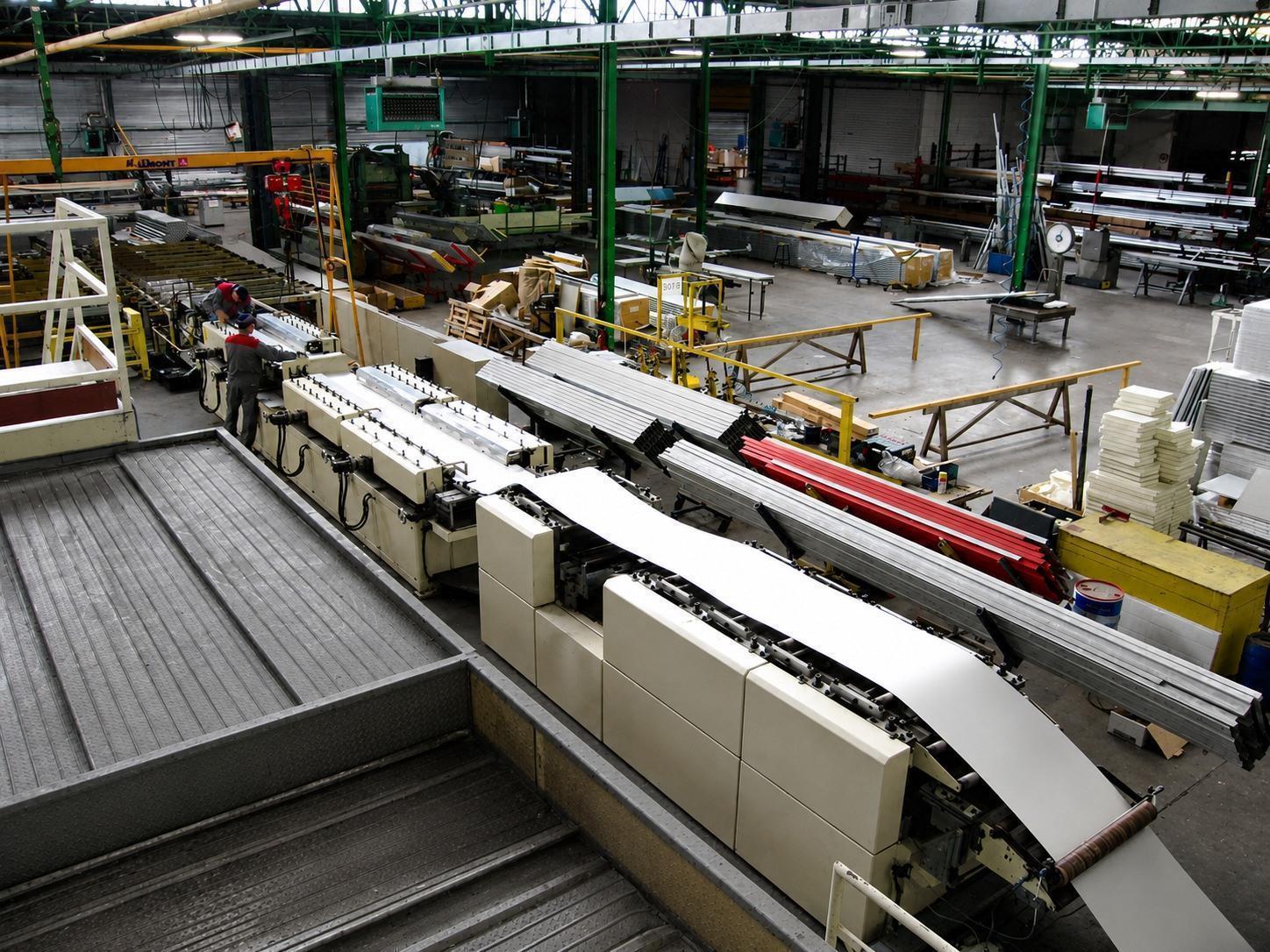

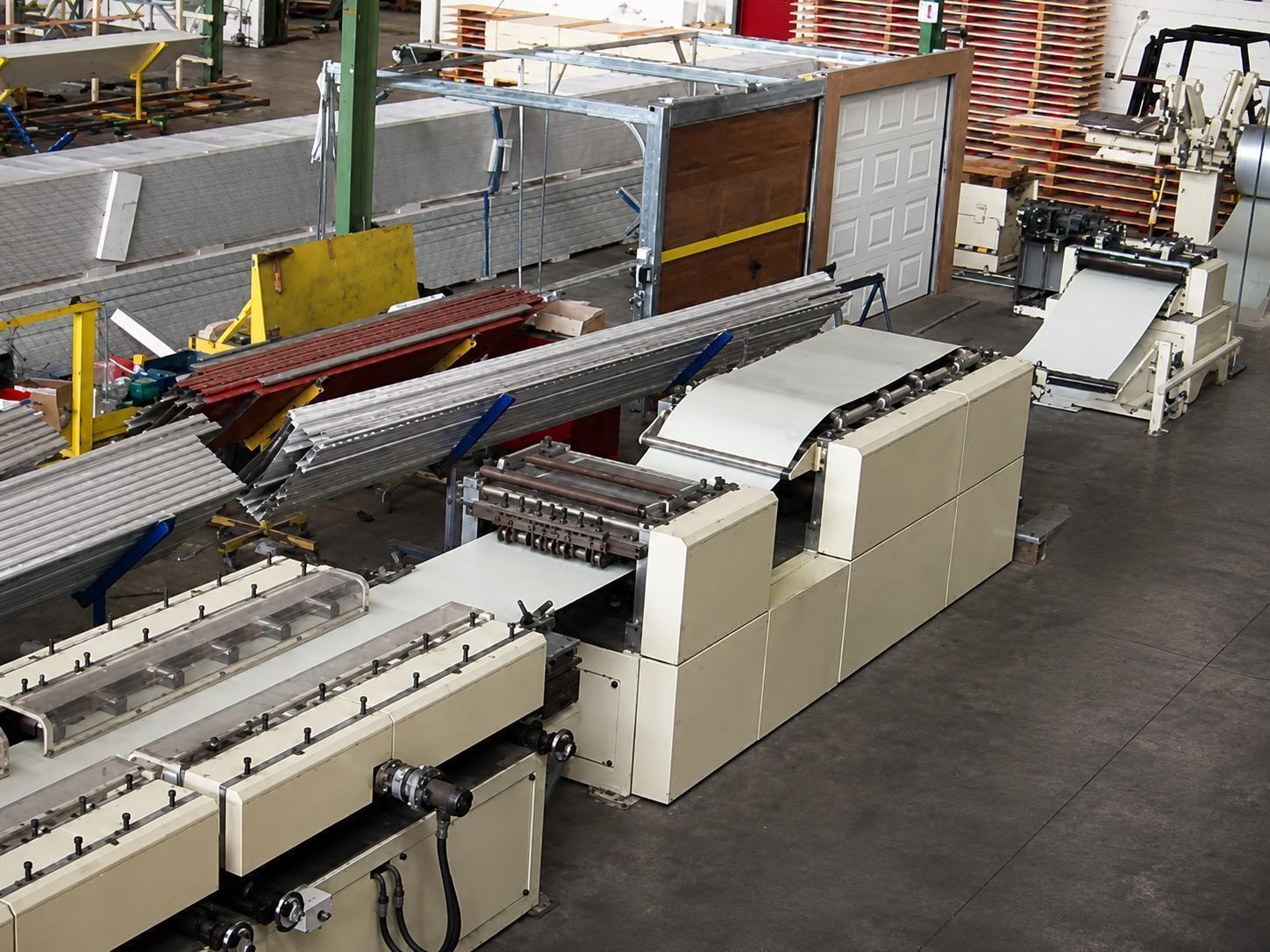

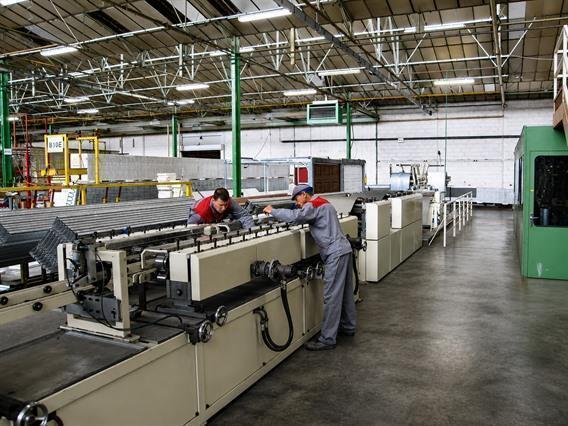

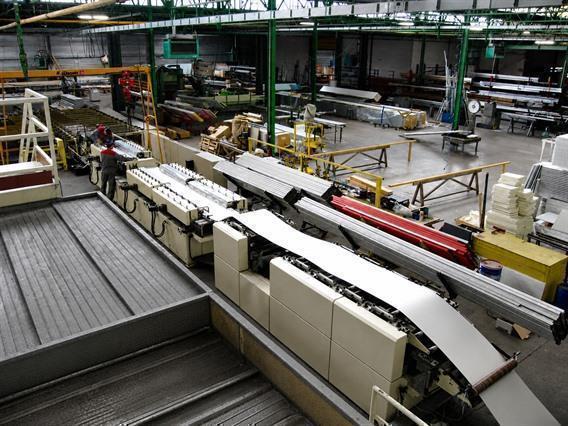

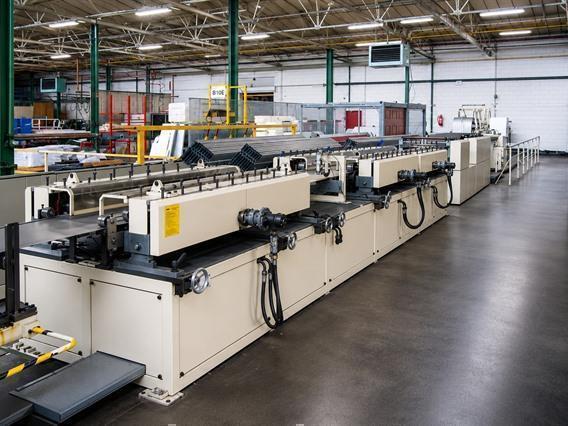

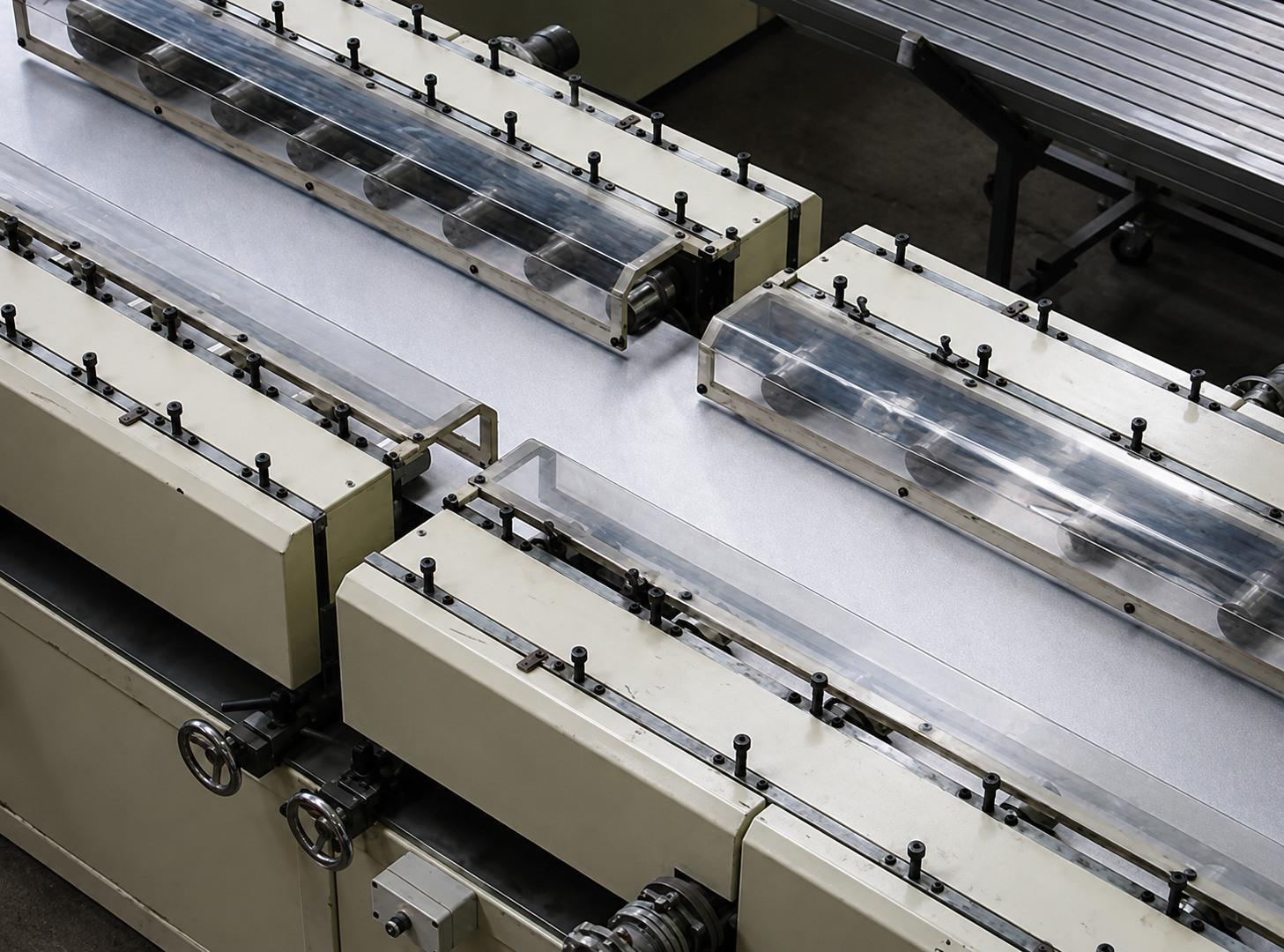

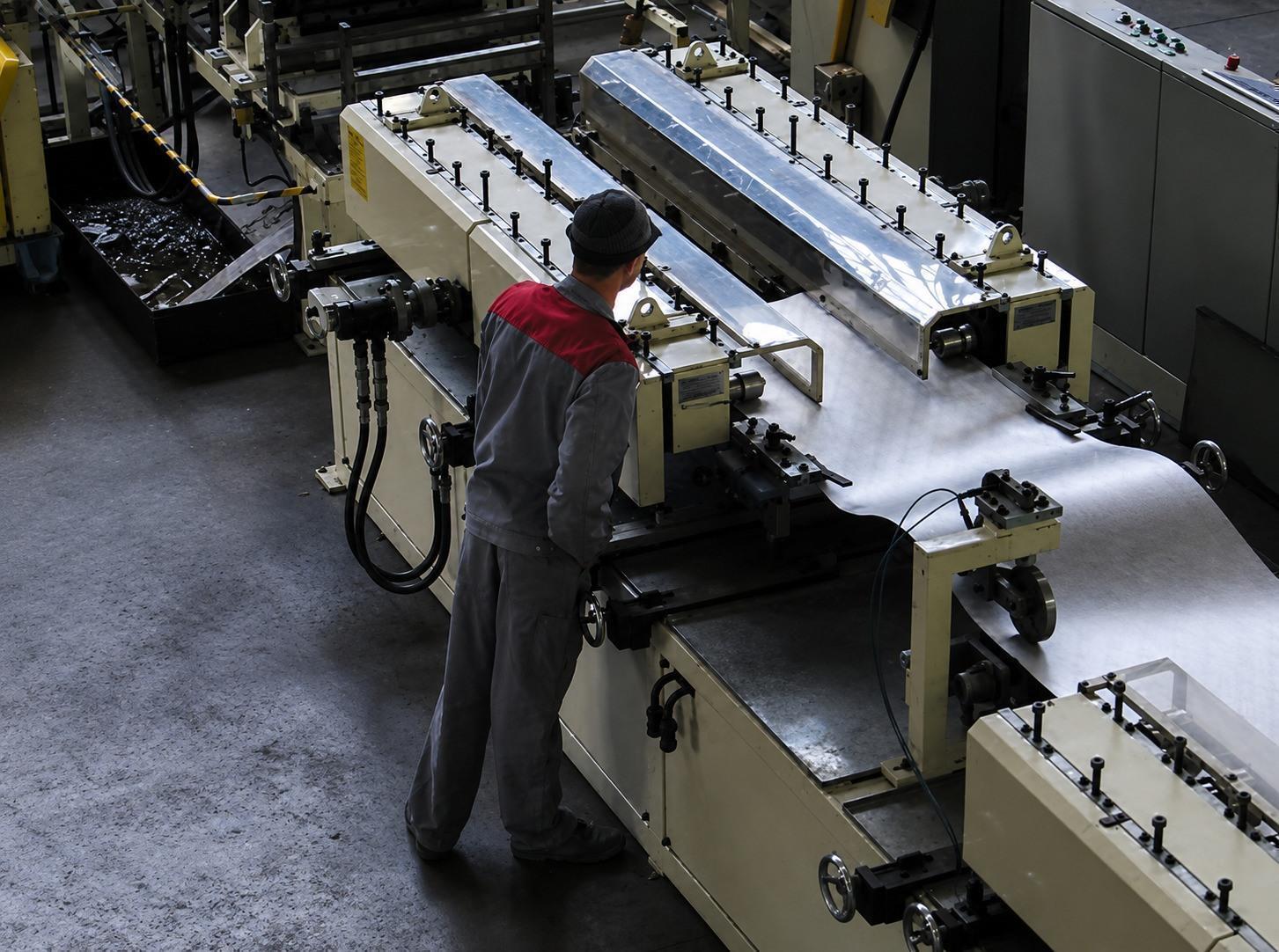

1. JENSEN Roll Forming Line

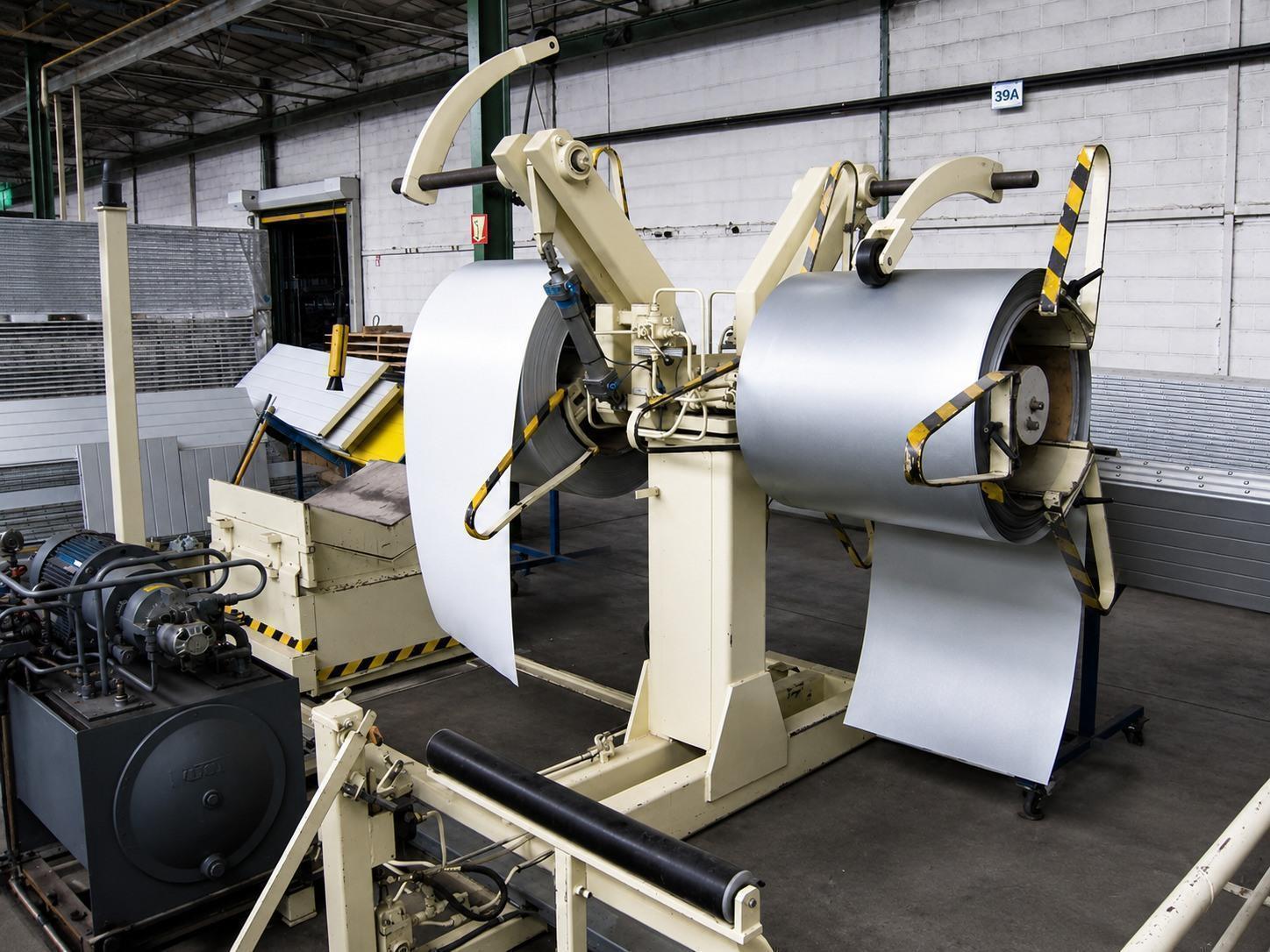

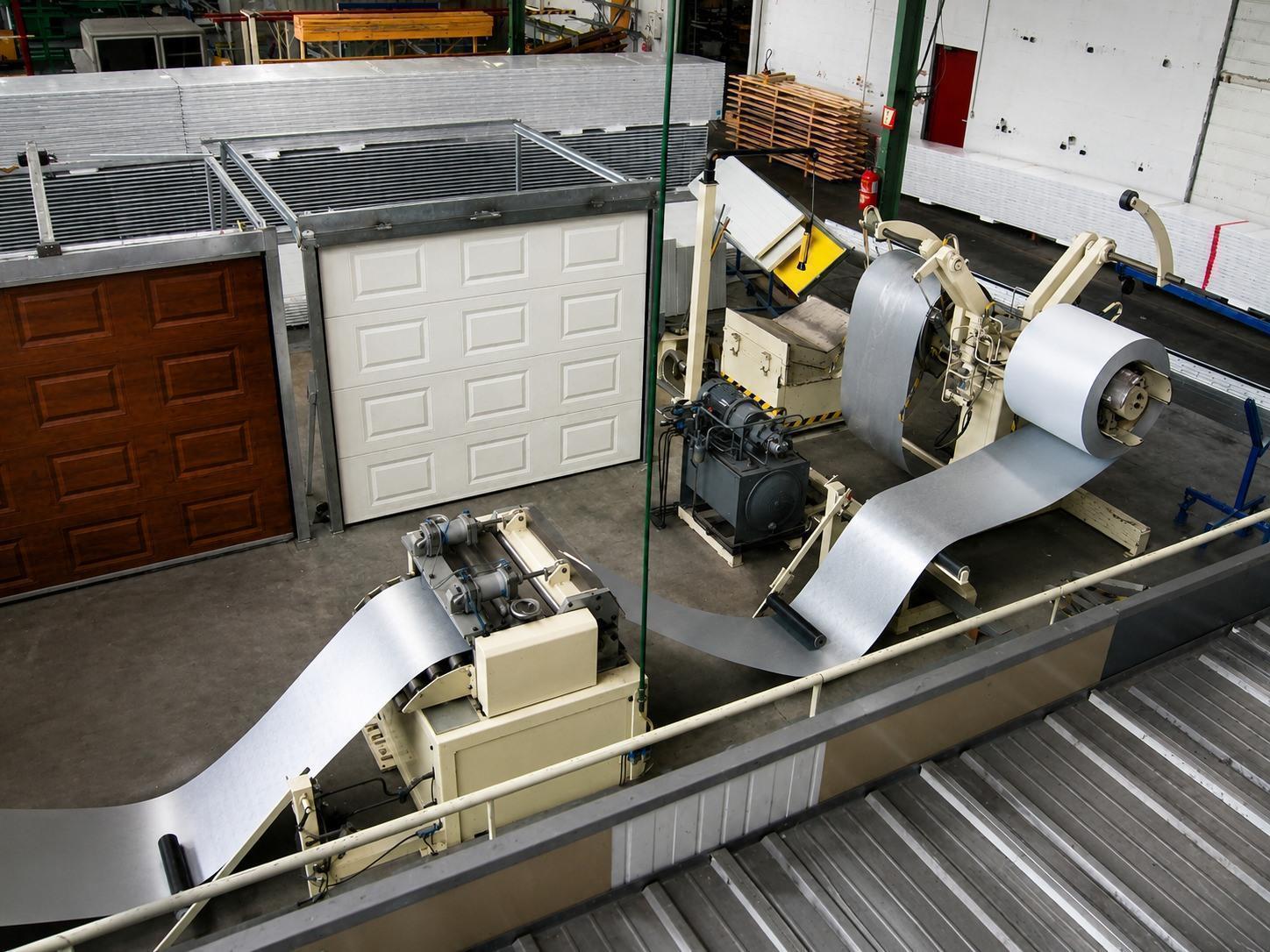

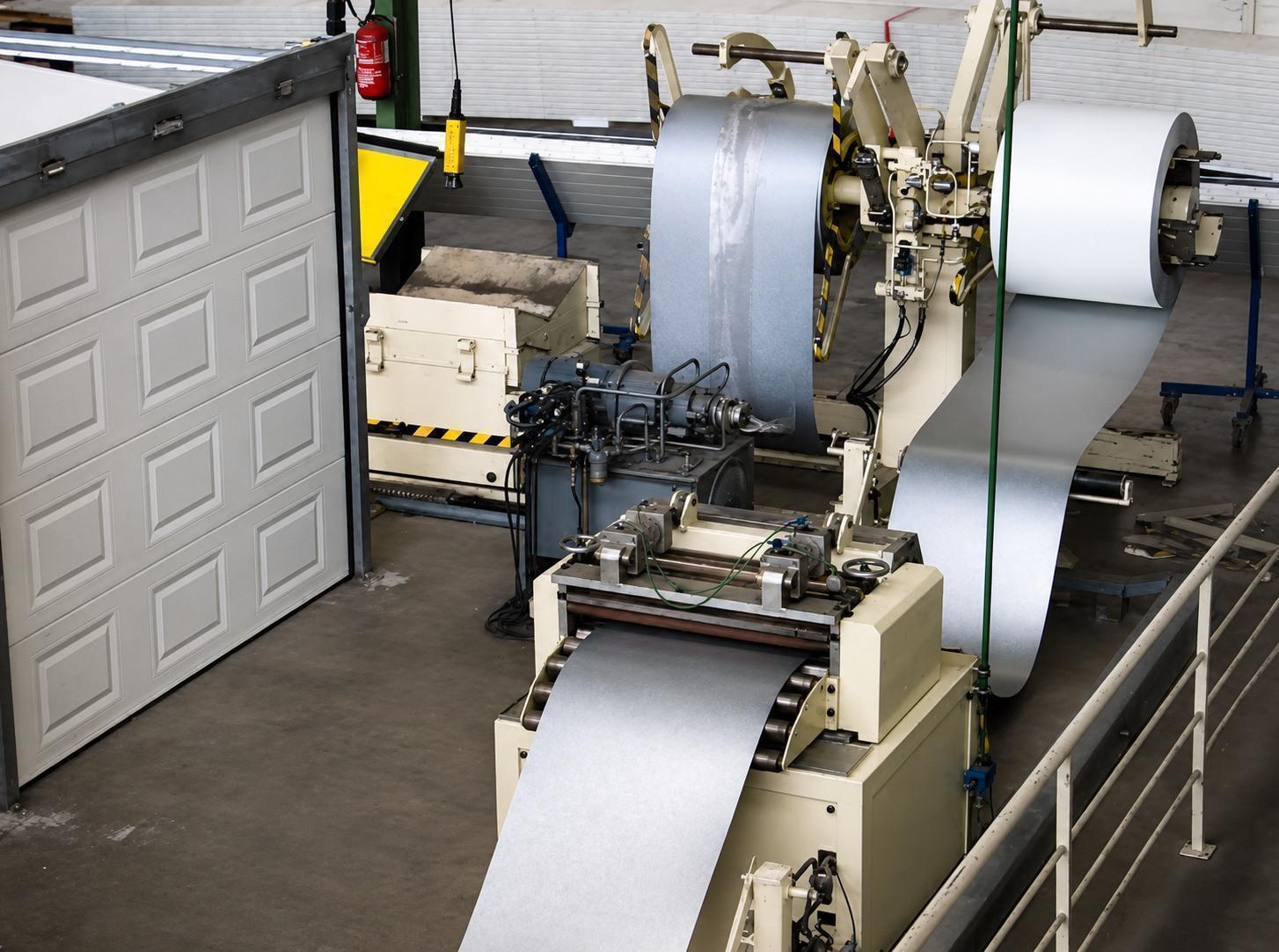

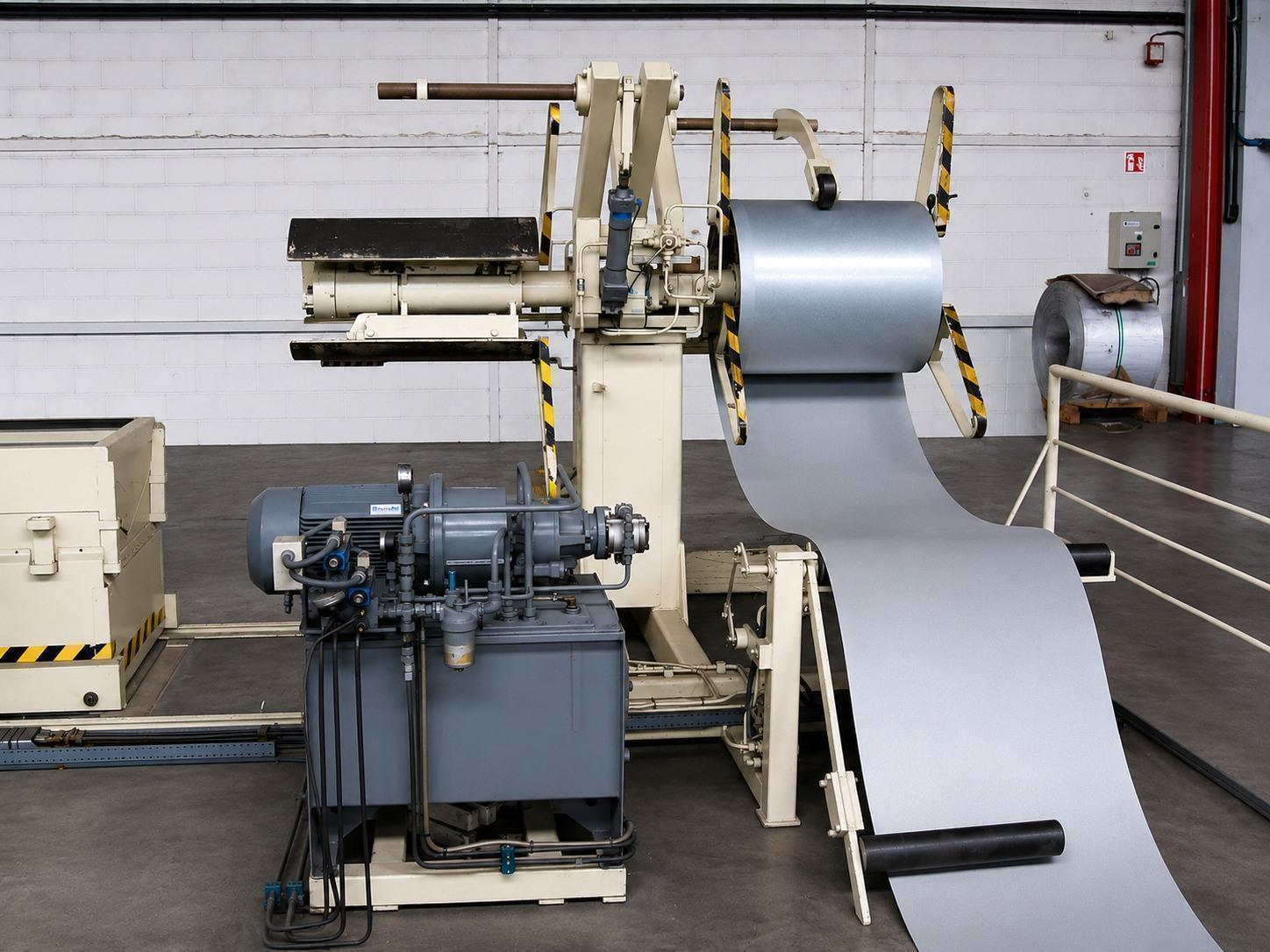

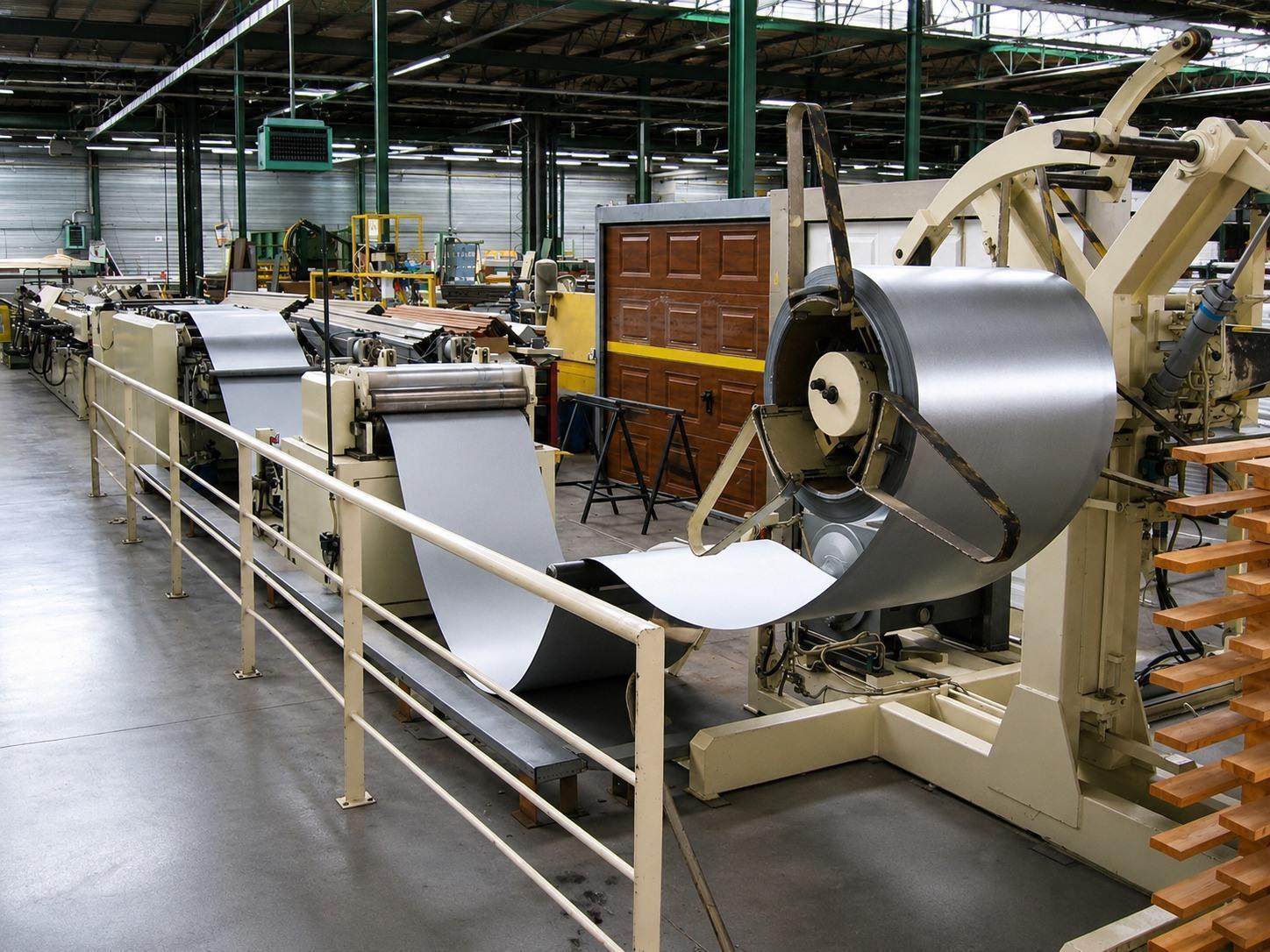

- Hydraulic double decoiler, capacity 2 × 5 tons

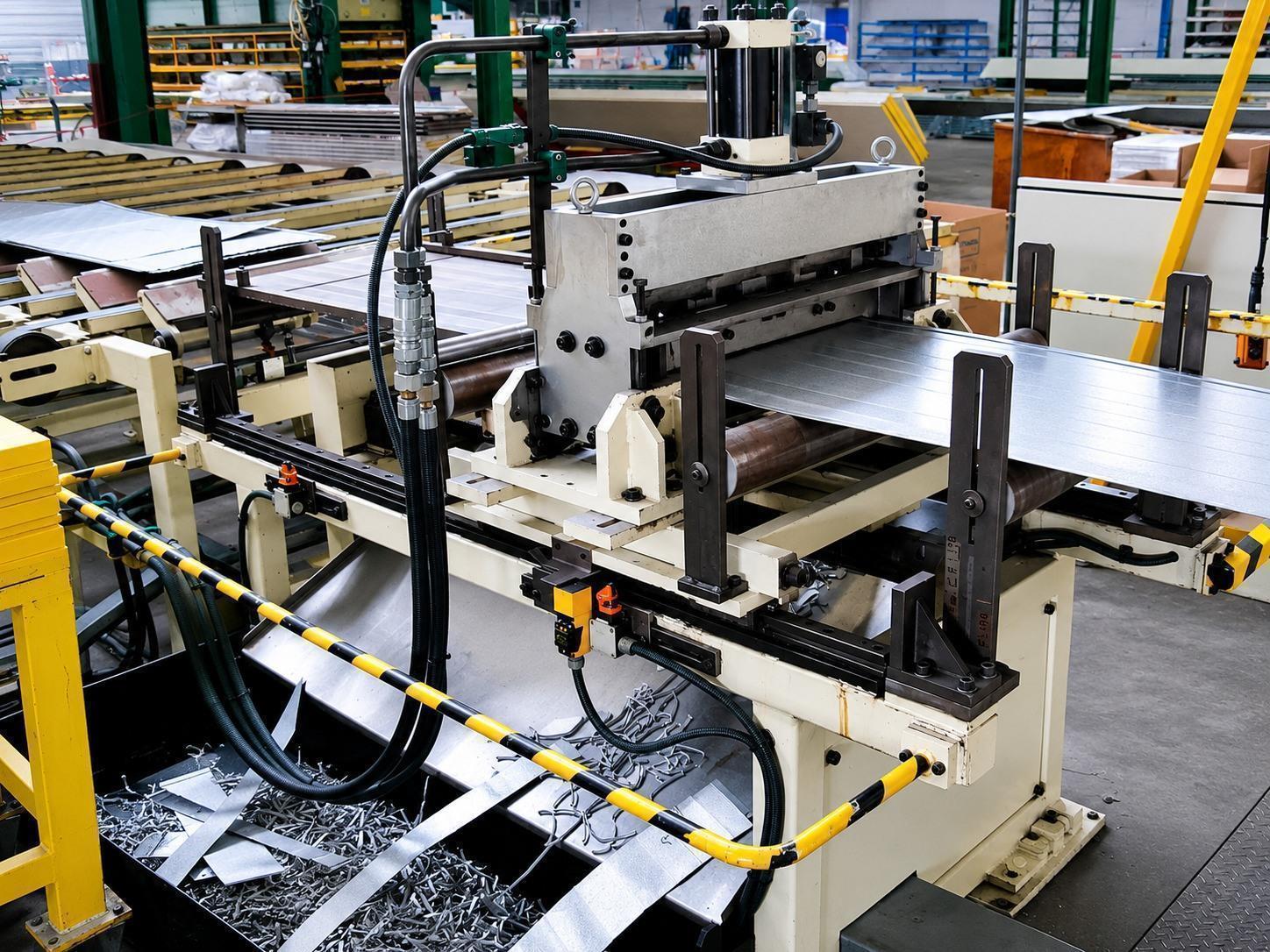

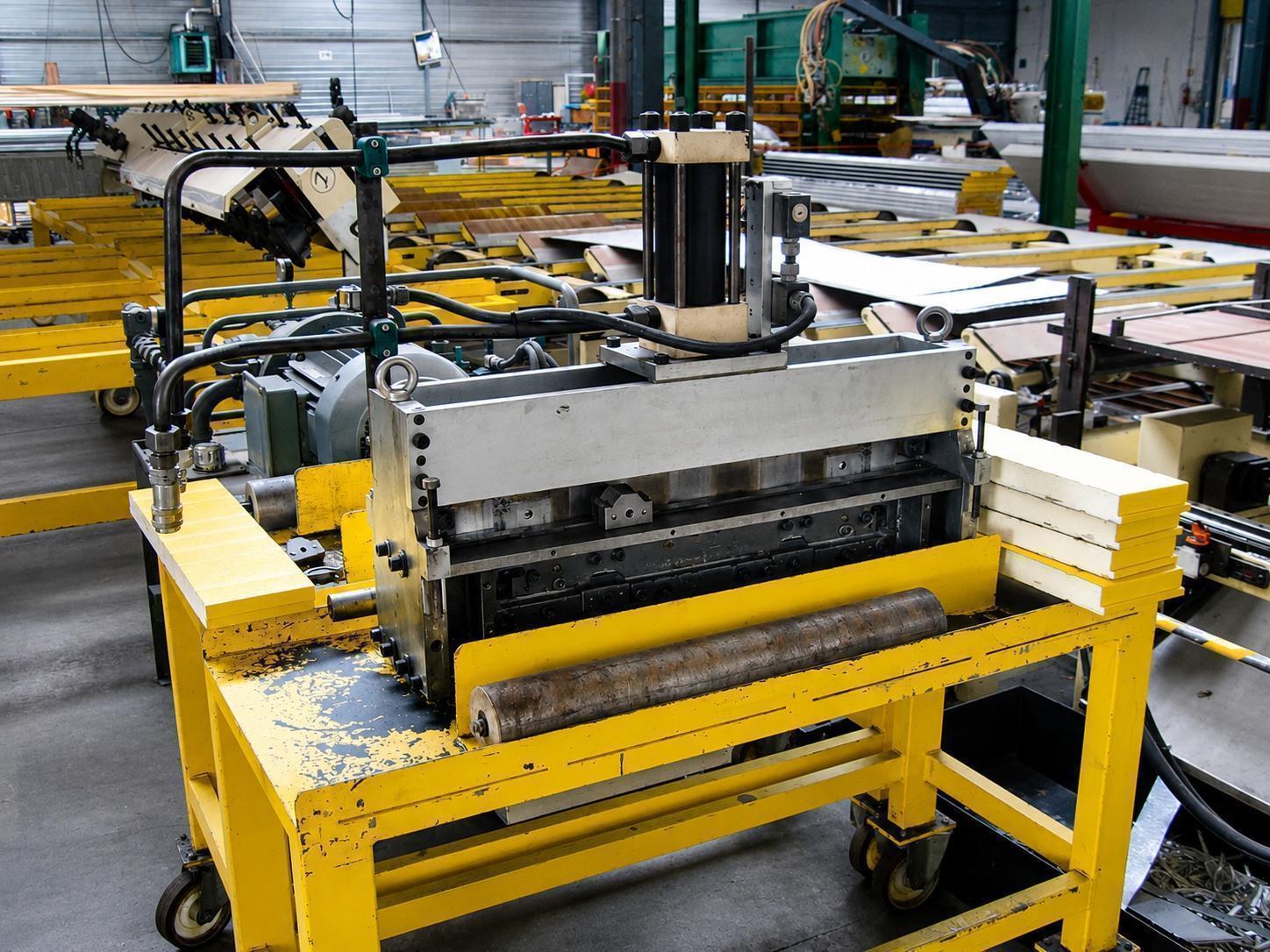

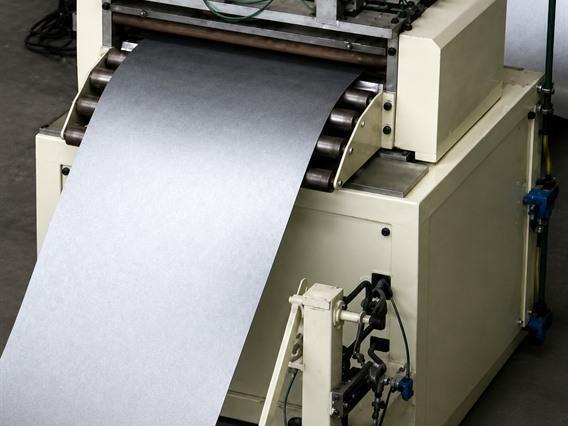

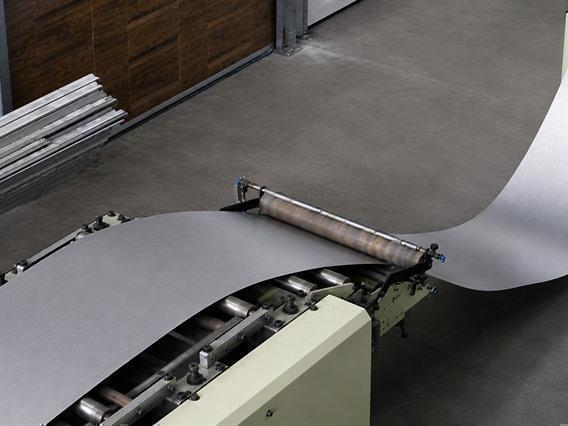

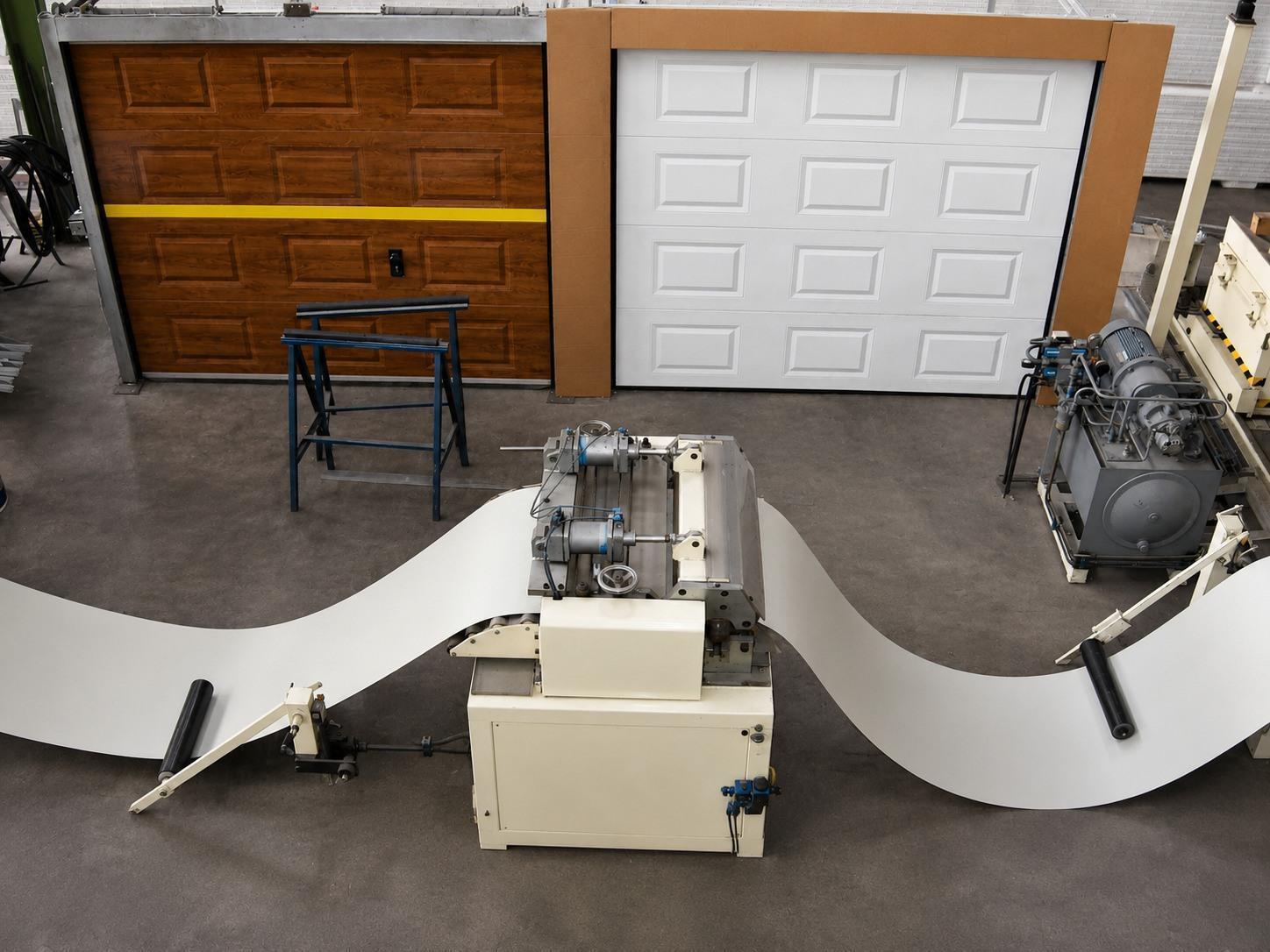

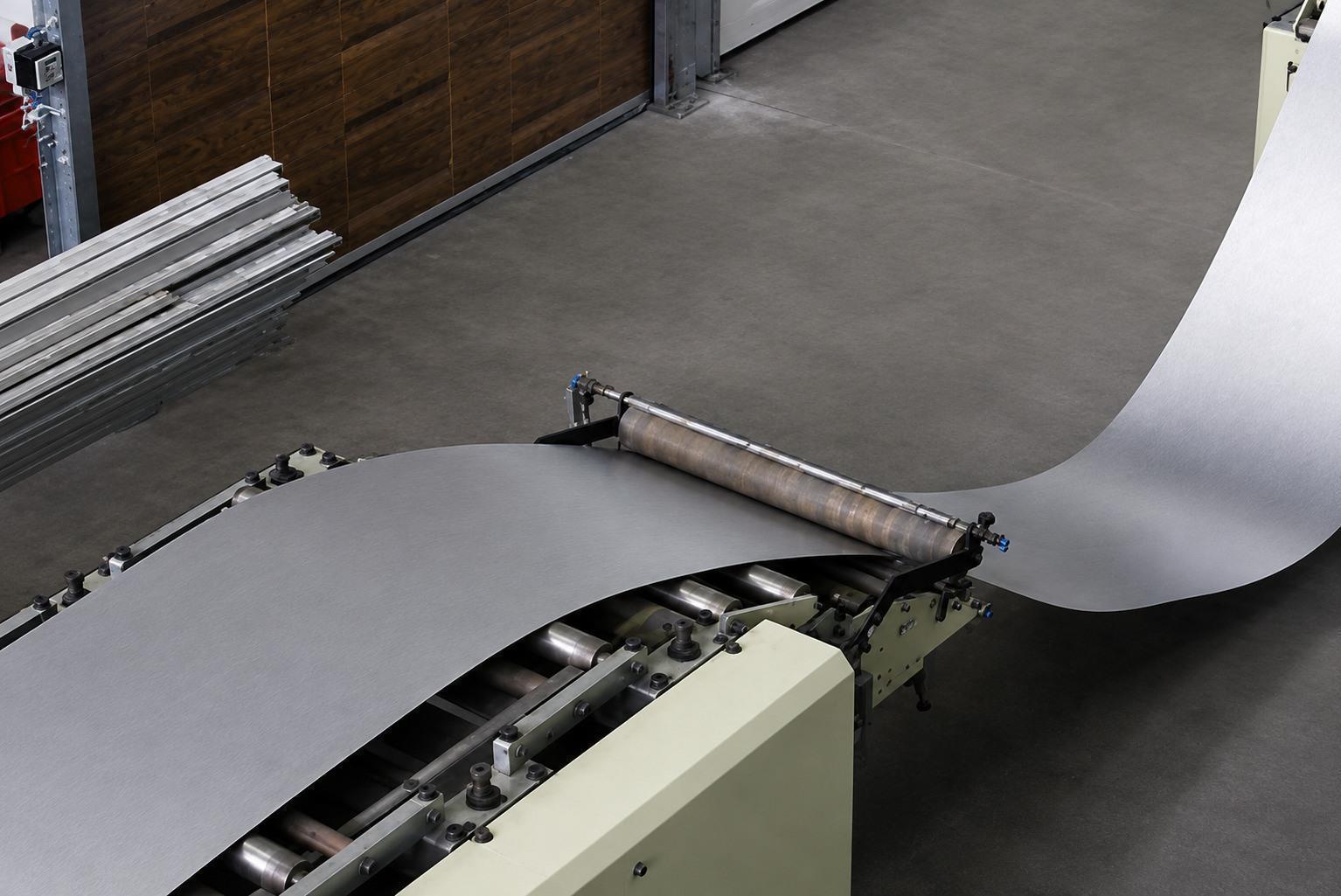

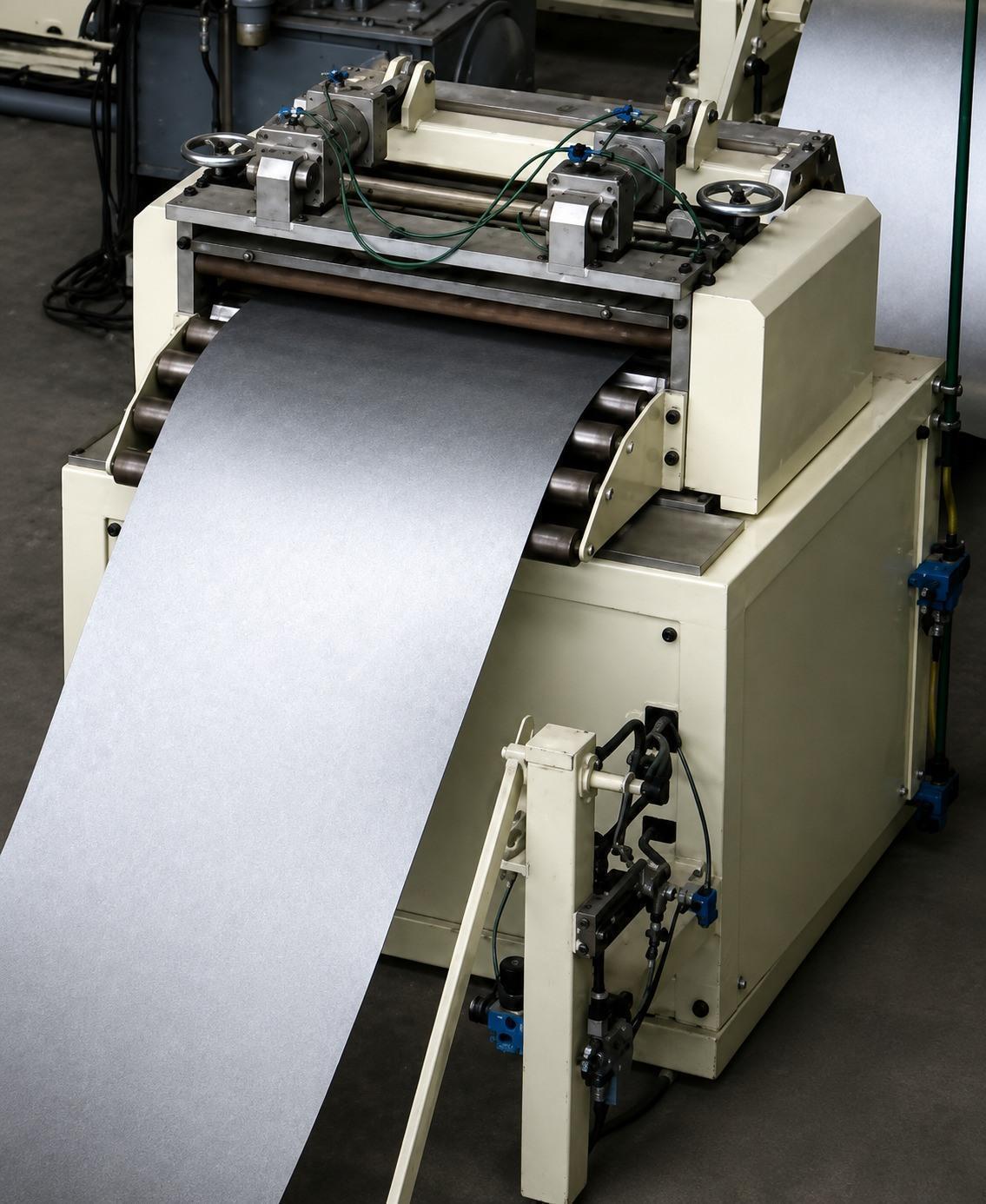

- Straightener, working width 800 mm
-2 + 3 straightening rolls
-2 additional pulling rolls

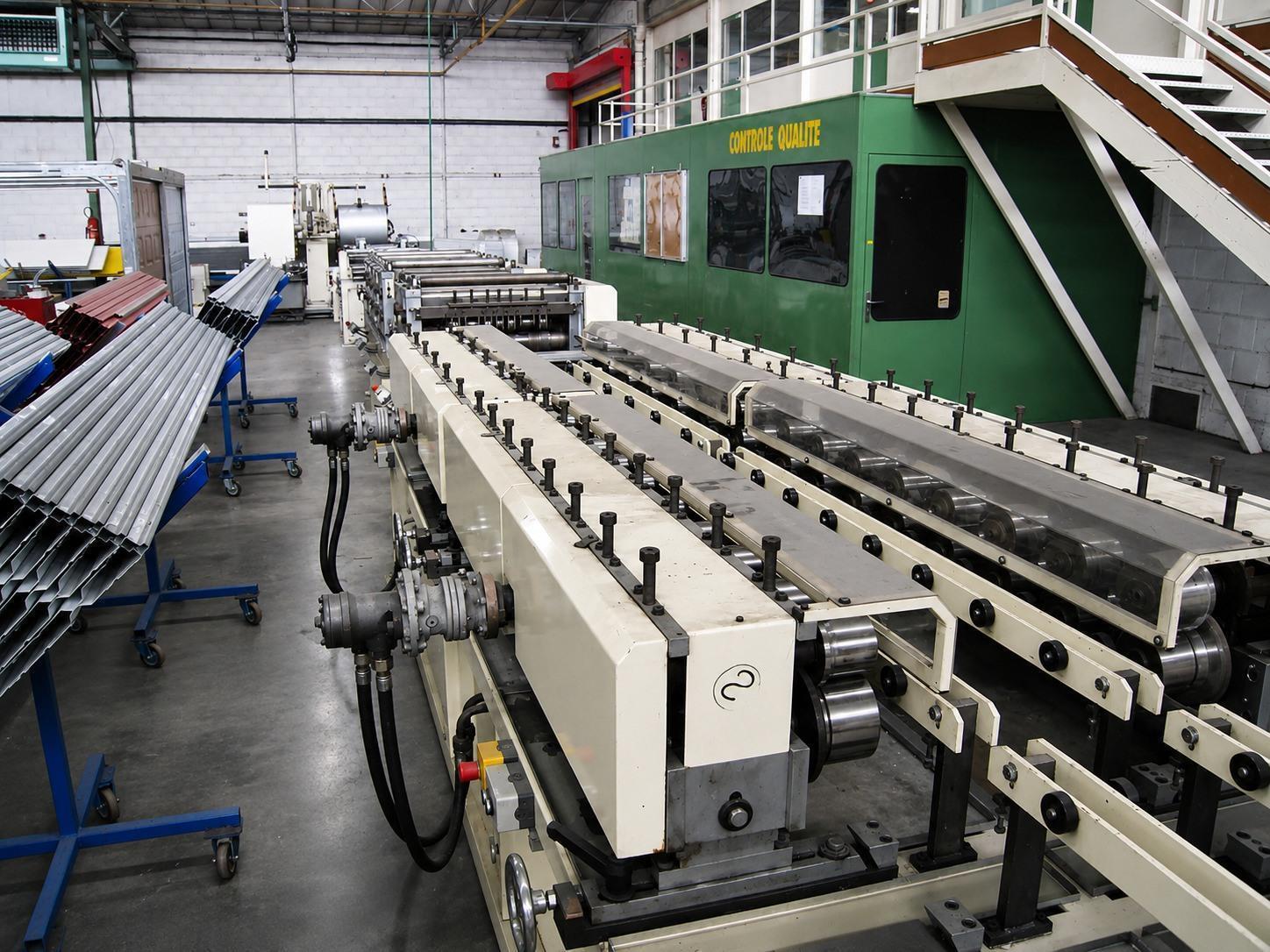

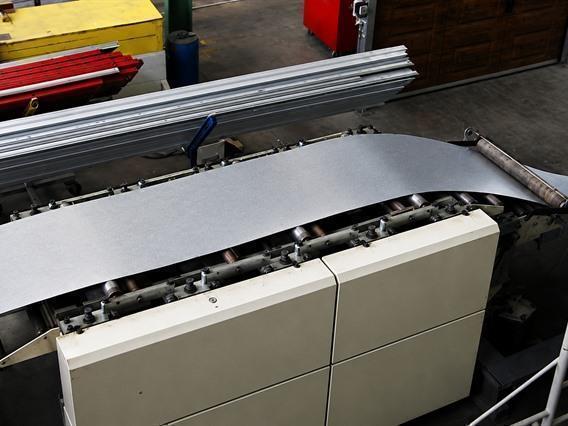

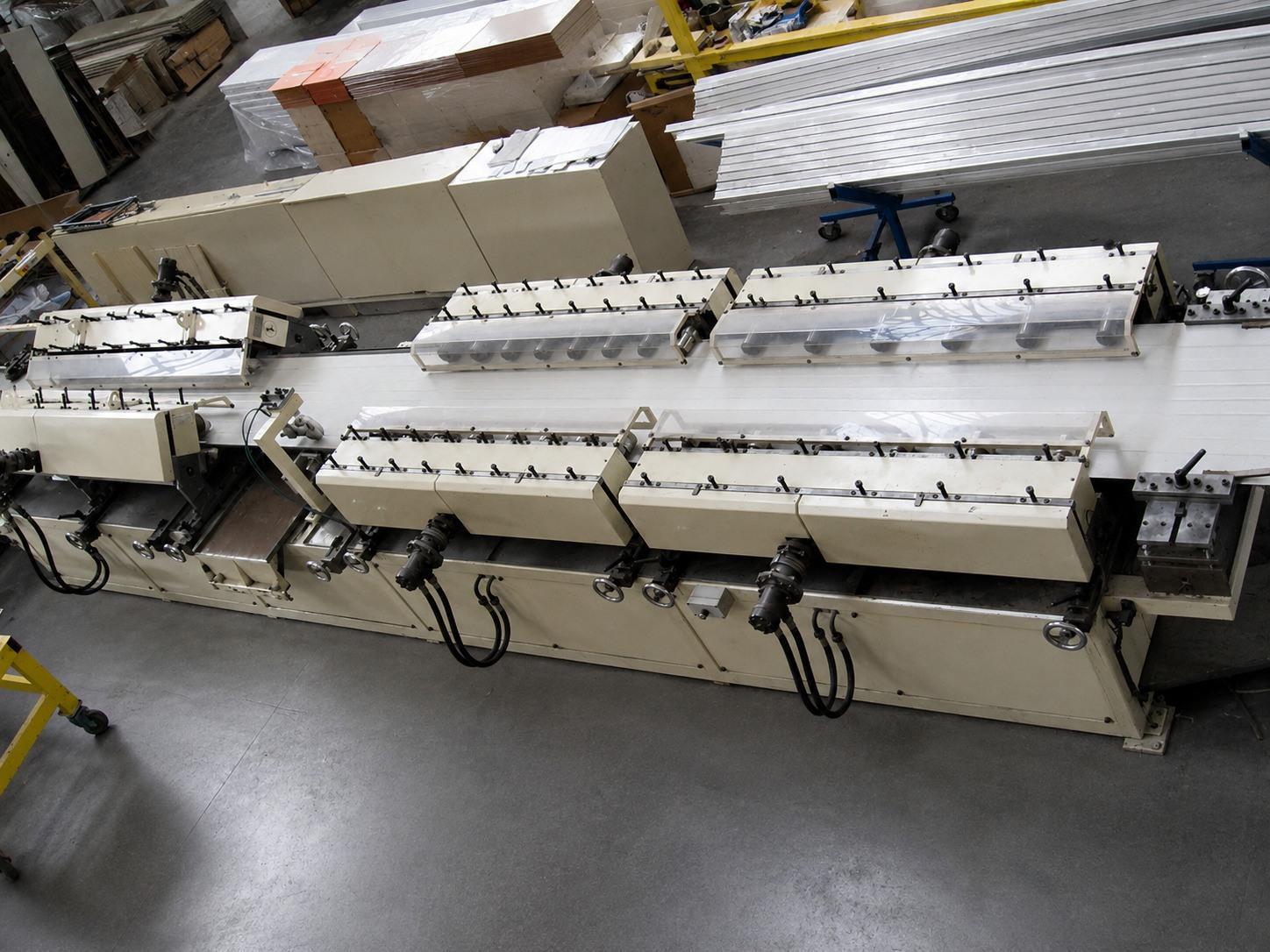

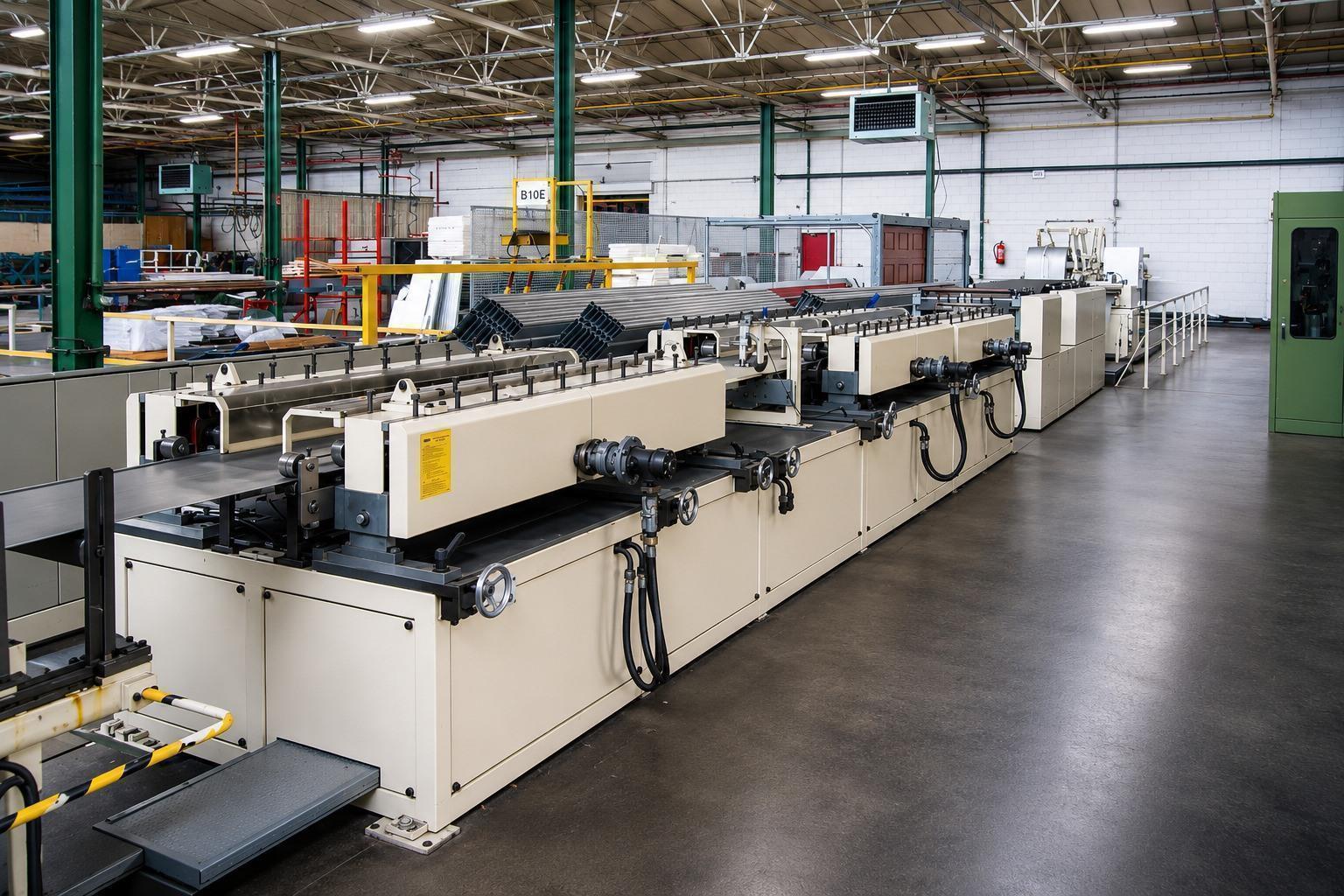

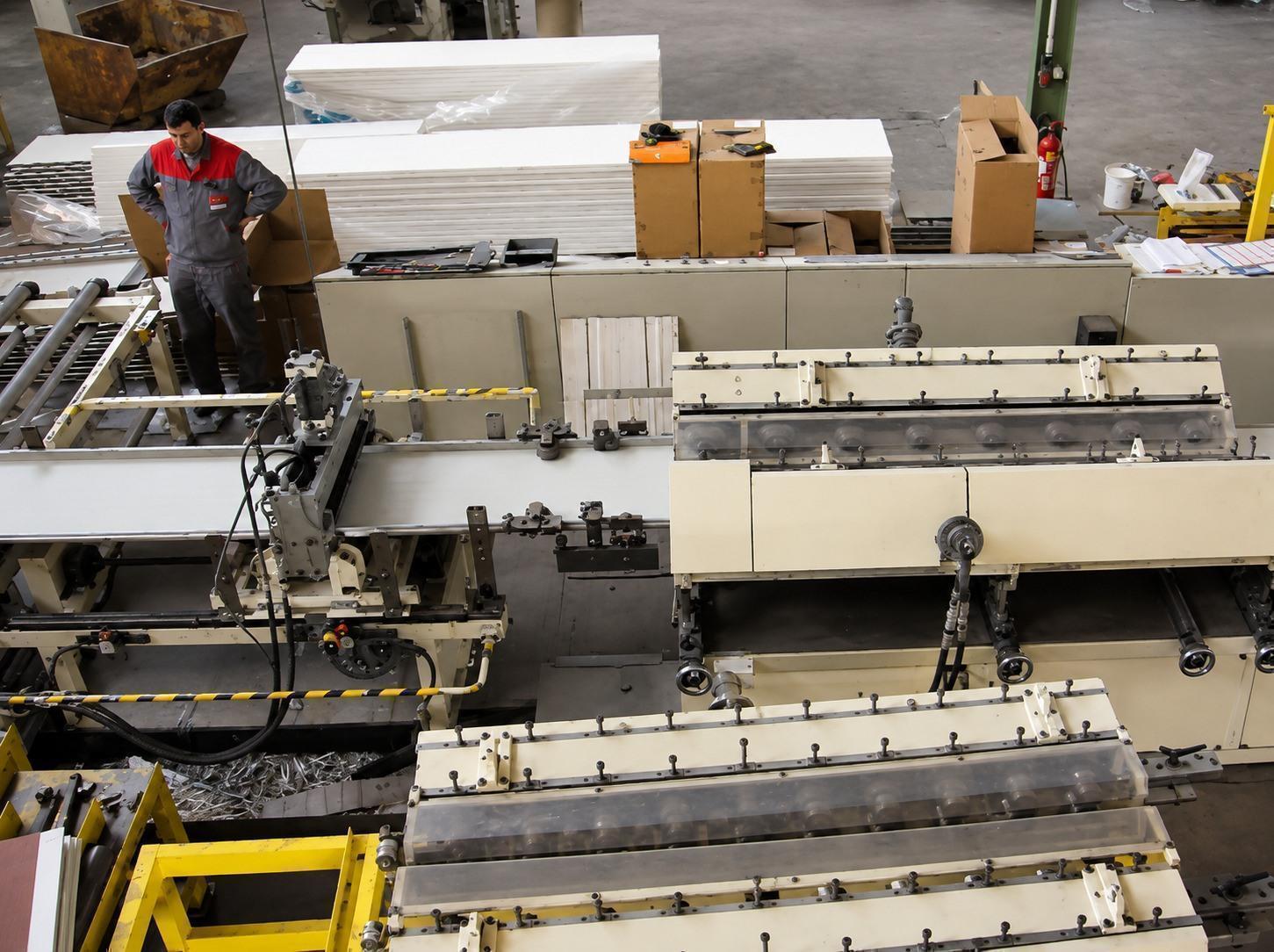

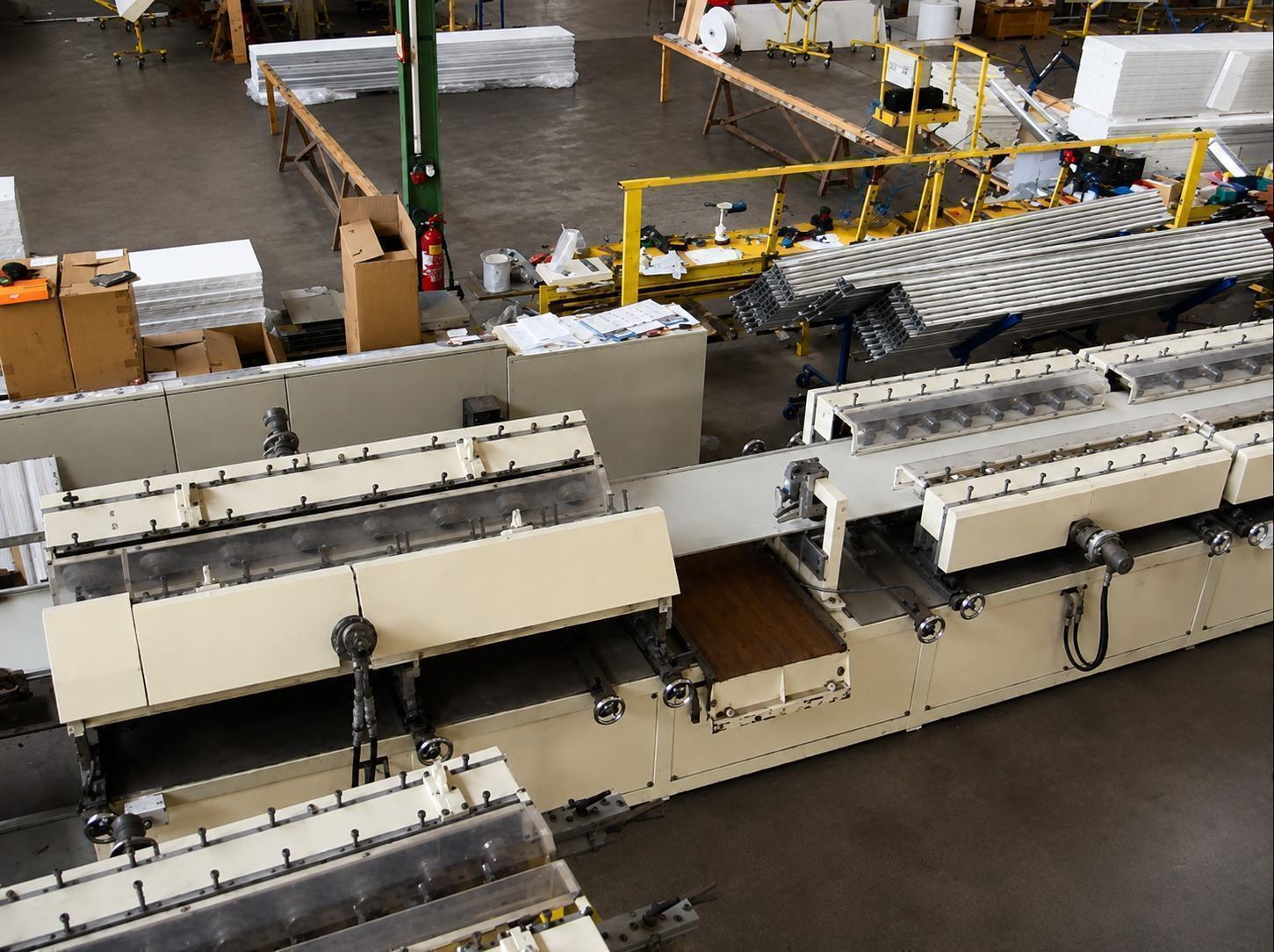

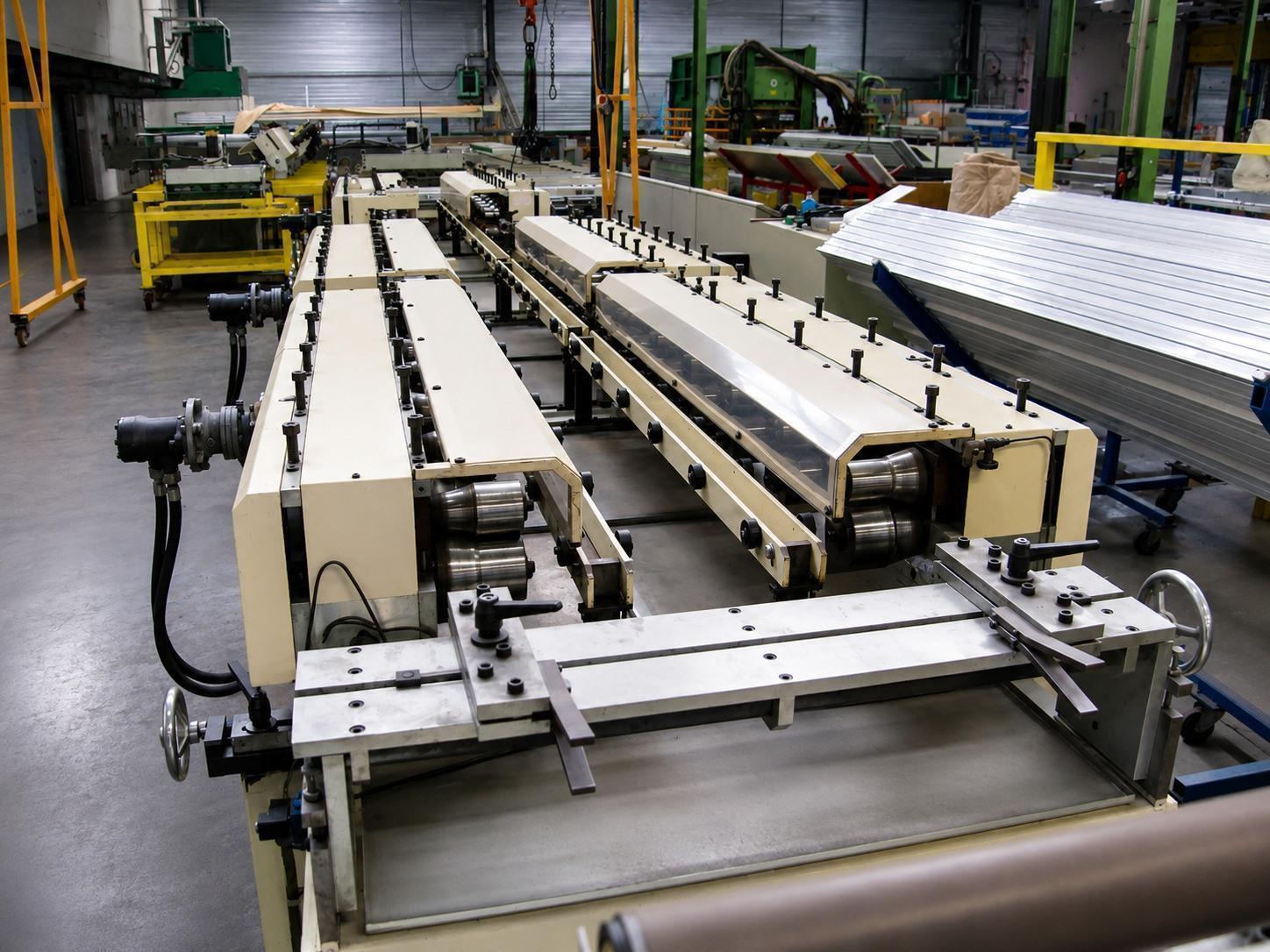

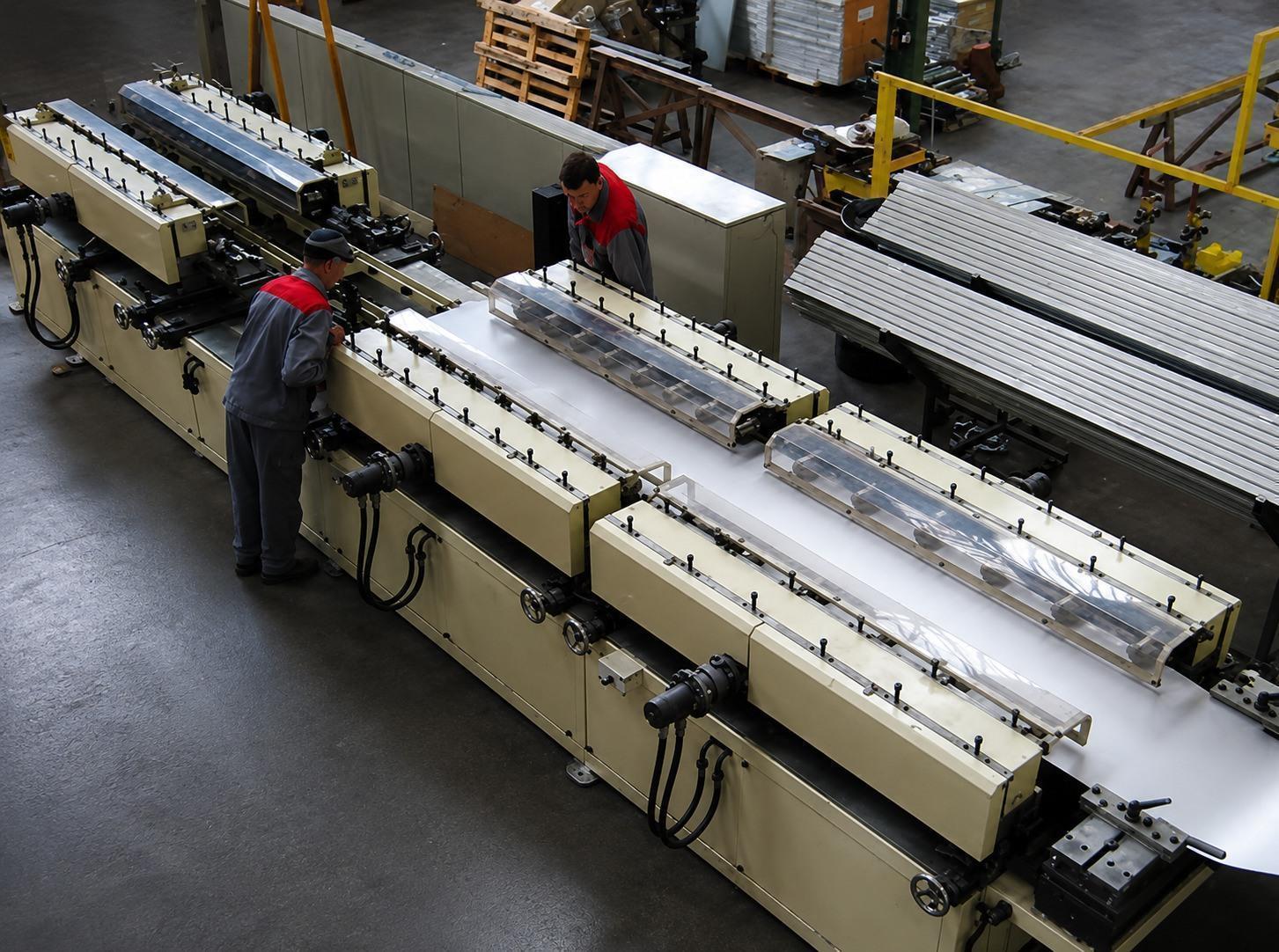

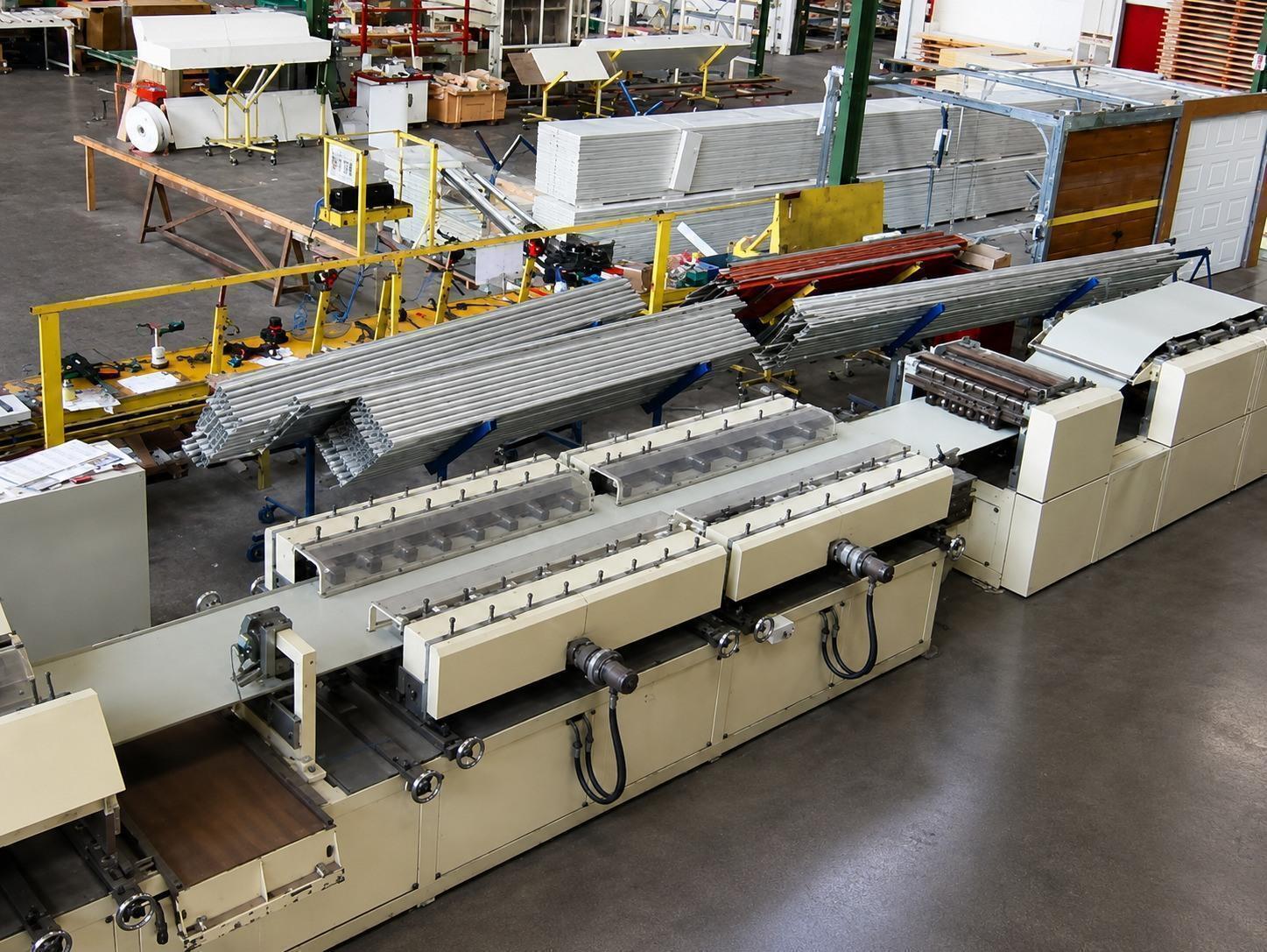

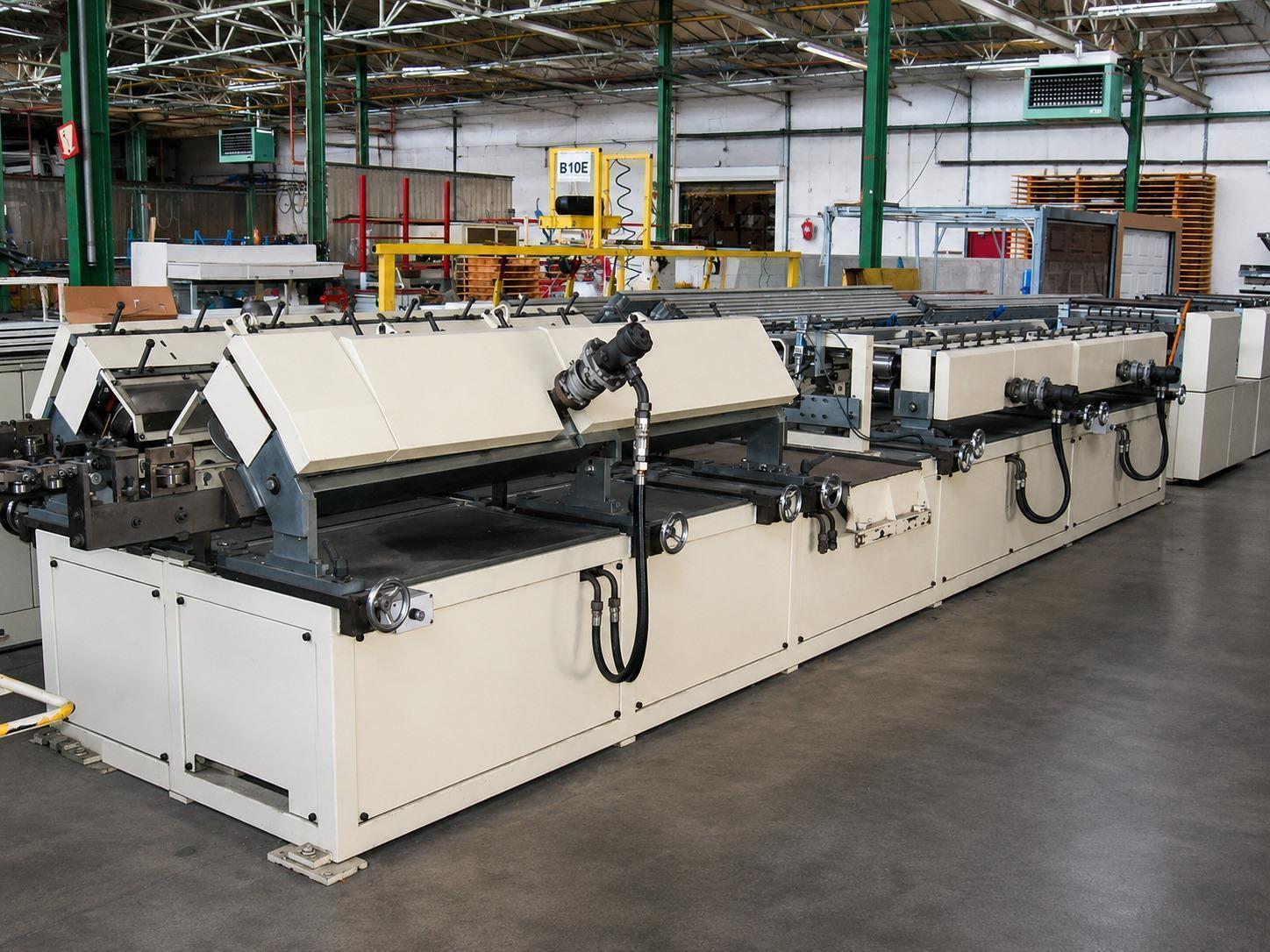

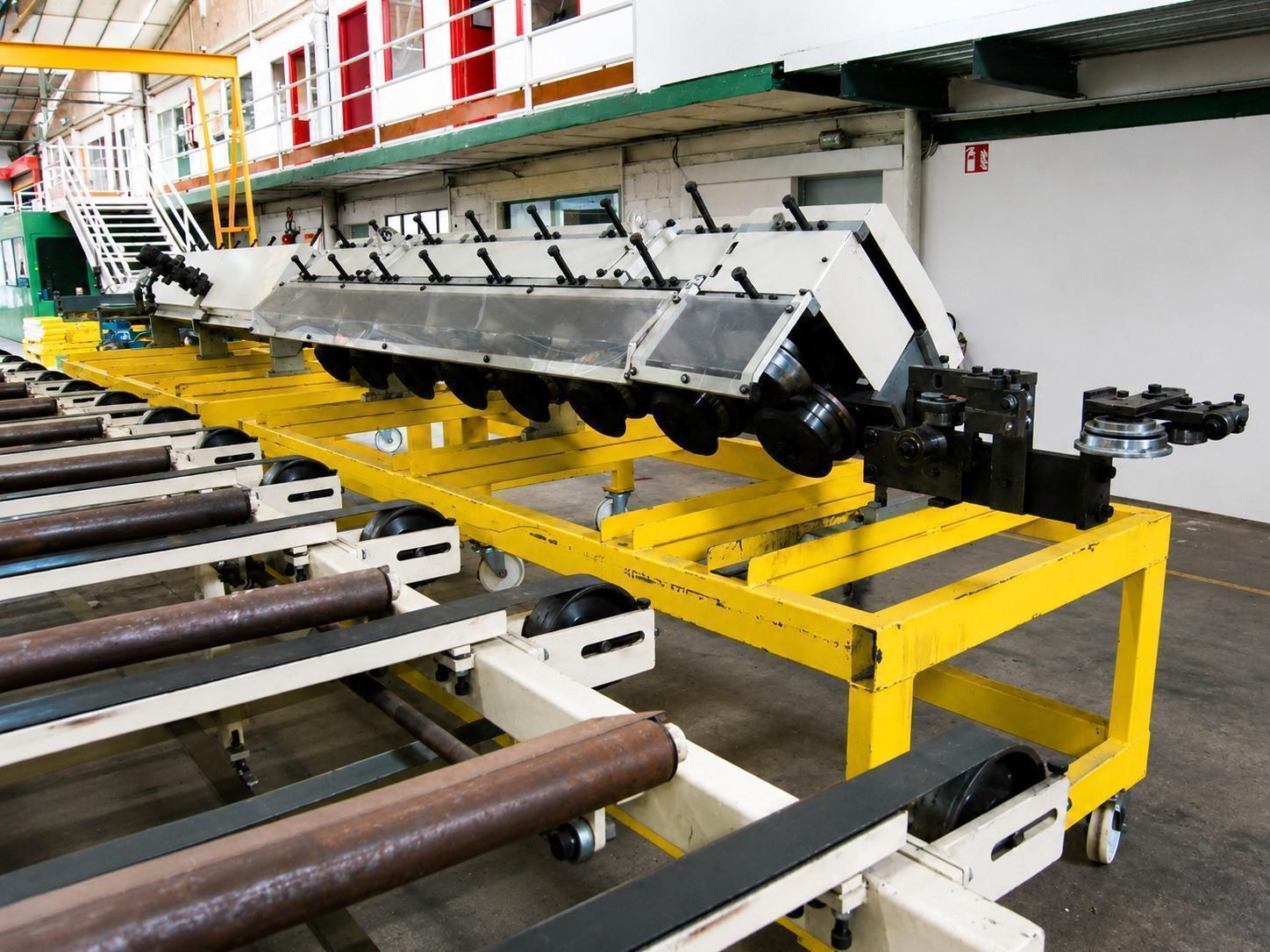

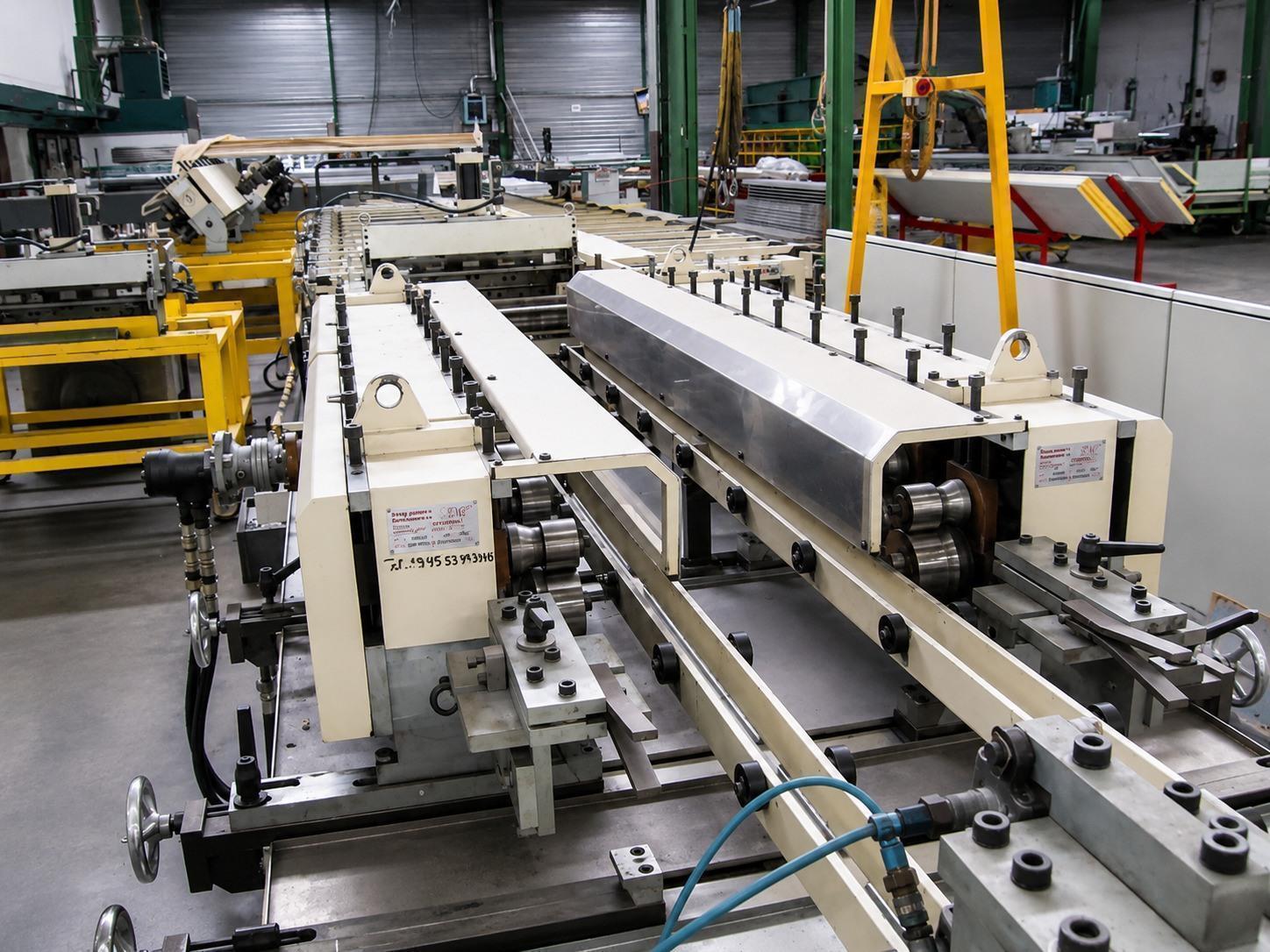

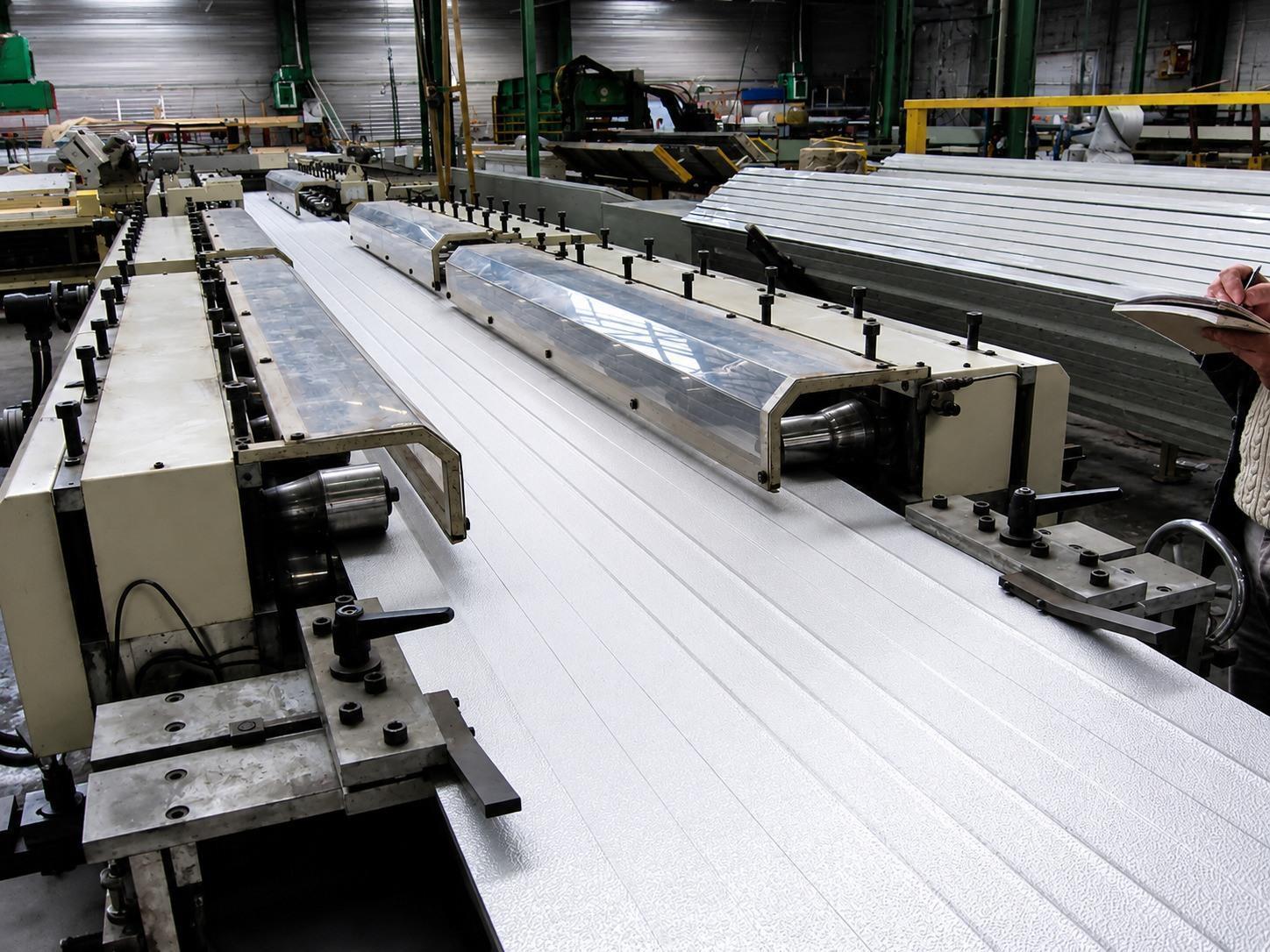

Roll Forming Section 1
- 5 forming stations
- Station pitch: 500 mm
- Shaft diameter: 70 mm
Roll Forming Section 2
- 2 forming stations
- Centre-to-centre distance: 150 mm
- Adjustable working width: 700 – 850 mm
Roll Forming Section 3
- 14 forming stations
Roll Forming Section 4
- 9 forming stations
- Adjustable working width
- 2 additional cassette units
Additional equipment:

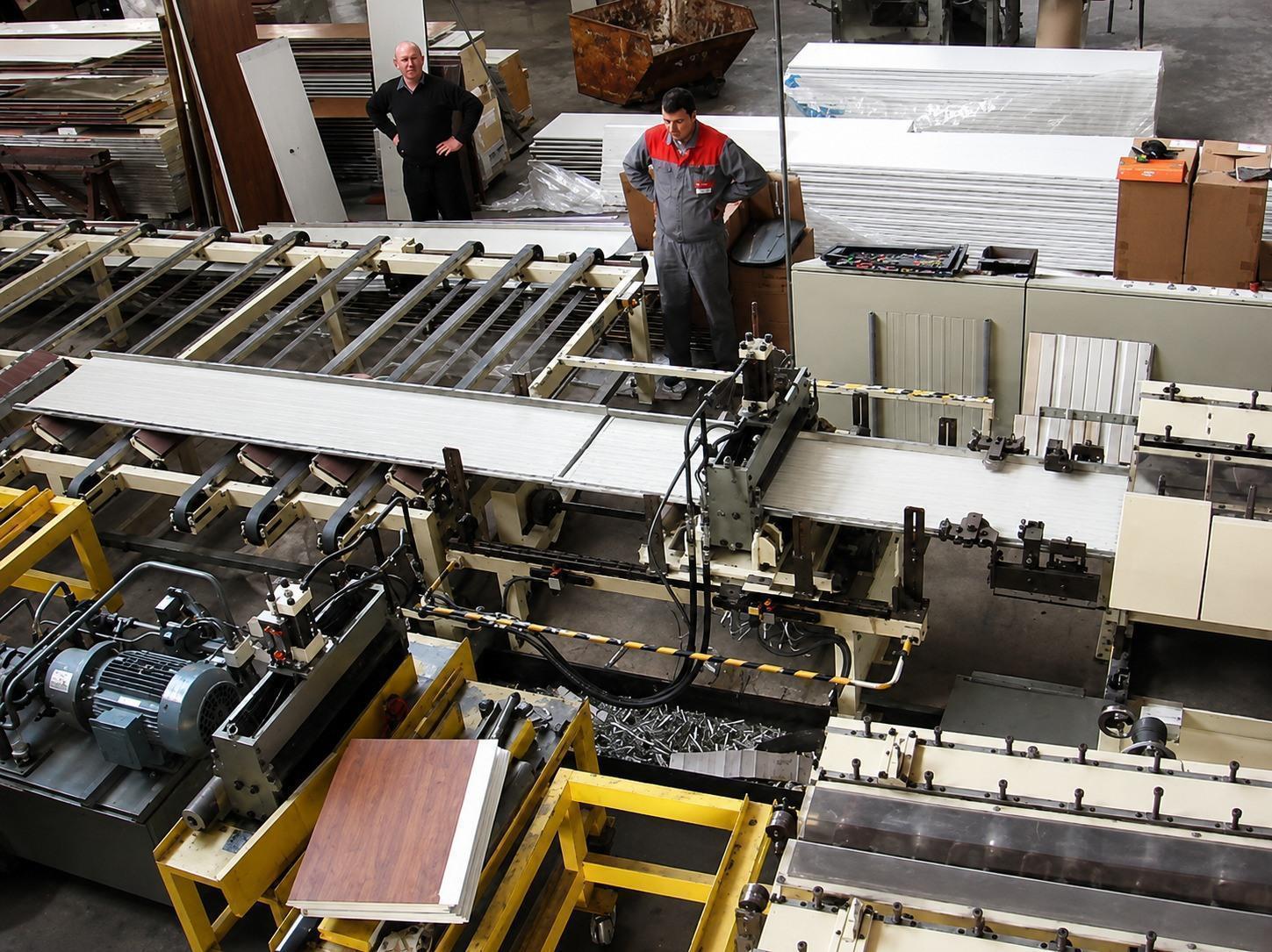

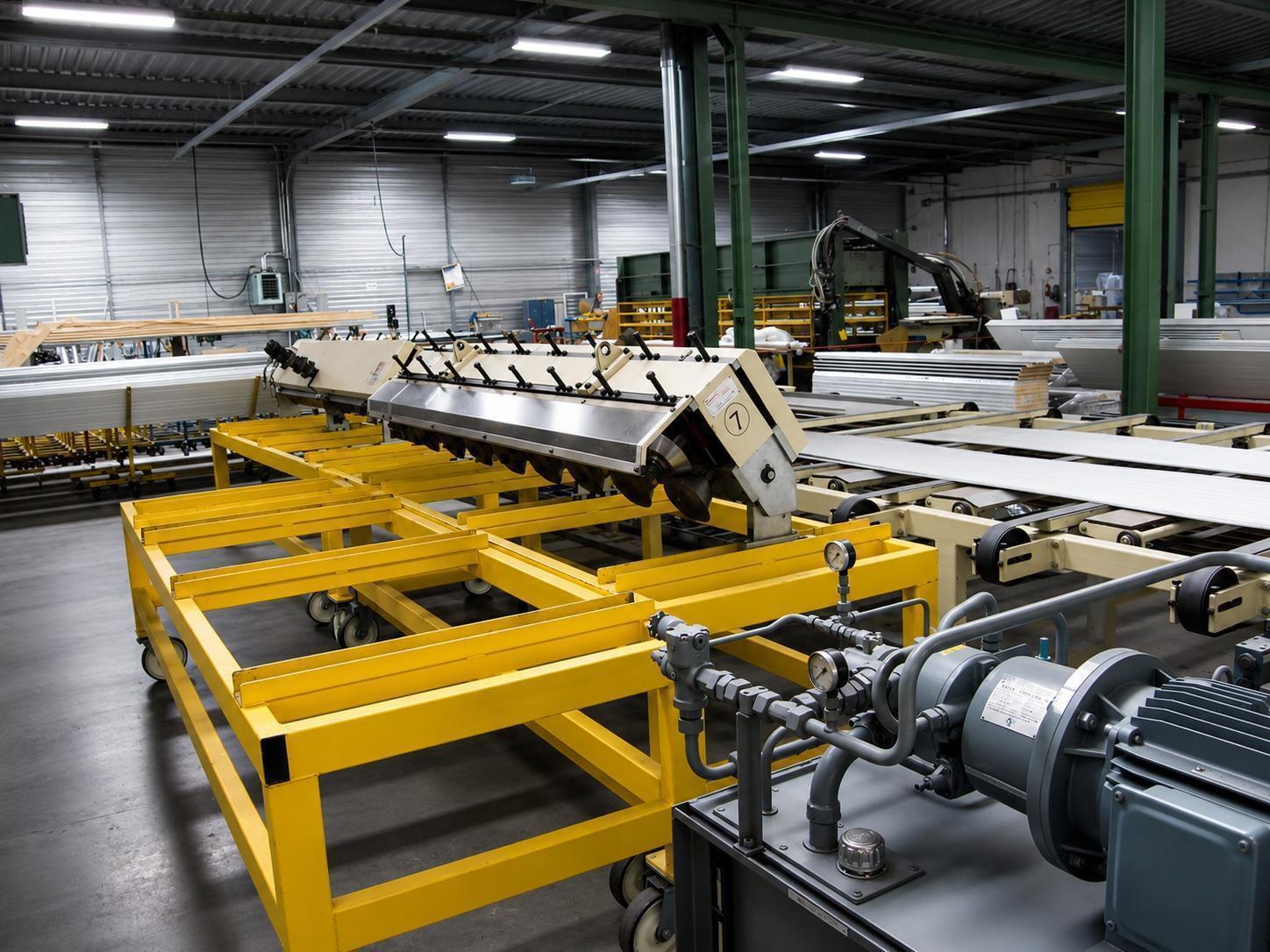

- Hydraulic flying shear

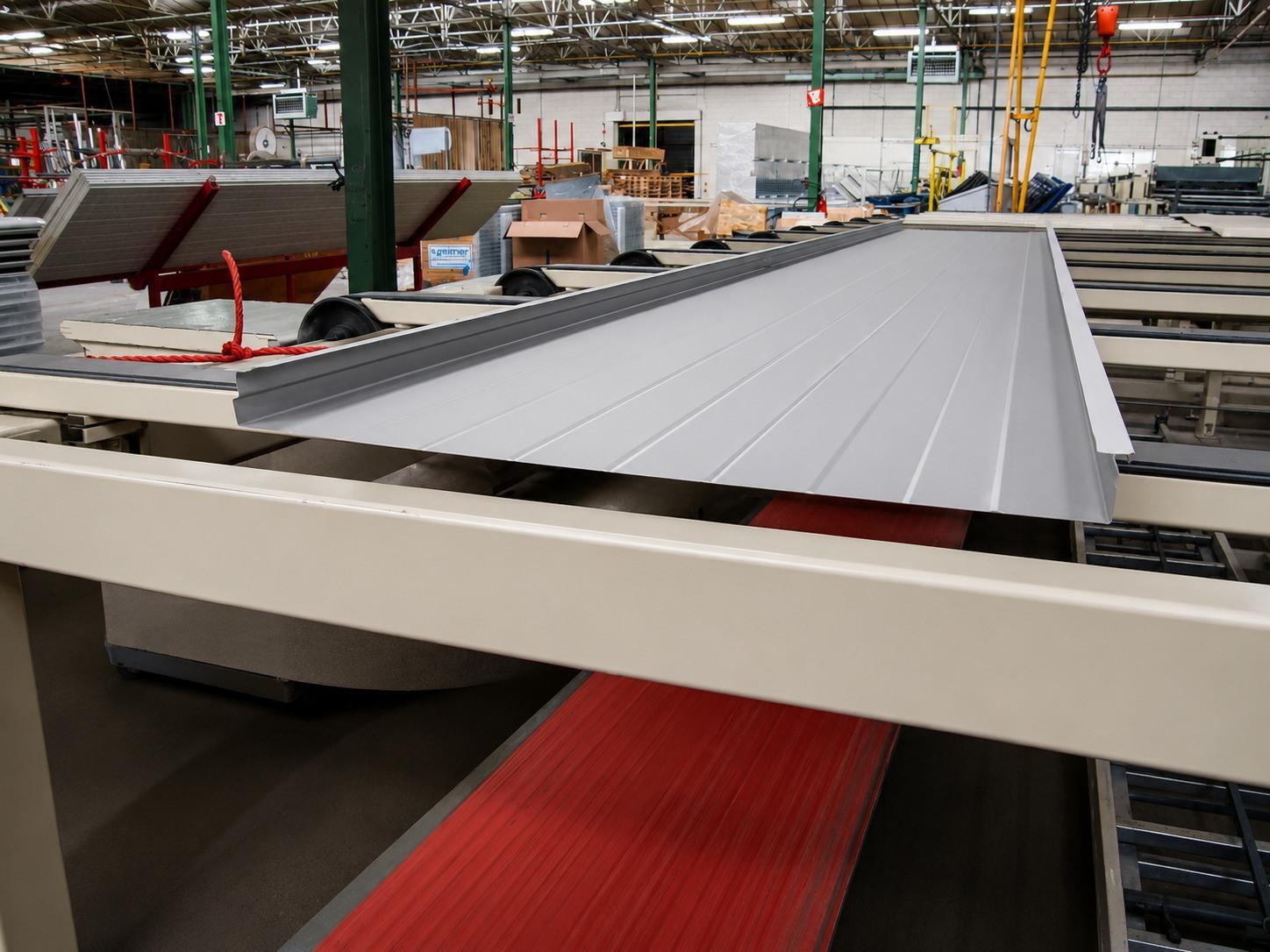

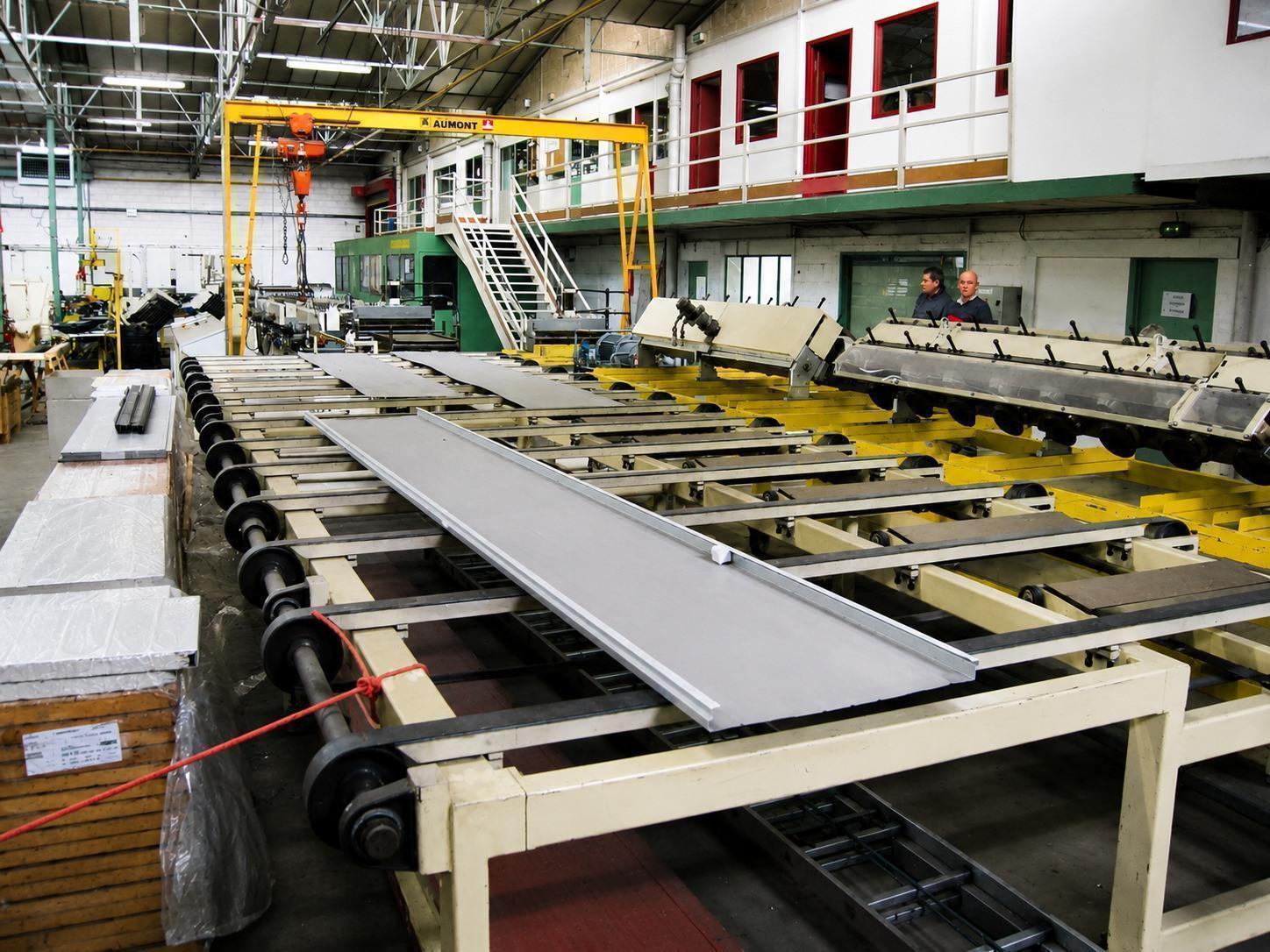

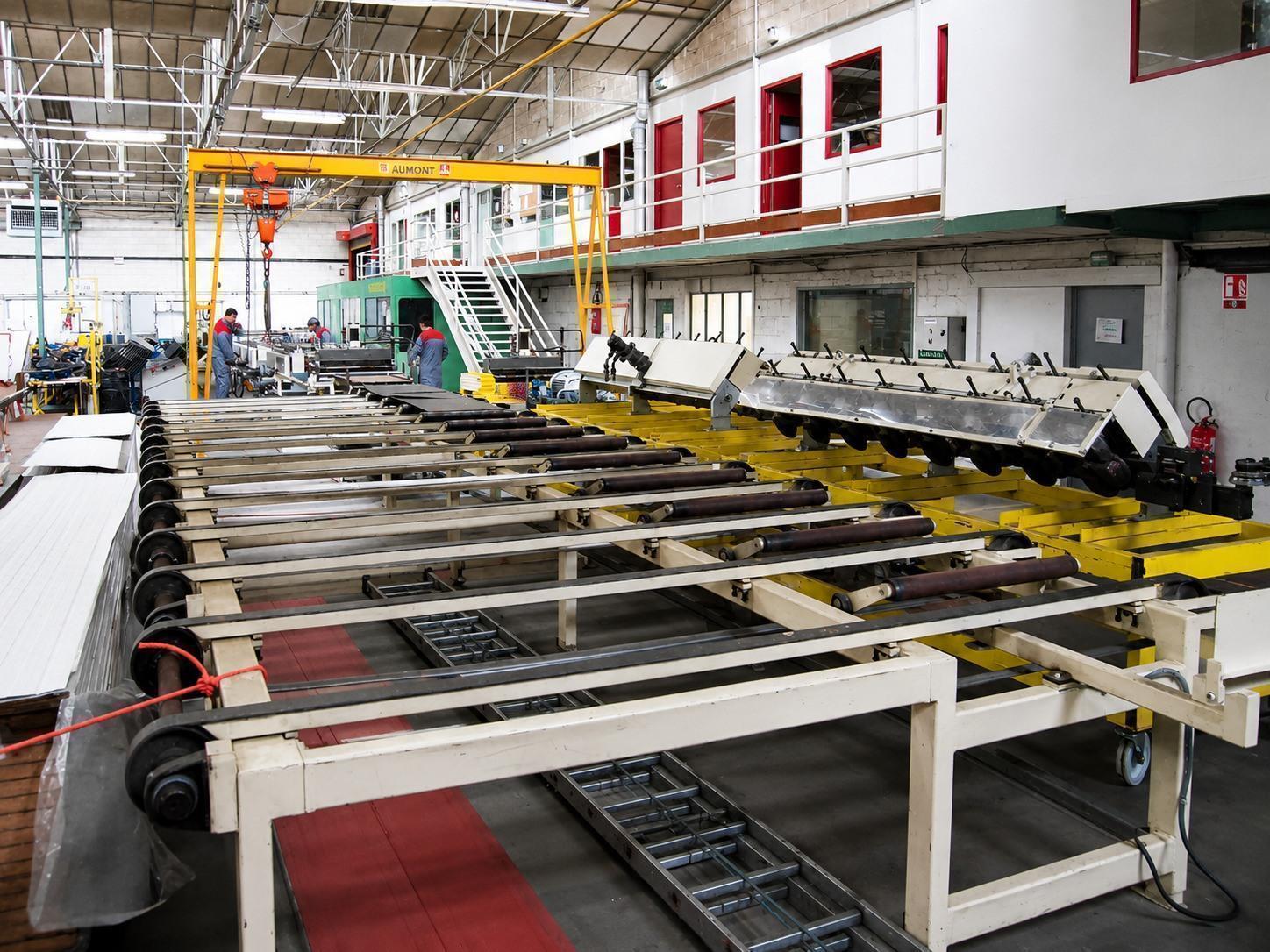

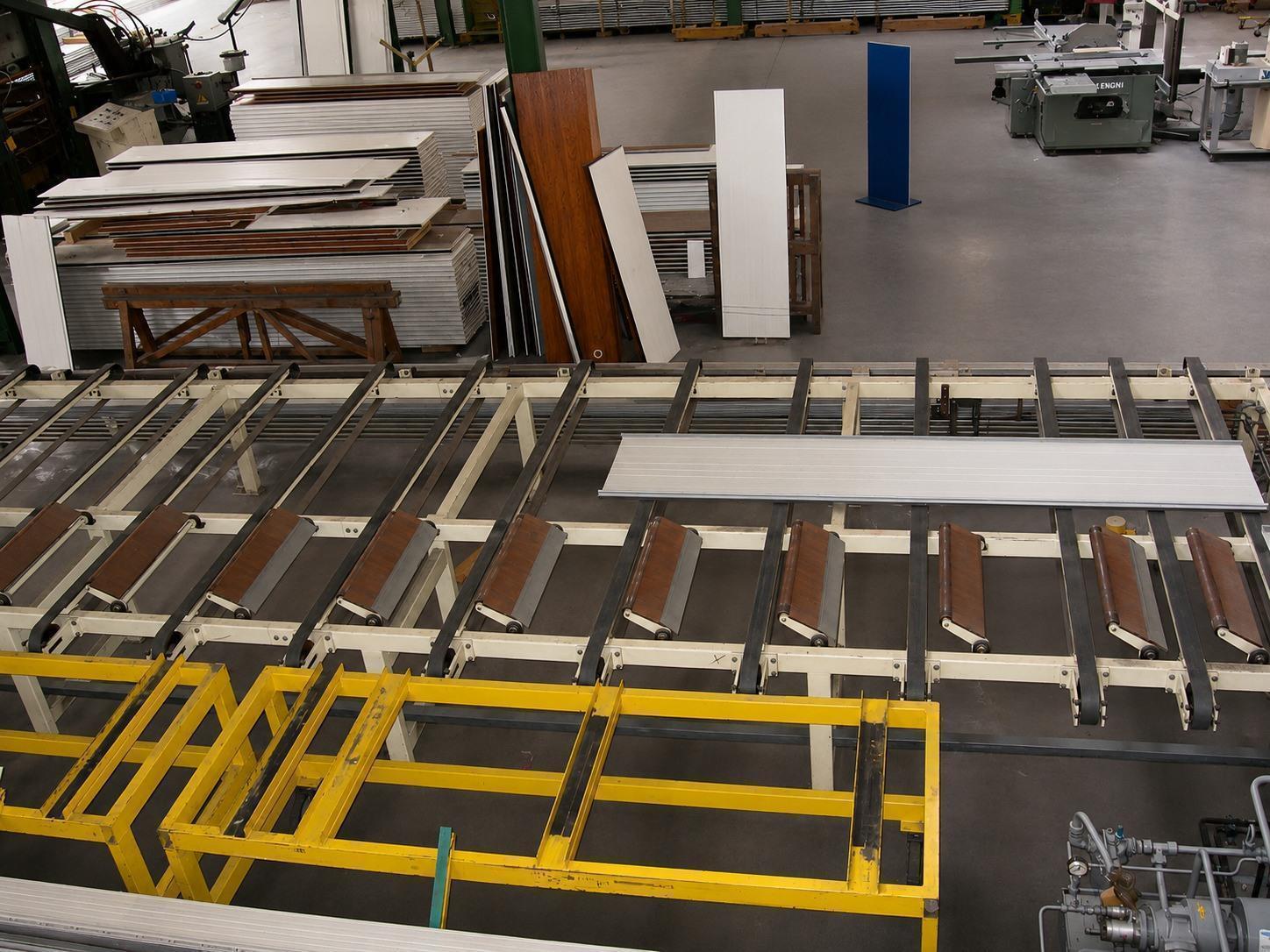

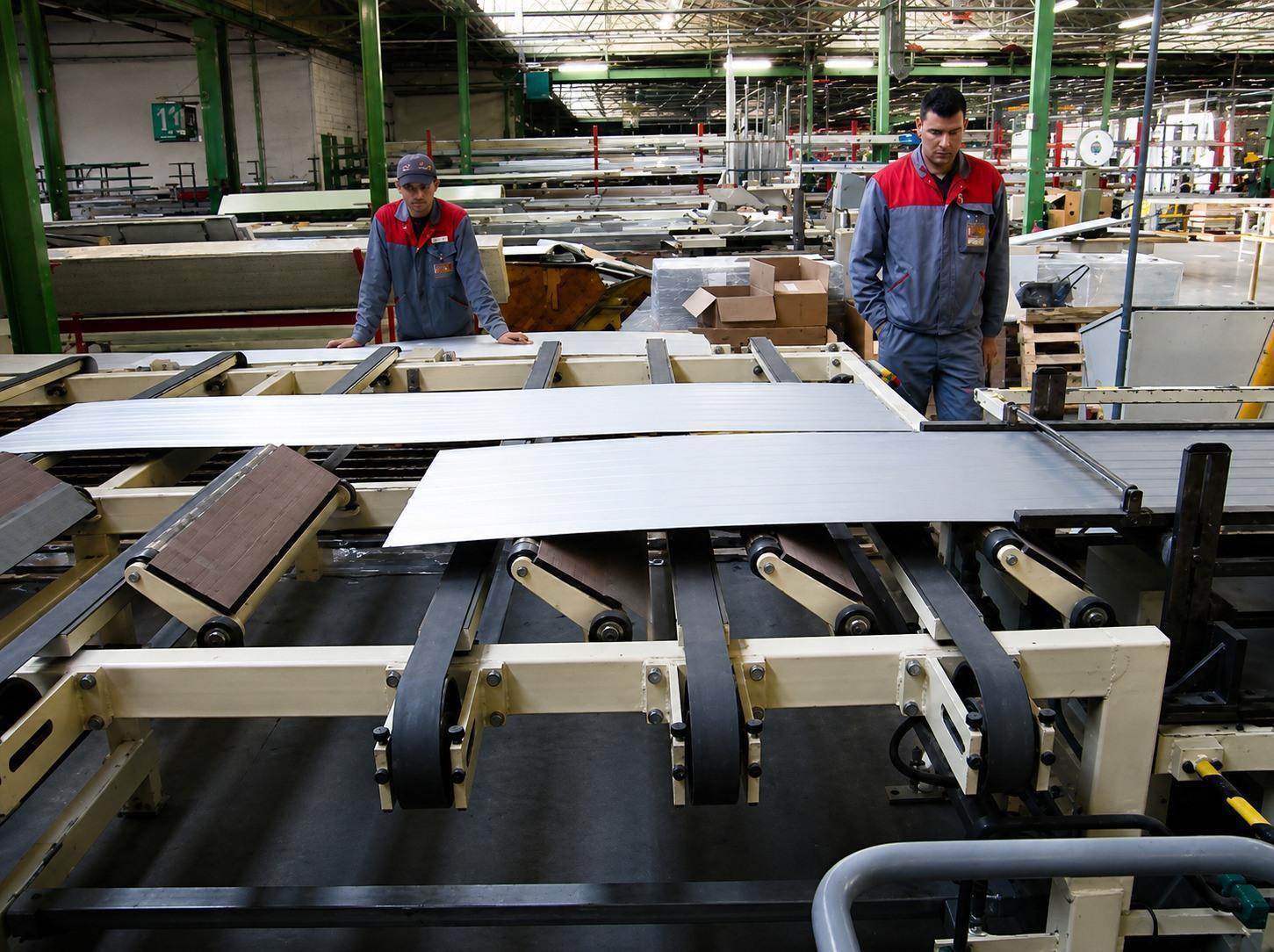

- Feed / delivery table

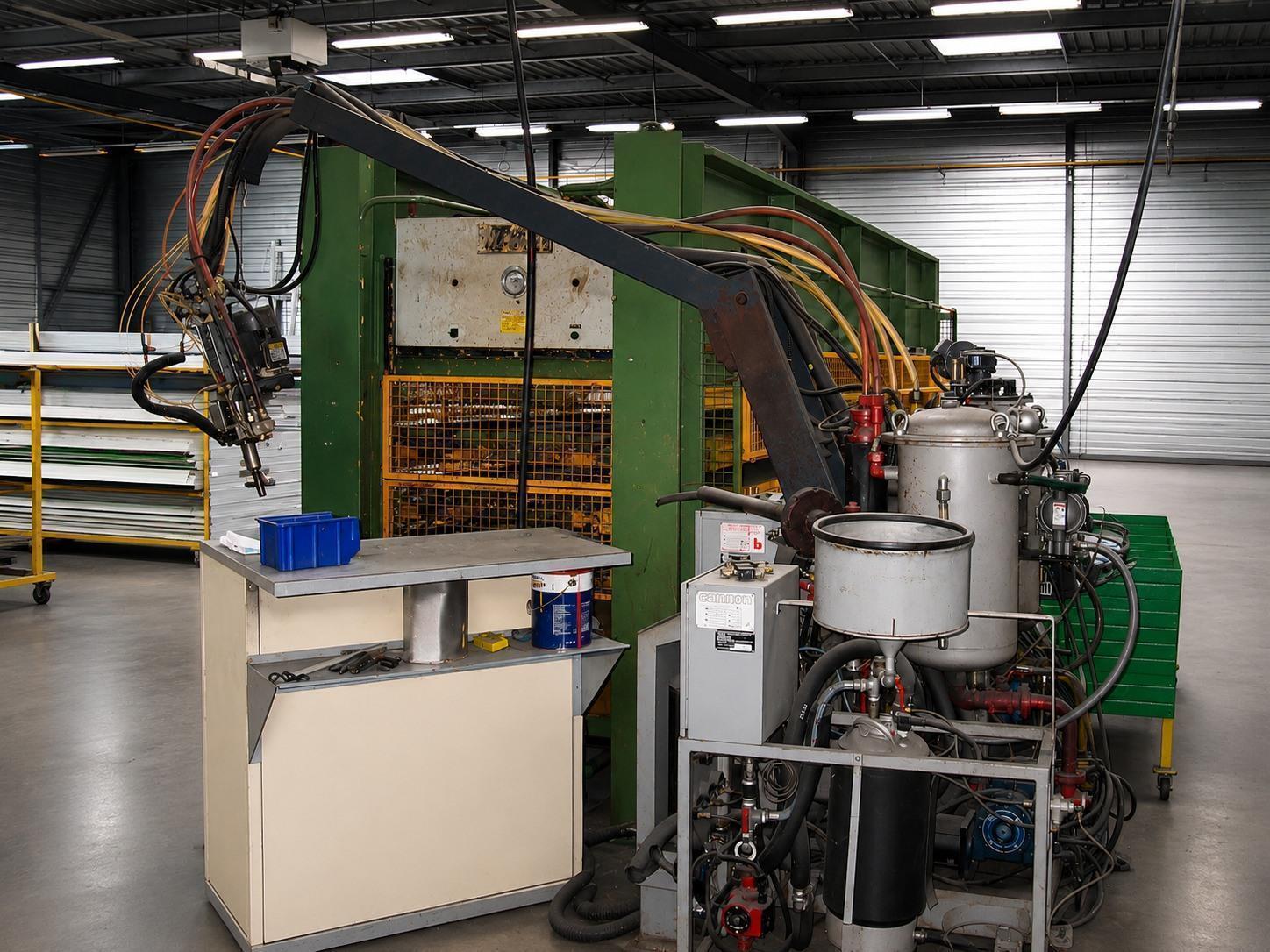

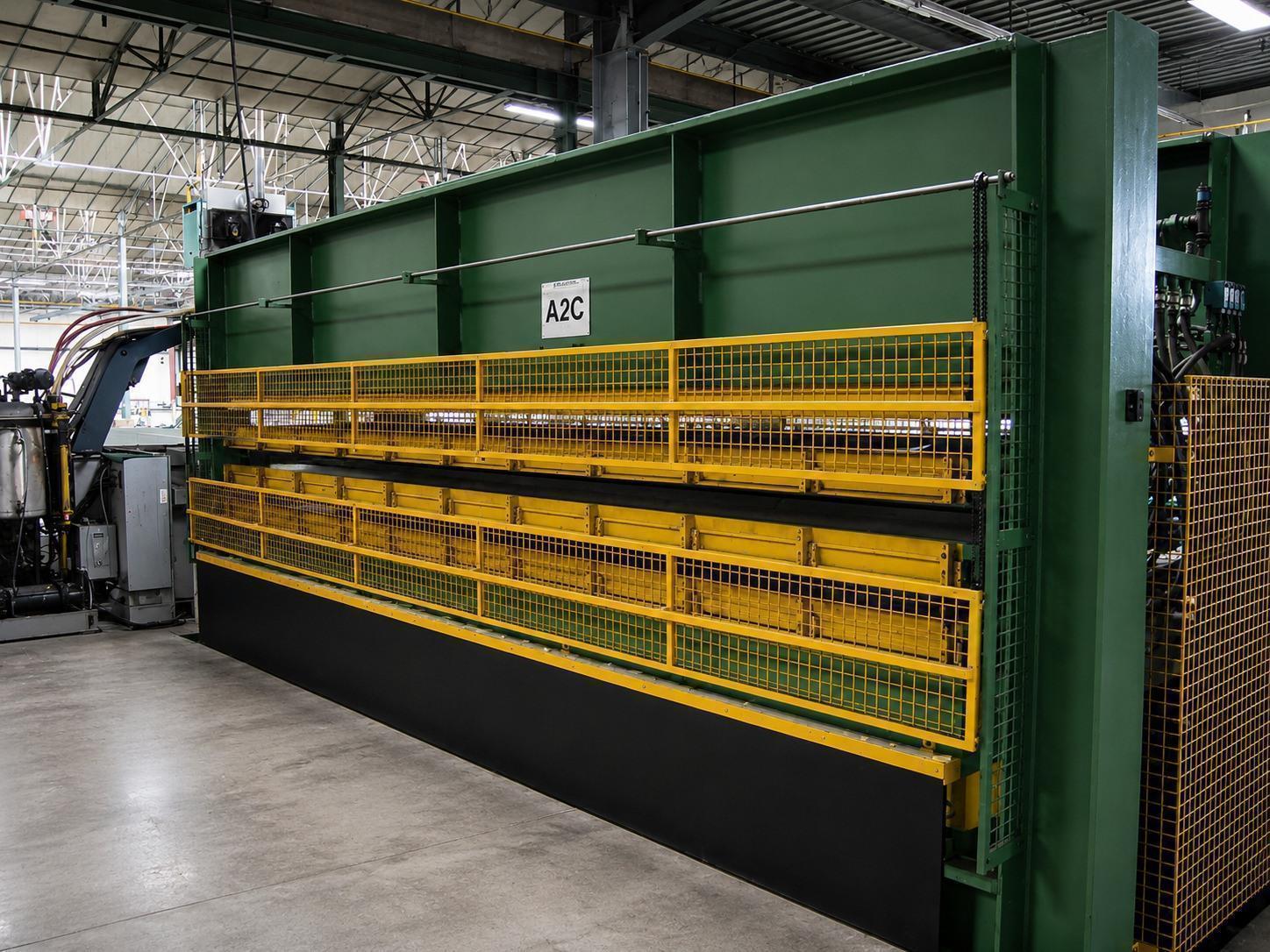

2. MANNI PMC 157 T Hydraulic Heated Sandwich Panel Press

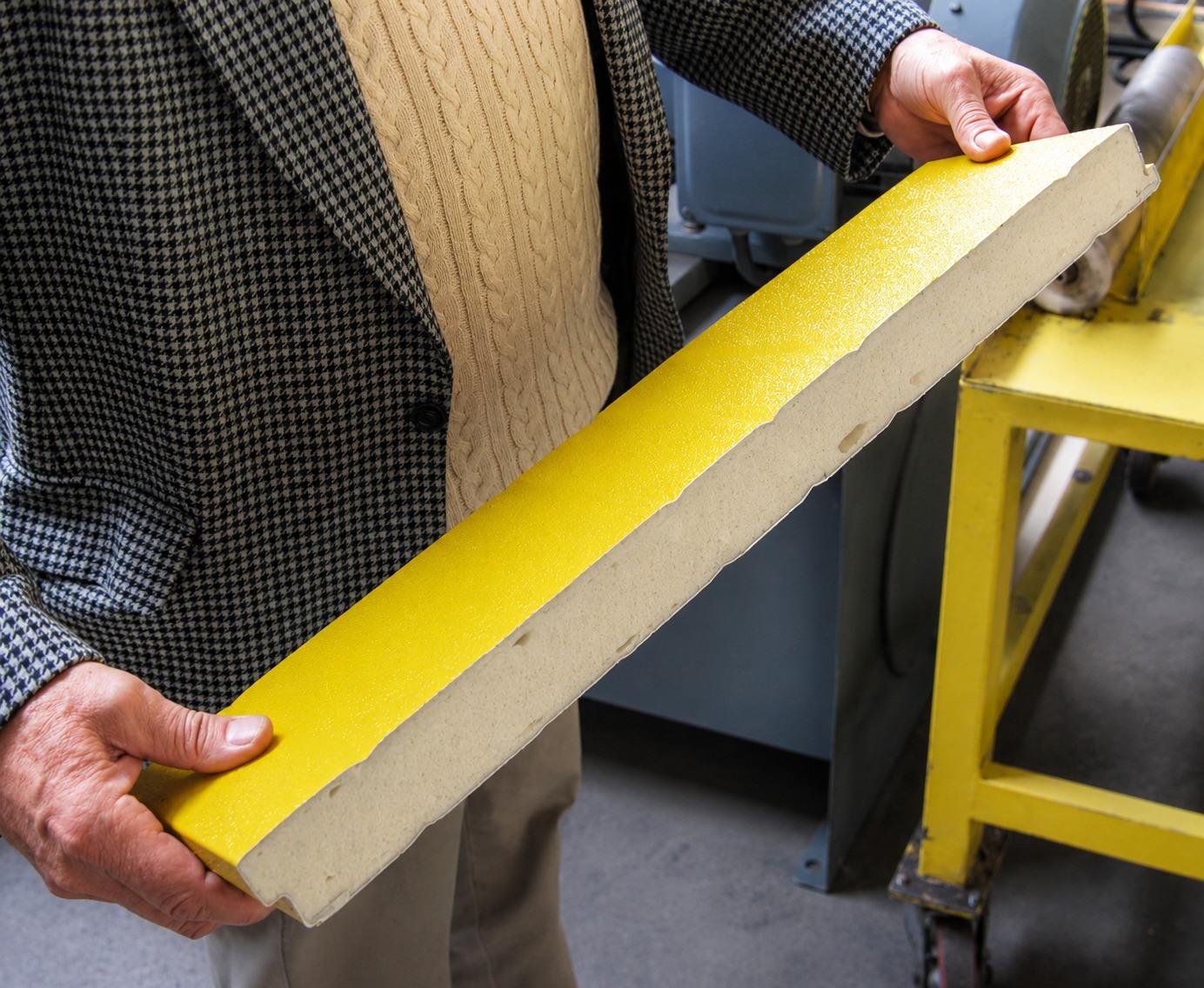

The press is specifically designed for the production of polyurethane-insulated sandwich panels for industrial sectional doors, providing a production capacity of 6 panels per cycle with maximum panel dimensions of 5,100 × 600 × 40 mm.
Manufacturer: Manni SpA, Italy
Model: PMC 157 T
General Description:
The MANNI PMC 157 T is a hydraulic heated press designed for the production of polyurethane-insulated sandwich panels used in industrial sectional doors. The press is equipped with a heated plates system, hydraulic power unit, and integrated heating circuit, allowing efficient production of high-quality insulated panels.
Main Technical Specifications
- Pressing force: 157 tons
- Working pressure: 250 kg/cm²
- Maximum operating pressure: 250 kg/cm²
- Total load: 157,000 kg
- Specific pressure: 2 kg/cm²
- Number of hydraulic cylinders: 8
- Cylinder diameter: Ø100 mm
- Cylinder stroke: 450 mm
- Opening No. 3: 150 mm
Plates and Capacity
- Plate dimensions: 5,200 × 1,500 mm
- Capacity: 6 panels per cycle
- Maximum panel length: 5,100 mm
- Panel width: 600 mm
- Maximum panel thickness: 40 mm
Heating System
Heated plate press
- Maximum heating circuit pressure: 2 kg/cm² at 90°C
- Heating circuit capacity: 850 litres
- Boiler power: 24 kW
Hydraulic System
- Hydraulic power unit:
- COMET G 60 S/5 + G 60 S/5
- Water pump:
- Marelli 50 × 32 × 160
Electrical System
- Power supply: 380 V / 50 Hz
- Absorbed electrical power: 31 kW
- Total electrical power: 35 A / 65
Mechanical Components
- Rack shaft diameter:
- Ø45 mm + tube Ø63.5 × 10 mm
- Rack gears:
- 40 × 40 mm, module 4, length 600 mm
- Bearings:
- SKF SYV 45 T
Sealing Components
- SM472393/1AX (Polypac)
- WRM393440 (Polypac)
- I/DWR100 (Polypac)
- Type/Model: Sandwich panel line for sectional gates
- Stocknumber: Z.02 2882
- Main category: [Z] Complete plants-factories / Vehicles (transport), Overhead Travelling Crane, Jigs / Compressors & generators / Hot air blowers
- Sub category: [Z.02] Industries/Complete plants & factories for sale
- Brand: Jensen
Stocknumber: Z.02 2882
