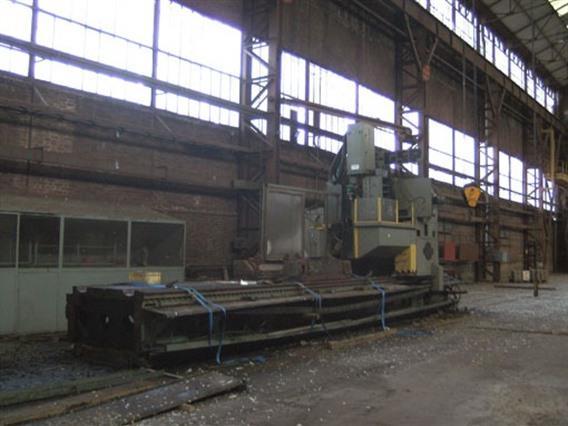

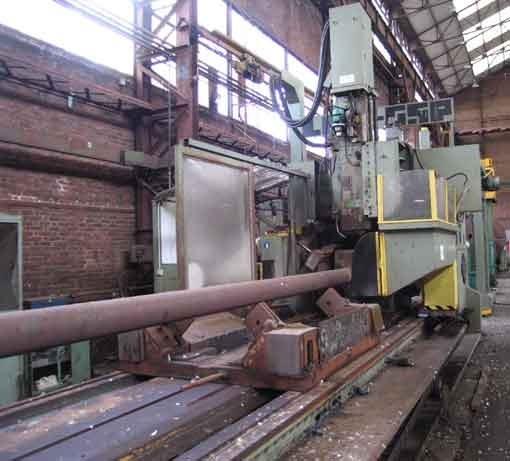

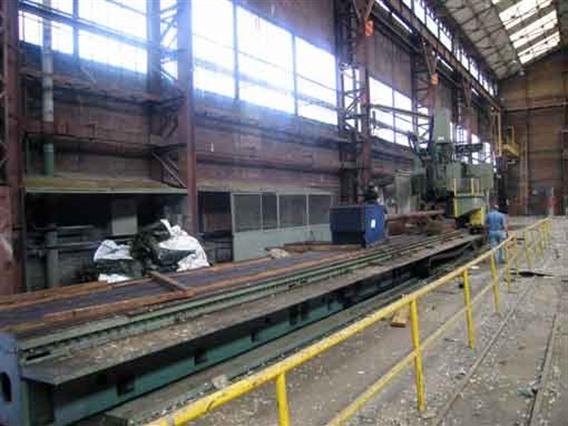

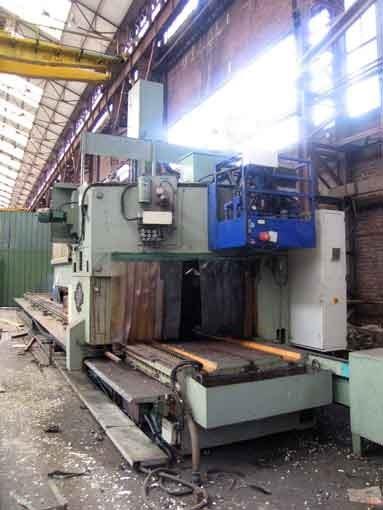

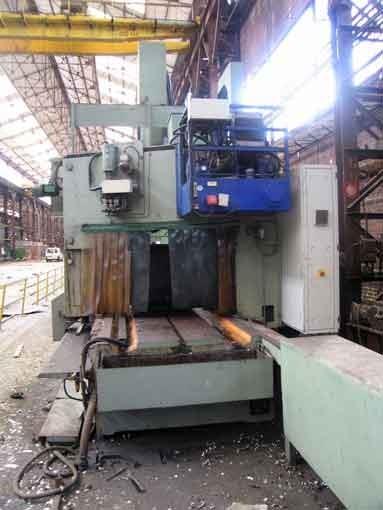

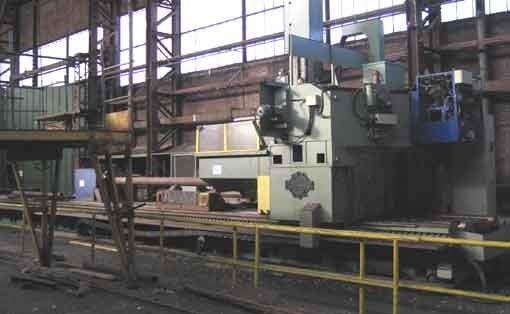

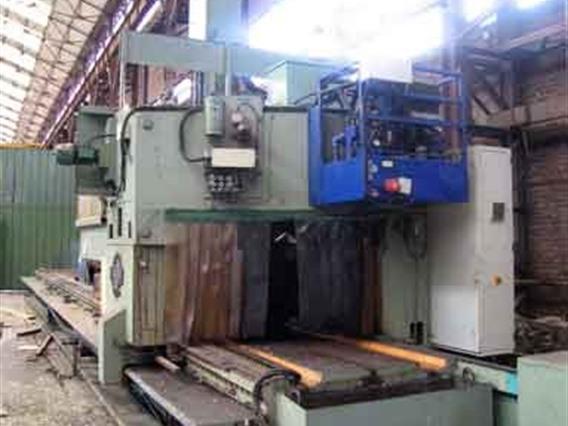

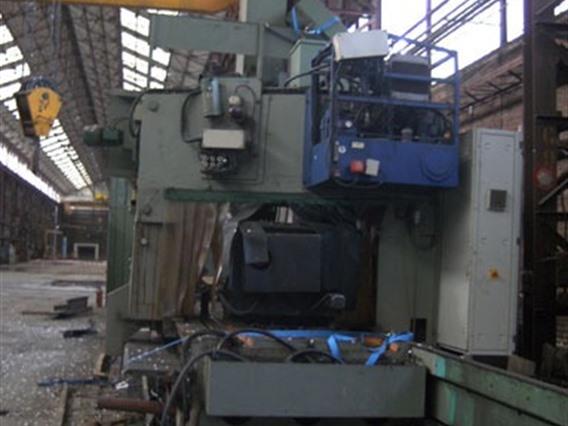

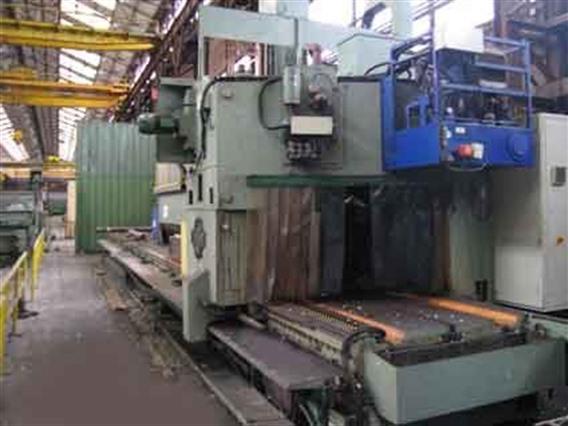

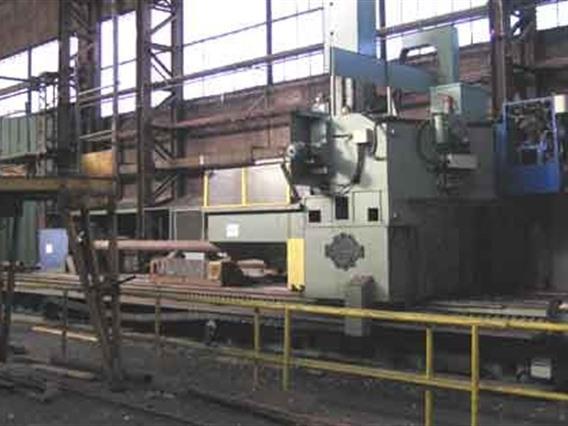

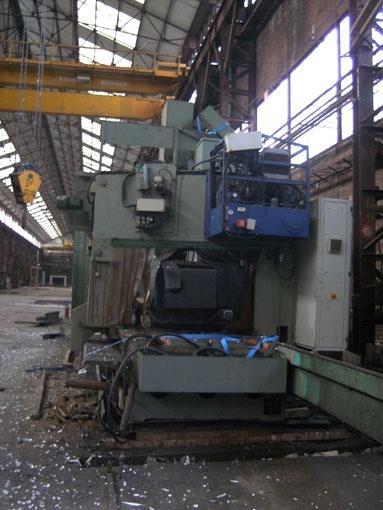

Portal & Gantry milling machine & CNC Line GSP X: 15 000 mm

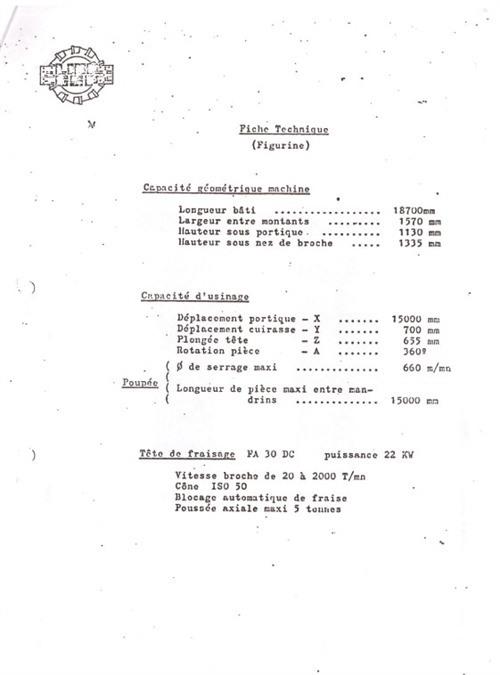

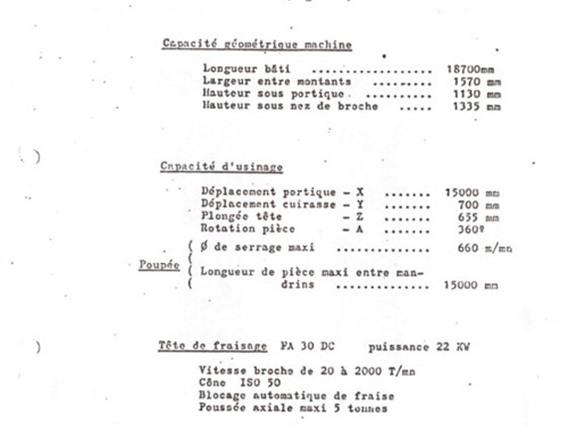

Technical information

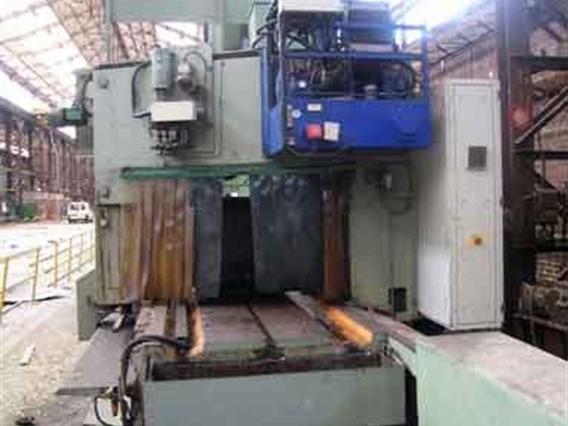

  • Passage beween uprights1570 mm
  • Longitudinal travel X-axe15000 mm
  • Cross travel Y-axe700 mm
  • Travel (height) Z-axe655 mm
  • Dimensions Clamping space - table18700 mm
  • Max height of workpiece1130 mm
  • Type of milling headVertical
  • Admission in millingheadspindle (ISO)ISO 50

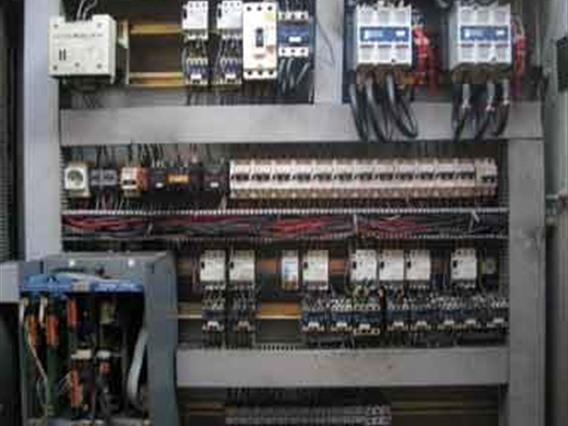

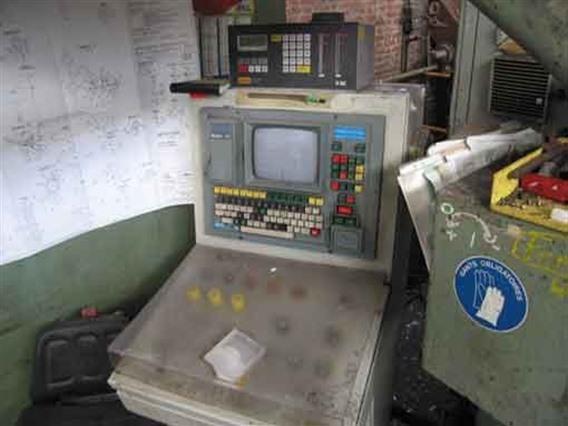

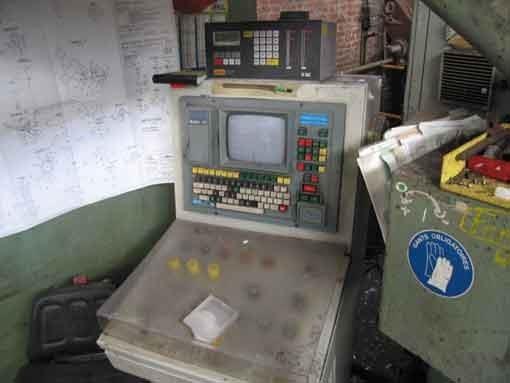

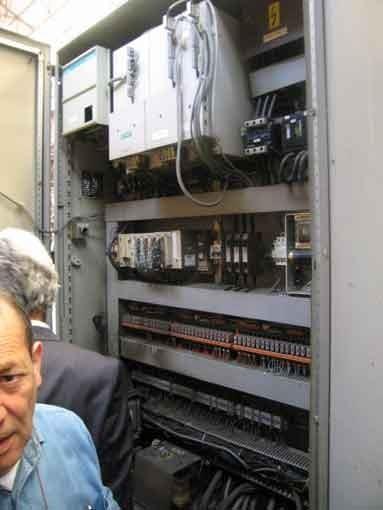

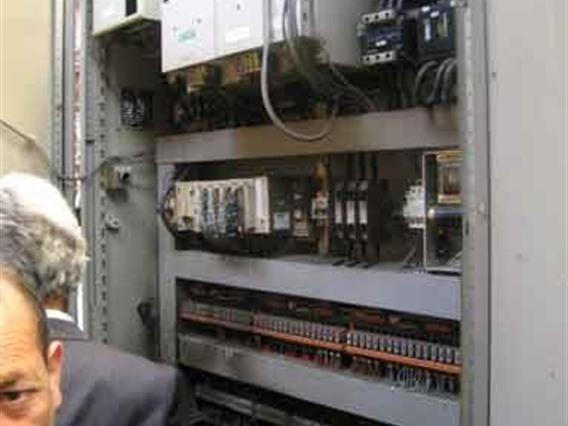

  • Controlcnc 4 axis ECS + SIEMENS
  • Weight72500 kg
  • ToolchangerNO

Additional info

  • Type: 215 MB NU CNC

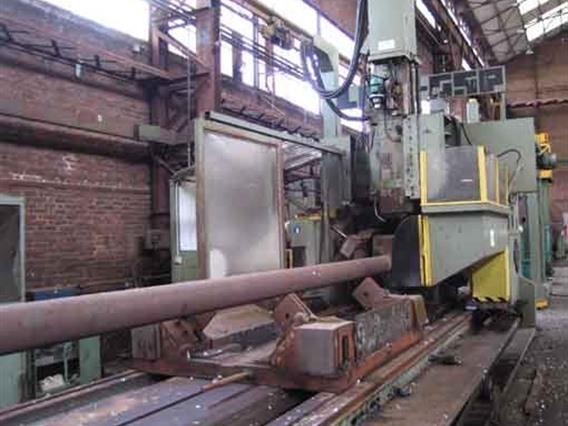

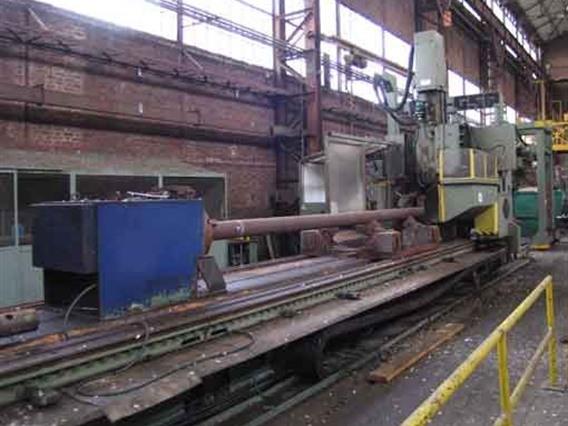

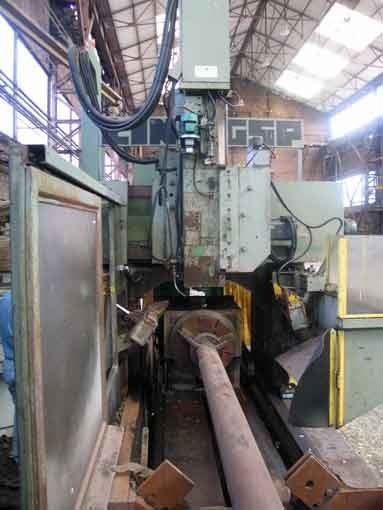

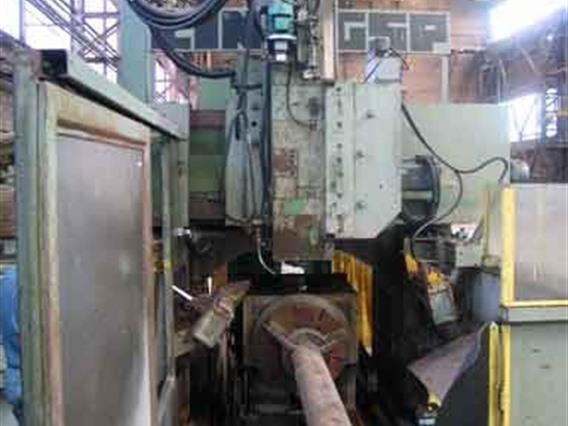

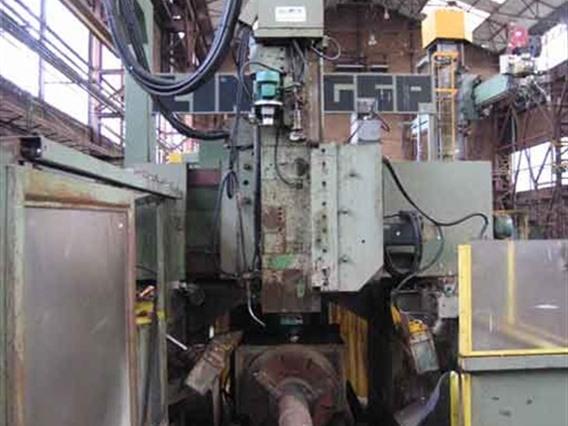

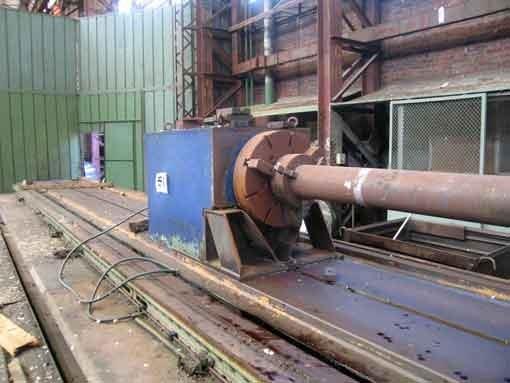

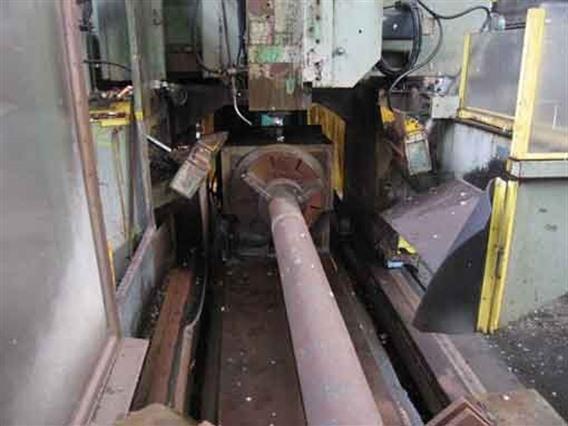

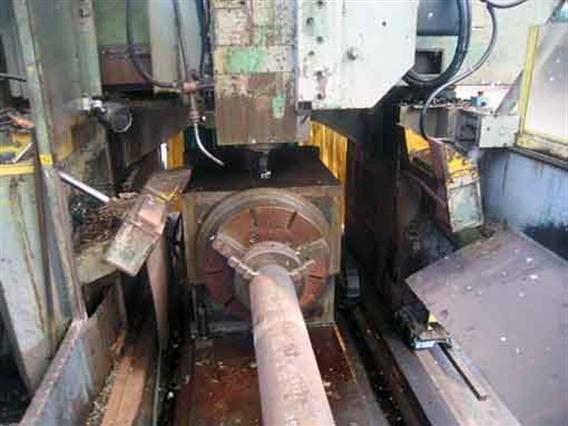

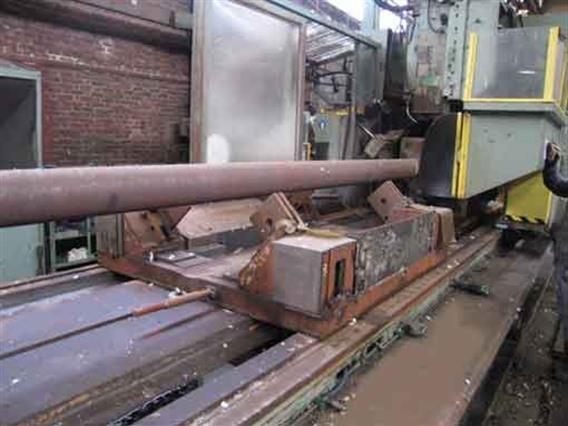

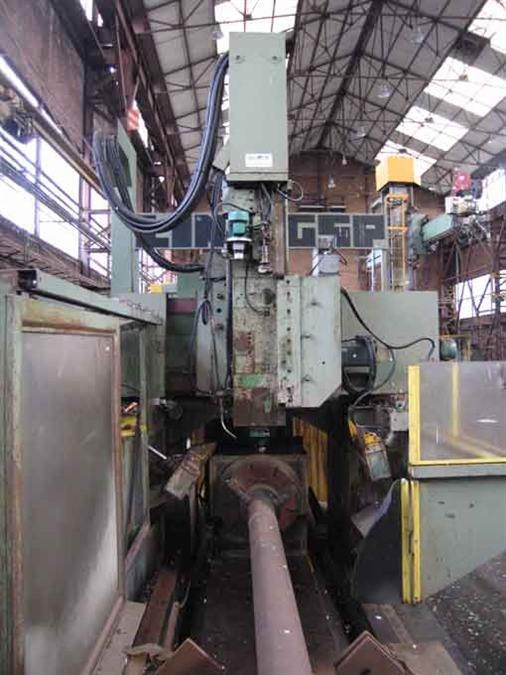

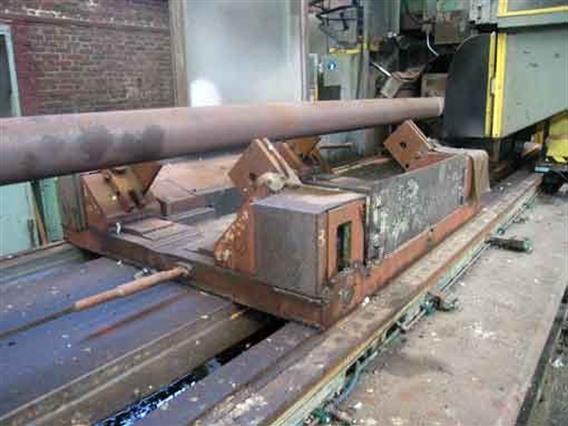

    Milling machine gantry type can handle rolls/tubes/axles of max Ø 660mm and max lenght of 15000 mm
    - simultaneous milling with 4 axes

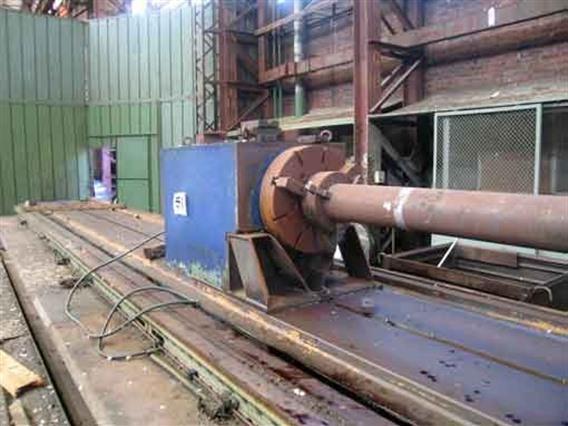

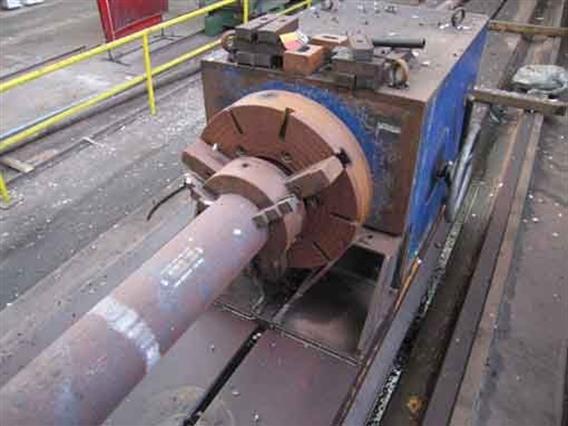

    - with CNC directed rotation axis built on table, can be removed.
    - max. height 1130 mm
    - max. turning dia 660 mm
    - weights: portal + 1 table = 42 Ton
    - 3 tables 4000 x 1500: 10 Ton each


  • Type/Model: X: 15 000 mm
  • Stocknumber: B.06 3218
  • Main category: [B] Milling machines
  • Sub category: [B.06] Portal & Gantry milling machine & CNC
  • Brand: Line GSP

Stocknumber: B.06 3218
