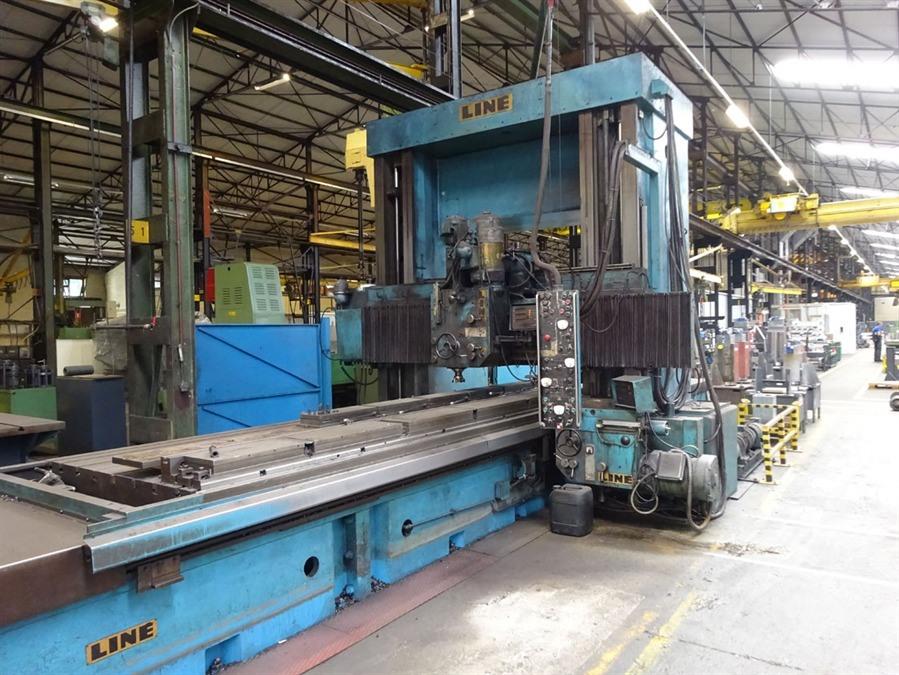

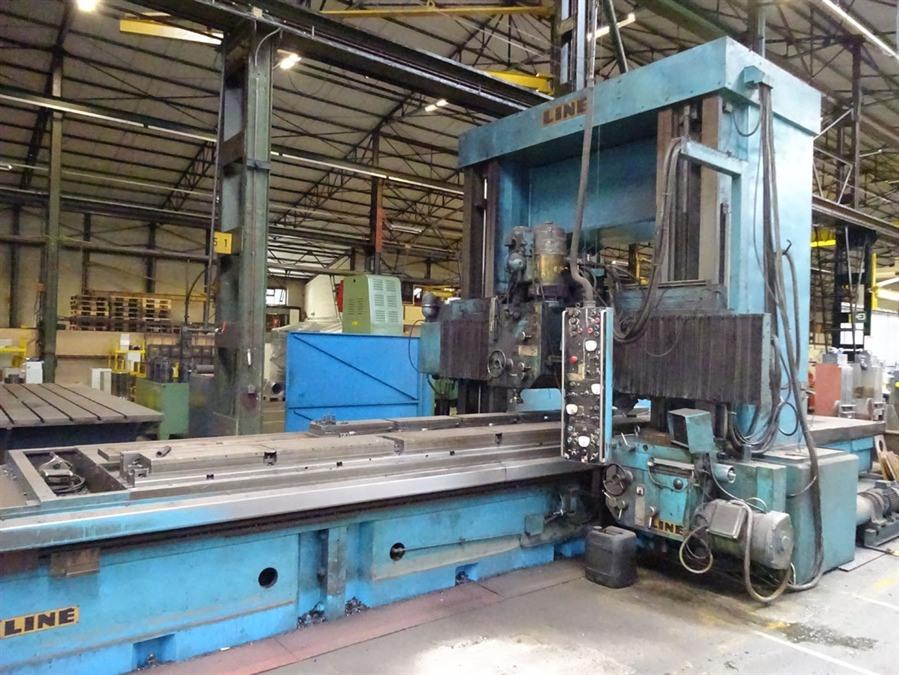

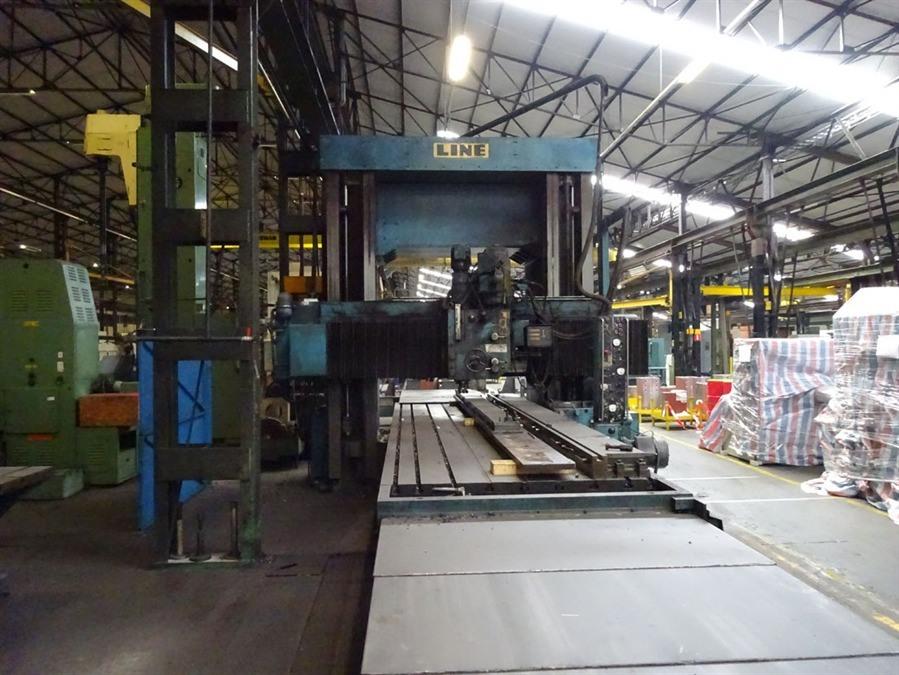

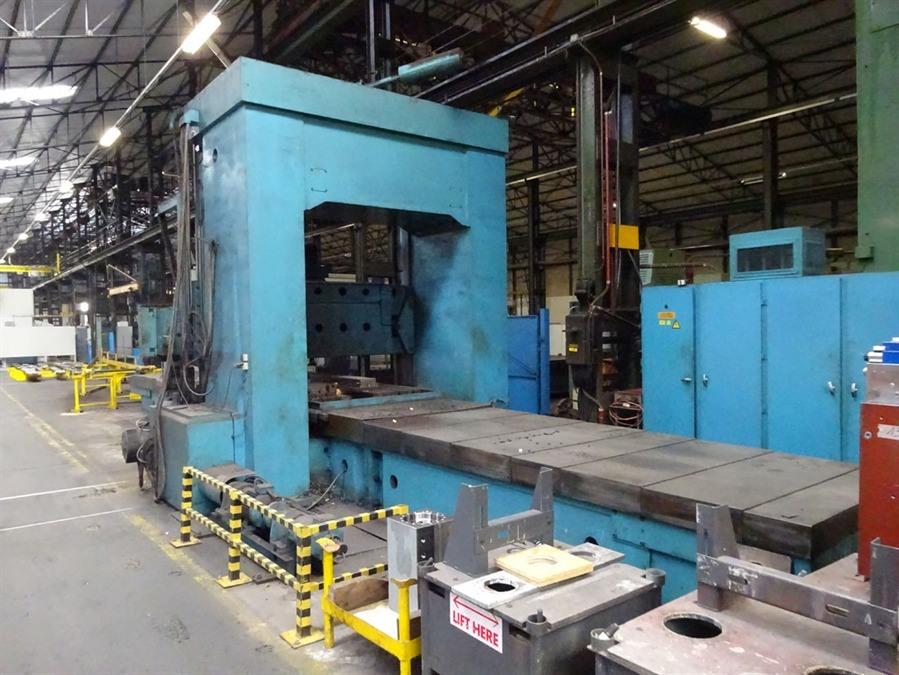

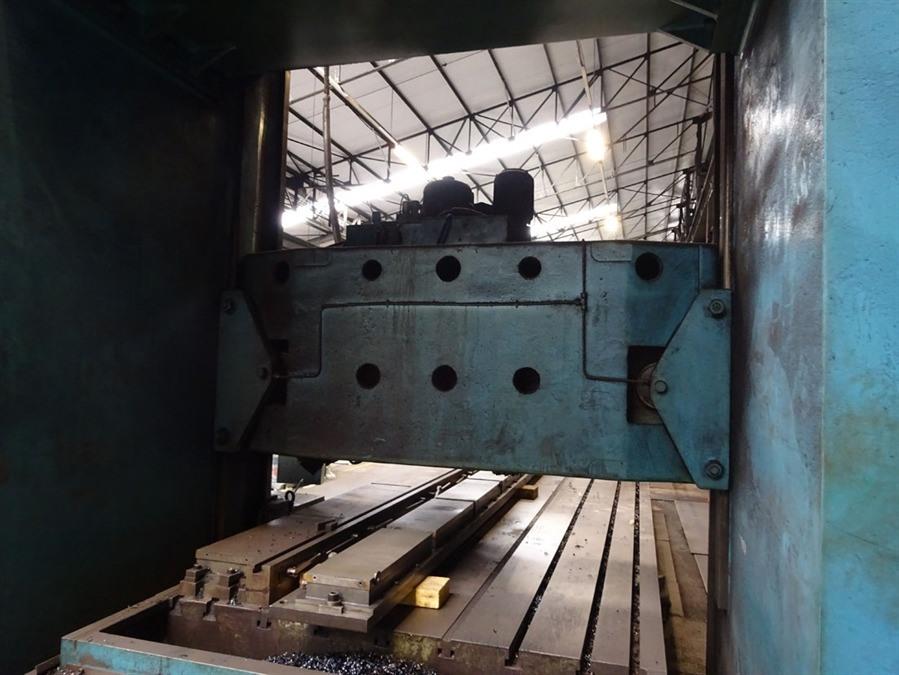

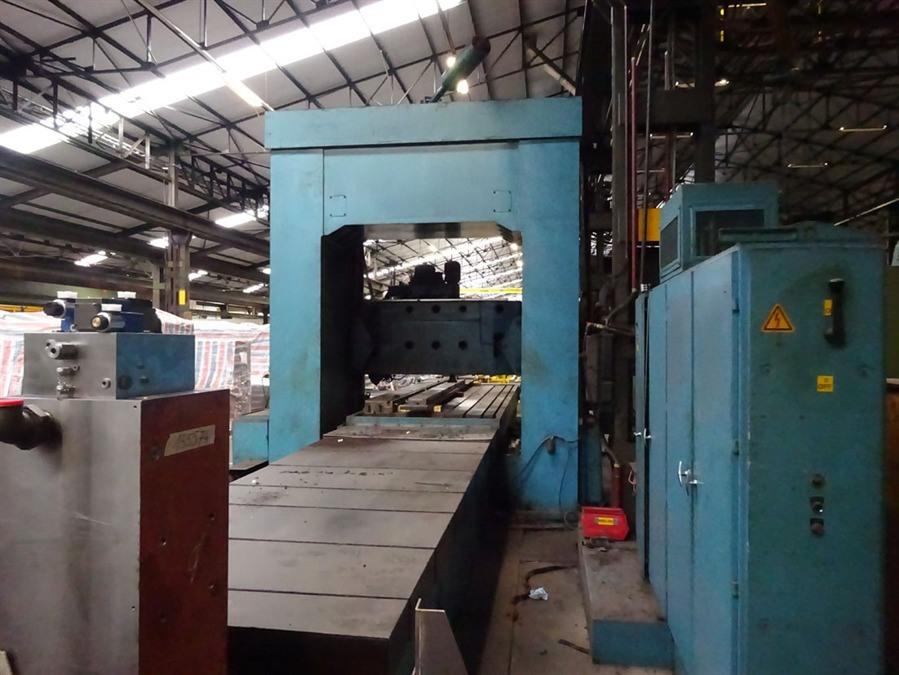

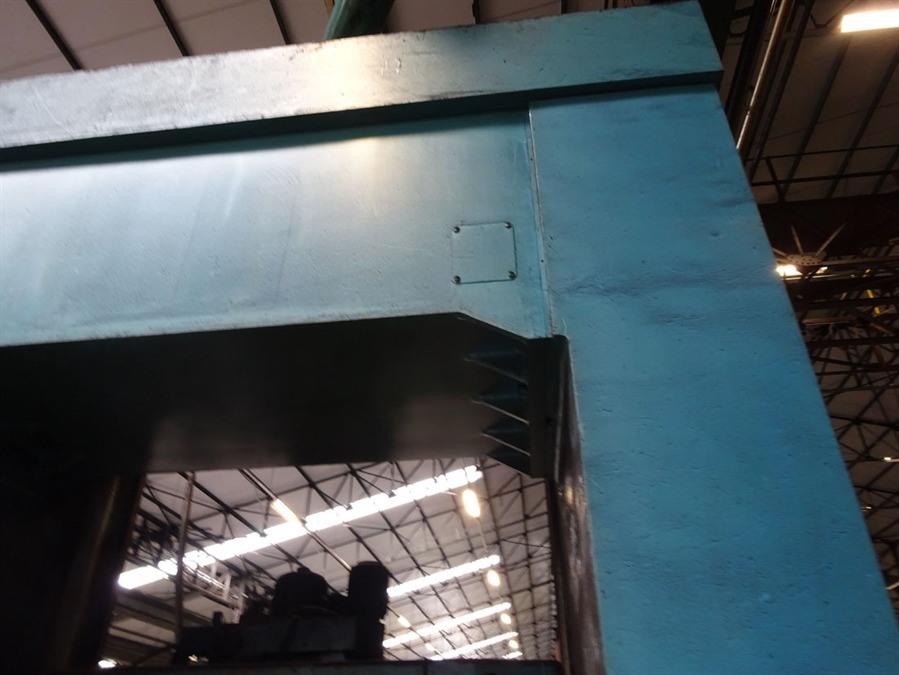

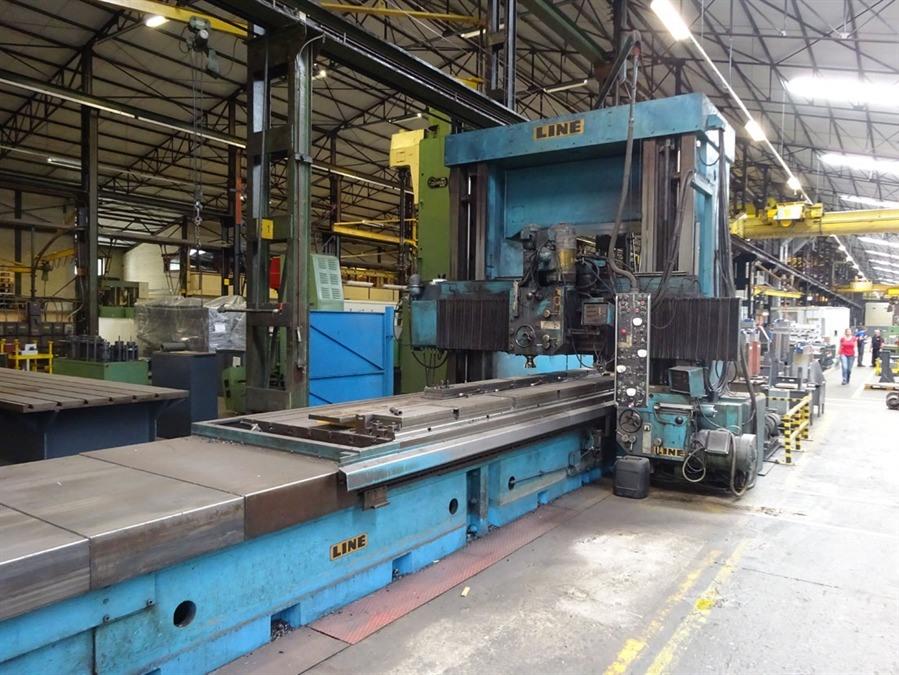

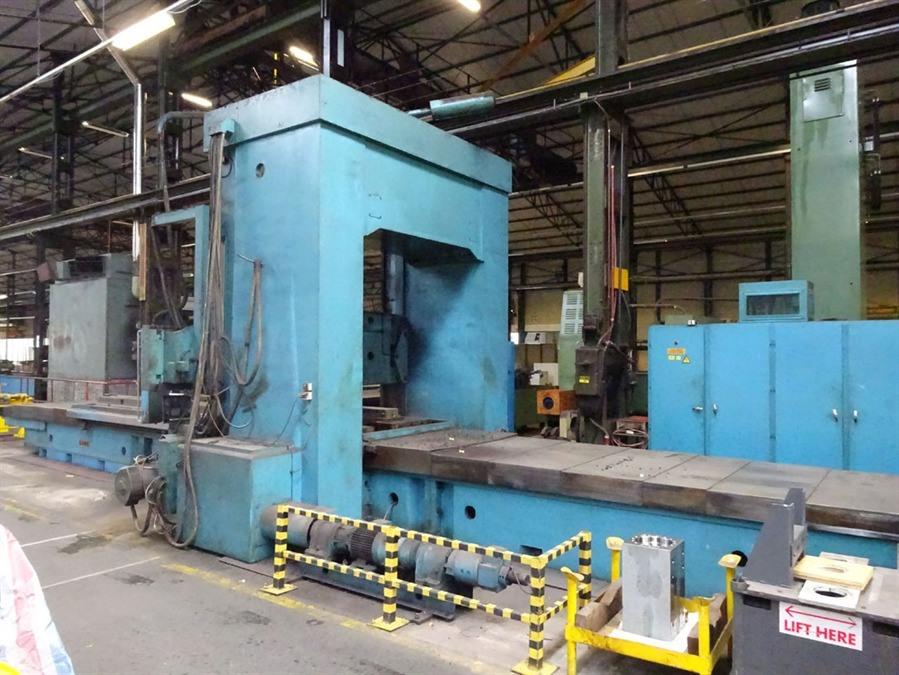

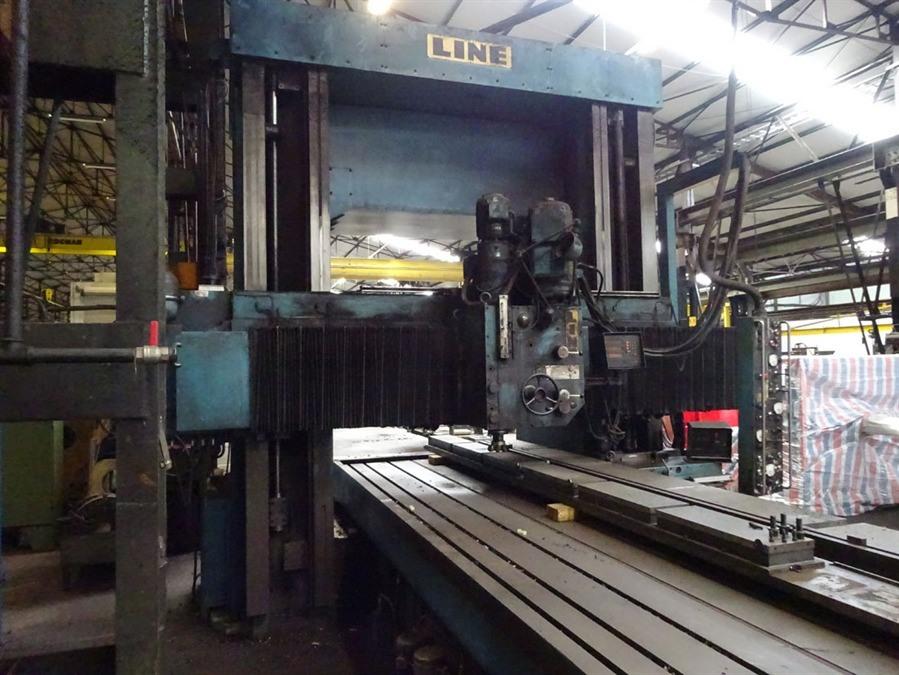

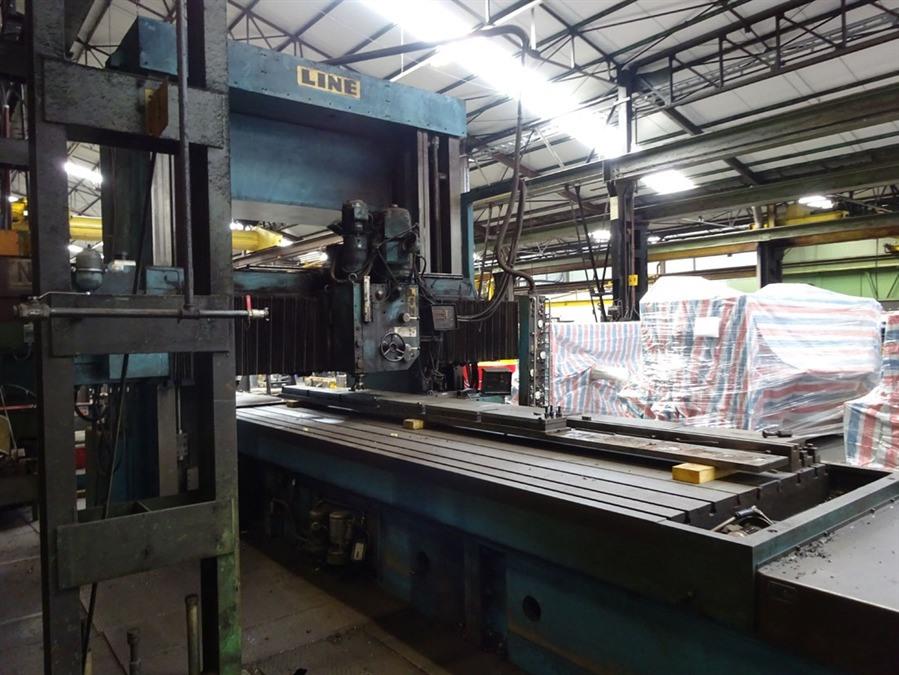

Portal & Gantry milling machine & CNC Liné Liane X: 5000 - Y: 1800 - Z: 1700+150mm
Technical information
- Passage beween uprights2020 mm
- Longitudinal travel X-axe5000 mm
- Cross travel Y-axe1800 mm
- Travel (height) Z-axe1700+150 mm

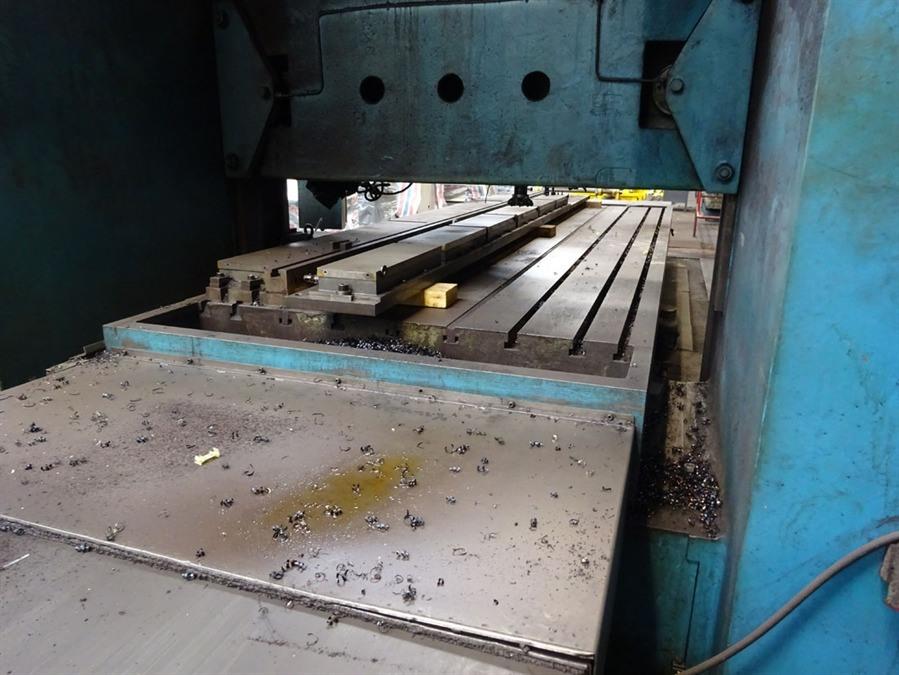

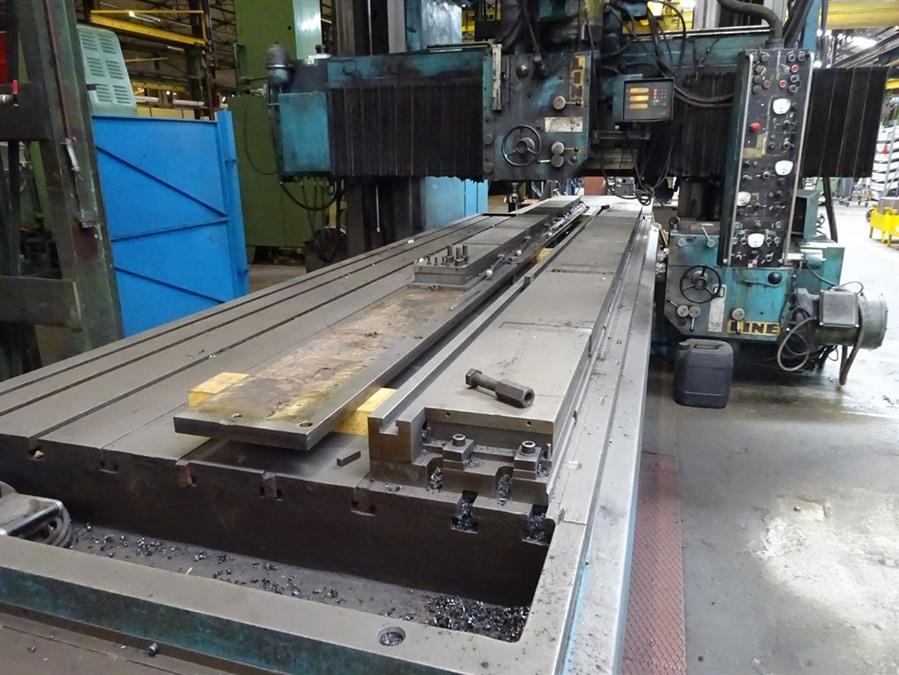

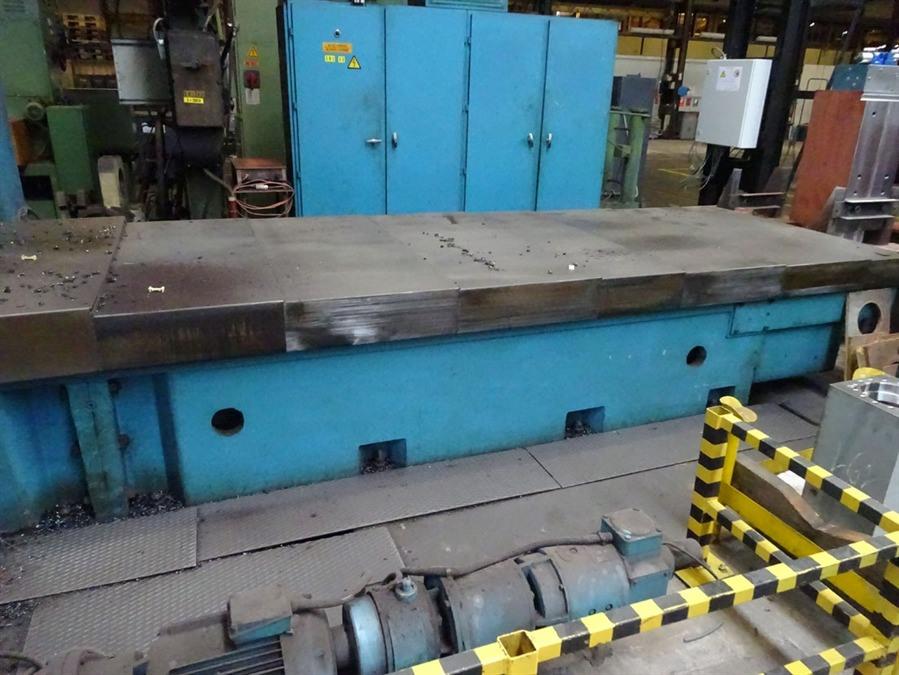

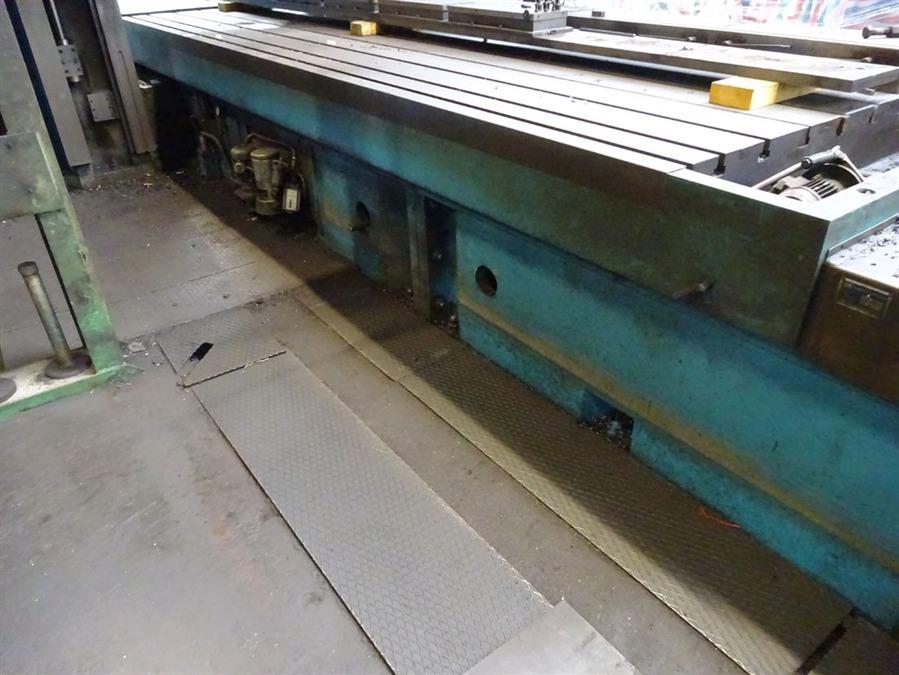

- Dimensions Clamping space - table5700 x 1650 mm
- Max height of workpiece1880 mm
- Power on spindle2 heads - 22kW each
- Admission in millingheadspindle (ISO)ISO 50
- Max speedrange25 - 1250 rpm

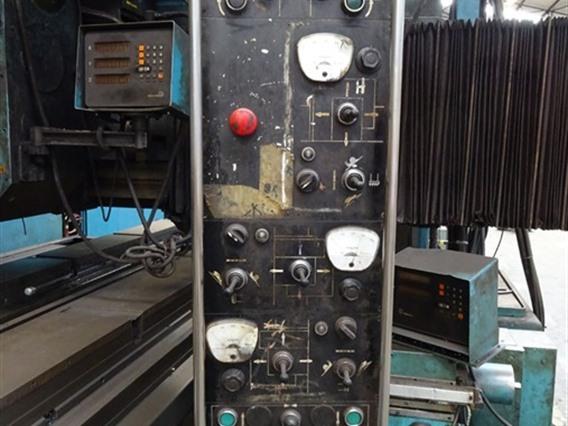

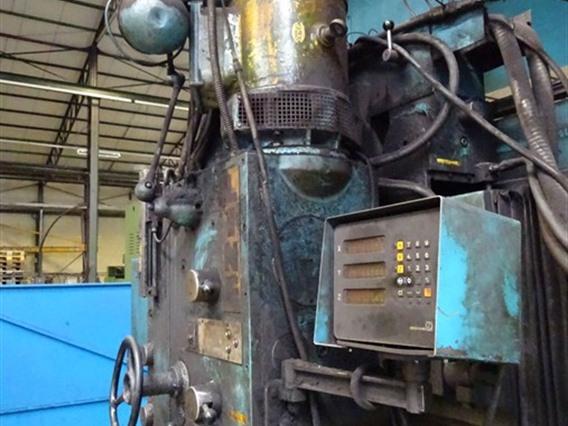

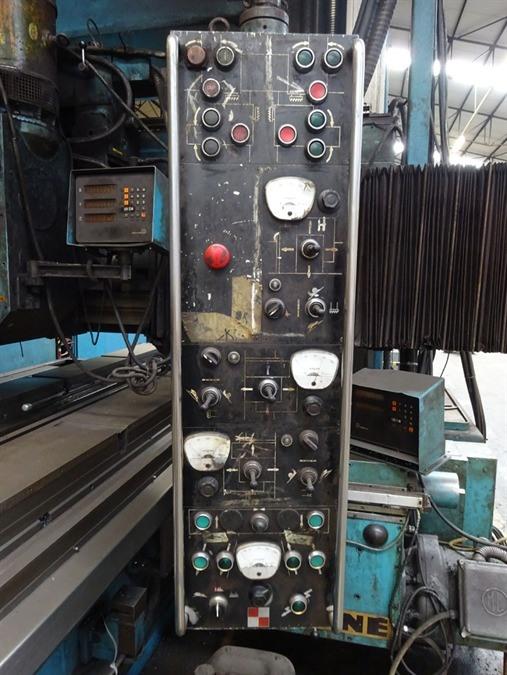

- Digital screenHeidenhain
- Power needed18,4 - 22 kW
- Weight51 ton
Additional info

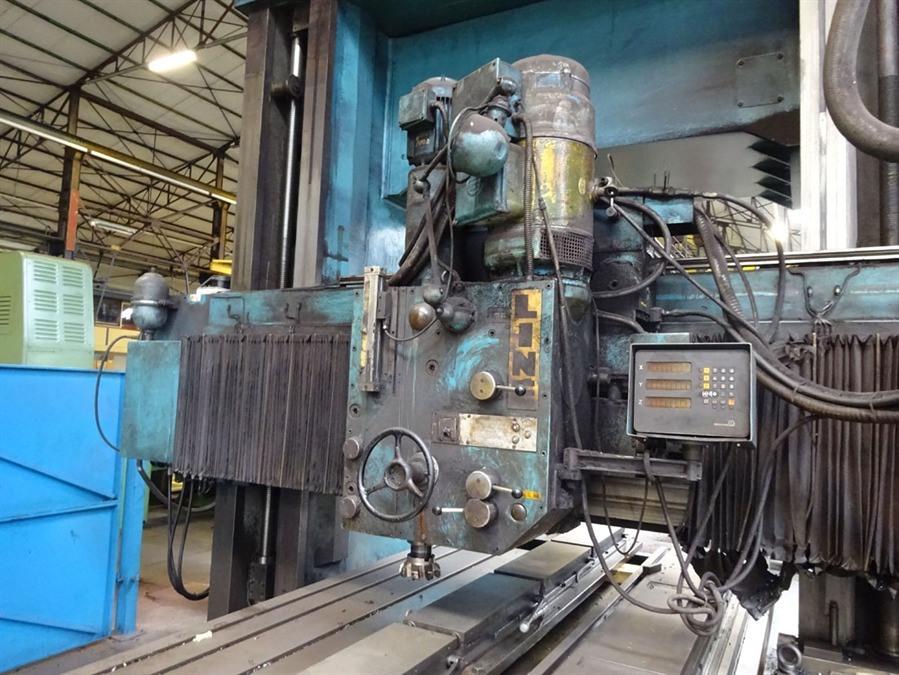

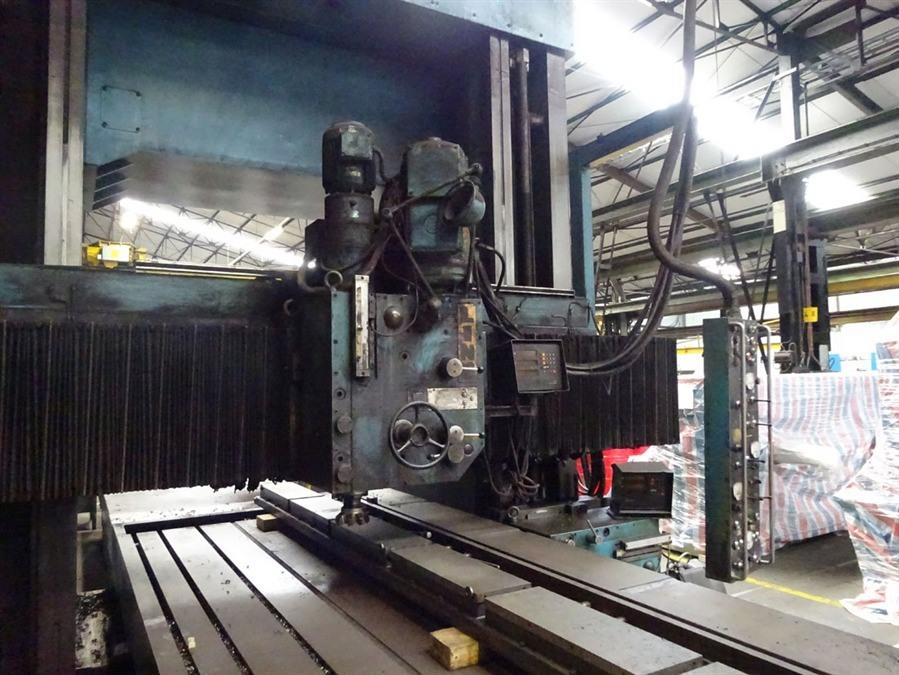

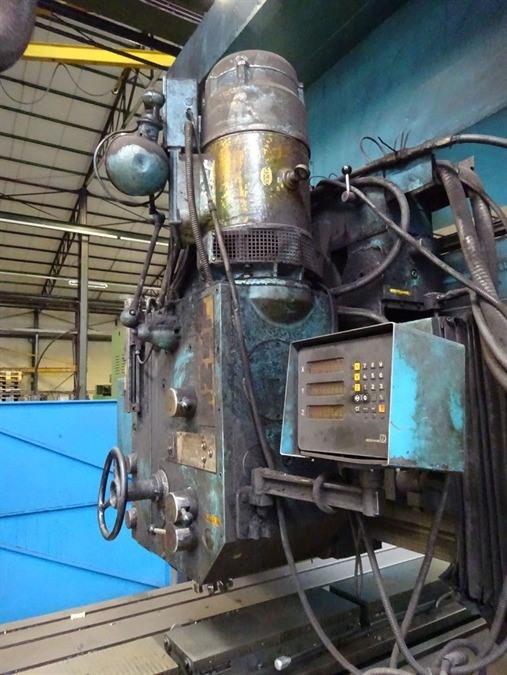

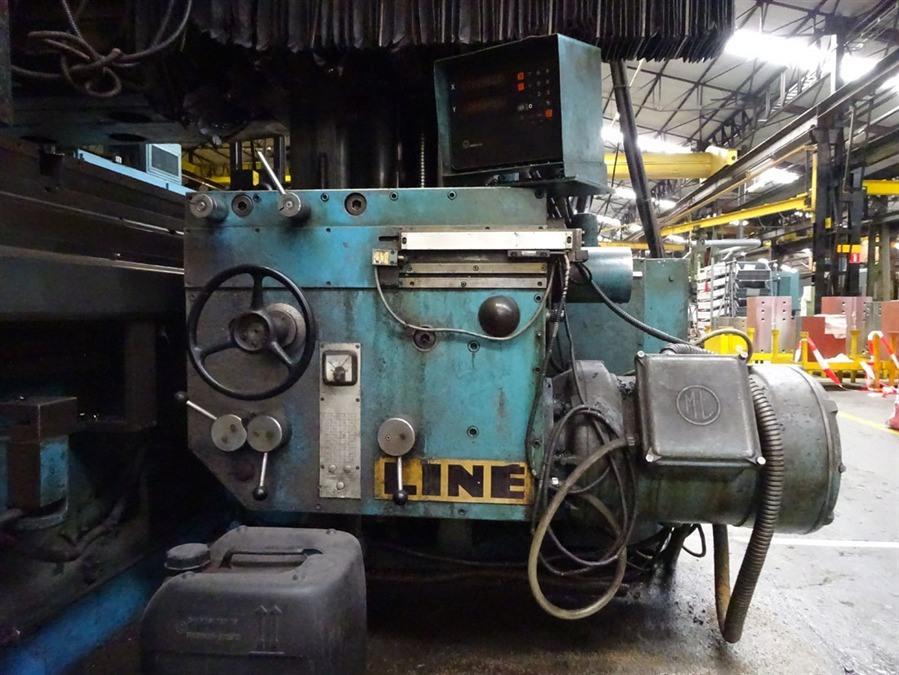

2 heads:
- one horizontal main spindle
- one vertical secondary spindle
spindle dia: 200 mm
spindle travel: 200 mm
spindle: 2x F1
max workpiece hieght: 1900 mm
-------------------------------------------
2 головы:
- Горизонтальная и вертикальная
Диаметр шпинделя: 200 мм
Ход шпинделя: 200 мм
Макс высота заготовки: 1900 мм
- Type/Model: X: 5000 - Y: 1800 - Z: 1700+150mm
- Stocknumber: B.06 8117
- Main category: [B] Milling machines
- Sub category: [B.06] Portal & Gantry milling machine & CNC
- Brand: Liné Liane
