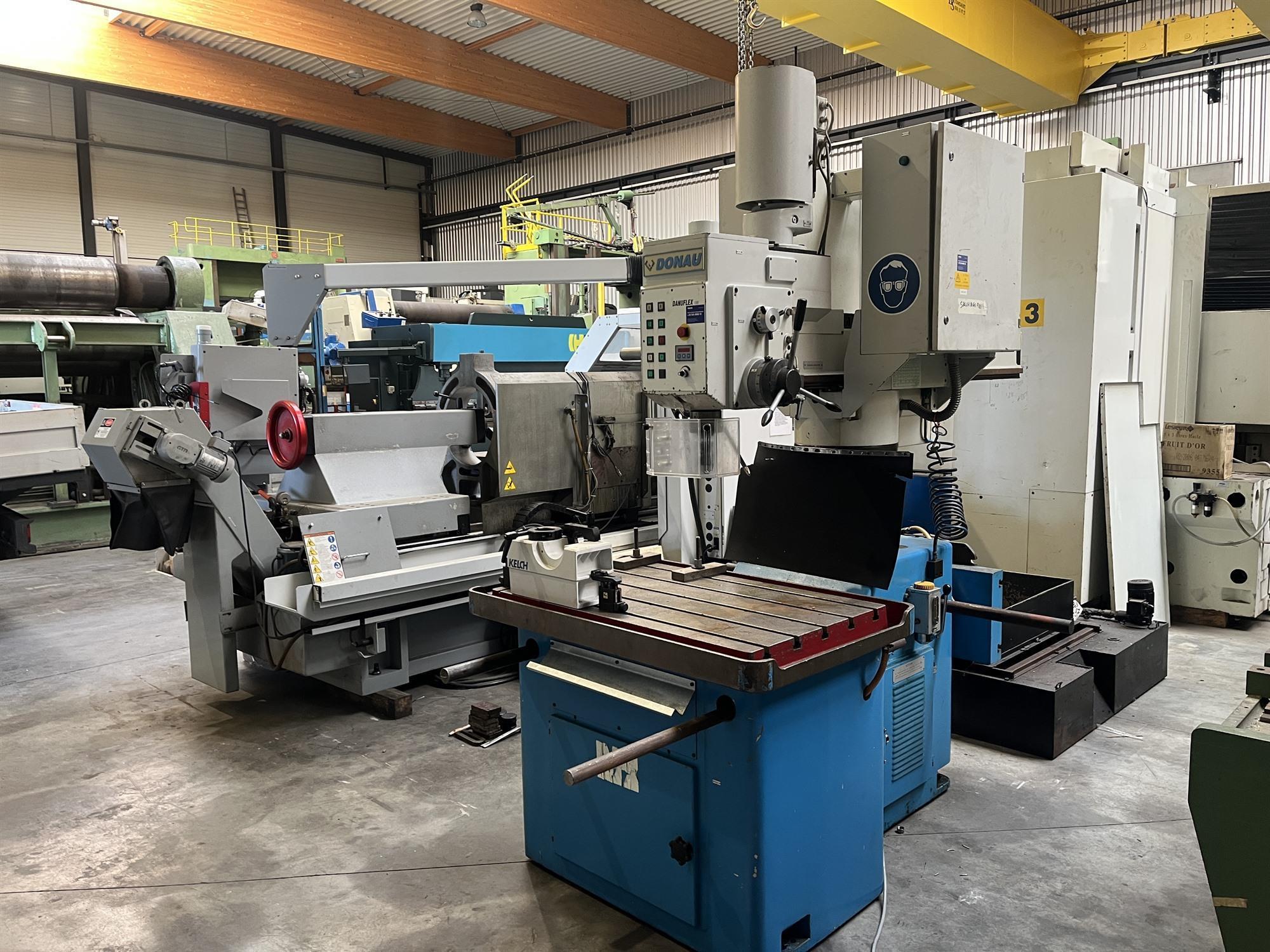

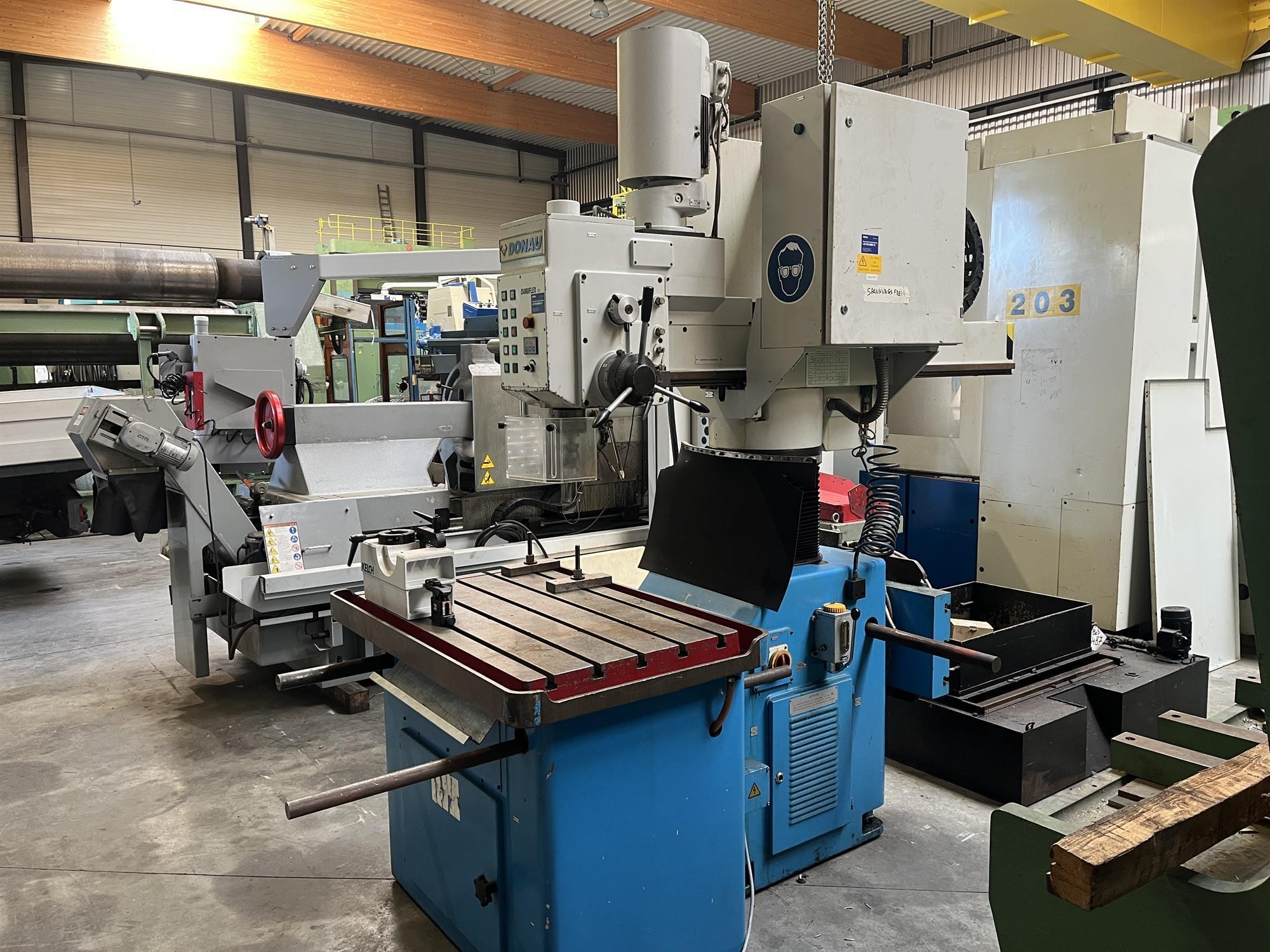

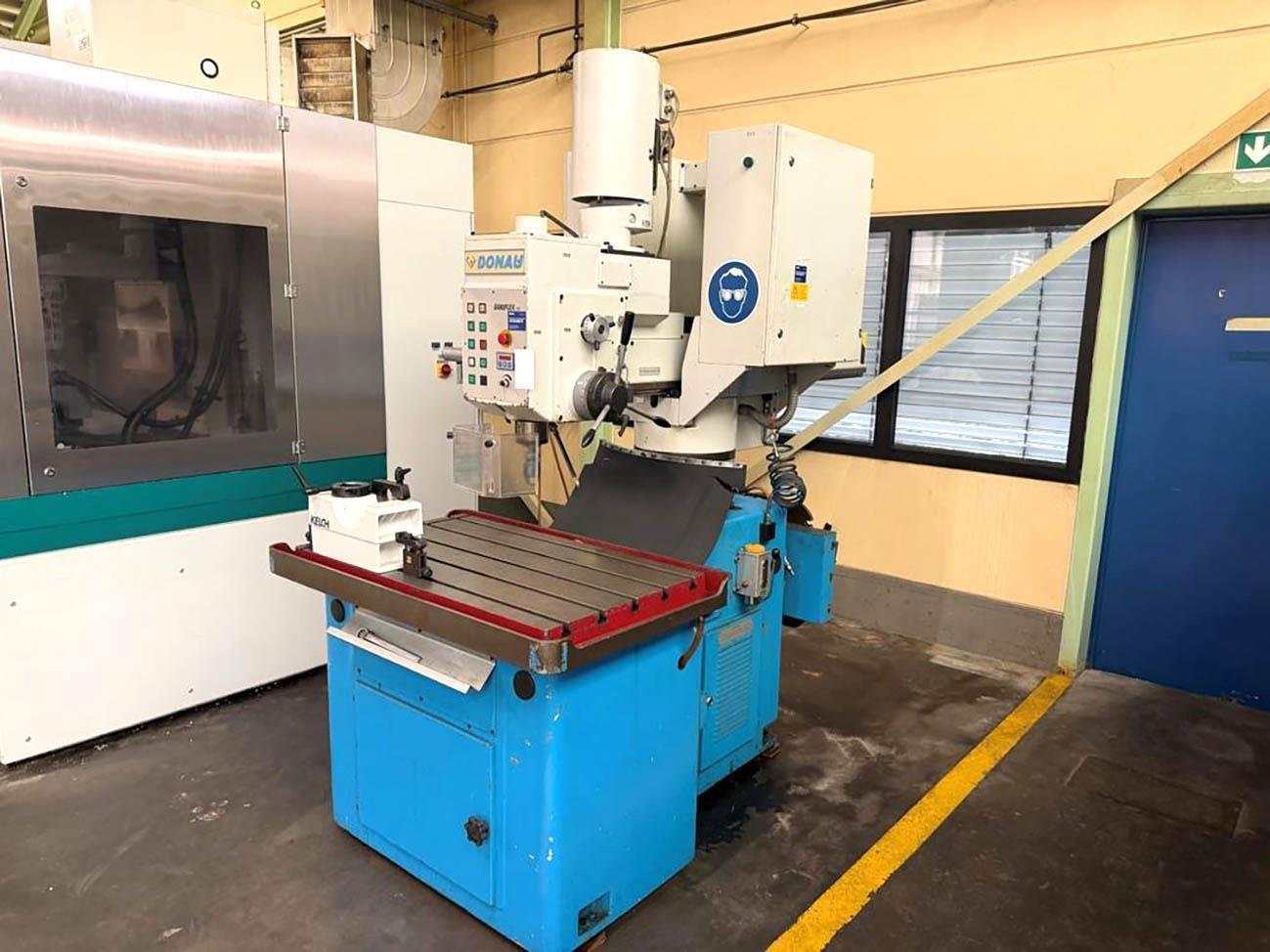

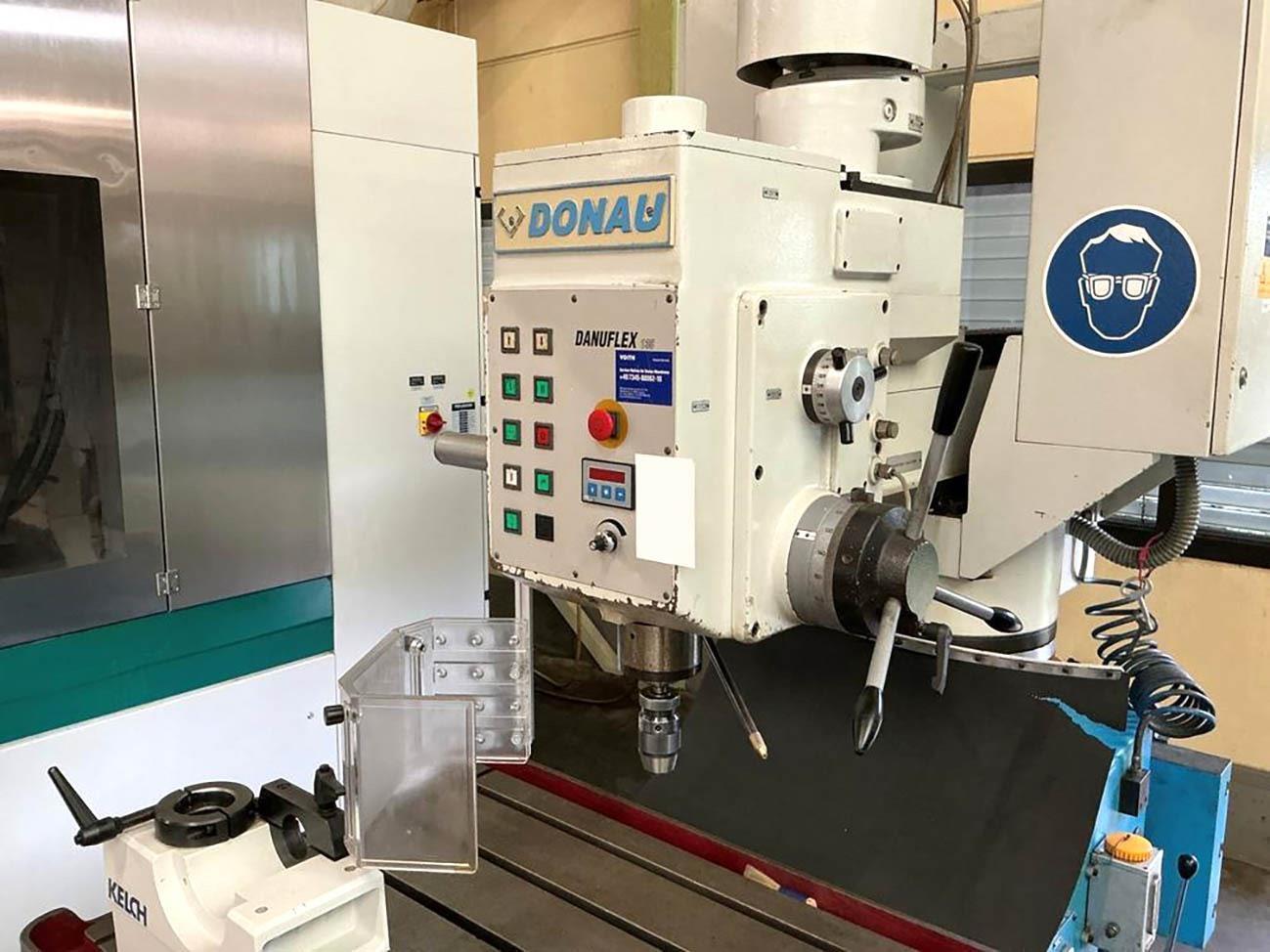

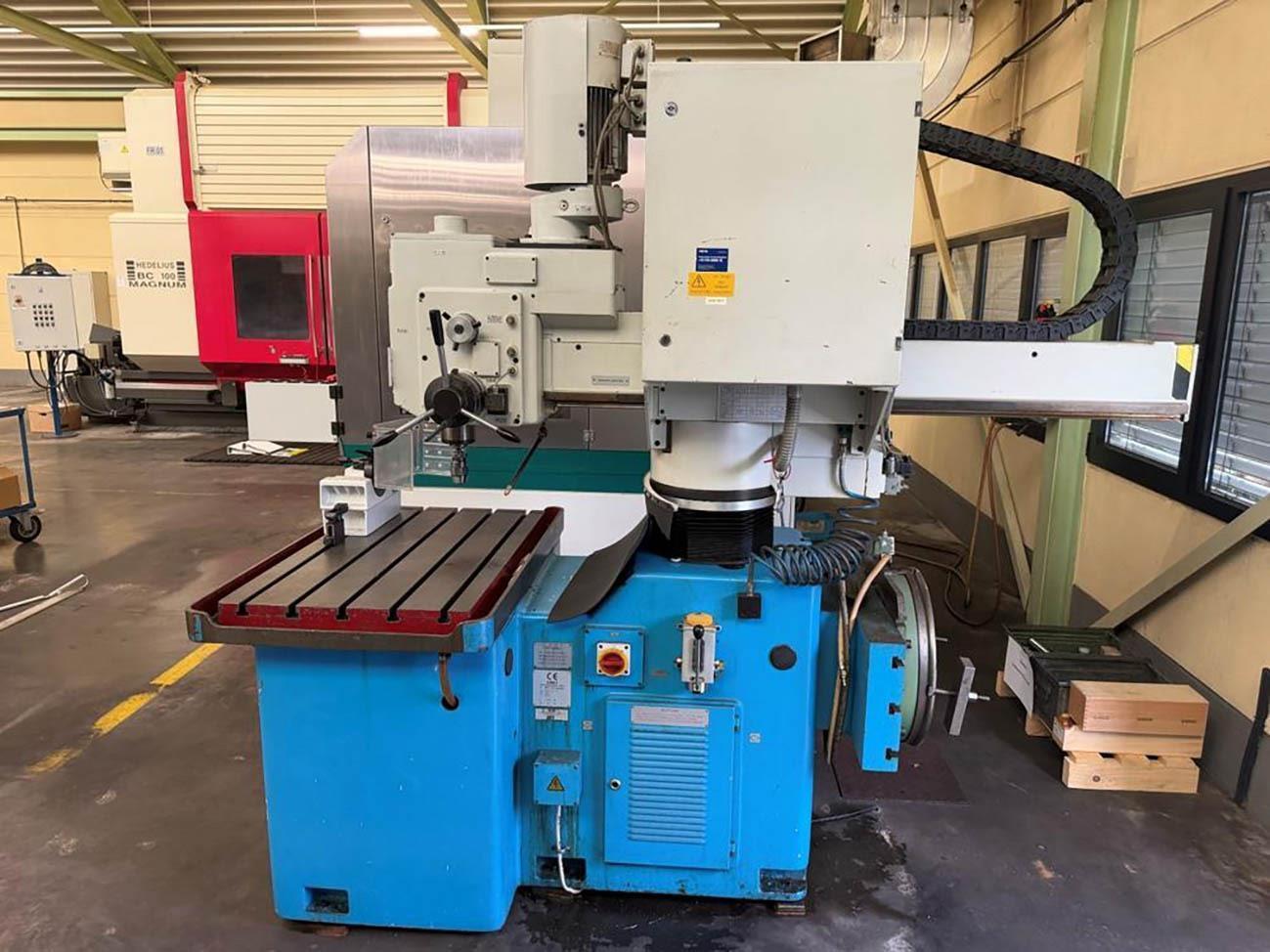

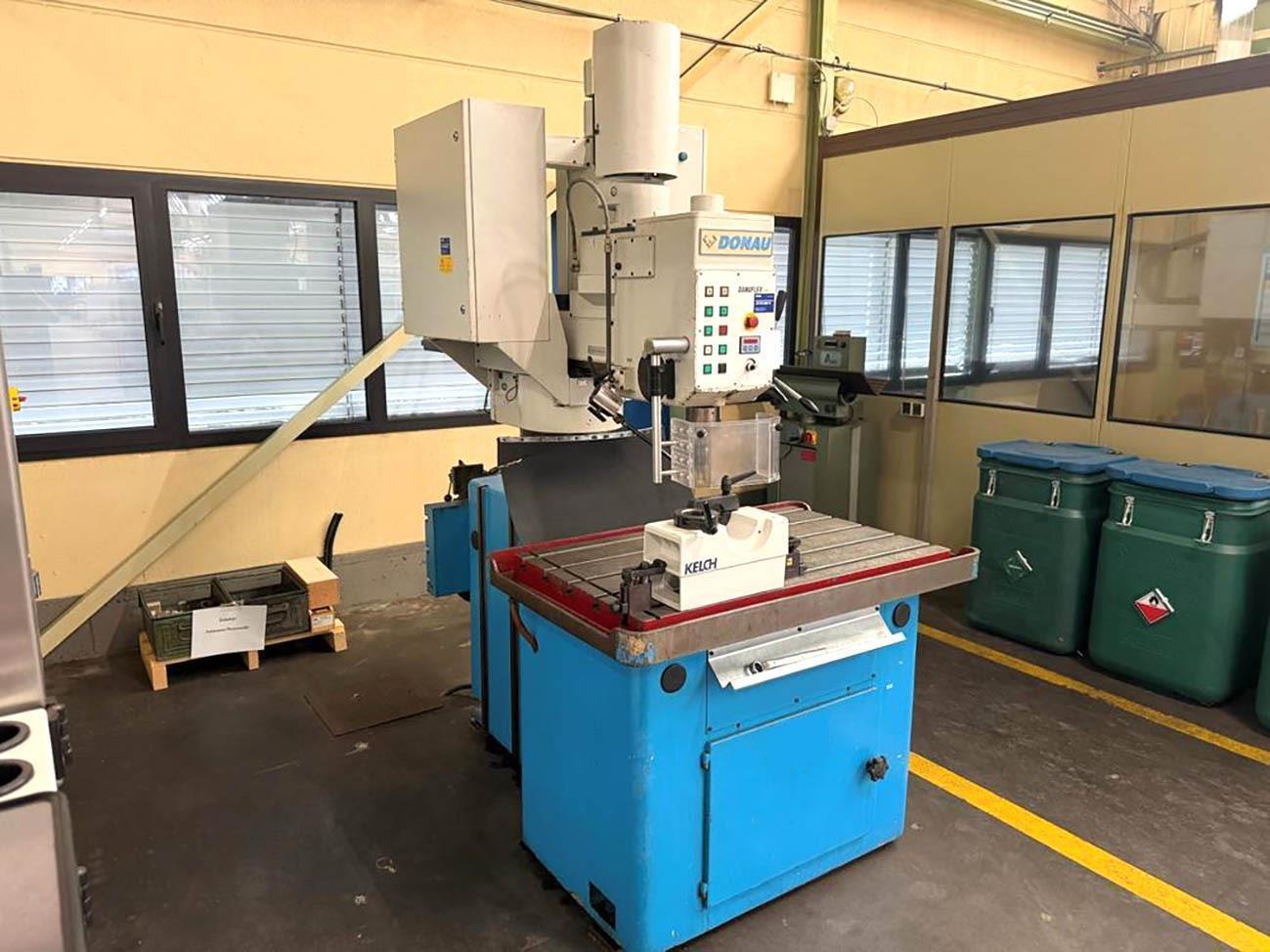

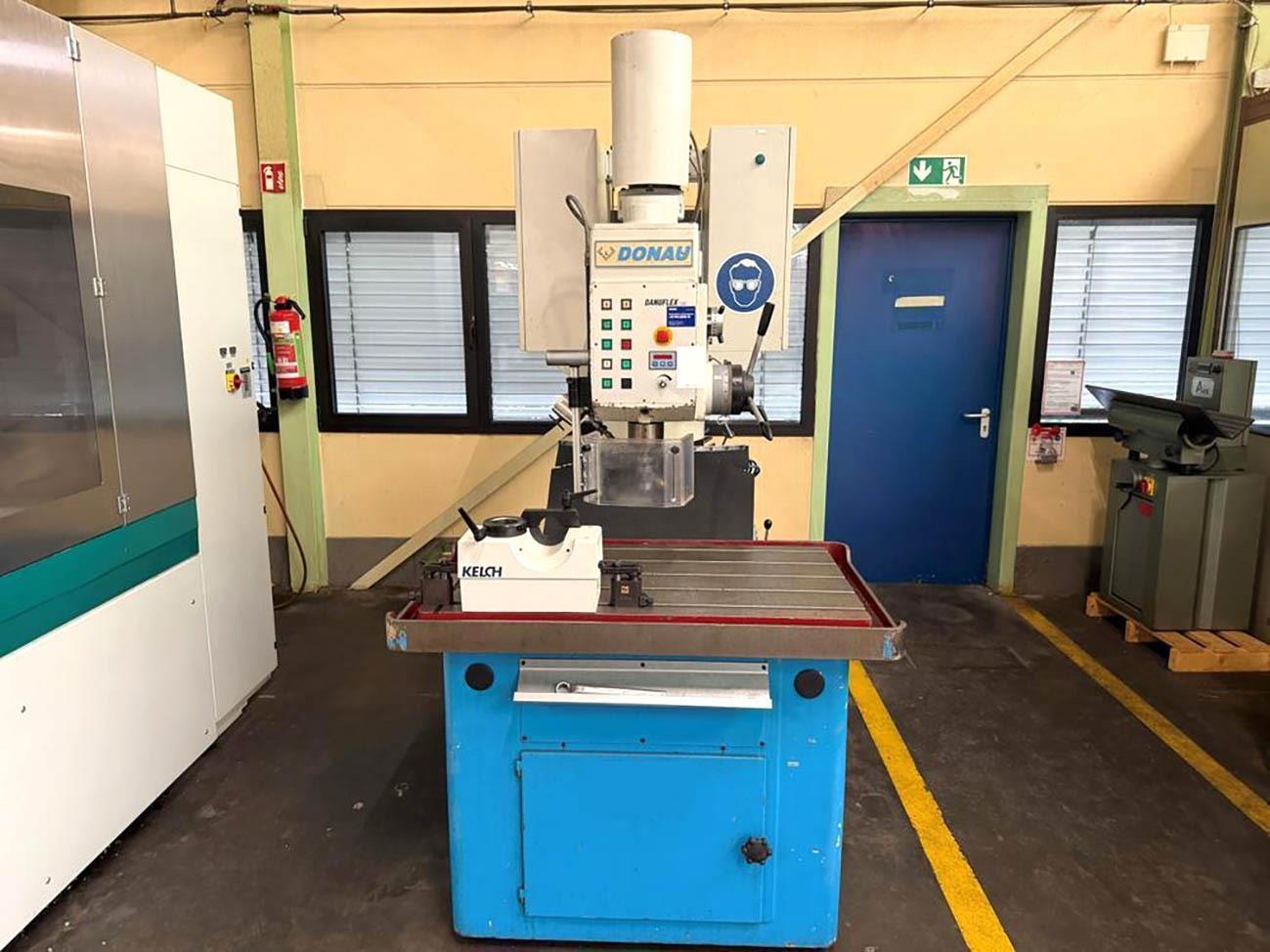

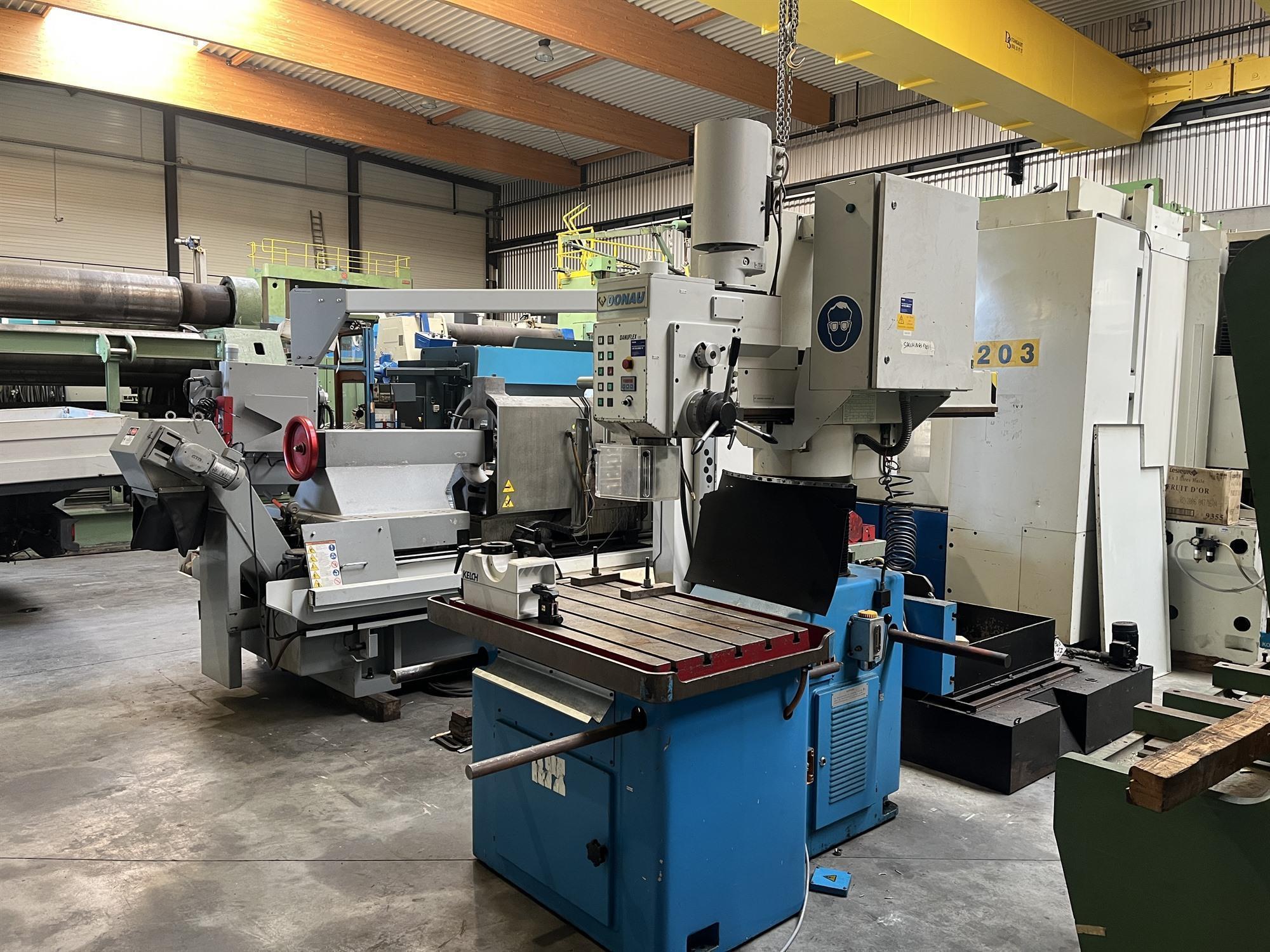

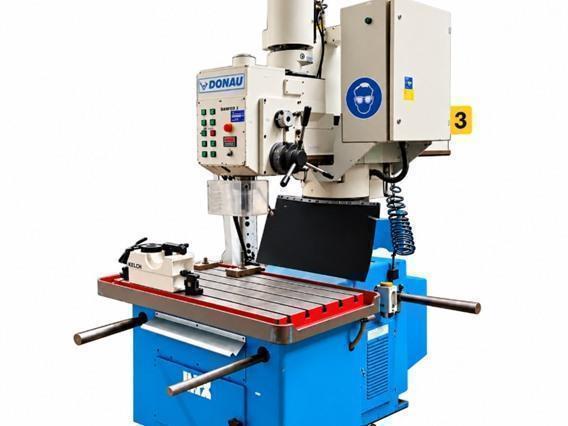

Radial drilling machines Donau Danuflex 135

Name: Donau Danuflex 135
Brand: Donau
SKU: C.02 16700

Product added to your favorites

» Request a personalised quote

Technical information

Admission in drilling-spindle (morse)Mk4
Max drilling capacity35 mm

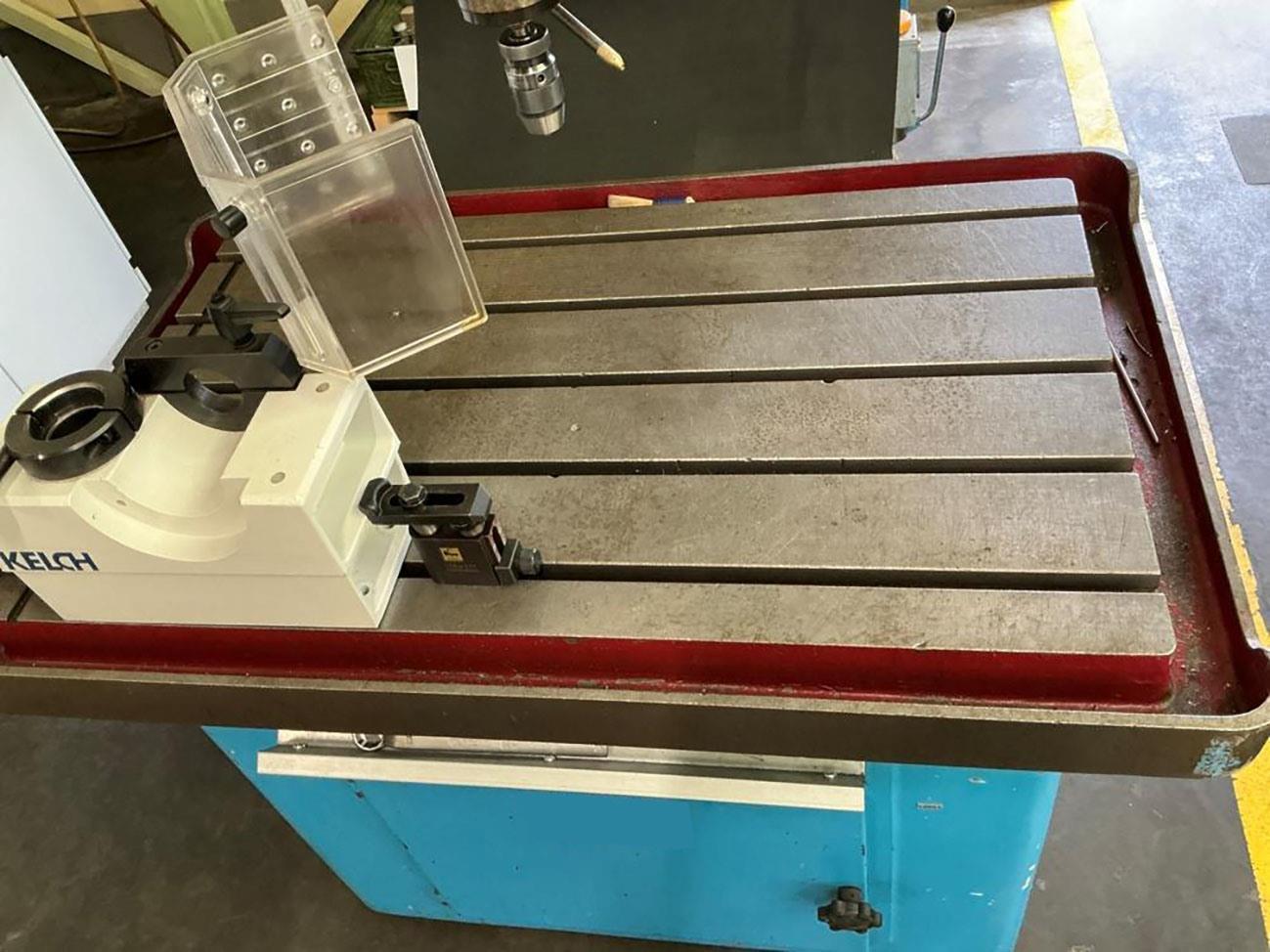

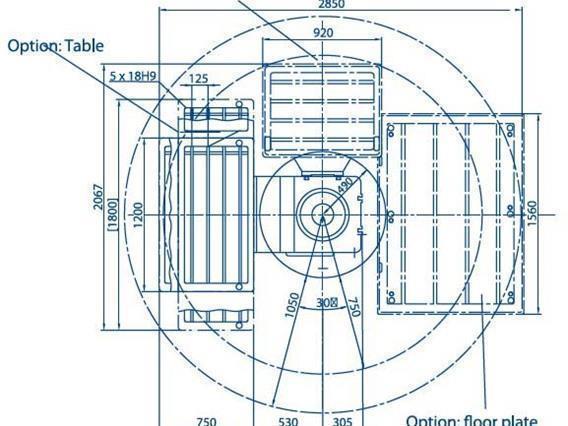

Base dimensions (1) Table dim (2) table: 1200 x 750 mm
Longitudinal travel drilling-head (X-axis)1050 mm
Height-travel arm (Y-axis)450 mm
Min dist. round column--drillingsp (X-axis)630 mm
Max dist.round column -- drillingspindle1680 mm
Max drilling-depth165 mm
Speeds10 > 3200 rpm
Power on the spindle4 kW
Height2810 mm
Weight1800 mm
ACCESSORIES2315 mm
Cooling system2140 kg

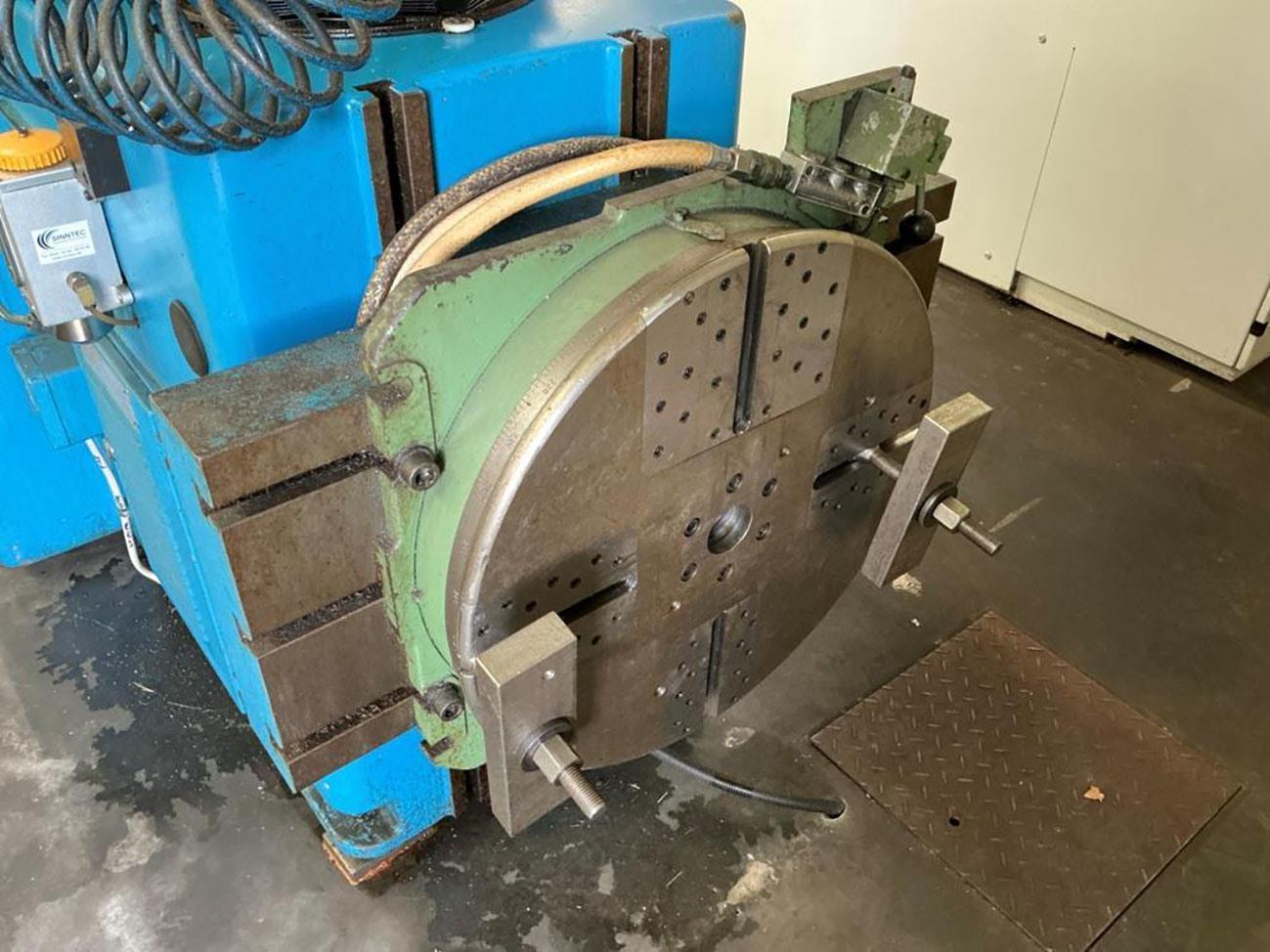

Lightturntable

Additional info

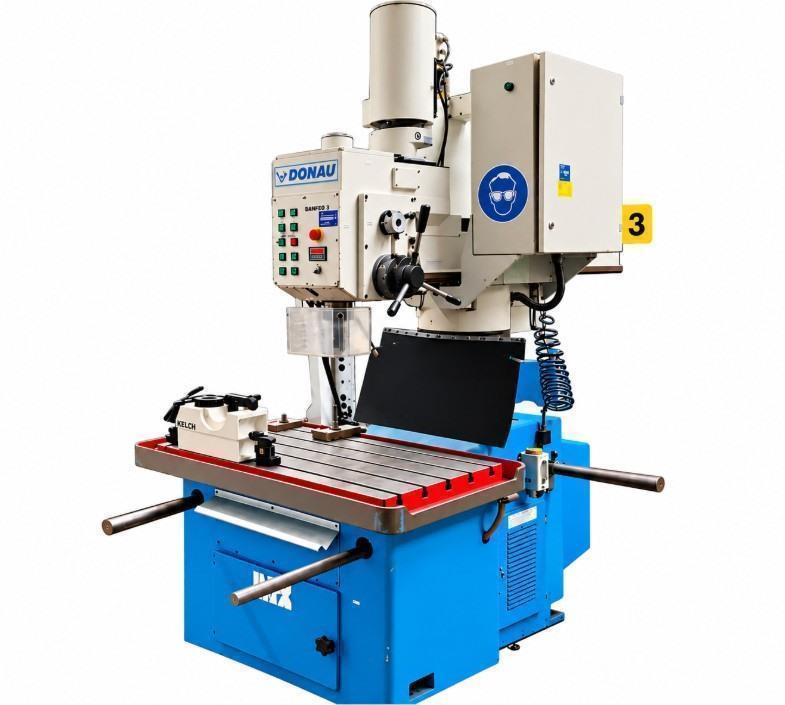

The Danuflex 135 is a top-tier radial drilling machine that has proven its worth in various industries worldwide. Featuring advanced technology and practical solutions, the Danuflex 135 offers unparalleled efficiency for metalworking and installation tasks. Designed with the user in mind, the machine provides a range of options, including digital position readouts for the X, Y, and Z axes. With a drilling capacity of up to 35 mm in St 60 steel, it serves as an ideal choice for a wide variety of applications.
Type/Model: Danuflex 135
Stocknumber: C.02 16700
Main category: [C] Drilling machines
Sub category: [C.02] Radial drilling machines
Brand: Donau

» Request a personalised quote

Stocknumber: C.02 16700

Watch video of working machinery

Download all pictures in ZIP
