Finn Power - Shear Genius TRS6 - 29 ton punching machine

Finn Power Shear Genius TRS6 - 29 ton punching machine

Product added to your favorites

Technical information

Punching pressure29 ton
Max sheet thickness by punching + nibbling8 mm
Max punching dia89 mm
Working range on cross-side (X-axes)3060 mm
Working range along (Y-axes)1500 mm

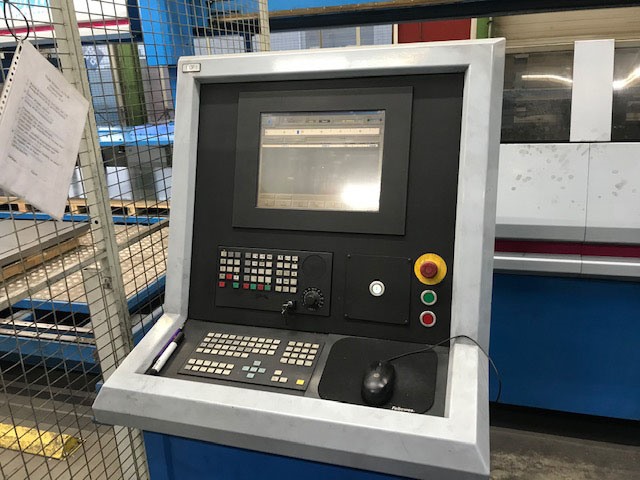

ControlSiemens Sinumerik 840D
Toolchangeryes
Number of toolpositioners10x
Weight22 ton

Additional info

- servo hydraulic punching stroke
- max sheet size: 3074 x 1524 mm
- positioning speed: 150 m/min
- upforming cylinder 25 ton
- dimensions corner shear: 1500 x 800 mm
- corner shear equipped with automatic clearance setting (ACS)

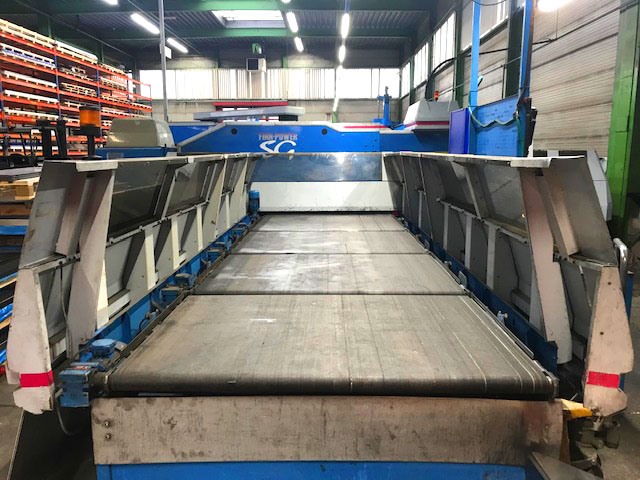

- 3 sorting conveyors type C1500/3

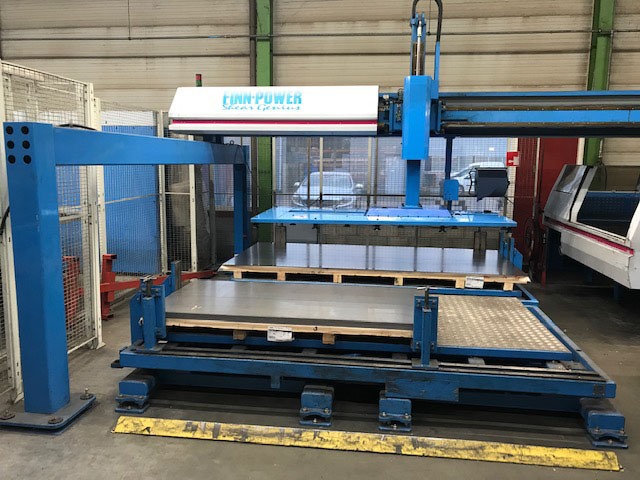

- with stacking system (STS) + double unloading table

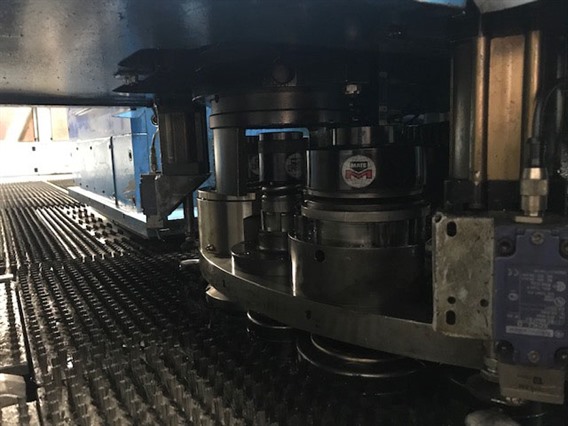

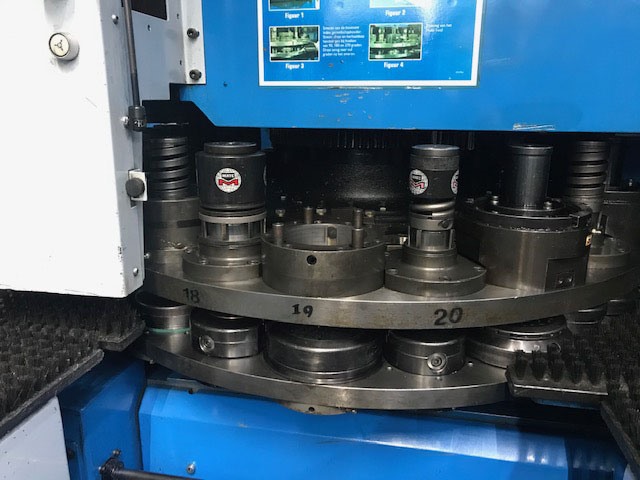

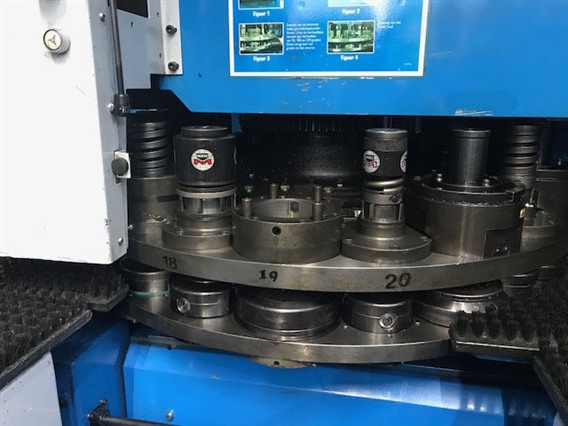

Turret
> 7 B fixed
> 3 C fixed
> 2 B index
> 1 C index
> 3 D index
> 1 MT 24/8
> 2 MT 8/24
> 1 D upforming station
Type/Model: Shear Genius TRS6 - 29 ton punching machine
Stocknumber: O.19 10972
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.19] Stamping & punching press thin metalsheet
Brand: Finn Power

Stocknumber: O.19 10972
