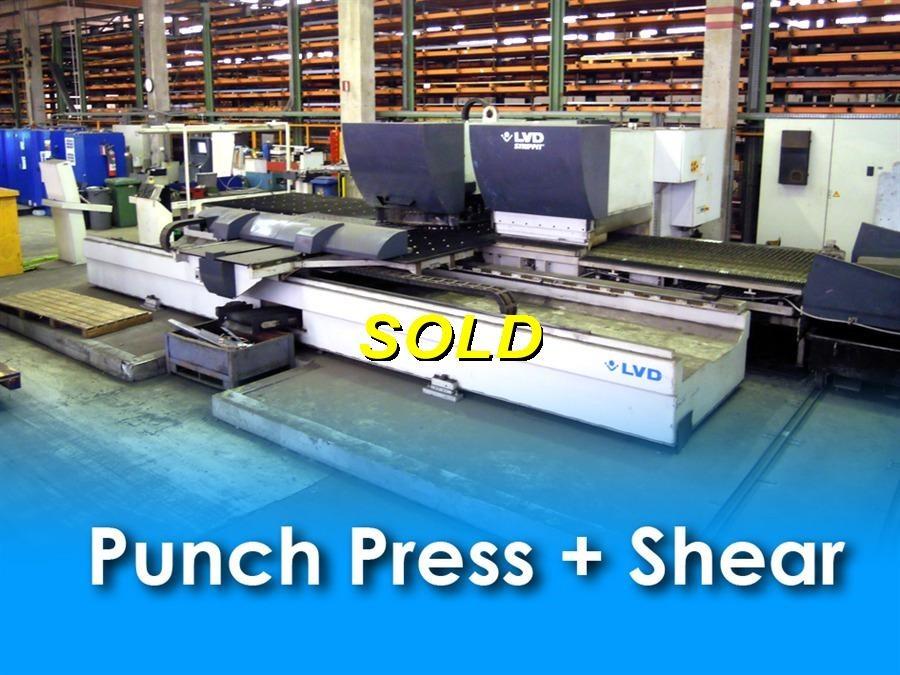

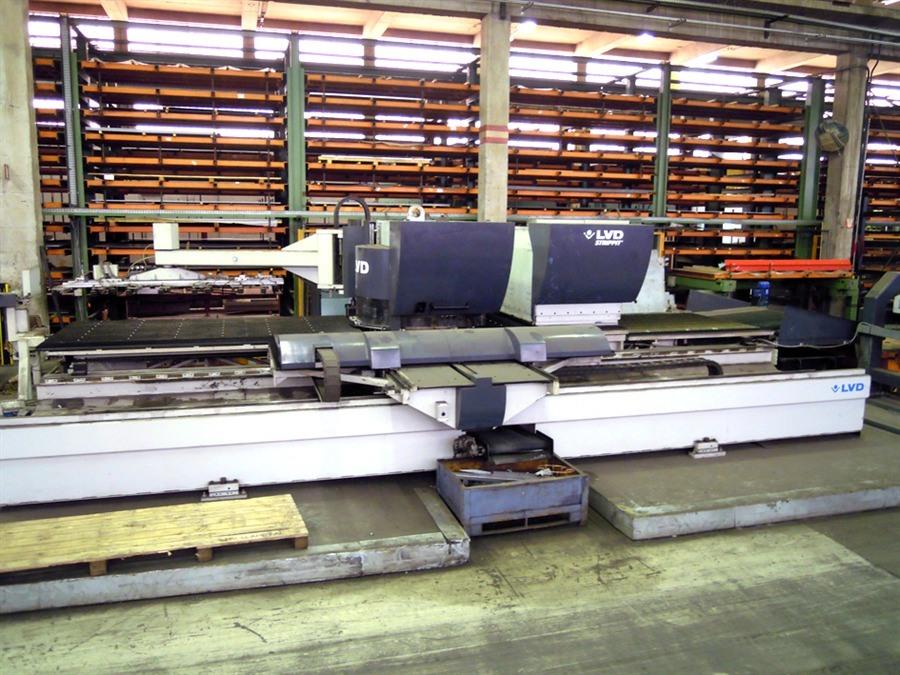

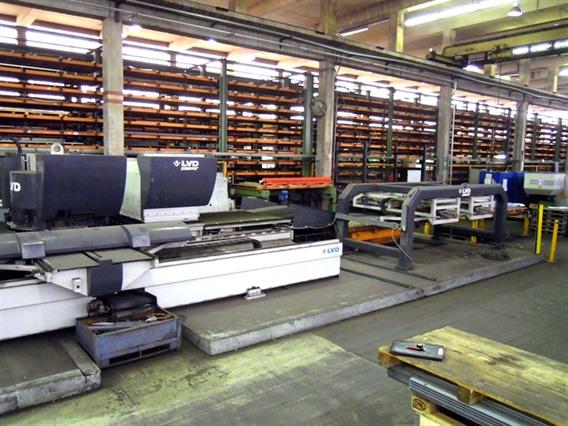

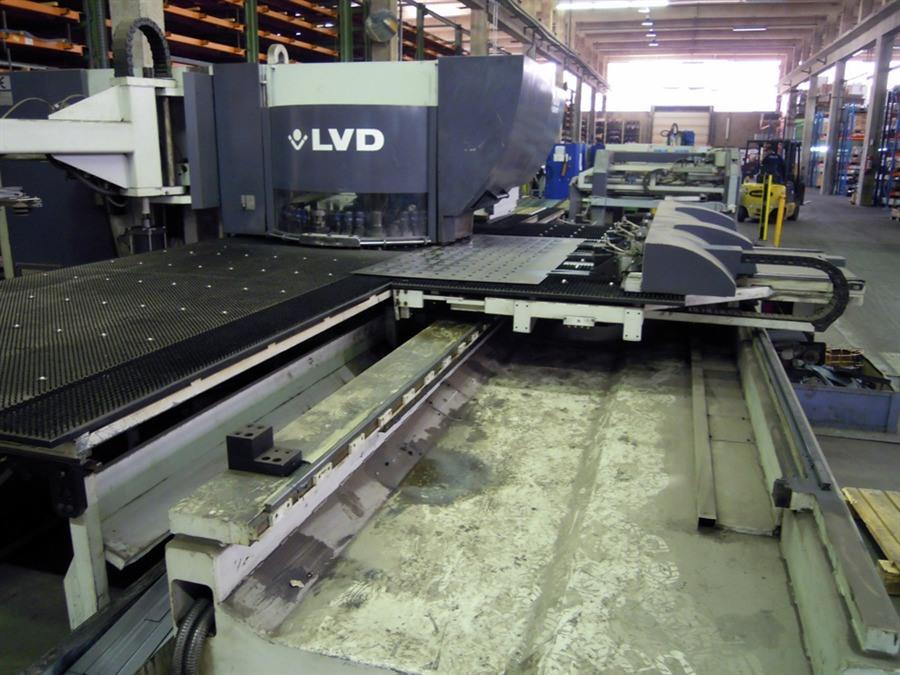

Stamping & punching press thin metalsheet LVD Omega Punch press + shear

Technical information

Punching pressure30 ton
Max sheet thickness by punching + nibbling8 mm
Working range on cross-side (X-axes)4050 mm
Working range along (Y-axes)1600 mm
Toolchangeryes
Number of toolpositioners38 tools (4 auto indexed)
Power needed68,5 kW
Weight24,5 ton

Additional info

Type TK4F160P
Cap: 30 ton

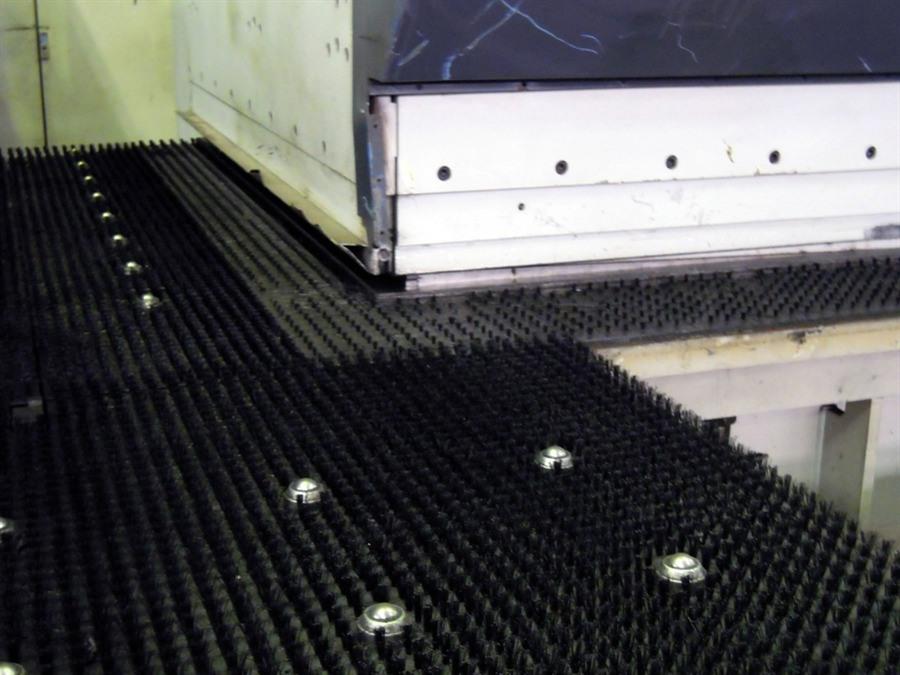

Table size when punching: 4050 x 1600 mm

Table size when shearing: 3050 x 1500 mm

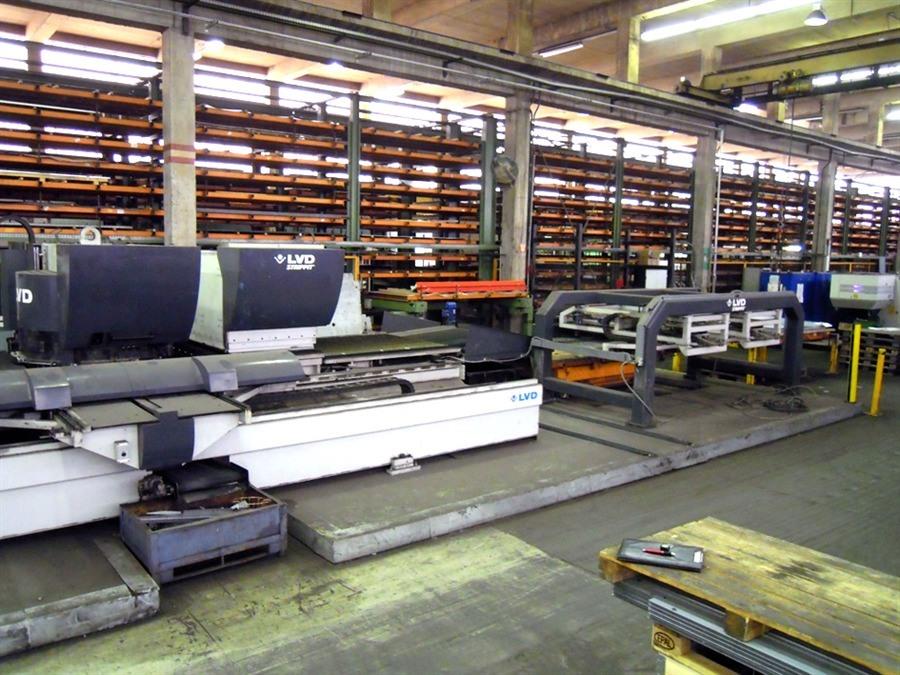

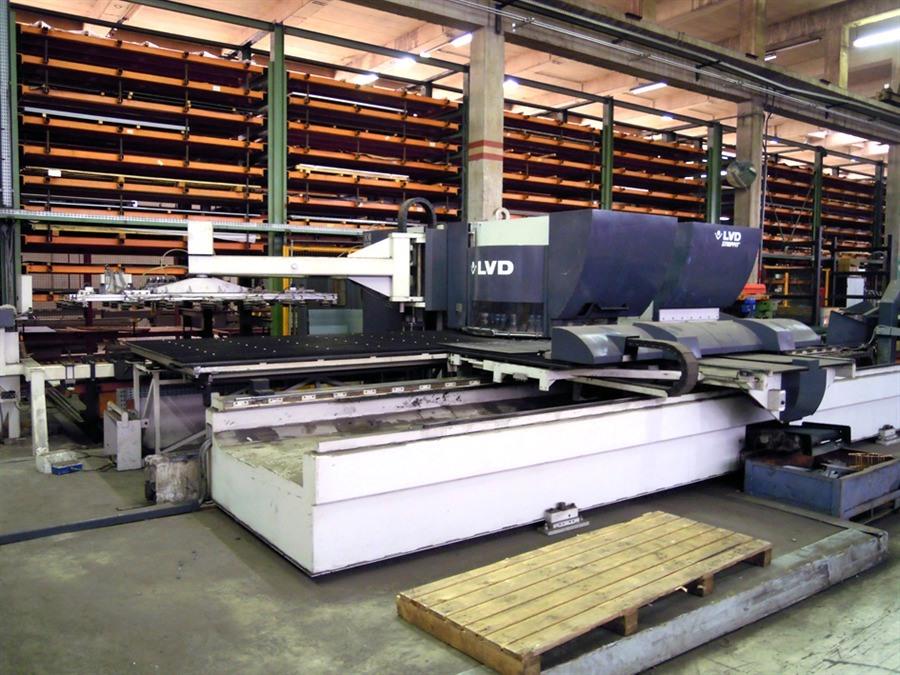

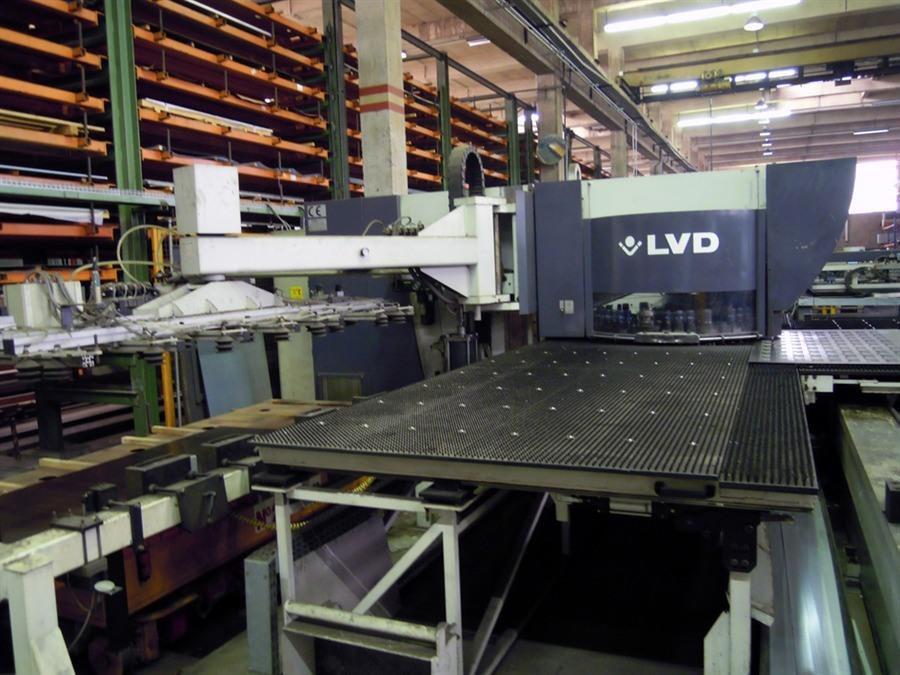

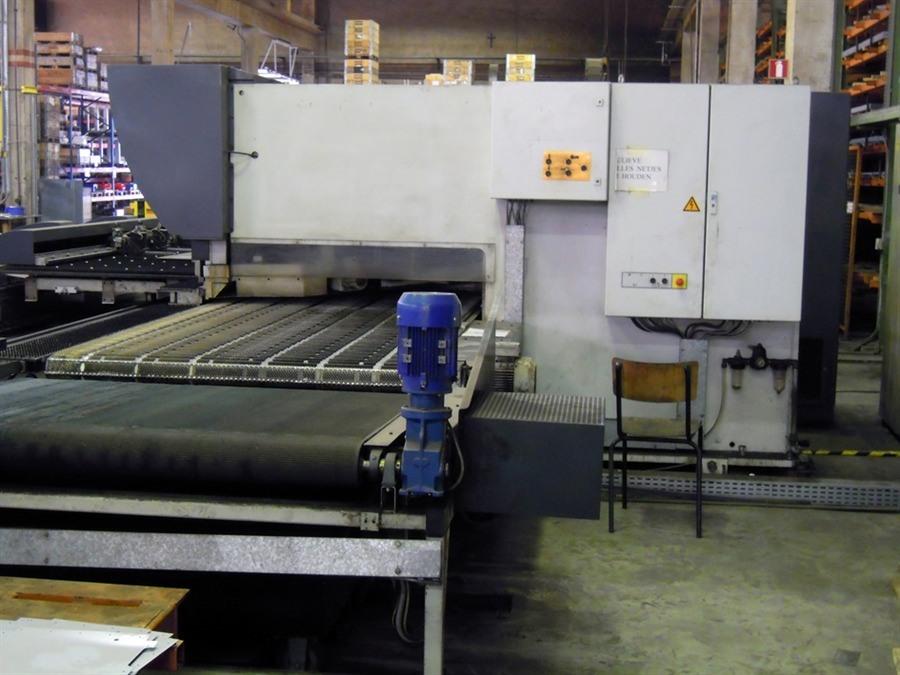

- Automatic loading system

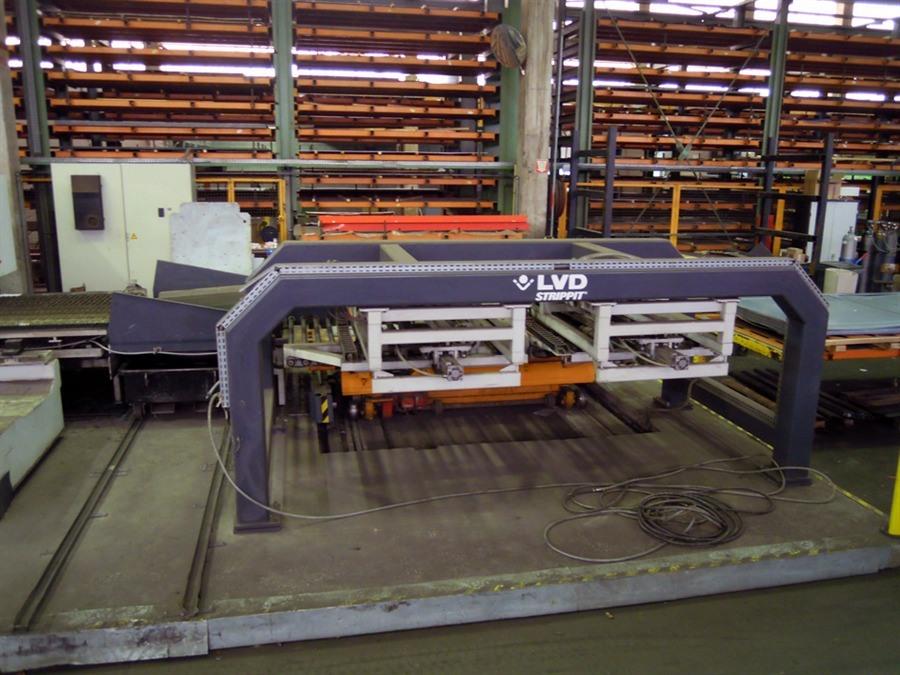

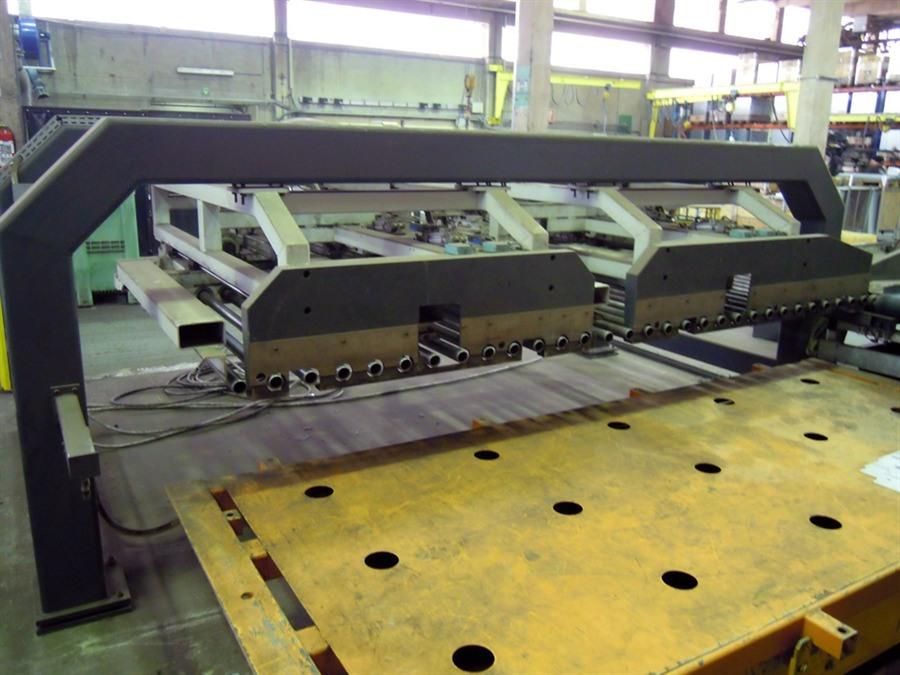

- Automatic stacking system

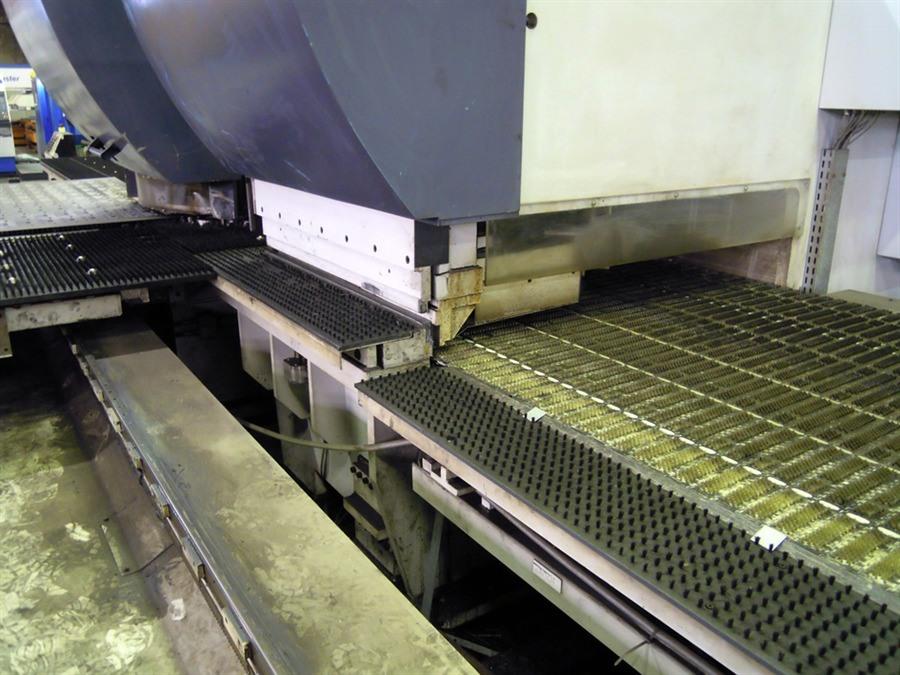

- Equipped with right angle shear for part removal

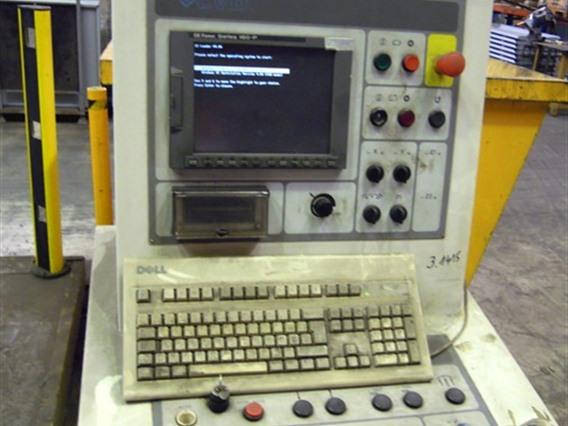

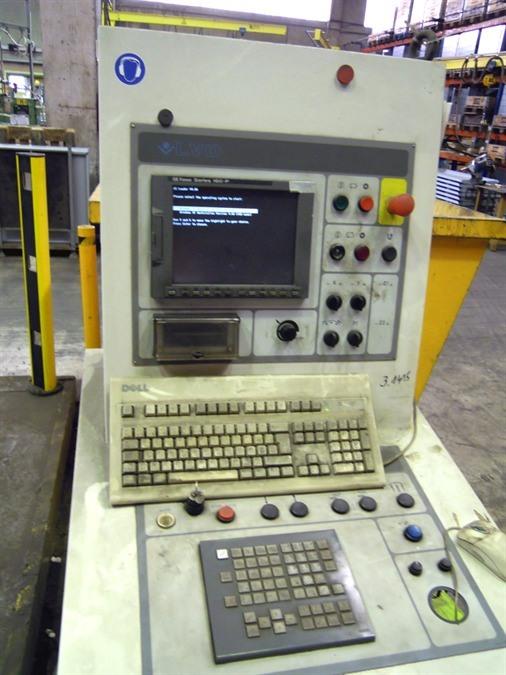

- Cadman-P control provides powerful features such as diagnostics, increased program storage capacity and networking.

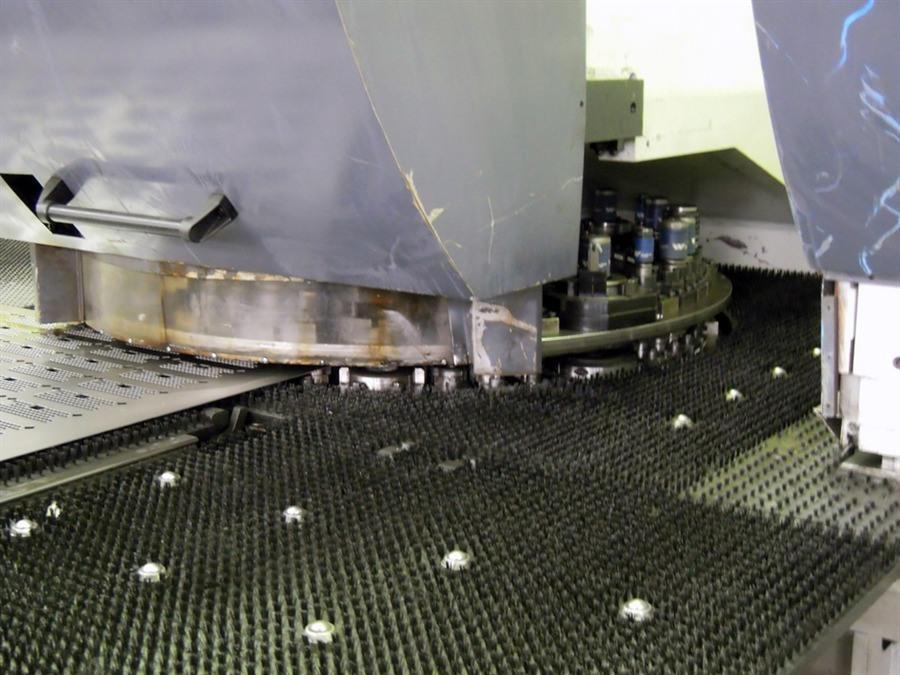

- toolturret with 38 positions (4 auto indexed)

Omega models also feature three programmable, relocatable work clamps, which can be programmed to a position on the X carriage and individually relocated to a new position within the part program. This reduces or eliminates the “no punch” zones.
Type/Model: Punch press + shear
Stocknumber: O.19 8938
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.19] Stamping & punching press thin metalsheet
Brand: LVD Omega

Stocknumber: O.19 8938
