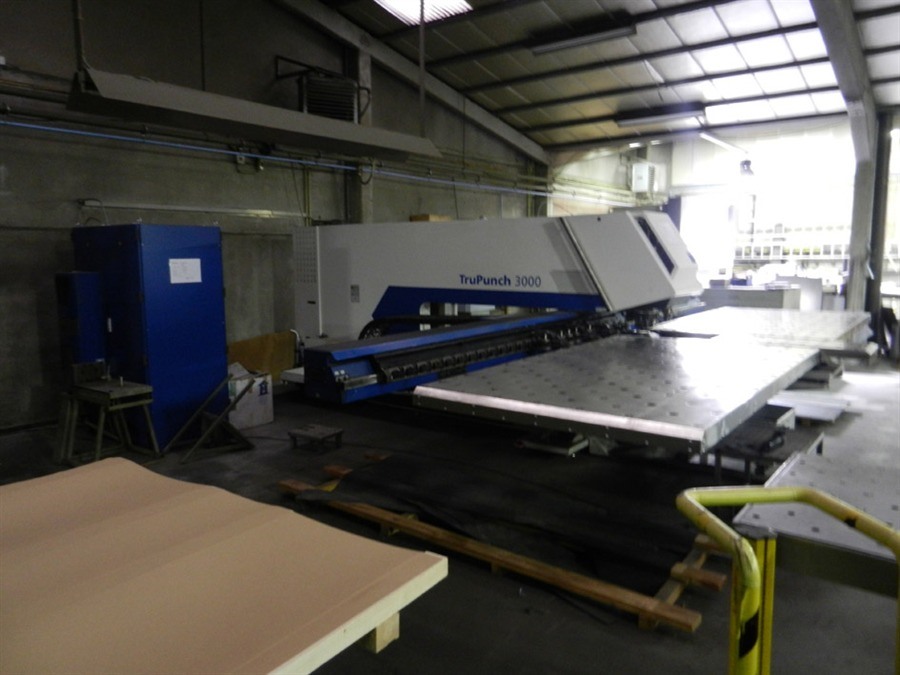

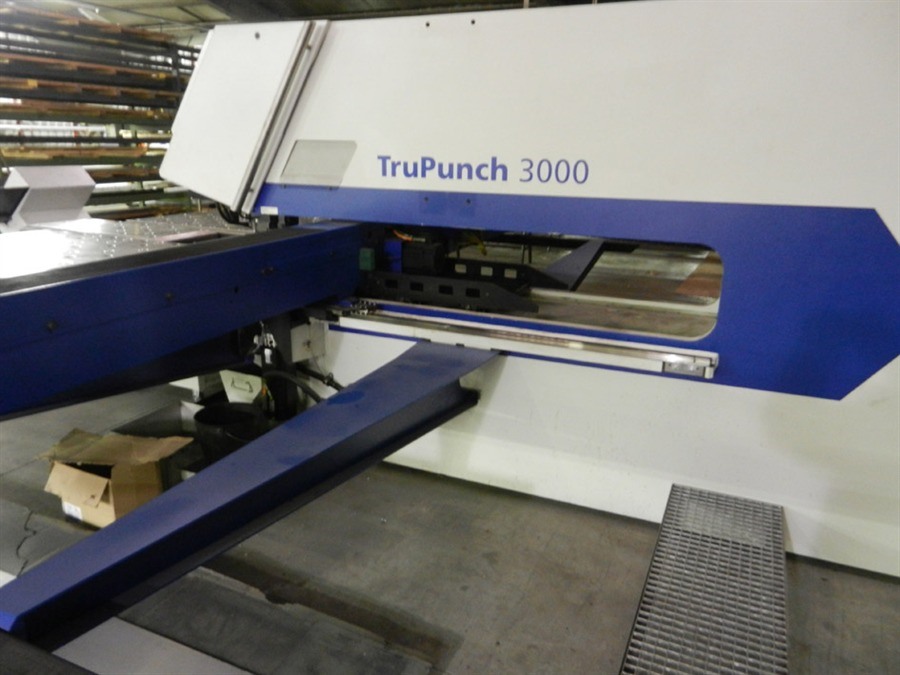

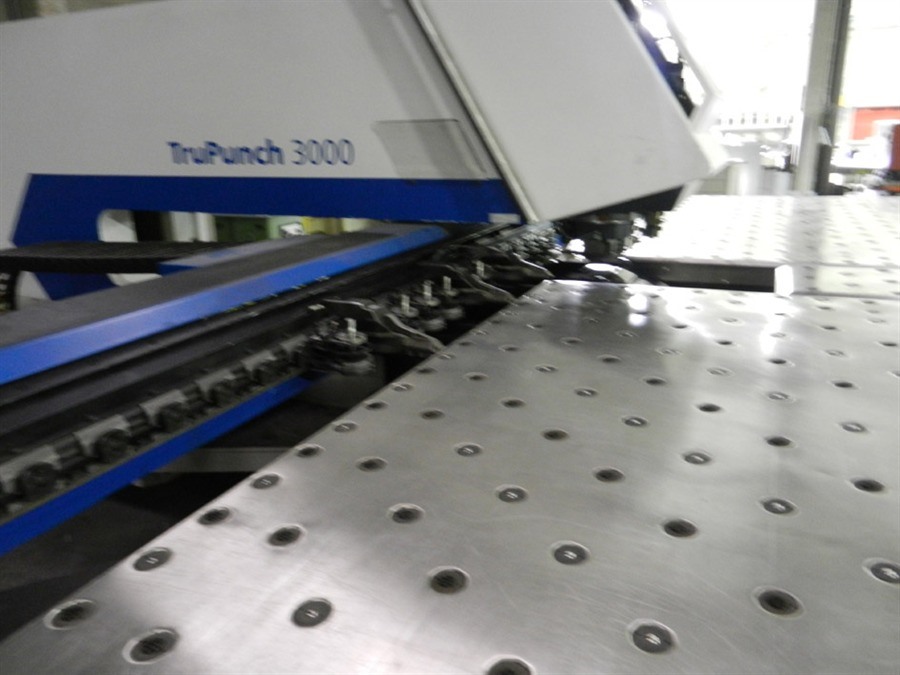

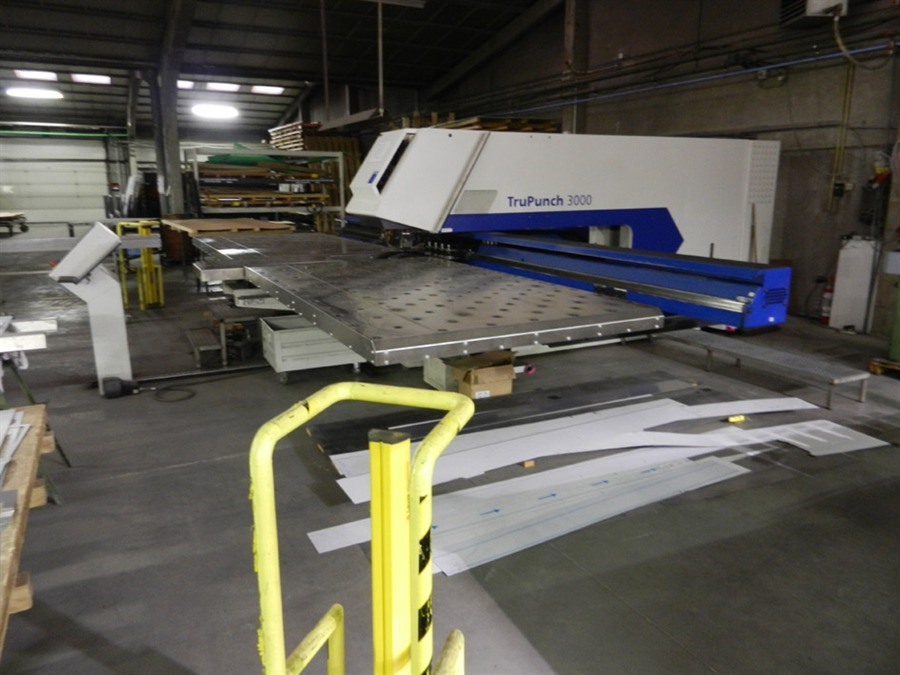

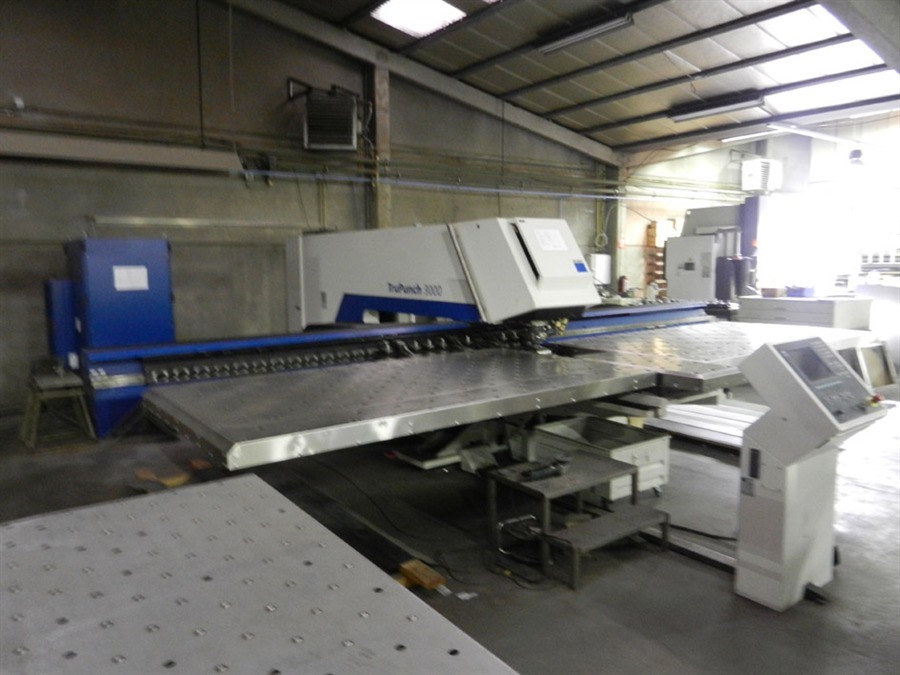

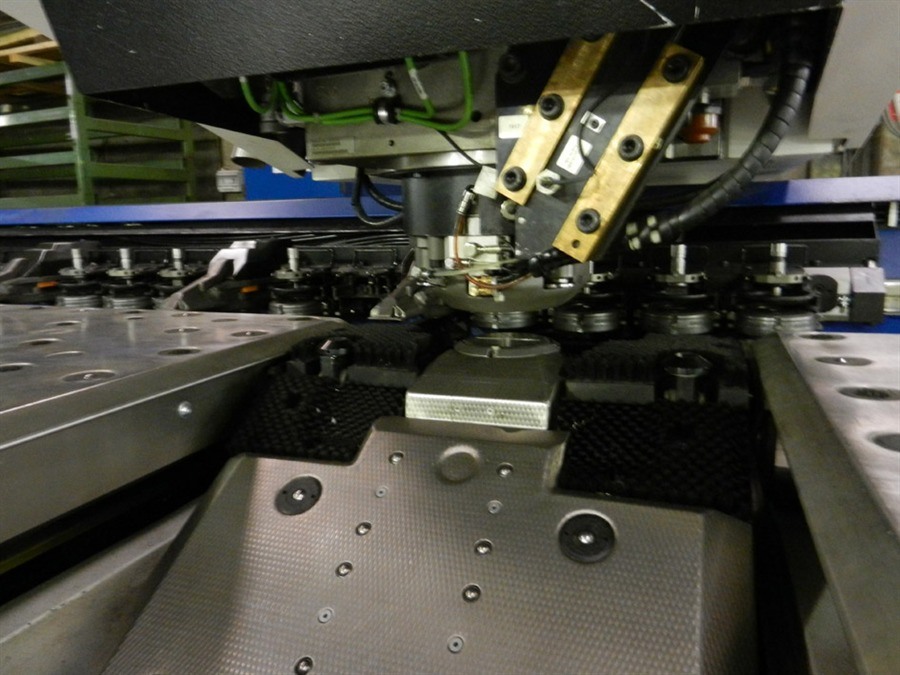

Stamping & punching press thin metalsheet Trumpf TruPunch 3000 large format
Technical information
- Punching pressure180 kN
- Max sheet thickness by punching + nibbling6,4 mm
- Max weight workpiece230 kg
- Working range on cross-side (X-axes)3000 mm
- Working range along (Y-axes)1600 mm
- Positioning speed along X-axes90 m/min
- Positioning speed along Y-axes60 m/min

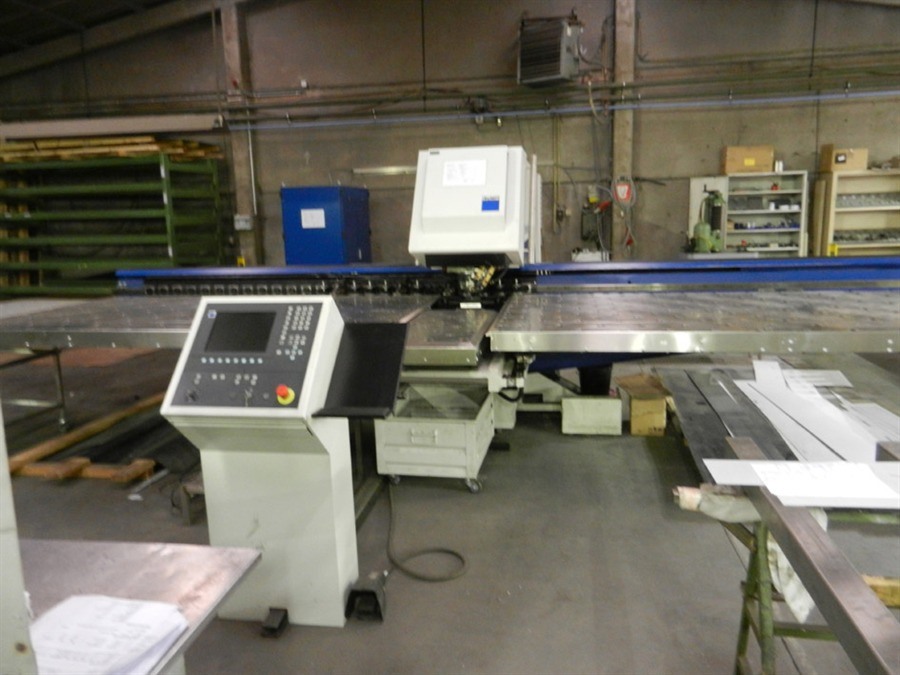

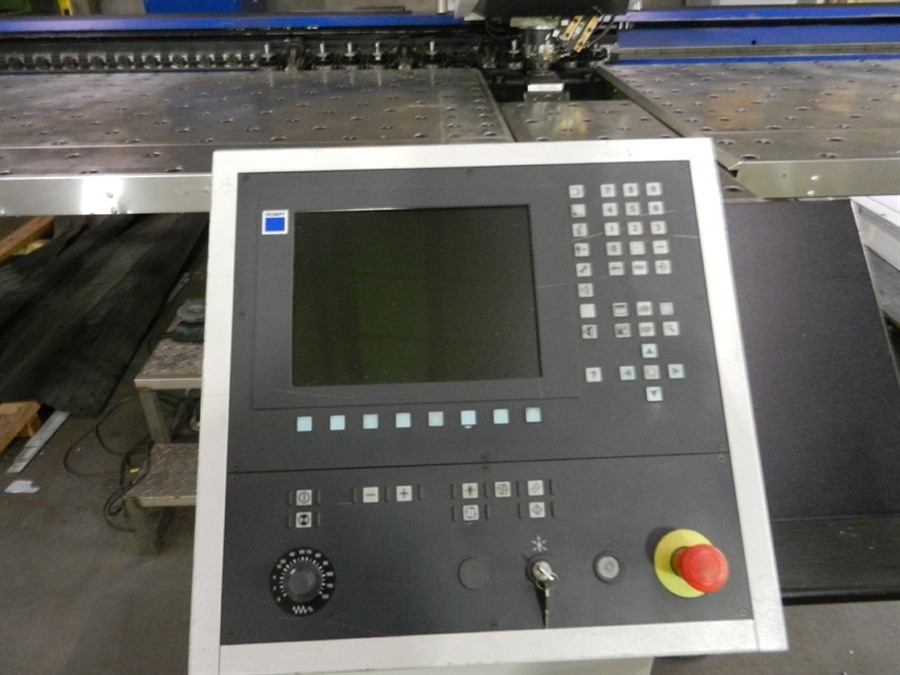

- ControlBosch CNC

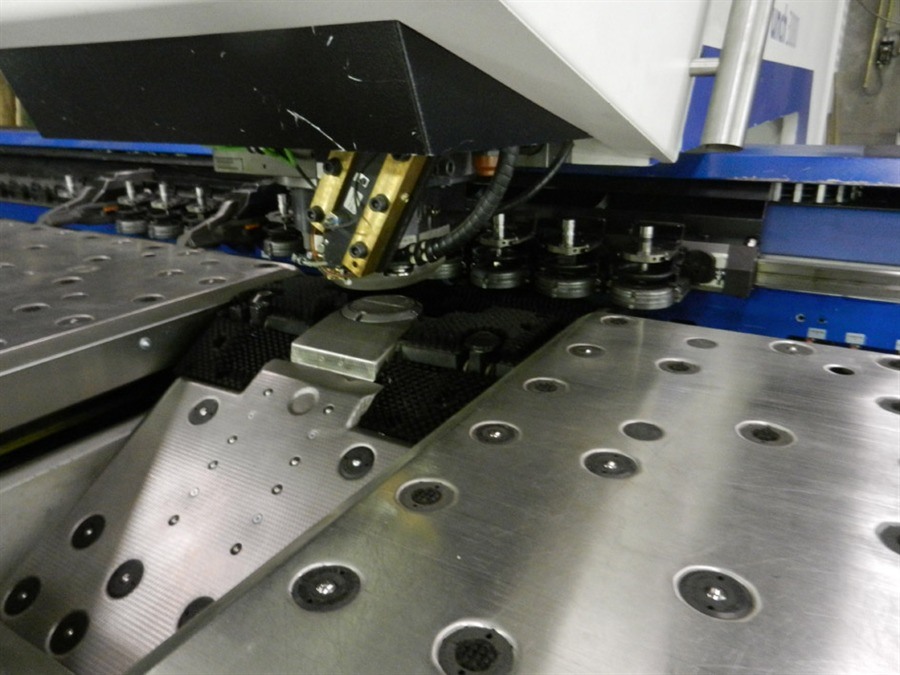

- Toolchanger17 tools
- Number of toolpositioners10 stations
- Changingtime0,3 / 3 sec
- Power needed5,9 kW
- Length5800 mm
- Depth7300 mm
