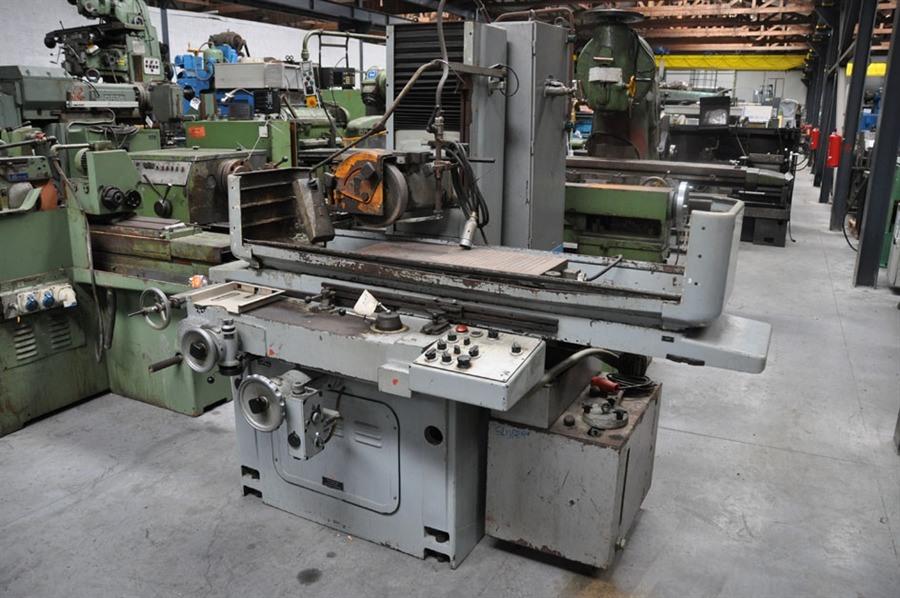

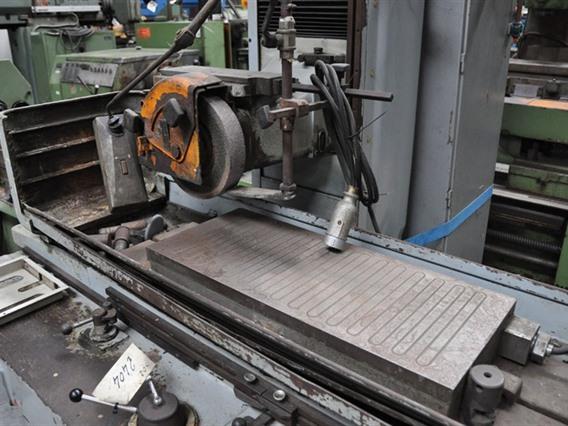

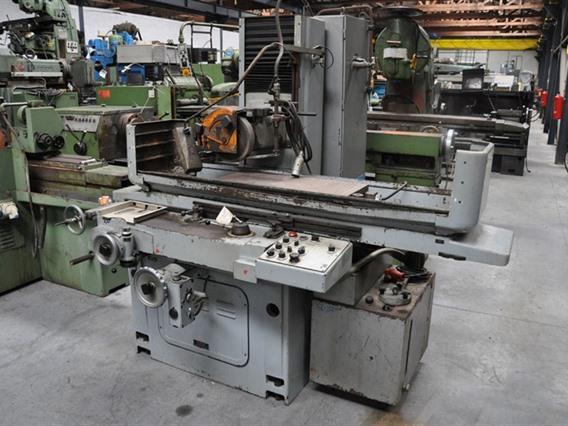

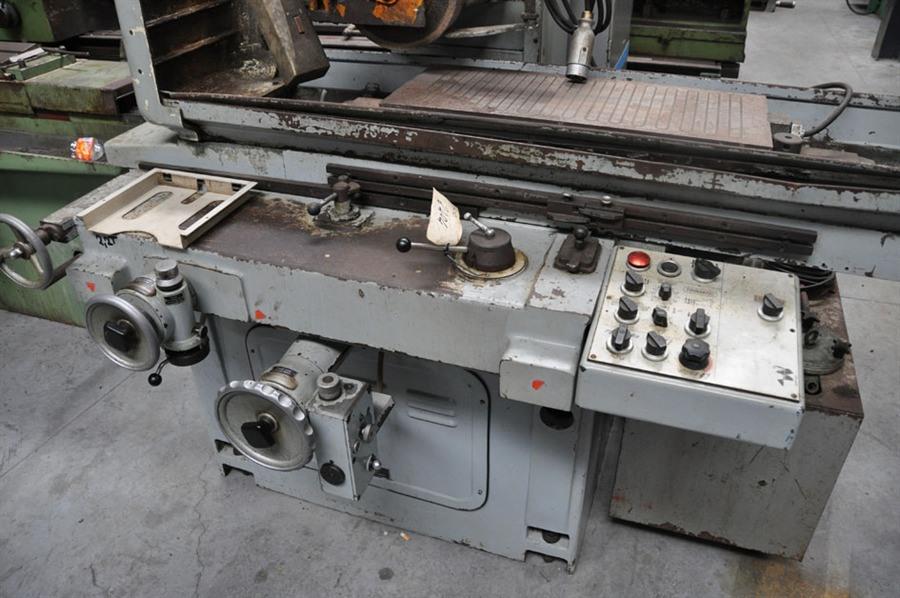

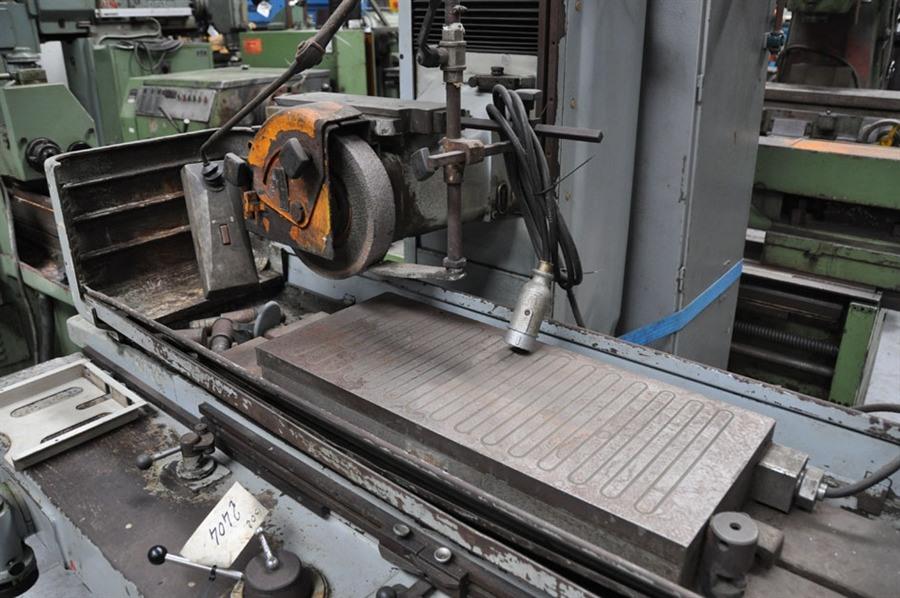

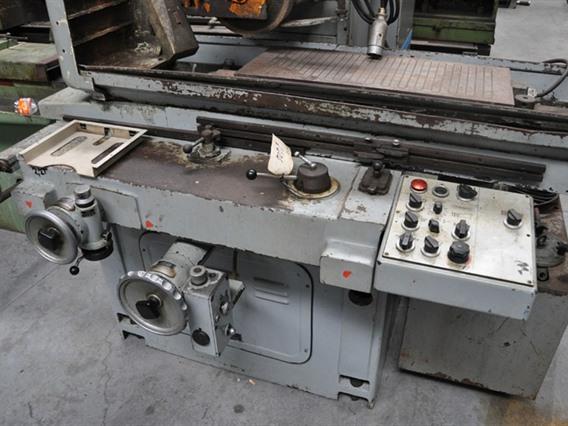

Surface grinders with horizontal spindle Blohm finimatic simplex 7 - X:770 - Y:300 mm

Technical information

Worklength with magnetic table700 mm
Worklenth without magnetic table700 mm
Grindingwidth350 mm
Longitudinal travel X-axis (autom.)770 mm (hydr)
Cross-travel Y-axis (autom.)300 mm
Dimensions of the table1100 x 300 mm
Dimensions magnetic table 700 x 300 mm
Distance between table -- spindlecentre575 mm
Max dia grindingstone400 x 50 mm
Spindlespeeds1400/2800 rpm
Motorpower4 kW
Tension needed380 V
Length2970 mm
Depth2290 mm
Weight2700 kg
ACCESSORIES*
Cooling system*

Additional info

Type/Model: simplex 7 - X:770 - Y:300 mm
Stocknumber: G.02 2404
Main category: [G] Grinders
Sub category: [G.02] Surface grinders with horizontal spindle
Brand: Blohm finimatic

Stocknumber: G.02 2404

Sold
Sold
Sold
Sold

Blohm finimatic simplex 7 - X:770 - Y:300 mm
