Parpas - RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm CNC

Surface grinders with horizontal spindle Parpas RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm CNC

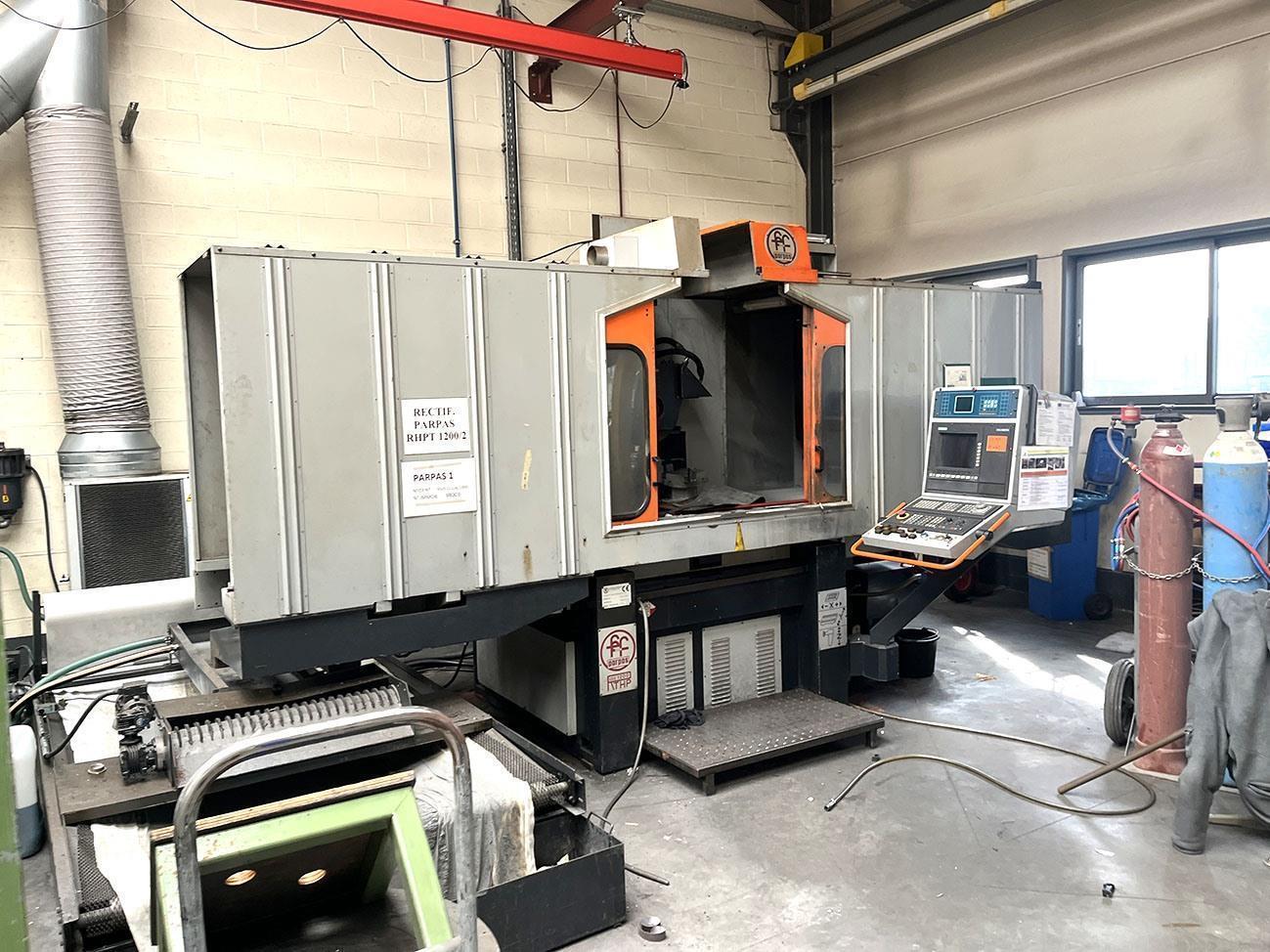

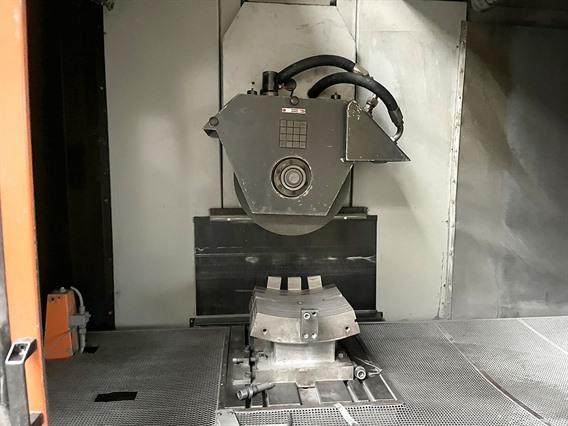

Name: Parpas RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm CNC
Brand: Parpas
SKU: G.02 16004

Product added to your favorites

» Request a personalised quote

Technical information

Grindingwidth610 mm
Longitudinal travel X-axis (autom.)1310 mm
Cross-travel Y-axis (autom.)565 mm
Travel Z-axis (autom.)470 mm
Dimensions of the table1215 x 500 mm
Distance between table -- spindlecentre680 mm
Max dia grindingstone400 x 100 x 127 mm
Spindlespeeds0 > 2800 rpm
Motorpower15 kW
Tension needed380V - 50Hz
Cooling systemyes

Additional info

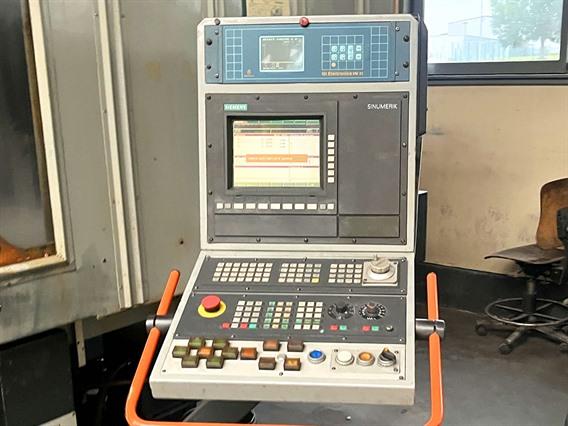

Siemens Sinumerik 840 (retrofitted)
Siemens drive: 6SN1145-1BA00-OCAO
Coolant system with filter
Dust extraction system
Balance control system
Type/Model: RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm CNC
Stocknumber: G.02 16004
Main category: [G] Grinders
Sub category: [G.02] Surface grinders with horizontal spindle
Brand: Parpas

» Request a personalised quote

Stocknumber: G.02 16004

Watch video of working machinery

Parpas RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm CNC
