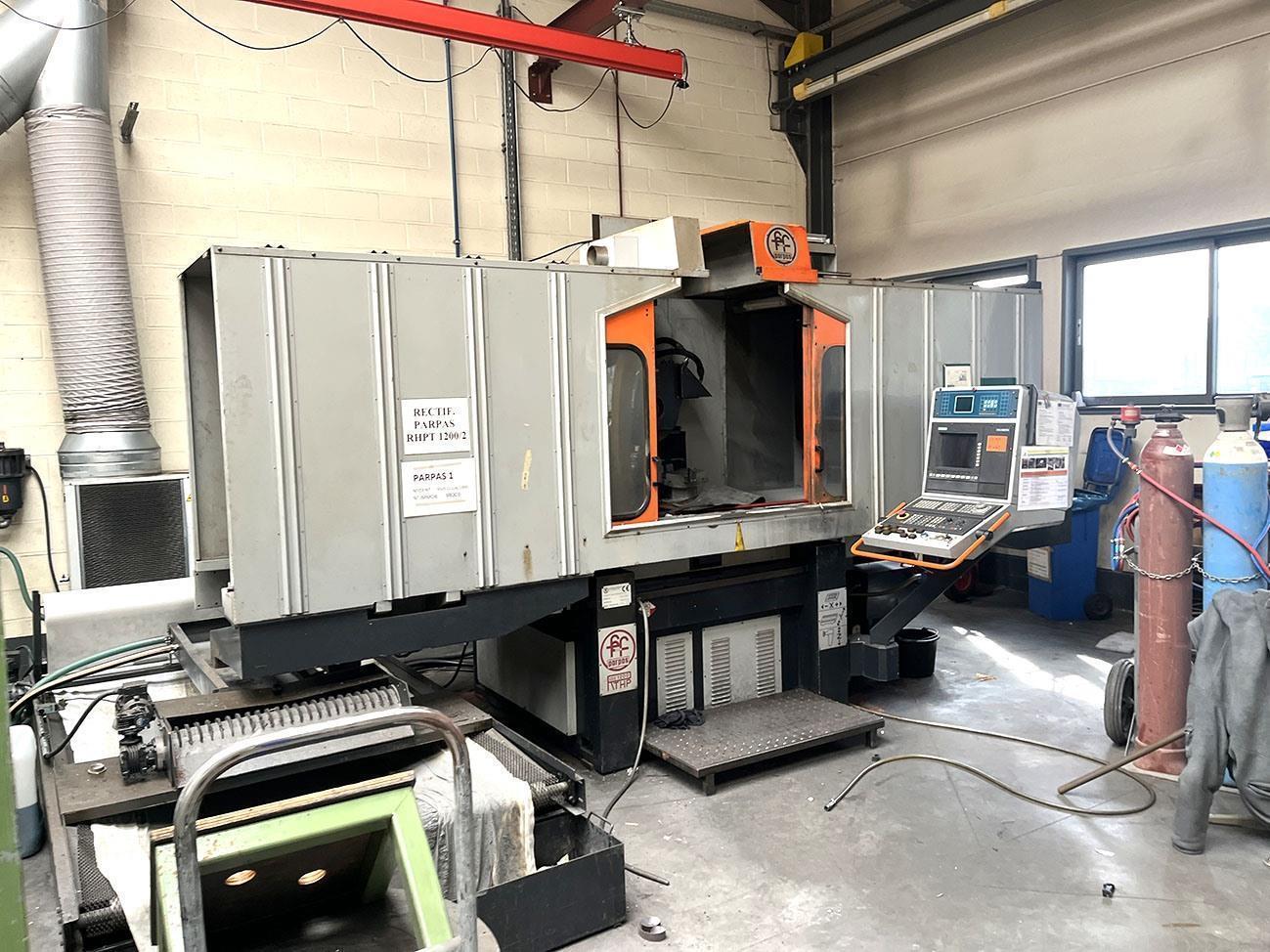

Surface grinders with horizontal spindle Parpas RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm

Name: Parpas RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm
Brand: Parpas
SKU: G.02 16004

Product added to your favorites

» Request a personalised quote

Technical information

Worklength with magnetic table1270 mm
Grindingwidth610 mm
Longitudinal travel X-axis (autom.)1310 mm
Cross-travel Y-axis (autom.)565 mm
Travel Z-axis (autom.)470 mm
Dimensions of the table1215 x 500 mm
Distance between table -- spindlecentre680 mm

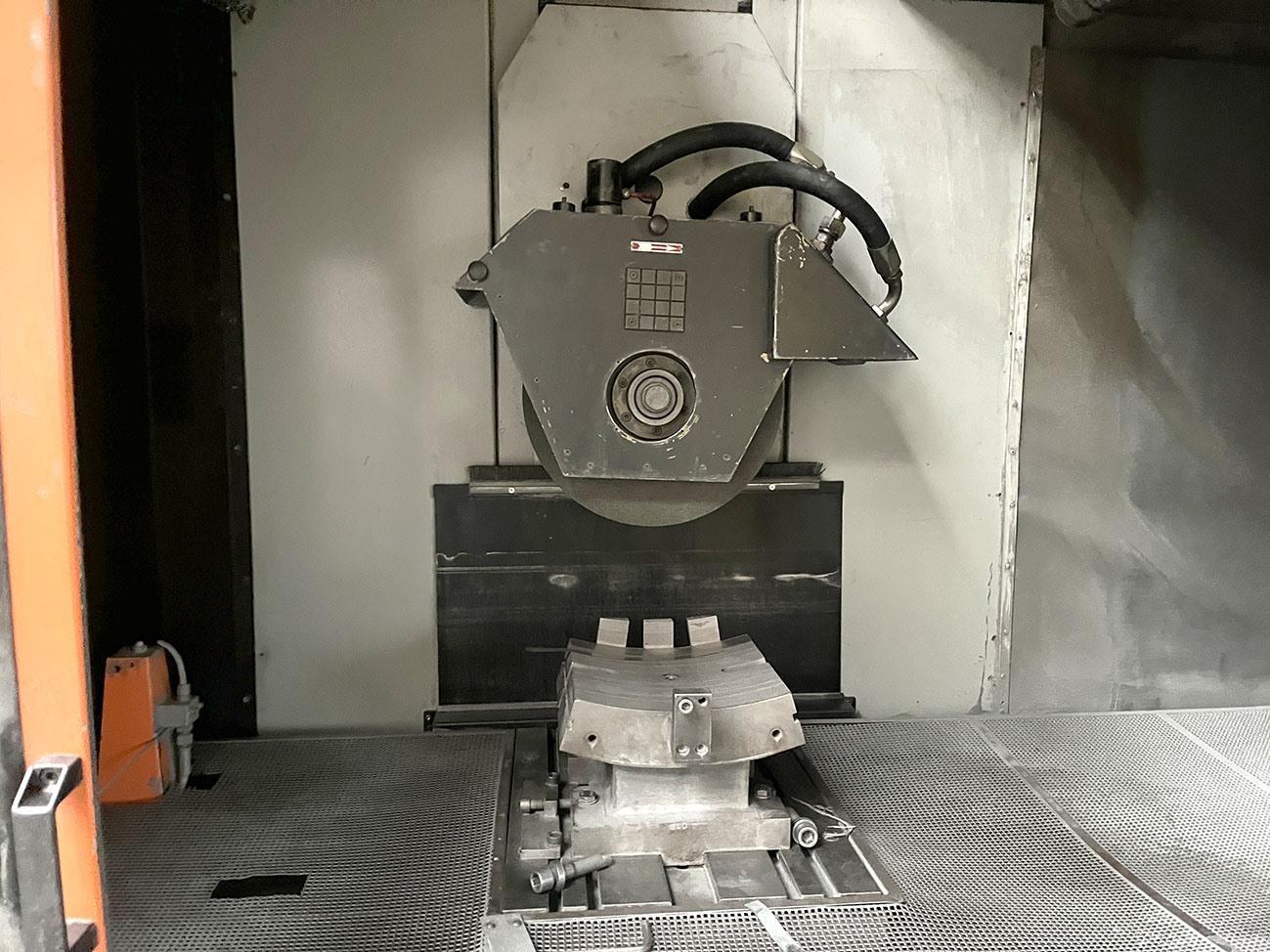

Max dia grindingstone400 x 100 x 127 mm
Spindlespeeds0 - 2800 rpm
Motorpower30 / 47 kWt
Tension needed380V - 50Hz
Cooling systemyes

Additional info

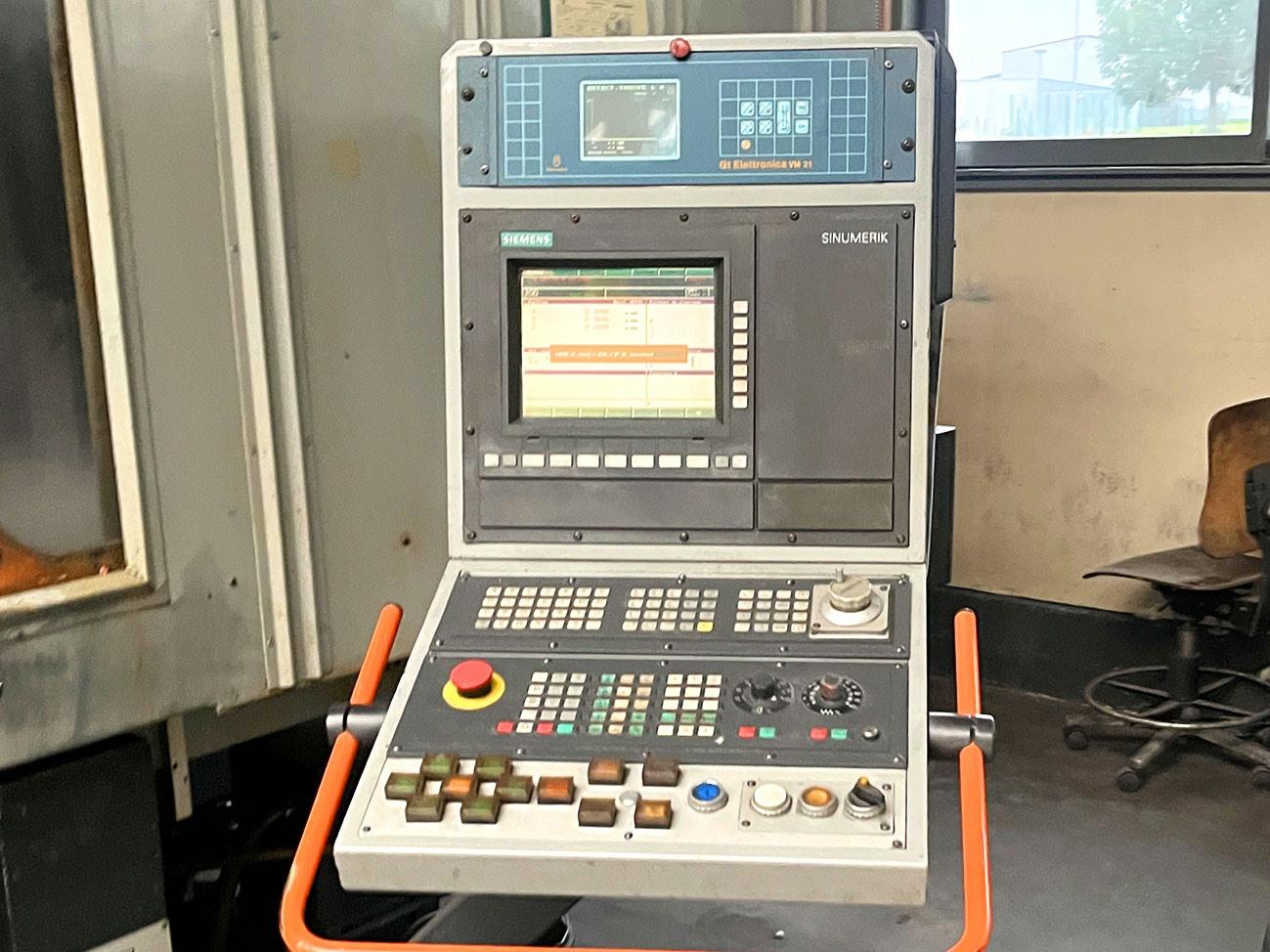

Besturing: Siemens Sinumerik ( achteraf ingebouwd)
Type/Model: RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm
Stocknumber: G.02 16004
Main category: [G] Grinders
Sub category: [G.02] Surface grinders with horizontal spindle
Brand: Parpas

» Request a personalised quote

Stocknumber: G.02 16004

Watch video of working machinery

Parpas RTHP 1200 X: 1310 - Y: 565 - Z: 470 mm

Download all pictures in ZIP
