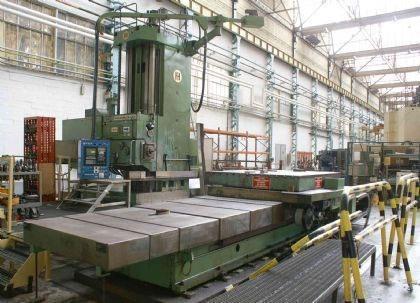

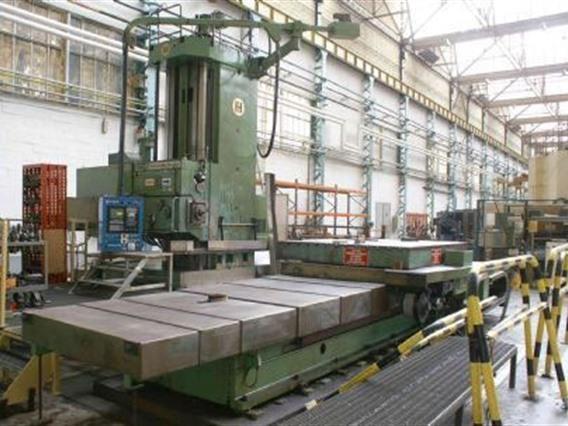

Ernault & somua Crucifor C CNC

Product added to your favorites

» Request a personalised quote

Technical information

Spindle Dia130 mm
Spindle boreISO 50

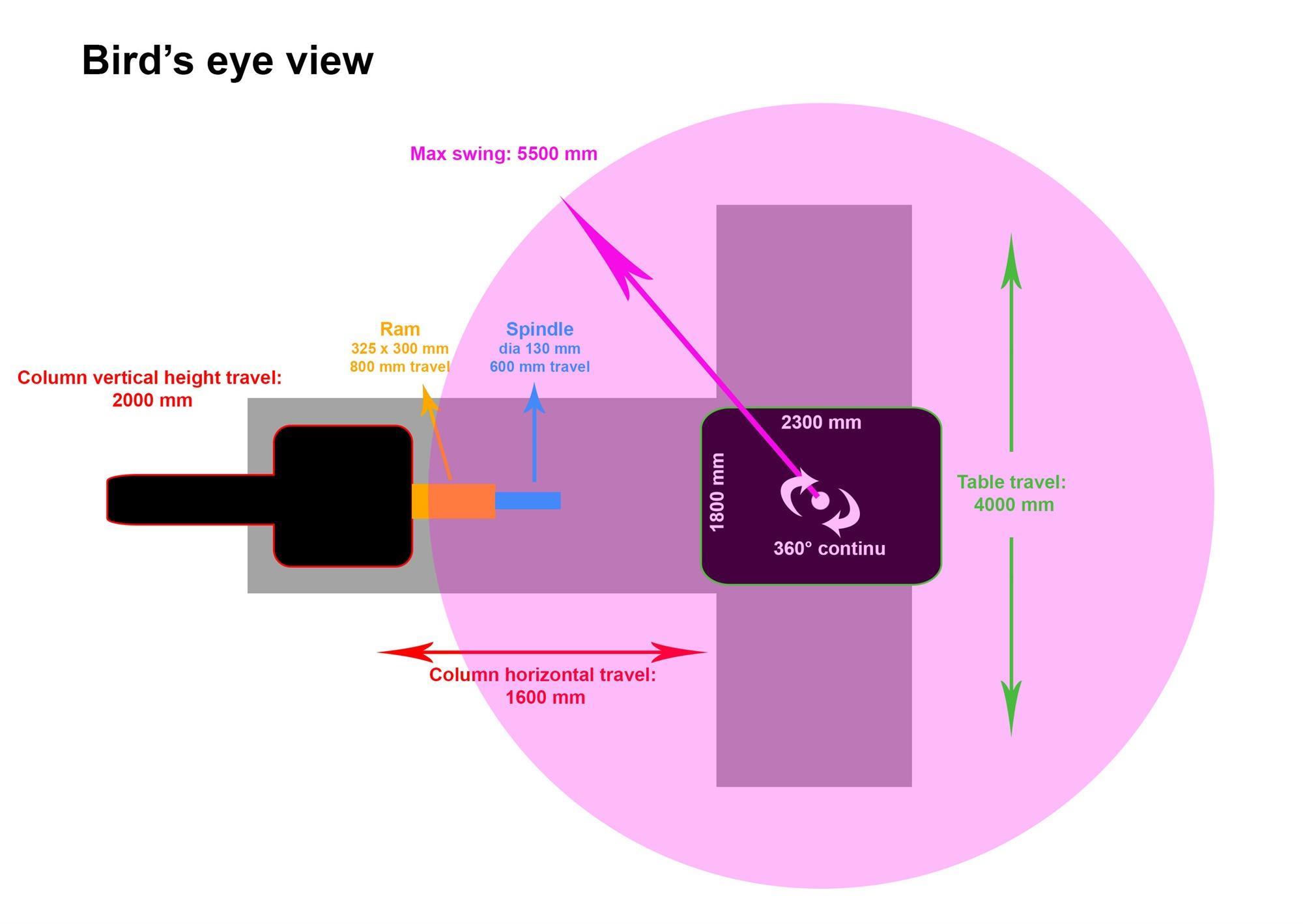

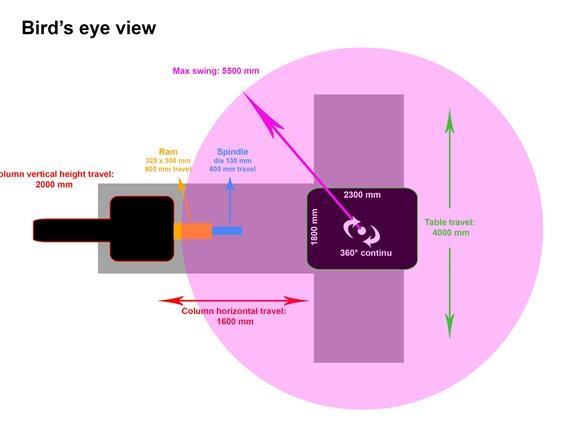

Table dimensions 2300 x 1800 mm

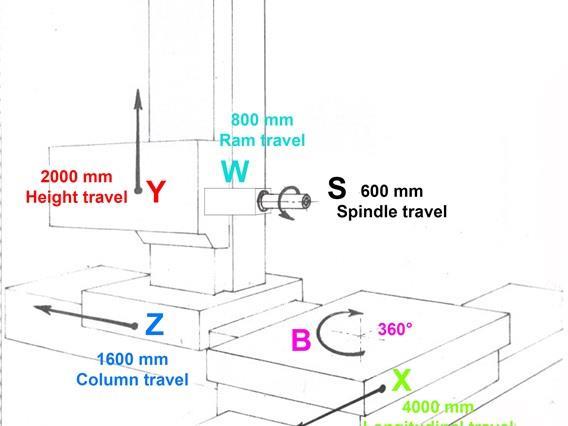

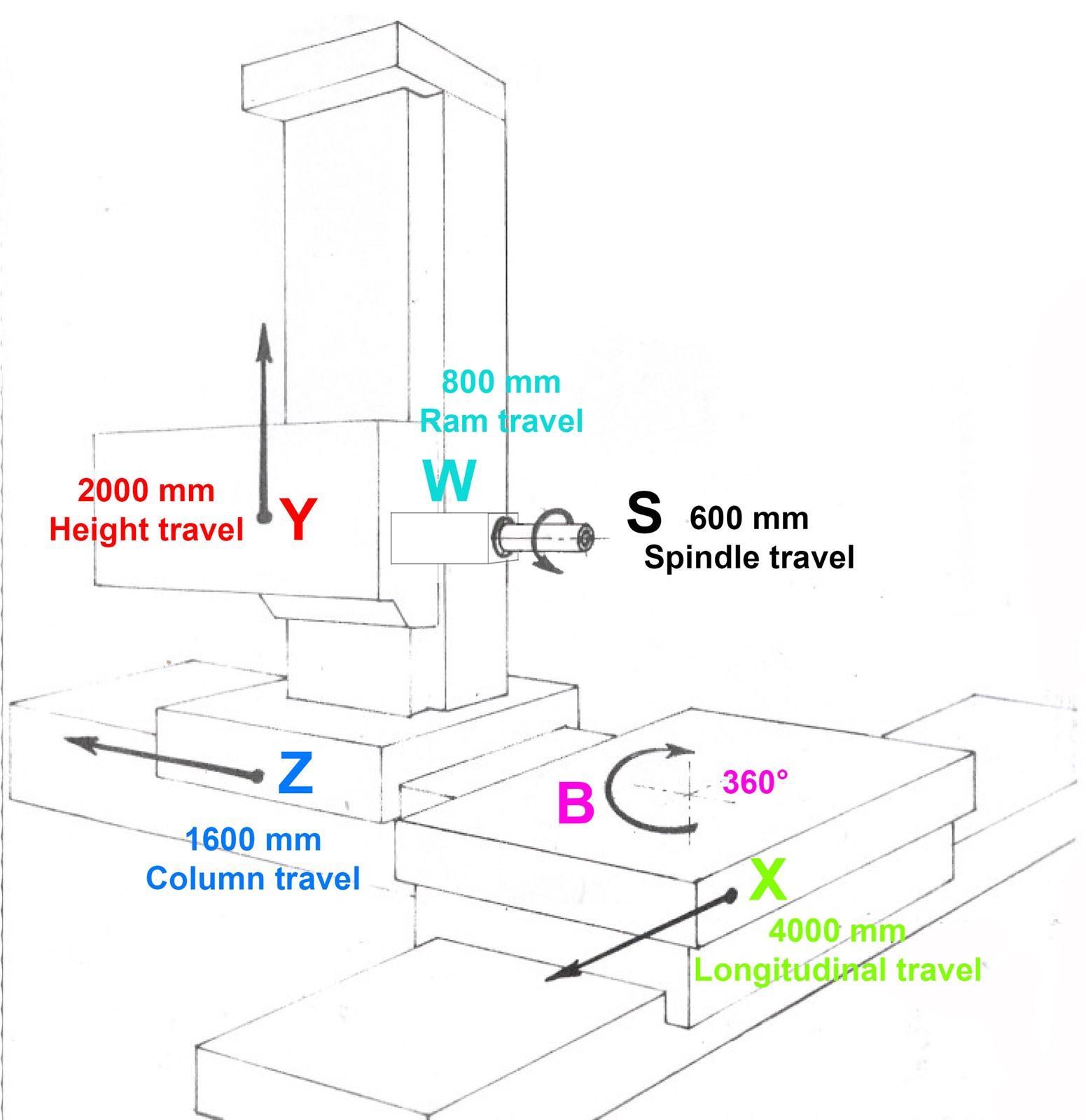

Table longitudinal travel (X-axis)4000 mm
Cross travel Table/colom (Y-axis)1600 mm column
Height travel head (Z-axis)2000 mm
Max travel spindle600 mm
Power on spindle31,5 kW
Control(2) CNC
Power principal motor85kW
Weight40 Ton

Additional info

6 axis controlled

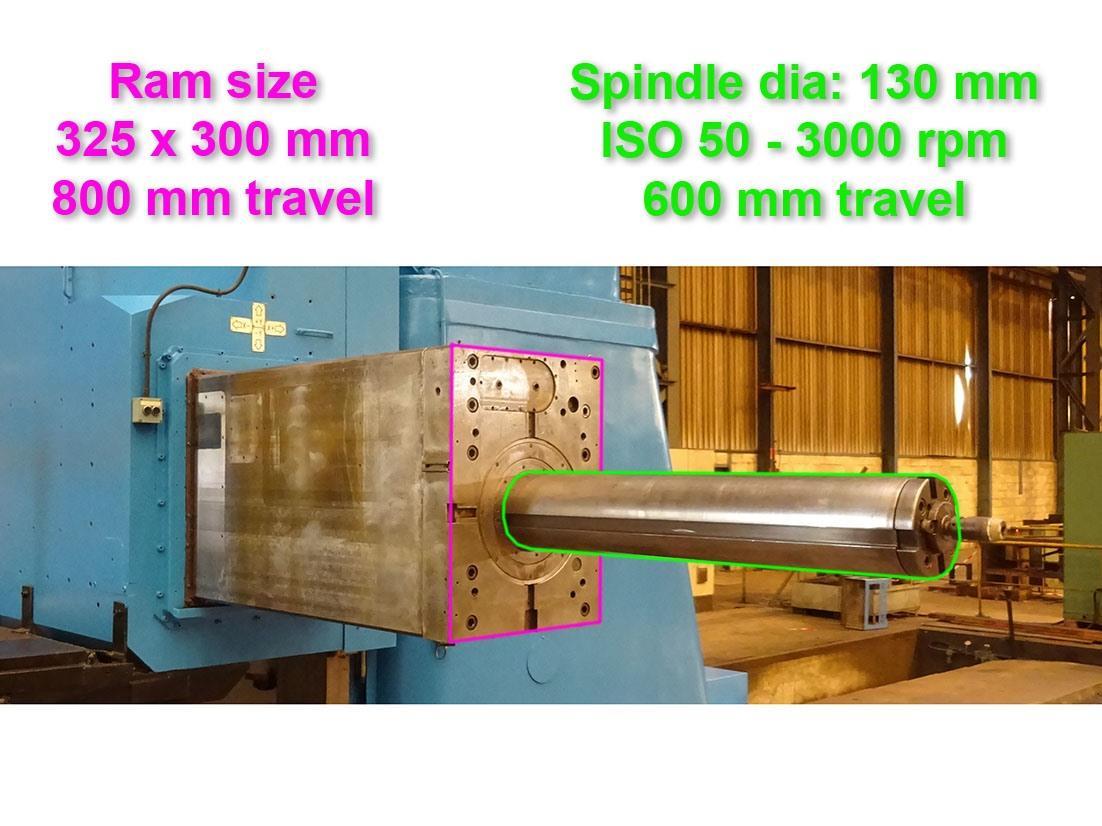

Ram size: 325 x 300 mm
Ram travel: 800mm
Spindle travel: 600 mm
Spindle: max 3000 rpm
Milling/spindle dia: 221/130 mm
Table: 360° max: 2.5 rpm; weight on the table: 30 ton

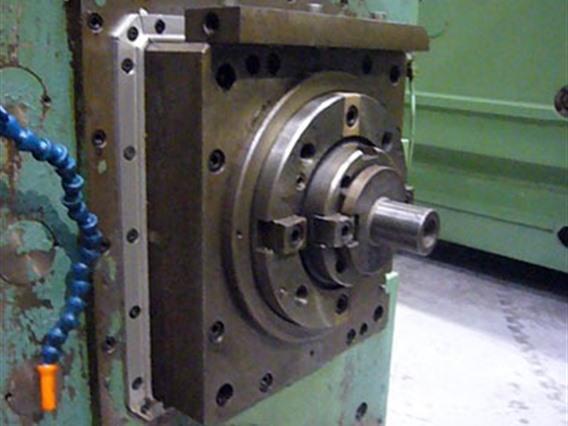

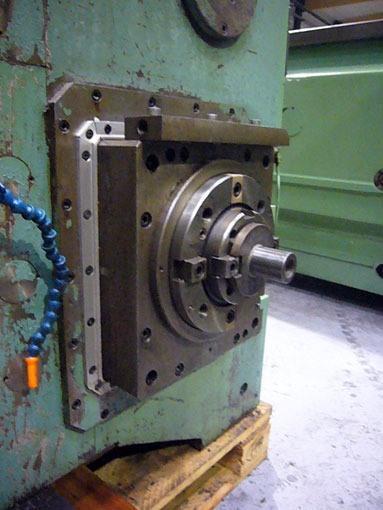

Extra Universal milling head (L-R:- 180°)
Type/Model: Crucifor C CNC
Stocknumber: F.01 3555
Main category: [F] Borers & Turningtables
Sub category: [F.01] Table type borers
Brand: Ernault & somua
